Installing a DHCP Server role on Windows Server 2008 R2 in a home network.

simeon
Download Presentation

Installing a DHCP Server role on Windows Server 2008 R2 in a home network.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

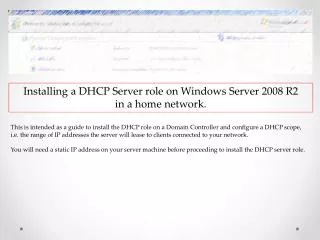

  1. This is intended as a guide to install the DHCP role on a Domain Controller and configure a DHCP scope, i.e. the range of IP addresses the server will lease to clients connected to your network.You will need a static IP address on your server machine before proceeding to install the DHCP server role. Installing a DHCP Server role on Windows Server 2008 R2 in a home network.

  2. Install the DHCP role Click on Add roles on the Initial Configuration window

  3. Select the box next to DHCP Server Click Next

  4. Click Next

  5. Here the wizard will look for a network card with a static IP address. There should be only one listed here. Make sure it is checked before proceeding. Click Next

  6. Enter the full domain name Enter the IP address of your DNS server. Click Next

  7. Select WINS is not required for applications on this network Click Next

  8. Click Add

  9. Configure the range of IP addresses to lease to clients Give the scope a name Enter the starting and ending IP address range Choose Wired Enter the full domain name Enter the default gateway IP address Click OK when you have entered everything above

  10. Click Next

  11. Disable IPv6 Click Next

  12. Use current credentials Click Next

  13. Review the summary to make sure everything is correct Click Install

  14. The installation should only take a few minutes.
