  1. ICNP 2006 Reducing Congestion Effects in Wireless Networks by Multipath Routing Presented by Dian Zhang Lucian Popa, Costin Raiciu, University of California, Berkeley

  2. Outline • Problem statement and assumptions • BGR • congestion control mechanism • IPS • EPS • Performance evaluation • Conclusions

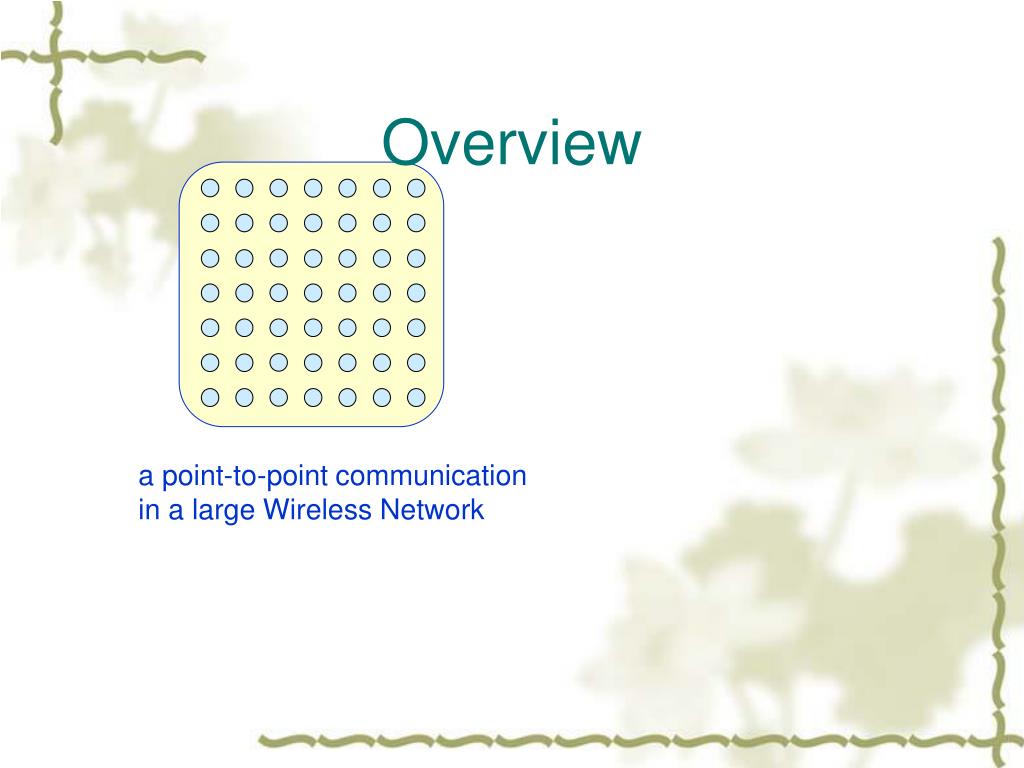

  3. Overview a point-to-point communication in a large Wireless Network

  4. Overview

  5. Overview Goal: Split flows and reduce congestion by having less traffic in a contention/interference area. • Improve overall throughput • Improve fairness

  6. Multipath Routing-related work • We need alternate paths to avoid congested hotspots • Existing solutions not satisfactory • Way points • Simple • Course Grained • Trajectory Based Forwarding [Niculescu03] • Fine Grained • Complex and resource consuming

  7. Biased Geographical Routing (BGR) • Idea • Insert a “bias” inside the packet as a measure of the deviation from the greedy path • Achieve different paths by using different biases large bias small bias bias = 0

  8. BGR Details • Bias = Angle • Route greedy towards a close by point projected at “bias” angle • Decrease bias at each step • Quadratic dependence on distance to destination • Stop decreasing when it reaches zero bias1 Destination

  9. BGR Details • Bias = Angle • Route greedy towards a close by point projected at “bias” angle • Decrease bias at each step • Quadratic dependence on distance to destination • Stop decreasing when it reaches zero bias2 Destination

  10. BGR Details • Bias = Angle • Route greedy towards a close by point projected at “bias” angle • Decrease bias at each step • Quadratic dependence on distance to destination • Stop decreasing when it reaches zero bias3 Destination

  11. Overview We propose two algorithms to deal with congestion 1. IPS - In-network Packet Scatter • Local algorithm • Lightweight – no per flow state • Suited for short flows or light congestion 2. EPS – End-to-end Packet Scatter • End to end – rate control, relies on receiver feedback • Suited for long flows and widespread congestion

  12. IPS (In-network packet scatter) Learn about congested neighbors

  13. IPS (In-network packet scatter) Deviate uniformly traffic to congested nodes on three paths

  14. EPS (End-to-end packet scatter) Destination Source

  15. EPS (End-to-end packet scatter) Destination Congested node Source

  16. EPS (End-to-end packet scatter) Destination feedback Source

  17. EPS (End-to-end packet scatter) Destination Source

  18. EPS (End-to-end packet scatter) Central path is prioritized Destination Exterior paths are less aggressive than the central one Source

  19. EPS (End-to-end packet scatter) Most traffic on least congested path Destination Source

  20. IPS+EPS • The two algorithms can be used • Independently • Combined

  21. ns2 setup • 400 nodes grid • 802.11 wireless • Random source-destination pairs • Success measured as received number of packets

  22. Throughput vs Hop Count Increase on AIMD(%)

  23. Throughput vs No. Transmissions

  24. Testbed • Mirage sensor network testbed • ~100 nodes • But too “narrow” – interference on one side • Thus, our main goal was to estimate in practice potential for throughput increase

  25. Testbed metodology • Throughput of vs

  26. Testbed results • % Increase in received packets for two BGR paths of 40 degree bias compared to single paths

  27. Conclusions • BGR • An efficient and practical multipath algorithm for wireless networks with location information • IPS, EPS • Two mechanisms to increase fairness and throughput by multipath routing • Practical tests

  28. ICNP 2006 Thank you!
