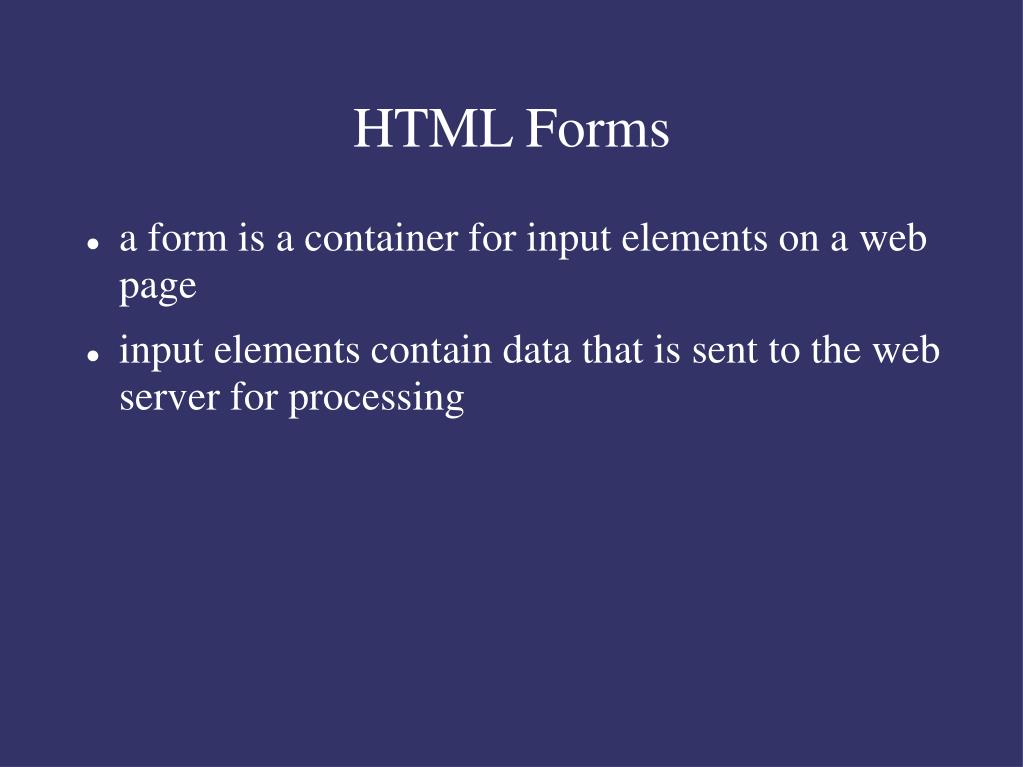

  1. HTML Forms • a form is a container for input elements on a web page • input elements contain data that is sent to the web server for processing

  2. <form action=”/cgi-bin/register_user” method=”post”> ... </form> • action – cgi script to be executed on the server side • method – POST or GET specifies how the input values are delivered to the cgi script

  3. Input controls • <input> - text, radio buttons, checkboxes, files, hidden, passwords • <button> - buttons • <textarea> - multiline text • <select> - drop down list

  4. <input type=”text”> • attributes: • name – control name • value – intial value • size – initial display width (in characters) • maxlength – maximum number of characters a user may enter

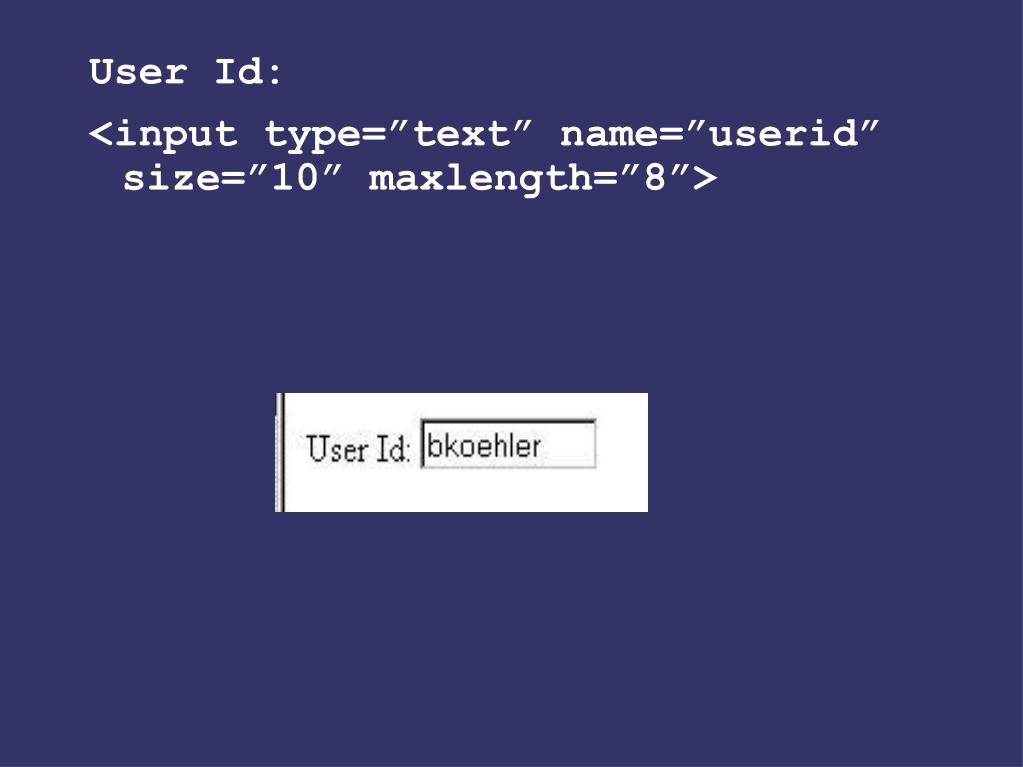

  5. User Id: <input type=”text” name=”userid” size=”10” maxlength=”8”>

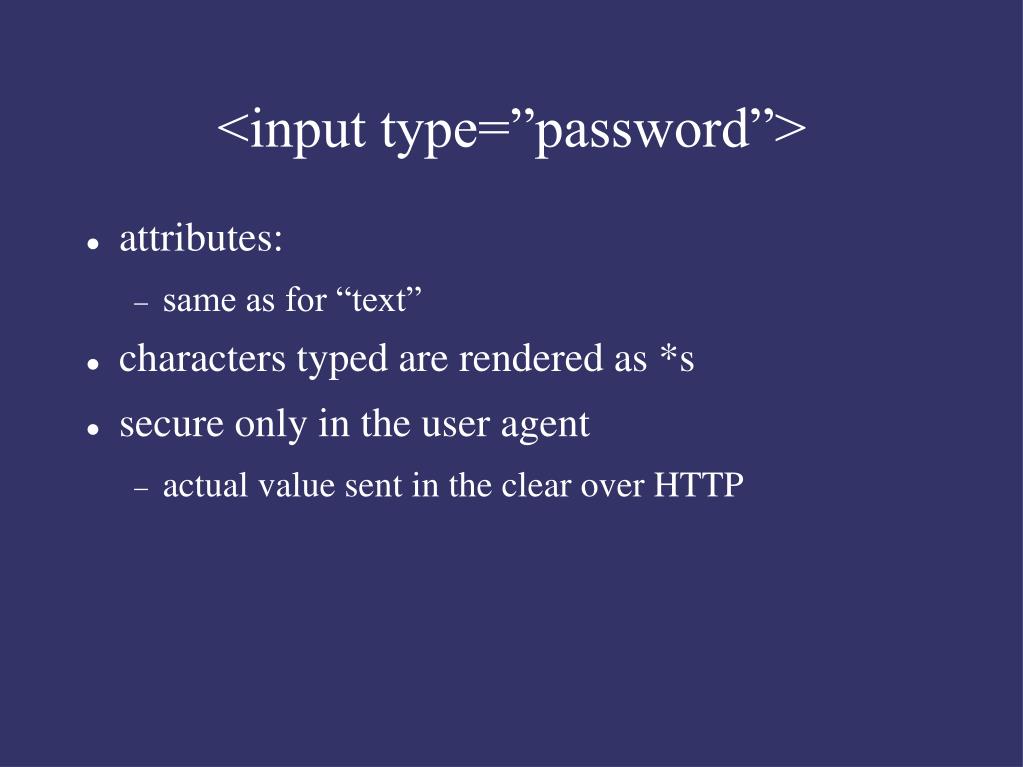

  6. <input type=”password”> • attributes: • same as for “text” • characters typed are rendered as *s • secure only in the user agent • actual value sent in the clear over HTTP

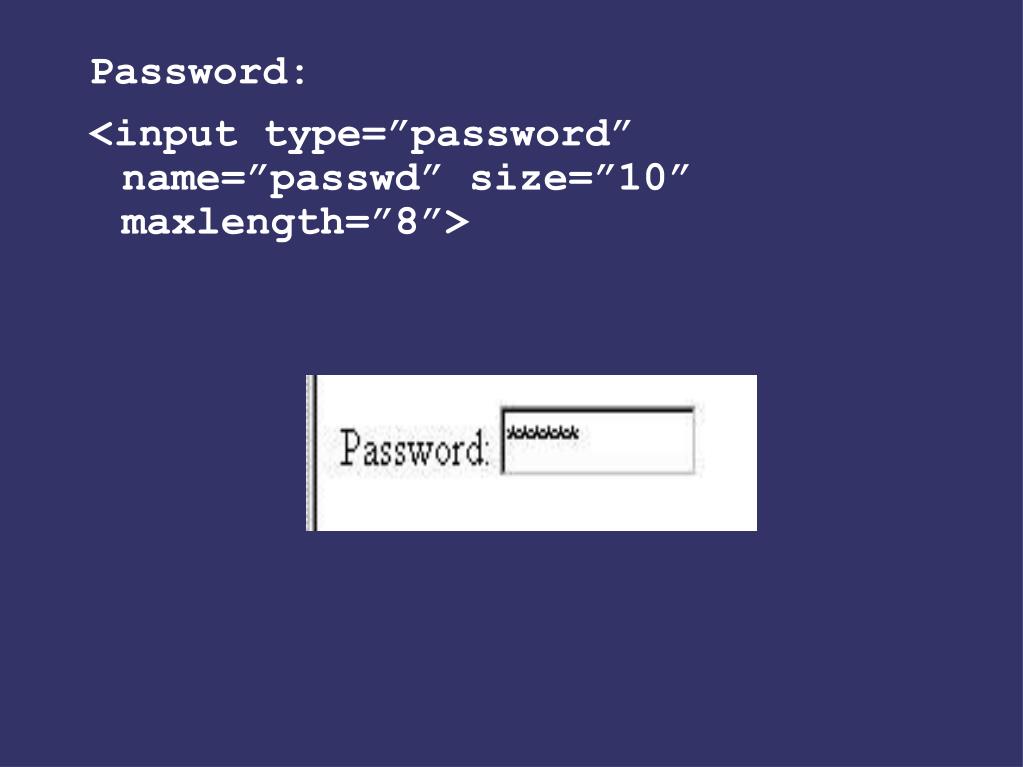

  7. Password: <input type=”password” name=”passwd” size=”10” maxlength=”8”>

  8. <input type=”hidden”> • like text except the field isn't rendered in the browser and the user can't interact with it • attributes: • name – control name • value – initial (and only value)

  9. <input type="hidden" name="secret" value="ssshhh!">

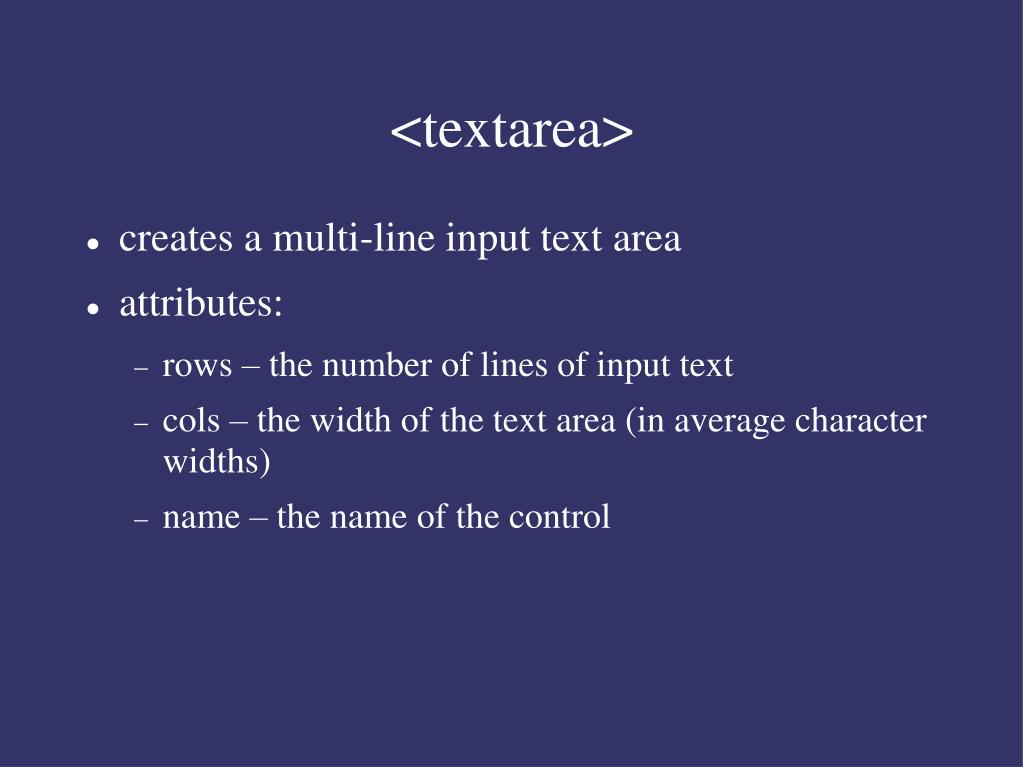

  10. <textarea> • creates a multi-line input text area • attributes: • rows – the number of lines of input text • cols – the width of the text area (in average character widths) • name – the name of the control

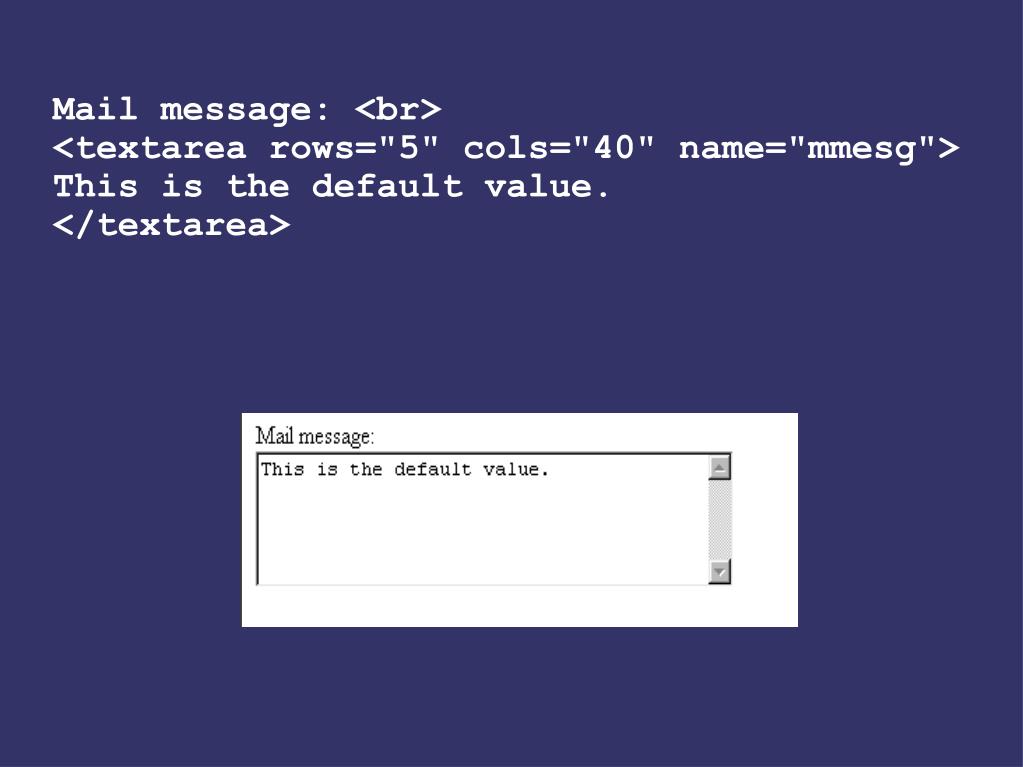

  11. Mail message: <br> <textarea rows="5" cols="40" name="mmesg"> This is the default value. </textarea>

  12. <input type=”radio”> • creates a radio button • a mutually exclusive group is created by creating several elements with the same name attribute • attributes: • name – control name • value – value associated with selected radio button • checked – initial state of the button

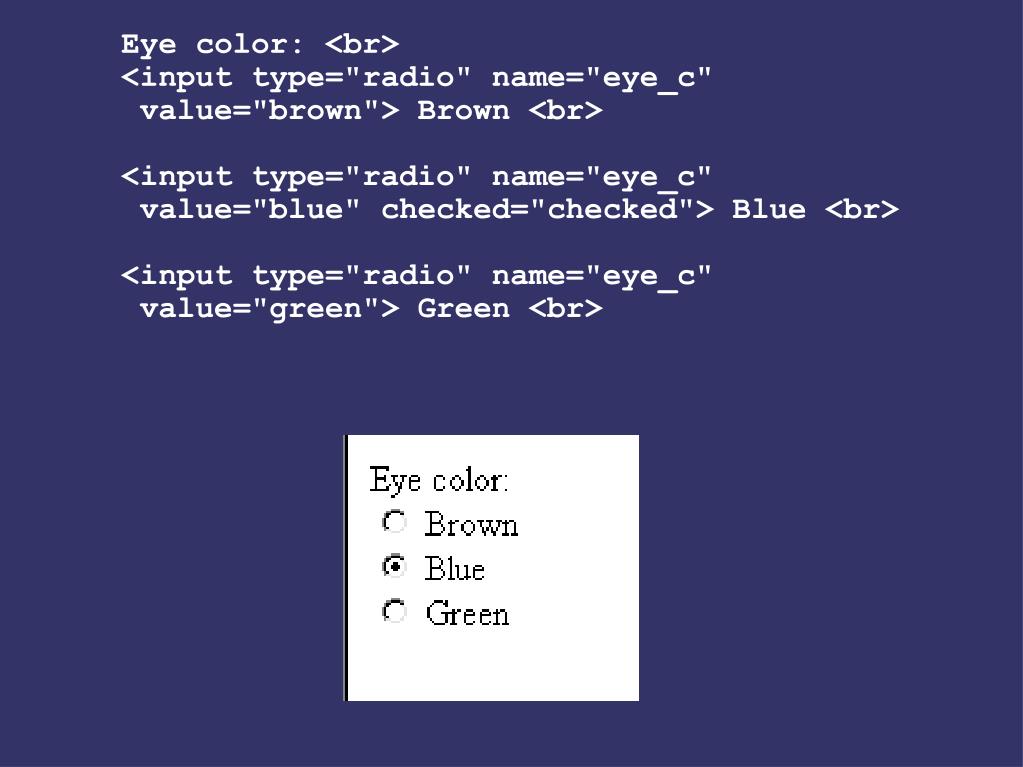

  13. Eye color: <br> <input type="radio" name="eye_c" value="brown"> Brown <br> <input type="radio" name="eye_c" value="blue" checked="checked"> Blue <br> <input type="radio" name="eye_c" value="green"> Green <br>

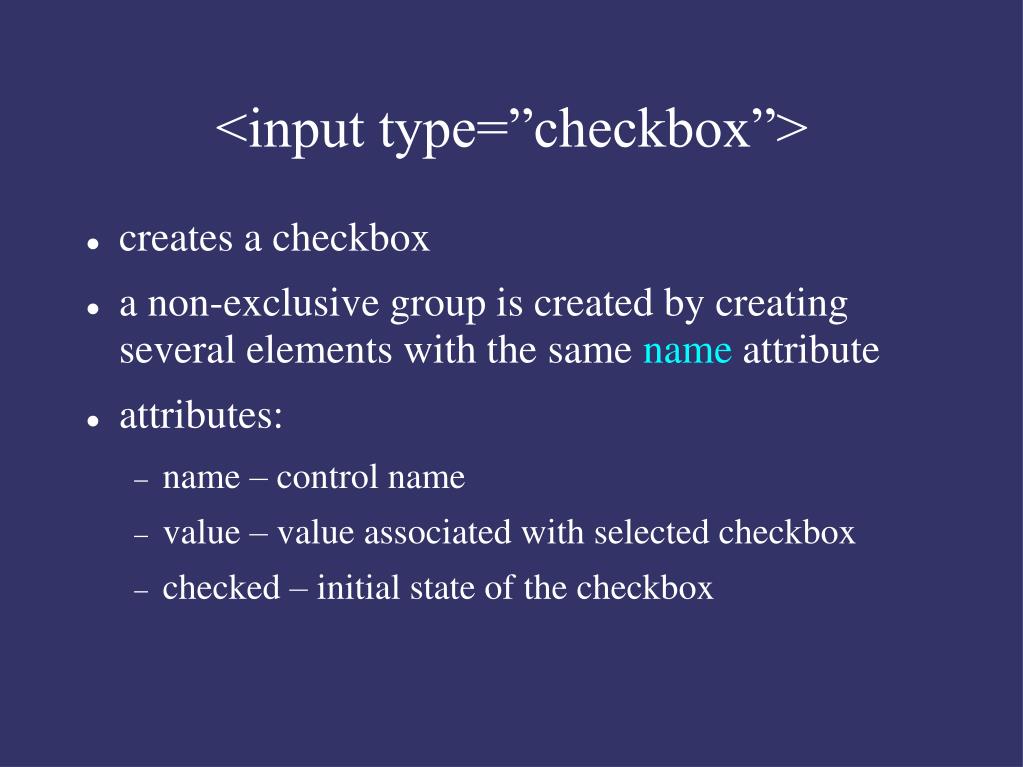

  14. <input type=”checkbox”> • creates a checkbox • a non-exclusive group is created by creating several elements with the same name attribute • attributes: • name – control name • value – value associated with selected checkbox • checked – initial state of the checkbox

  15. Favourite Foods: <br> <input type="checkbox" name="ffood" value="tofu"> Tofu <br> <input type="checkbox" name="ffood" value="lentils"> Lentils <br> <input type="checkbox" name="ffood" value="steak"> Steak <br>

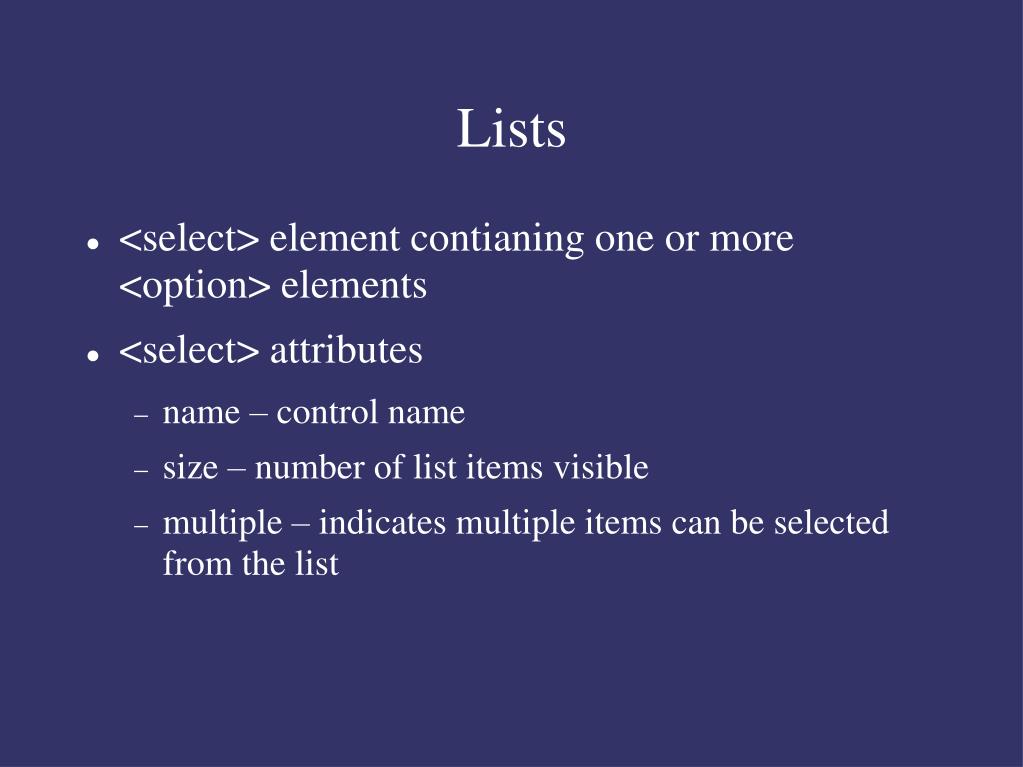

  16. Lists • <select> element contianing one or more <option> elements • <select> attributes • name – control name • size – number of list items visible • multiple – indicates multiple items can be selected from the list

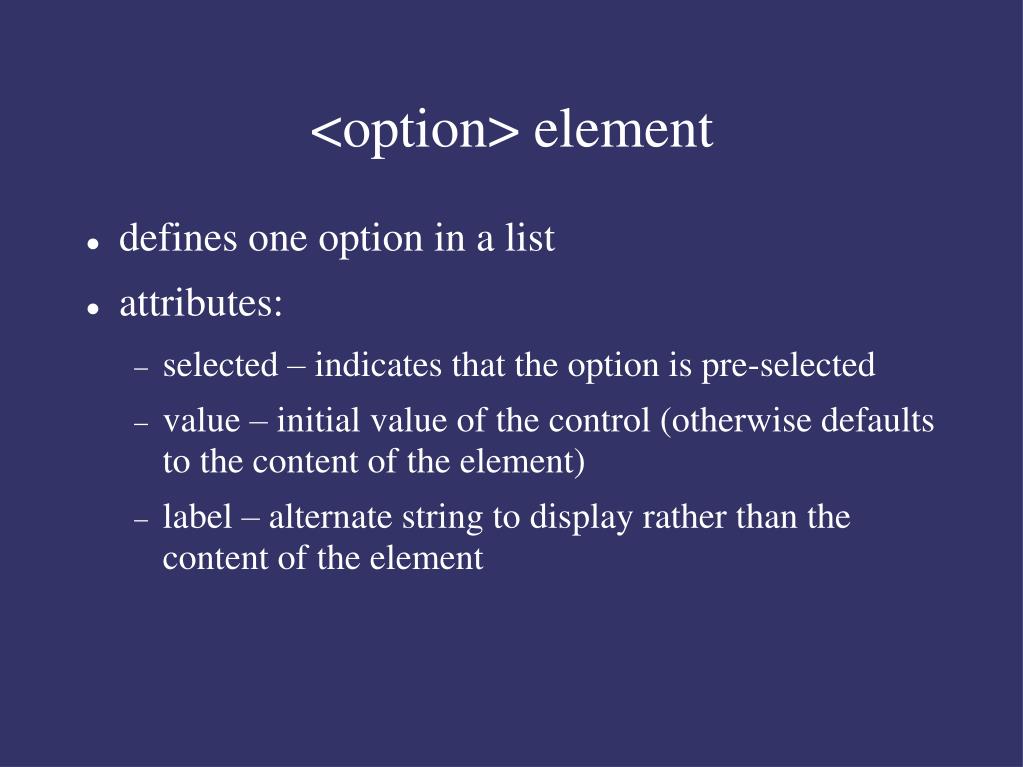

  17. <option> element • defines one option in a list • attributes: • selected – indicates that the option is pre-selected • value – initial value of the control (otherwise defaults to the content of the element) • label – alternate string to display rather than the content of the element

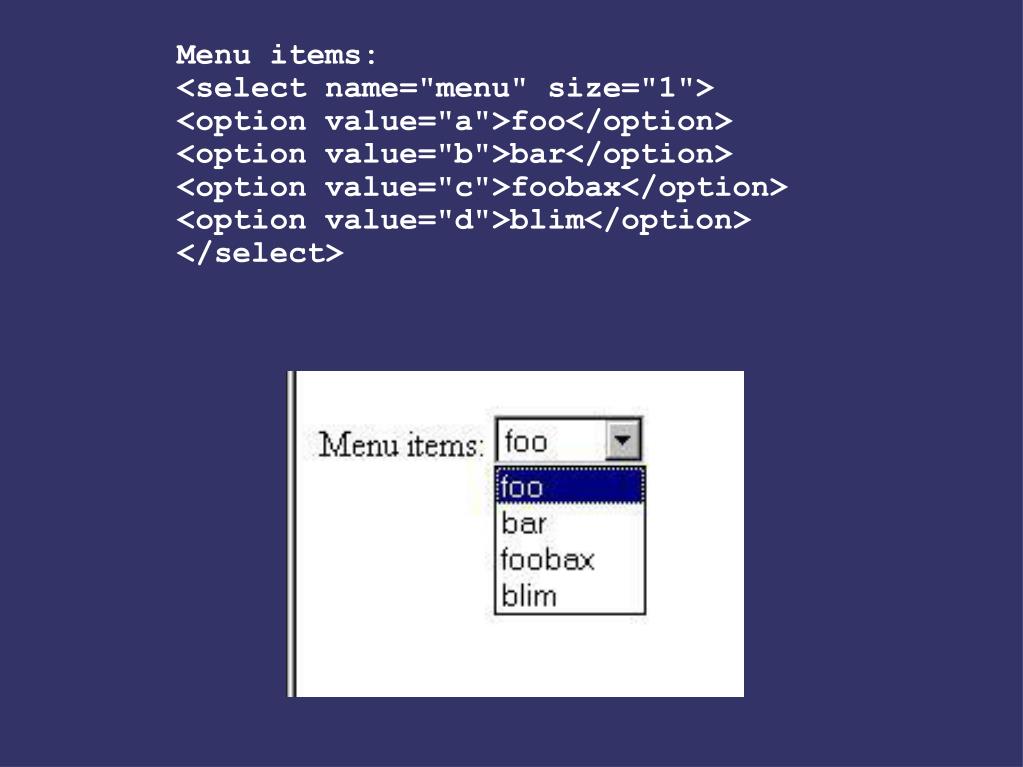

  18. Menu items: <select name="menu" size="1"> <option value="a">foo</option> <option value="b">bar</option> <option value="c">foobax</option> <option value="d">blim</option> </select>

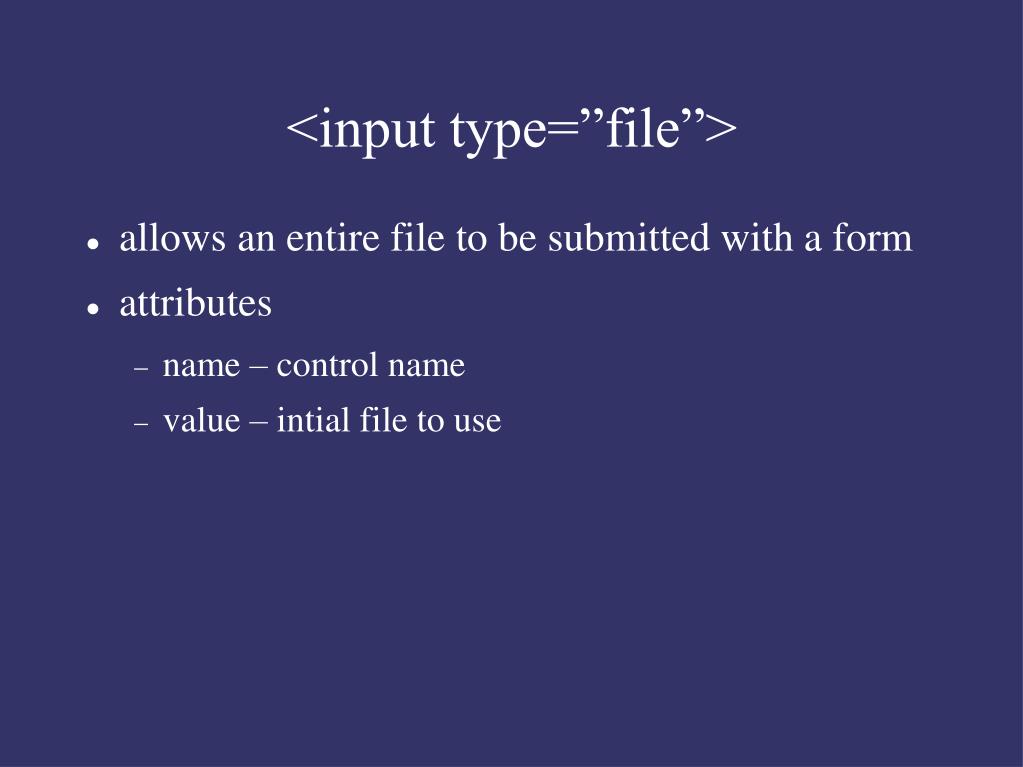

  19. <input type=”file”> • allows an entire file to be submitted with a form • attributes • name – control name • value – intial file to use

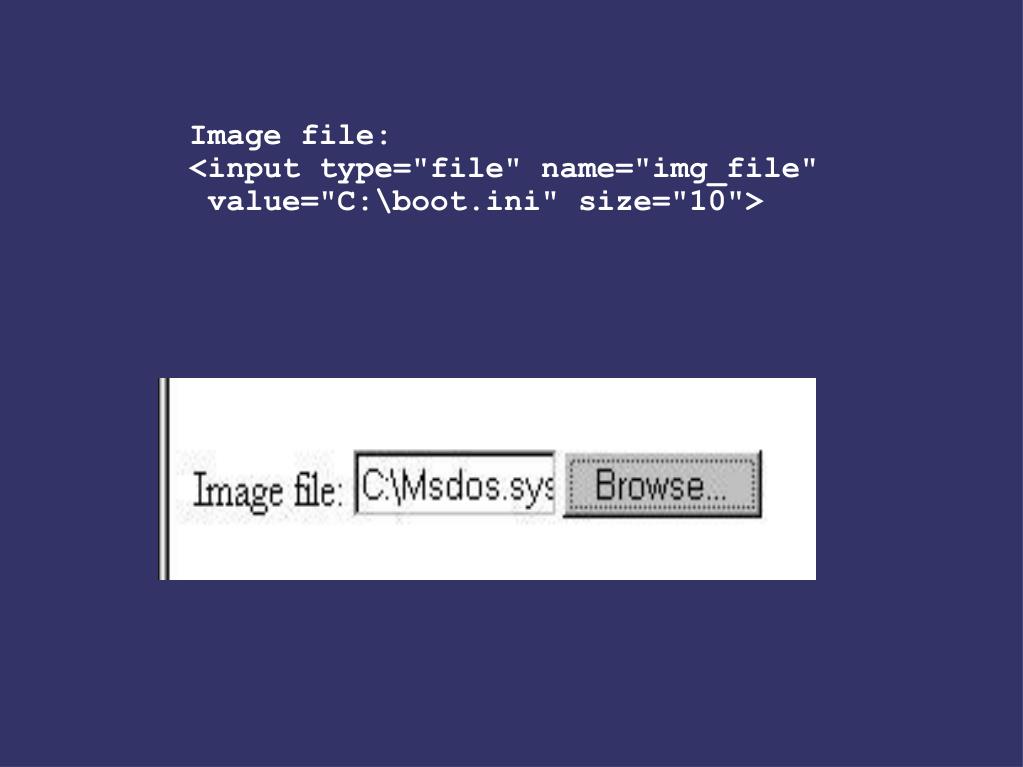

  20. Image file: <input type="file" name="img_file" value="C:\boot.ini" size="10">

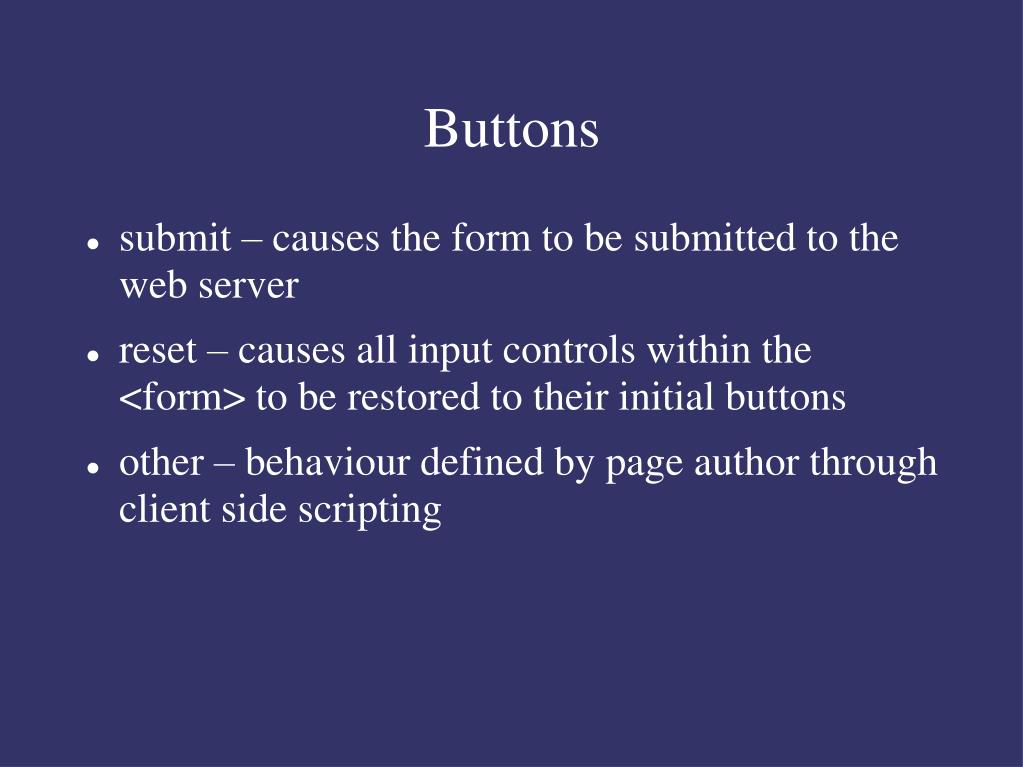

  21. Buttons • submit – causes the form to be submitted to the web server • reset – causes all input controls within the <form> to be restored to their initial buttons • other – behaviour defined by page author through client side scripting

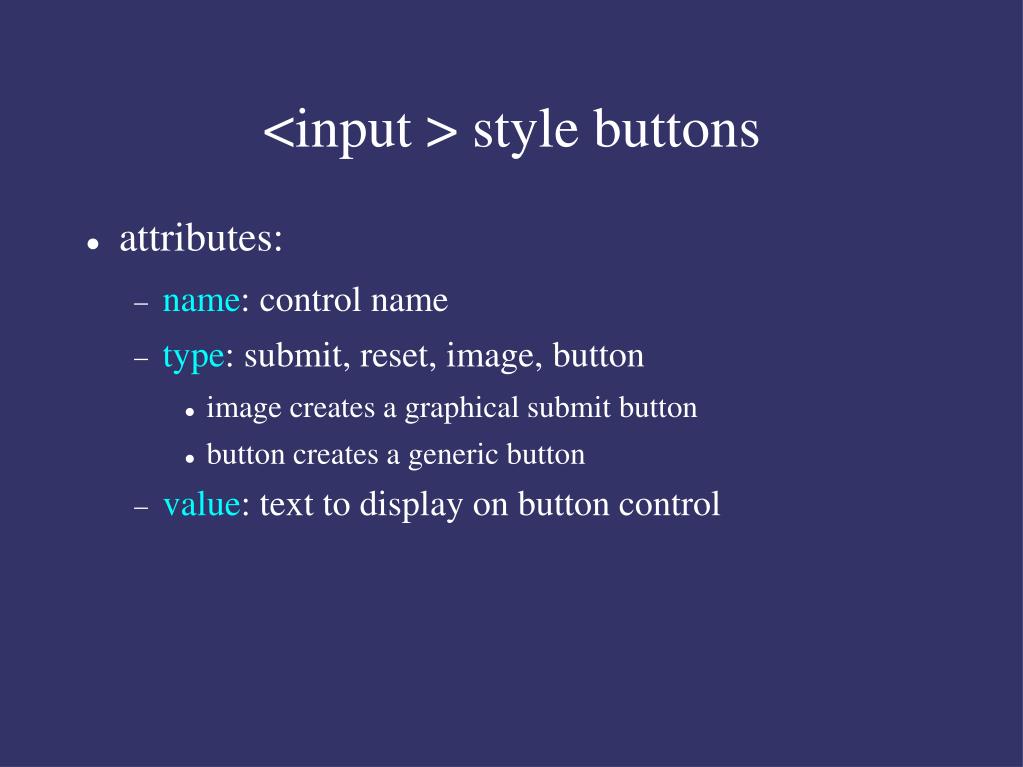

  22. <input > style buttons • attributes: • name: control name • type: submit, reset, image, button • image creates a graphical submit button • button creates a generic button • value: text to display on button control

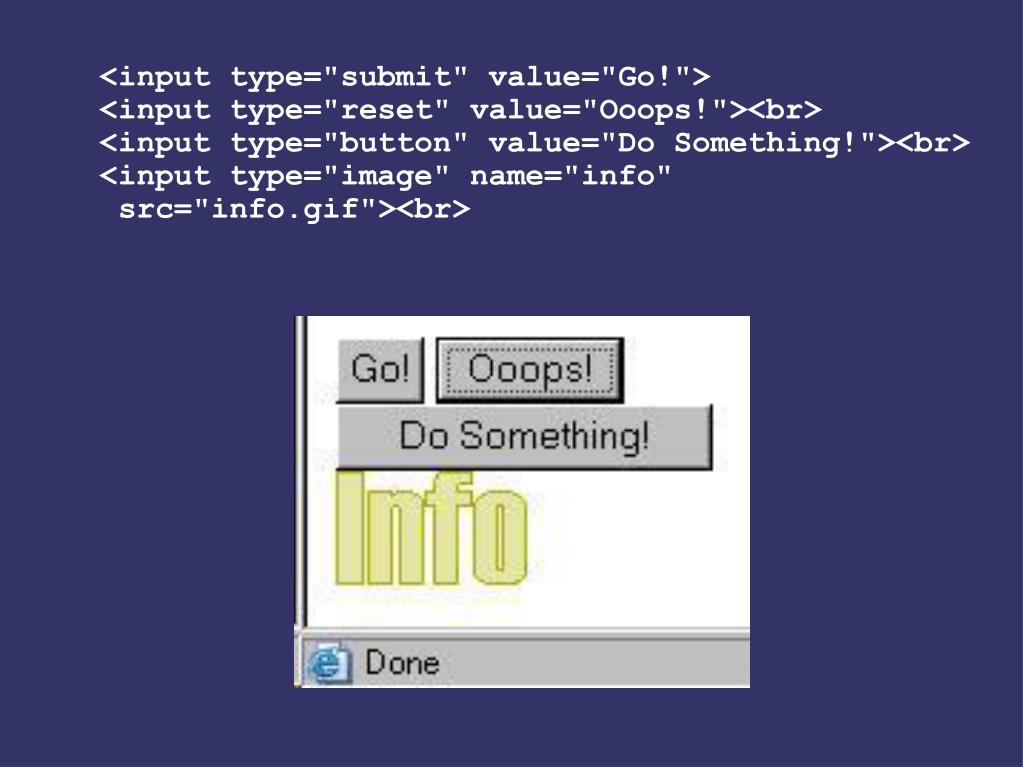

  23. <input type="submit" value="Go!"> <input type="reset" value="Ooops!"><br> <input type="button" value="Do Something!"><br> <input type="image" name="info" src="info.gif"><br>

  24. HTML5 features • placeholder attribute • date, time, email, url, color, etc. input types
