  1. Statistical Cross-Matching Across Distributed Archives H.-M. Adorf & GAVO Team MPI f. extraterrestrische Physik adorf@mpe.mpg.de

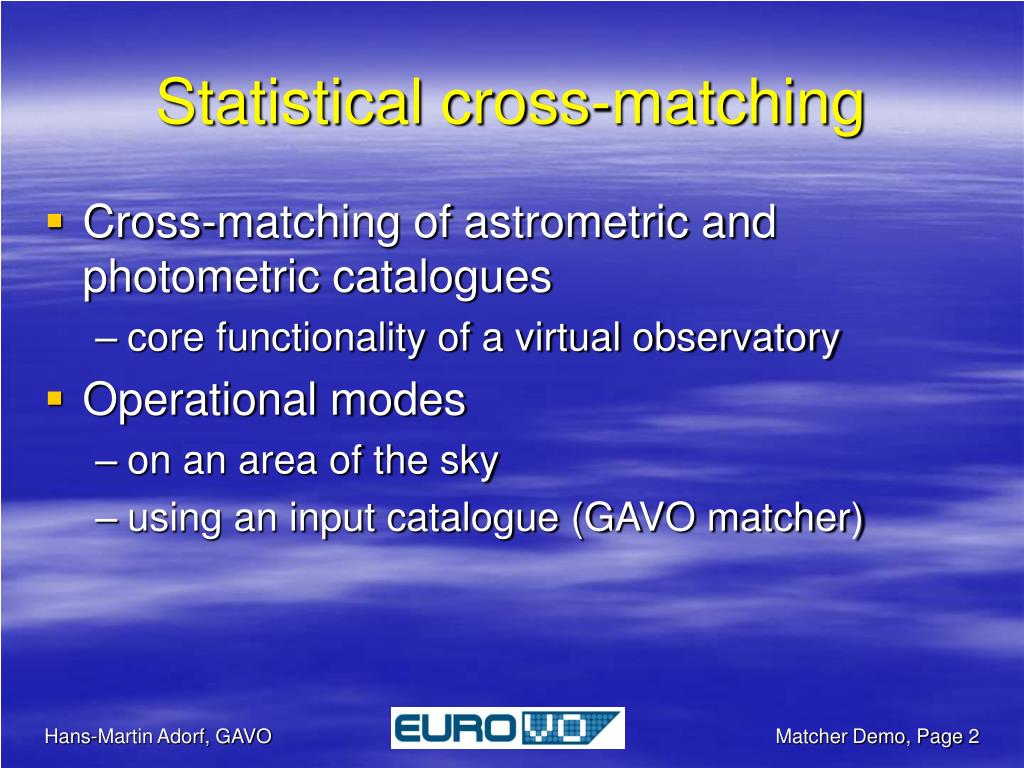

  2. Statistical cross-matching • Cross-matching of astrometric and photometric catalogues • core functionality of a virtual observatory • Operational modes • on an area of the sky • using an input catalogue (GAVO matcher)

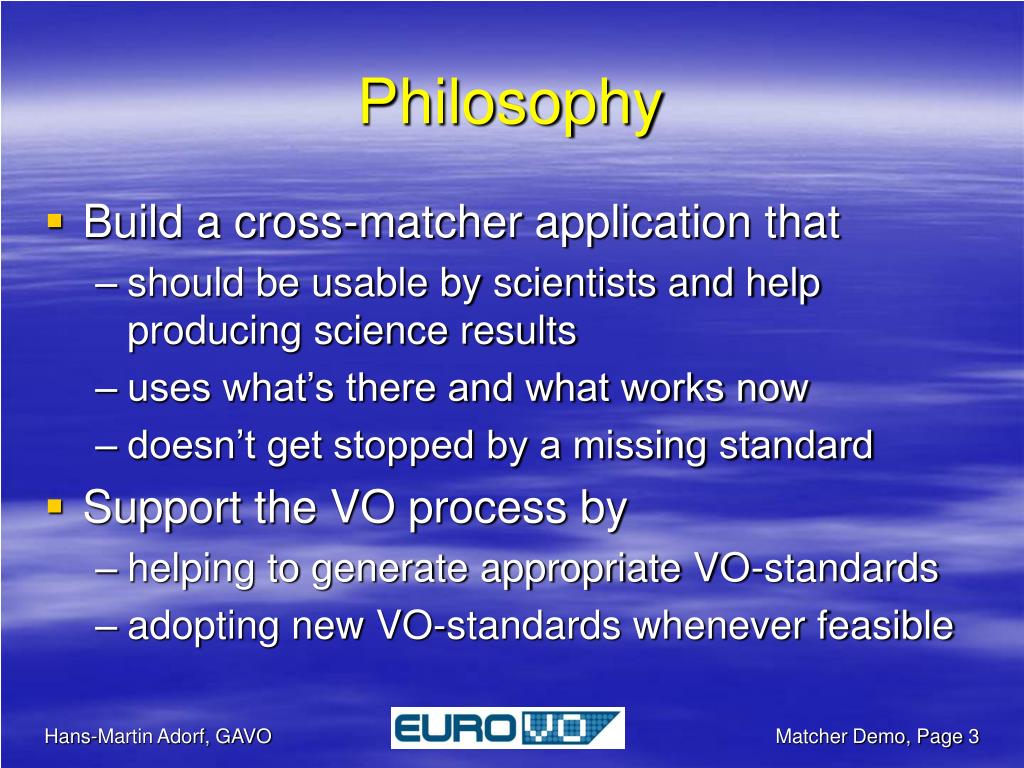

  3. Philosophy • Build a cross-matcher application that • should be usable by scientists and help producing science results • uses what’s there and what works now • doesn’t get stopped by a missing standard • Support the VO process by • helping to generate appropriate VO-standards • adopting new VO-standards whenever feasible

  4. Querying remote archives • Movie

  5. Querying remote archives • Movie • Using up to 10 servers • distributed around the world • operating in parallel • Sneak preview of grid computing • Locally specify your tasks • Execute them remotely at the data centers • Receive results locally for final combination

  6. Software demo (#1) • Input list • 67 galaxies from FIRST radio catalogue • Query • 2 remote archives: SDSS, VizieR • 20 catalogues: radio, infrared, optical, X-ray • Task • get counterparts for each input coordinate • gather counterparts to form reasonable matches

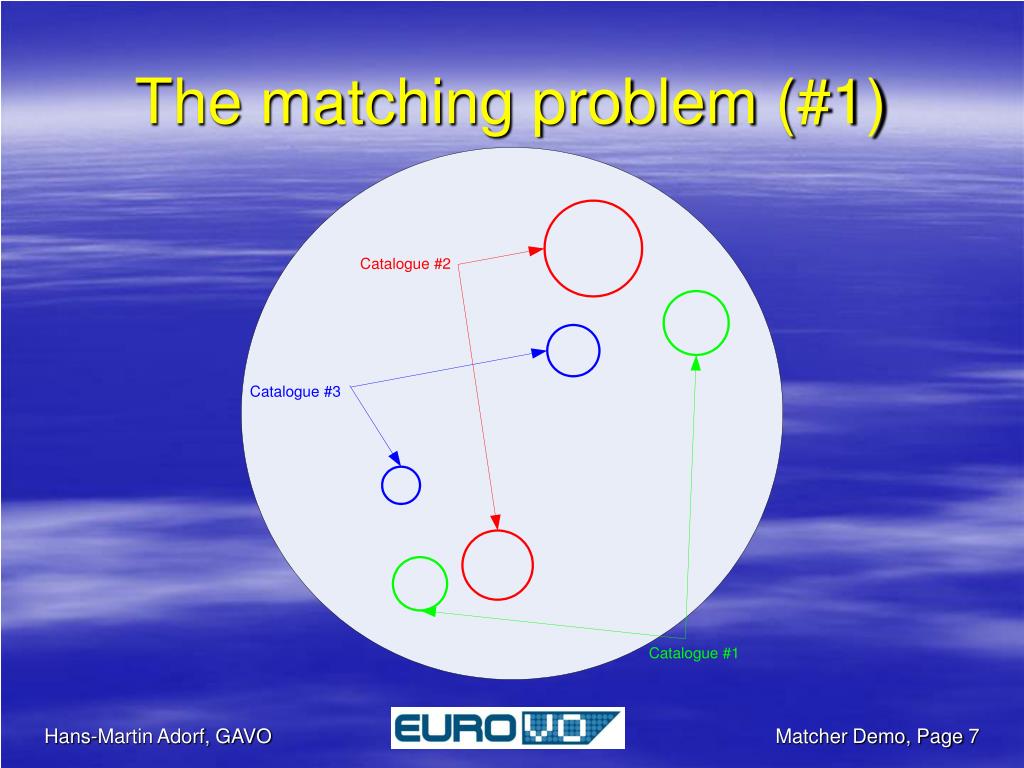

  7. The matching problem (#1)

  8. The matching problem (#2)

  9. Matcher workflow

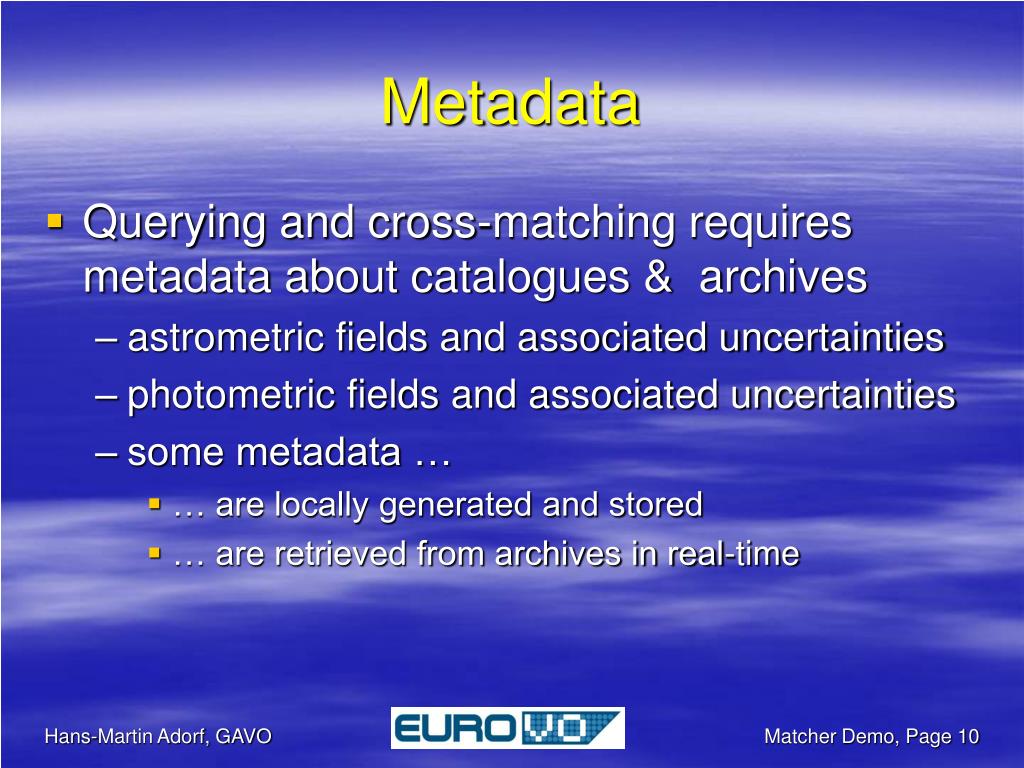

  10. Metadata • Querying and cross-matching requires metadata about catalogues & archives • astrometric fields and associated uncertainties • photometric fields and associated uncertainties • some metadata … • … are locally generated and stored • … are retrieved from archives in real-time

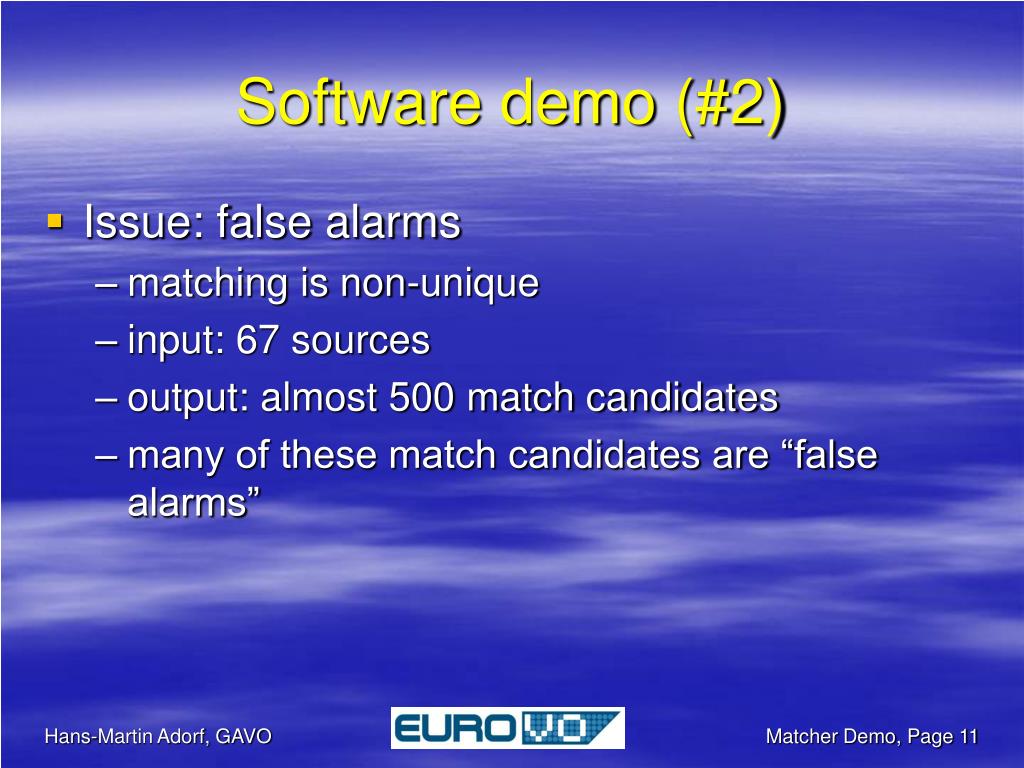

  11. Software demo (#2) • Issue: false alarms • matching is non-unique • input: 67 sources • output: almost 500 match candidates • many of these match candidates are “false alarms”

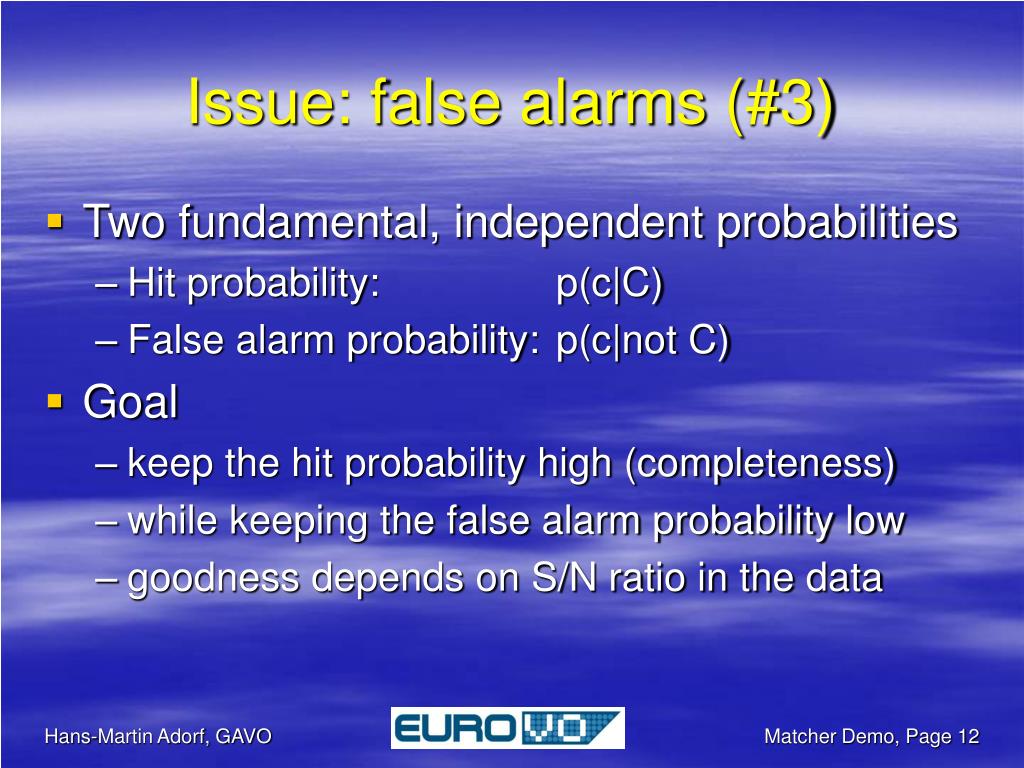

  12. Issue: false alarms (#3) • Two fundamental, independent probabilities • Hit probability: p(c|C) • False alarm probability: p(c|not C) • Goal • keep the hit probability high (completeness) • while keeping the false alarm probability low • goodness depends on S/N ratio in the data

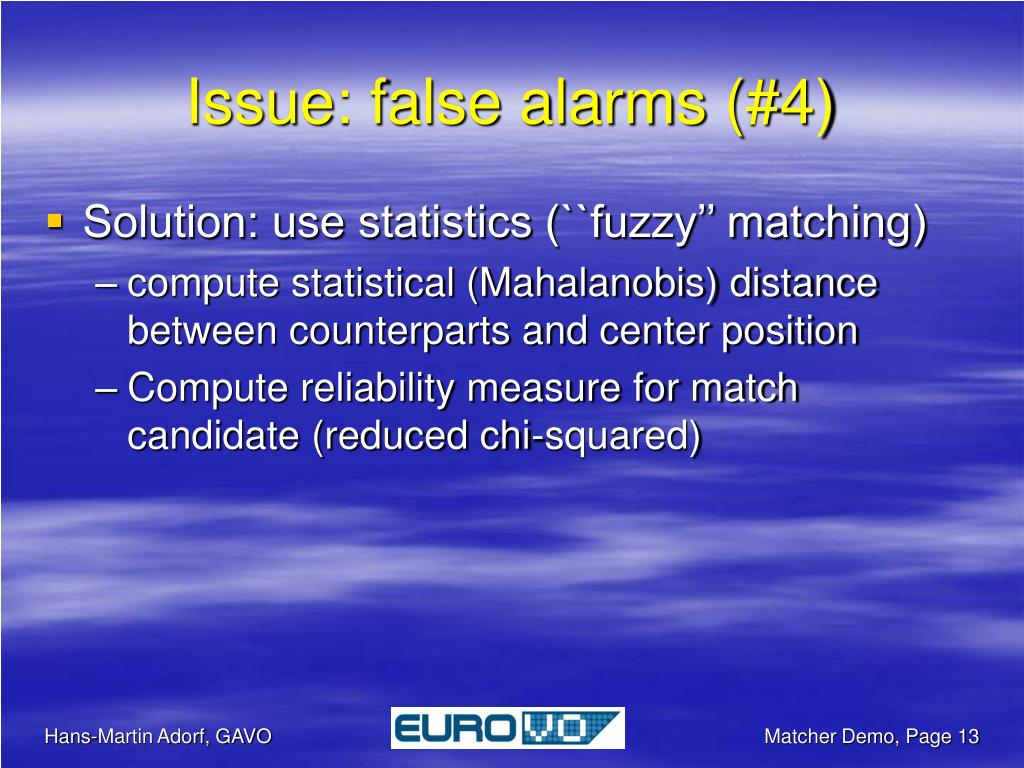

  13. Issue: false alarms (#4) • Solution: use statistics (``fuzzy’’ matching) • compute statistical (Mahalanobis) distance between counterparts and center position • Compute reliability measure for match candidate (reduced chi-squared)

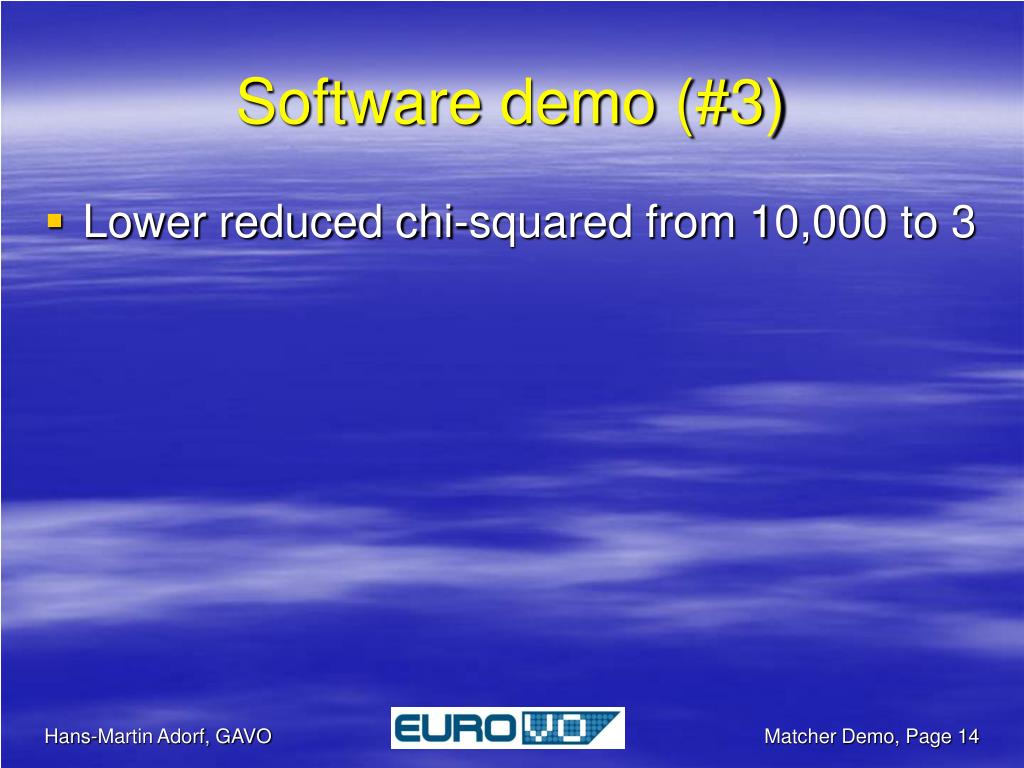

  14. Software demo (#3) • Lower reduced chi-squared from 10,000 to 3

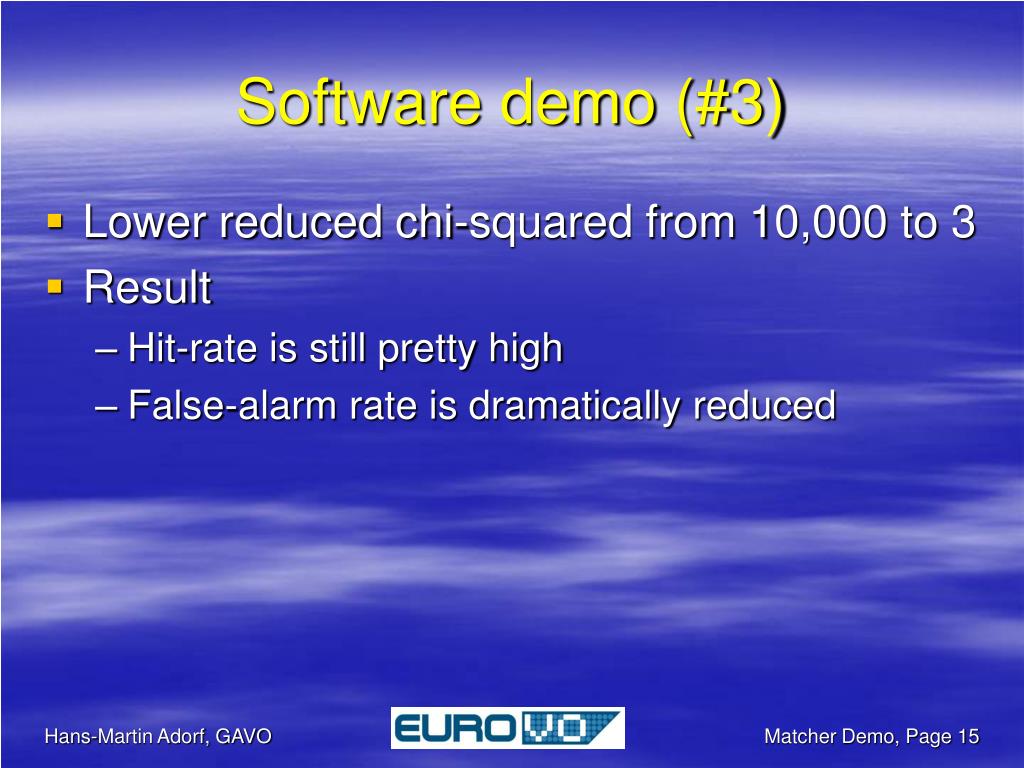

  15. Software demo (#3) • Lower reduced chi-squared from 10,000 to 3 • Result • Hit-rate is still pretty high • False-alarm rate is dramatically reduced

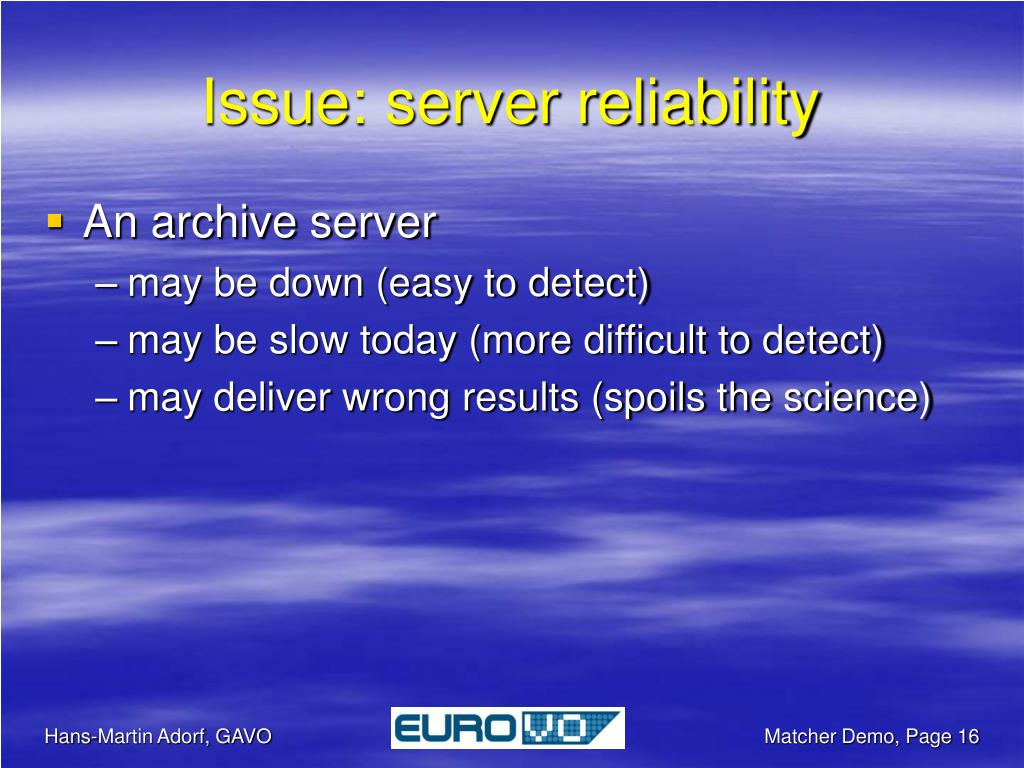

  16. Issue: server reliability • An archive server • may be down (easy to detect) • may be slow today (more difficult to detect) • may deliver wrong results (spoils the science)

  17. VO Standards • Status • Input • CSV files for data • XML files for query & match process description • Sending plain HTTP/HTML to archive servers • Receiving • CSV file from SDSS SkyServer • VOTable from VizieR (VO-Std) • Output • VOTable with complete match result (VO-Std) - VOPlot • various CSV files

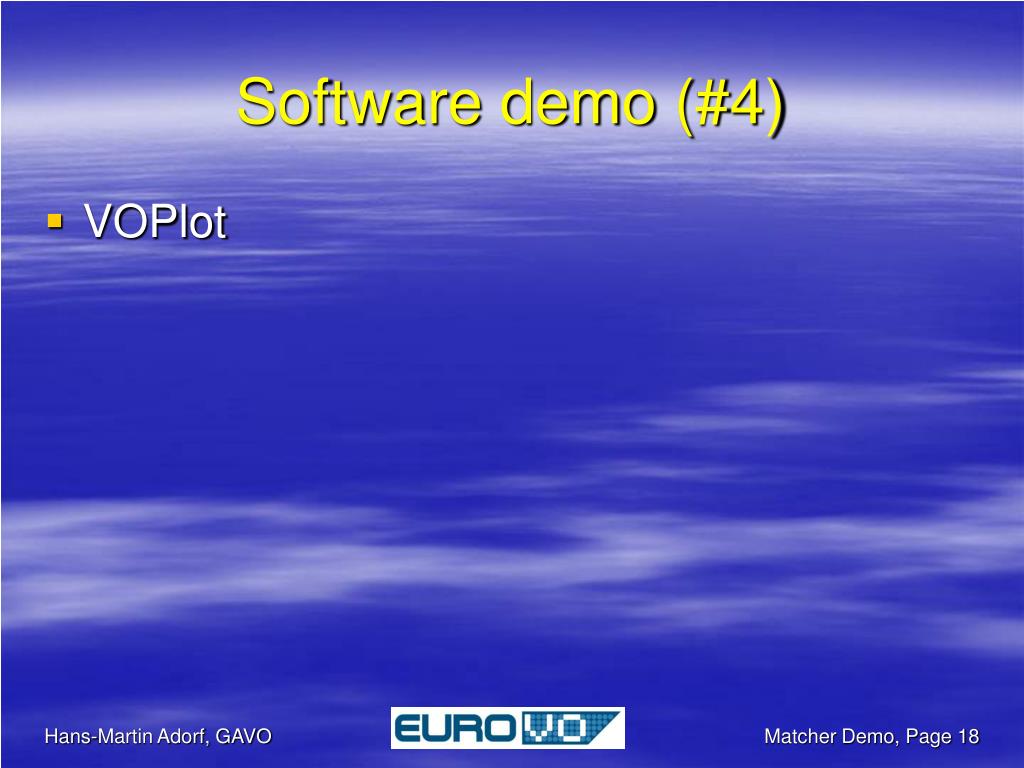

  18. Software demo (#4) • VOPlot

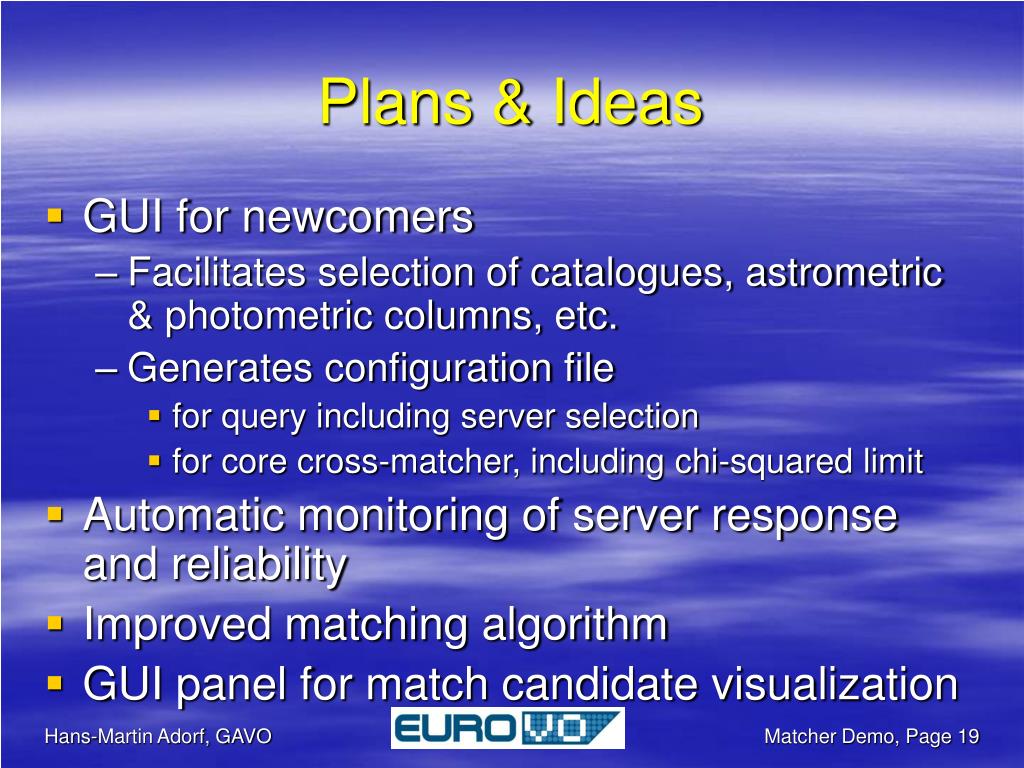

  19. Plans & Ideas • GUI for newcomers • Facilitates selection of catalogues, astrometric & photometric columns, etc. • Generates configuration file • for query including server selection • for core cross-matcher, including chi-squared limit • Automatic monitoring of server response and reliability • Improved matching algorithm • GUI panel for match candidate visualization

  20. Summary • Shown a working cross-matcher application • Operates with distributed archives queried in parallel • Demonstrated that • fuzzy matching is needed • reduced chi-squared is a powerful statistical discriminator • High hit-probability, low false-alarm probability • GAVO cross-matcher currently being used in a first science application

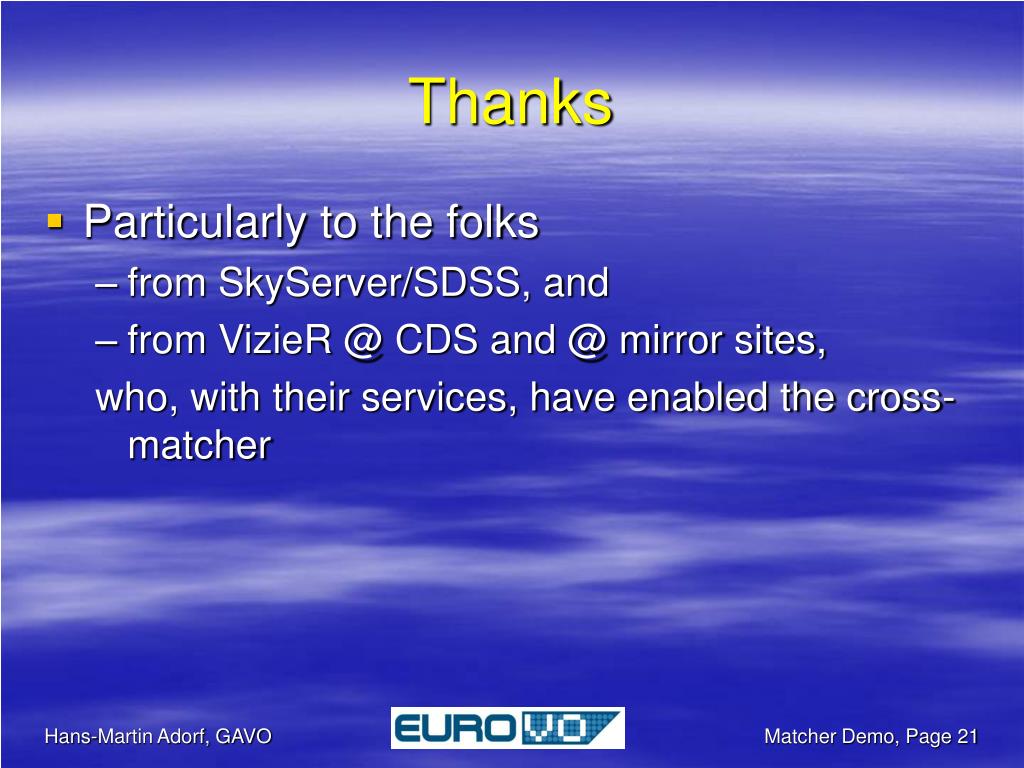

  21. Thanks • Particularly to the folks • from SkyServer/SDSS, and • from VizieR @ CDS and @ mirror sites, who, with their services, have enabled the cross-matcher

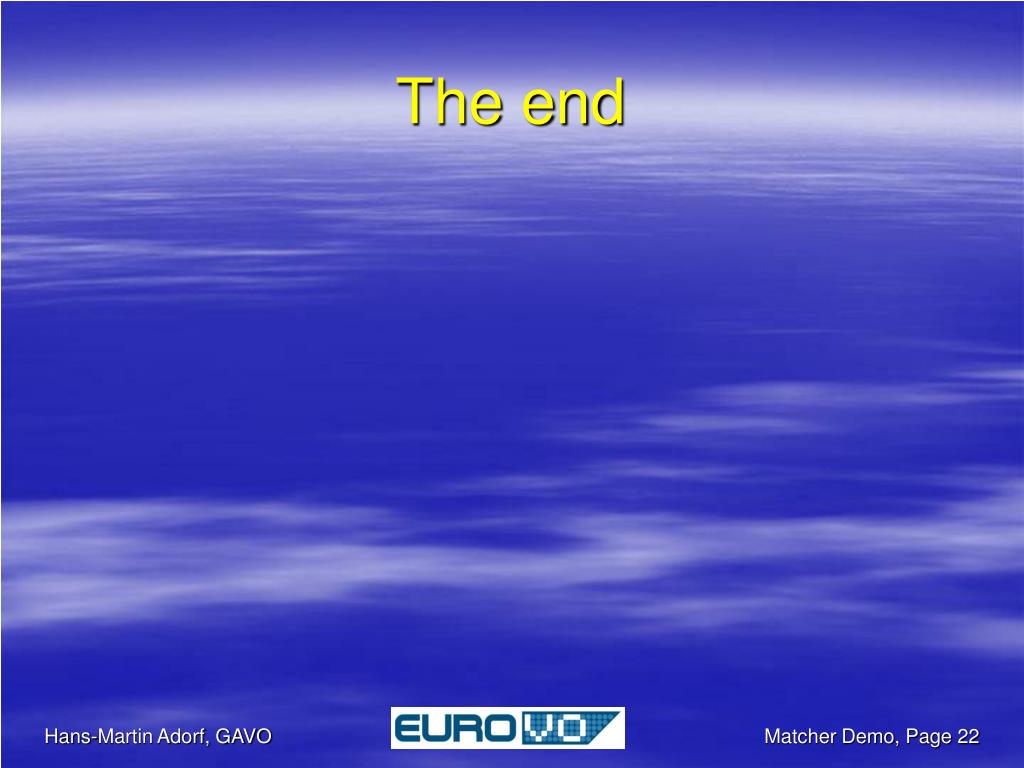

  22. The end

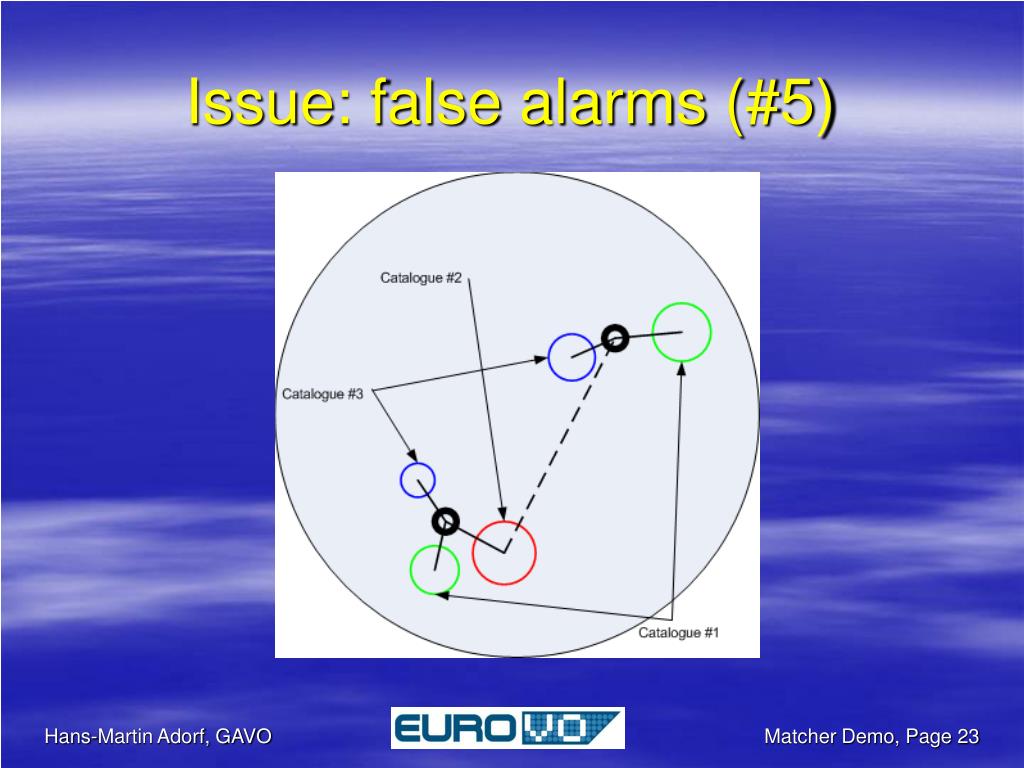

  23. Issue: false alarms (#5)

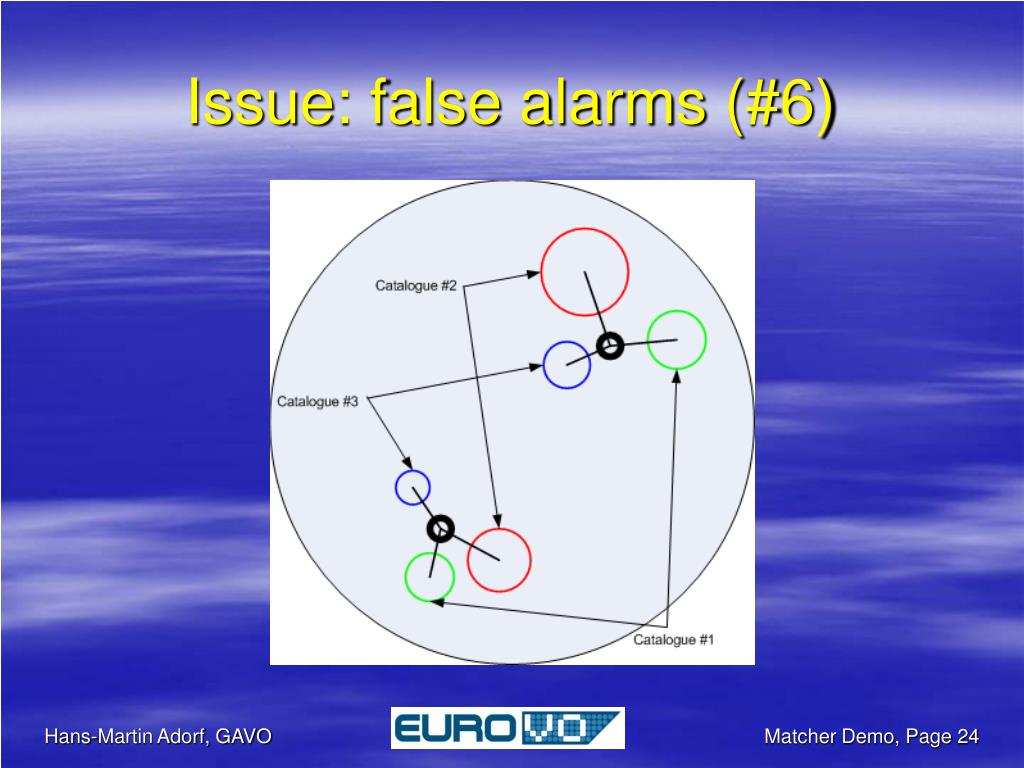

  24. Issue: false alarms (#6)

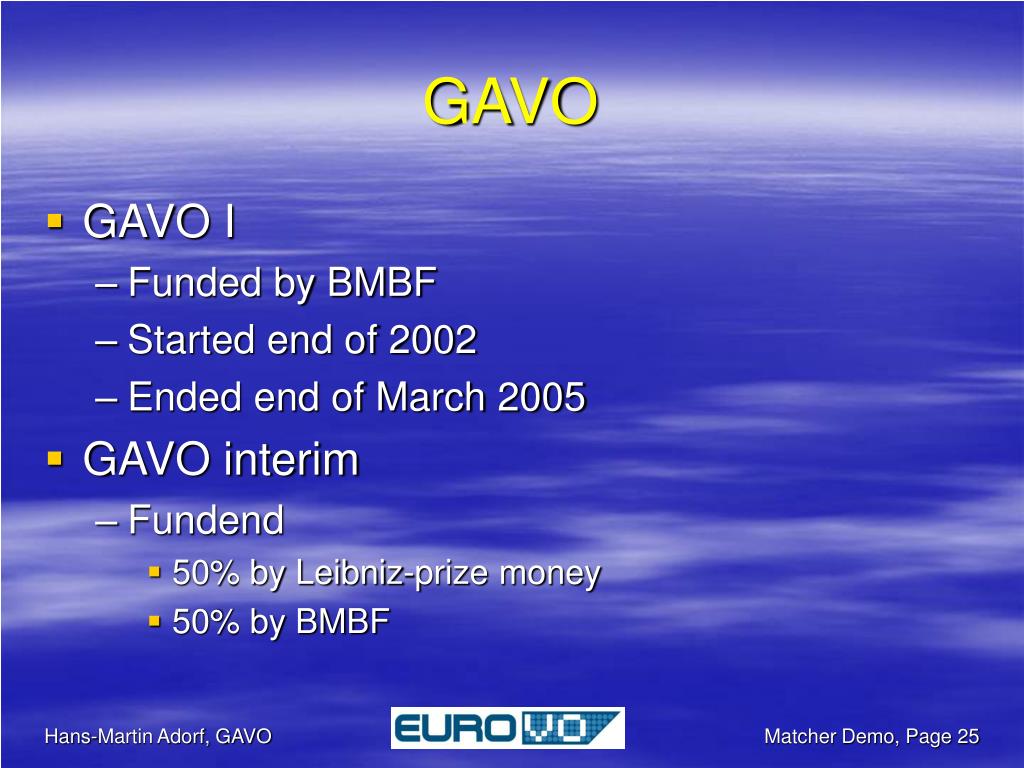

  25. GAVO • GAVO I • Funded by BMBF • Started end of 2002 • Ended end of March 2005 • GAVO interim • Fundend • 50% by Leibniz-prize money • 50% by BMBF

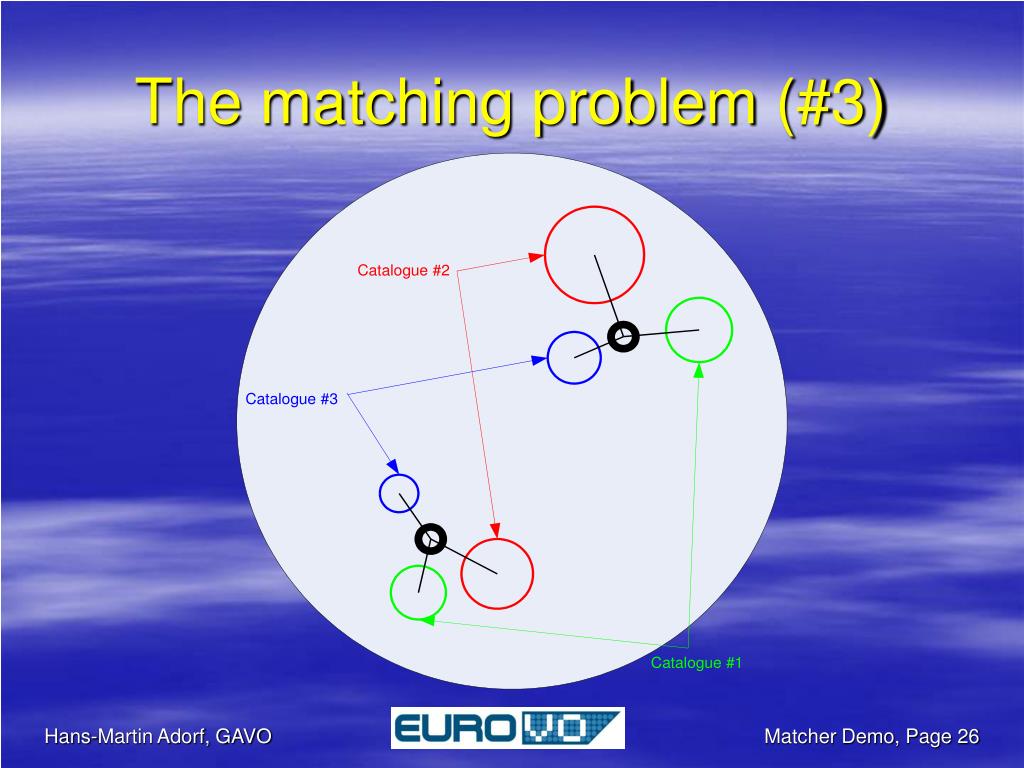

  26. The matching problem (#3)
