  1. Safeguards/NDA Specialized Instruments and Software Solutions

  2. Safeguards and NDA Products • ISO-CART • ISOTOPIC • M-1-B32 • Not exclusively for safeguards or non-destructive assay but also applicable to environmental analyses

  3. ORTEC - ANTECH Alliance • Expands ORTEC’s range of nuclear safeguards and non destructive assay products to include instruments such as..

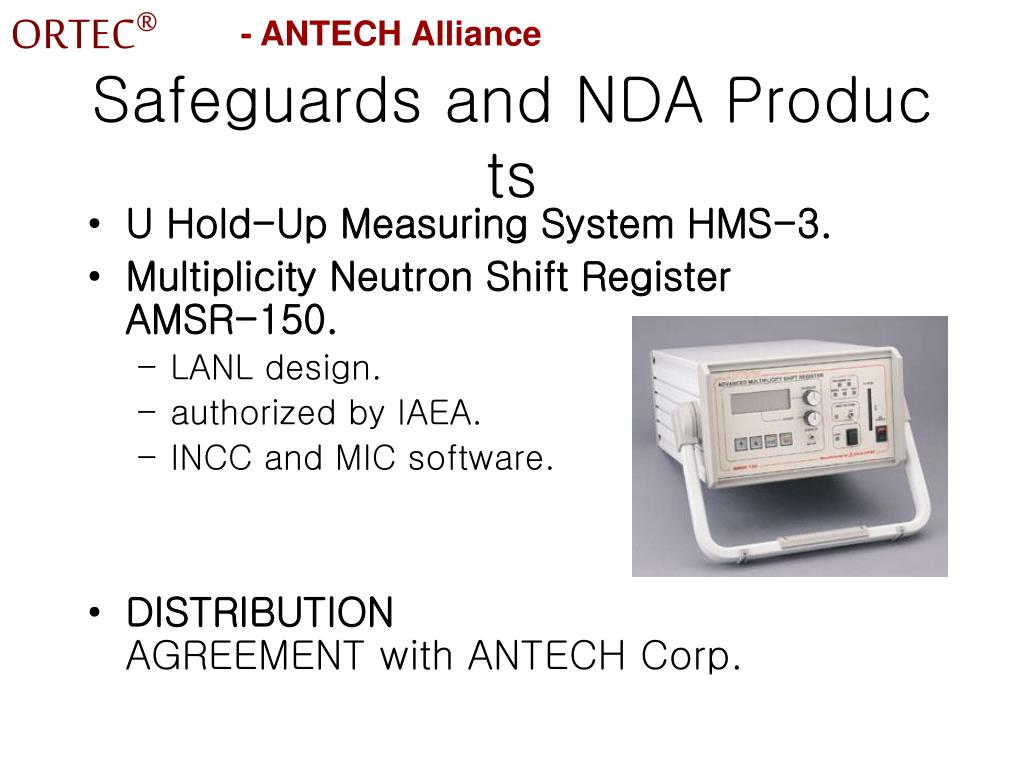

  4. - ANTECH Alliance Safeguards and NDA Products • U Hold-Up Measuring System HMS-3. • Multiplicity Neutron Shift RegisterAMSR-150. • LANL design. • authorized by IAEA. • INCC and MIC software. • DISTRIBUTIONAGREEMENT with ANTECH Corp.

  5. - ANTECH Alliance ANTECH – Product Range Transportable Calorimeters • Small sample Twin Cell microwatt Calorimeter • Large sample Pu Calorimeter • Tritium Calorimeter • Multiple Sample Preheating Units NEW www.antech-inc.com

  6. - ANTECH Alliance ANTECH– Product Range Neutron Measurements • Time Correlation Analyser (TCA) • Advanced Multiplicity Shift Register (AMSR 150) • Passive Neutron Packet Counter • Passive Neutron Drum Monitor • Combined Passive Neutron/Gamma isotopic Drum Monitor • SuperHENC Box and Crate Counter • Active Well Coincidence Counter • Fission-Fission Neutron Correlation System NEW NEW NEW NEW NEW www.antech-inc.com

  7. - ANTECH Alliance ANTECH – Product Range Gamma-Ray Measurements • Plutonium Isotopic System for Cans • Plutonium Isotopic System for Drums • Segmented Gamma Scanner (SGS) for Drums and Cans • Universal Gamma Scanner for Cans (TGS) • Tomographic Gamma Scanner (TGS) for Drums and Cans NEW NEW www.antech-inc.com

  8. - ANTECH Alliance ANTECH Small Sample Calorimeter • Twin Cell Compensating design • Single or dual sample operation • Single sample gives sub microwatt resolution • Unique high sensitivity multi-thermopile design. • Transportable • 50mm x100mm sample size • Range 0-1W www.antech-inc.com

  9. - ANTECH Alliance Small Sample Calorimeter Sample holders Voltmeter Heaters + - Heat sink Power Source A B Outer Cylinder Thermopile

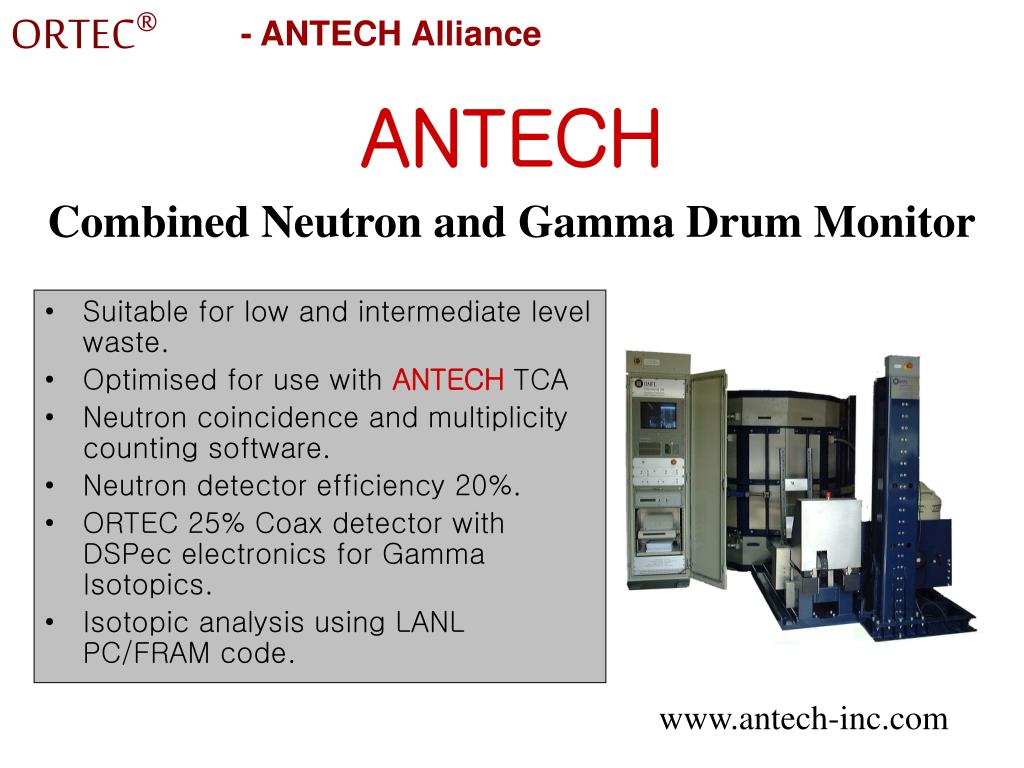

  10. - ANTECH Alliance ANTECH Combined Neutron and Gamma Drum Monitor • Suitable for low and intermediate level waste. • Optimised for use with ANTECH TCA • Neutron coincidence and multiplicity counting software. • Neutron detector efficiency 20%. • ORTEC 25% Coax detector with DSPec electronics for Gamma Isotopics. • Isotopic analysis using LANL PC/FRAM code. www.antech-inc.com

  11. - ANTECH Alliance Neutron Measurements AMPTEK Preamplifiers De Randomising Buffer Drum TCA Detector Tubes

  12. - ANTECH Alliance ANTECH Active Well Coincidence Counter • Active and Passive Neutron assay system for measuring U and Up. • Optimised for use with ANTECH AMSR 150. • Updated LANL design incorporating de-randomising buffer, internal Totals counters. • Improved mechanical design. • High neutron detection efficiency -31%. www.antech-inc.com

  13. - ANTECH Alliance ANTECH www.antech-inc.com

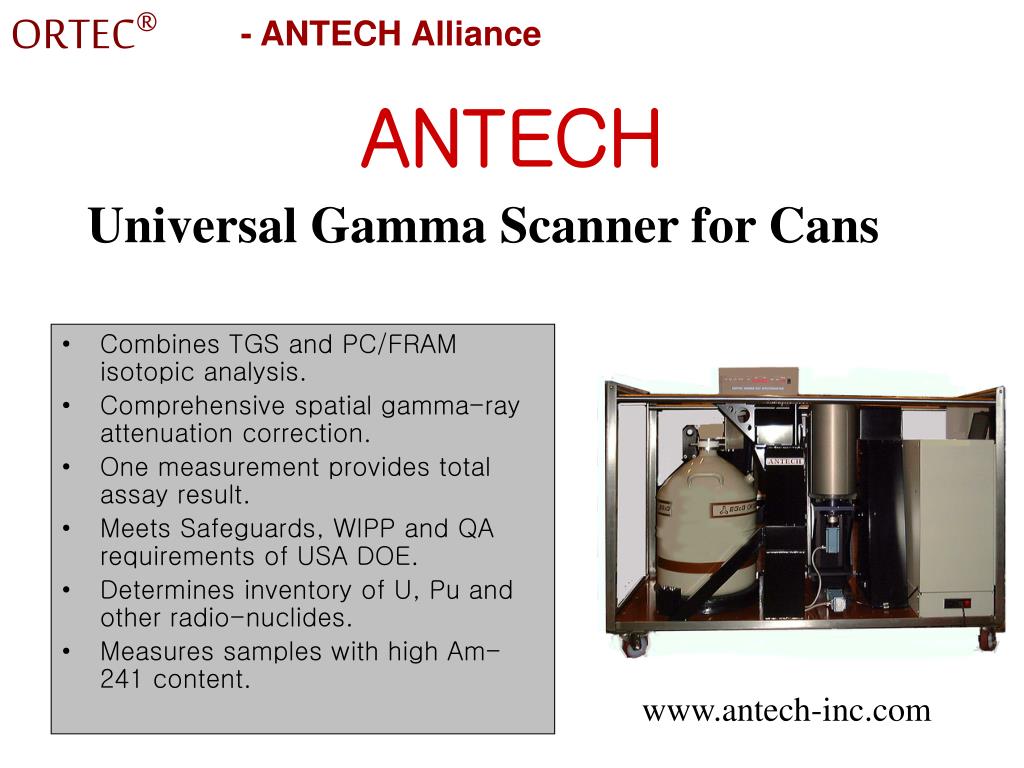

  14. - ANTECH Alliance ANTECH Universal Gamma Scanner for Cans • Combines TGS and PC/FRAM isotopic analysis. • Comprehensive spatial gamma-ray attenuation correction. • One measurement provides total assay result. • Meets Safeguards, WIPP and QA requirements of USA DOE. • Determines inventory of U, Pu and other radio-nuclides. • Measures samples with high Am-241 content. www.antech-inc.com

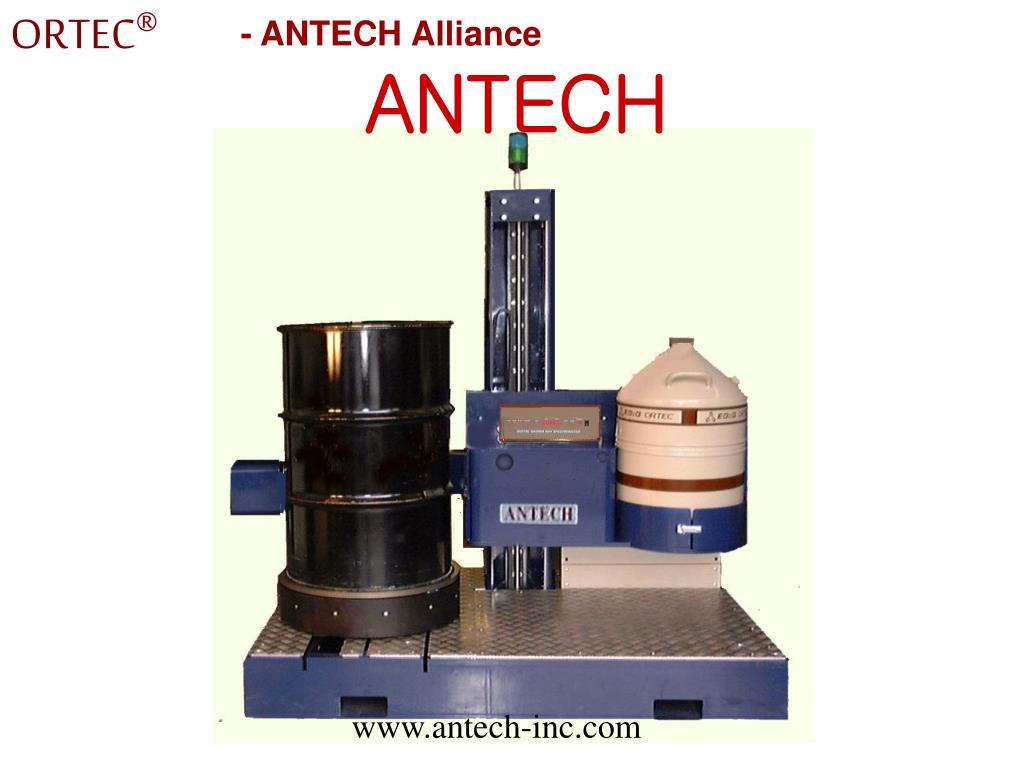

  15. - ANTECH Alliance ANTECH • Comprehensive NDA waste assay instrument incorporating TGS and PC/FRAM isotopic analysis. • Measures U, Pu and other radio-nuclides • Meets all USA DOE Safeguards, WIPP and QA requirements. • Manual or automatic drum loading • Comprehensive Attenuation and Lump correction. • Significantly more accurate than SGS Tomographic Gamma Scanner for Cans and Drums www.antech-inc.com

  16. - ANTECH Alliance ANTECH www.antech-inc.com

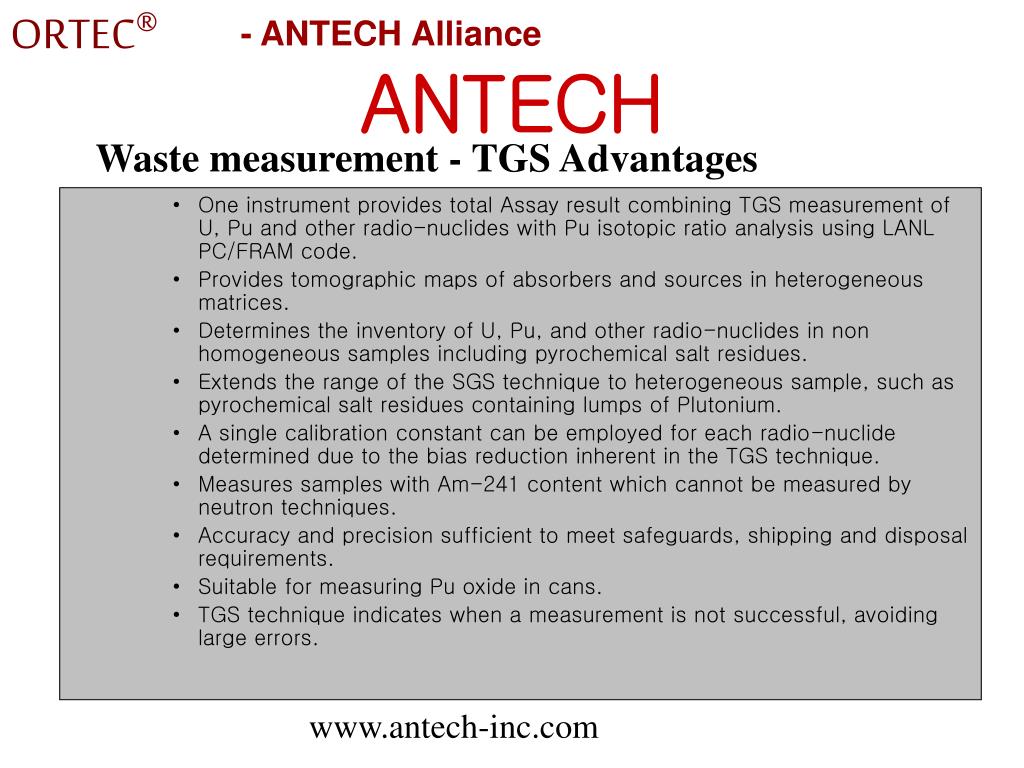

  17. - ANTECH Alliance ANTECH Waste measurement - TGS Advantages • One instrument provides total Assay result combining TGS measurement of U, Pu and other radio-nuclides with Pu isotopic ratio analysis using LANL PC/FRAM code. • Provides tomographic maps of absorbers and sources in heterogeneous matrices. • Determines the inventory of U, Pu, and other radio-nuclides in non homogeneous samples including pyrochemical salt residues. • Extends the range of the SGS technique to heterogeneous sample, such as pyrochemical salt residues containing lumps of Plutonium. • A single calibration constant can be employed for each radio-nuclide determined due to the bias reduction inherent in the TGS technique. • Measures samples with Am-241 content which cannot be measured by neutron techniques. • Accuracy and precision sufficient to meet safeguards, shipping and disposal requirements. • Suitable for measuring Pu oxide in cans. • TGS technique indicates when a measurement is not successful, avoiding large errors. www.antech-inc.com

  18. - ANTECH Alliance ANTECH Waste measurement – TGS Features • Gamma-ray based NDA technique for the assay of U, Pu and radio-nuclides in waste, based on licensed LANL TGS technology. • Incorporates Tomographic Gamma Scanner (TGS), Segmented Gamma Scanner (SGS) and Plutonium Isotopic Ratio Measurement capability in one instrument. • Automatic gamma-ray energy calibration using the Se-75 transmission source. • Transmission corrections are achieved using a Se-75 transmission source to develop a 3-D spatial map of the attenuation coefficient of the sample. • Manual or automatic drum loading. • Measurement time of typically less than one hour. Increased accuracy and precision can be achieved by extending measurement time. • Mobile operator control console which is compatible with both Drum TGS and UGS for Cans,which can be local or remote from the instrument. • Accuracy is typically better than 10% for measurement of cans and 20% for matrices with average density 2g/cm3. It is better than 10% for metal scrap matrices. www.antech-inc.com
