  1. HIGH SPEED LANYARD RELEASE TEST FIXTURE Michael Amos, Project Manager Mechanical Engineer Aaron Brechko Mechanical Engineer Joshua Carmer Electrical Engineer Dr. Benjamin Varela, Faculty Mentor Mechanical Engineer Justin Grigonis Industrial & Systems Engineer Lindsay LaRocca Mechanical Engineer PROJECT NUMBER 05423

  2. Overview • Project Overview • The Process • Desired Outcomes • Key Requirements • Major Design Challenges • Conclusions

  3. Amphenol Aerospace Operations (AAO) “Accepted leader in providing quality connectors… to the Industrial, Military, and Aerospace markets” www.Amphenol-Aerospace.com Sidney, New York

  4. Project Overview • Mission Statement • To design a drive system, with supporting documentation, for an actuation method to test the separation of AAO’s lanyard release connectors. • Executive Summary • What • Why

  5. Lanyard-Release Connector Assembly • Main Components • Lanyard • Operating Sleeve • Plug Shell • Receptacle • Main electrical interface between aircraft and its stores

  6. The Process • Needs Assessment • Concept Development • Many concepts • Feasibility Assessment • Several Concepts • Preliminary Design Review • One design concept

  7. Desired Outcomes / Requirements For AAO’s Selected Concept: • Complete bill of materials • Component and assembly drawings • Provide detailed analysis of fabricated components • Meet new Military Specification MIL-DTL-38999/31D • High speed separation of connector • 30 ft/s ± 10% • Variable Test Velocity • Reliable • Repeatable • Economical • Low-Cycle Time • Safe

  8. Major Design Challenges • Motor Selection • Torque vs. RPM • AC Performance Characteristics • Overall System Dynamics • Component Selection • Clutch/Brake • Controls

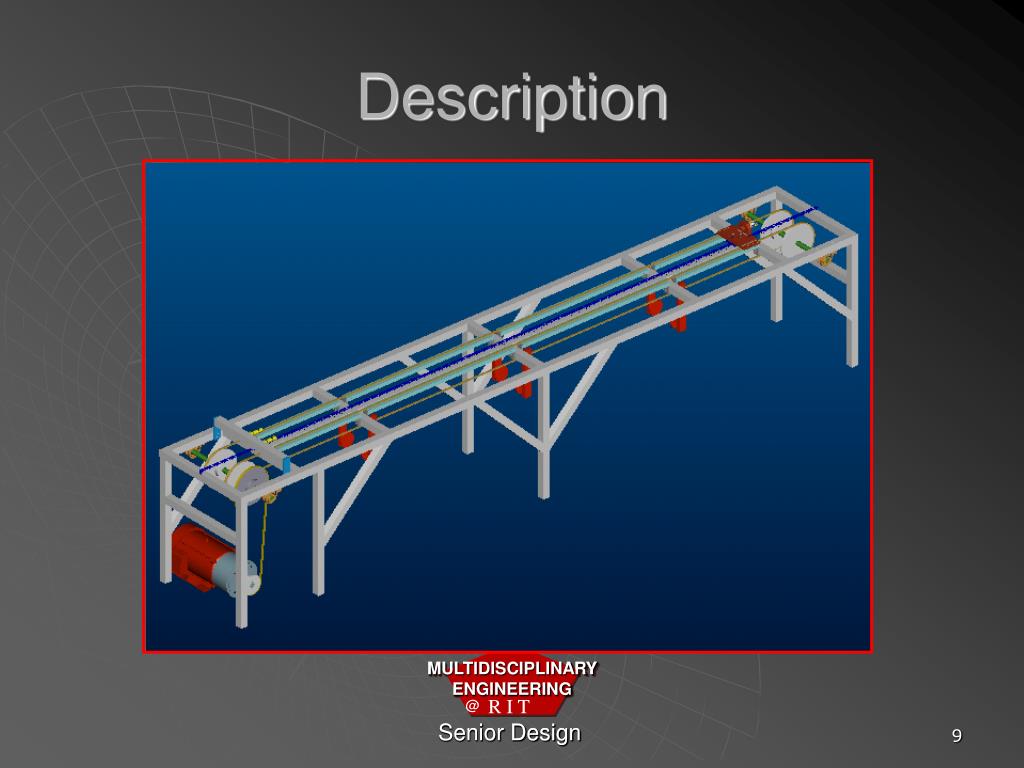

  9. Description

  10. Major Components • Motor • 7.5 HP, 3 Phase AC Induction 230 V SmartMotor • Sprockets (6) • Driver • 5.123” diameter, 24 teeth (1) • Driven: • 9.911” diameter, 48 teeth (5) • Chain • Size 50, 5/8” pitch • Two-Single Strands for Upper System (US) • One-Single Strand to connect motor shaft to US

  11. Major Components – Cont’d • Mounting Block • Linear Bearing - Track

  12. Component Selection Process • Choose Motor • Choose Sprockets • Determine force and velocity at mounting block • Re-iterate

  13. Requirements: 30 ft/s 200 lb pull force on lanyard Configuration • At Motor - Driver: • 1400 RPM • At Upper System – Driven: • 700 RPM

  14. Overall System Calculations • Acceleration: a=167.97 ft/s2 t=0.1786 s d=2.68 feet a3 feet • Deceleration: a=-434.64 ft/s2 t=0.069 s d=1.035 feet

  15. Drive Motor Baldor 7.5 HP, 3 Phase Induction SmartMotor • SmartMotor: Integrated Control Board Saves: • $$$ & Man Hours • Programmable Velocity Profiles • Accuracy = 2.9% • Breakdown Torque: • 69.9 ft lbs

  16. Baldor Keypad • Remote control (up to 100 ft) • Indicator lights • Clear LCD Display • Simple • Programmable

  17. Clutch and Brake Component • Enclosed Uni-Module model 215 • One On / One Off Design • 230 VAC Powers up either clutch or brake at any given time • CBC-150-2 Controller

  18. Switch Locations 4. Home 2. Past Test Position 3. Reverse Switch (user activated) 1. At Speed (1400 rpm) Signal From Motor

  19. Control Components • Switches • Emergency Stop • Track • Rocker

  20. Emergency Stop Switch • DPST NO/NC switch • Efficient for control system • Necessary in event of failure of lanyard to disengage

  21. Track Switch • Tells control system the location of the carriage • Makes control system logic simple • SPST maintained contact • Requires ramped contact surface on bottom of carriage

  22. Rocker Switch • Manually switched after each test • Functions as second input needed to control the clutch/brake • Necessary due to limited motor controller outputs • Simple and inexpensive solution

  23. Control Logic / Power Application • Four Switches • Signals Feed Clutch / Brake Decision Logic based on state of each switch • Logic output control feeds gate of Power Switching Transistor to pass 230VAC to power up either Clutch or Brake • Emergency Stop Button included as Safety Measure

  24. Resulting Motion Profile

  25. Mounting Block Description • Shall Provide • Power transmission between chain and lanyard • Mounting surface for lanyard • Mounting surface for additional components • Should be light weight and rigid

  26. Mounting Block Final Design • 6061 aluminum • Connector mounting surface is perpendicular to plane of motion • 0.25 in fillets on edges to reduce stress concentration • Weight  5 lb (excess material removed) • Mounting points for carriage, chain, and receptacle

  27. Linear Bearing – Track • Provide supporting surface for mounting block movement • Light weight • Withstand acceleration and velocity of the test

  28. Linear Bearing Final Design • INA LFL 32 Linear Bearing • Carriage Weight - 3.5 lbs • Able to withstand nearly 5g’s acceleration

  29. Mounting Block / Linear Track

  30. Chain and Sprocket Enclosures • Protect outside environment if failure occurs • Keep drive system components clean • Help prevent human contact • Allow air flow to cool the motor • Allow for easy access for routine services

  31. Chain and Sprocket Enclosures Final Design • 13 ga. sheet metal • 13 ga. expanded sheet metal on sides • Maintenance / Access door to motor • Removable panels for full system service

  32. Provides mounting locations 2” X 2” X 0.125” 6061 Aluminum Welded construction Length determined using basic kinematic equations 192” L x 36” H x 30” D Chain System Frame

  33. Purpose: Support upper chains Mounted via aluminum right angle brackets Polyethylene U-Channel

  34. Ergonomic Analysis • Test Table Height and Width • 95th percentile male / 5th percentile female • Motor access accomplished via side door in test machine frame • Noise • Ear plugs may be necessary

  35. Safety Considerations • Track/sprocket/chain enclosures • Prevent entanglement • Mesh covering over the motor • Allows heat to dissipate • Shock absorbers • Prevents carriage contact with sprockets

  36. Conclusions • MEETS and EXCEEDS Requirements • Velocity (38 ft/s MAX) • Impulsive Pull force (334 lbs MAX) • Strong, Durable and Accurate (2.9%) • Easily Maintained • Variable Velocity Profiles • Mechanical Components Totally Enclosed • $9,000 Total Component Cost

  37. Special Thanks to Amphenol Aerospace for their support

  38. Questions or Comments?

  39. Acceleration/Deceleration

  40. AC Motor Torque Characteristics

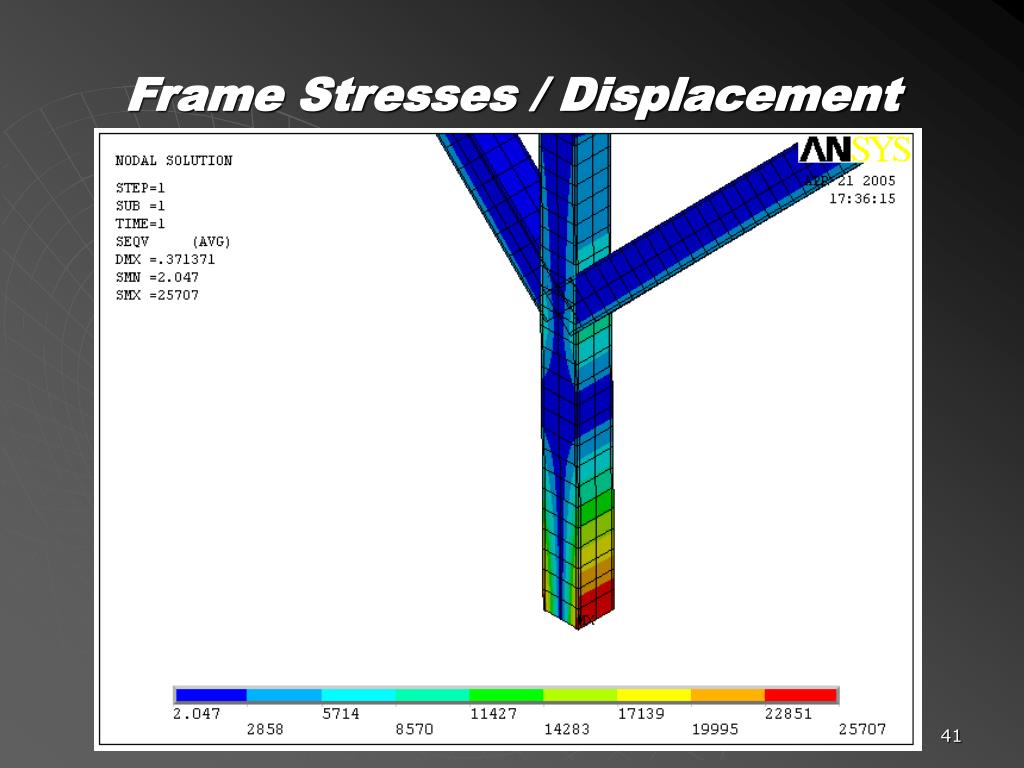

  41. Frame Stresses / Displacement

  42. Baldor Induction SmartMotor - Accuracy • MIL-DTL-38999 allows 30 ft/sec 10% (3 ft/sec) • Accuracy = 20 RPM (provided by factory representative)

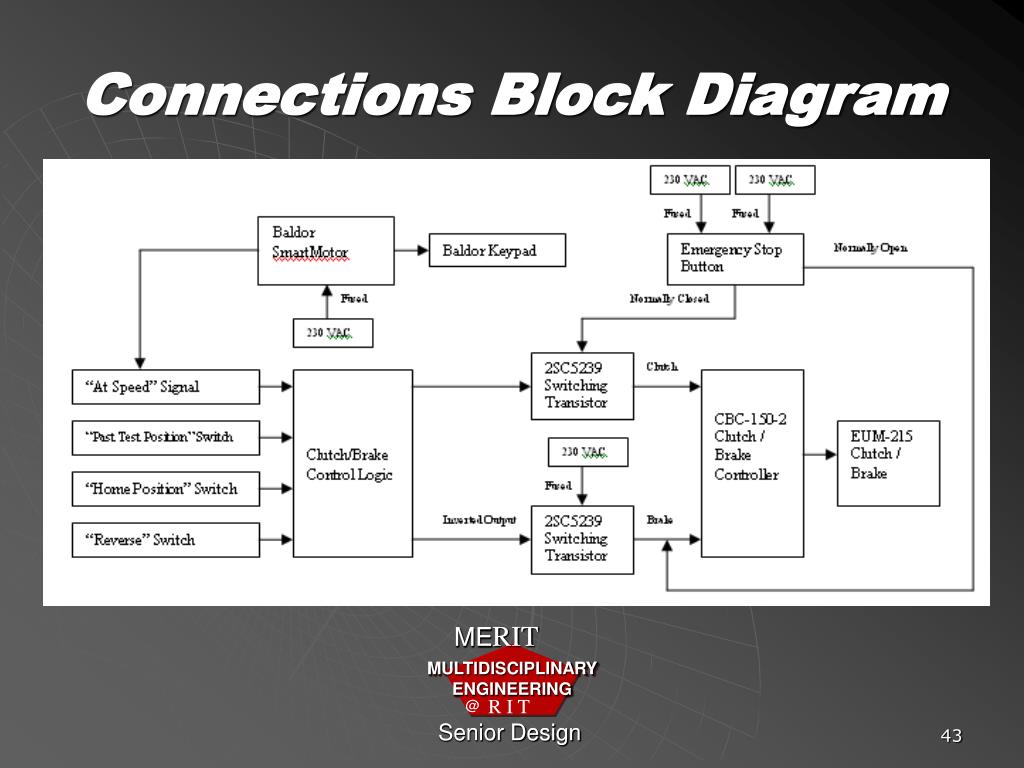

  43. Connections Block Diagram
