  1. PAVING

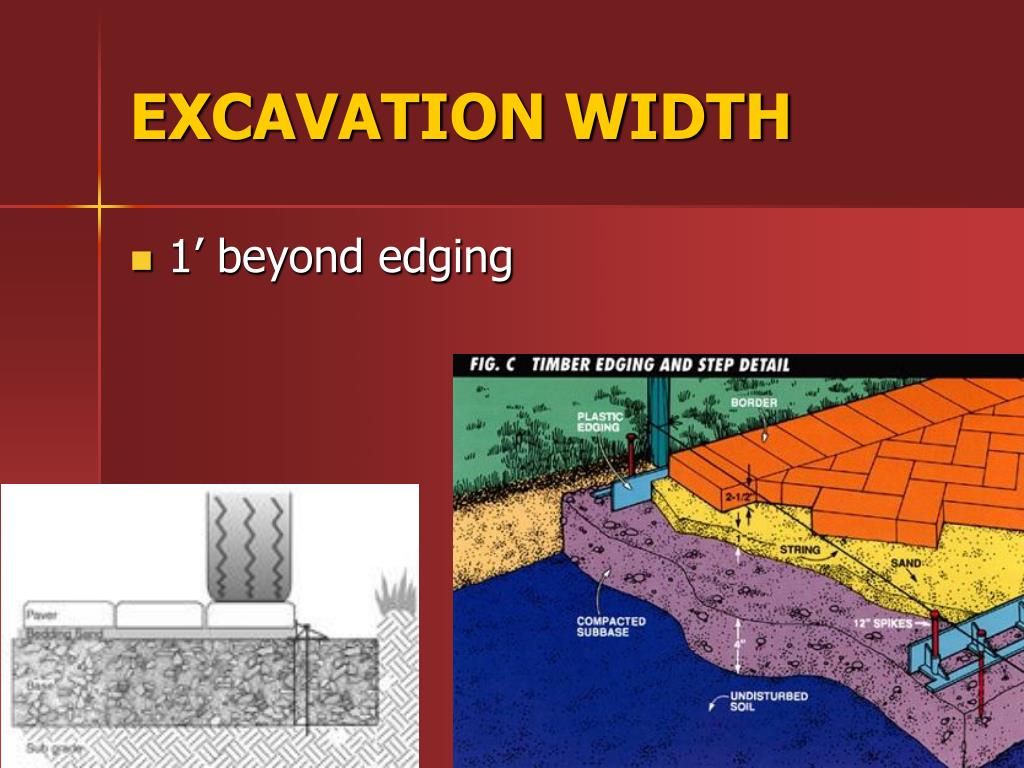

  2. EXCAVATION WIDTH • 1’ beyond edging

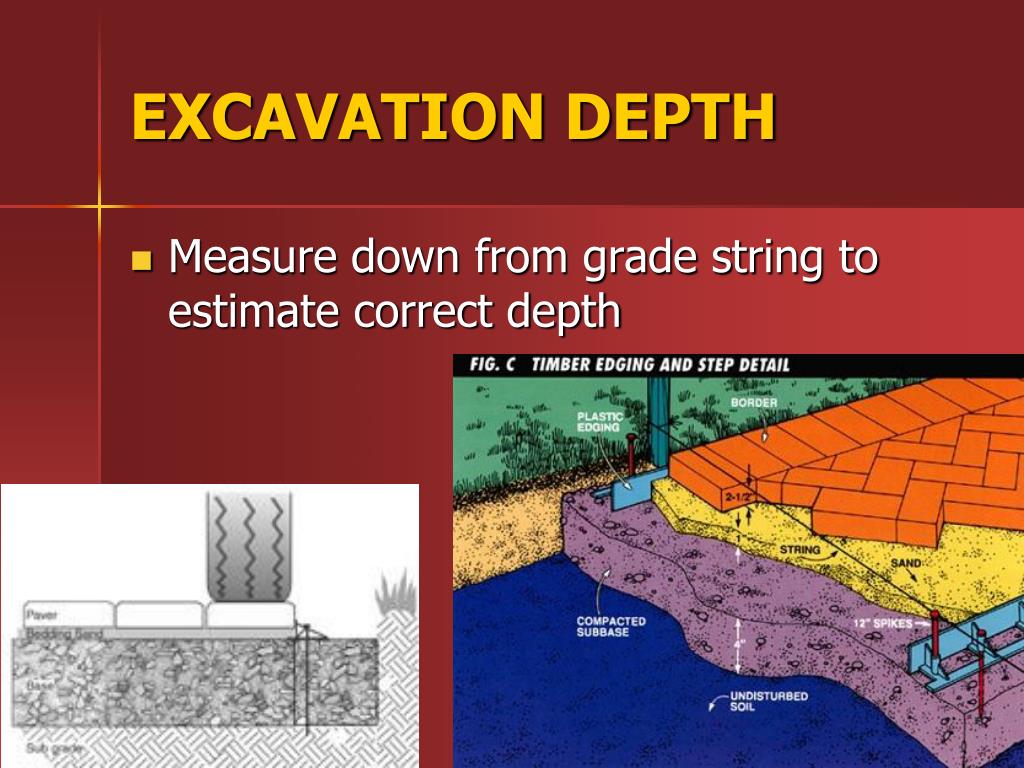

  3. EXCAVATION DEPTH • Measure down from grade string to estimate correct depth

  4. EXCAVATION DEPTH • Base: 4” • Setting bed: 1” • Paver thickness

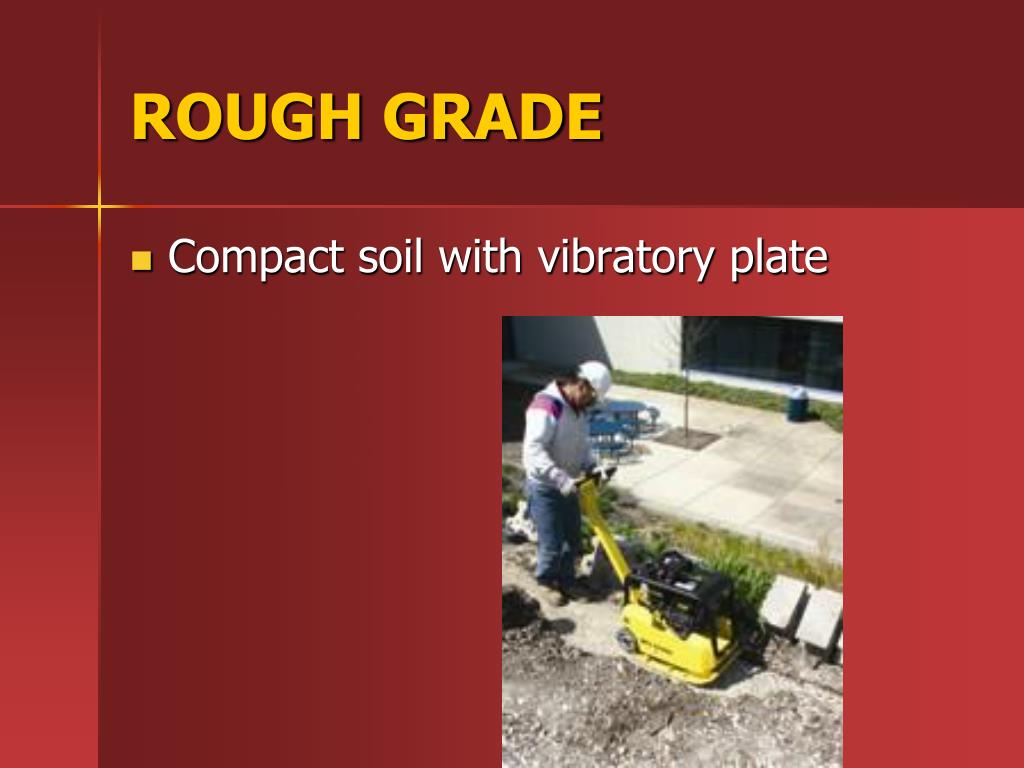

  5. ROUGH GRADE • Compact soil with vibratory plate

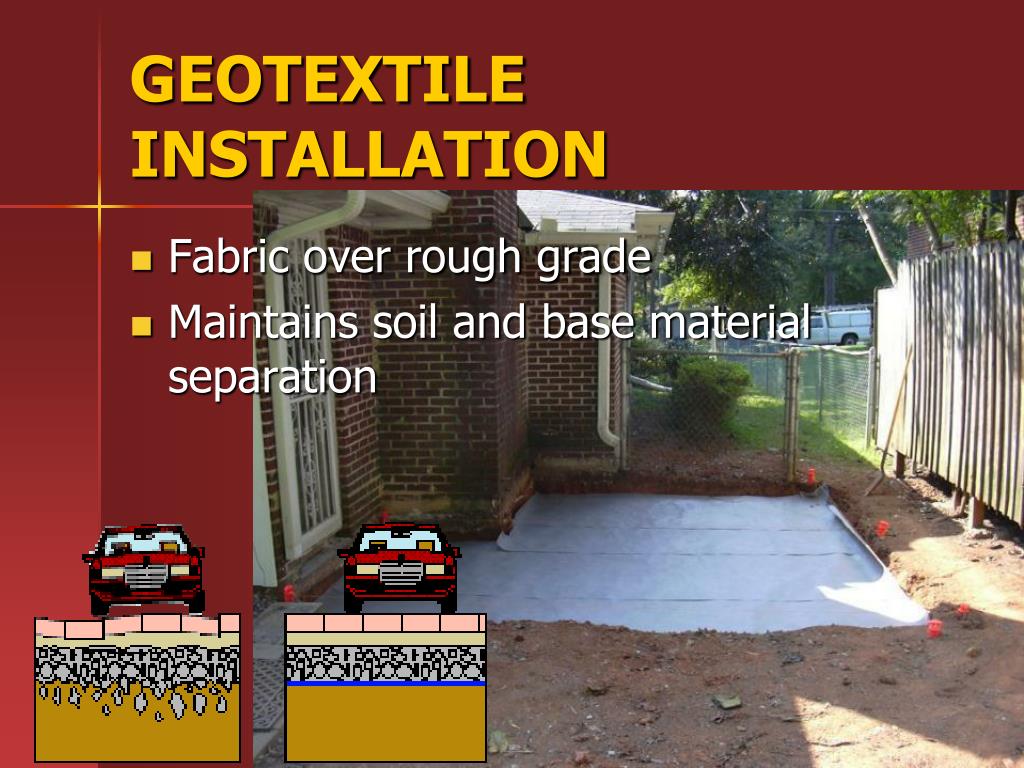

  6. GEOTEXTILE INSTALLATION • Fabric over rough grade • Maintains soil and base material separation

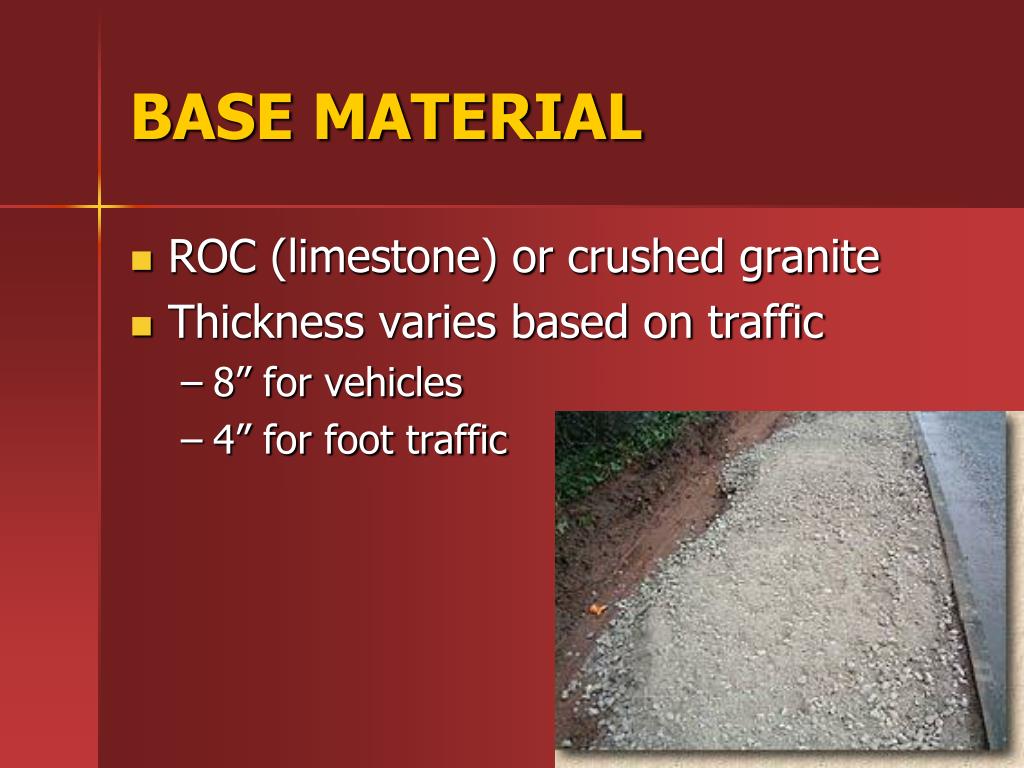

  7. BASE MATERIAL • ROC (limestone) or crushed granite • Thickness varies based on traffic • 8” for vehicles • 4” for foot traffic

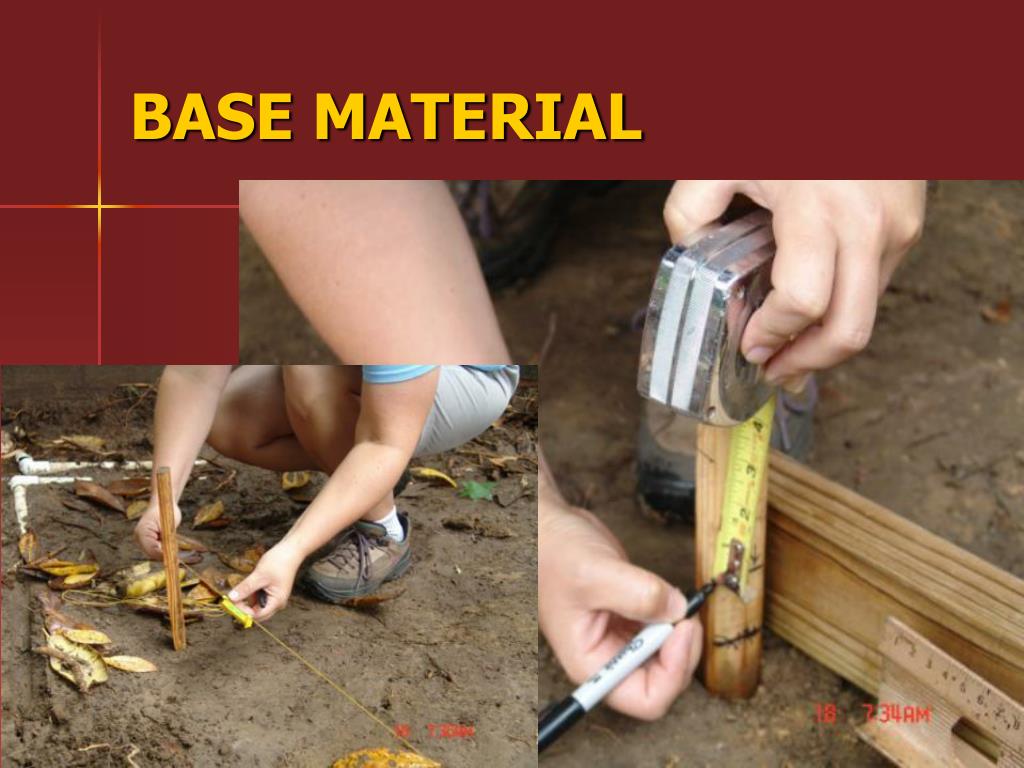

  8. BASE MATERIAL

  9. BASE MATERIAL

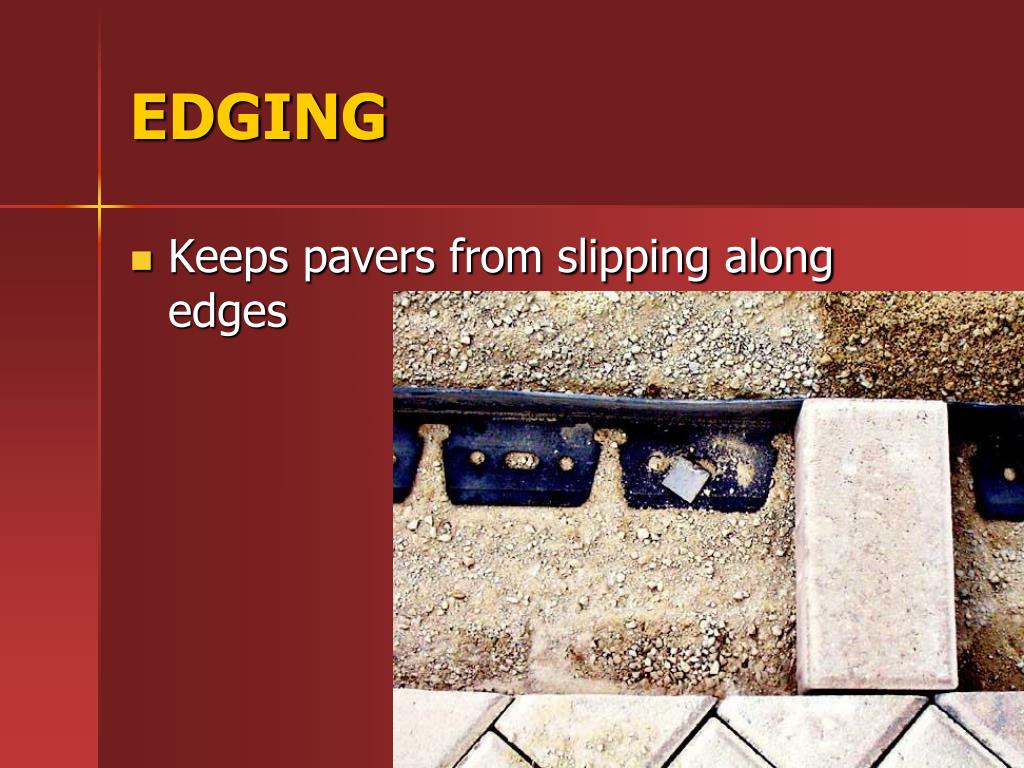

  10. EDGING • Keeps pavers from slipping along edges

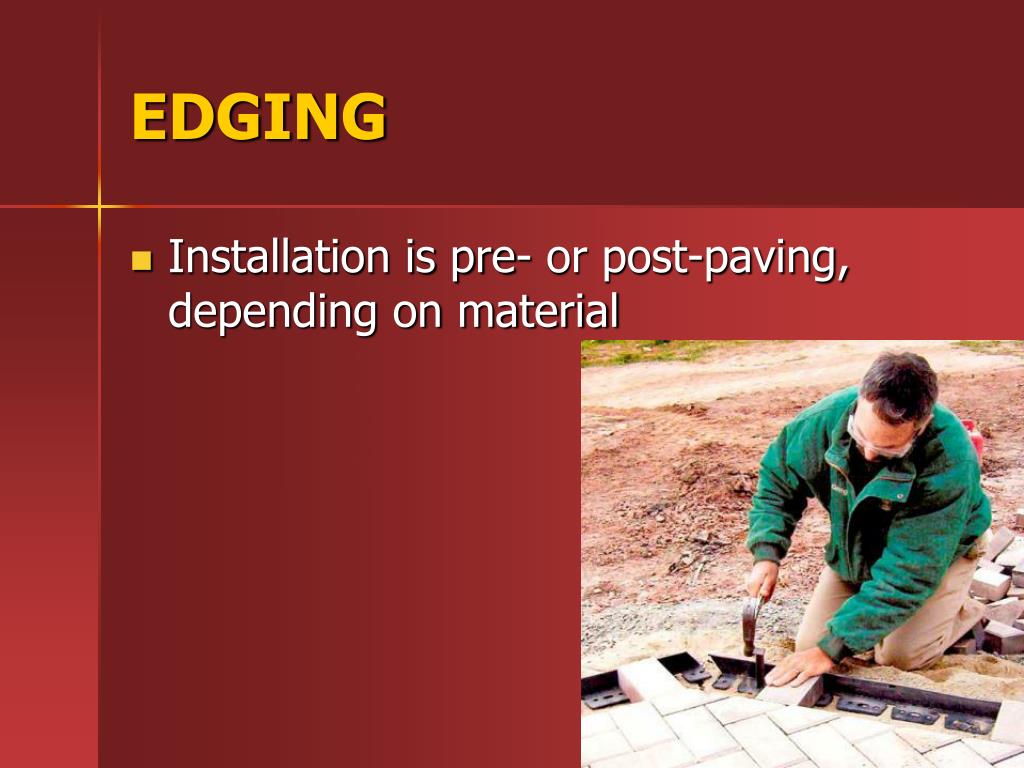

  11. EDGING • Installation is pre- or post-paving, depending on material

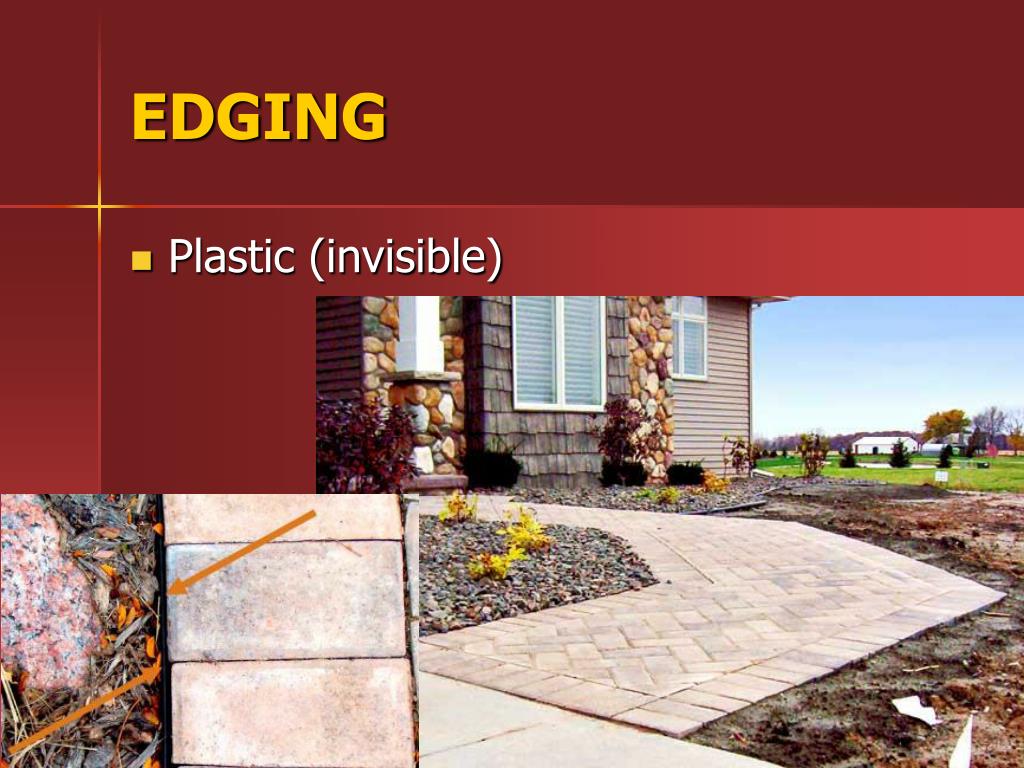

  12. EDGING • Plastic (invisible)

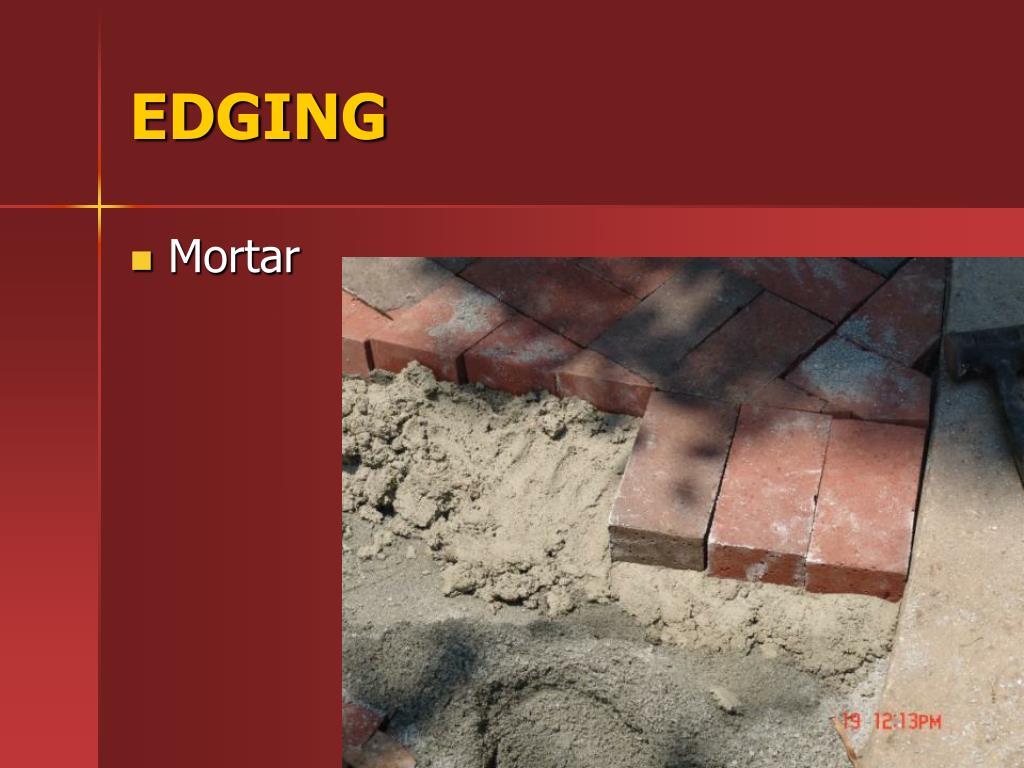

  13. EDGING • Mortar

  14. EDGING • Soldier course • Side by side

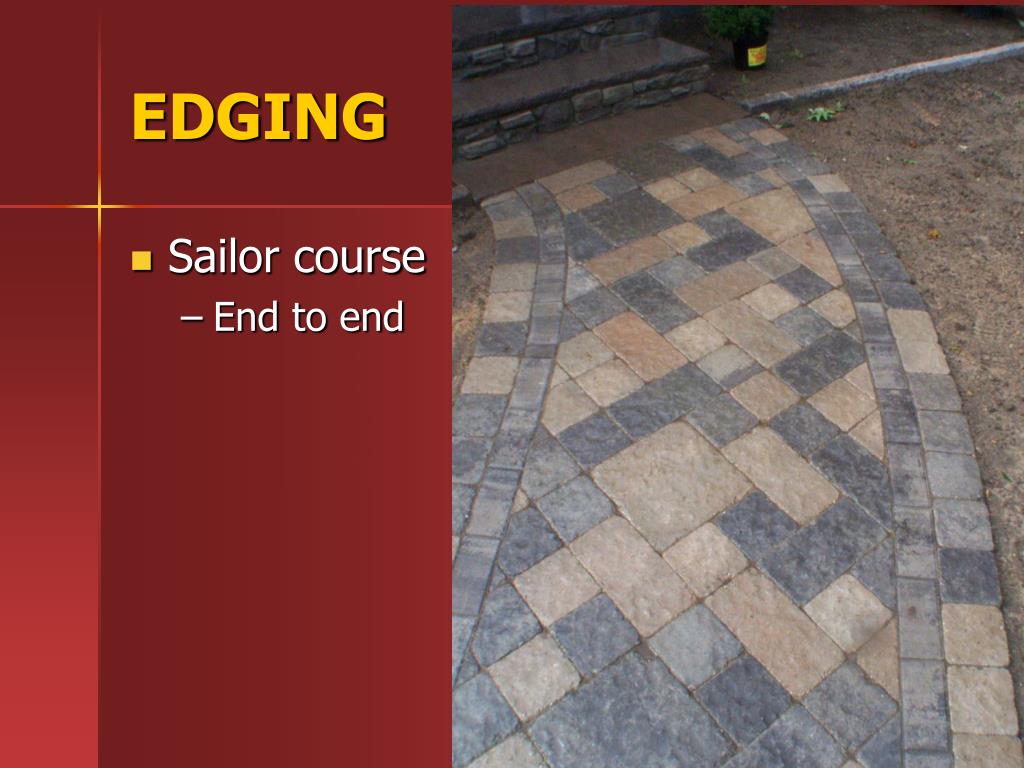

  15. EDGING • Sailor course • End to end

  16. Edging

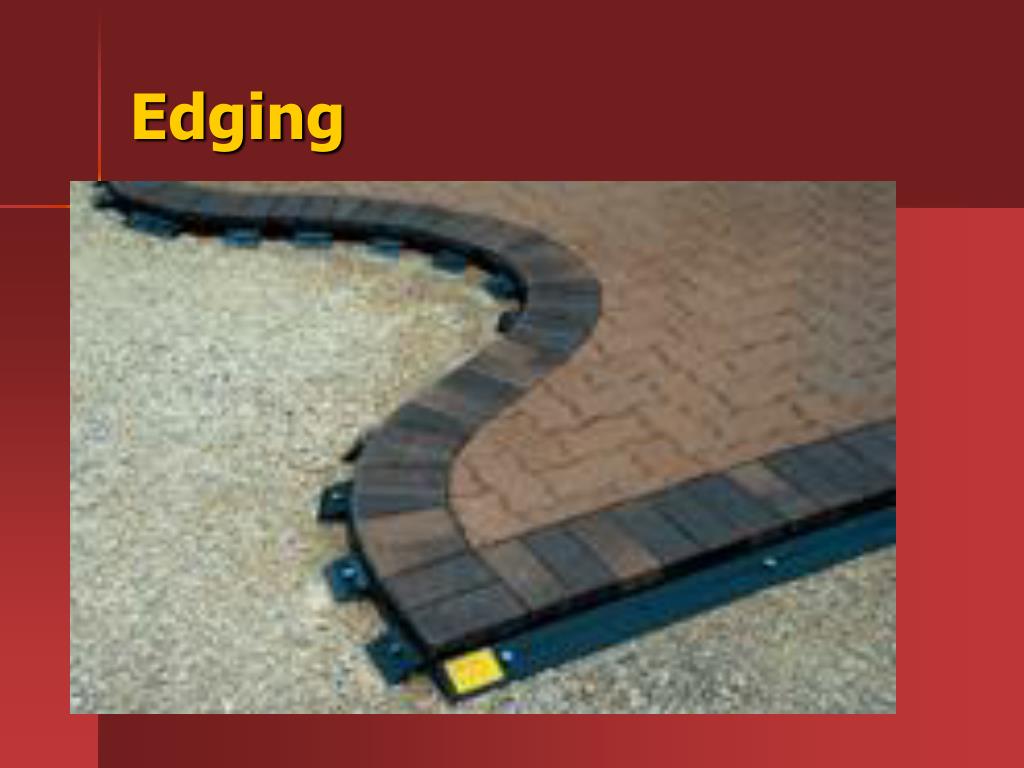

  17. Edging

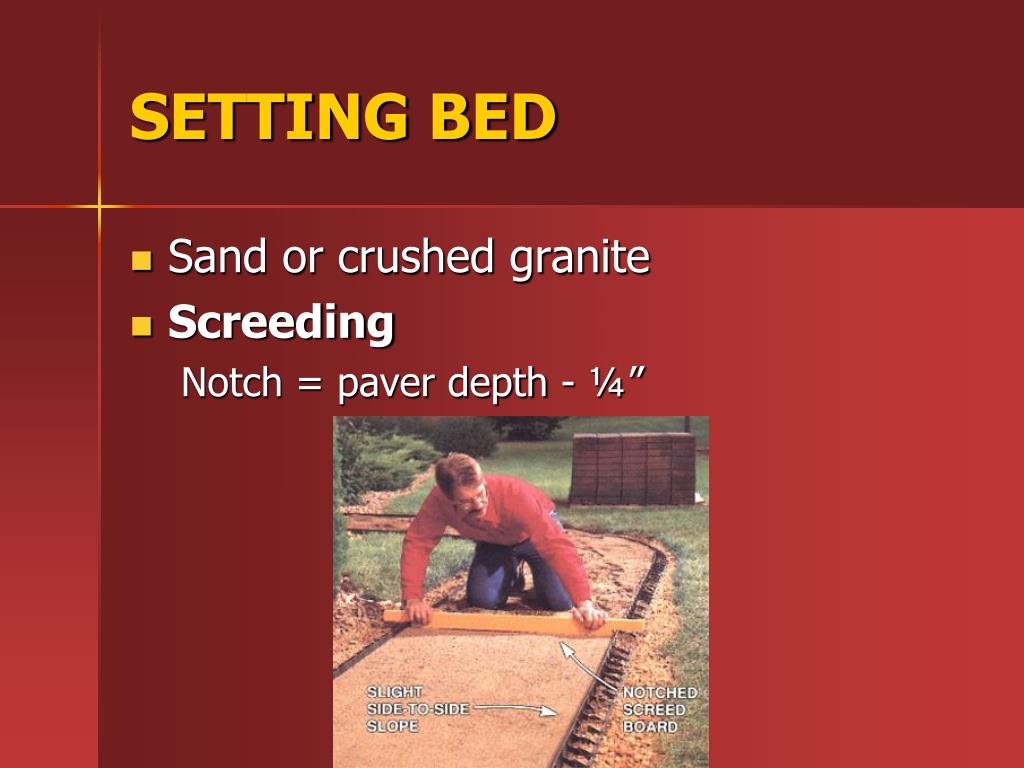

  18. SETTING BED • Sand or crushed granite • Screeding Notch = paver depth - ¼”

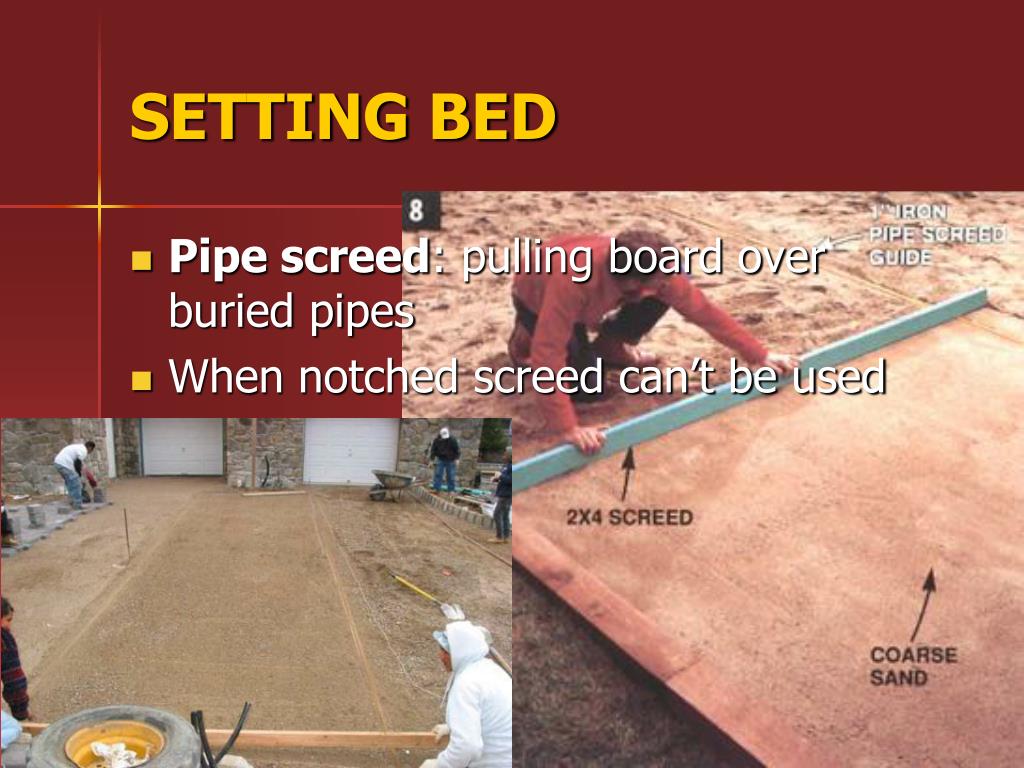

  19. SETTING BED • Pipe screed: pulling board over buried pipes • When notched screed can’t be used

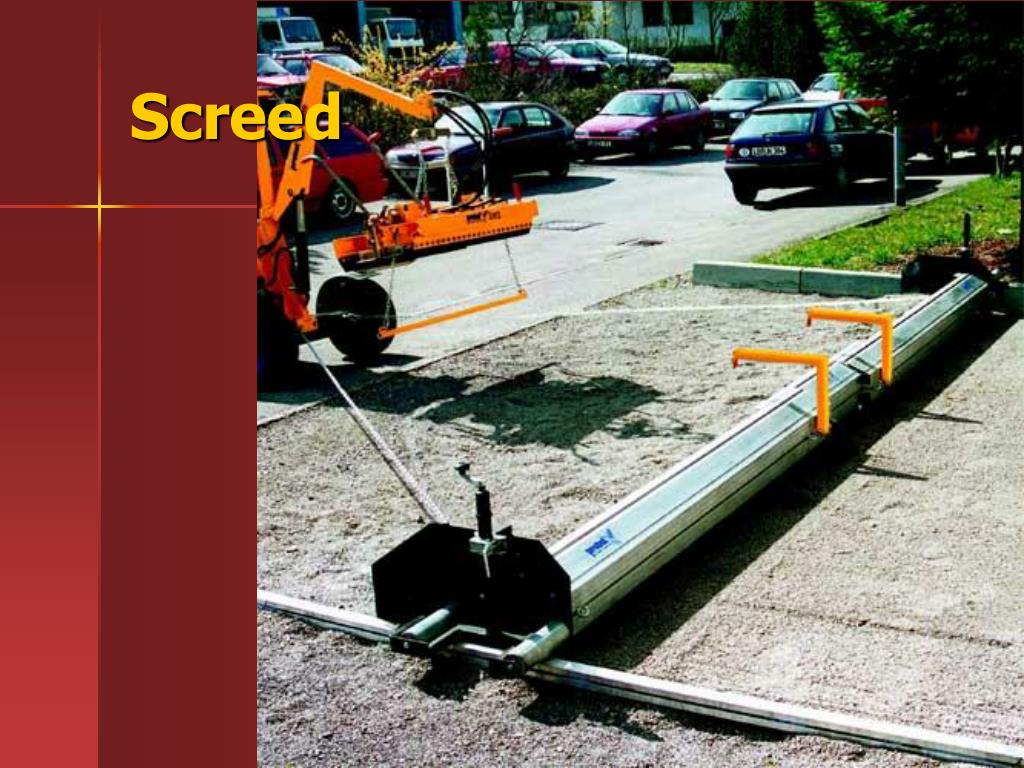

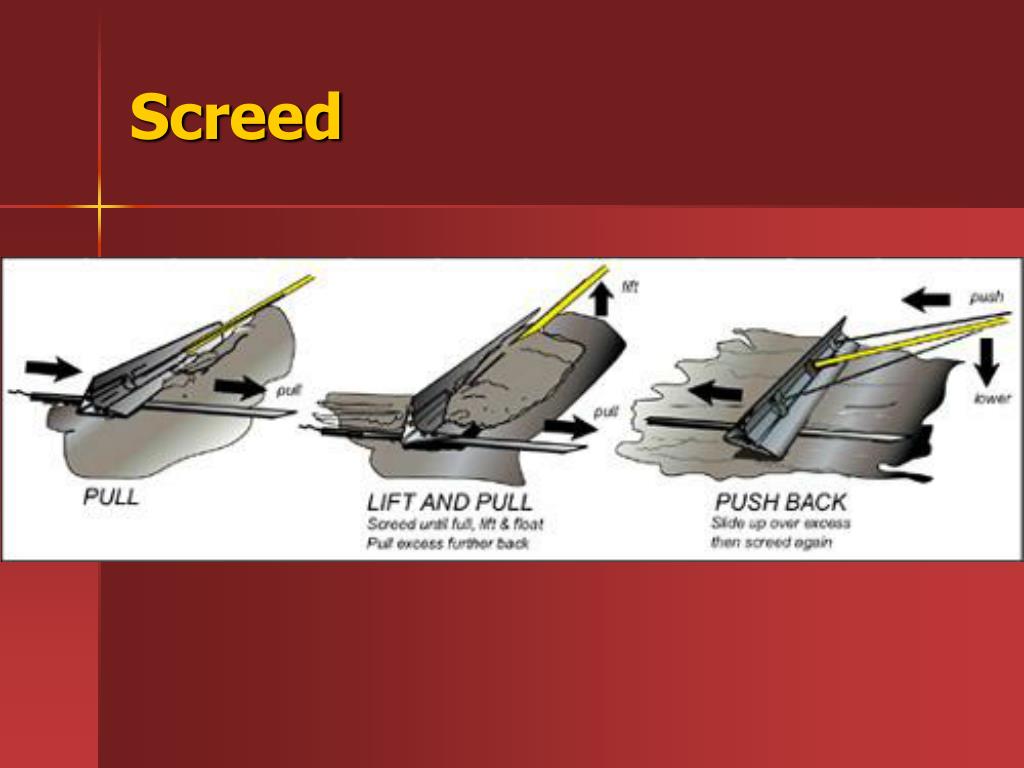

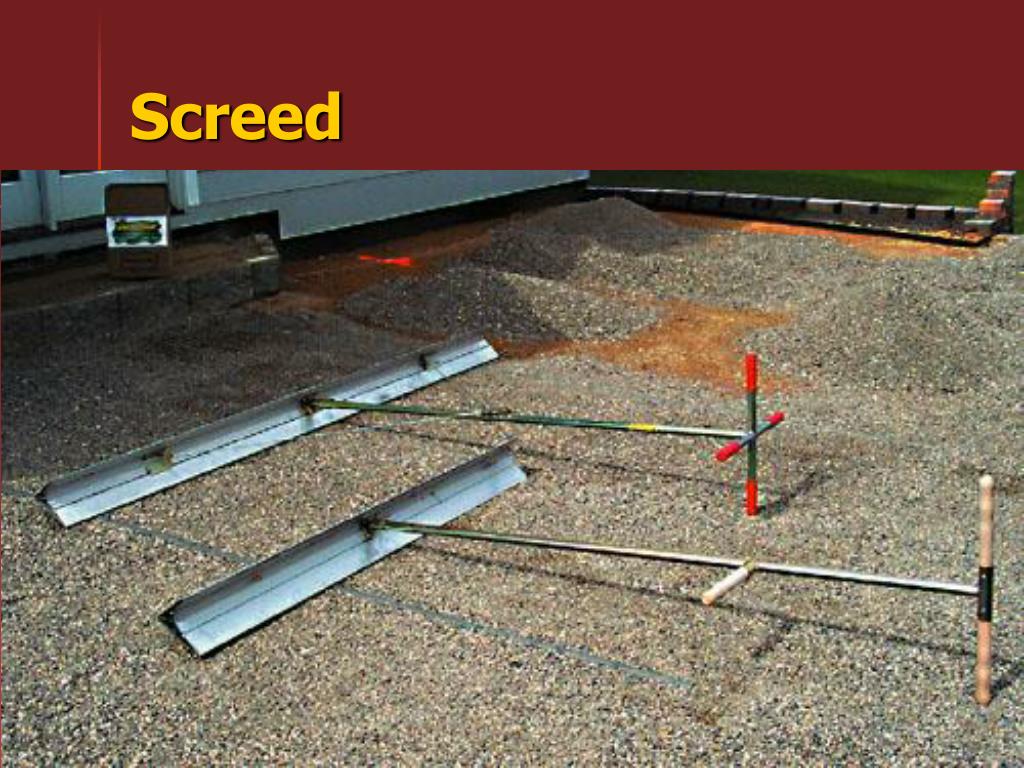

  20. Screed

  21. Screed

  22. Screed

  23. Screed

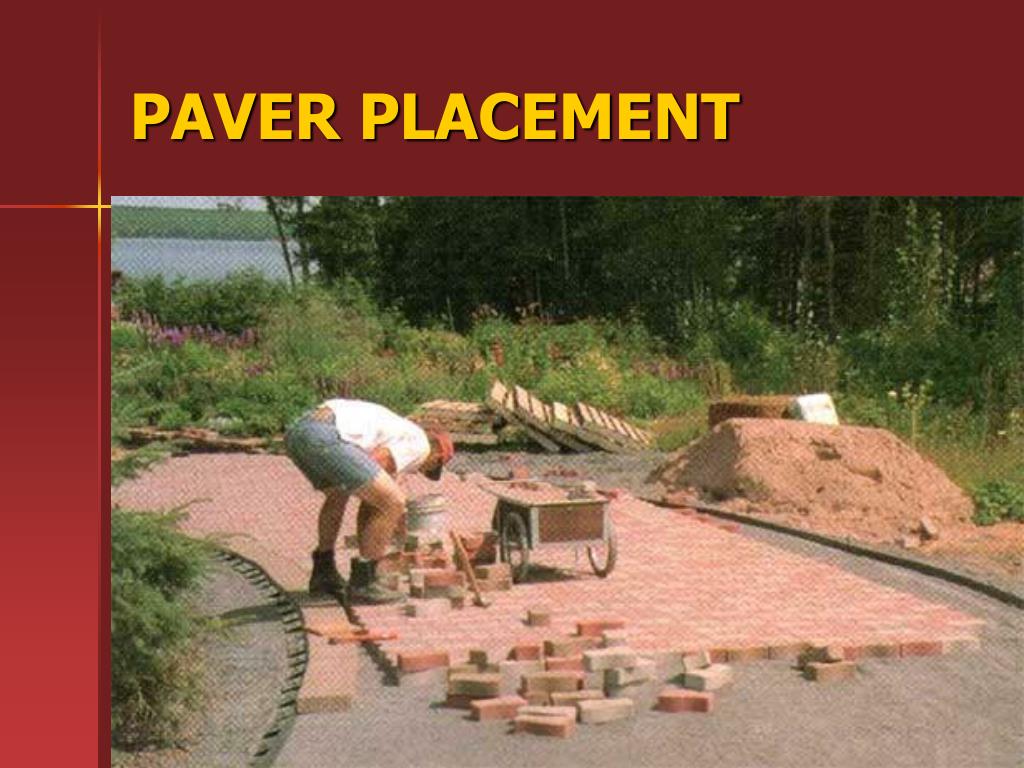

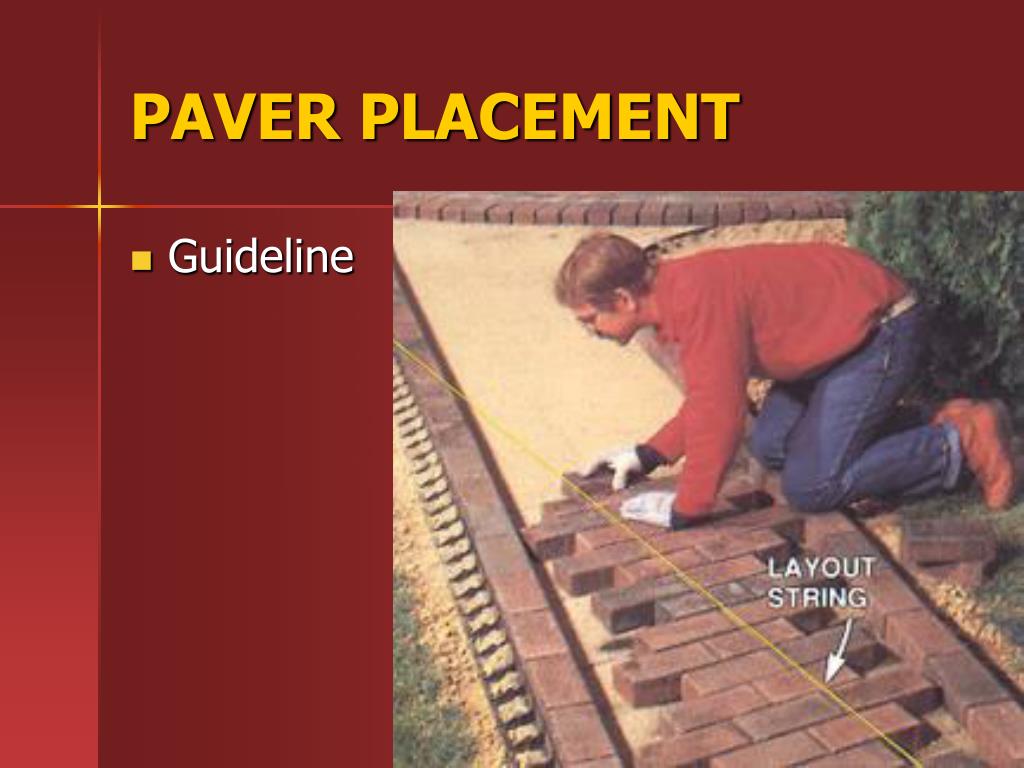

  24. PAVER PLACEMENT • Guideline

  25. PAVER PLACEMENT

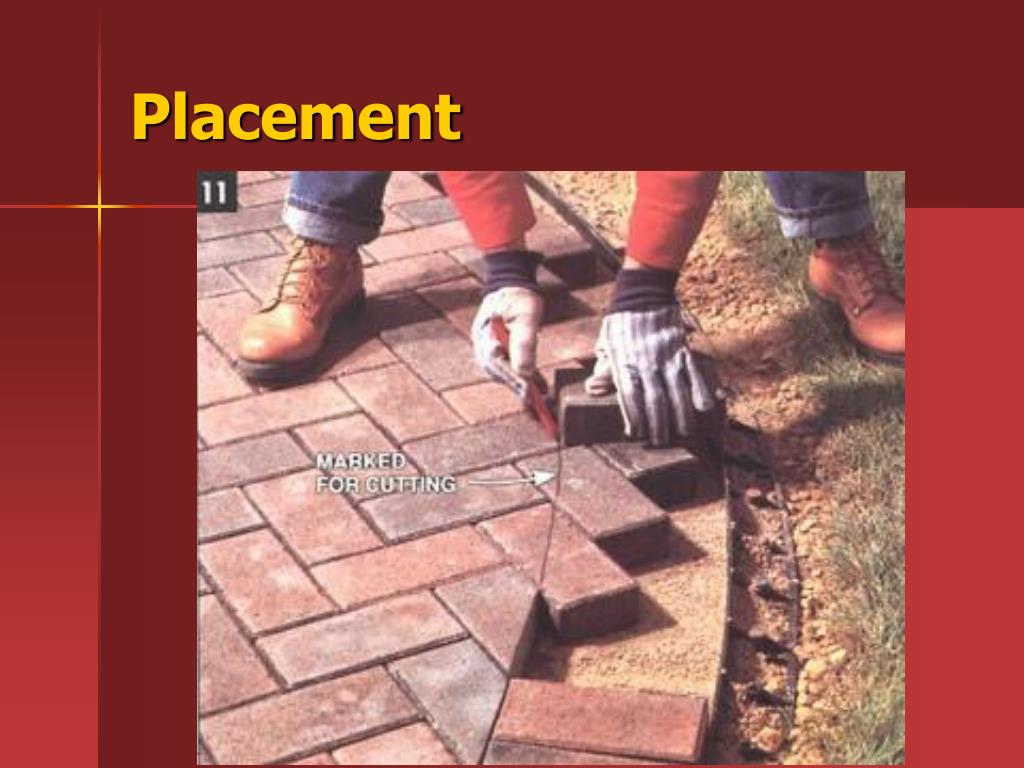

  26. Placement

  27. Placement

  28. Lift

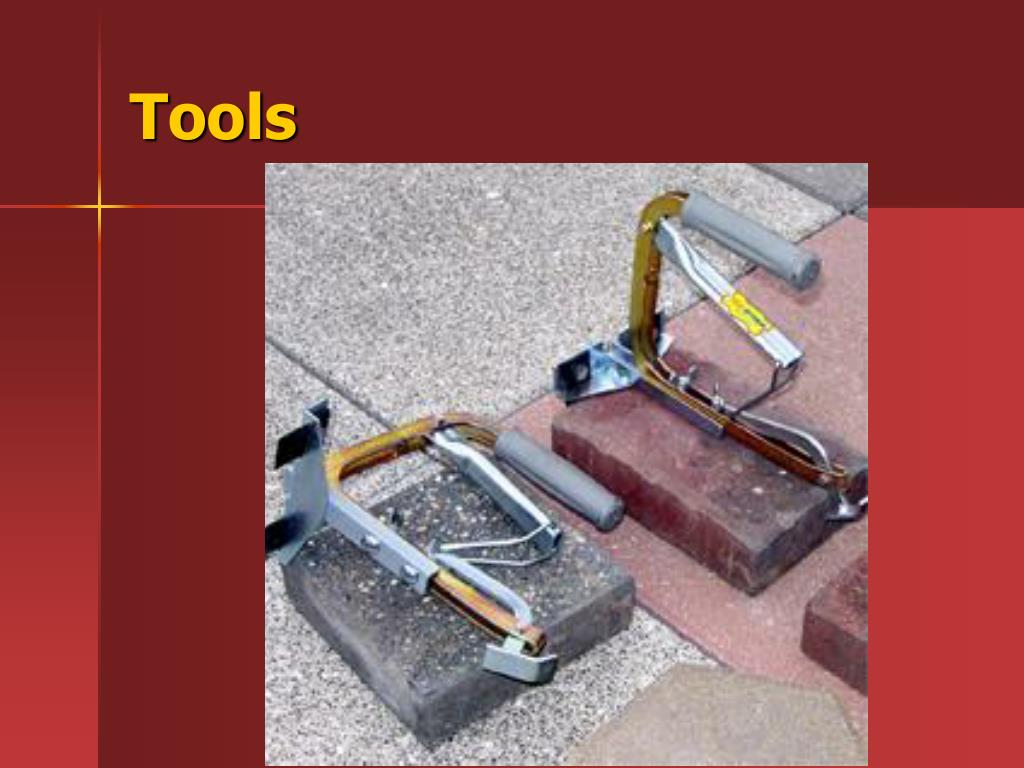

  29. Tools

  30. Tools

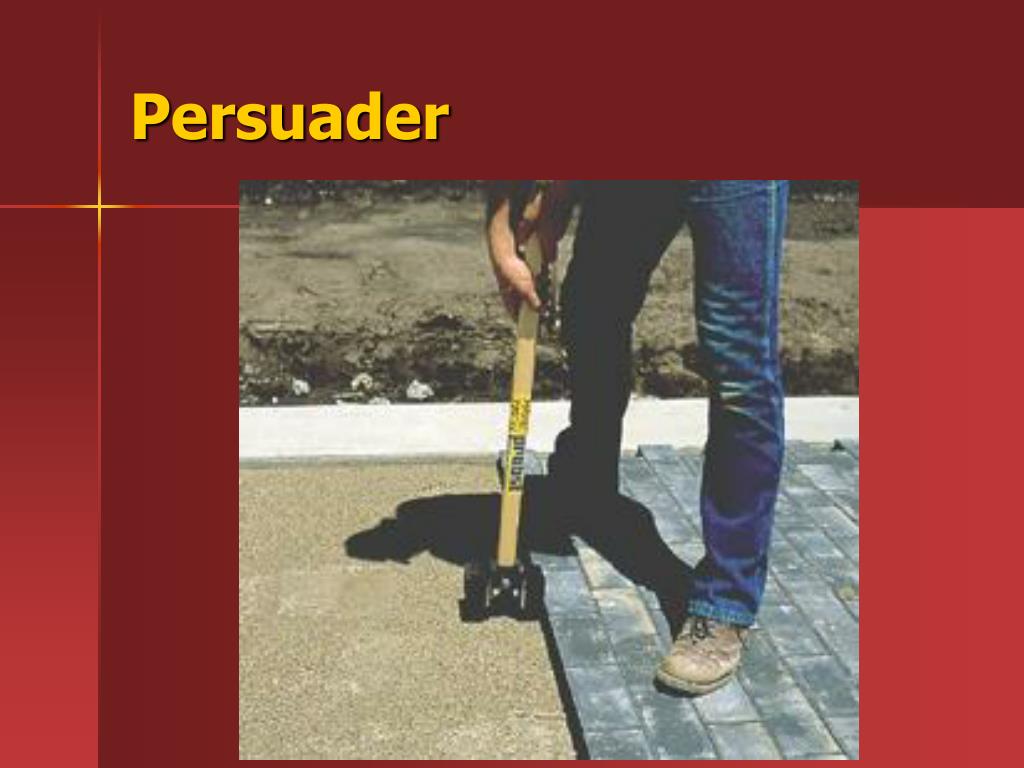

  31. Persuader

  32. Marking

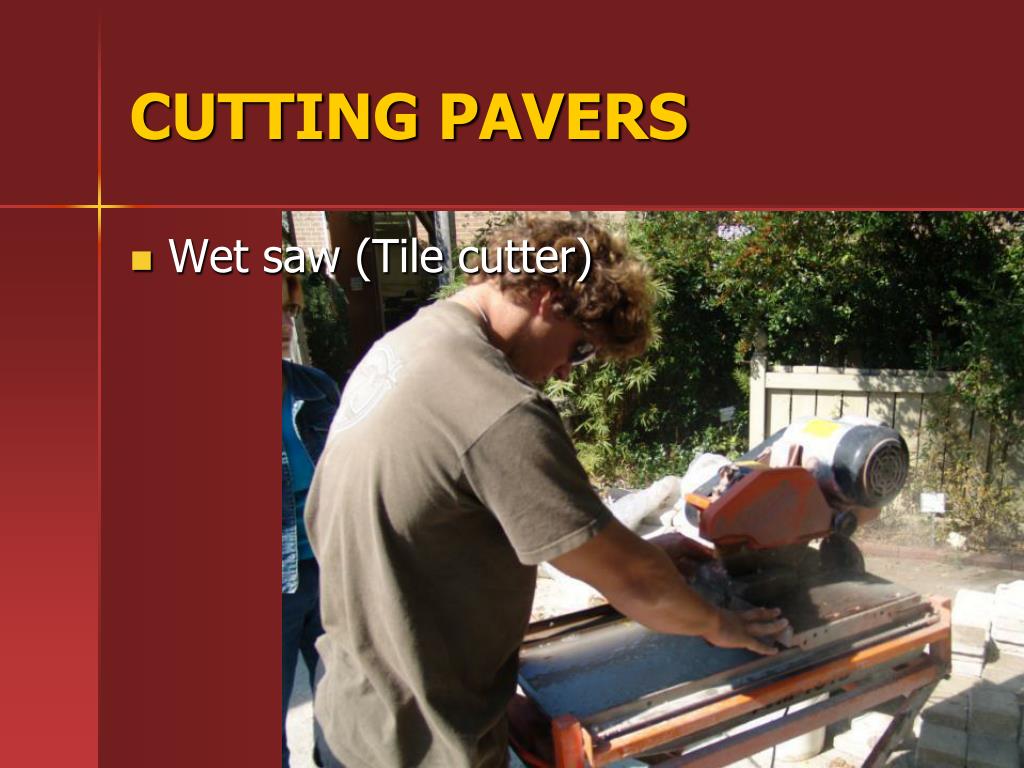

  33. CUTTING PAVERS • Wet saw (Tile cutter)

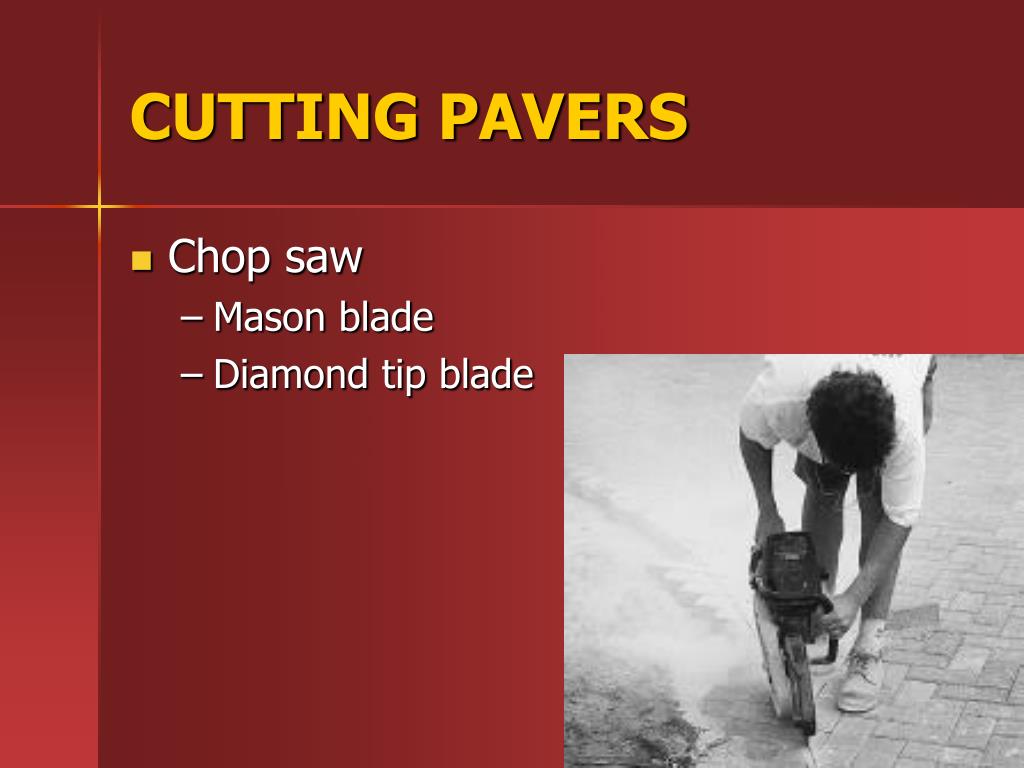

  34. CUTTING PAVERS • Chop saw • Mason blade • Diamond tip blade

  35. CUTTING PAVERS • Set and 3 pound hammer

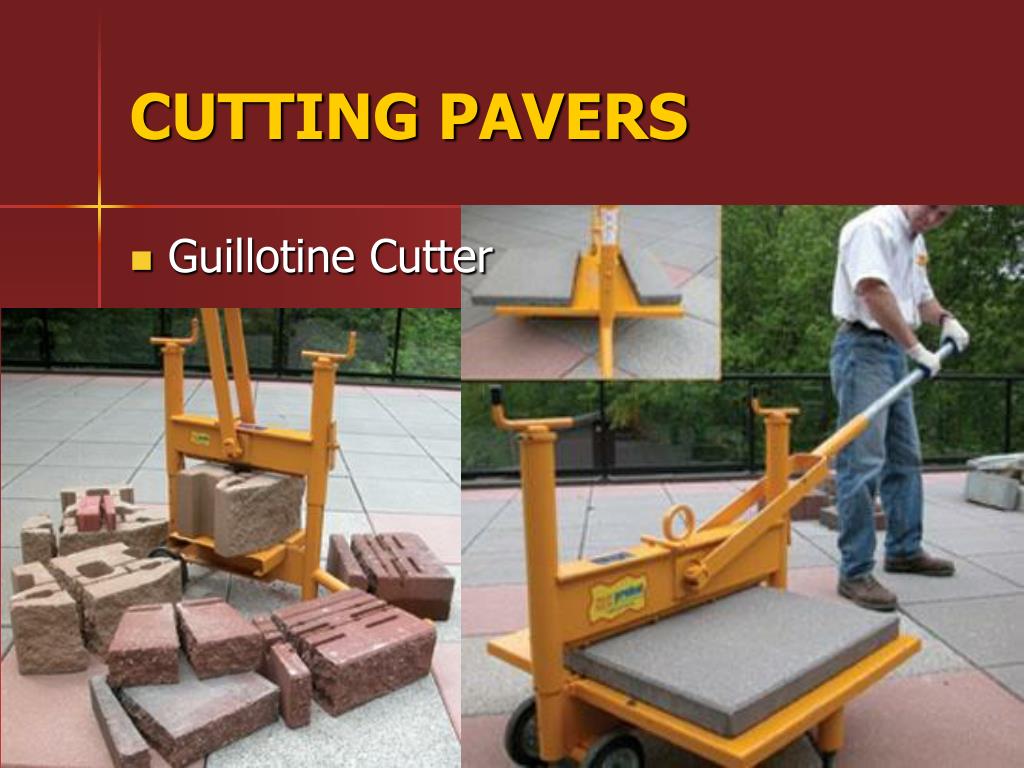

  36. CUTTING PAVERS • Guillotine Cutter

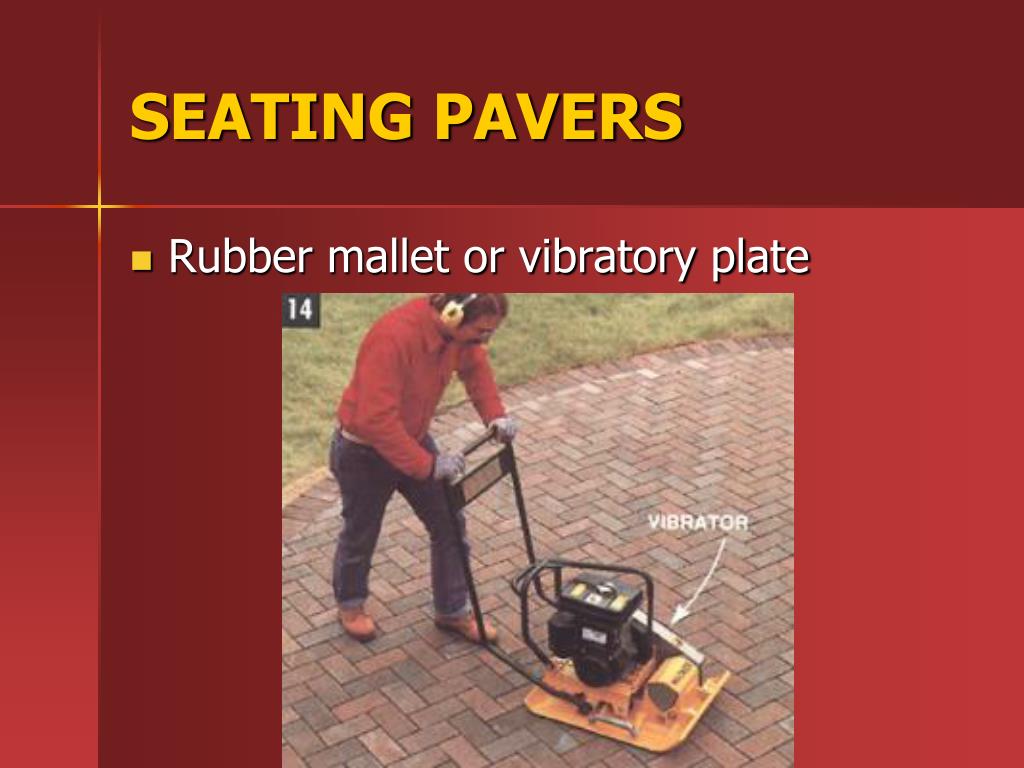

  37. SEATING PAVERS • Rubber mallet or vibratory plate

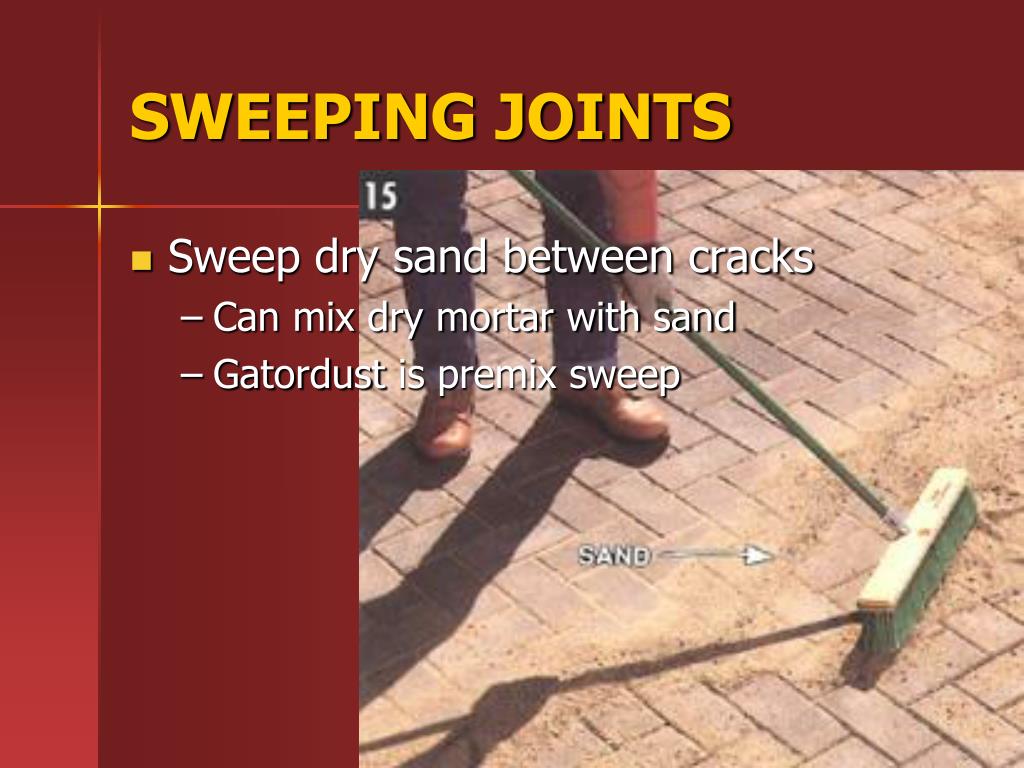

  38. SWEEPING JOINTS • Sweep dry sand between cracks • Can mix dry mortar with sand • Gatordust is premix sweep

  39. Effervescence • Salt residue from cement
