Scanning with ISS

1. Scanning with ISS Security-SIG 15 December 2005 David Taylor & John Lupton ISC Information Security ISC/Information Security

2. ISS - Internet Security Scanner • Commercial product of Internet Security Systems • Provides Windows-based scanning for vulnerabilities on hosts running all major PC operating systems • Windows • Mac OS X • Unix/Linux ISC/Information Security security@isc.upenn.edu

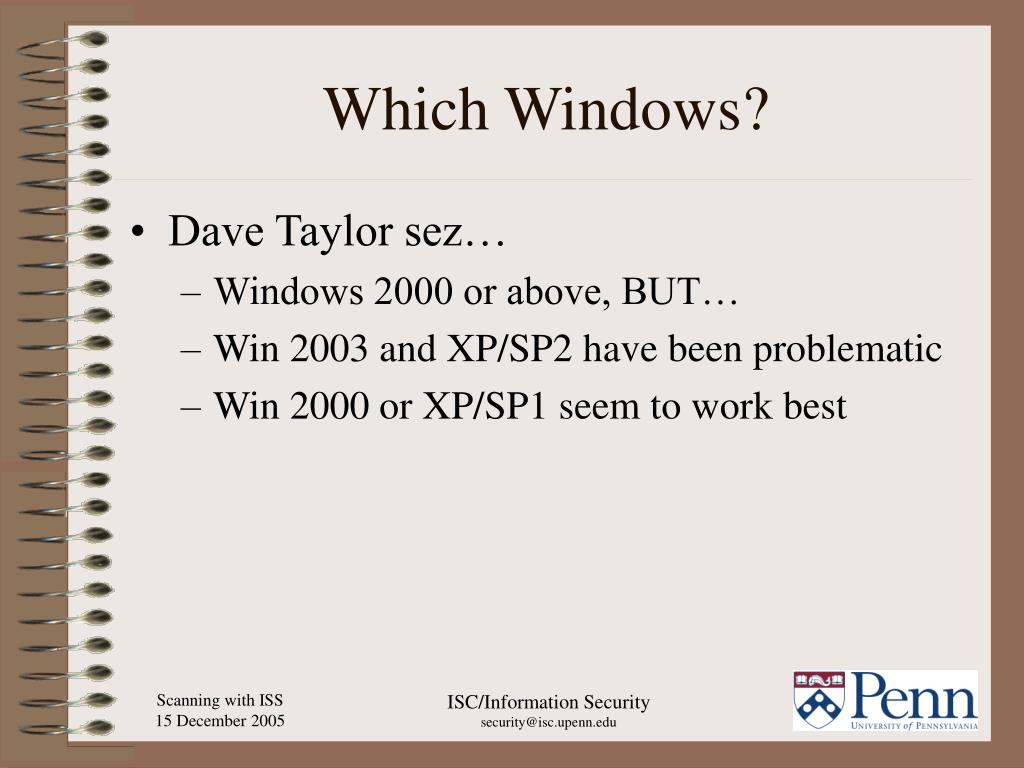

3. Which Windows? • Dave Taylor sez… • Windows 2000 or above, BUT… • Win 2003 and XP/SP2 have been problematic • Win 2000 or XP/SP1 seem to work best ISC/Information Security security@isc.upenn.edu

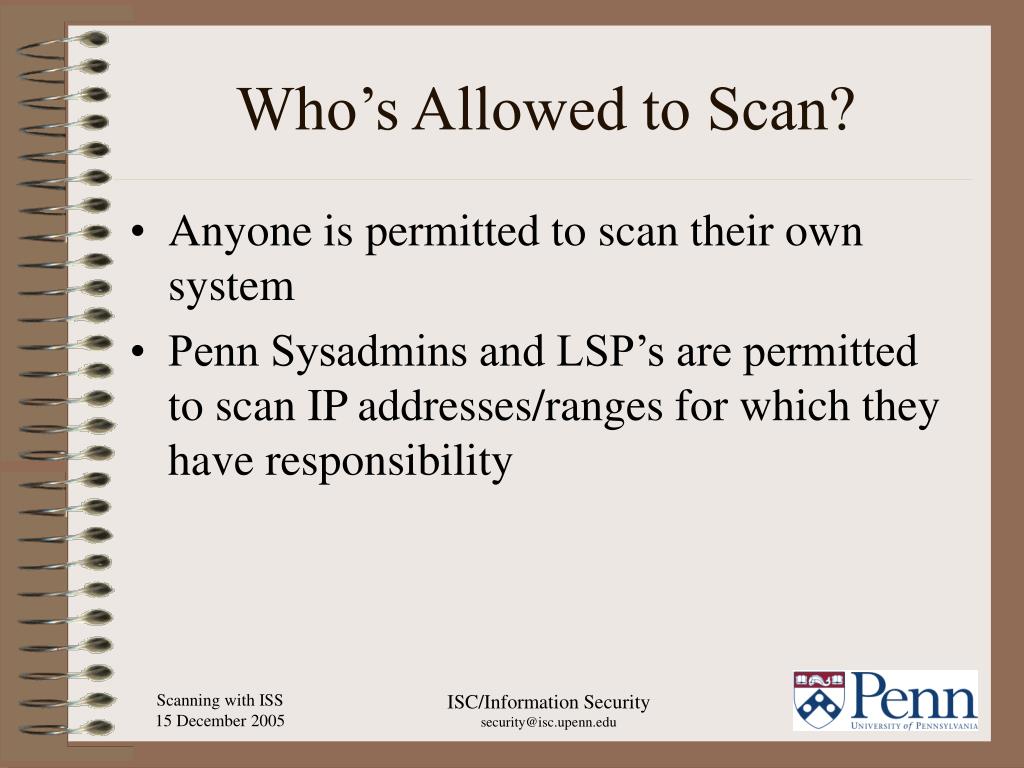

4. Who’s Allowed to Scan? • Anyone is permitted to scan their own system • Penn Sysadmins and LSP’s are permitted to scan IP addresses/ranges for which they have responsibility ISC/Information Security security@isc.upenn.edu

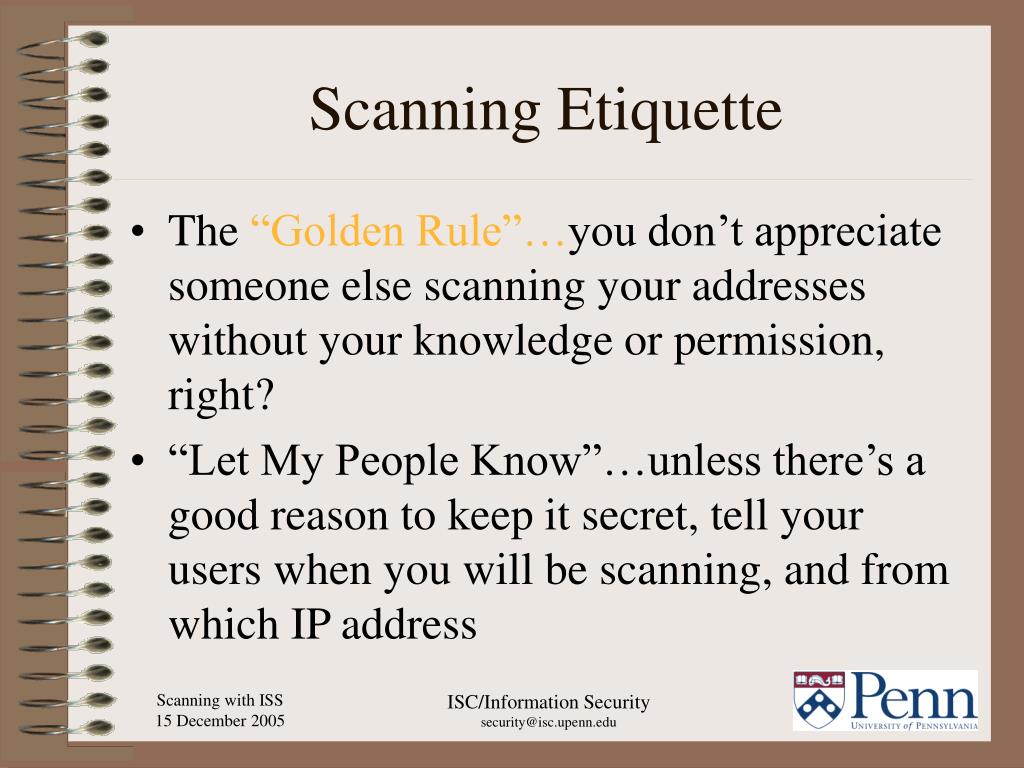

5. Scanning Etiquette • The “Golden Rule”…you don’t appreciate someone else scanning your addresses without your knowledge or permission, right? • “Let My People Know”…unless there’s a good reason to keep it secret, tell your users when you will be scanning, and from which IP address ISC/Information Security security@isc.upenn.edu

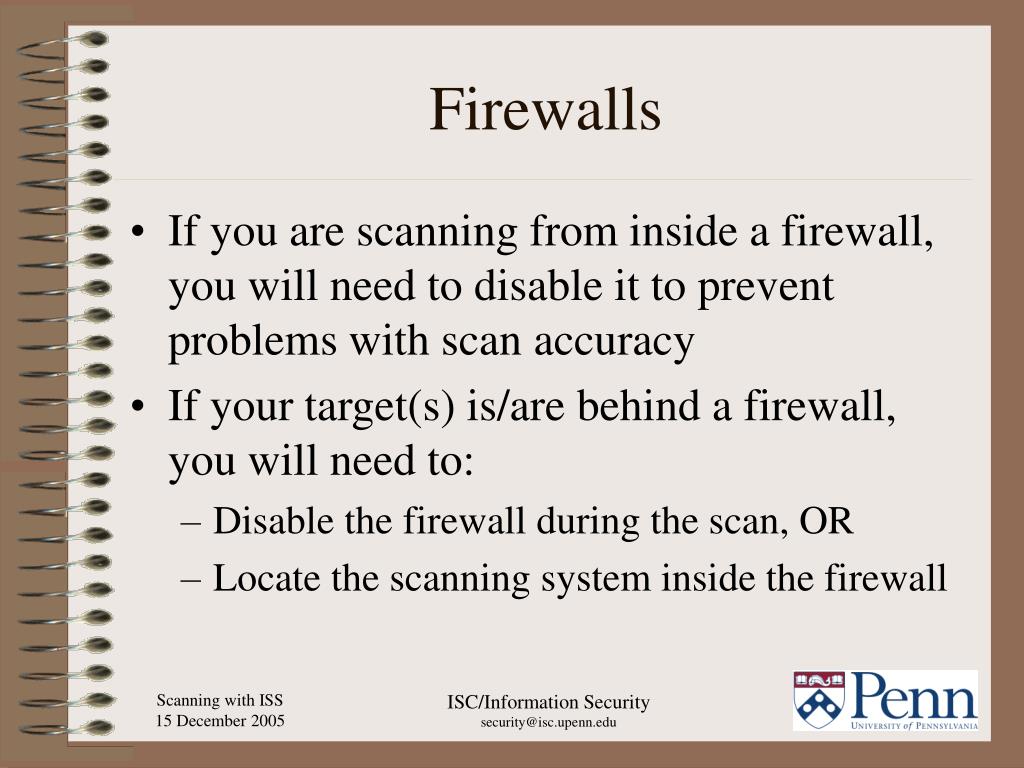

6. Firewalls • If you are scanning from inside a firewall, you will need to disable it to prevent problems with scan accuracy • If your target(s) is/are behind a firewall, you will need to: • Disable the firewall during the scan, OR • Locate the scanning system inside the firewall ISC/Information Security security@isc.upenn.edu

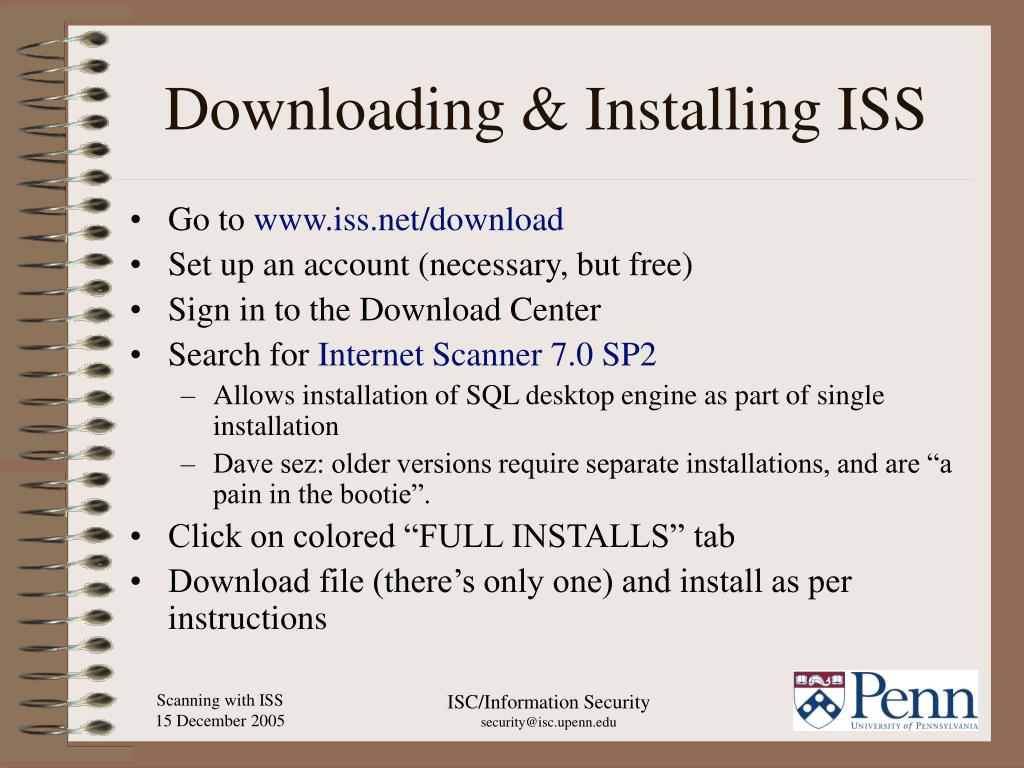

7. Downloading & Installing ISS • Go to www.iss.net/download • Set up an account (necessary, but free) • Sign in to the Download Center • Search for Internet Scanner 7.0 SP2 • Allows installation of SQL desktop engine as part of single installation • Dave sez: older versions require separate installations, and are “a pain in the bootie”. • Click on colored “FULL INSTALLS” tab • Download file (there’s only one) and install as per instructions ISC/Information Security security@isc.upenn.edu

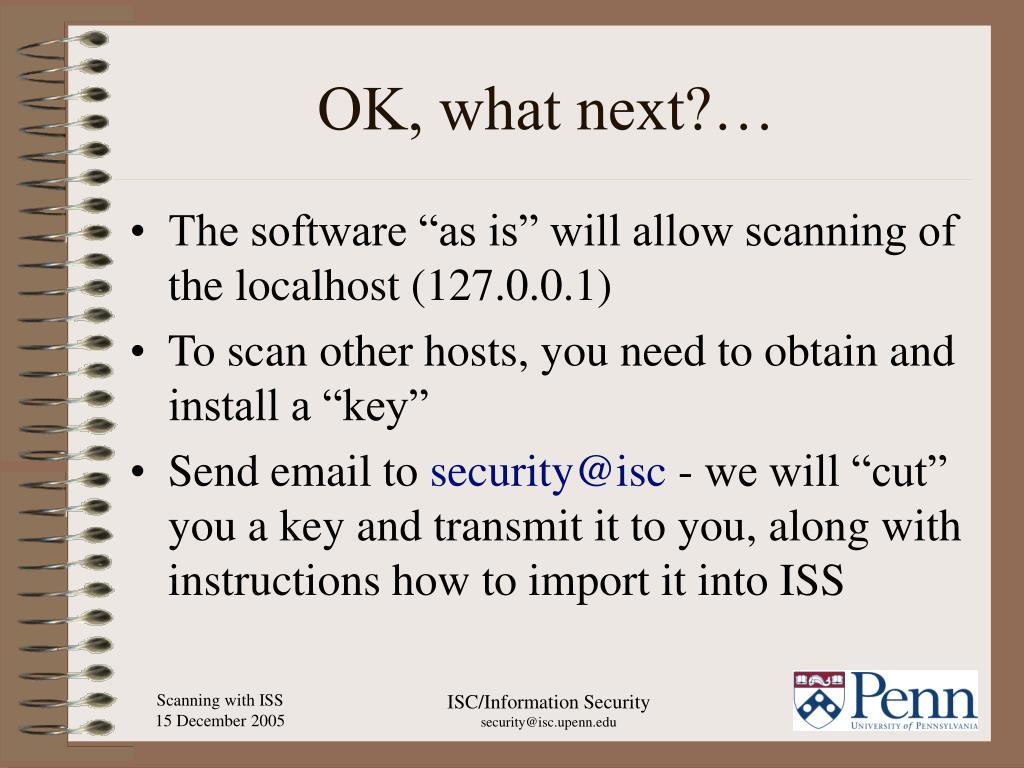

8. OK, what next?… • The software “as is” will allow scanning of the localhost (127.0.0.1) • To scan other hosts, you need to obtain and install a “key” • Send email to security@isc - we will “cut” you a key and transmit it to you, along with instructions how to import it into ISS ISC/Information Security security@isc.upenn.edu

9. ISC/Information Security security@isc.upenn.edu

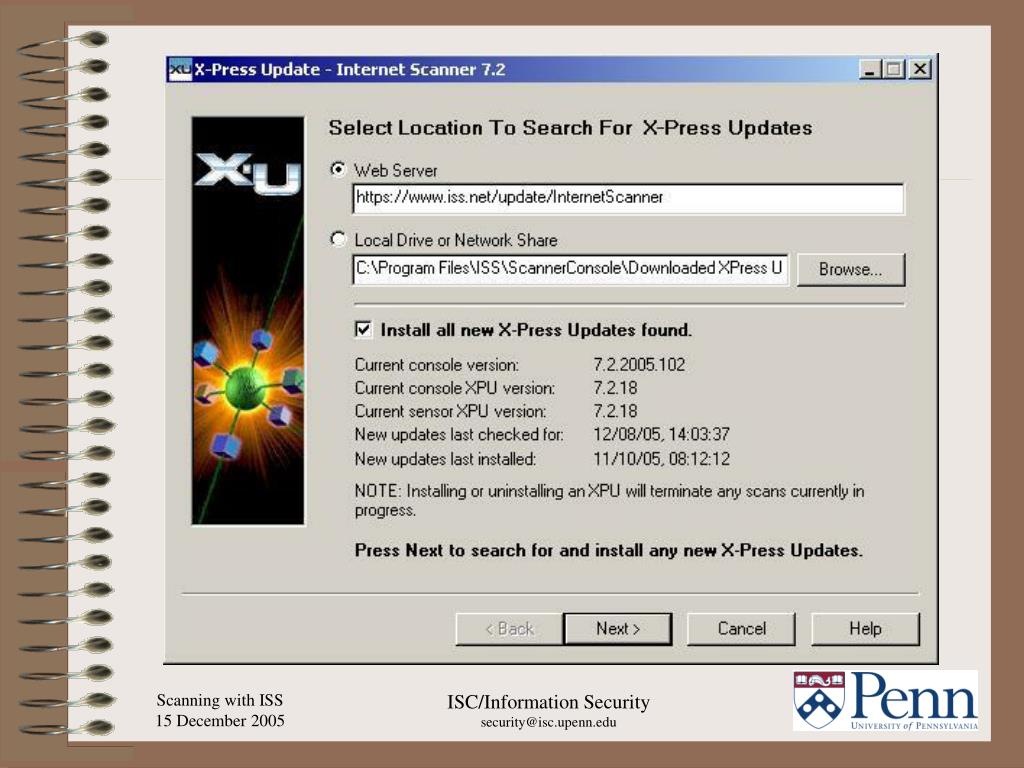

10. Installing Updates • After installing the ISS application, update the scanning modules by running “X-Press Update Install” • Located in ‘Start’ menu • Go to Starbucks…it will take a while • Once the updated modules have been installed, you’re ready to roll ISC/Information Security security@isc.upenn.edu

11. ISC/Information Security security@isc.upenn.edu

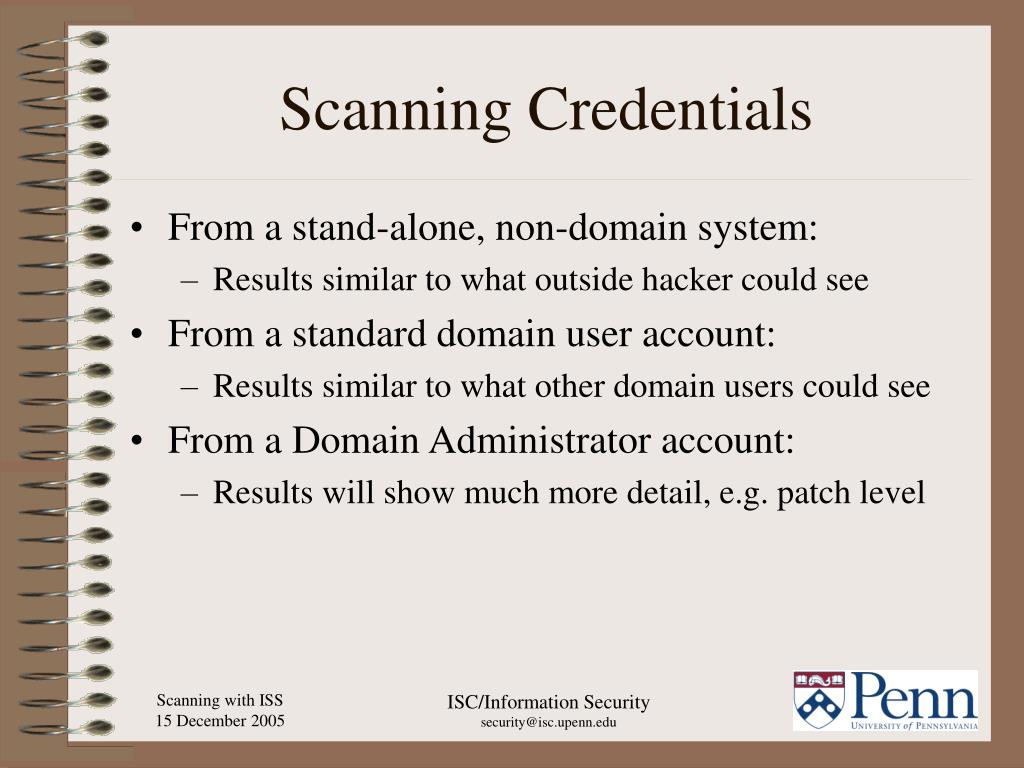

12. Scanning Credentials • From a stand-alone, non-domain system: • Results similar to what outside hacker could see • From a standard domain user account: • Results similar to what other domain users could see • From a Domain Administrator account: • Results will show much more detail, e.g. patch level ISC/Information Security security@isc.upenn.edu

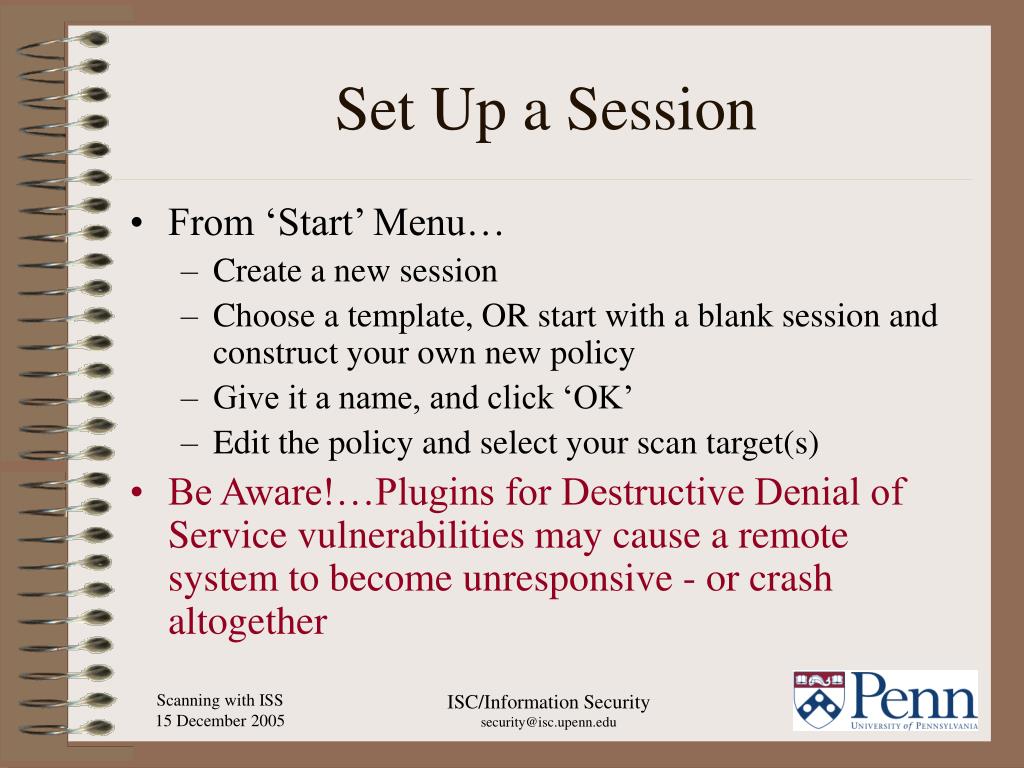

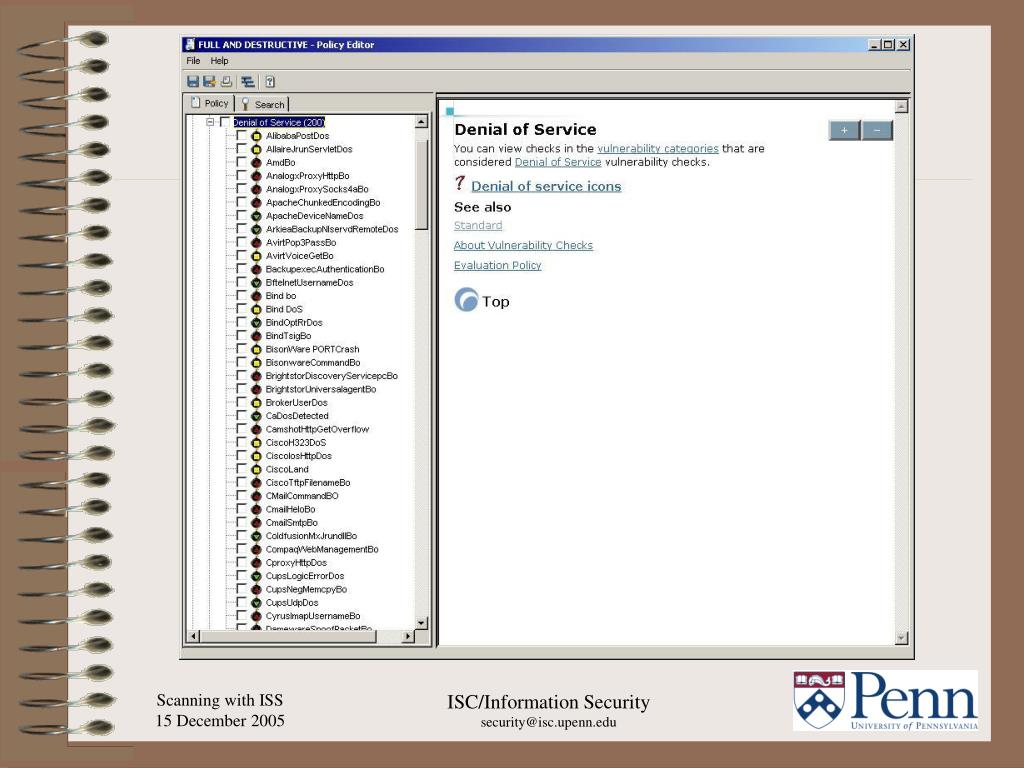

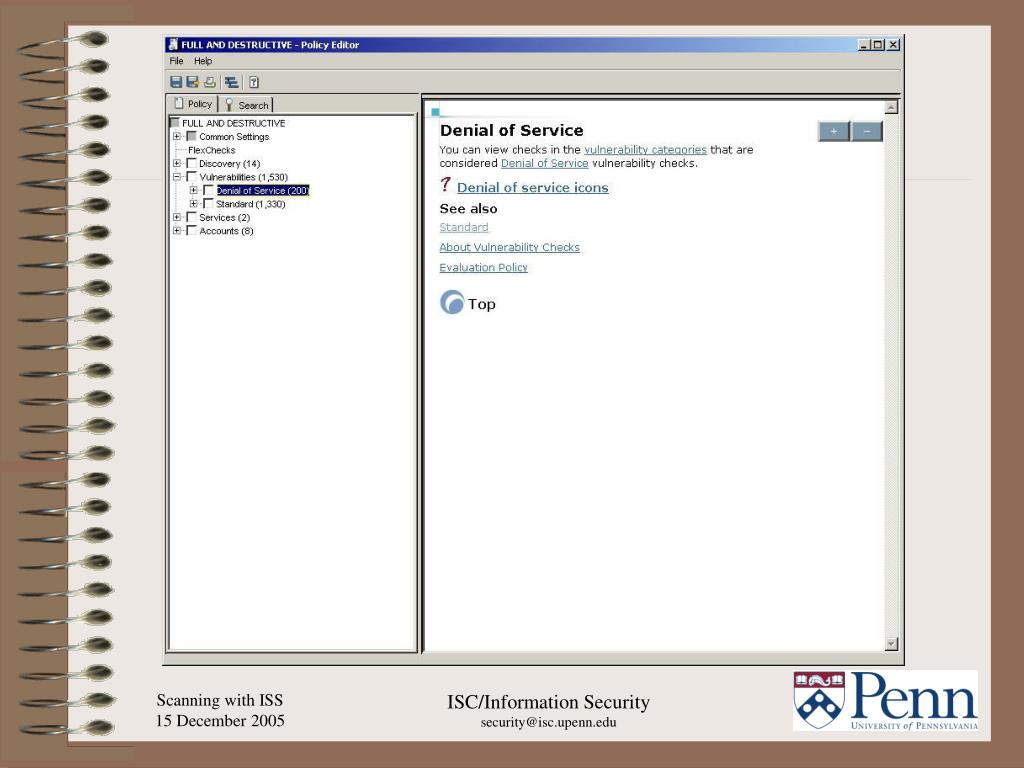

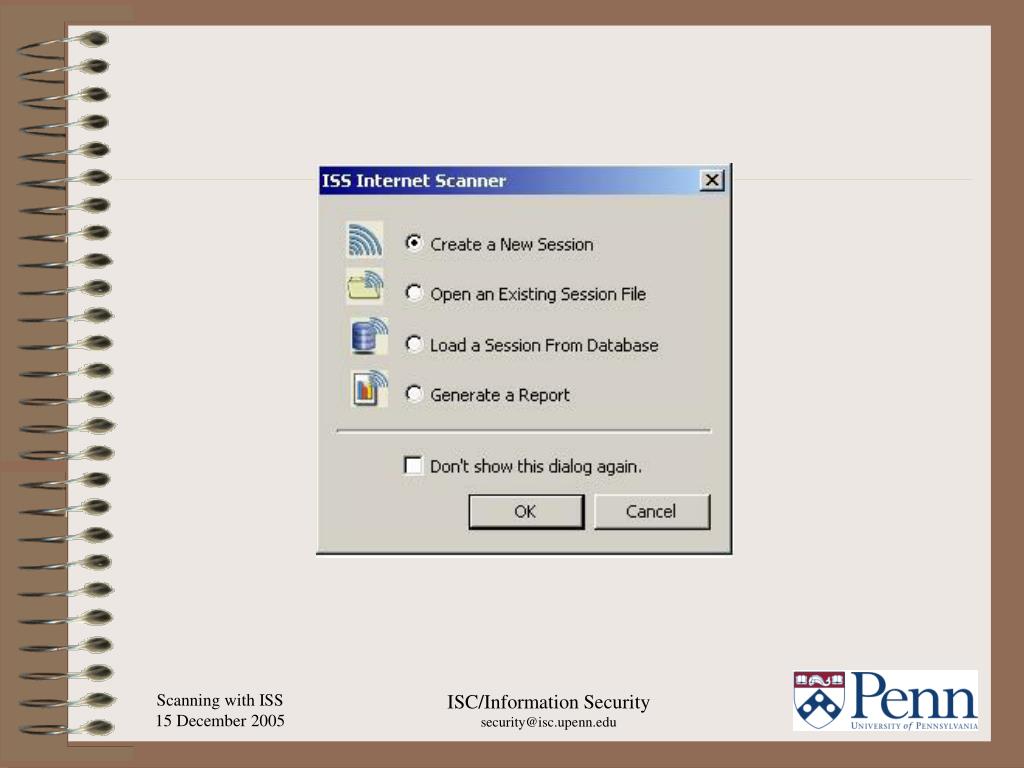

13. Set Up a Session • From ‘Start’ Menu… • Create a new session • Choose a template, OR start with a blank session and construct your own new policy • Give it a name, and click ‘OK’ • Edit the policy and select your scan target(s) • Be Aware!…Plugins for Destructive Denial of Service vulnerabilities may cause a remote system to become unresponsive - or crash altogether ISC/Information Security security@isc.upenn.edu

14. ISC/Information Security security@isc.upenn.edu

15. ISC/Information Security security@isc.upenn.edu

16. ISC/Information Security security@isc.upenn.edu

17. ISC/Information Security security@isc.upenn.edu

18. ISC/Information Security security@isc.upenn.edu

19. ISC/Information Security security@isc.upenn.edu

20. ISC/Information Security security@isc.upenn.edu

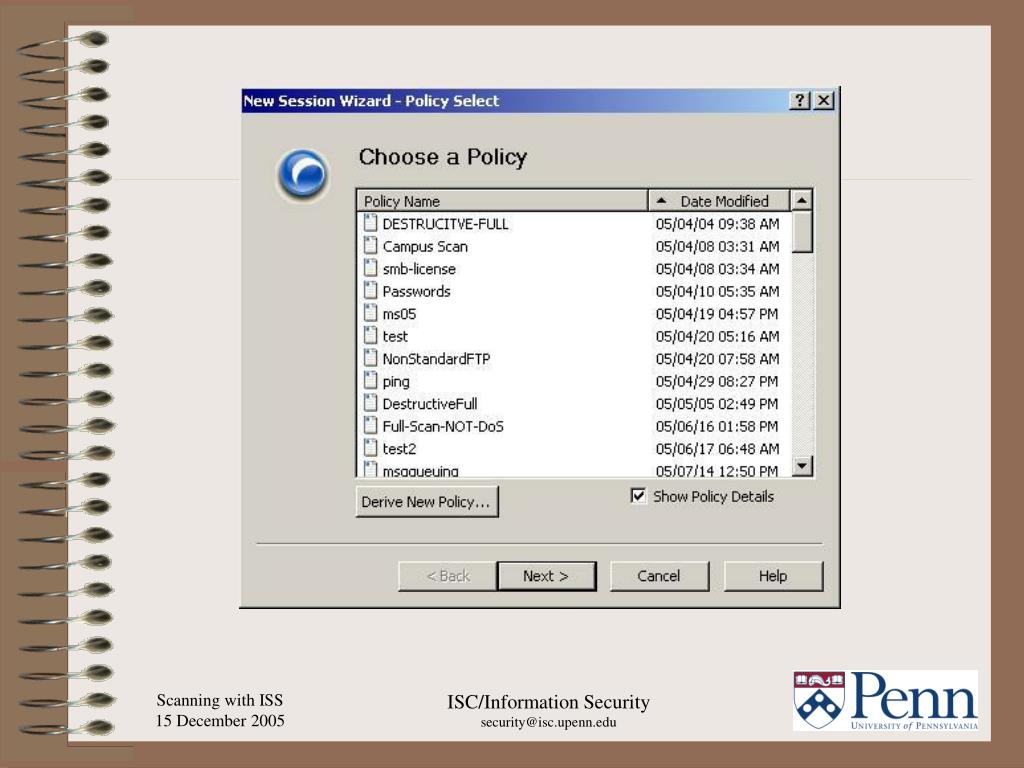

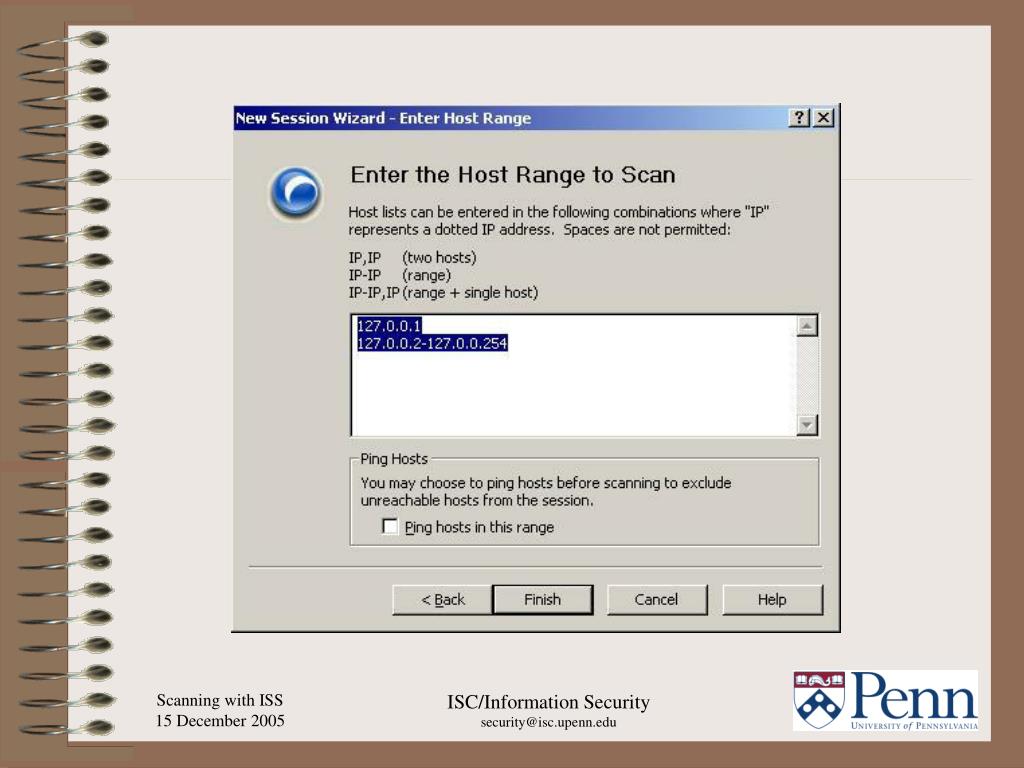

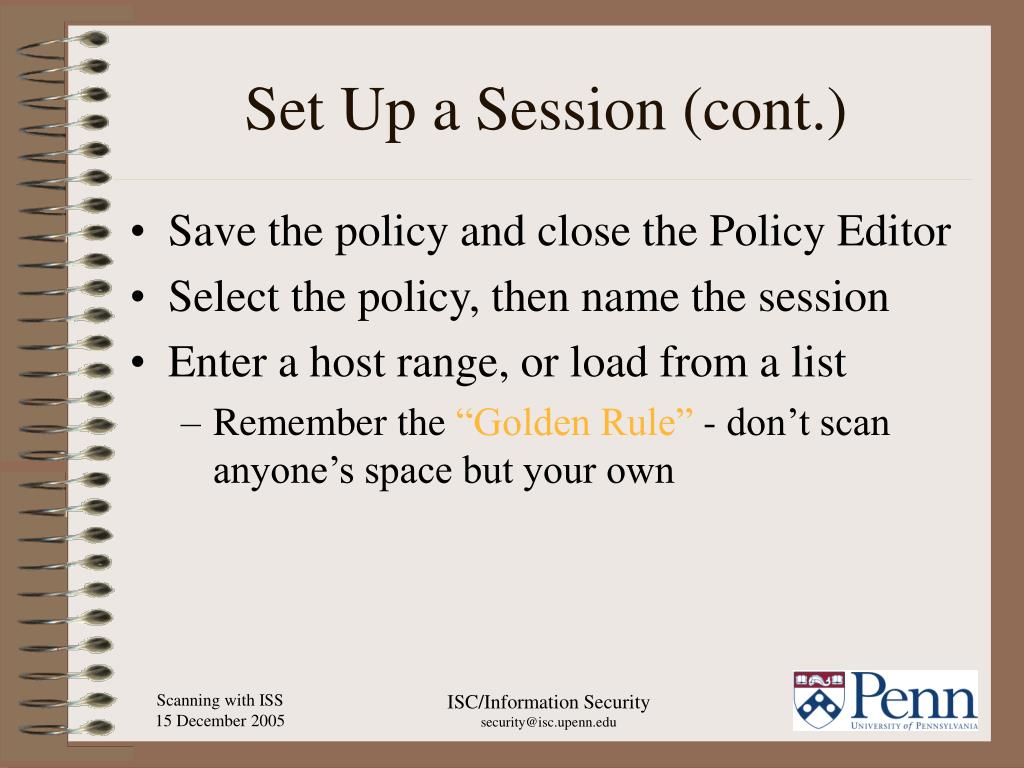

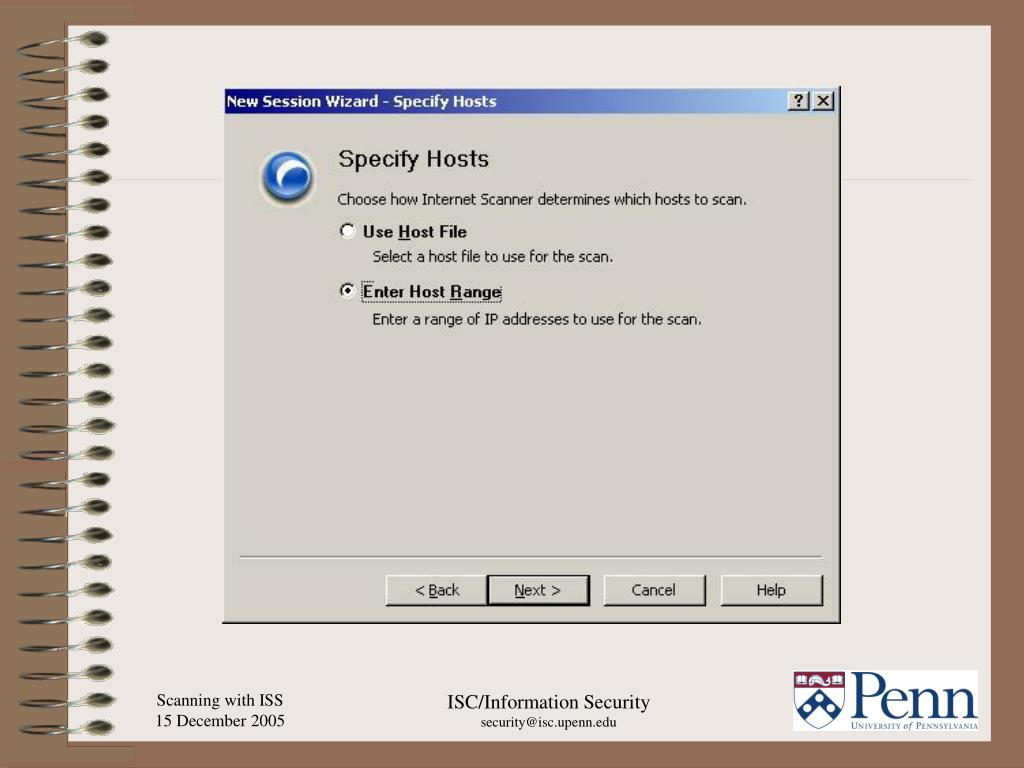

21. Set Up a Session (cont.) • Save the policy and close the Policy Editor • Select the policy, then name the session • Enter a host range, or load from a list • Remember the “Golden Rule” - don’t scan anyone’s space but your own ISC/Information Security security@isc.upenn.edu

22. ISC/Information Security security@isc.upenn.edu

23. ISC/Information Security security@isc.upenn.edu

24. ISC/Information Security security@isc.upenn.edu

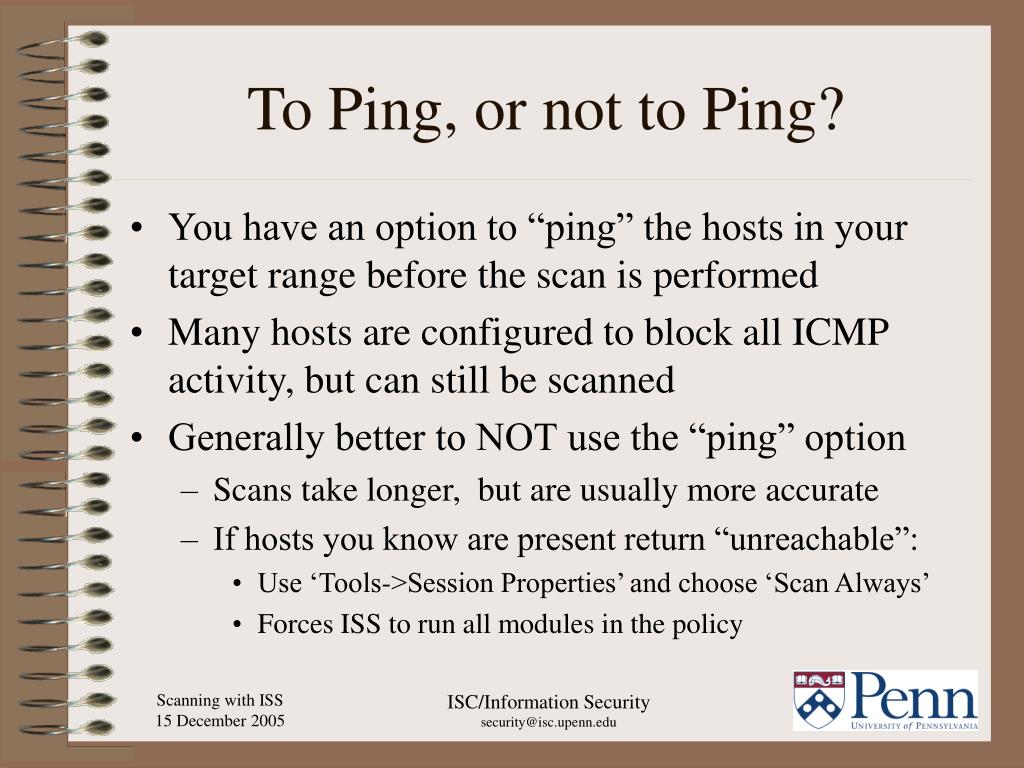

25. To Ping, or not to Ping? • You have an option to “ping” the hosts in your target range before the scan is performed • Many hosts are configured to block all ICMP activity, but can still be scanned • Generally better to NOT use the “ping” option • Scans take longer, but are usually more accurate • If hosts you know are present return “unreachable”: • Use ‘Tools->Session Properties’ and choose ‘Scan Always’ • Forces ISS to run all modules in the policy ISC/Information Security security@isc.upenn.edu

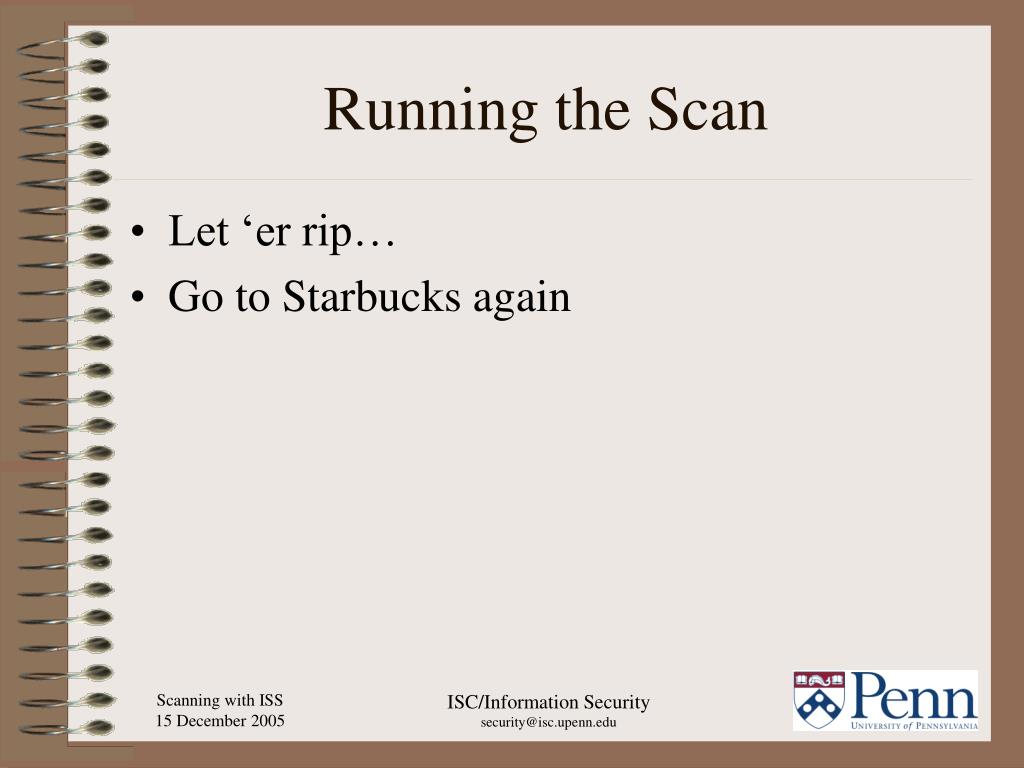

26. Running the Scan • Let ‘er rip… • Go to Starbucks again ISC/Information Security security@isc.upenn.edu

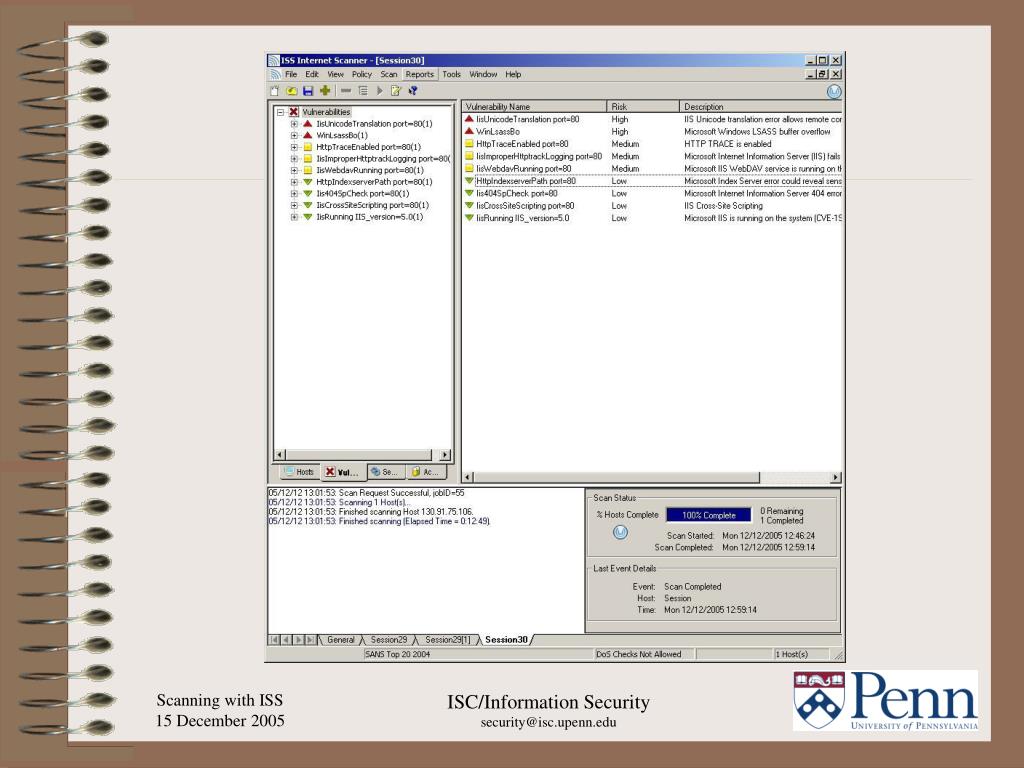

27. ISC/Information Security security@isc.upenn.edu

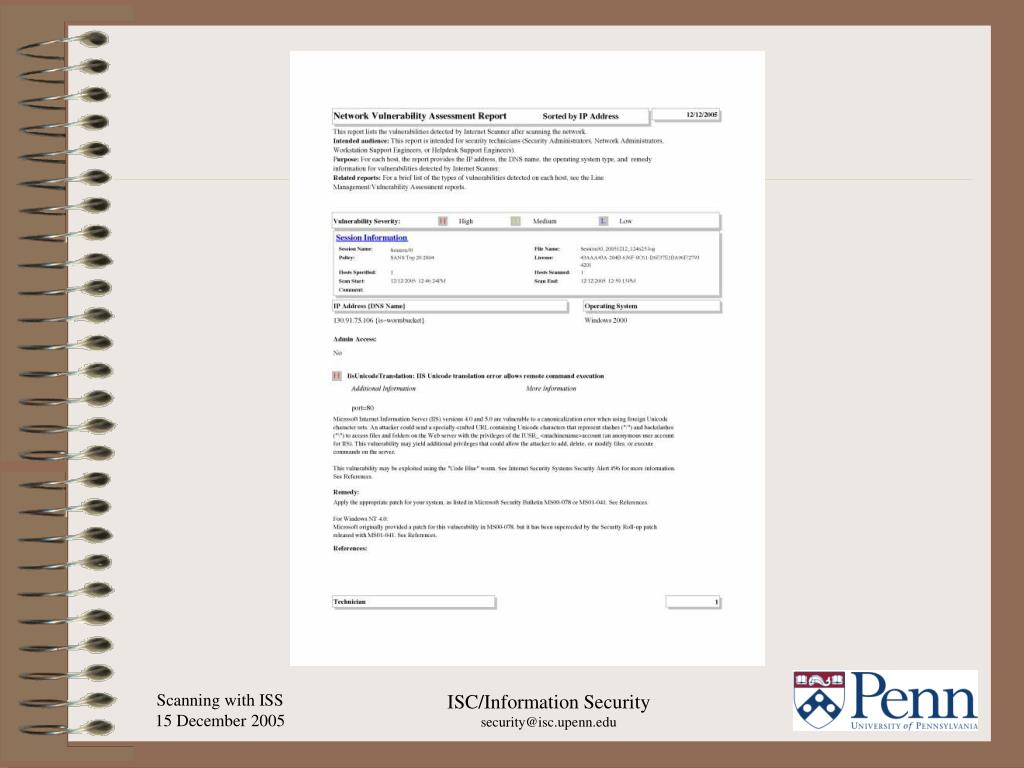

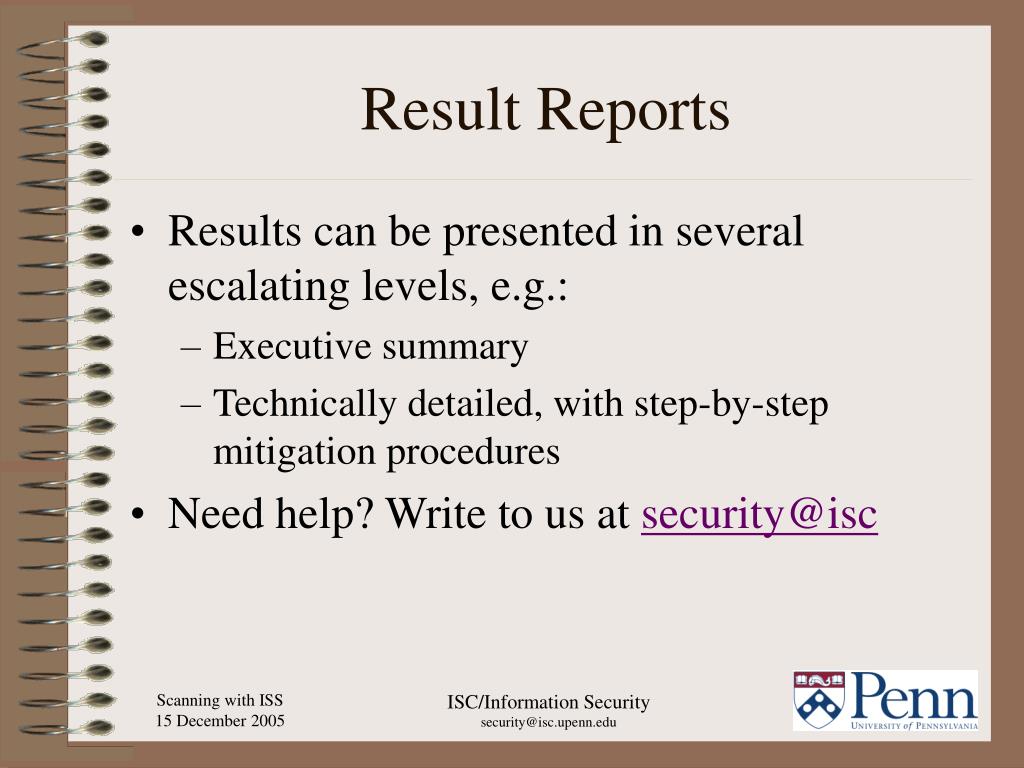

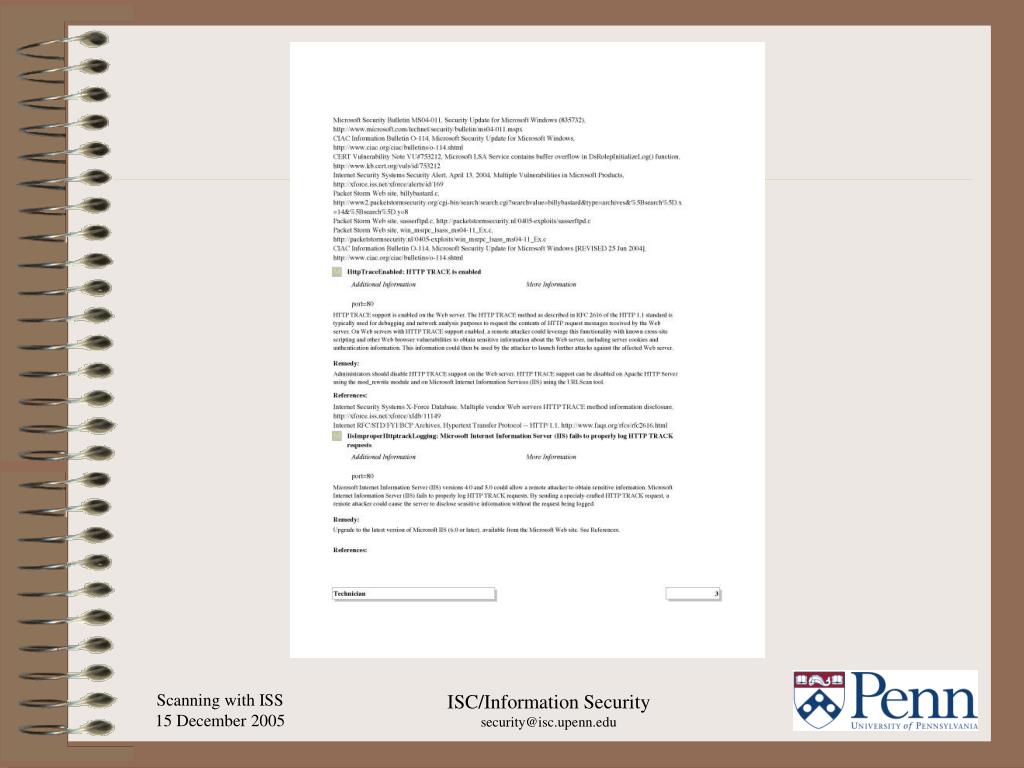

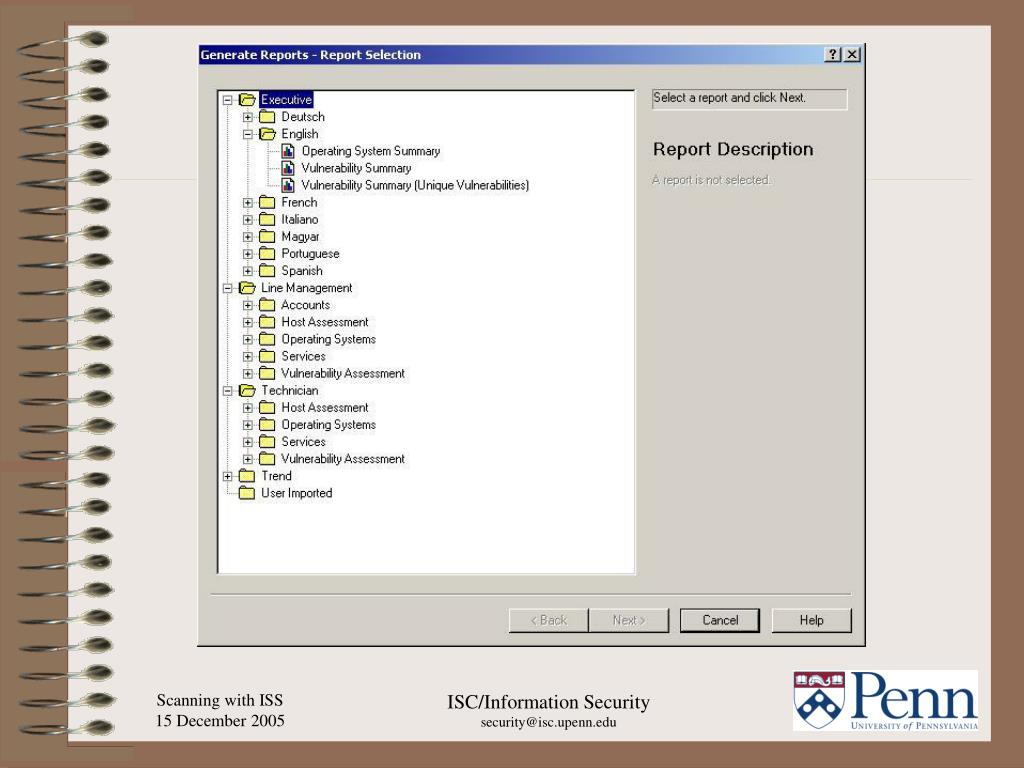

28. Result Reports • Results can be presented in several escalating levels, e.g.: • Executive summary • Technically detailed, with step-by-step mitigation procedures • Need help? Write to us at security@isc ISC/Information Security security@isc.upenn.edu

29. ISC/Information Security security@isc.upenn.edu

30. ISC/Information Security security@isc.upenn.edu

31. ISC/Information Security security@isc.upenn.edu

32. ISC/Information Security security@isc.upenn.edu

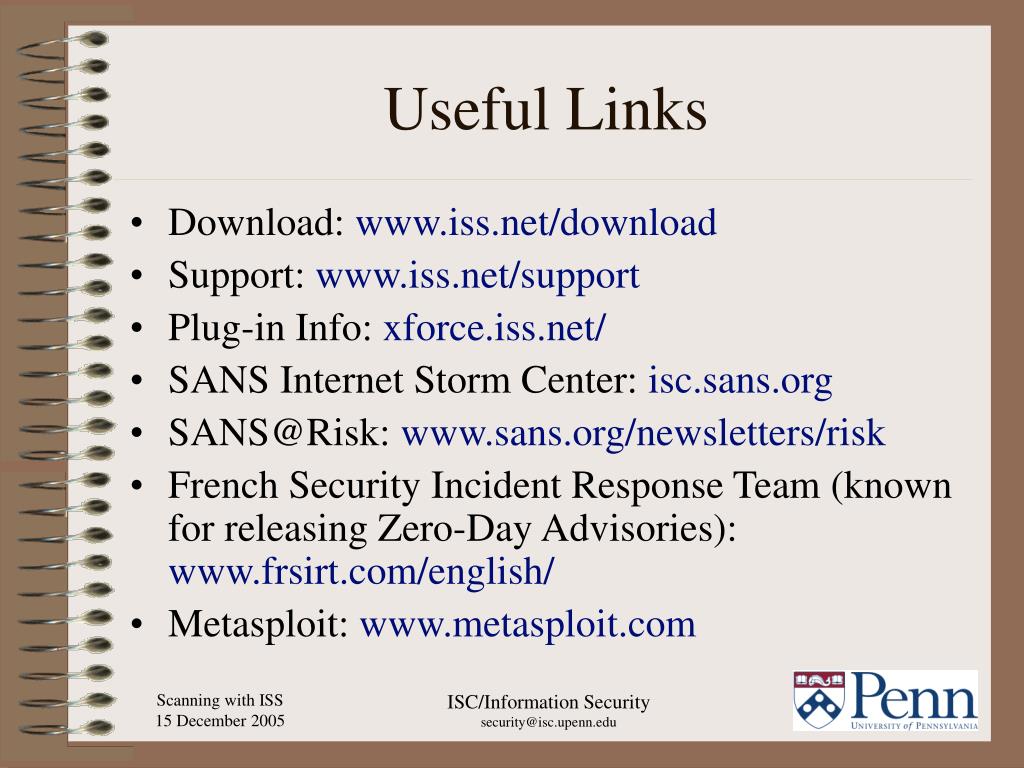

33. Useful Links • Download: www.iss.net/download • Support: www.iss.net/support • Plug-in Info: xforce.iss.net/ • SANS Internet Storm Center: isc.sans.org • SANS@Risk: www.sans.org/newsletters/risk • French Security Incident Response Team (known for releasing Zero-Day Advisories): www.frsirt.com/english/ • Metasploit: www.metasploit.com ISC/Information Security security@isc.upenn.edu
