  1. STAR presentation Bernard MEURICHE THALES Communications September 2006 Business line or Division or Corporate Department

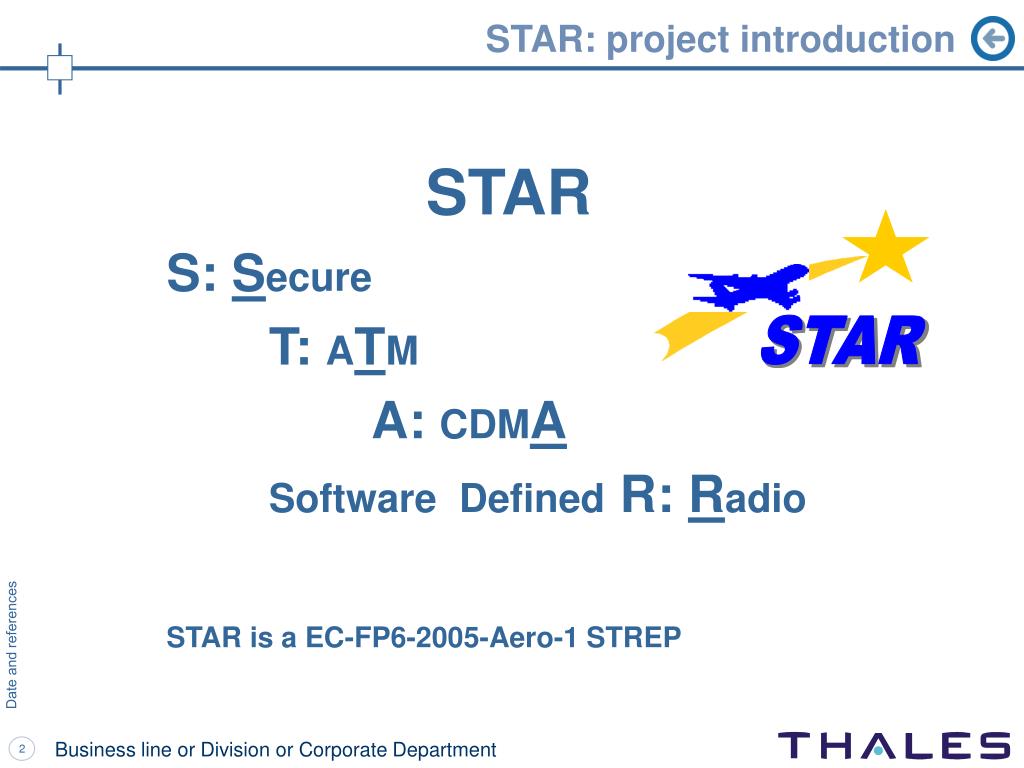

  2. STAR STAR: project introduction • STAR • S: Secure • T: ATM • A: CDMA • Software Defined R: Radio • STAR is a EC-FP6-2005-Aero-1 STREP Business line or Division or Corporate Department

  3. Background • EUROCONTROL / AGILENT WCDMA experiments • EUROCONTROL Project • UK test area (C band) + Azores flight (VHF band) tests Business line or Division or Corporate Department

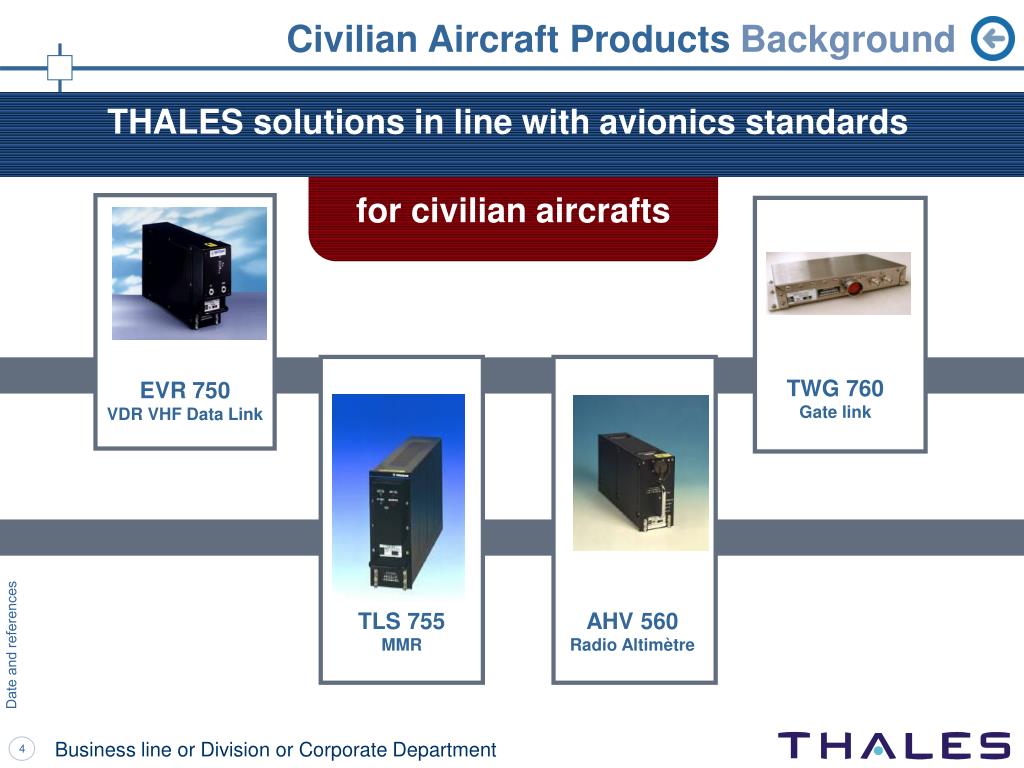

  4. for civilian aircrafts EVR 750 VDR VHF Data Link Civilian Aircraft Products Background THALES solutions in line with avionics standards TWG 760 Gate link TLS 755 MMR AHV 560 Radio Altimètre Business line or Division or Corporate Department

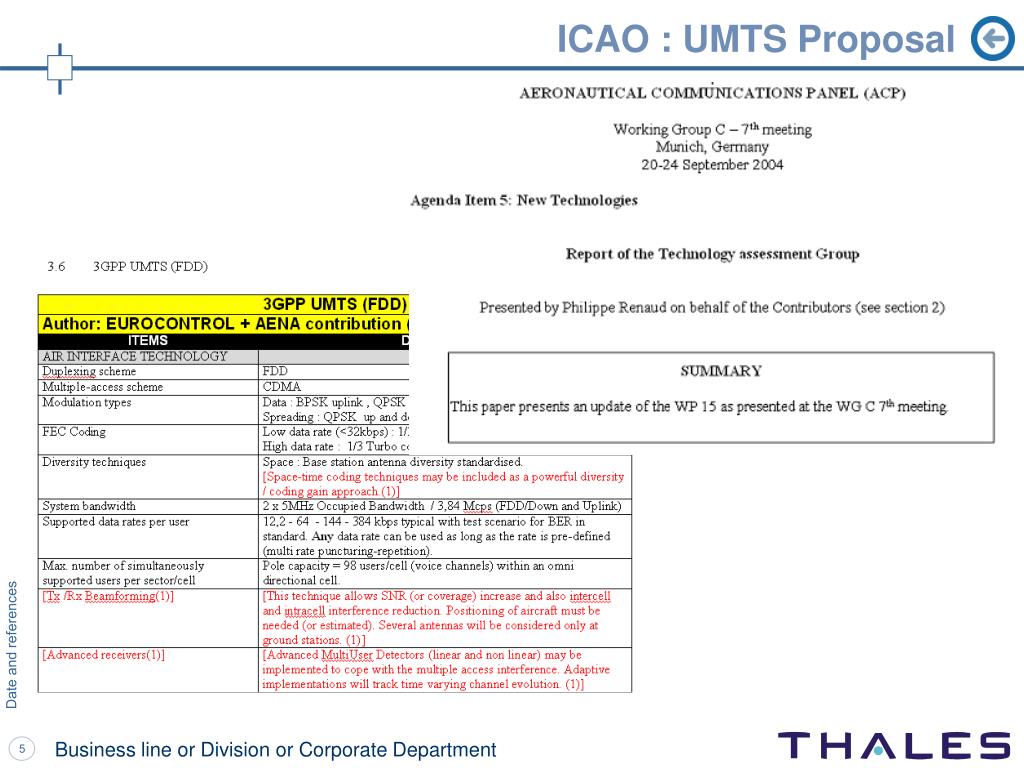

  5. ICAO : UMTS Proposal Business line or Division or Corporate Department

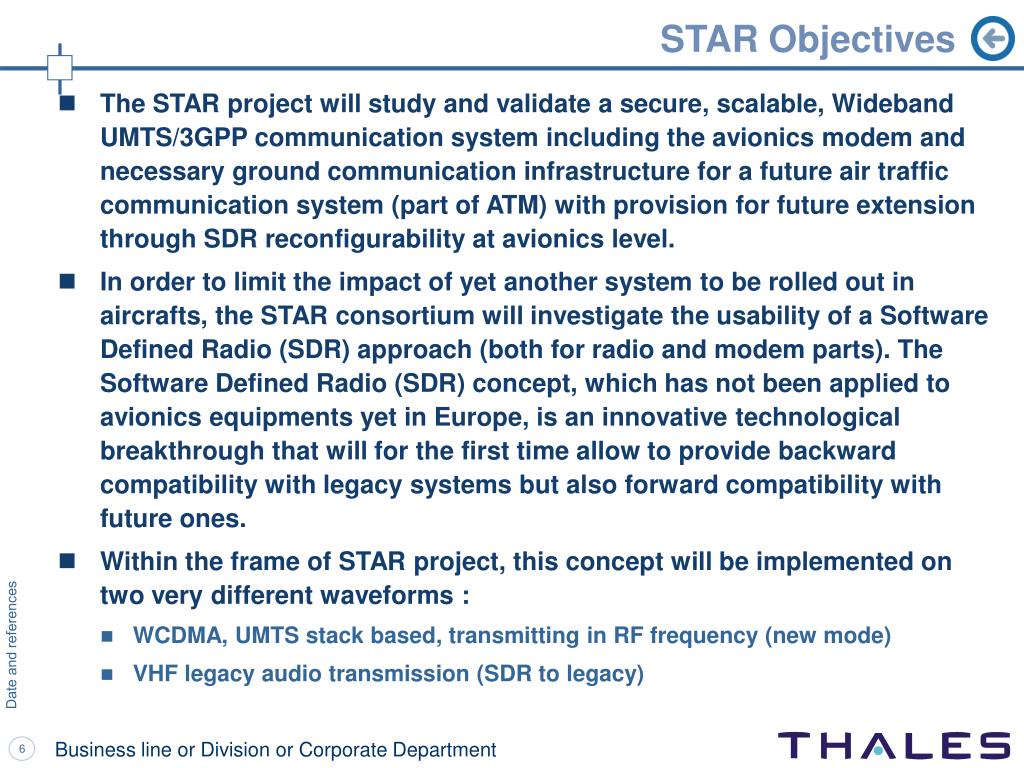

  6. STAR Objectives • The STAR project will study and validate a secure, scalable, Wideband UMTS/3GPP communication system including the avionics modem and necessary ground communication infrastructure for a future air traffic communication system (part of ATM) with provision for future extension through SDR reconfigurability at avionics level. • In order to limit the impact of yet another system to be rolled out in aircrafts, the STAR consortium will investigate the usability of a Software Defined Radio (SDR) approach (both for radio and modem parts). The Software Defined Radio (SDR) concept, which has not been applied to avionics equipments yet in Europe, is an innovative technological breakthrough that will for the first time allow to provide backward compatibility with legacy systems but also forward compatibility with future ones. • Within the frame of STAR project, this concept will be implemented on two very different waveforms : • WCDMA, UMTS stack based, transmitting in RF frequency (new mode) • VHF legacy audio transmission (SDR to legacy) Business line or Division or Corporate Department

  7. STAR Objectives • Development of a secure, scalable, wideband ATM/ATC radio system • Safety is provided by the security of the communication system which features are : • Privacy : only authorised parties can get the data (cyphering, coding) • Authentication : UMTS provides for mutual mean to prove the identity of the message originator • Data integrity : data cannot be altered without detection • Non-repudiation : it can undeniably be proven that a message was sent • and availability brought by the scalable high capacity provided by UMTS • Development of a representative trial network permitting the set-up of an air-ground link by airborne equipment in Wideband communications mode • For the wideband communications ground infrastructure of the STAR system it is planned to modify the 3G UMTS/FDD base station hardware as a basis. Business line or Division or Corporate Department

  8. STAR Objectives • Research and development of a prototype multi-mode (SDR) avionics RF + baseband platform able to support both wideband communications and the existing legacy formats. • Software Defined Radio (RF + modem) : STAR is aiming at proving the advantages of a SDR concept for avionics ATM purposes regarding: • 1. Modulations (legacy analogue voice and digital wideband 3GPP) • 2. Frequencies (at VHF for voice and at RF frequencyfor Wideband CDMA) showing the backward compatibility of this concept with legacy and forward compatibility with other standards. Business line or Division or Corporate Department

  9. STAR Objectives • Estimation of the capacity and QoS improvements offered by a wideband communications system with regards to 8.33 kHz and VDL-Mode2 systems. • Capacity : UMTS (3GPP) is able of the highest capacity ever achieved in cellular networks • QoS: UMTS protocols are able to handle in real time both voice and data services with a high and defined Quality of Service (QoS = availability, high rate, security, robustness..) • Validation and verification of a secure wideband communications system by 2008 in lab and flight trials. • The validation of the ATM SDR concept will be done: • In lab trials emulating the complete system (airborne and ground equipment), using channel simulators, traffic load generation and jamming, at VHF for legacy analogue voice and digital wideband modulation and at RF frequencyfor CDMA waveforms • Through flight trials in order to confirm the lab tests results, at VHF for legacy analogue voice and at RF frequencyfor CDMA waveforms. Business line or Division or Corporate Department

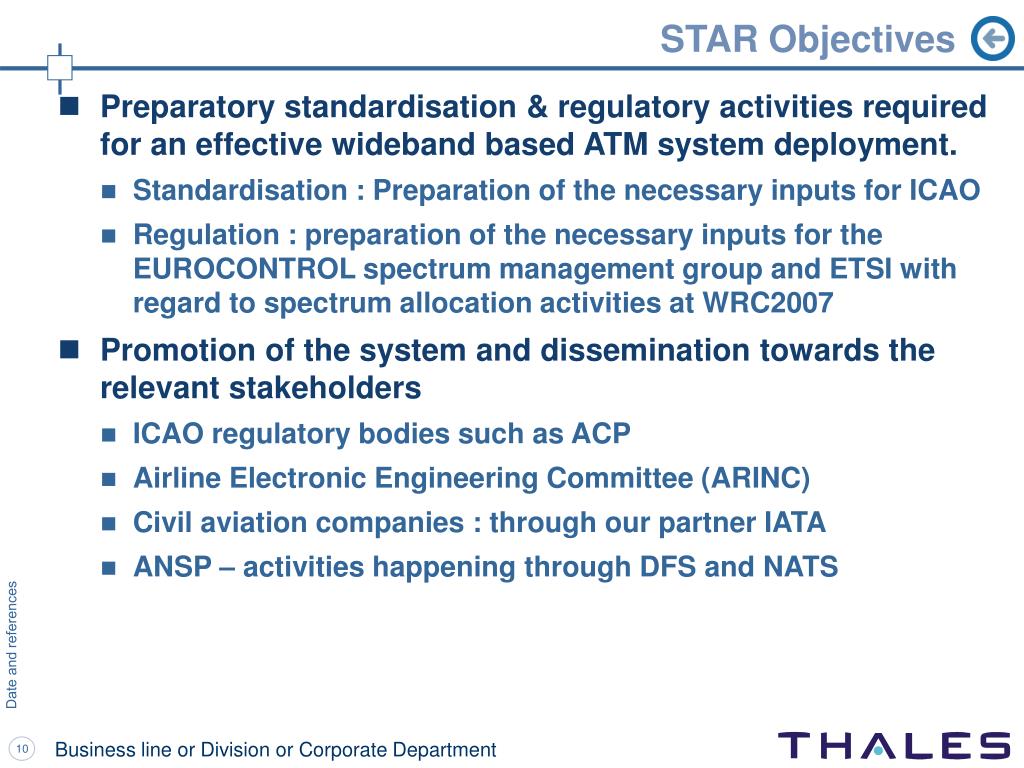

  10. STAR Objectives • Preparatory standardisation & regulatory activities required for an effective wideband based ATM system deployment. • Standardisation : Preparation of the necessary inputs for ICAO • Regulation : preparation of the necessary inputs for the EUROCONTROL spectrum management group and ETSI with regard to spectrum allocation activities at WRC2007 • Promotion of the system and dissemination towards the relevant stakeholders • ICAO regulatory bodies such as ACP • Airline Electronic Engineering Committee (ARINC) • Civil aviation companies : through our partner IATA • ANSP – activities happening through DFS and NATS Business line or Division or Corporate Department

  11. BB BB BB RF RF RF STAR : Project Scope App W-CDMA PS RTOS/OS RF BB Node B Node B Node B RNC ATM WWW? RNC Node B App PS Node B RF BB Node B Business line or Division or Corporate Department

  12. STAR : tailored capacity example 19.2Kbps, very large cells 64Kbps, large cells 128Kbps, medium cells 384Kbps, small cells Business line or Division or Corporate Department

  13. STAR SDR approach • Software Defined Radio • Wideband RF processing • Either directly or in IF the SDR concept allows to cover wide spectrums through simple re-configuration • Wide dynamic range AD conversion and processing • Antenna processing capability (SDMA) • RF/IF re-configurability • Ability to adapt to various waveforms • Re-configurable RF level architectures • Frequency agility in Tx and Rx modes Business line or Division or Corporate Department

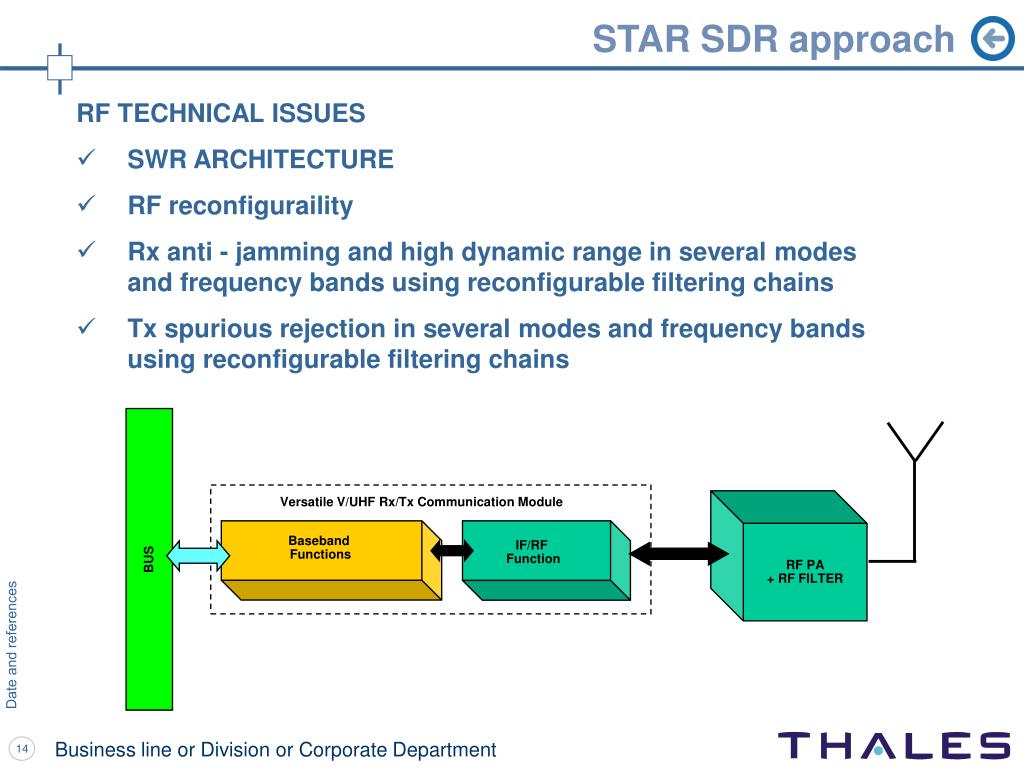

  14. IF/RF Function RF PA + RF FILTER Versatile V/UHF Rx/Tx Communication Module Baseband Functions BUS STAR SDR approach • RF TECHNICAL ISSUES • SWR ARCHITECTURE • RF reconfiguraility • Rx anti - jamming and high dynamic range in several modes and frequency bands using reconfigurable filtering chains • Tx spurious rejection in several modes and frequency bands using reconfigurable filtering chains Business line or Division or Corporate Department

  15. Application Server Application Server RNC Node B Commercial Channel Simulator RF Front-end BB Modem Ground infrastructure Aircraft equipment STAR: LAB Trial set-up Business line or Division or Corporate Department

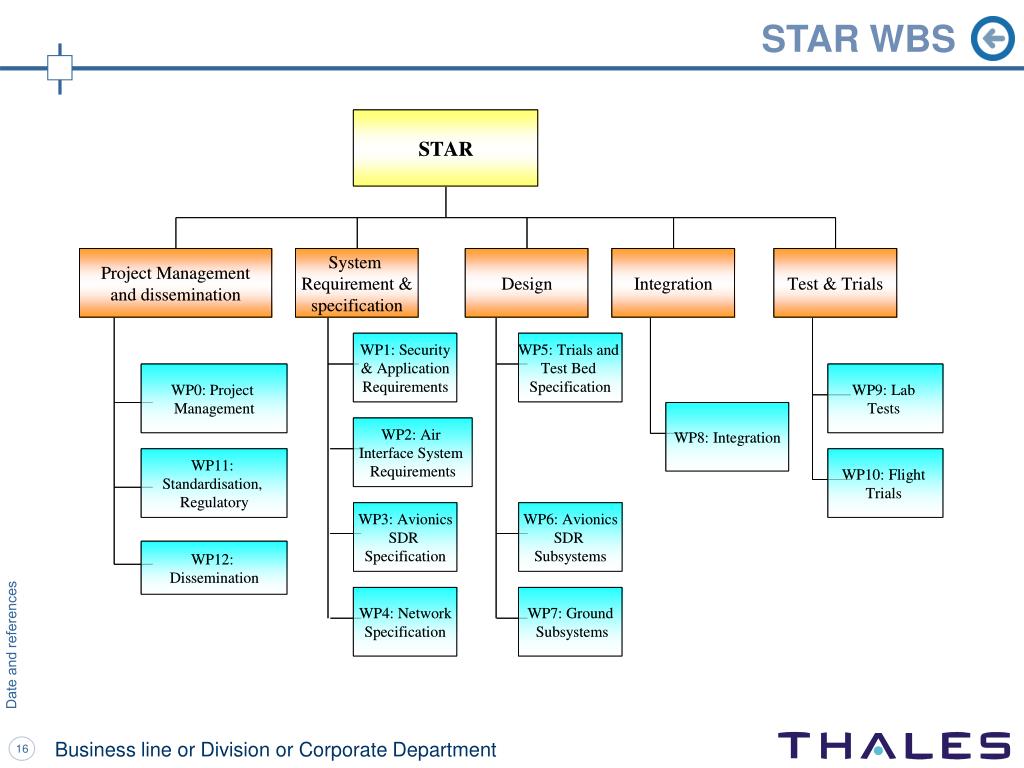

  16. STAR WBS Business line or Division or Corporate Department

  17. STAR Schedule • Overall duration 30 months Business line or Division or Corporate Department

  18. COMMUNICATIONS ATM STAR consortium • Project leader • Partners Business line or Division or Corporate Department

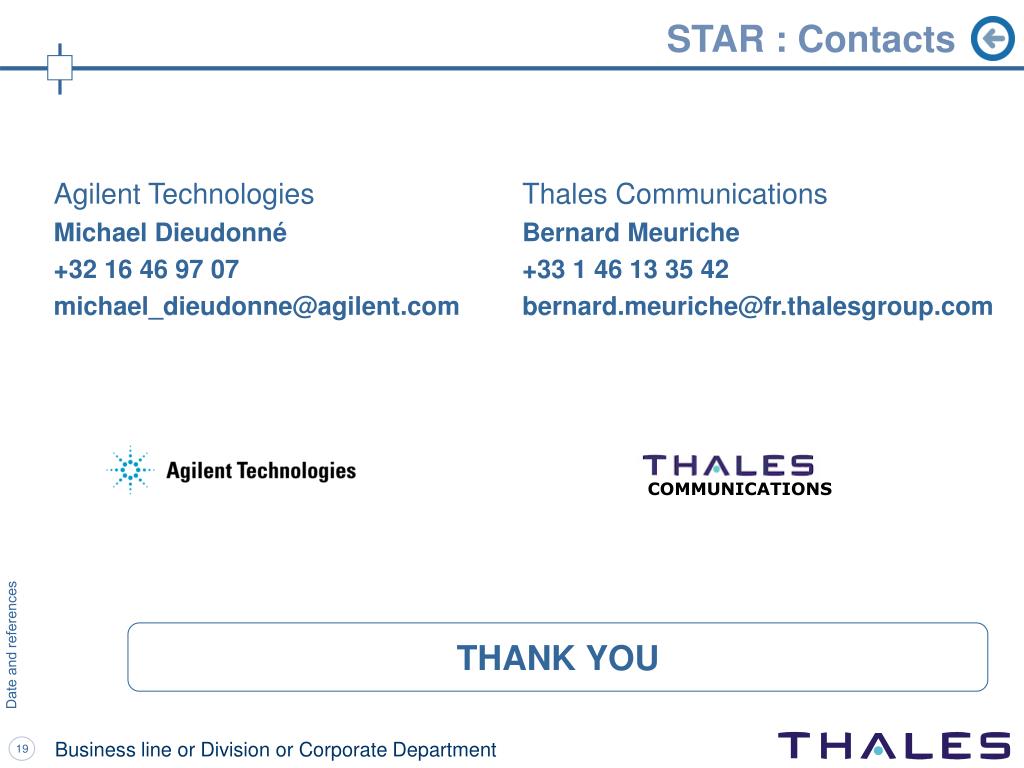

  19. Agilent Technologies Michael Dieudonné +32 16 46 97 07 michael_dieudonne@agilent.com COMMUNICATIONS STAR : Contacts • Thales Communications • Bernard Meuriche • +33 1 46 13 35 42 • bernard.meuriche@fr.thalesgroup.com THANK YOU Business line or Division or Corporate Department
