Can you identify the sigmoid colon?

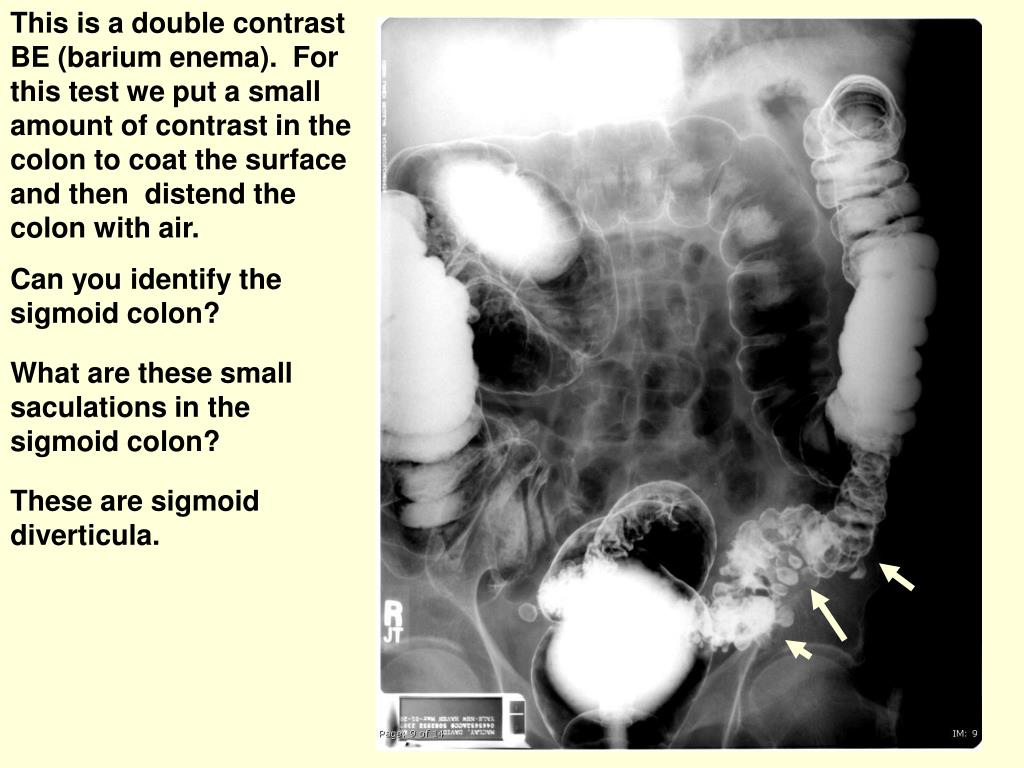

This is a double contrast BE (barium enema). For this test we put a small amount of contrast in the colon to coat the surface and then distend the colon with air. Can you identify the sigmoid colon?. What are these small saculations in the sigmoid colon?. These are sigmoid diverticula.

tamera
Download Presentation

Can you identify the sigmoid colon?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. This is a double contrast BE (barium enema). For this test we put a small amount of contrast in the colon to coat the surface and then distend the colon with air. Can you identify the sigmoid colon? What are these small saculations in the sigmoid colon? These are sigmoid diverticula.

  2. What is the main reason we perform a double contrast BE? To look for colon cancer. This an oblique view. The patient is lying on his left side. Do you seen all of the contrast on the dependent side of the colon? What do we have to do to make sure that there is no polyps or cancers hiding in the dense contrast? Flip the patient on to his right side. See next slide.

  3. Can you find the splenic and hepatic flexures on this image? Hepatic flexure Splenic flexure You could see how a lesion would be difficult to see in one of these flexures due to overlap of the colon. How could we clear this up? If we did more films with some obliquity we could eliminate this overlap.

  4. This is a single contrast BE (no air only contrast). Can you see the narrowing in the transverse colon? (Large circle) Do you know what this is? This is an adenocarcinoma. This is what is classically described as an apple core lesion. Do you see the resemblance?

  5. This is the preliminary image from an abdominal CT. Can you see the contrast filling the colon?

  6. The image on the right shows the level at which the axial CT slice was taken. What is this high attenuation structure in the liver? This is the left portal vein. Do the portal veins divide the liver into segments? No, the hepatic veins do.

  7. What is this black line that runs through the liver? This is the fissure for the ligamentum teres. What structure ran through this region? The umbilical vein What is this fissure anterior to the caudate lobe? This is the fissure for the ligamentum venosum

  8. What part of the colon is this? This is the distal transverse extending to the splenic flexure. Why does the colon look white? The patient was give oral contrast.

  9. What portion of the pancreas is this? This is the tail

  10. What portion of the colon is this? Hepatic flexure

  11. What is this venous structure extending from the left kidney to the IVC? This is the left renal vein

  12. What portion of the colon is labeled by this arrows? Ascending colon Descending colon

  13. What is this vessel coming of the aorta? Hint, it is colonic supply and below the level of the SMA. Inferior mesenteric artery

  14. Look at the small bowel without contrast (white arrows) and the colon (black arrows) with contrast and note that the bowel wall is extremely thin. Normally approximately 3 mm.

  15. What is this small tubular structure partially filled with contrast on this and the subsequent image. (see next slide for answer)

  16. This is the appendix. Note this is normal; thin walled, filled with contrast and no inflammatory changes in the adjacent fat.

  17. What portion of the colon is labeled with arrows? Sigmoid colon

  18. What vascular structures are marked by the arrows? The external iliac arteries and veins

  19. What is this fluid filled structure? The bladder What portion of bowel is this located posterior to the bladder and anterior to the sacrum? The rectum What is the significance of the space between the bladder and the sacrum? This is the most dependent portion of the peritoneal cavity in a male.

  20. This is the first of sequential, coronal images illustrating branches of the SMA. This is aorta (black arrows) and proximal SMA (white arrows)

  21. Which branch off the SMA is marked with the black arrow? Hint, it comes off anteriorly Middle colic artery Which branch is this? ileocolic

  22. Which branch is this? (kind of subtle in this patient) Right colic artery Which vessel is this coming off the aorta? IMA

  23. This is a 3D image showing the branches of the SMA.

  24. This is another 3D image showing the vasculature of the SMA. Click through the next 20 frames to rotate the image.
