  1. Four Stroke Cycle Engine Fundamentals

  2. Basic Engine Parts

  3. Camshaft • Used to open and close valves.

  4. Valves • Used to let gases into and out of the combustion chamber.

  5. Engine Operation • Fuel is burned inside the engine’s combustion chamber to produce heat and pressure • Engine components convert that pressure into rotating motion

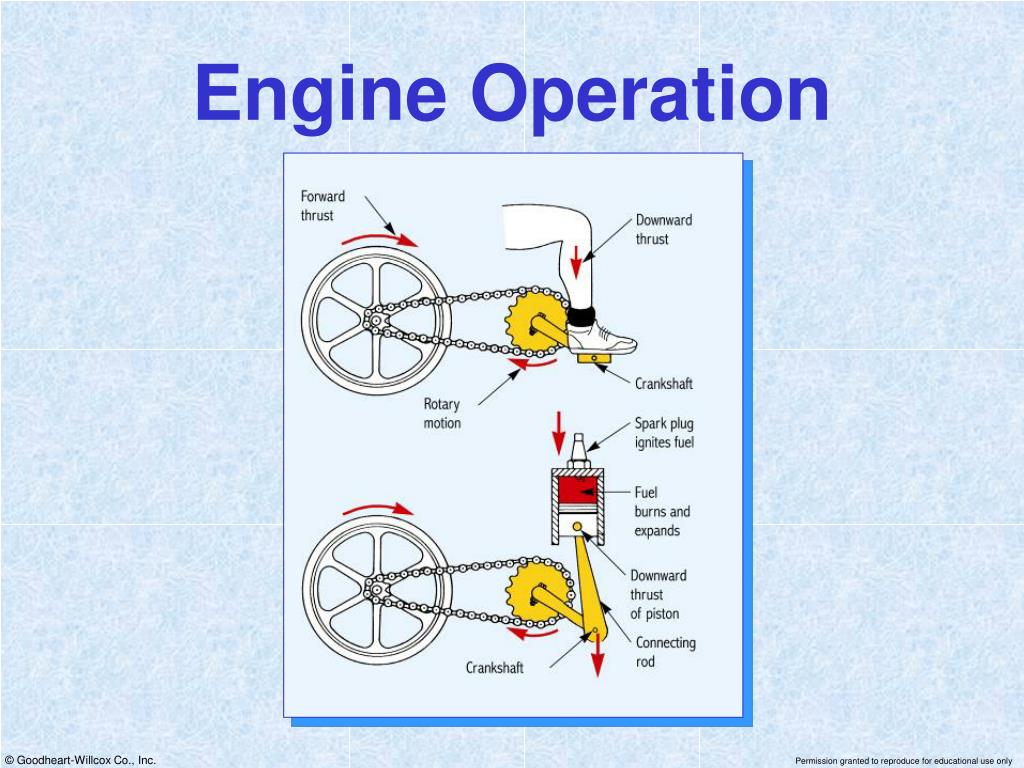

  6. Engine Operation

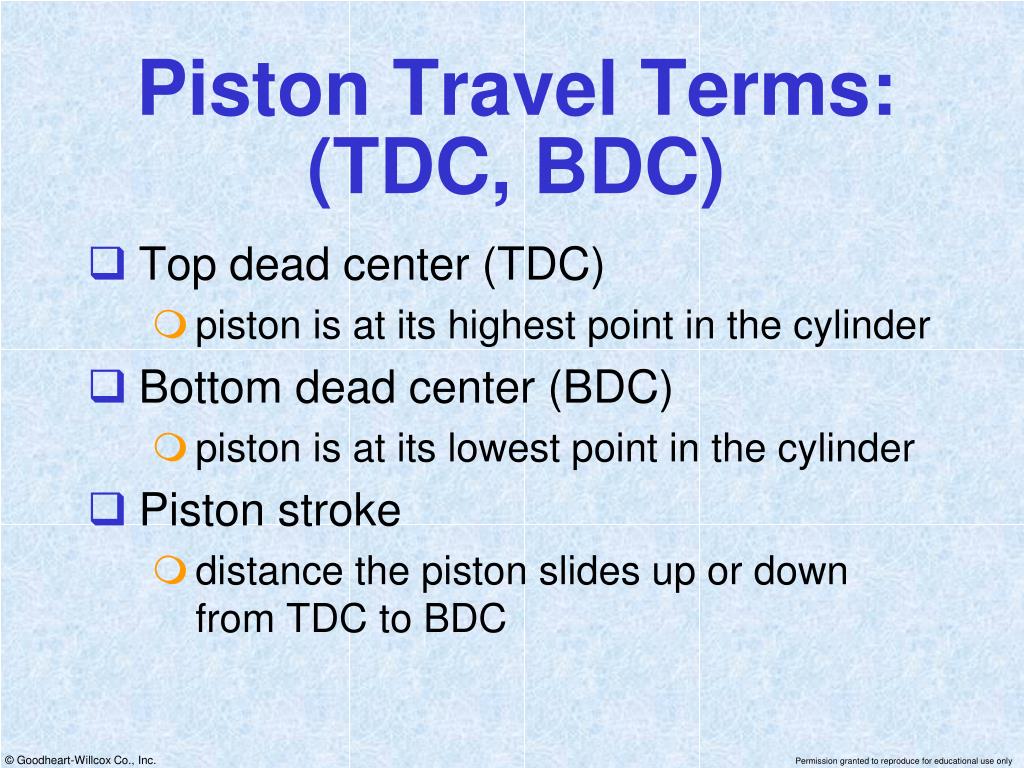

  7. Piston Travel Terms:(TDC, BDC) • Top dead center (TDC) • piston is at its highest point in the cylinder • Bottom dead center (BDC) • piston is at its lowest point in the cylinder • Piston stroke • distance the piston slides up or down from TDC to BDC

  8. Piston Travel(TDC, BDC)

  9. Four-Stroke Cycle • Two complete crankshaft rotationsare required to complete thefour-stroke cycle • Almost all automobiles usefour-stroke-cycle engines

  10. 1. Intake Stroke • Intake valve is open • Exhaust valve is closed • Piston slides down and forms a vacuum in the cylinder which draws fuel and air into the engine

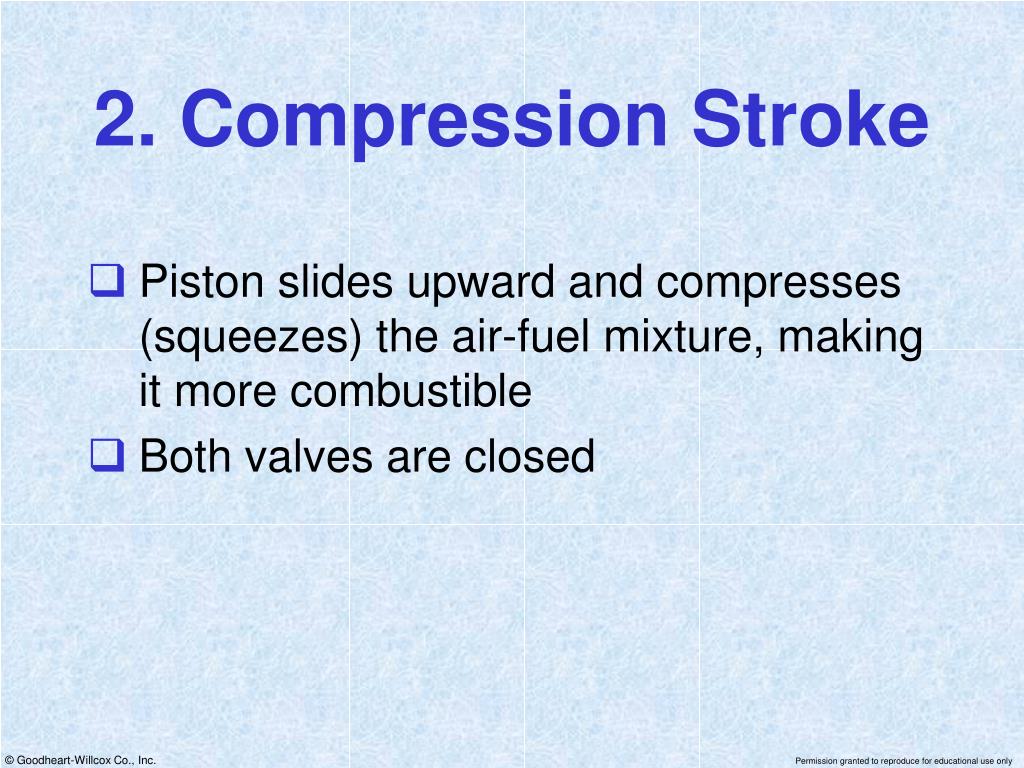

  11. 2. Compression Stroke • Piston slides upward and compresses (squeezes) the air-fuel mixture, making it more combustible • Both valves are closed

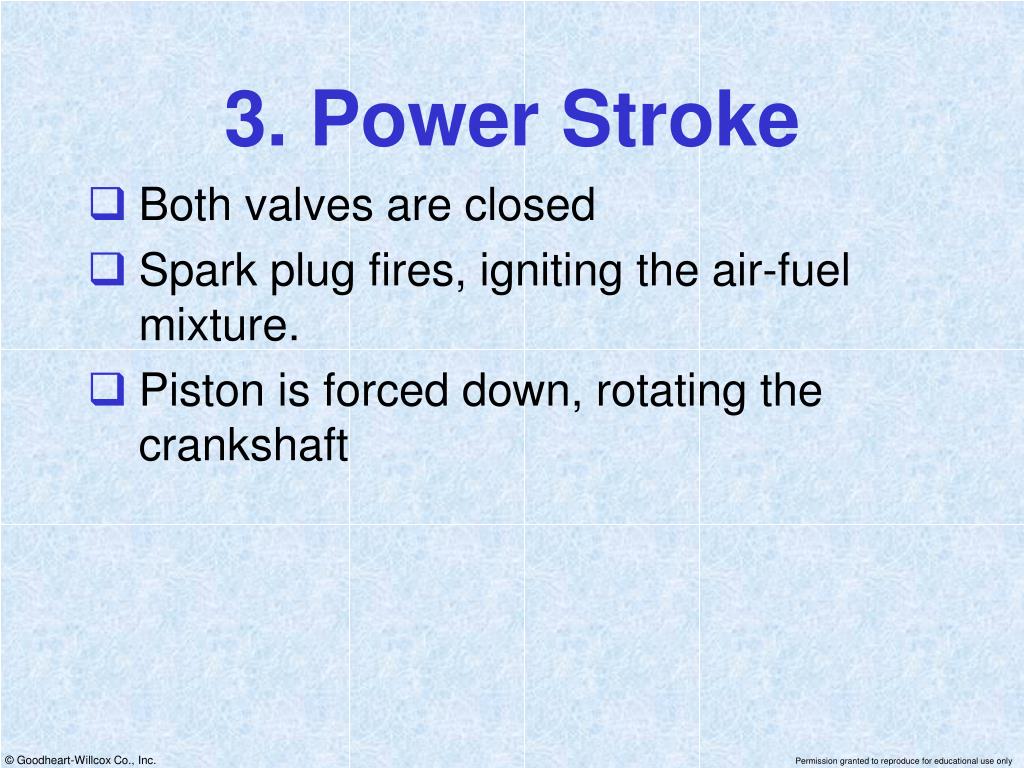

  12. 3. Power Stroke • Both valves are closed • Spark plug fires, igniting the air-fuel mixture. • Piston is forced down, rotating the crankshaft

  13. 4. Exhaust Stroke • Piston moves upward • Intake valve is closed • Exhaust valve is open • Burned gases are pushed out the exhaust port

  14. Four-Stroke Cycle

  15. The End
