SPA Architectures (planning, deliberative)

SPA Architectures (planning, deliberative). Science & Reality. “As far as the laws of mathematics refer to reality, they are not certain; as far as they are certain, they do not refer to reality” (Einstein). Remember this dealing with formal models and deliberative robotics.

tavi
Download Presentation

SPA Architectures (planning, deliberative)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. SPA Architectures (planning, deliberative)

  2. Science & Reality • “As far as the laws of mathematics refer to reality, they are not certain; as far as they are certain, they do not refer to reality” (Einstein) Remember this dealing with formal models and deliberative robotics

  3. Artificial Intelligence One more definition: • What is Artificial Intelligence? • “The science of making machines do things that would require intelligence if done by [people]” (Minsky, 1968) Are you sure that robot-frog should have human-like intelligence to solve her problems?

  4. “Mind & Body” in AI • Descartes: • Mind is distinct from body • Heidegger: • We function in the world by simply being a part of it • Clarke: • “mind, body and world act as equal partners”

  5. Classical Artificial Intelligence • Physical Symbol System Hypothesis • “Formal symbol manipulation is both a necessary and sufficient mechanism for general intelligent behaviour” (Newell & Simon, 1957) • Computational Representational Understanding of Mind • “Thinking can best be understood in terms of representational structures in the mind and computational procedures that operate on those structures” (Thagard, 1996)

  6. Classical Artificial Intelligence • Shakey [Nilsson, 1969]: • It failed…. • “the principle drawback of the classical view is that explicit reasoning about the effects of low-level actions is too expensive to generate real-time behavior” [Russell & Norvig, 1995]

  7. a typical robot The Old School of AI (and Robotics) Sensors Sensors Sensors Actuators Processor

  8. sense - plan - act (SPA) • Consists of 3 linear, repeated steps: • Sense your environment • Plan what to do next by building a world model through sensor fusion, and taking all goals into account -- both short term and long term • Execute the plan through the actuators • The predominant robot control mechanism through 1985 Called also sense - think - act (STA) or deliberative or planning

  9. robots have many goals A goal’s priority naturally will change based on context I need to inspect these railroad spikes I want to take a nap A train is about to hit me I am about to fall over I just want to be loved

  10. Tradition approach to slicing the problem: SPA Perception Modeling Planning Task execution Motor control • decomposition by function - classical AI Sensors   Actuators All goals are known at each stage, and affect the computation

  11. The Control Cycle: SPA compute (plan) act • A fundamental methodology • Derived in the early days of robotics from engineering principles • Sense-plan-actcycle: • the principle is to continuously attempt to minimise the error between the actual state and the desired state • based on control theory sense think

  12. The Control Cycle: SPA world world perception cognition action Discuss stages

  13. modular horizontal SPA architecture In case of soccer robot this architecture looks as this:

  14. The Control Cycle: SPA • Agent design can be for instance like this: • Sequential flow • Percepts are obtained from sensors in world (somehow) • Get a logic-based or formal description of percepts • E.g., wumpus world percepts • We apply search operators or logical inference or planning operators • General (replaceable) formal goal • Arrive at some operator or operator sequence • Apply that operator sequence to world (somehow)

  15. Path Generation • k = DOF of robot • C configuration space of robot(set of points) • O configuration space of obstacle • F = C - Ofree space, the set of configurations in which the robot can move safely

  16. Path Generation for mobile and stationary robots 2 c1 c2 2 c1 c2 A workspace with a rotary two-link arm. The goal is to move from configuration c1 to configuration c2 The corresponding configuration space, showing the free space and a path that achieves the goal

  17. NAVIGATION AND MOTION PLANNING • Given analysis of robotics problems as motion in configuration spaces, we will begin with algorithms that handle C language directly (no parallel instructions) • These algorithms usually assume that an exact description of the space is available, • so they cannot be used where there is significant sensor error and motion error • We can identify five major classes of algorithms, and arrange them roughly in order of amount of information required at planning time and execution time

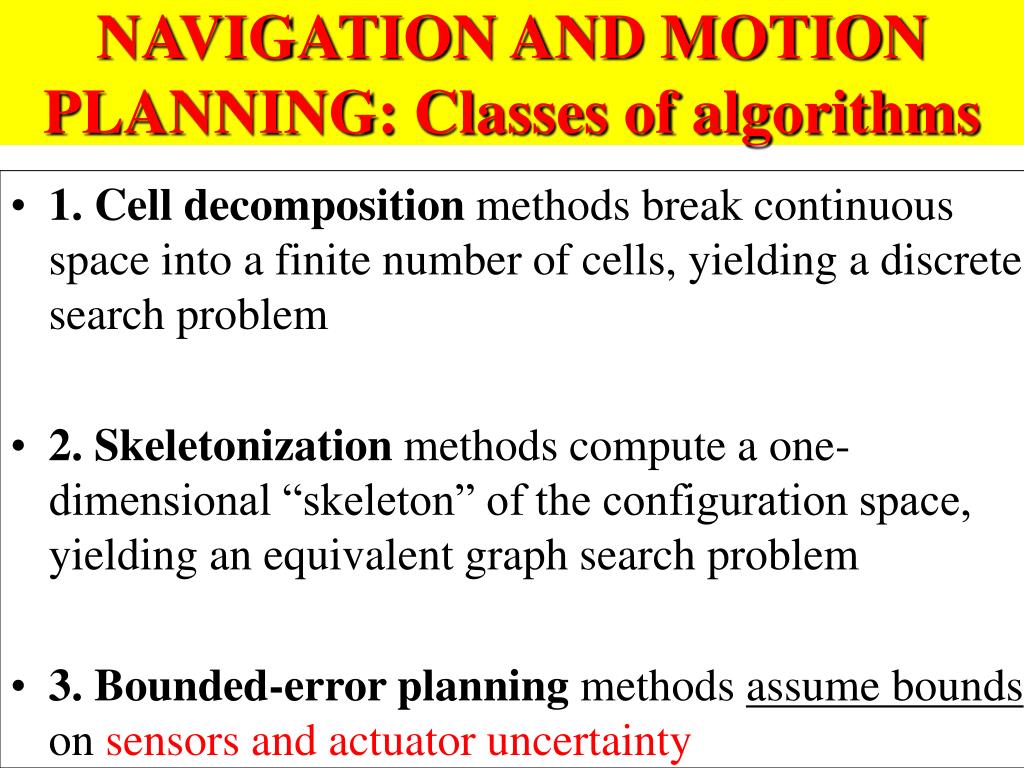

  18. NAVIGATION AND MOTION PLANNING: Classes of algorithms • 1. Cell decomposition methods break continuous space into a finite number of cells, yielding a discrete search problem • 2. Skeletonization methods compute a one-dimensional “skeleton” of the configuration space, yielding an equivalent graph search problem • 3. Bounded-error planning methods assume bounds on sensors and actuator uncertainty

  19. NAVIGATION AND MOTION PLANNING 1. Cell decomposition method A vertical strip cell decomposition of the configuration space for a two-link robot. The obstacles are dark blobs, the cells are rectangles and the solution is contained within grey rectangles.

  20. NAVIGATION AND MOTION PLANNING ALGORITHMS CONT. • 4. Landmark-based navigation methods assume that there are some regions in which the robots location can be pinpointed using landmarks, whereas outside those regions it may have only orientation information • 5. Online algorithms assume that the environment is completely unknown initially, although most assume some form of accurate position sensor • Instead, one can try to produce a conditional plan or policy that will make decisions at run time

  21. NAVIGATION AND MOTION PLANNING A two-dimensional environment, robot and goal

  22. SUMMARY ON NAVIGATION • The problem of moving a complex-shaped object( i.e., the robot and anything it is carrying) through a space with complex-shaped obstacles is a difficult one. • The mathematical notation of configuration space provides a framework for analysis. • Cell decomposition and skeletonization methods can be used to navigate through the configuration space. • Both reduce a high dimensional, continuous space to a discrete graph-search problem. • Some aspects of the world, such as the exact location of a bolt in the robot’s hand, will always be unknown. • Fine-motion planning deals with this uncertainty by creating a sensor-based plan that will work regardless of exact initial conditions.

  23. SUMMARY ON NAVIGATION • Uncertainty applies to sensors at the large scale as well. • In the landmark model, a robot uses certain well-known landmarks in the environment to determine where it is, even in the face of uncertainty. • If a map of the environment is not available, then the robot will have to plan its navigation as it goes. • Online algorithms do this. • They do not always choose the shortest route, but we can analyze how far off they will be.

  24. Problems with SPA(sense-plan-act) • Its monolithic design makes it slow • At each step, we have to do: • sensor fusion, • world modeling, • and planning for all goals • Slow means we almost never can plan at the rate the environment is changing • We end up doing “open-loop plan execution” • inadequate in the fact of uncertainty and unpredictability

  25. Model-Based Approaches

  26. Model Based Architectures perception act • A symbolic internal ‘world-model’ is maintained: • the sub-tasks are decomposedinto functional layers • similar to ‘classical’ artificial intelligence approach sense modelling planning task execution Many levels assess the model motor control

  27. Problems with Models • An adequate, accurate and up-to-date model must be maintained at all times • this is very difficult in practice! • suppose, for example, the sensors detect an object that we have not got a symbol for (a novel object) • A model-based system is extremely brittle • if one of the functional layers fails (e.g. hardware problems, software bugs), then the whole system fails • Significant processing power is required • maintaining the model takes time, so slow responses!? • Despite much effort, little progress was made!

  28. Problems with traditional approaches • Can’t account for large aspects of Intelligence, • Reliant on representation • Rapidly changing boundary conditions • Hard to map sensor values to physical quantities • Not robust • Relatively slow response • Hard to extend • Hard to test

  29. Sources • Rodney Brooks • Maja Mataric • Nilsson’s book • Jeremy Elson • Norvig’s book, chapter 2. Good. Stimulus-Response Agents • English PH.D thesis, recent • Jon Garibaldi • Prof. Bruce Donald, Changxun Wu, Dartmouth College • Leo Ilkko • Prof. Manuela Veloso, Dr. Tucker Balch, and Dr. Brett BrowningCarnegie Mellon University • Rabih Neouchi , Donald C. Onyango and Stacy F. President • Axel Roth • Ramon Brena Pinero ITESM • Rhee, Taik-heon, Computer Science Department, KAIST • Brian R. Duffy, Gina Joue • Lucy Moffatt, Univ of Sheffield • Yorick Wilks, Computer Science Department, University of Sheffield
