  1. Message Passing Interface Dr. Bo Yuan E-mail: yuanb@sz.tsinghua.edu.cn

  2. MPI • MPI is a library of functions and macros that can be used in C, Fortran and C++ for writing parallel programs exploiting multiple processors via message passing. • Both point-to-point and collective communication are supported. • The de facto standard for communication among processes that model a parallel program running on a distributed memory system. • Reference • http://www.mpi-forum.org/ • http://www.netlib.org/utk/papers/mpi-book/mpi-book.html • http://www.mpitutorial.com/beginner-mpi-tutorial/

  3. Getting Started #include <stdio.h> #include <string.h> /* For strlen */ #include <mpi.h> /* For MPI functions */ const int MAX_STRING = 100; int main(intargc, char* argv[]) { char greeting[MAX_STRING]; intcomm_sz; /* Number of processes */ intmy_rank; /* My process rank */ int source; MPI_Init(&argc,&argv); MPI_Comm_size(MPI_COMM_WORLD, &comm_sz); MPI_Comm_rank(MPI_COMM_WORLD, &my_rank); if (my_rank!=0) { sprintf(greeting, “Greetings from process %d of %d!”, my_rank, comm_sz);

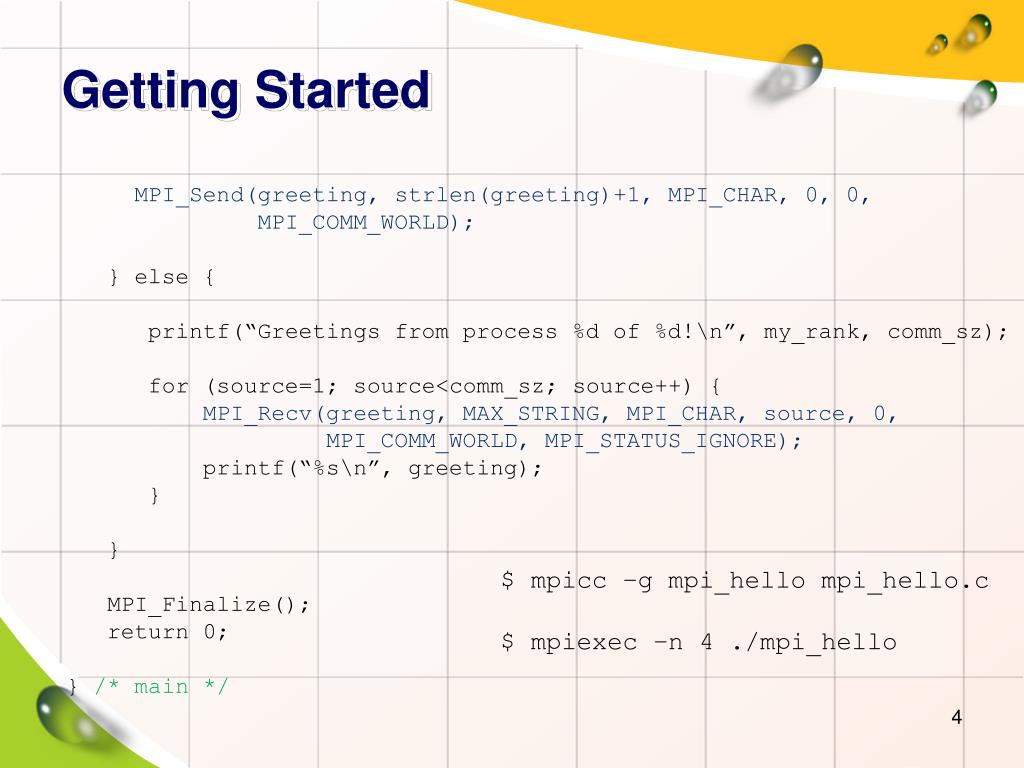

  4. Getting Started MPI_Send(greeting, strlen(greeting)+1, MPI_CHAR, 0, 0, MPI_COMM_WORLD); } else { printf(“Greetings from process %d of %d!\n”, my_rank, comm_sz); for (source=1; source<comm_sz; source++) { MPI_Recv(greeting, MAX_STRING, MPI_CHAR, source, 0, MPI_COMM_WORLD, MPI_STATUS_IGNORE); printf(“%s\n”, greeting); } } MPI_Finalize(); return 0; } /* main */ $ mpicc –g mpi_hellompi_hello.c $ mpiexec –n 4 ./mpi_hello

  5. MPI Programs • A copy of the executable program is scheduled to run on each processor (called a process). • All processes are identified by a sequence of non-negative integers (ranks: 0, 1, …, n). • Different processes can execute different statements by branching within the program (usually based on process ranks). • Single Program, Multiple Data (SPMD) • mpi.h • Prototypes of MPI functions, macro definitions, type definitions …

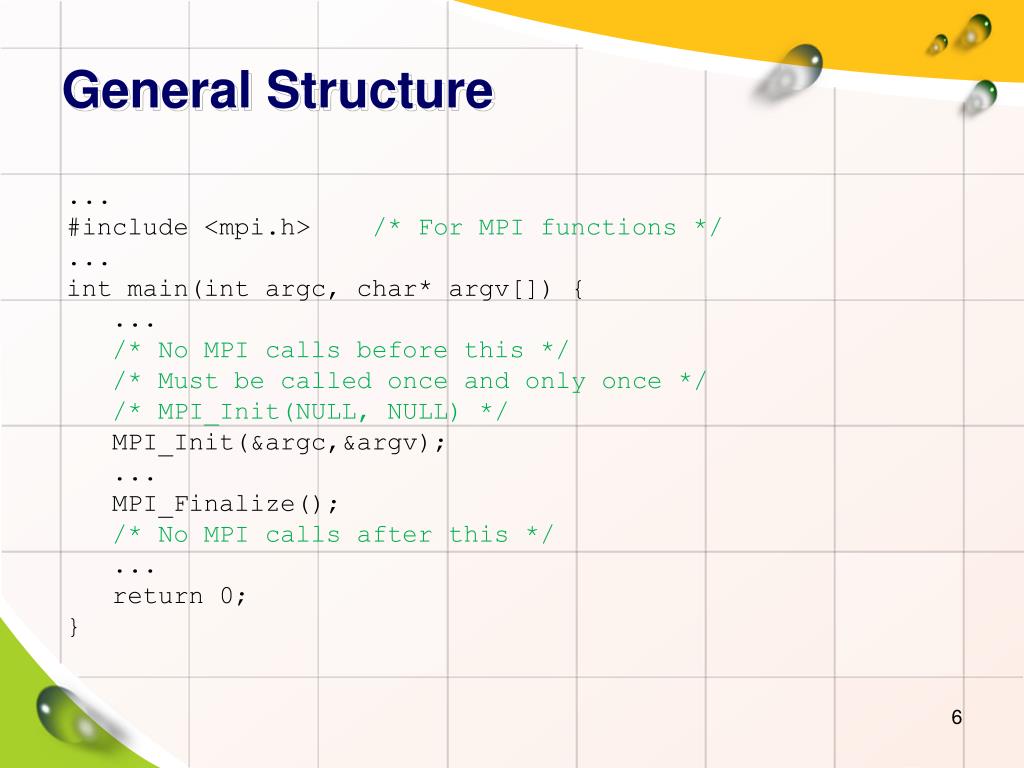

  6. General Structure ... #include <mpi.h> /* For MPI functions */ ... int main(intargc, char* argv[]) { ... /* No MPI calls before this */ /* Must be called once and only once */ /* MPI_Init(NULL, NULL) */ MPI_Init(&argc,&argv); ... MPI_Finalize(); /* No MPI calls after this */ ... return 0; }

  7. Communicator • A collection of processes that can send messages to each other • Used in all functions that involve communication. • Default: MPI_COMM_WORLD • To ensure messages are not accidentally received in the wrong place. intMPI_Comm_size( MPI_Commcomm/* in */, int* comm_sz_p/* out */); intMPI_Comm_rank( MPI_Commcomm/* in */, int* my_rank_p/* out */);

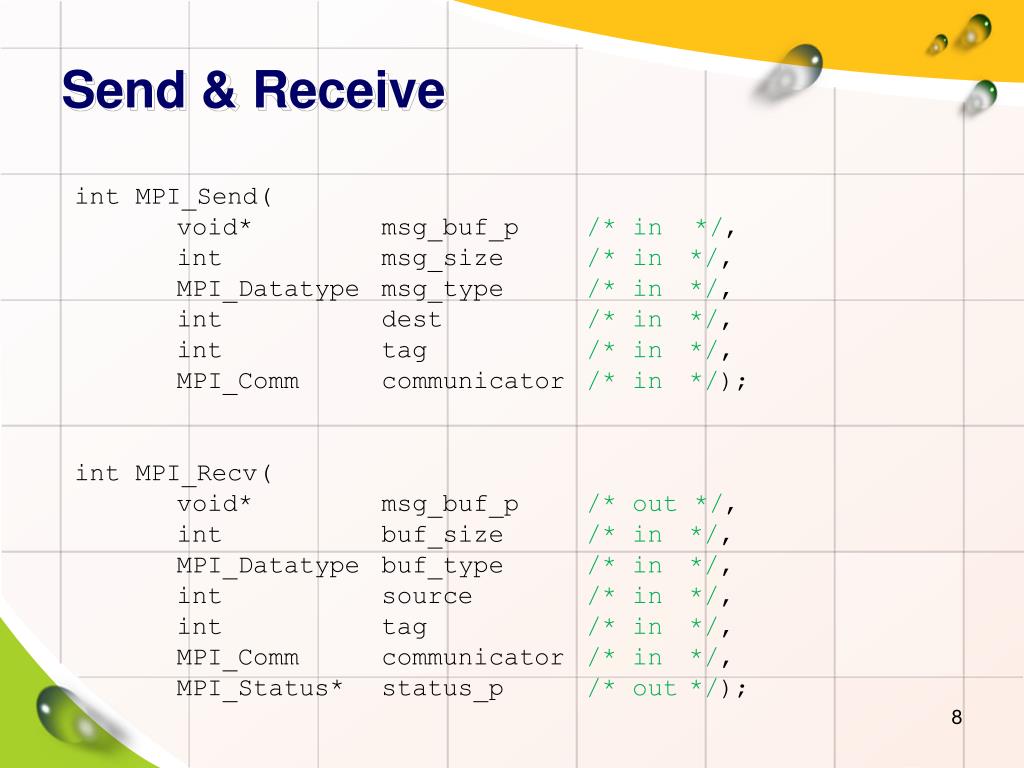

  8. Send & Receive intMPI_Send( void* msg_buf_p/* in */, intmsg_size/* in */, MPI_Datatypemsg_type/* in */, intdest/* in */, int tag /* in */, MPI_Comm communicator /* in */); intMPI_Recv( void* msg_buf_p/* out */, intbuf_size/* in */, MPI_Datatypebuf_type/* in */, int source /* in */, int tag /* in */, MPI_Comm communicator /* in */, MPI_Status* status_p/* out */);

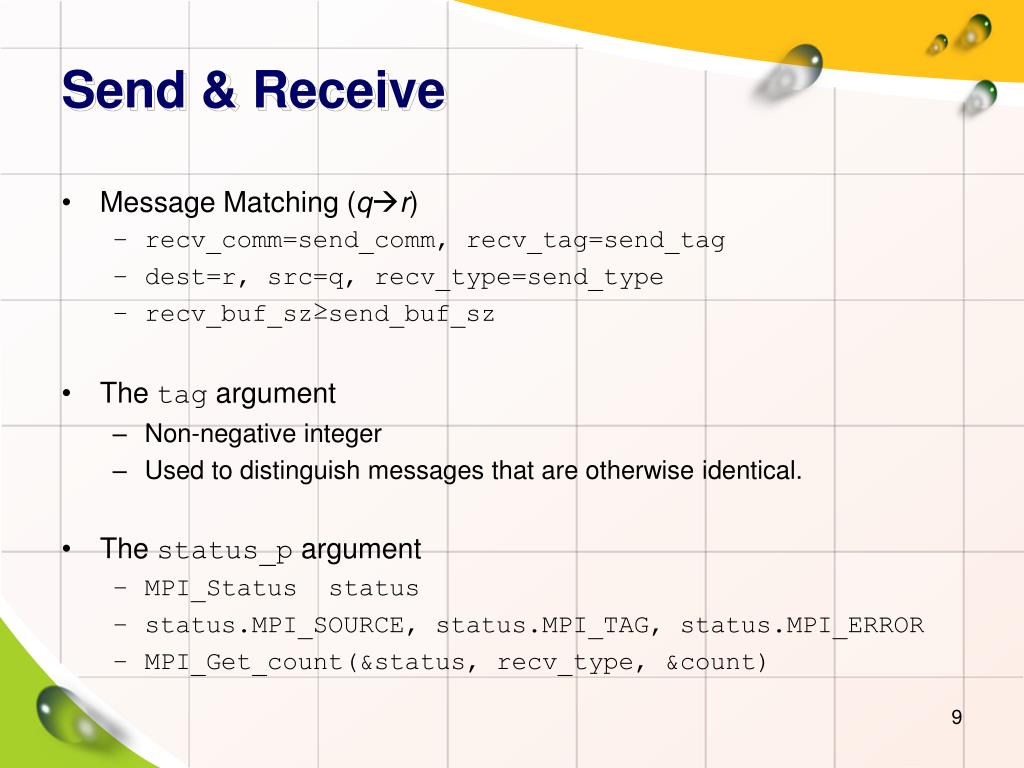

  9. Send & Receive • Message Matching (qr) • recv_comm=send_comm, recv_tag=send_tag • dest=r, src=q, recv_type=send_type • recv_buf_sz≥send_buf_sz • The tag argument • Non-negative integer • Used to distinguish messages that are otherwise identical. • The status_p argument • MPI_Status status • status.MPI_SOURCE, status.MPI_TAG, status.MPI_ERROR • MPI_Get_count(&status, recv_type, &count)

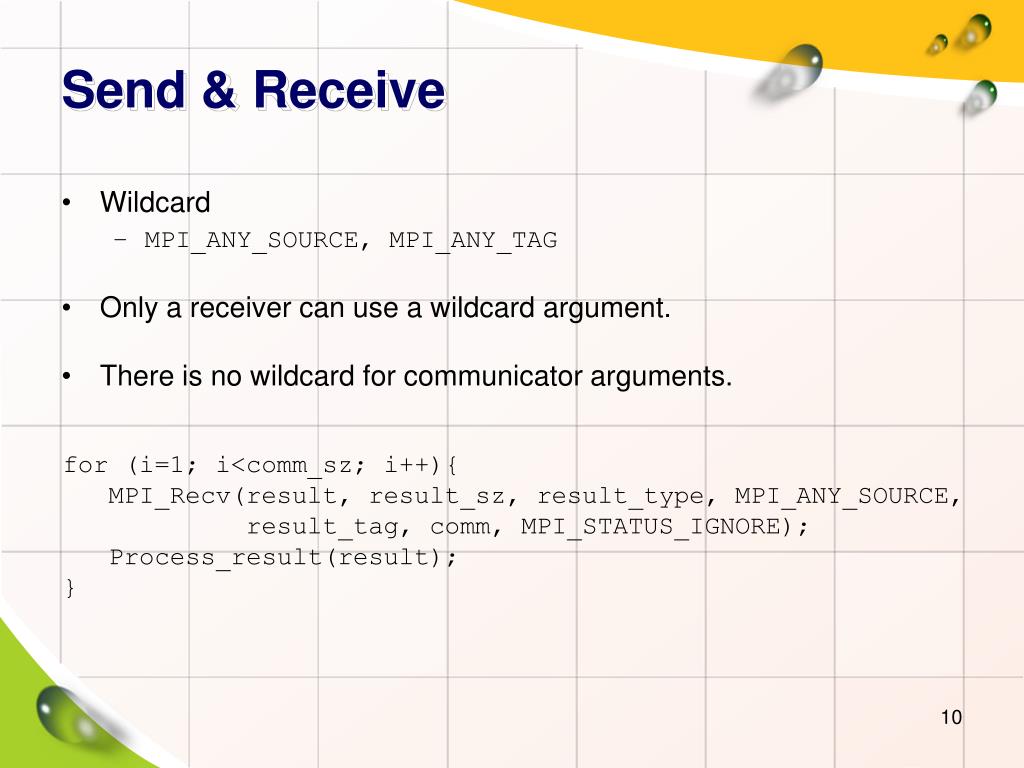

  10. Send & Receive • Wildcard • MPI_ANY_SOURCE, MPI_ANY_TAG • Only a receiver can use a wildcard argument. • There is no wildcard for communicator arguments. for (i=1; i<comm_sz; i++){ MPI_Recv(result, result_sz, result_type, MPI_ANY_SOURCE, result_tag, comm, MPI_STATUS_IGNORE); Process_result(result); }

  11. Send & Receive • Message = Data + Envelope • MPI_Send • Buffer • Block • No overtaking • MPI_Recv • Block • Pitfalls • Hang • Deadlock

  12. Trapezoidal Rule y y y=f(x) y=f(x) f(xi) f(xi+1) a b x xi xi+1 x h

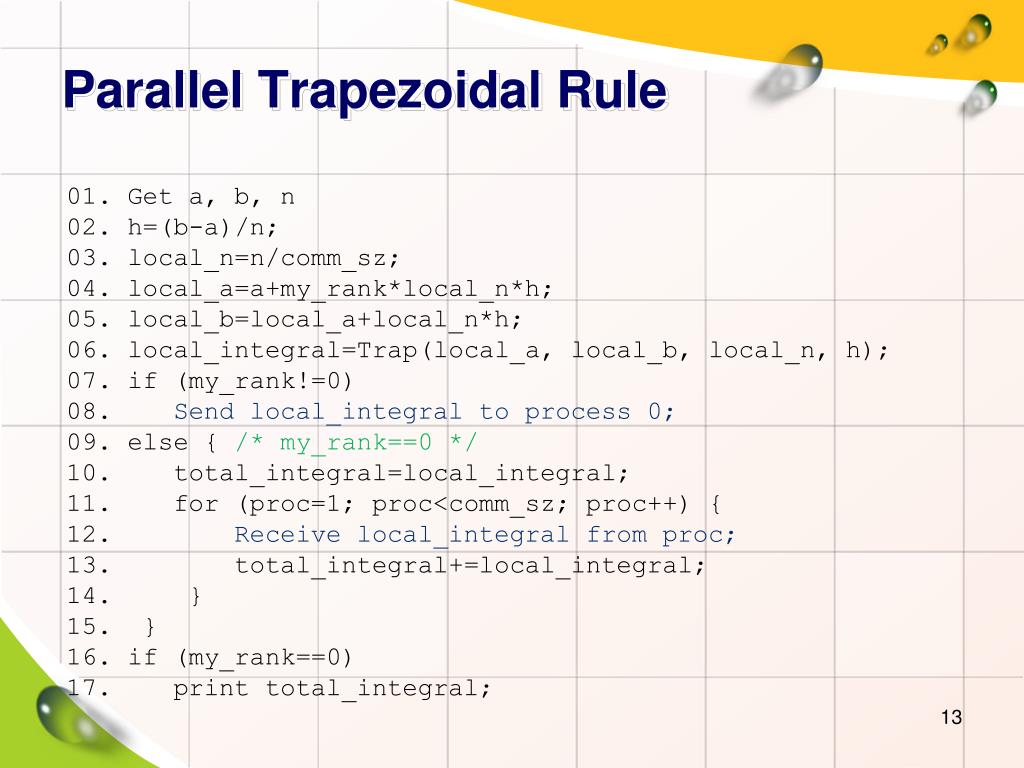

  13. Parallel Trapezoidal Rule 01. Get a, b, n 02. h=(b-a)/n; 03. local_n=n/comm_sz; 04. local_a=a+my_rank*local_n*h; 05. local_b=local_a+local_n*h; 06. local_integral=Trap(local_a, local_b, local_n, h); 07. if (my_rank!=0) 08. Send local_integral to process 0; 09. else { /* my_rank==0 */ 10. total_integral=local_integral; 11. for (proc=1; proc<comm_sz; proc++) { 12. Receive local_integral from proc; 13. total_integral+=local_integral; 14. } 15. } 16. if (my_rank==0) 17. print total_integral;

  14. MPI Trapezoidal Rule int main(void) { intmy_rank, comm_sz, n=1024, local_n; double a=0.0, b=3.0, h, local_a, local_b; double local_int, total_int; int source; MPI_Init(NULL,NULL); MPI_Comm_size(MPI_COMM_WORLD, &comm_sz); MPI_Comm_rank(MPI_COMM_WORLD, &my_rank); h=(b-a)/n; local_n=n/comm_sz; local_a=a+my_rank*local_n*h; local_b=local_a+local_n*h; local_int=Trap(local_a, local_b, local_n, h);

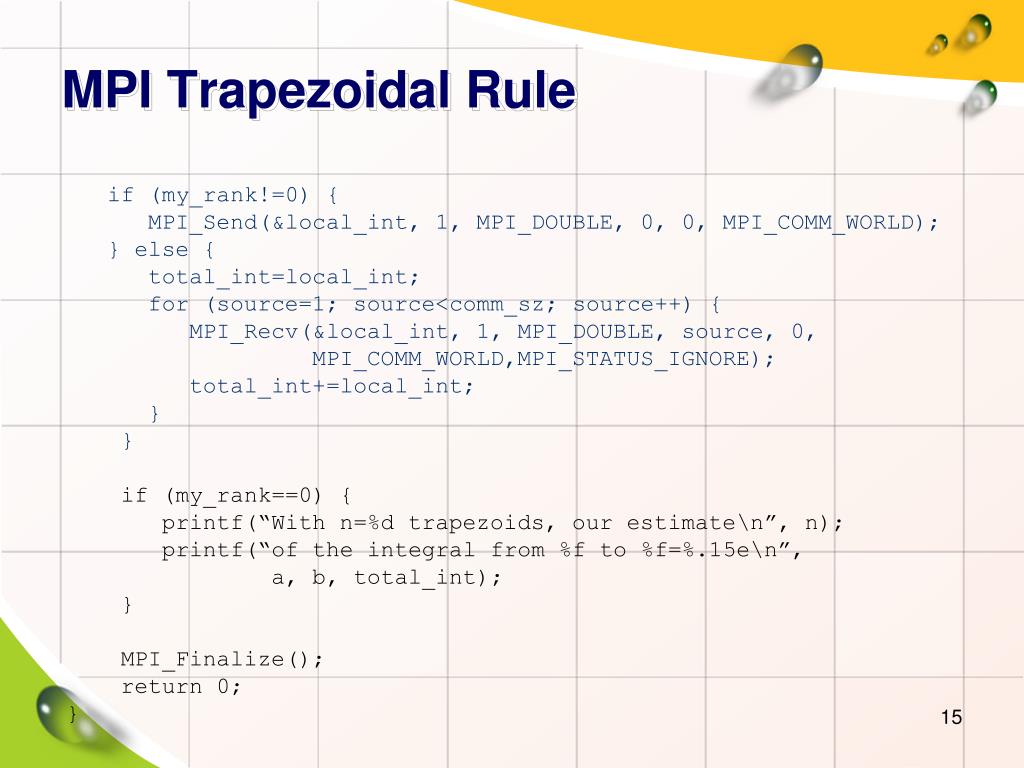

  15. MPI Trapezoidal Rule if (my_rank!=0) { MPI_Send(&local_int, 1, MPI_DOUBLE, 0, 0, MPI_COMM_WORLD); } else { total_int=local_int; for (source=1; source<comm_sz; source++) { MPI_Recv(&local_int, 1, MPI_DOUBLE, source, 0, MPI_COMM_WORLD,MPI_STATUS_IGNORE); total_int+=local_int; } } if (my_rank==0) { printf(“With n=%d trapezoids, our estimate\n”, n); printf(“of the integral from %f to %f=%.15e\n”, a, b, total_int); } MPI_Finalize(); return 0; }

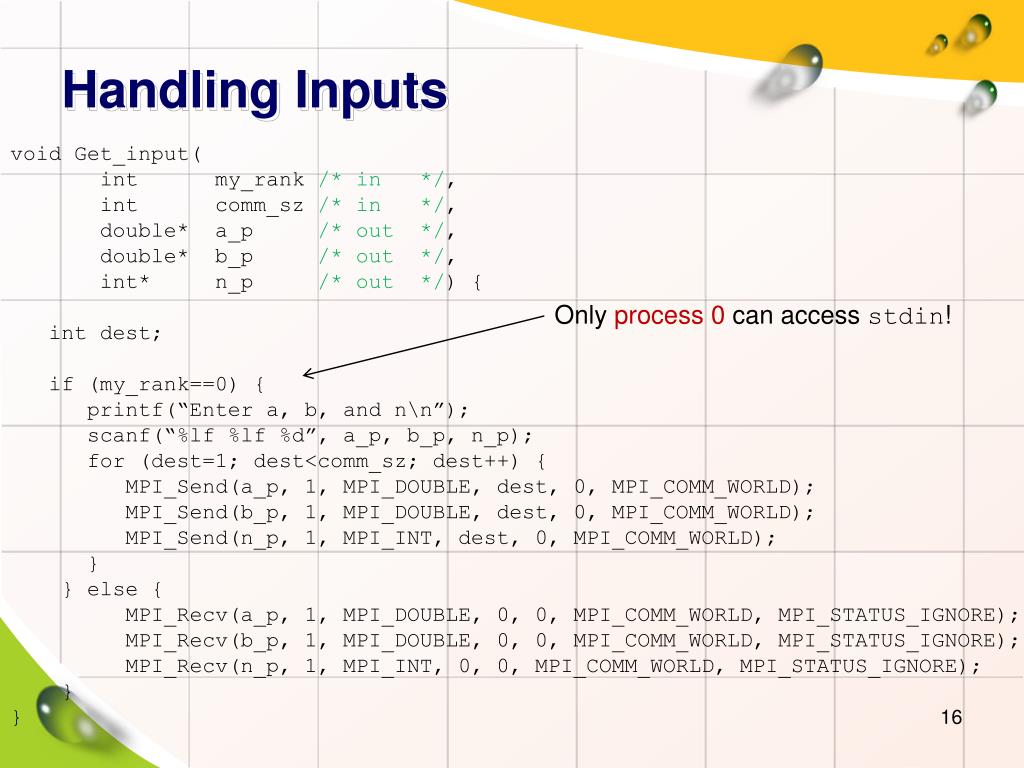

  16. Handling Inputs void Get_input( intmy_rank/* in */, intcomm_sz/* in */, double* a_p/* out */, double* b_p/* out */, int* n_p/* out */) { intdest; if (my_rank==0) { printf(“Enter a, b, and n\n”); scanf(“%lf %lf %d”, a_p, b_p, n_p); for (dest=1; dest<comm_sz; dest++) { MPI_Send(a_p, 1, MPI_DOUBLE, dest, 0, MPI_COMM_WORLD); MPI_Send(b_p, 1, MPI_DOUBLE, dest, 0, MPI_COMM_WORLD); MPI_Send(n_p, 1, MPI_INT, dest, 0, MPI_COMM_WORLD); } } else { MPI_Recv(a_p, 1, MPI_DOUBLE, 0, 0, MPI_COMM_WORLD, MPI_STATUS_IGNORE); MPI_Recv(b_p, 1, MPI_DOUBLE, 0, 0, MPI_COMM_WORLD, MPI_STATUS_IGNORE); MPI_Recv(n_p, 1, MPI_INT, 0, 0, MPI_COMM_WORLD, MPI_STATUS_IGNORE); } } Only process 0 can access stdin!

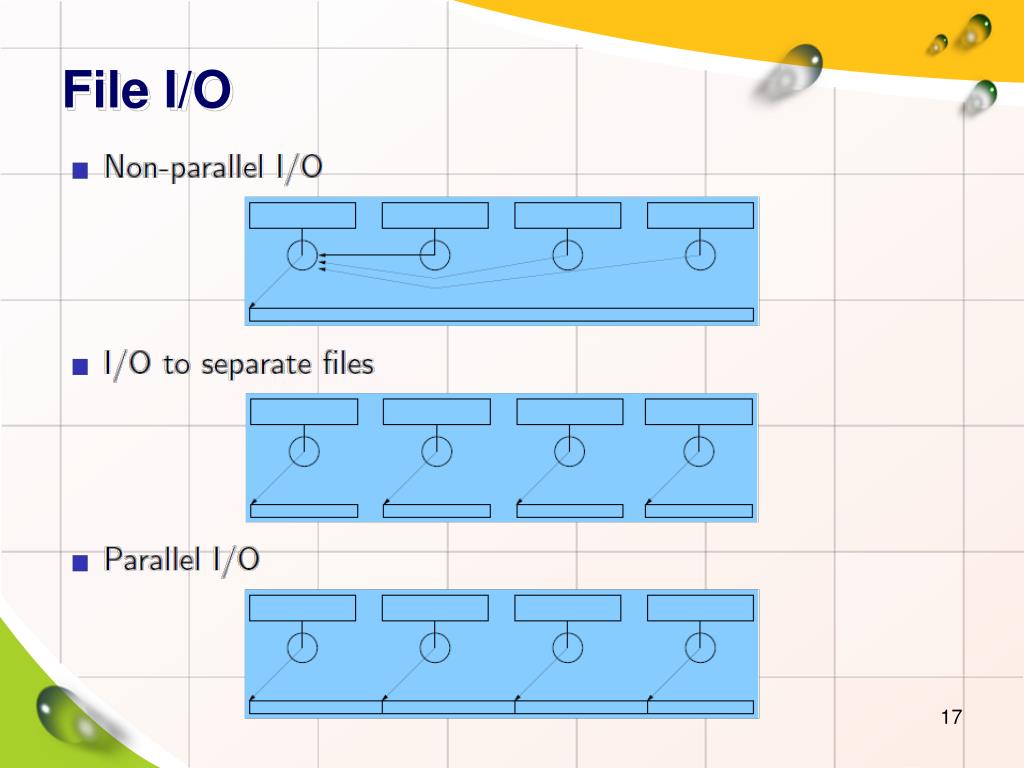

  17. File I/O

  18. Non-Parallel (Single File)

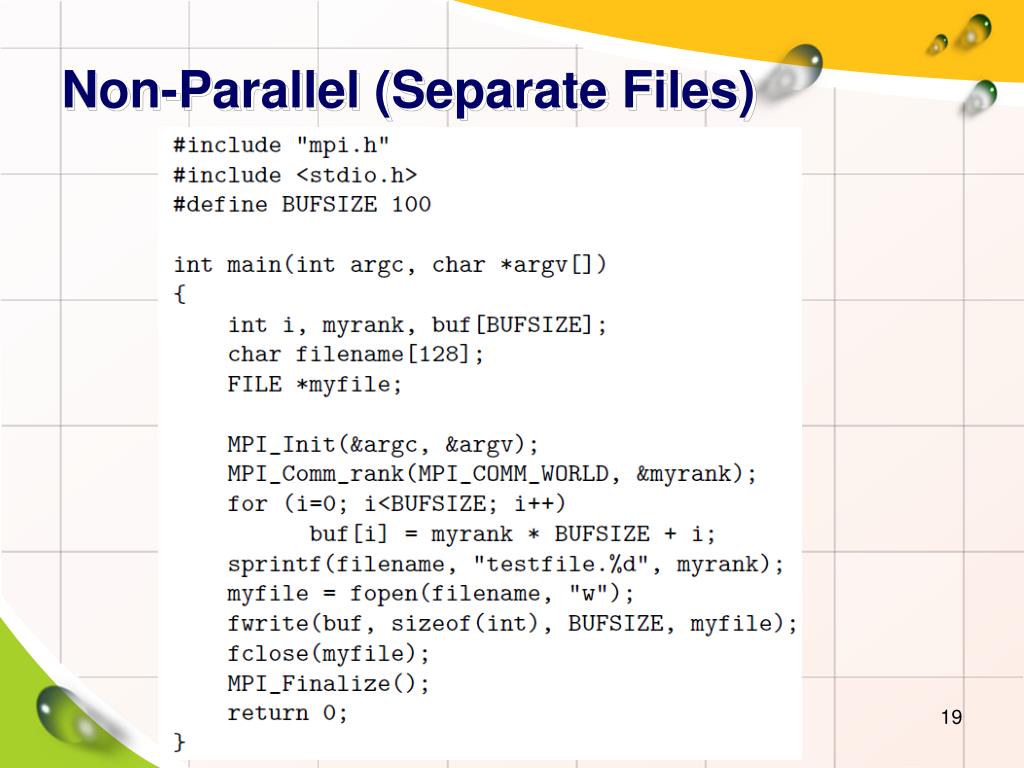

  19. Non-Parallel (Separate Files)

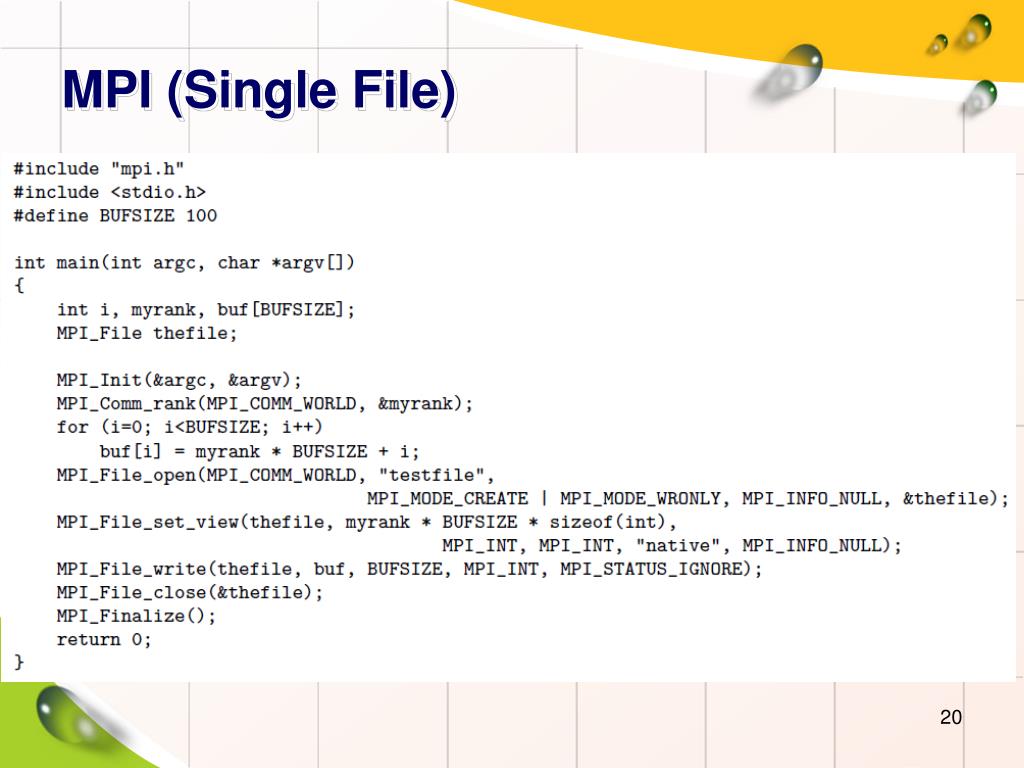

  20. MPI (Single File)

  21. MPI (Separate Files)

  22. Reading a File

  23. Back to the Trapezoidal Rule • Which process is the busiest one? • The global-sum function • Load Balancing • Given 1024 processes • How many receives and additions in total? • Can we improve it? • How to code such a tree-structured global sum function? • Collective Communications • All processes in a communicator are involved. • All processes in the communicator must call the same collective function. • Matched solely on the communicator and the order in which they are called. • Point-to-Point Communications: MPI_Send and MPI_Recv

  24. MPI_Reduce intMPI_Reduce ( void* input_data_p/* in */, void* output_data_p/* out */, int count /* in */, MPI_Datatypedatatype/* in */, MPI_Op operator /* in */, intdest_process/* in */, MPI_Commcomm/* in */); MPI_Reduce(&local_int, &total_int, 1, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD); double local_x[N], sum[N]; ... MPI_Reduce(local_x, sum, N, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD);

  25. MPI_Reduce MPI_SUM, Destination Process:0 b=1+2+1 d=2+1+2

  26. MPI_Allreduce 0 1 2 3 4 5 6 7 5 2 -1 -3 6 5 -7 2 7 7 -4 -4 11 11 -5 -5 3 3 3 3 6 6 6 6 9 9 9 9 9 9 9 9

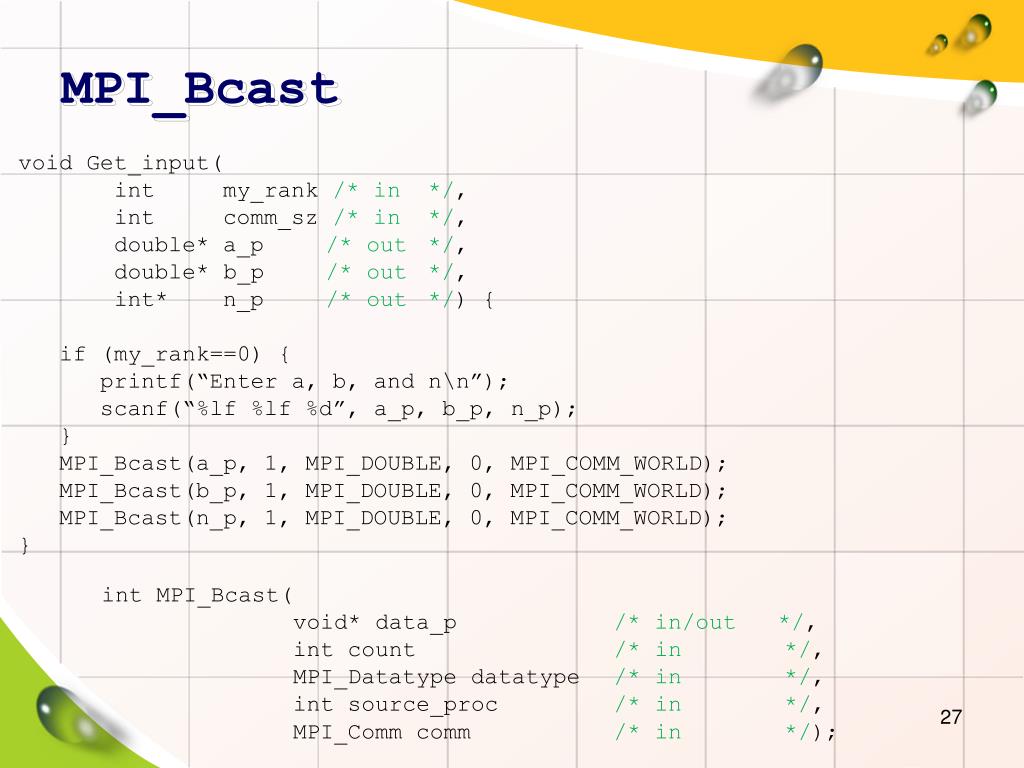

  27. MPI_Bcast void Get_input( intmy_rank/* in */, intcomm_sz/* in */, double* a_p/* out */, double* b_p/* out */, int* n_p/* out */) { if (my_rank==0) { printf(“Enter a, b, and n\n”); scanf(“%lf %lf %d”, a_p, b_p, n_p); } MPI_Bcast(a_p, 1, MPI_DOUBLE, 0, MPI_COMM_WORLD); MPI_Bcast(b_p, 1, MPI_DOUBLE, 0, MPI_COMM_WORLD); MPI_Bcast(n_p, 1, MPI_DOUBLE, 0, MPI_COMM_WORLD); } intMPI_Bcast( void* data_p/* in/out */, int count /* in */, MPI_Datatypedatatype/* in */, intsource_proc/* in */, MPI_Commcomm/* in */);

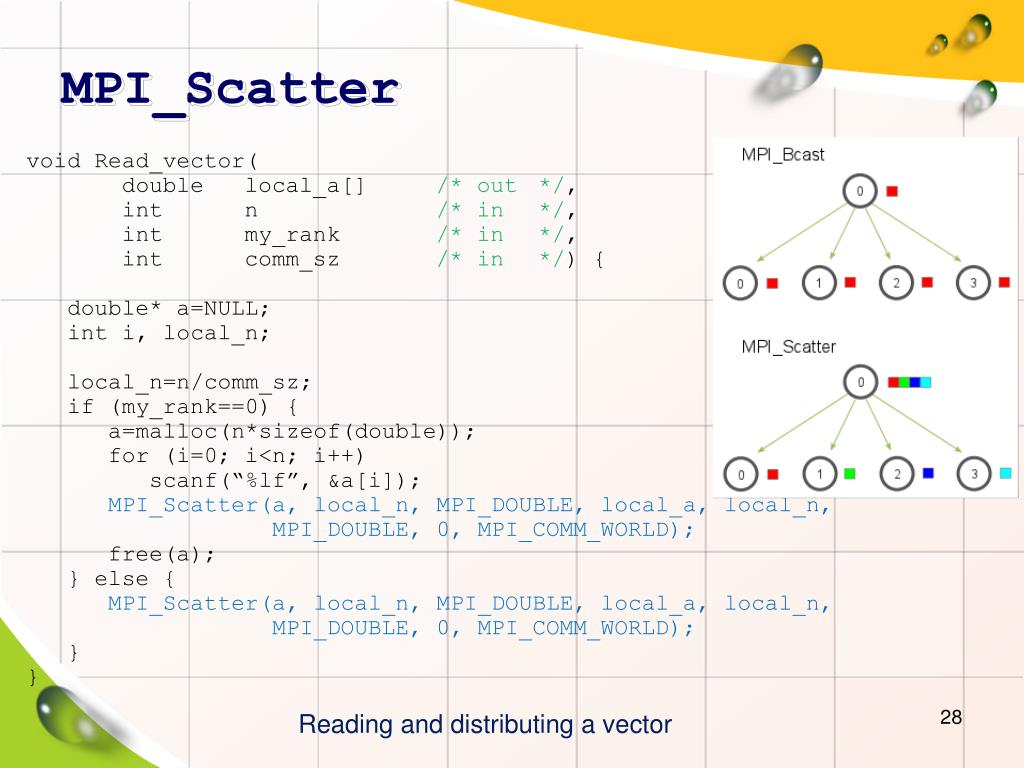

  28. MPI_Scatter void Read_vector( double local_a[] /* out */, int n /* in */, intmy_rank/* in */, intcomm_sz/* in */) { double* a=NULL; int i, local_n; local_n=n/comm_sz; if (my_rank==0) { a=malloc(n*sizeof(double)); for (i=0; i<n; i++) scanf(“%lf”, &a[i]); MPI_Scatter(a, local_n, MPI_DOUBLE, local_a, local_n, MPI_DOUBLE, 0, MPI_COMM_WORLD); free(a); } else { MPI_Scatter(a, local_n, MPI_DOUBLE, local_a, local_n, MPI_DOUBLE, 0, MPI_COMM_WORLD); } } Reading and distributing a vector

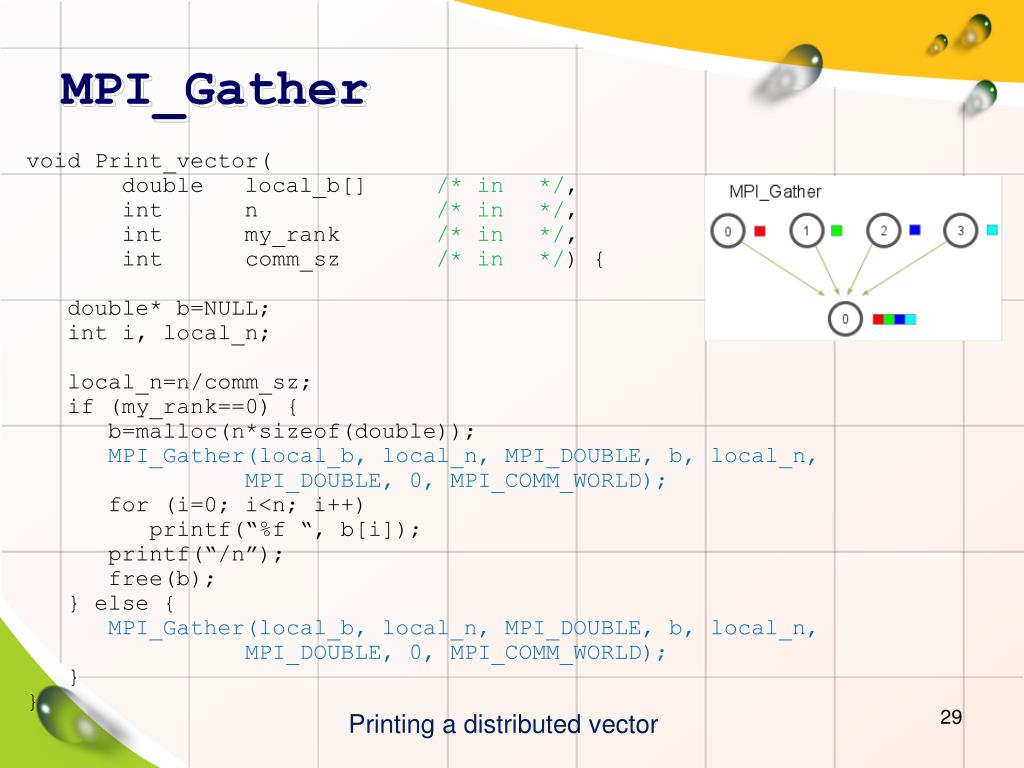

  29. MPI_Gather void Print_vector( double local_b[] /* in */, int n /* in */, intmy_rank/* in */, intcomm_sz/* in */) { double* b=NULL; int i, local_n; local_n=n/comm_sz; if (my_rank==0) { b=malloc(n*sizeof(double)); MPI_Gather(local_b, local_n, MPI_DOUBLE, b, local_n, MPI_DOUBLE, 0, MPI_COMM_WORLD); for (i=0; i<n; i++) printf(“%f “, b[i]); printf(“/n”); free(b); } else { MPI_Gather(local_b, local_n, MPI_DOUBLE, b, local_n, MPI_DOUBLE, 0, MPI_COMM_WORLD); } } Printing a distributed vector

  30. MPI Derived Data Types intMPI_Type_create_struct ( int count /* in */, intarray_of_blocklengths[] /* in */, MPI_Aintarray_of_dispacements[] /* in */, MPI_Datatypearray_of_types[] /* in */, MPI_Datatype* new_type_p/* out */); intMPI_Get_address ( void* location_p/* in */, MPI_Aint* address_p/* out */); {(MPI_DOUBLE, 0), (MPI_DOUBLE, 16), (MPI_INT, 24)}

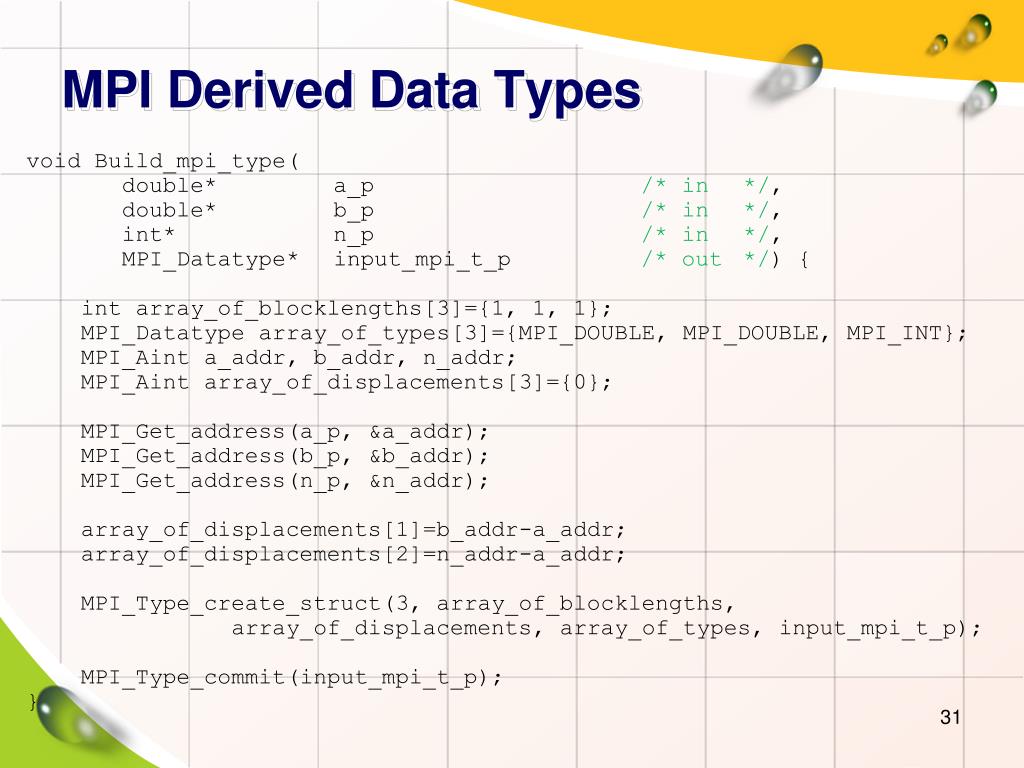

  31. MPI Derived Data Types void Build_mpi_type( double* a_p/* in */, double* b_p /* in */, int* n_p /* in */, MPI_Datatype* input_mpi_t_p/* out */) { intarray_of_blocklengths[3]={1, 1, 1}; MPI_Datatypearray_of_types[3]={MPI_DOUBLE, MPI_DOUBLE, MPI_INT}; MPI_Ainta_addr, b_addr, n_addr; MPI_Aintarray_of_displacements[3]={0}; MPI_Get_address(a_p, &a_addr); MPI_Get_address(b_p, &b_addr); MPI_Get_address(n_p, &n_addr); array_of_displacements[1]=b_addr-a_addr; array_of_displacements[2]=n_addr-a_addr; MPI_Type_create_struct(3, array_of_blocklengths, array_of_displacements, array_of_types, input_mpi_t_p); MPI_Type_commit(input_mpi_t_p); }

  32. Get_input with Derived Data Types void Get_input( intmy_rank/* in */, int comm_sz /* in */, double* a_p/* out */, double* b_p/* out */, int* n_p/* out */) { MPI_Datatypeinput_mpi_t; Build_mpi_type(a_p, b_p, n_p, &input_mpi_t); if (my_rank==0) { printf(“Enter a, b, and n\n”); scanf(“%lf %lf %d”, a_p, b_p, n_p); } MPI_Bcast(a_p, 1, input_mpi_t, 0, MPI_COMM_WORLD); MPI_Type_free(&input_mpi_t); }

  33. Timing double MPI_Wtime (void); intMPI_Barrier (MPI_Commcomm/* in */); /* The following code is used to time a block of MPI code. */ double local_start, local_finish, local_elapsed, elapsed; ... MPI_Barrier(comm); local_start=MPI_Wtime(); /* Code to be timed */ ... local_finish=MPI_Wtime(); local_elapsed=local_finish-local_start; MPI_Reduce(&local_elapsed, &elapsed, 1, MPI_DOUBLE, MPI_MAX, 0, comm); if (my_rank==0) printf(“Elapsed time=%e seconds\n”, elapsed);

  34. Performance Measure Running Times of Matrix-Vector Multiplication

  35. Performance Measure Speedups Efficiencies

  36. MPI + GPU

  37. Review • What is the general structure of MPI programs? • What is the so called SPMD? • How to communicate between processes? • When will processes hang or deadlock? • Which process is allowed to have access to stdin? • What is collective communication? • Name three MPI collective communication functions. • What is a MPI derived data type?
