  1. Implementing IP Telephony into Your Local Area Network

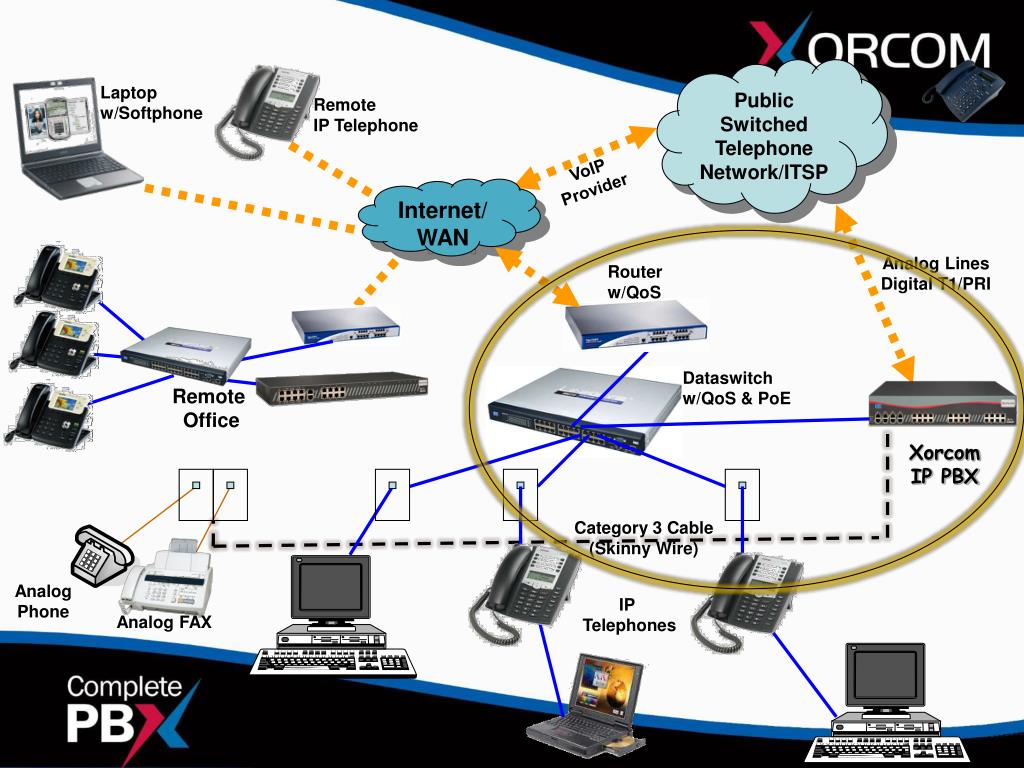

  2. VoIP Provider Router w/QoS Public Switched Telephone Network/ITSP Laptop w/Softphone Remote IP Telephone Internet/WAN Analog Lines Digital T1/PRI Dataswitch w/QoS & PoE Remote Office Xorcom IP PBX Category 3 Cable (Skinny Wire) Analog Phone IP Telephones Analog FAX

  3. Award Winning Enterprise Level IP PBX Solutions

  4. About Xorcom Developer & Manufacturer of IP PBX systems since 2004 Offer wide and flexible range of telephony solutions Worked in global markets from day one Distributed in six continents Global Headquarters in Misgav Israel US Headquarters in Phoenix Arizona Constant steady growth

  5. Among our Customers

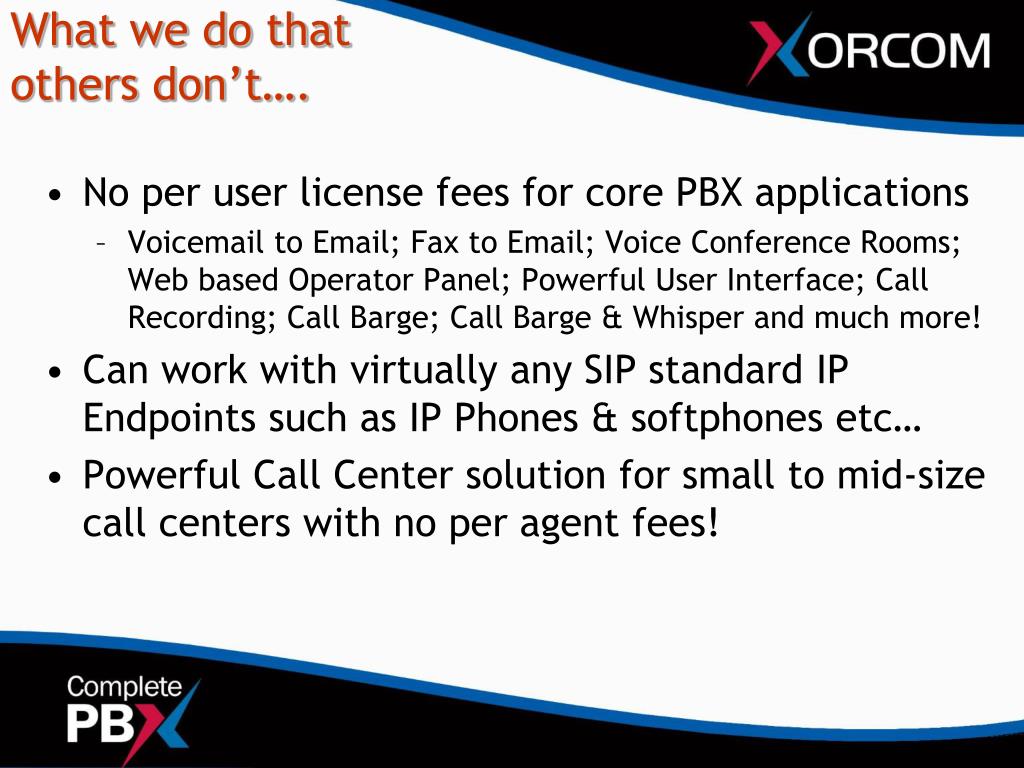

  6. What we do that others don’t…. • No per user license fees for core PBX applications • Voicemail to Email; Fax to Email; Voice Conference Rooms; Web based Operator Panel; Powerful User Interface; Call Recording; Call Barge; Call Barge & Whisper and much more! • Can work with virtually any SIP standard IP Endpoints such as IP Phones & softphones etc… • Powerful Call Center solution for small to mid-size call centers with no per agent fees!

  7. What we do that others don’t…. Award Winning True Redundancy Solution That Can Manage Multiple Telephony Interfaces The Most Cost Effective Commercially Supported Hot Failover Solution for IP PBX’s in the World!!!

  8. What we do that others don’t…. TWINSTAR™

  9. Xorcom Hardware Solutions Two Lines of Hardware Products Telephony Interfaces & Telephony Servers

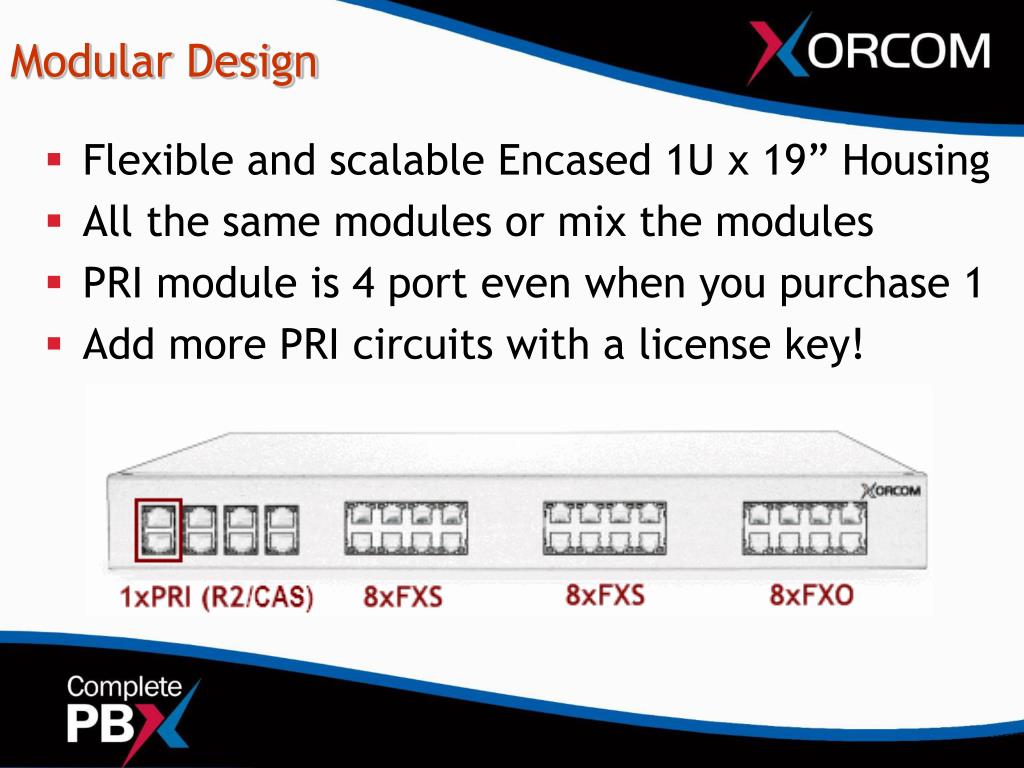

  10. Modular Design • Flexible and scalable Encased 1U x 19” Housing • All the same modules or mix the modules • PRI module is 4 port even when you purchase 1 • Add more PRI circuits with a license key!

  11. Modular Design

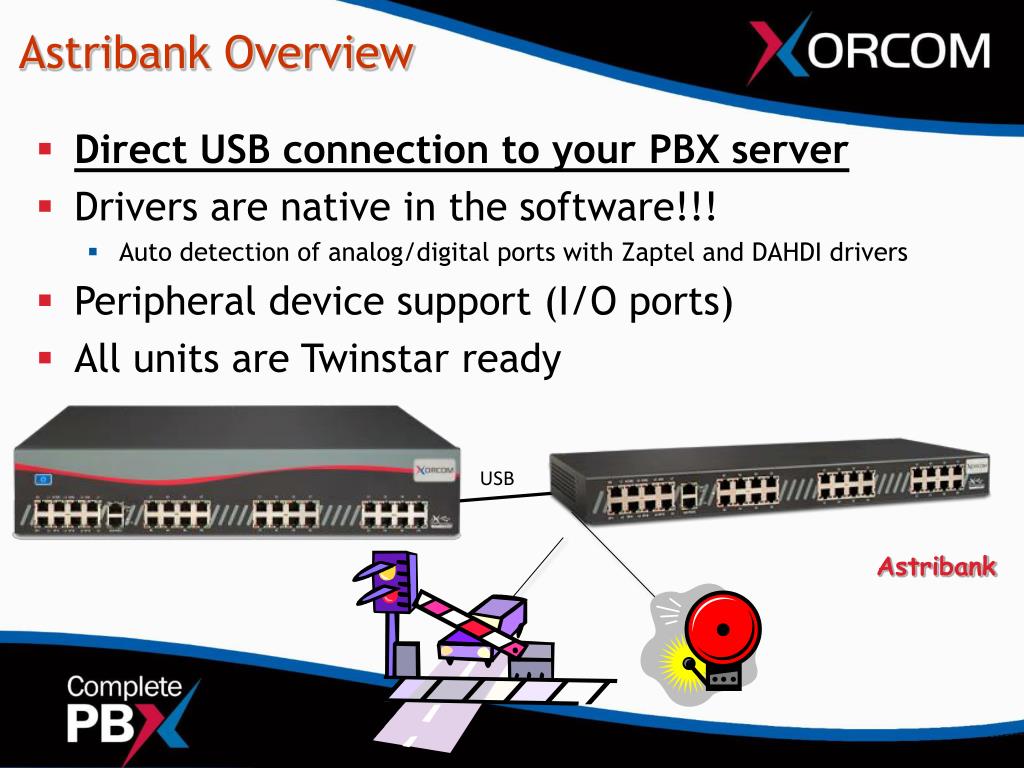

  12. Astribank Overview • Direct USB connection to your PBX server • Drivers are native in the software!!! • Auto detection of analog/digital ports with Zapteland DAHDI drivers • Peripheral device support (I/O ports) • All units are Twinstar ready USB Astribank

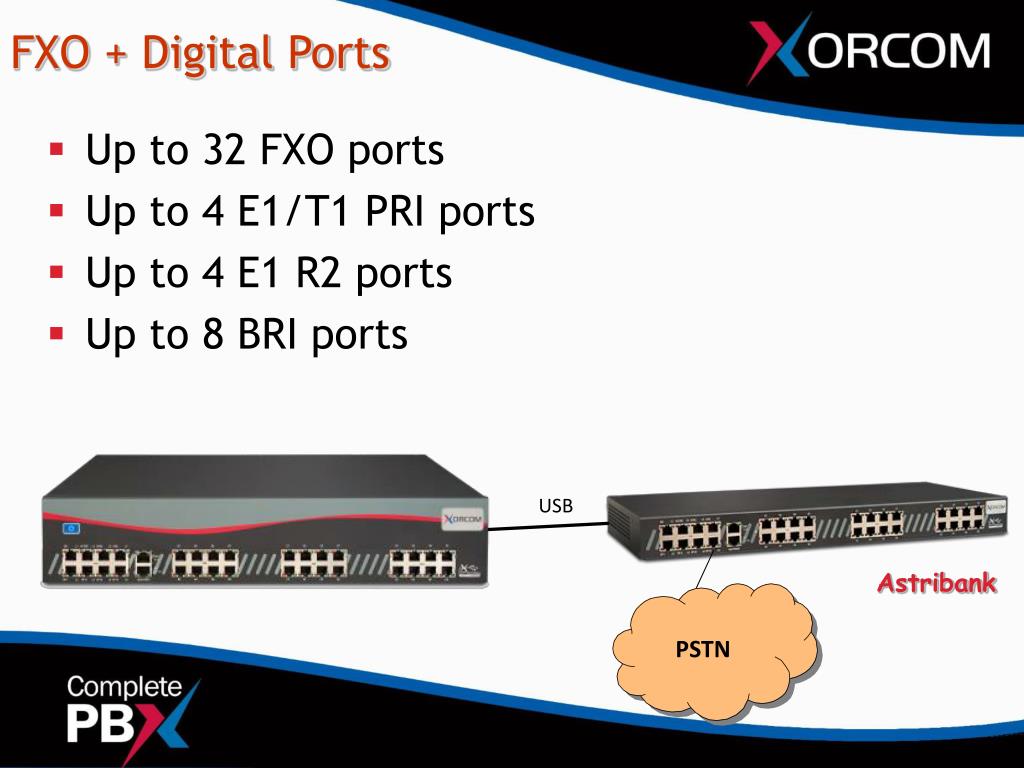

  13. PSTN FXO + Digital Ports • Up to 32 FXO ports • Up to 4 E1/T1 PRI ports • Up to 4 E1 R2 ports • Up to 8 BRI ports USB Astribank

  14. Analog Capacity • Up to 32 FXS ports USB Astribank

  15. Multiple Astribanks • Connect multiple Astribanks to your Asterisk Server • Up to 32 FXS Ports Per Astribank • You can mix FXO and PRI Modules as well!!! • Xorcom manufactures a 16 Port USB Hub with Redundant Power Supplies for Astribank 16 Port USB Hub USB Cables

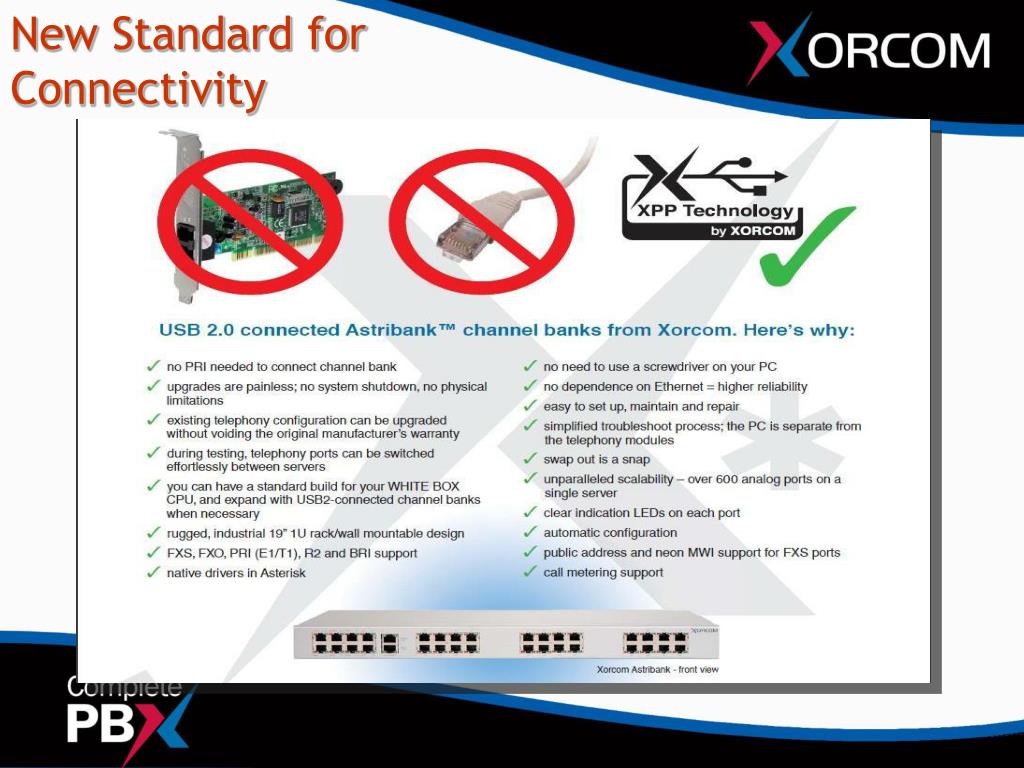

  16. New Standard for Connectivity

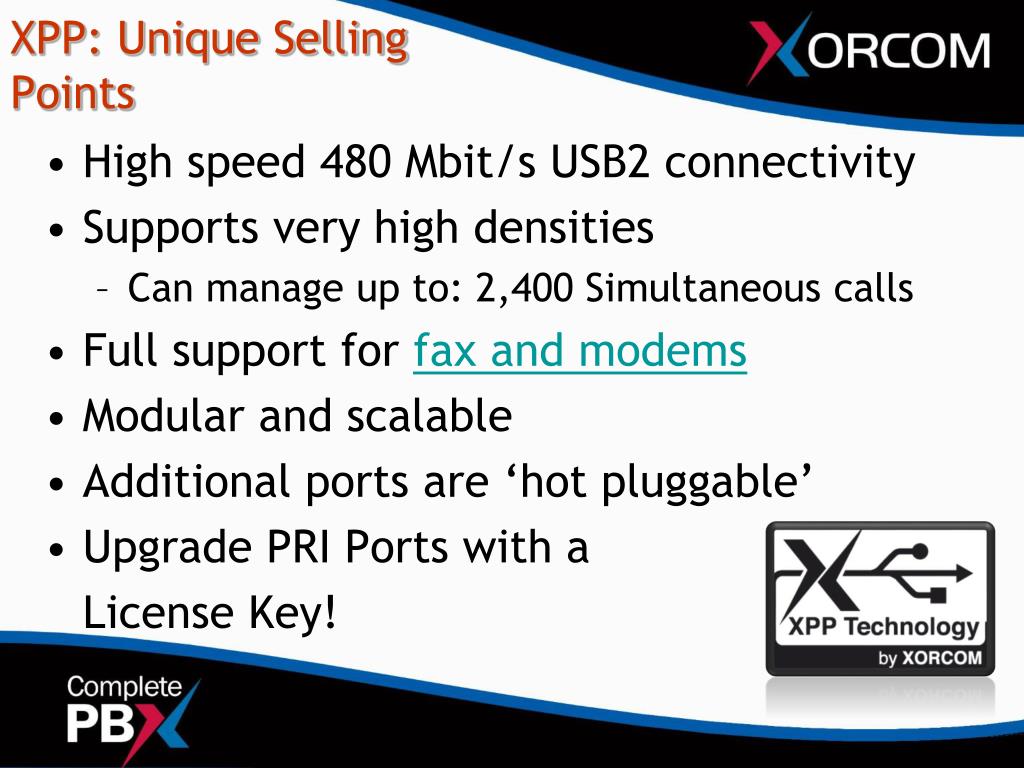

  17. XPP: Unique Selling Points • High speed 480 Mbit/s USB2 connectivity • Supports very high densities • Can manage up to: 2,400 Simultaneous calls • Full support for fax and modems • Modular and scalable • Additional ports are ‘hot pluggable’ • Upgrade PRI Ports with a License Key!

  18. Three lines to meet requirements of different sized businesses XORCOM IP-PBX PRODUCT LINES

  19. Xorcom IP-PBX Product Lines XR1000 – up to 30 users Concurrent Calls: 10 XR2000 – up to 200 users Concurrent Calls: 45 XR3000 – up to 1000 users Concurrent Calls: 300

  20. Xorcom XE IP-PBX Product Lines

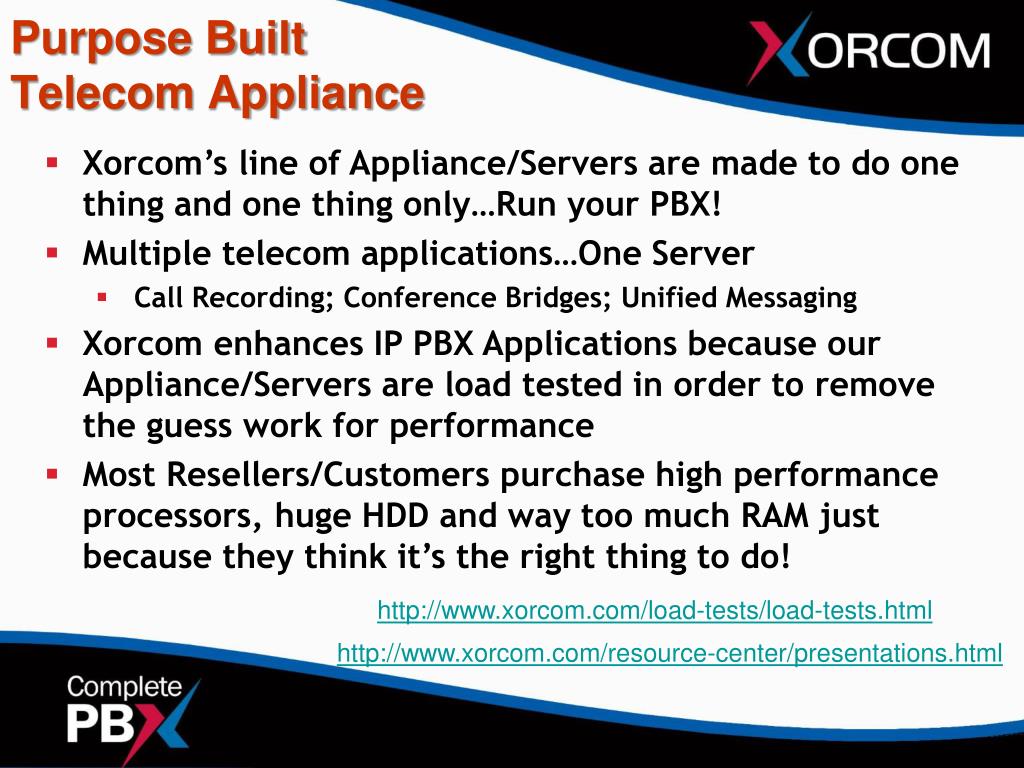

  21. Purpose Built Telecom Appliance • Xorcom’s line of Appliance/Servers are made to do one thing and one thing only…Run your PBX! • Multiple telecom applications…One Server • Call Recording; Conference Bridges; Unified Messaging • Xorcom enhances IP PBX Applications because our Appliance/Servers are load tested in order to remove the guess work for performance • Most Resellers/Customers purchase high performance processors, huge HDD and way too much RAM just because they think it’s the right thing to do! http://www.xorcom.com/load-tests/load-tests.html http://www.xorcom.com/resource-center/presentations.html

  22. XR1000: Overview • IP-PBX optimized for SOHO • Stand-alone IP-PBX • Up to 16 ports (Analog Phones/Phone Lines) • Peripheral device support (I/O ports) • Up to 10 concurrent calls • Up to 30 users (SIP) • Remote access • Great for small or remote offices • Connect over the Internet or WAN to corporate HQ XR1000

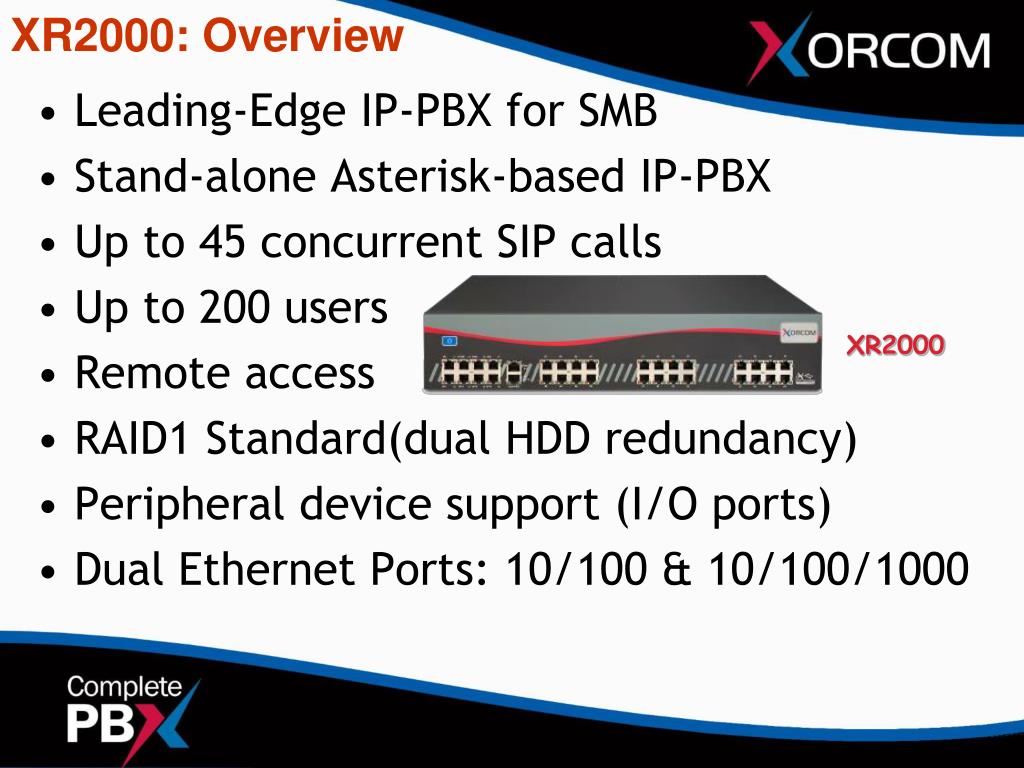

  23. XR2000: Overview • Leading-Edge IP-PBX for SMB • Stand-alone Asterisk-based IP-PBX • Up to 45 concurrent SIP calls • Up to 200 users • Remote access • RAID1 Standard(dual HDD redundancy) • Peripheral device support (I/O ports) • Dual Ethernet Ports: 10/100 & 10/100/1000 XR2000

  24. LAN Extensions • Analog • Up to 32 internal analog extensions • Up to 4 additional analog Astribank units • Max. total – 160 analog extensions • IP • Up to 200 SIP • Up to 200 IAX • Total (mixed) • Up to 200 users XR2000

  25. XR2000 supports up to 160 analog extensions with add-on Astribank units Supports Existing Infrastructure 4 Port USB Hub XR2000 Astribank Channel Banks(up to 4)

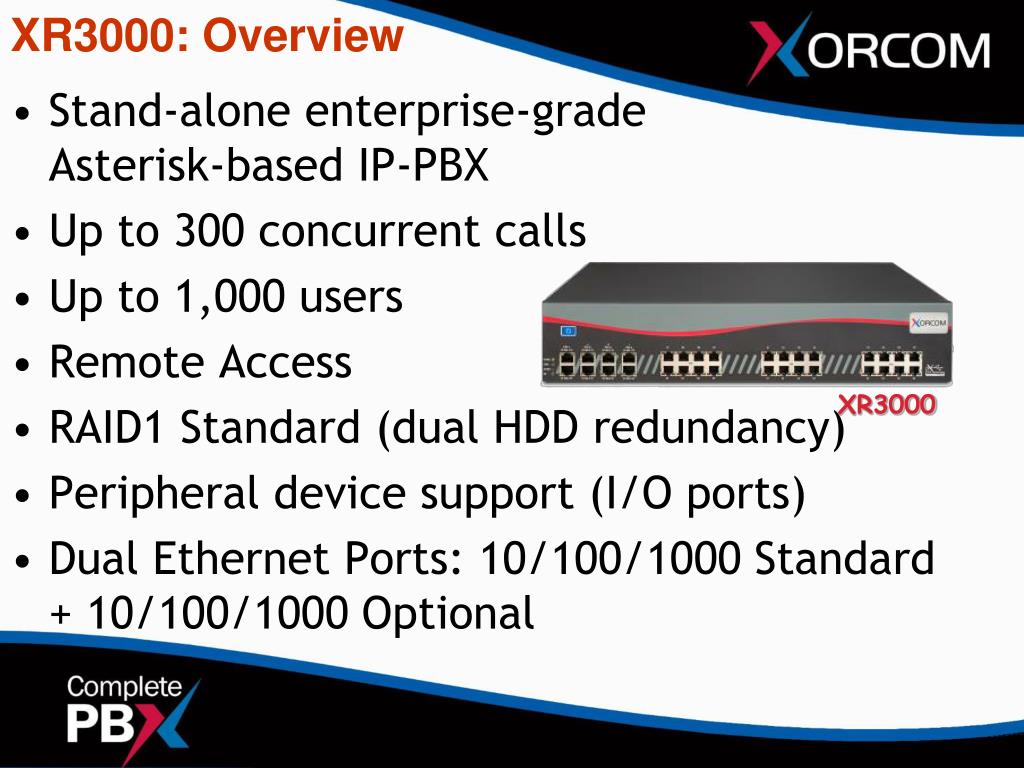

  26. XR3000: Overview • Stand-alone enterprise-grade Asterisk-based IP-PBX • Up to 300 concurrent calls • Up to 1,000 users • Remote Access • RAID1 Standard (dual HDD redundancy) • Peripheral device support (I/O ports) • Dual Ethernet Ports: 10/100/1000 Standard + 10/100/1000 Optional XR3000

  27. High Density 16 Port USB Hub with Redundant Power Supplies XR3000 Astribank Channel Banks(up to 16)

  28. Complete Hot Failover for Your PBX

  29. Award Winning True Redundancy Solution That Can Manage Multiple Telephony Interfaces The Most Cost Effective Commercially Supported Hot Failover Solution for IP PBX’s in the World!!! TWINSTAR™

  30. High Availability Solution • Provides full redundancy for a complete PBX system, including telephony interfaces • Quick and automatic failover process keeps downtime to an absolute minimum • Auto detection of server failure & switch to backup server • Firmware-based switching mechanism is not network-dependent • Solution components: • Two Xorcom IP PBX units with identical configurations • Xorcom Astribank channel bank(s) with dual USB ports XPP Technology

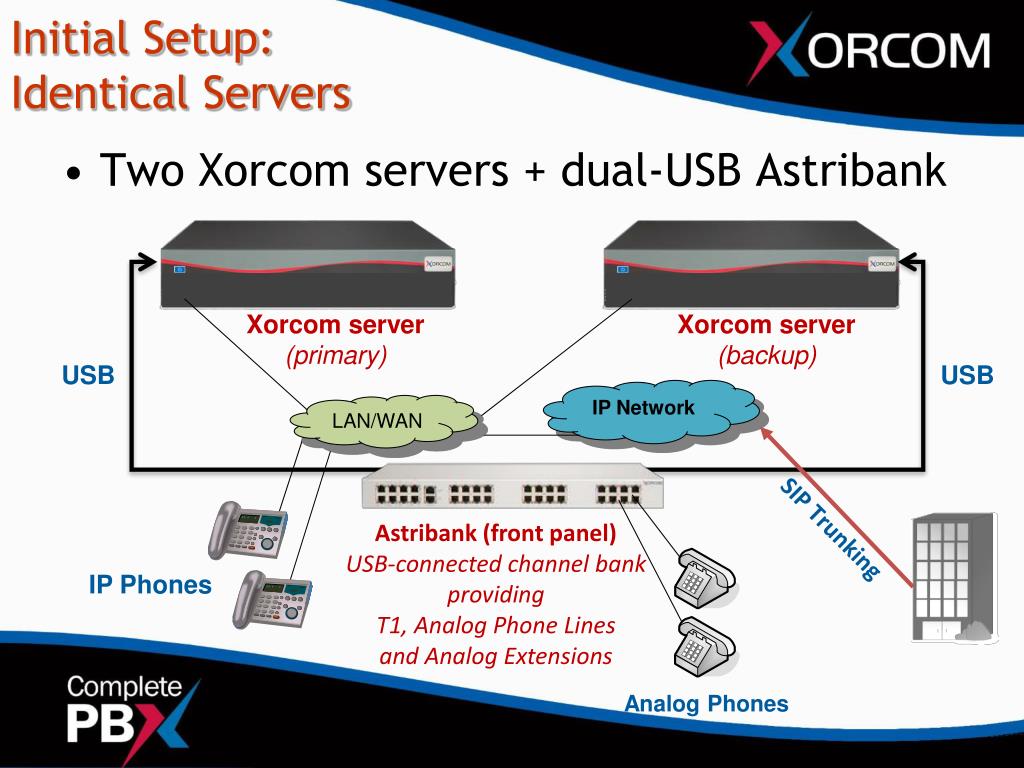

  31. Initial Setup: Identical Servers • Two Xorcom servers + dual-USB Astribank Xorcom server(primary) Xorcom server(backup) USB USB IP Network LAN/WAN SIP Trunking Astribank (front panel) USB-connected channel bank providing T1, Analog Phone Lines and Analog Extensions IP Phones Analog Phones

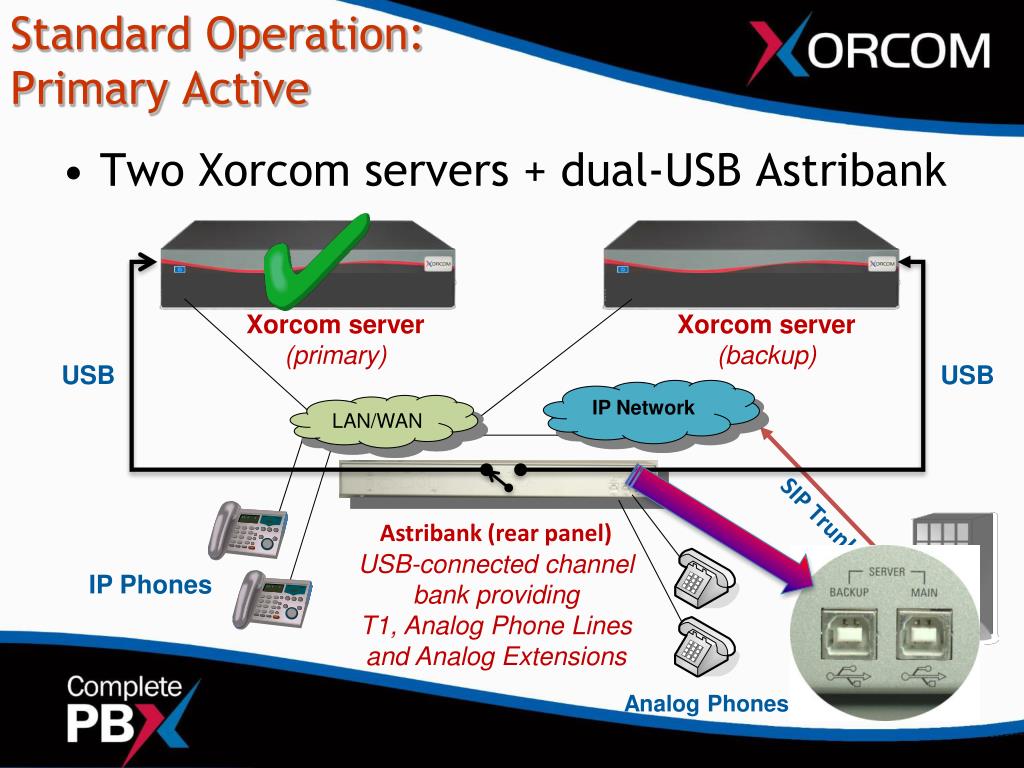

  32. Standard Operation: Primary Active • Two Xorcom servers + dual-USB Astribank Xorcom server(primary) Xorcom server(backup) USB USB IP Network LAN/WAN SIP Trunking Astribank (rear panel) USB-connected channel bank providing T1, Analog Phone Lines and Analog Extensions IP Phones Analog Phones

  33. If the Primary Server Fails… Server Failure Xorcom server(primary) Xorcom server(backup) USB USB IP Network LAN/WAN SIP Trunking Astribank (rear panel) USB-connected channel bank providing T1, Analog Phone Lines and Analog Extensions IP Phones Analog Phones

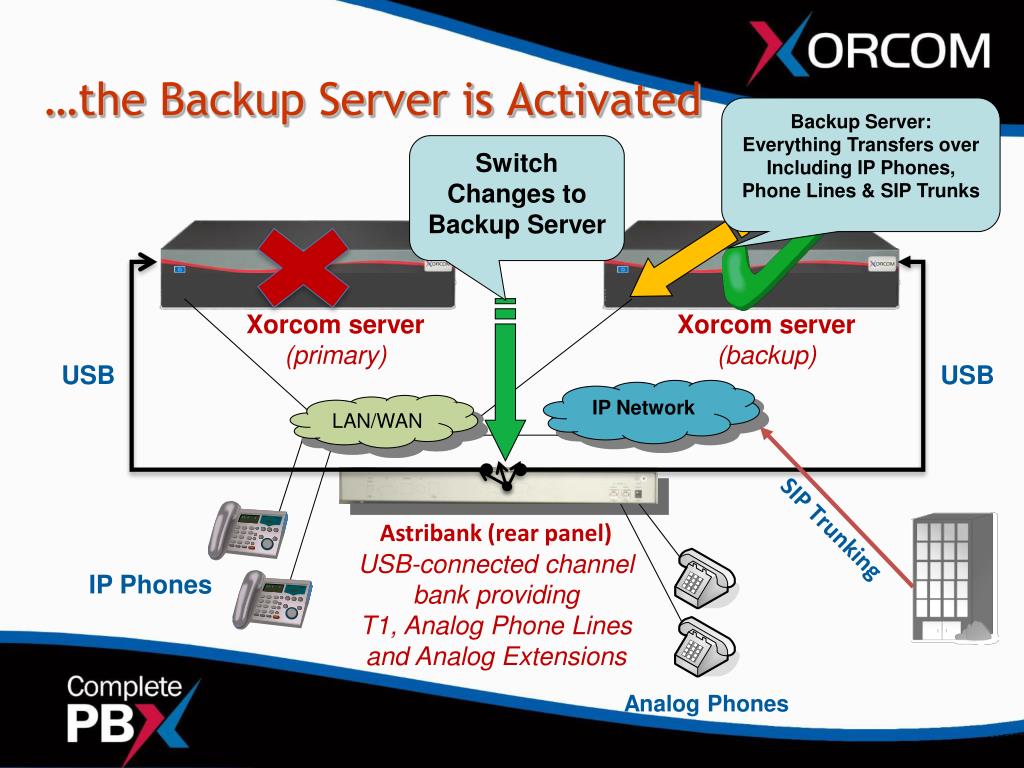

  34. …the Backup Server is Activated Backup Server: Everything Transfers over Including IP Phones, Phone Lines & SIP Trunks Switch Changes to Backup Server Xorcom server(primary) Xorcom server(backup) USB USB IP Network LAN/WAN SIP Trunking Astribank (rear panel) USB-connected channel bank providing T1, Analog Phone Lines and Analog Extensions IP Phones Analog Phones

  35. IP PBX Software Provided by: Xorcom USA

  36. IP PBX Features • Find-Me Follow-Me • Time-Based Routing • Advanced Dialing Rules • Music On Hold • Paging and Intercom • Web Access to Voicemail • Admin Status Screen • Package Manager (for easy updates) • Phone Provisioning Tool • Network Settings Tool • Echo Cancellation • Call Screening User-friendly Web Interface Interface in Different Languages Unlimited Extensions CDR (Call Details Record) TDM/SIP/IAX Trunks Remote Extensions Voicemail Fax Support/Fax to Email Voicemail to Email IVR Menu System Ring Groups Call Queues Conference Rooms

  37. Telephone User Interface

  38. User Interface: Login

  39. User Interface: Language Choices

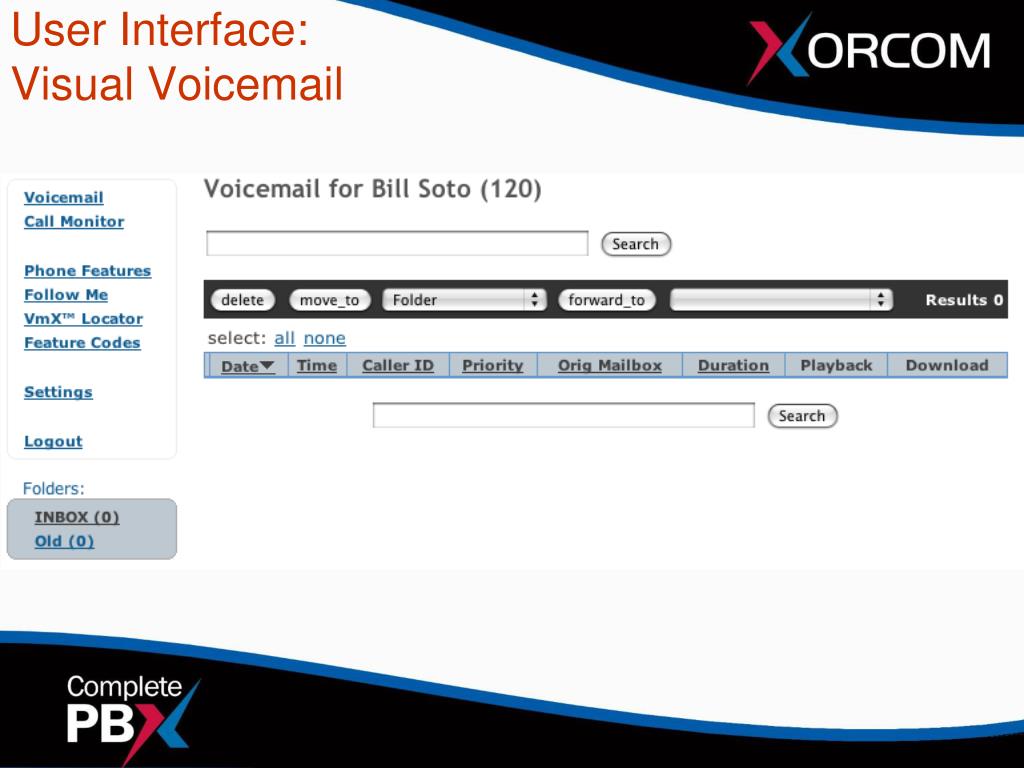

  40. User Interface:Visual Voicemail

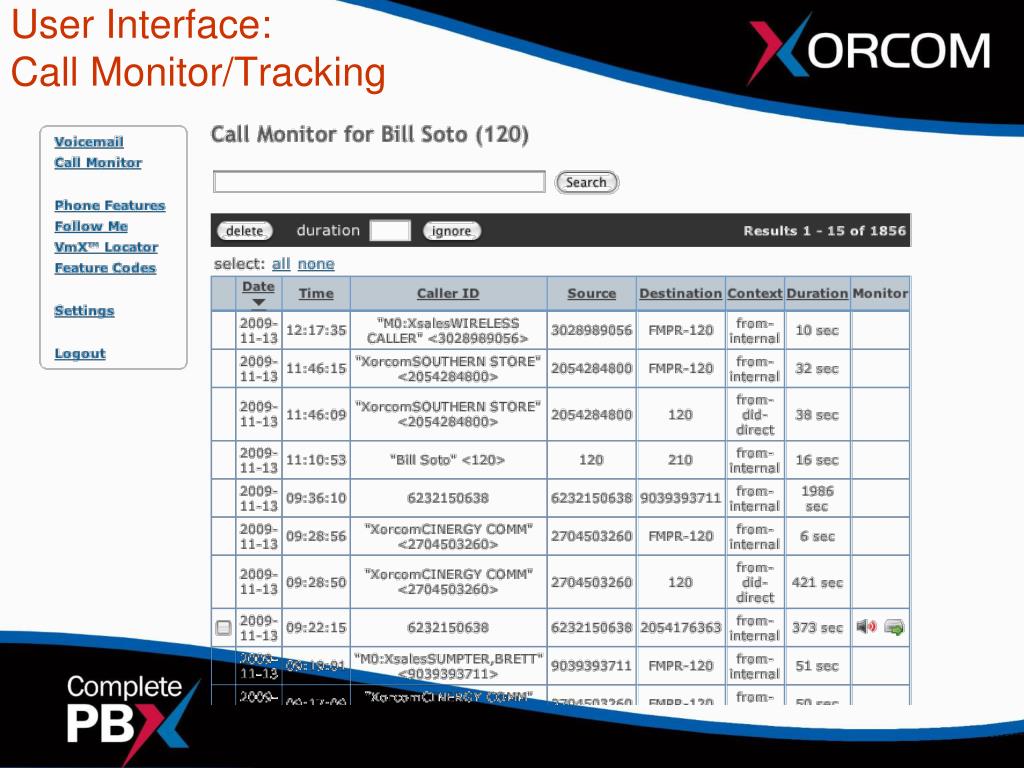

  41. User Interface: Call Monitor/Tracking

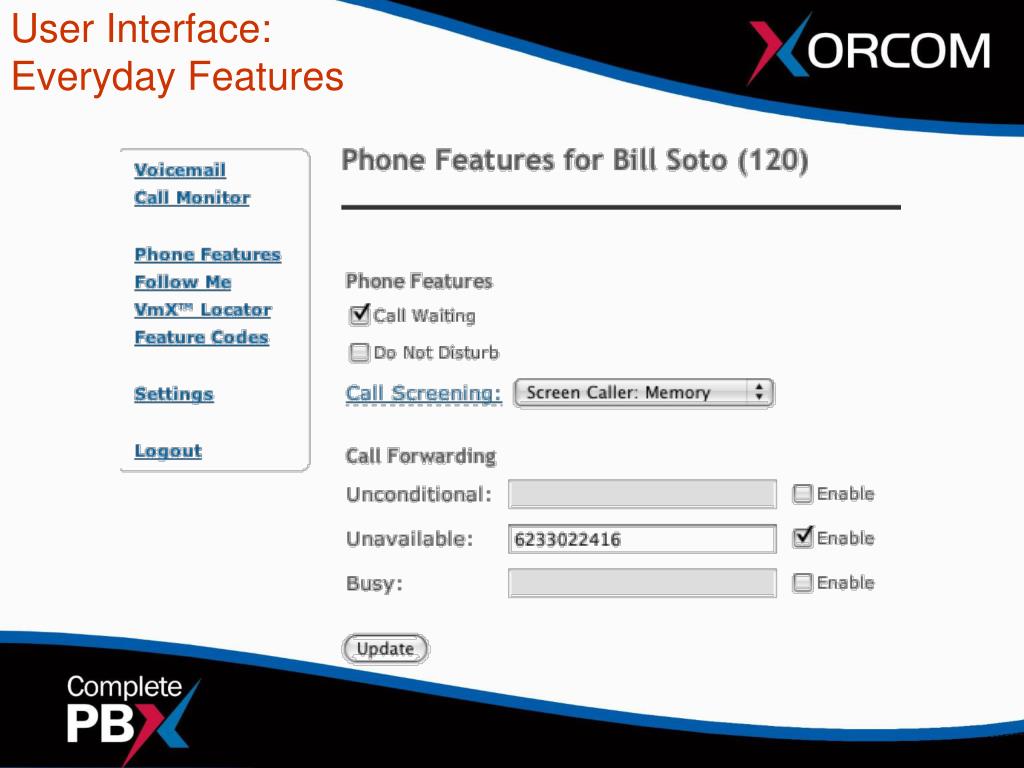

  42. User Interface: Everyday Features

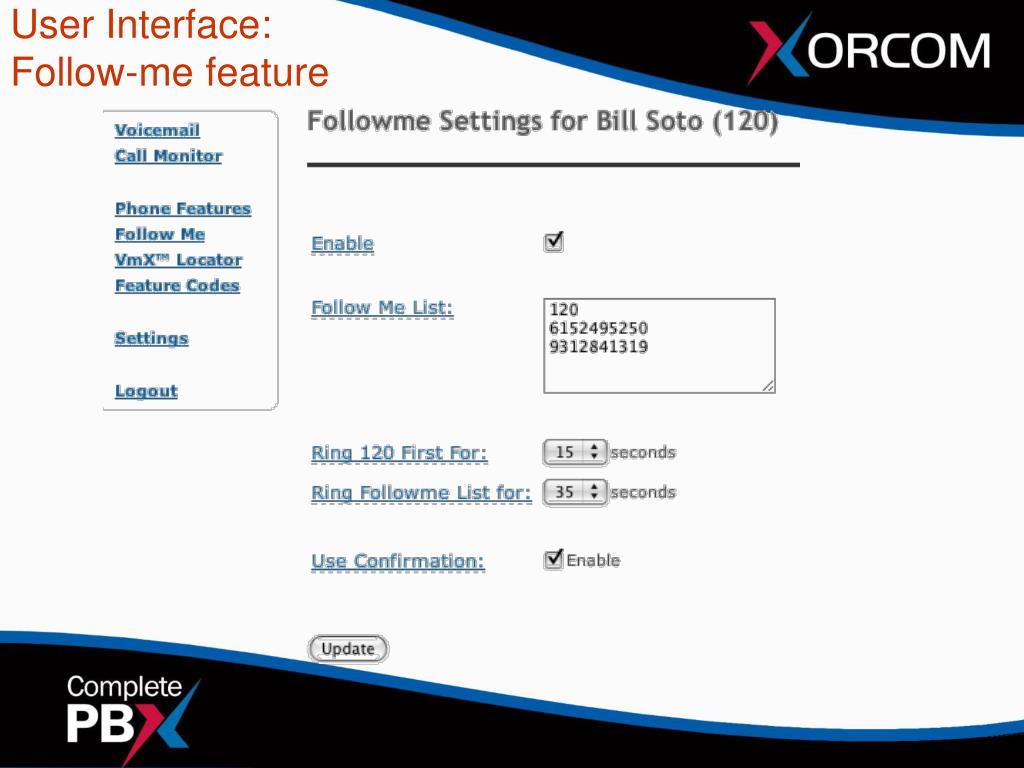

  43. User Interface: Follow-me feature

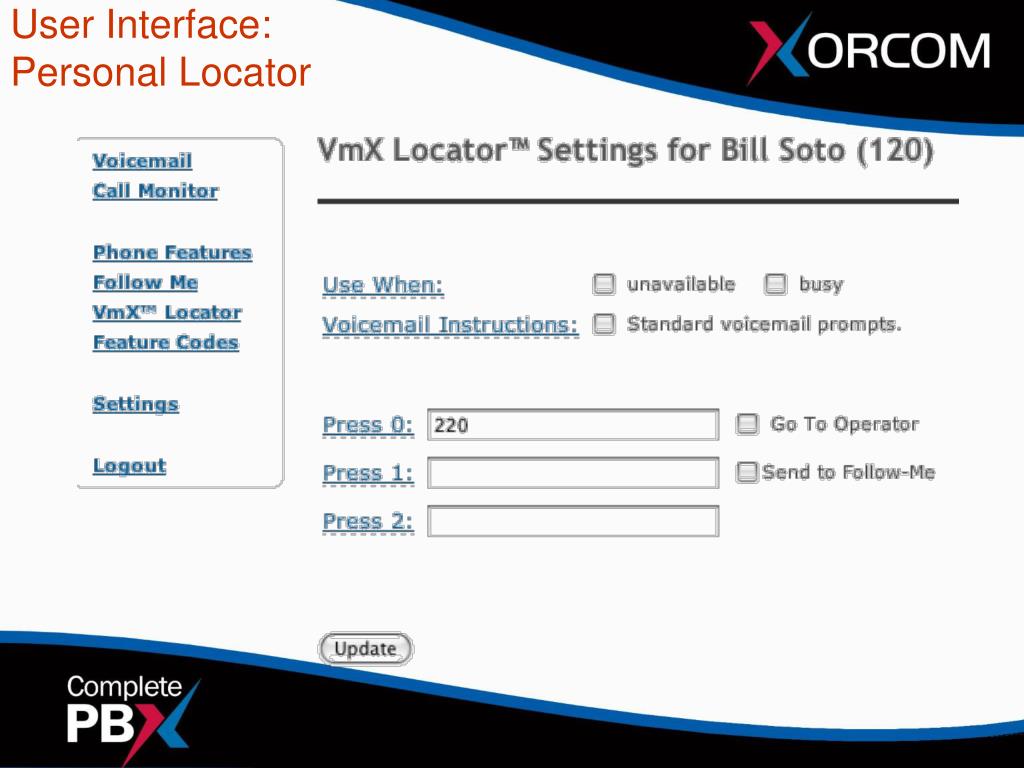

  44. User Interface: Personal Locator

  45. User Interface: Feature Codes List

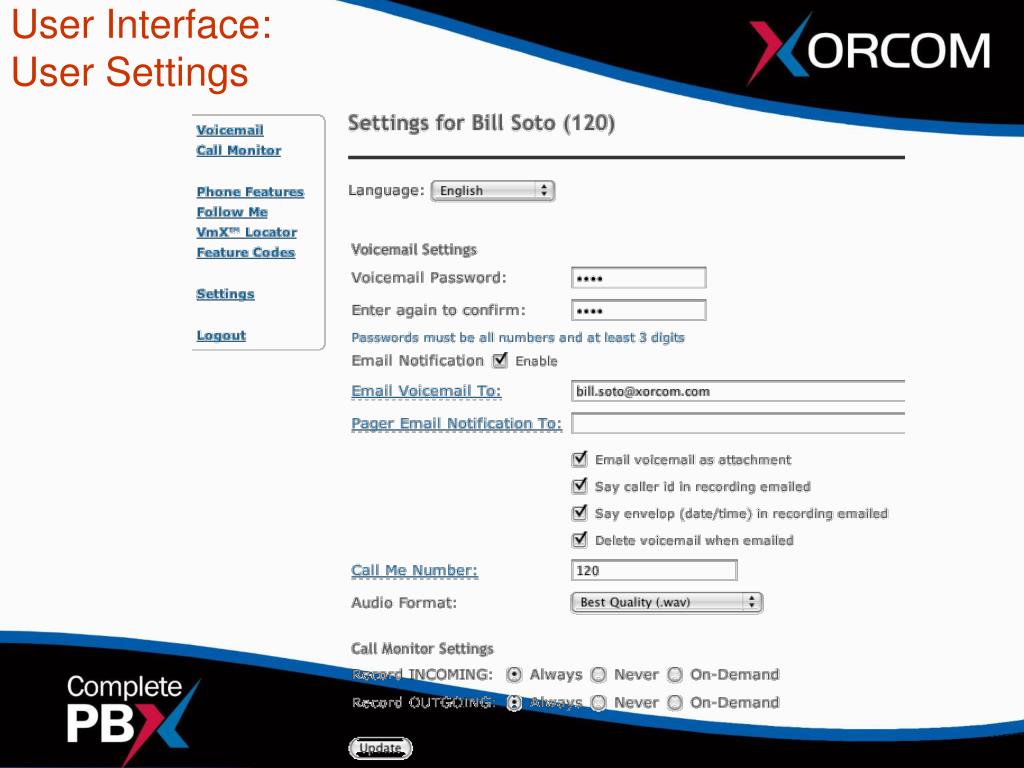

  46. User Interface: User Settings

  47. Your Operator Panel

  48. Your Operator Panel
