T-Scroll : Visualizing Trends in a Time-Series of Documents for Interactive User Exploration

1. T-Scroll: Visualizing Trends in a Time-Series of Documents for Interactive User Exploration Yoshiharu Ishikawa and Mikine Hasegawa Nagoya University, Japan ishikawa@itc.nagoya-u.ac.jp

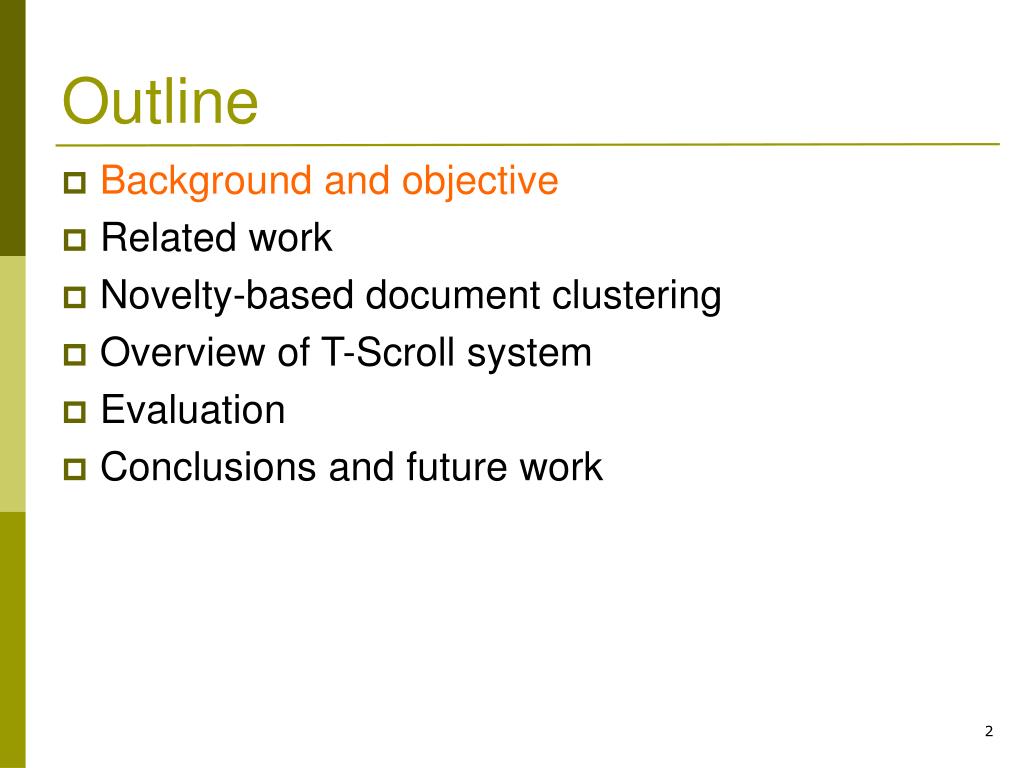

2. Outline • Background and objective • Related work • Novelty-based document clustering • Overview of T-Scroll system • Evaluation • Conclusions and future work

3. Background • Time-series of documents • Example: news articles delivered on the Internet, online academic journals • Continually delivered everyday • Problems • A large number of documents: appropriate summarization is required • Topics will change: topic detection/tracking and trend extraction are useful

4. Objectives • Development and evaluation of T-Scroll (Trend/Topic-Scroll) • User interface for visualizing the transition of topics extracted from a time-series documents • System Features • Constructed over a document clustering system that outputs new clustering results periodically • Clusters are displayed along the time axis like a scroll • Links are shown between related clusters to represent topic transition • Some useful features for interactive exploratory analysis

6. Outline • Background and objective • Related work • Novelty-based document clustering • Overview of T-Scroll system • Evaluation • Conclusions and future work

7. Visualization of a time-series of documents • A few systems for visualization of trends in a time-series of documents • ThemeRiver (Havre et al, IEEE Trans. VCG, 2002) [4] • Visualizes topic streams like a river • Focuses on providing visual impacts • No features for analysis and browsing • TimeMine (Swan and Allan, SIGIR’00) [5] • Extracts topics from a time-series of documents • Displays timelines to represent topics on the screen

8. ThemeRiver Analysis of the articles related to Cuba (1960 – 1961)

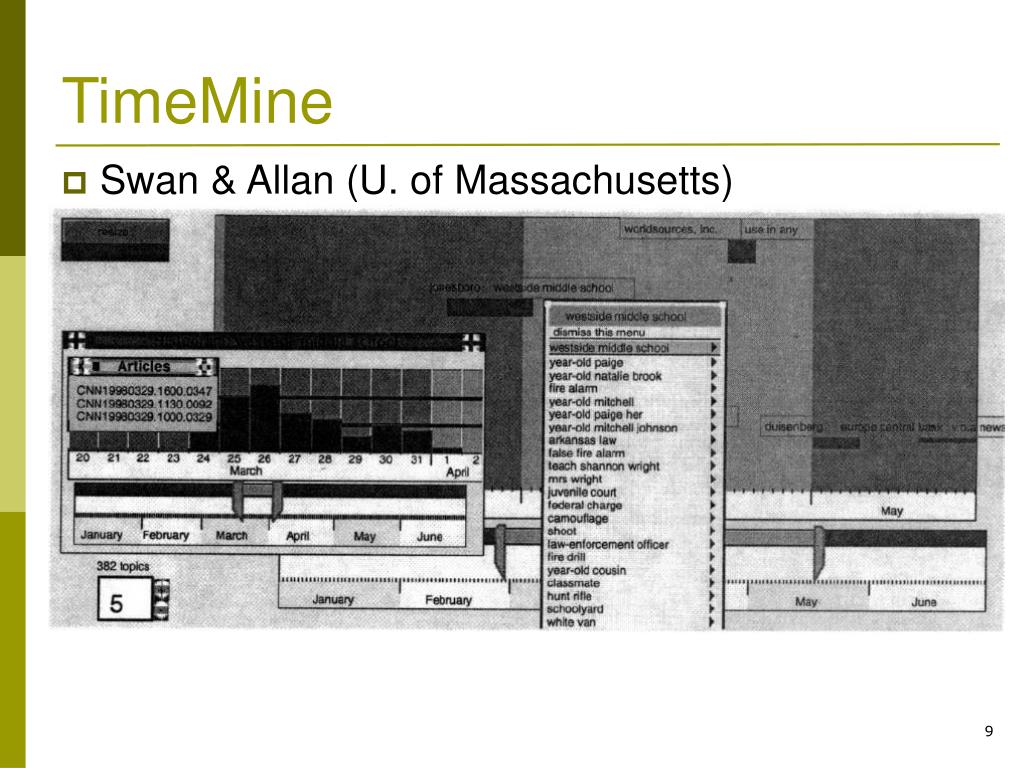

9. TimeMine • Swan & Allan (U. of Massachusetts)

10. Analysis of time-dependent clusters • Mei & Zhai (KDD’05) [6] • Statistical approach for discovering major topics from a time-series of documents • Probabilistic modeling • MONIC (Spiliopoulou et al., KDD’06) [7] • Detects various types of patterns from cluster transitions • Examples: splitting/merging of clusters, cluster size changes • Based on the analysis of historical snapshots of clusters

11. Outline • Background and objective • Related work • Novelty-based document clustering • Overview of T-Scroll system • Evaluation • Conclusions and future work

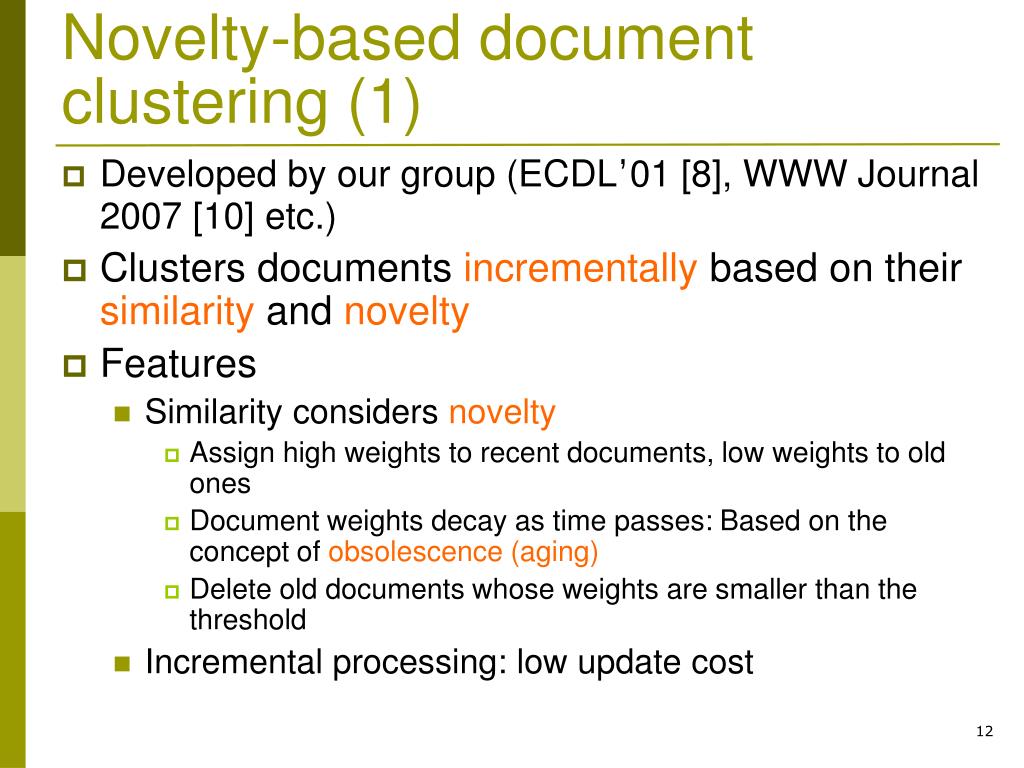

12. Novelty-based document clustering (1) • Developed by our group (ECDL’01 [8], WWW Journal 2007 [10] etc.) • Clusters documents incrementally based on their similarity and novelty • Features • Similarity considers novelty • Assign high weights to recent documents, low weights to old ones • Document weights decay as time passes: Based on the concept of obsolescence (aging) • Delete old documents whose weights are smaller than the threshold • Incremental processing: low update cost

13. Novelty-based document clustering (2) • Periodical clustering processes are performed on a time-series of documents “Yeltsin’s Death” and other documents are obsolete! Blair to Resign New President Sarkozy Yeltsin’s Death Other articles time

14. Document similarity (1) dwi 1 t t Ti Current time acquisition time of document di • Assumption: each delivered document gradually loses its value as time passes • dwi: the weightof a documentdi at time  • (0 <  < 1): forgetting factor determines the forgetting speed • The weight of a document exponentially decreases as time passes.

15. Document similarity (2) • Similarity score of documents di and dj • Based on novelty of documents and word occurrence patterns in the documents. • Extension of the tf-idf method • New documents have high impact on the clustering result • Document clustering: k-means method

16. Outline • Background and objective • Related work • Novelty-based document clustering • Overview of T-Scroll system • Evaluation • Conclusions and future work

17. T-Scroll: Idea • Periodical clustering results are displayed like a scroll • Links represents related cluster pairs

19. System functionalities (1) • Cluster labels: selected based on the formula • Pr(di): document weight, tfij: term frequency count • Cluster sizes: ellipse size roughly corresponds to the number of documents • Links: If the score is greater than the threshold, links are shown

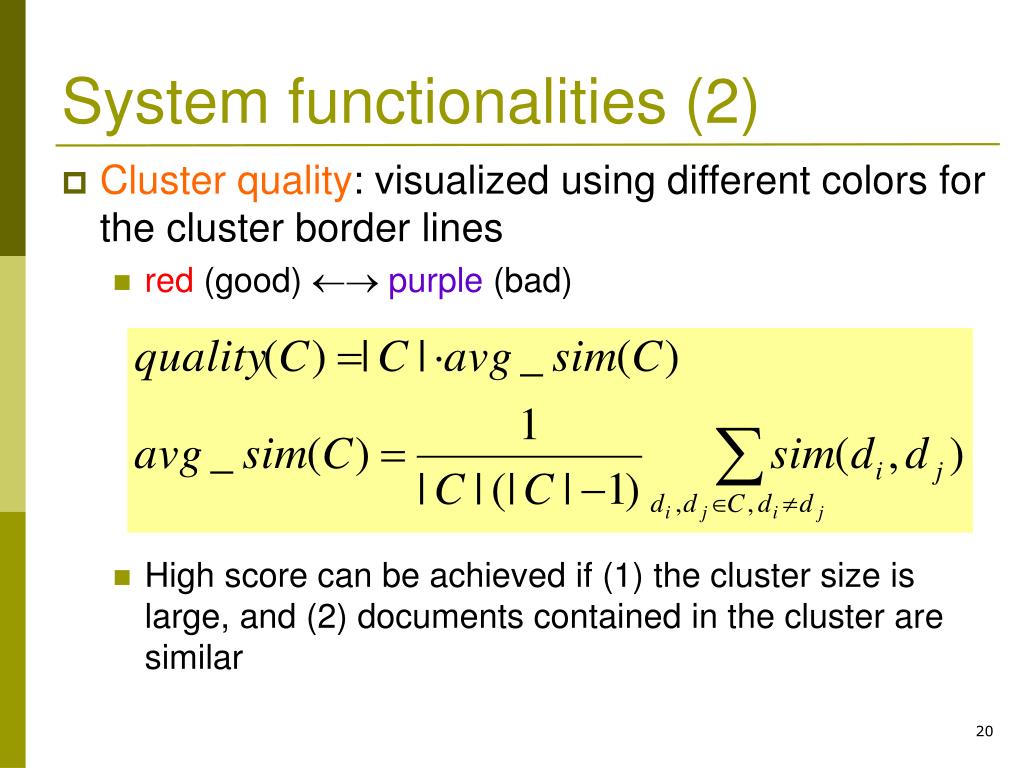

20. System functionalities (2) • Cluster quality: visualized using different colors for the cluster border lines • red (good) purple (bad) • High score can be achieved if (1) the cluster size is large, and (2) documents contained in the cluster are similar

21. System functionalities (3) • Drill-down/roll-up: user can specify the interval of between two consecutive clustering interactively (e.g., one day, one week) • Displaying keyword list: user can browse the keyword list for a specified cluster • Access to original documents • Keyword-based emphasis: clusters that contain a user-specified keyword are emphasized

22. Demo

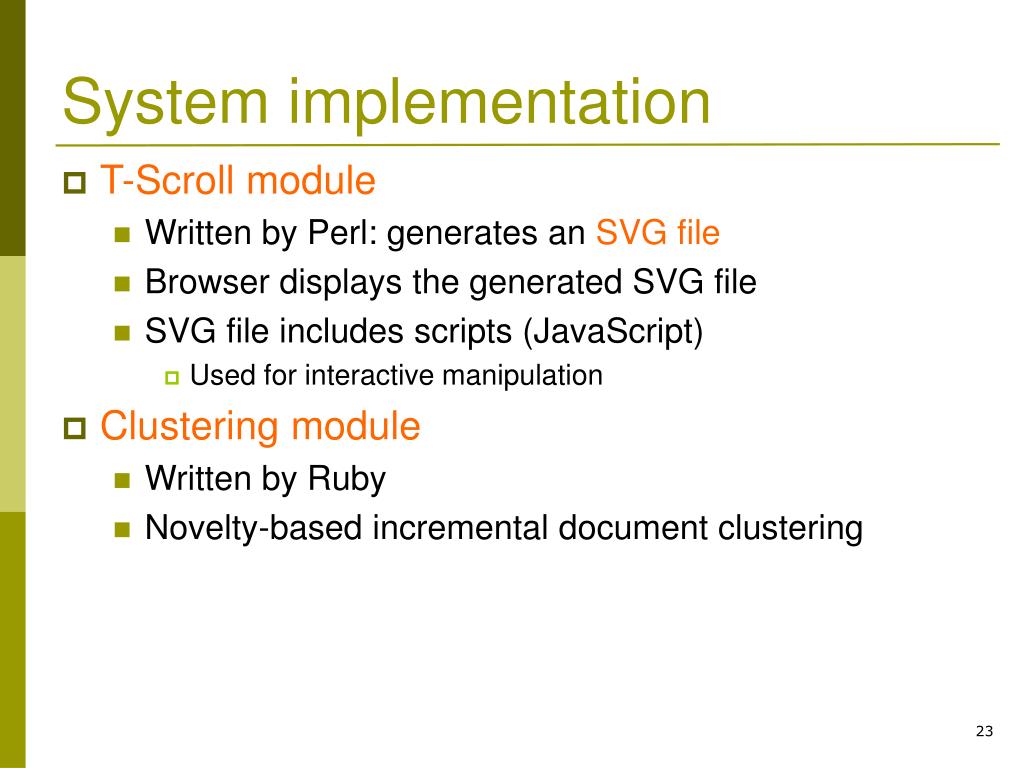

23. System implementation • T-Scroll module • Written by Perl: generates an SVG file • Browser displays the generated SVG file • SVG file includes scripts (JavaScript) • Used for interactive manipulation • Clustering module • Written by Ruby • Novelty-based incremental document clustering

24. System architecture ClusteringModule RSSFeedModule ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- ------- Input Output Clustering result News articles Input T-Scroll Main Module SVGOutput Module Command inputs （Perl） Interactivemanipulation (JavaScript) Outputs ------- ------- ------- SVGControlModule Plug-in Cluster display Browser User (Perl) SVG file (includes JavaScript) T-Scroll

25. Outline • Background and objective • Related work • Novelty-based document clustering • Overview of T-Scroll system • Evaluation • Conclusions and future work

26. Evaluation • 10 Users • Data set • Japanese news articles collected from news web sites from Sept. 2006 to Feb. 2007 • 100 articles per day • Clustering was performed at six-hour intervals • Evaluation criteria • Overall impressions • Evaluation of each function • Obervability of topics • Comparison with ThemeRiver

27. Overall impression • User specifies scores between 0 to 5

28. Evaluation on each function

29. Observability of topics (1) • Can users observe major topics in Nov. 2006? • Five major topics are specified by ours: user gives scores how clearly he or she can observe the topic

30. 10 users (different from former experiments) Users should reply observed topics and their scores with no information Topics 1 to 5 are major topics used in the previous experiments Topic 2 (big hurricane) was regarded as a normal weather topic Observability of topics (2)

31. Comparison with ThemeRiver (1) • ThemeRiver-like display figure was manually created for news articles in Dec. 2006 • 11 users (different from previous experiments) • Questions to users • Overall impressions • Obserbability of topics

33. Comparison with ThemeRiver (2) • Overall impression

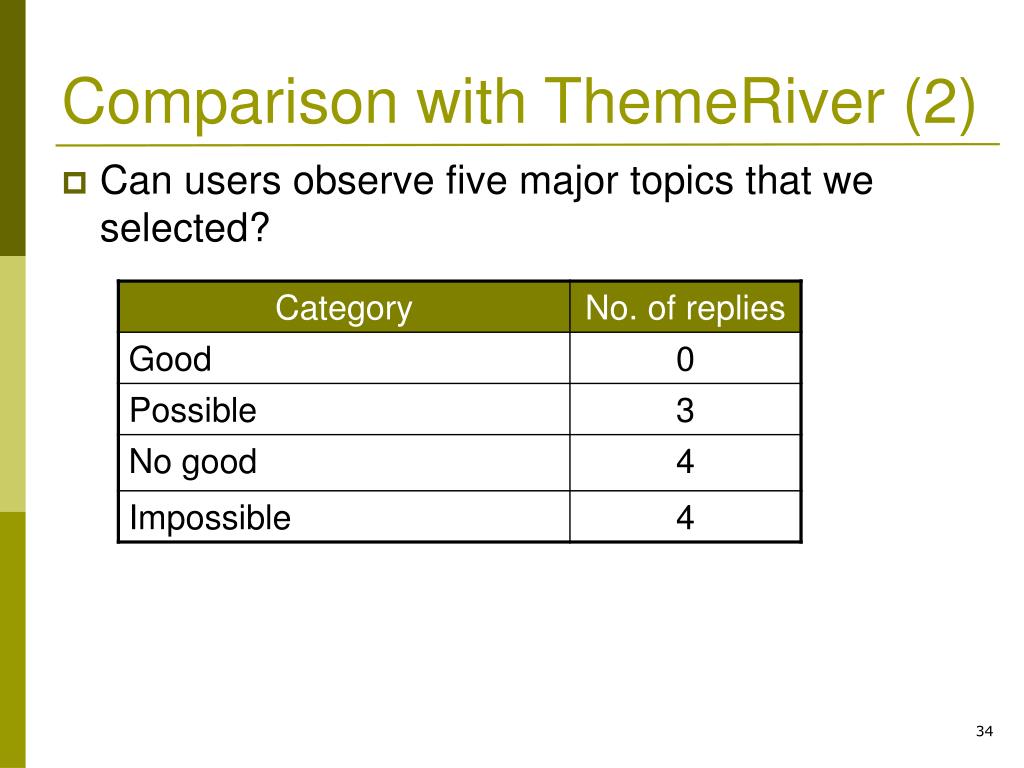

34. Comparison with ThemeRiver (2) • Can users observe five major topics that we selected?

35. Summary of experiments • Overall impressions • Good, but improvements required for usability • Some users made comments on the response speed • System functionalities • Several features (quality info, article lists, etc.) are useful in practice • Appropriate labels are necessary: should be improved • Comparison with ThemeRiver • ThemeRiver has visual impacts, but its display tends to be complicated for many topics

36. Outline • Background and objective • Related work • Novelty-based document clustering • Overview of T-Scroll system • Evaluation • Conclusions and future work
