  1. Integrating UML and Petri Nets Topics: • Problem with Current Software Engineering Methodology • Stochastic Petri nets and their useful properties • Translating UML diagrams into SPNs (Mail client case study) Work of Javier Campos and Jose Merseguer presented by Stephen Rojcewicz

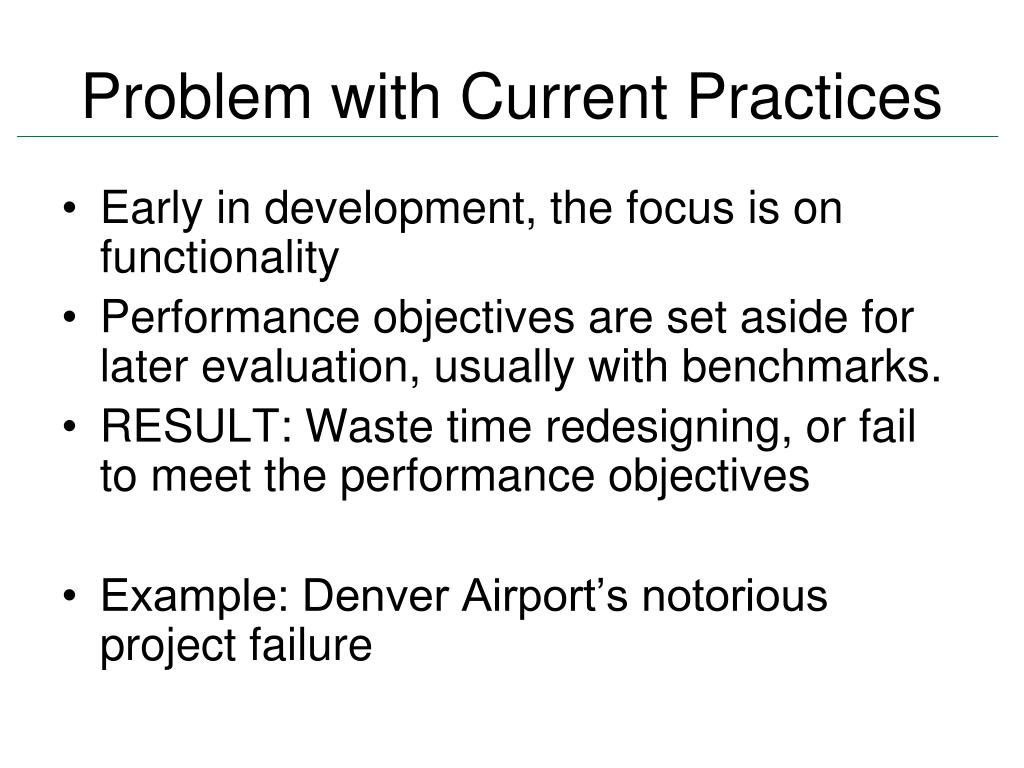

  2. Problem with Current Practices • Early in development, the focus is on functionality • Performance objectives are set aside for later evaluation, usually with benchmarks. • RESULT: Waste time redesigning, or fail to meet the performance objectives • Example: Denver Airport’s notorious project failure

  3. What is Needed • A convenient way to compare the performance of Different basic designs early in development • If it is possible to directly observe the prototype, it is already too late. Hence, we MUST use MODELING

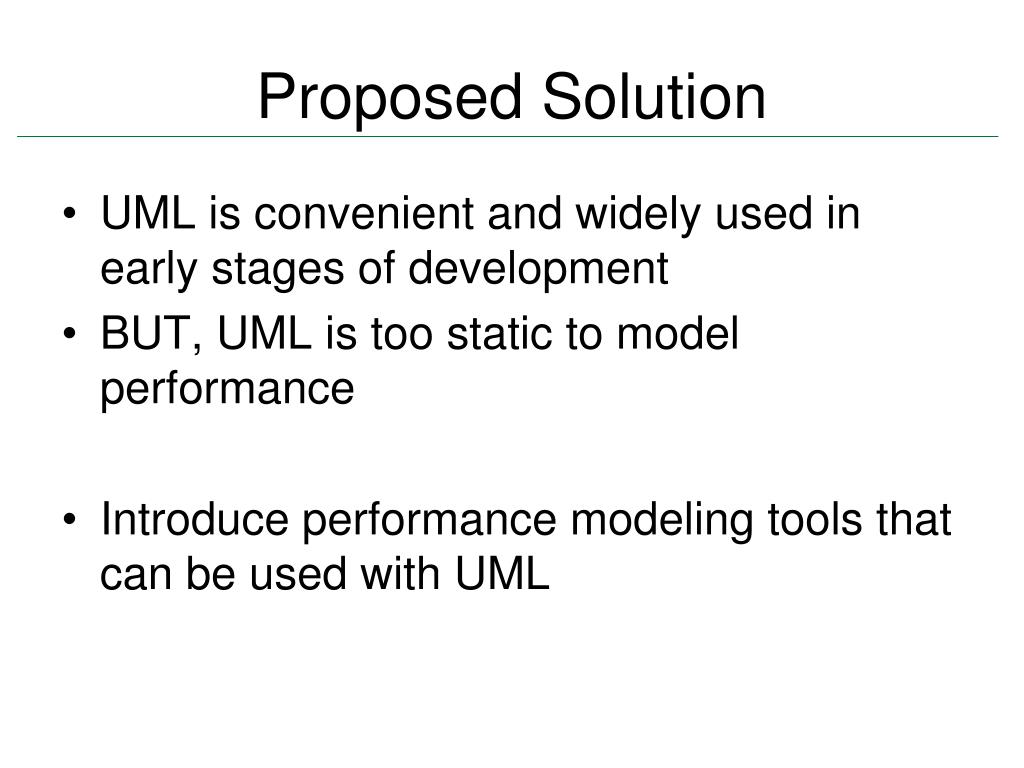

  4. Proposed Solution • UML is convenient and widely used in early stages of development • BUT, UML is too static to model performance • Introduce performance modeling tools that can be used with UML

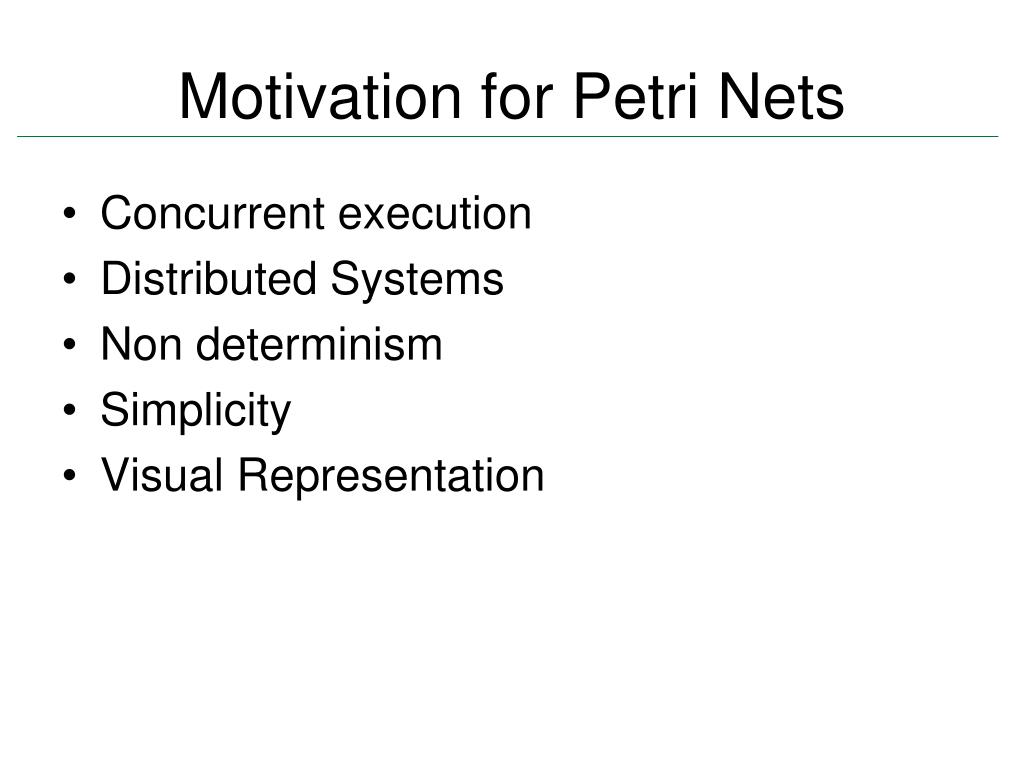

  5. Motivation for Petri Nets • Concurrent execution • Distributed Systems • Non determinism • Simplicity • Visual Representation

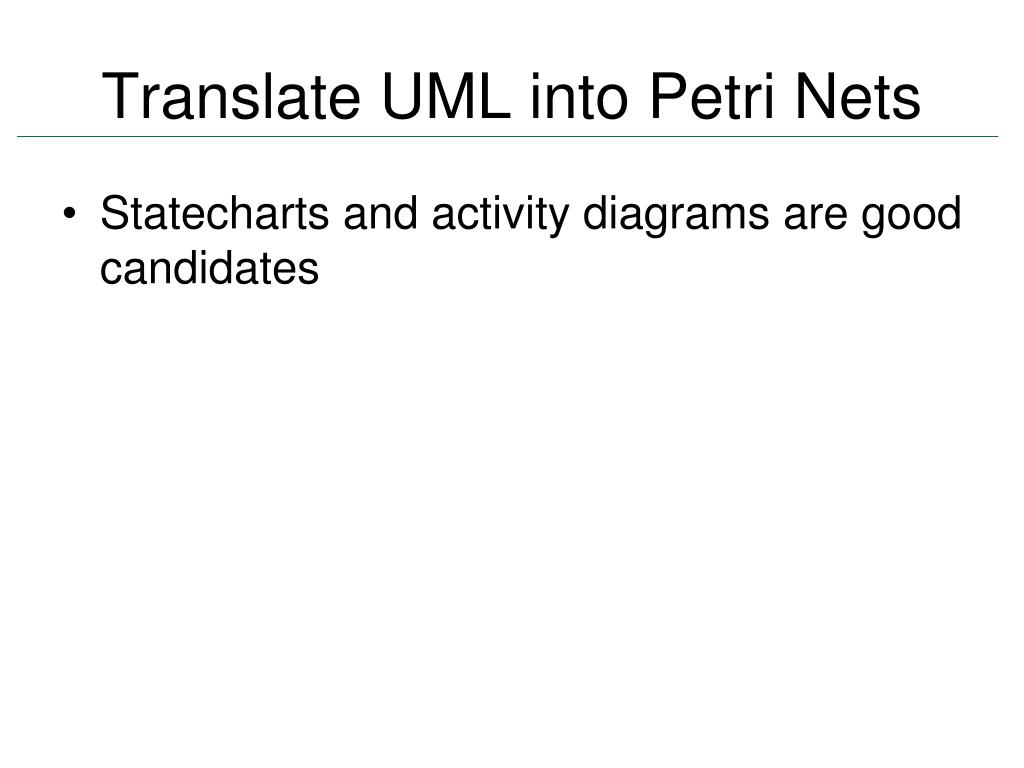

  6. Translate UML into Petri Nets • Statecharts and activity diagrams are good candidates

  7. Target: Stochastic Petri Net • Models probability of events with respect to TIME • Transitions have a DELAY • Developed to model Continuous Time Markov Chains (probabilistic timed state-transition model)

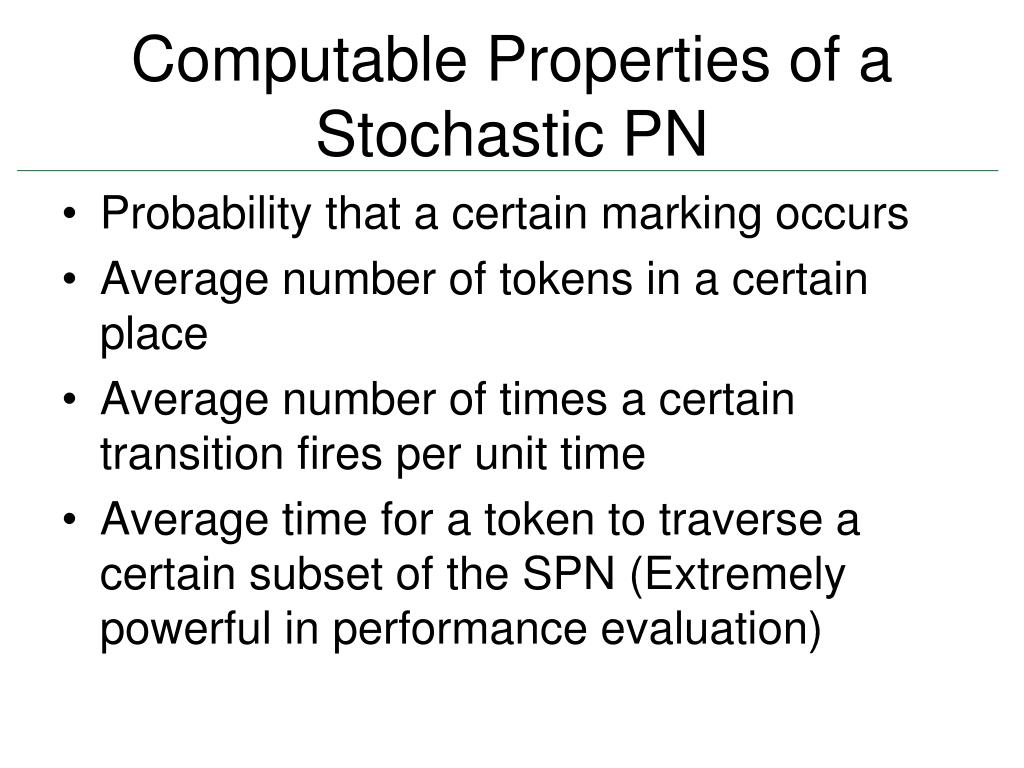

  8. Computable Properties of a Stochastic PN • Probability that a certain marking occurs • Average number of tokens in a certain place • Average number of times a certain transition fires per unit time • Average time for a token to traverse a certain subset of the SPN (Extremely powerful in performance evaluation)

  9. Case Study: Mail Client

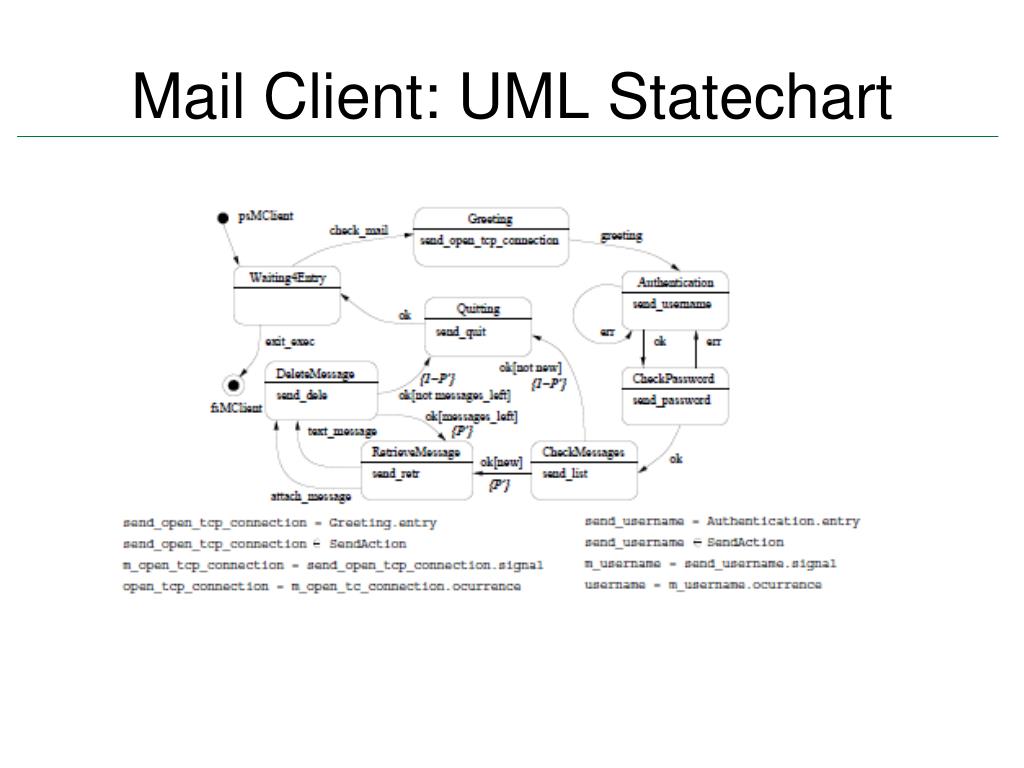

  10. Mail Client: UML Statechart

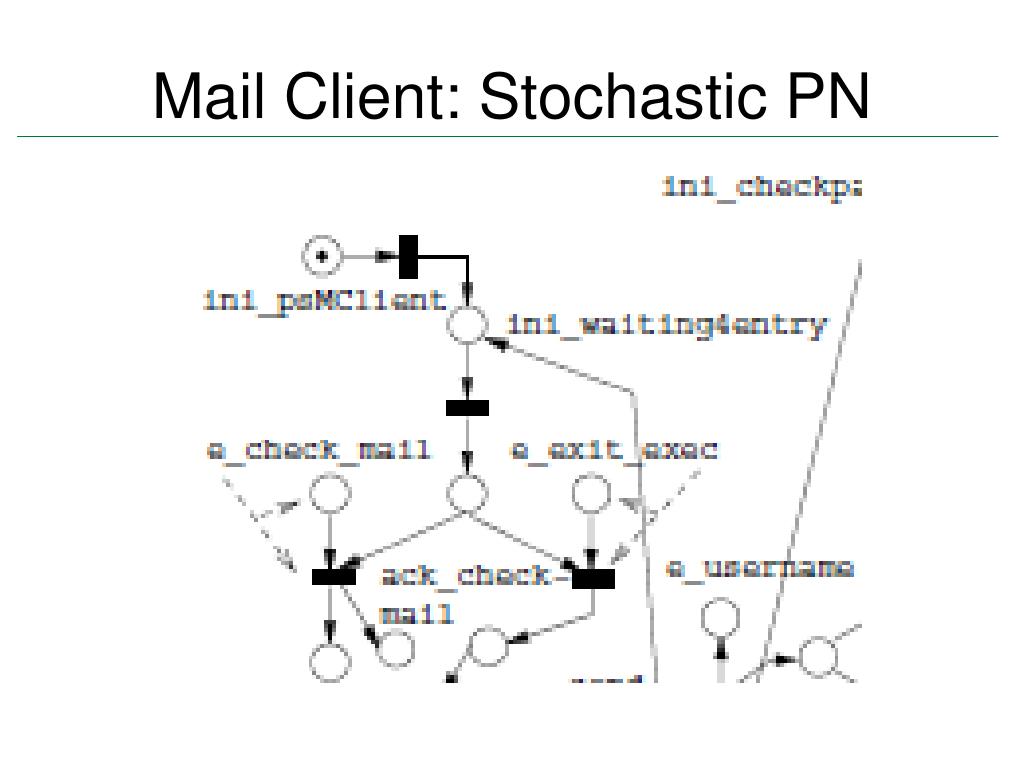

  11. Mail Client: Stochastic PN

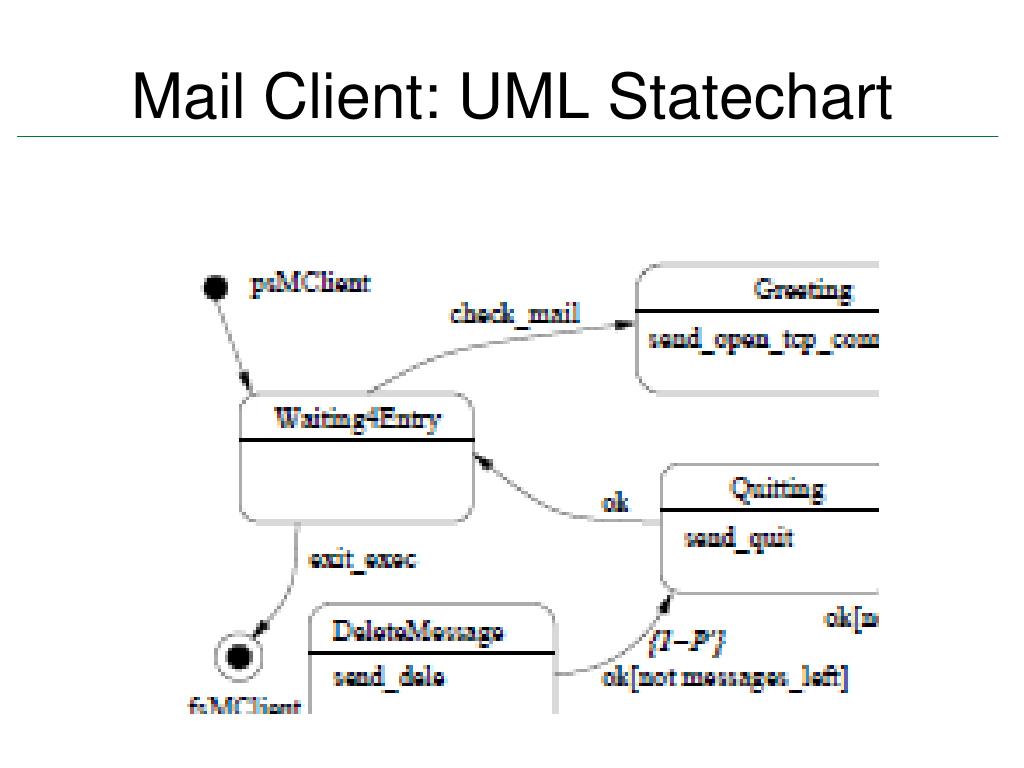

  12. Mail Client: UML Statechart

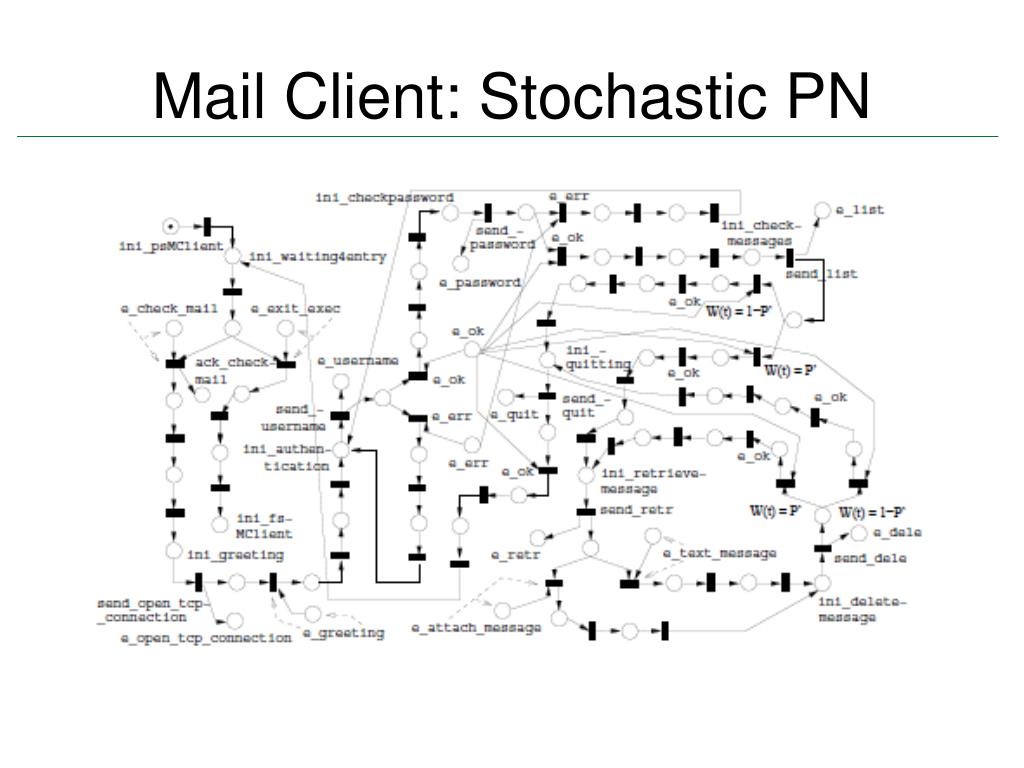

  13. Mail Client: Stochastic PN

  14. Associate Activities with Transitions • A transition’s firing delay corresponds to the time required to complete the activity • When the transition fires, the activity is completed • An active transition that becomes inactive models the interruption of an activity.

  15. Authentication: UML Activity Diagram

  16. Corresponding SPN

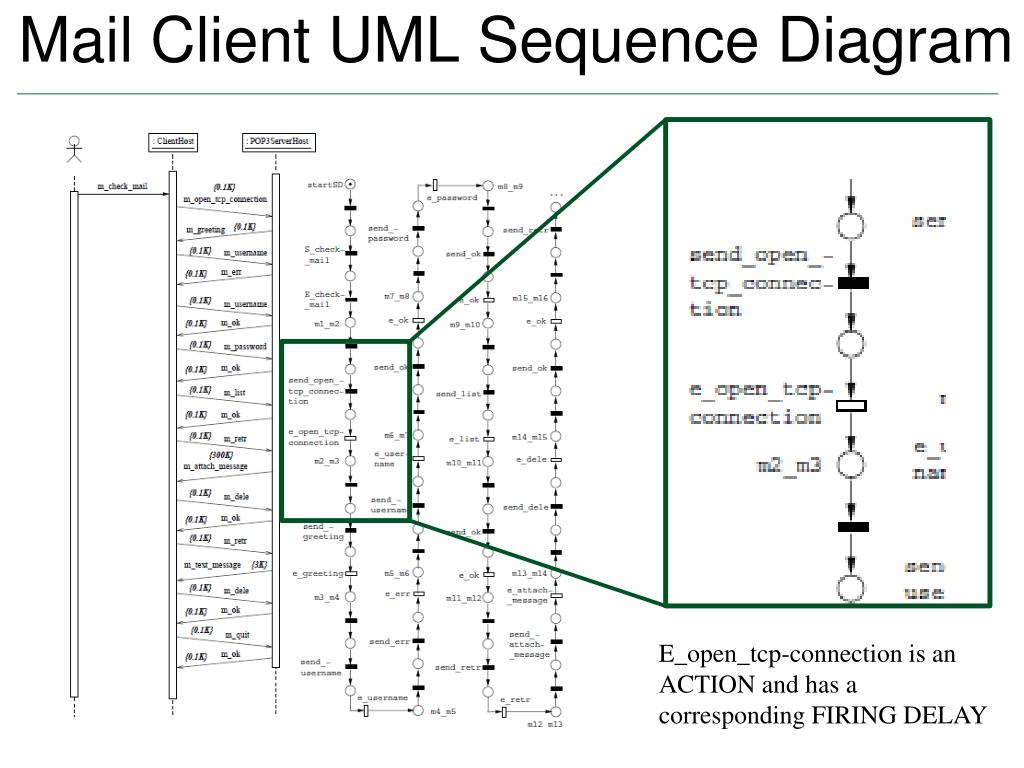

  17. Mail Client UML Sequence Diagram E_open_tcp-connection is an ACTION and has a corresponding FIRING DELAY

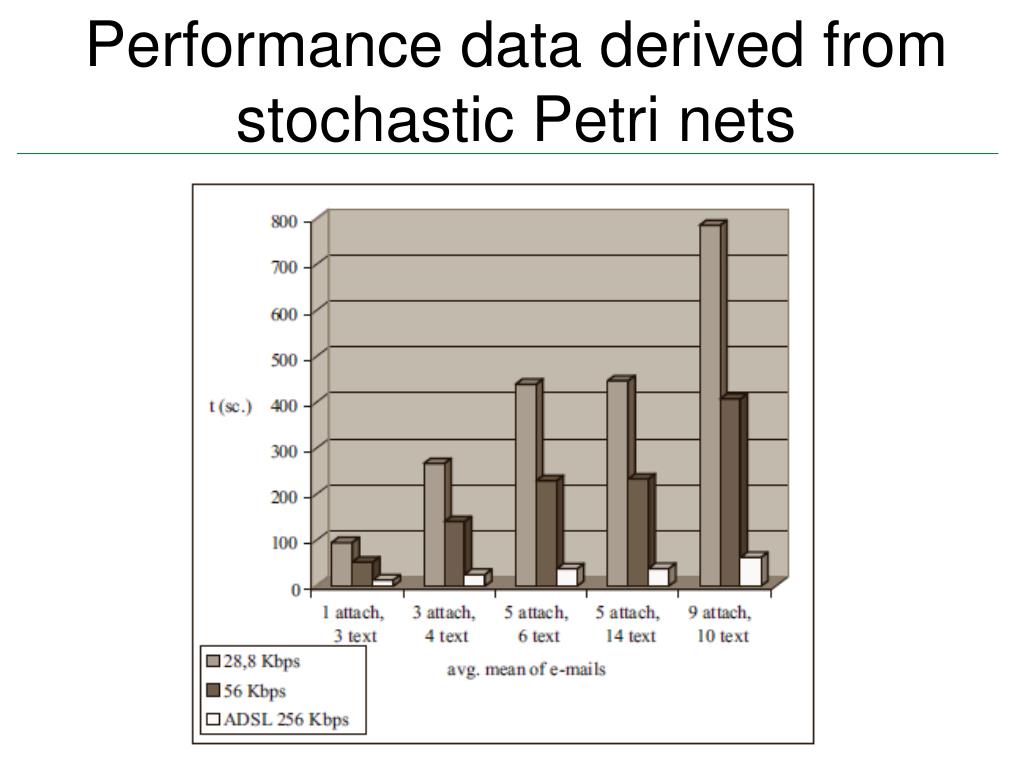

  18. Performance data derived from stochastic Petri nets

  19. ArgoSPE • A tool that translates UML diagrams into Stochastic Petri nets for performance analysis • Built In performance analysis functions

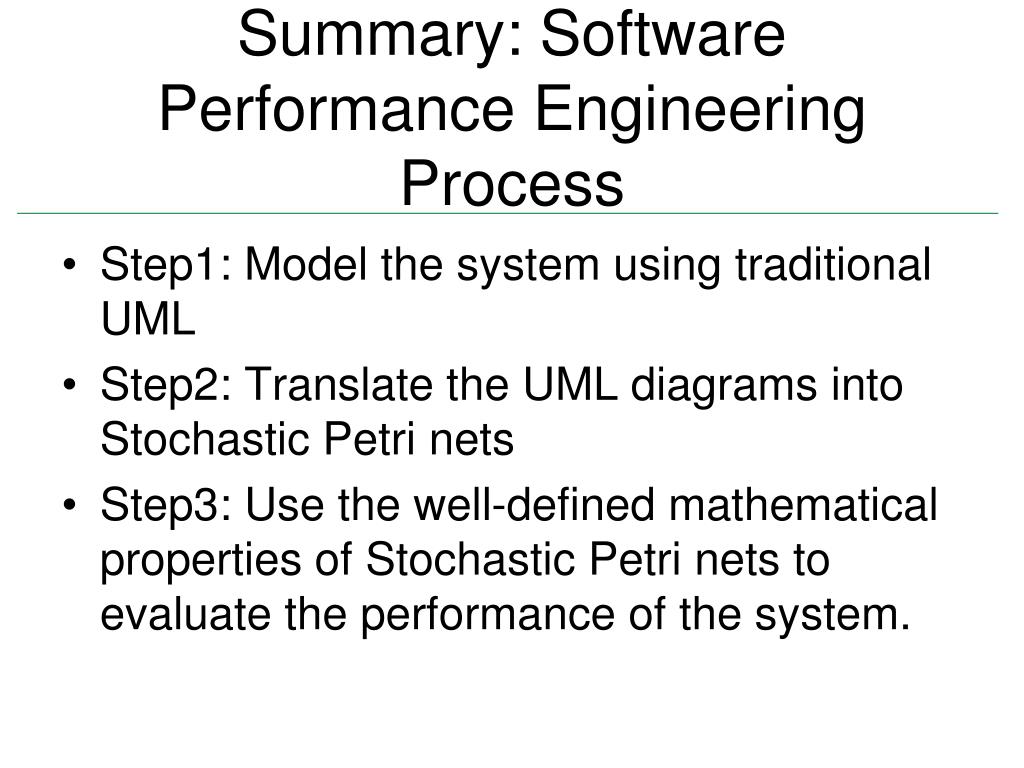

  20. Summary: Software Performance Engineering Process • Step1: Model the system using traditional UML • Step2: Translate the UML diagrams into Stochastic Petri nets • Step3: Use the well-defined mathematical properties of Stochastic Petri nets to evaluate the performance of the system.

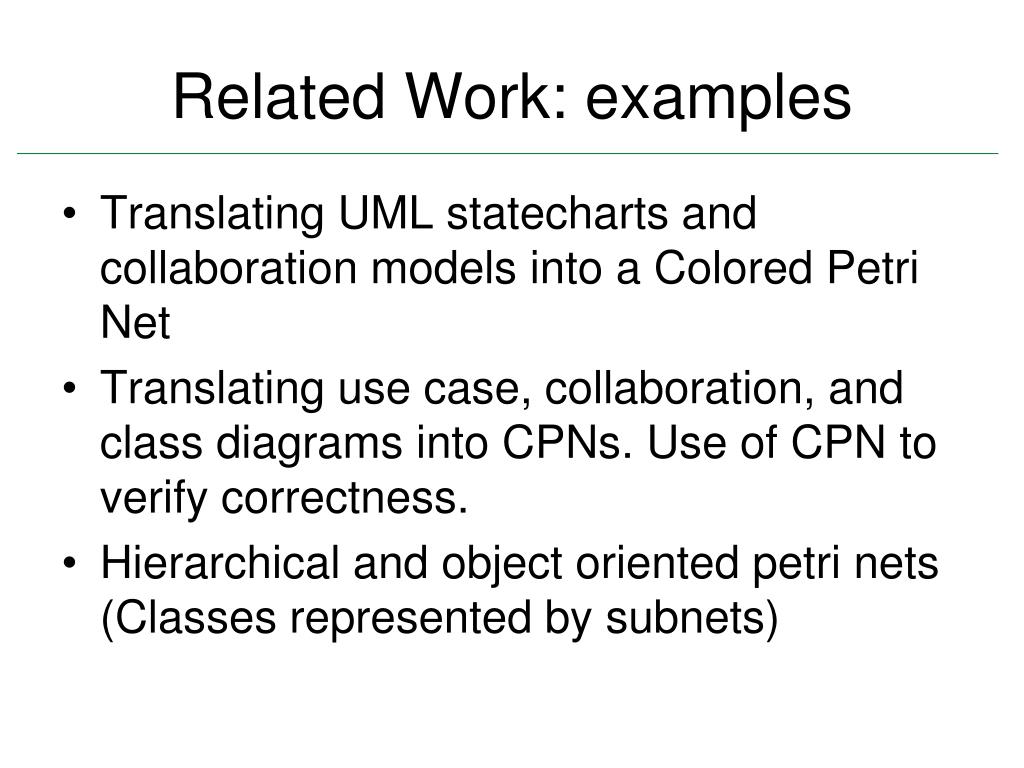

  21. Related Work: examples • Translating UML statecharts and collaboration models into a Colored Petri Net • Translating use case, collaboration, and class diagrams into CPNs. Use of CPN to verify correctness. • Hierarchical and object oriented petri nets (Classes represented by subnets)

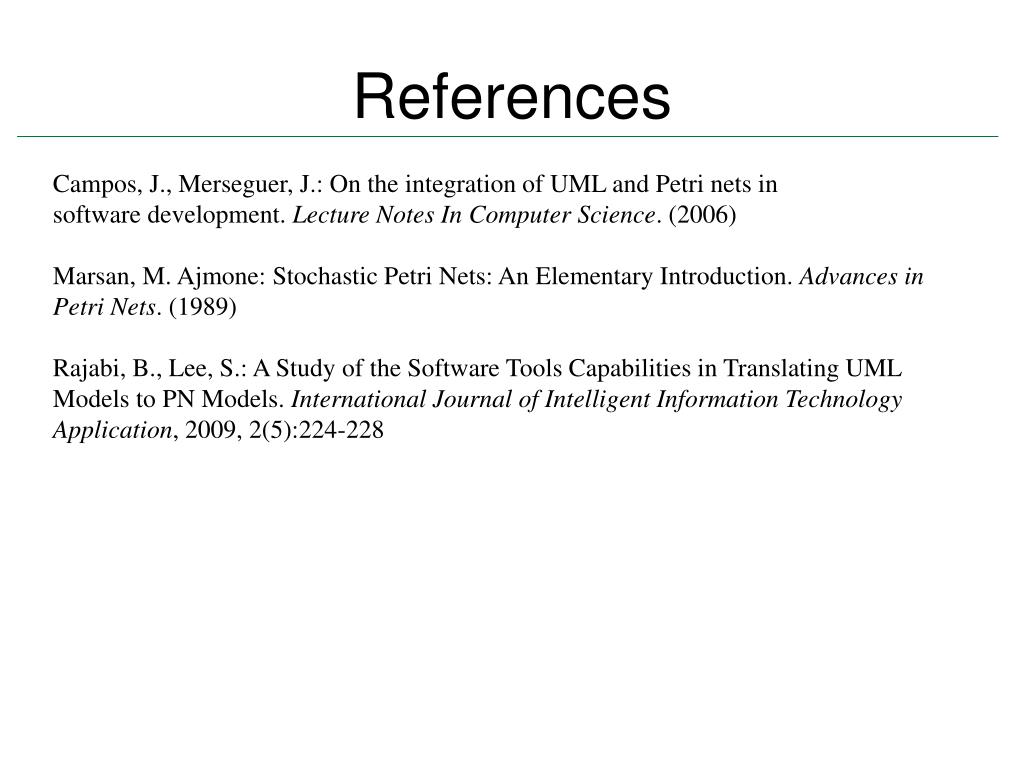

  22. References Campos, J., Merseguer, J.: On the integration of UML and Petri nets in software development. Lecture Notes In Computer Science. (2006) Marsan, M. Ajmone: Stochastic Petri Nets: An Elementary Introduction. Advances in Petri Nets. (1989) Rajabi, B., Lee, S.: A Study of the Software Tools Capabilities in Translating UML Models to PN Models. International Journal of Intelligent Information Technology Application, 2009, 2(5):224-228
