  1. MPLS Concepts Identifying MPLS Applications

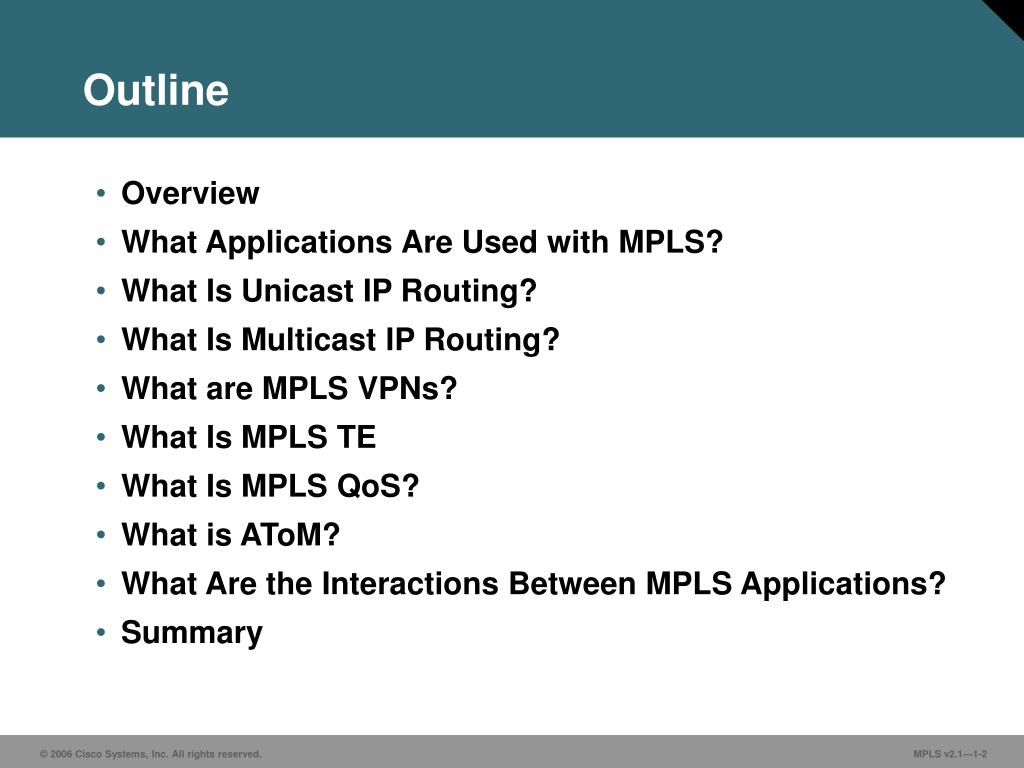

  2. Outline • Overview • What Applications Are Used with MPLS? • What Is Unicast IP Routing? • What Is Multicast IP Routing? • What are MPLS VPNs? • What Is MPLS TE • What Is MPLS QoS? • What is AToM? • What Are the Interactions Between MPLS Applications? • Summary

  3. MPLS Applications • MPLS is already used in many different applications: • Unicast IP routing • Multicast IP routing • MPLSTE • QoS • MPLSVPNs (course focus) • AToM

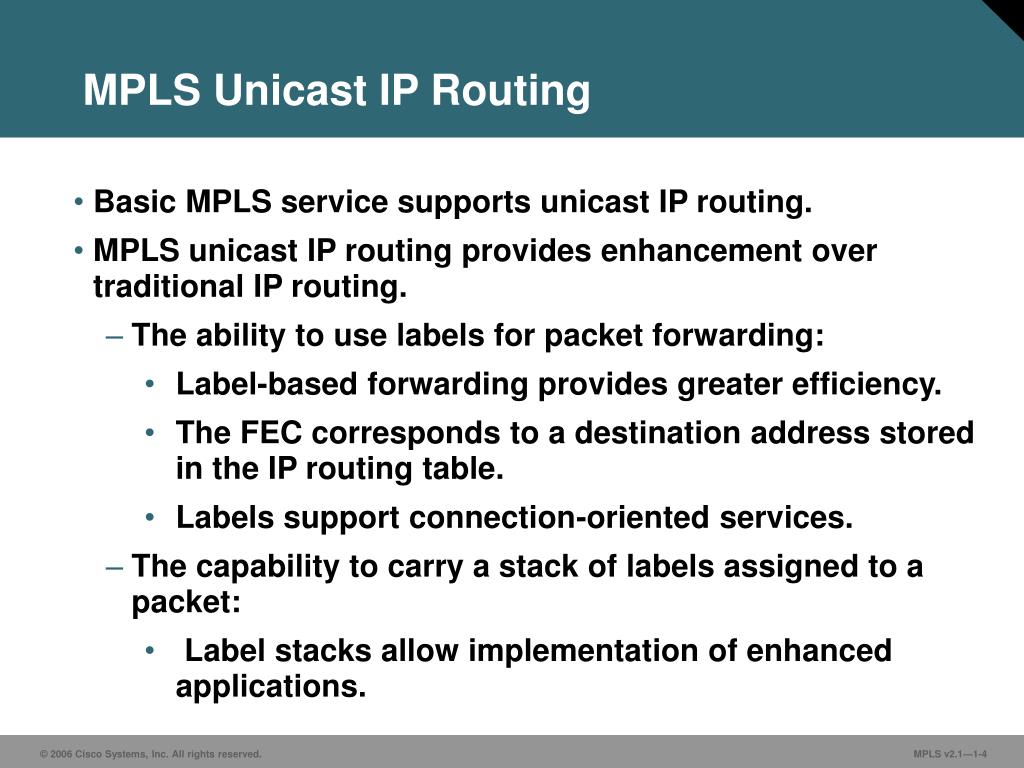

  4. MPLS Unicast IP Routing • Basic MPLS service supports unicast IP routing. • MPLS unicast IP routing provides enhancement over traditional IP routing. • The ability to use labels for packet forwarding: • Label-based forwarding provides greater efficiency. • The FEC corresponds to a destination address stored in the IP routing table. • Labels support connection-oriented services. • The capability to carry a stack of labels assigned to a packet: • Label stacks allow implementation of enhanced applications.

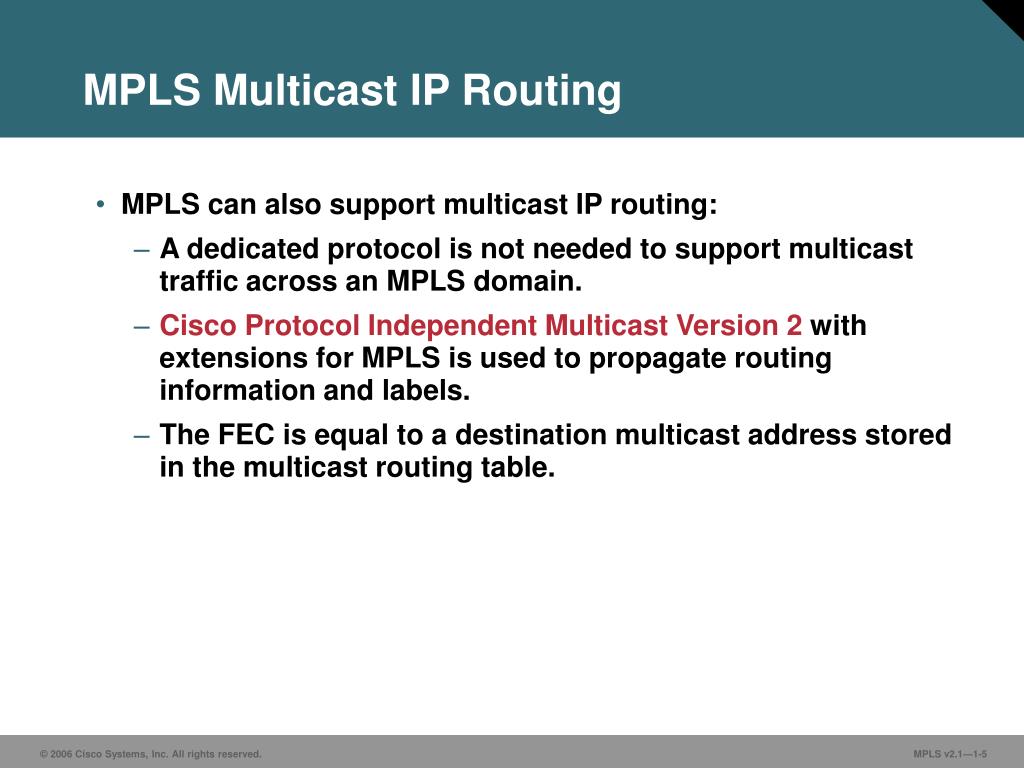

  5. MPLS Multicast IP Routing • MPLS can also support multicast IP routing: • A dedicated protocol is not needed to support multicast traffic across an MPLS domain. • Cisco Protocol Independent MulticastVersion 2 with extensions for MPLS is used to propagate routing information and labels. • The FEC is equal to a destination multicast address stored in the multicast routing table.

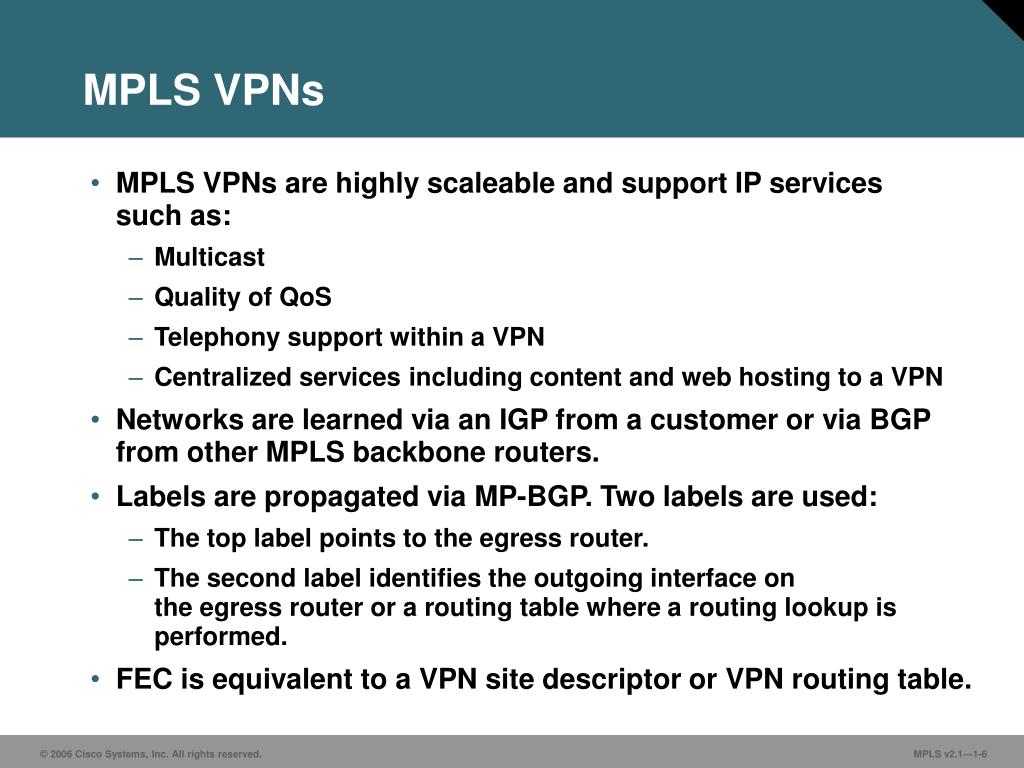

  6. MPLS VPNs • MPLS VPNs are highly scaleable and support IP services such as: • Multicast • Quality of QoS • Telephony support within a VPN • Centralized services including content and web hosting to a VPN • Networks are learned via an IGP from a customer or via BGP from other MPLS backbone routers. • Labels are propagated via MP-BGP. Two labels are used: • The top label points to the egress router. • The second label identifies the outgoing interface on the egress router or a routing table where arouting lookup is performed. • FEC is equivalent to a VPN site descriptor or VPN routing table.

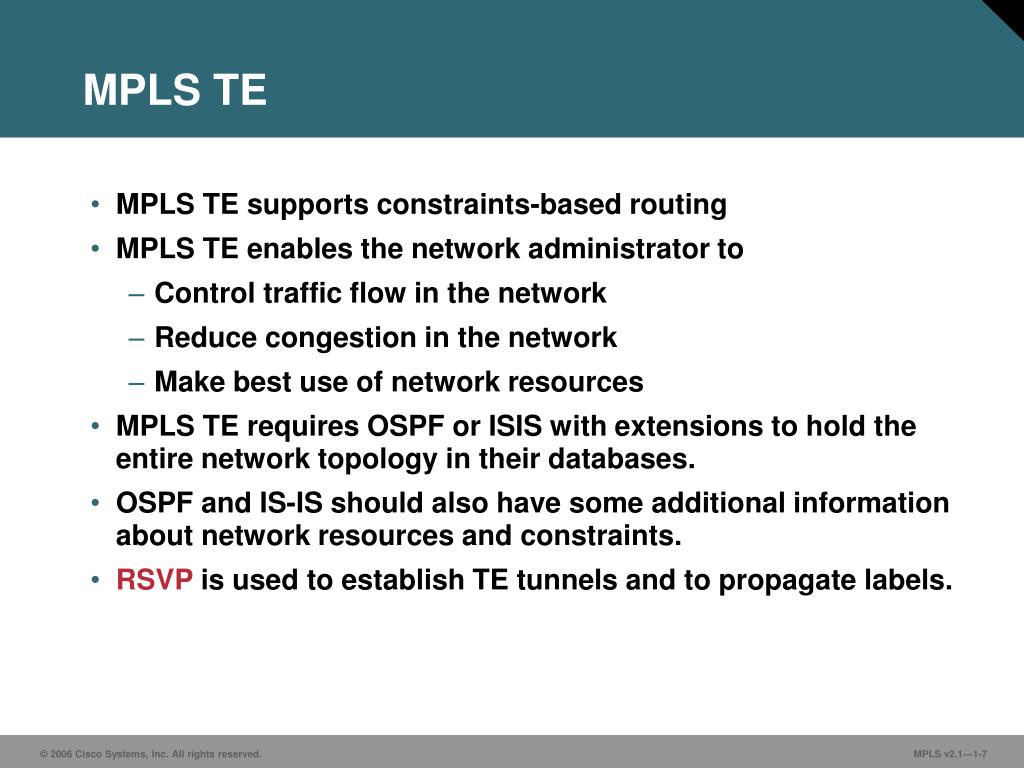

  7. MPLS TE • MPLS TE supports constraints-based routing • MPLS TE enables the network administrator to • Control traffic flow in the network • Reduce congestion in the network • Make best use of network resources • MPLS TE requires OSPF or IS­IS with extensions to hold the entire network topology in their databases. • OSPF and IS-IS should also have some additional information about network resources and constraints. • RSVPis used to establish TE tunnels and to propagate labels.

  8. MPLS QoS • MPLS QoS provides differentiated types of service across an MPLS network. • MPLS QoS offers: • Packet classification • Congestion avoidance • Congestion management. • MPLS QoS is an extension to unicast IP routing that provides differentiated services. • Extensions to LDP are used to propagate different labels for different classes. • The FEC is a combination of a destination network and a class of service.

  9. Any Transport over MPLS • AToM transports Layer 2 traffic over an IP or MPLS backbone. • AToM accommodates many types of Layer 2 frames, including Ethernet, Frame Relay, ATM, PPP, and HDLC. • AToM enables connectivity between existing data link layer (Layer 2) networks by using a single, integrated, packet-based network infrastructure. • AToM forwarding uses two-level labels. • AToM also offers performance, scalability, and other MPLS enhancements such as TE, fast reroute, and QoS.

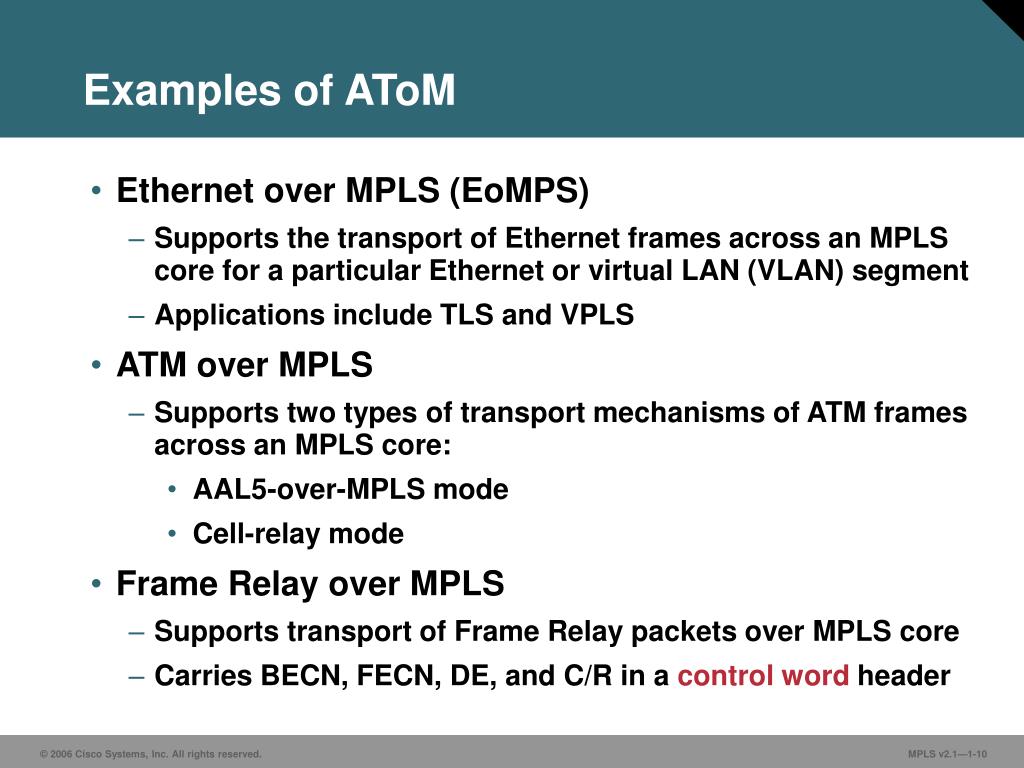

  10. Examples of AToM • Ethernet over MPLS (EoMPS) • Supports the transport of Ethernet frames across an MPLS core for a particular Ethernet or virtual LAN (VLAN) segment • Applications include TLS and VPLS • ATM over MPLS • Supports two types of transport mechanisms of ATM frames across an MPLS core: • AAL5-over-MPLS mode • Cell-relay mode • Frame Relay over MPLS • Supports transport of Frame Relay packets over MPLS core • Carries BECN, FECN, DE, and C/R in a control word header

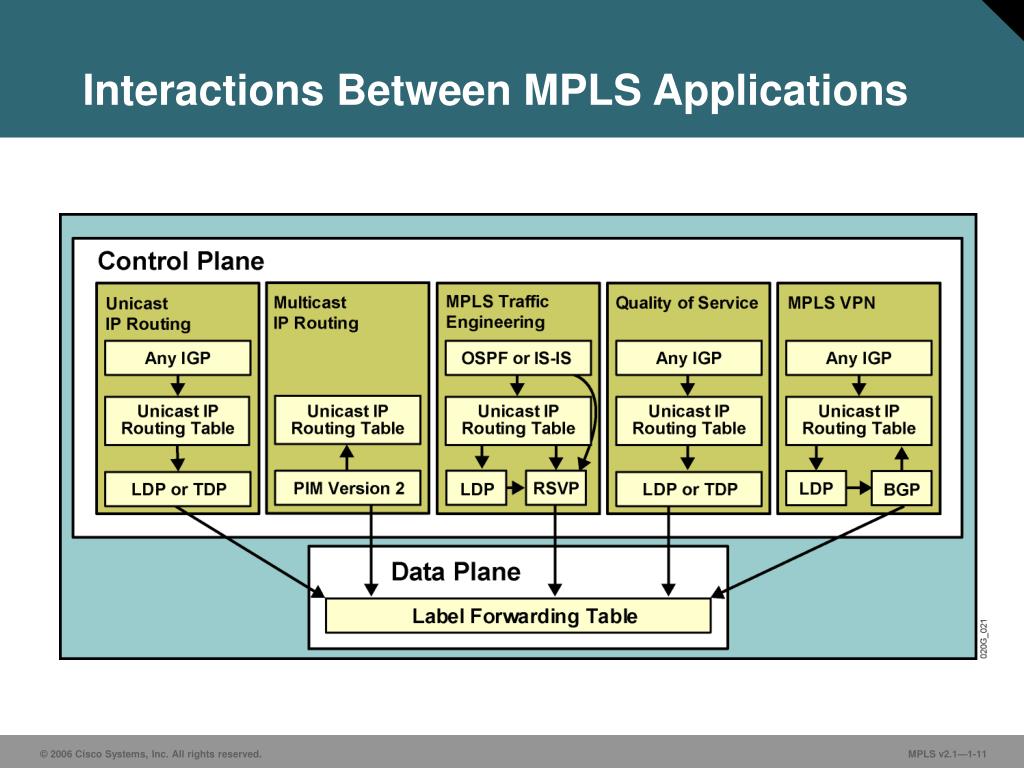

  11. Interactions Between MPLS Applications

  12. Summary • MPLS is used in many applications: unicast IP routing, multicast IP routing, MPLS VPNs, MPLS TE, QoS, and AToM. • Basic MPLS provides unicast IP routing using an IP routing protocol and a label distribution protocol. • MPLS multicast IP routing does not need a dedicated protocol to support multicast traffic across an MPLS domain. • MPLS VPNs provide highly scaleable VPNs providing IP services. • MPLS TE supports constraints-based routing. • MPLS QoS extends unicast IP routing and provides differentiated services. • AToM transports Layer 2 traffic over an IP or MPLS backbone. • Some MPLS applications may use a different routing and label exchange protocol; however, the applications all use the same label-forwarding engine.
