  1. IronBee: Open source WAF engine with a commercial offering Brian Rectanus Director of Engineering, WAF

  2. Who am I? Past: • Commercial WAF developer since 2007 • ModSecurity maintainer 2007 – 2010 • IDS/IPS Developer (OISF Suricata) Present: • Lead WAF development @ Qualys in Madison • IronBee architect and developer Lockdown 2013

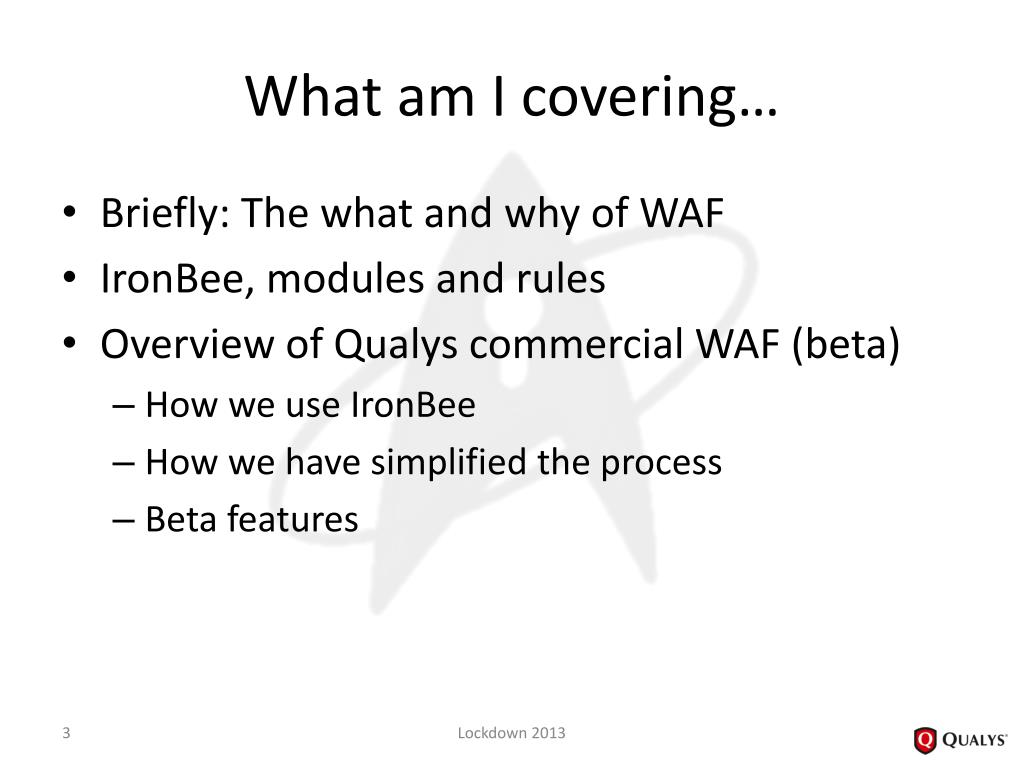

  3. What am I covering… • Briefly: The what and why of WAF • IronBee, modules and rules • Overview of Qualys commercial WAF (beta) • How we use IronBee • How we have simplified the process • Beta features Lockdown 2013

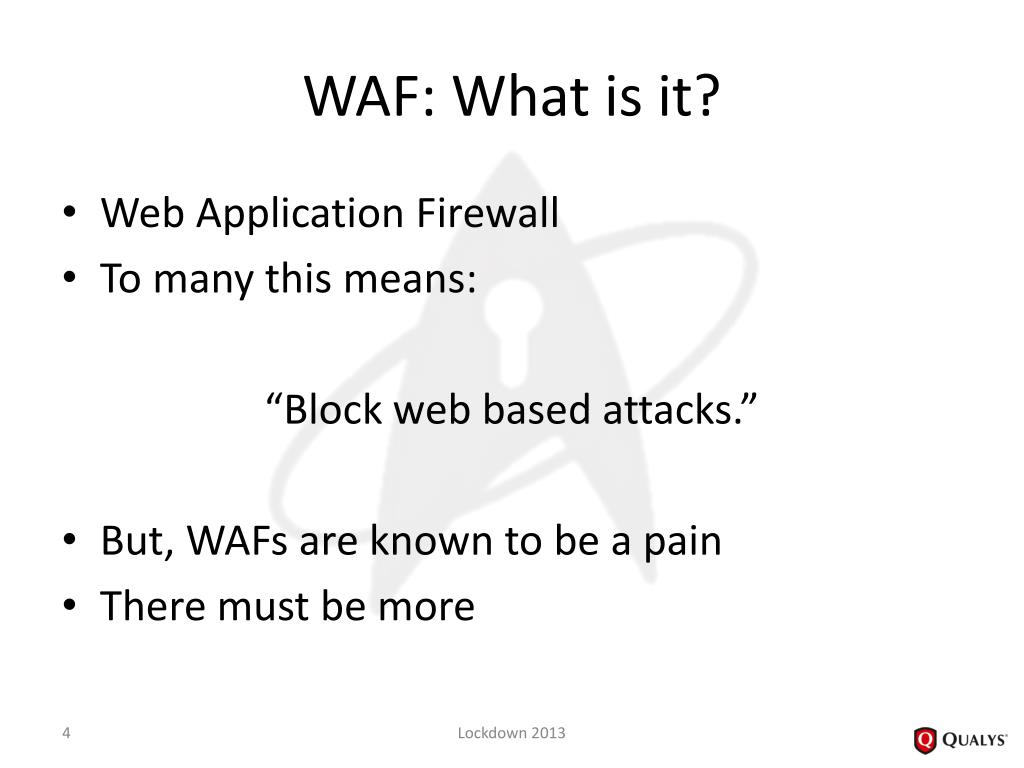

  4. WAF: What is it? • Web Application Firewall • To many this means: “Block web based attacks.” • But, WAFs are known to be a pain • There must be more Lockdown 2013

  5. WAF: Why does it exist? • View inside your web applications • Log (and potentially block) suspicious activity • Block known and obvious attacks and tools • Limit attack surface • Buy time to fix problems • Feed your developers with more details • Deal with legacy products Lockdown 2013

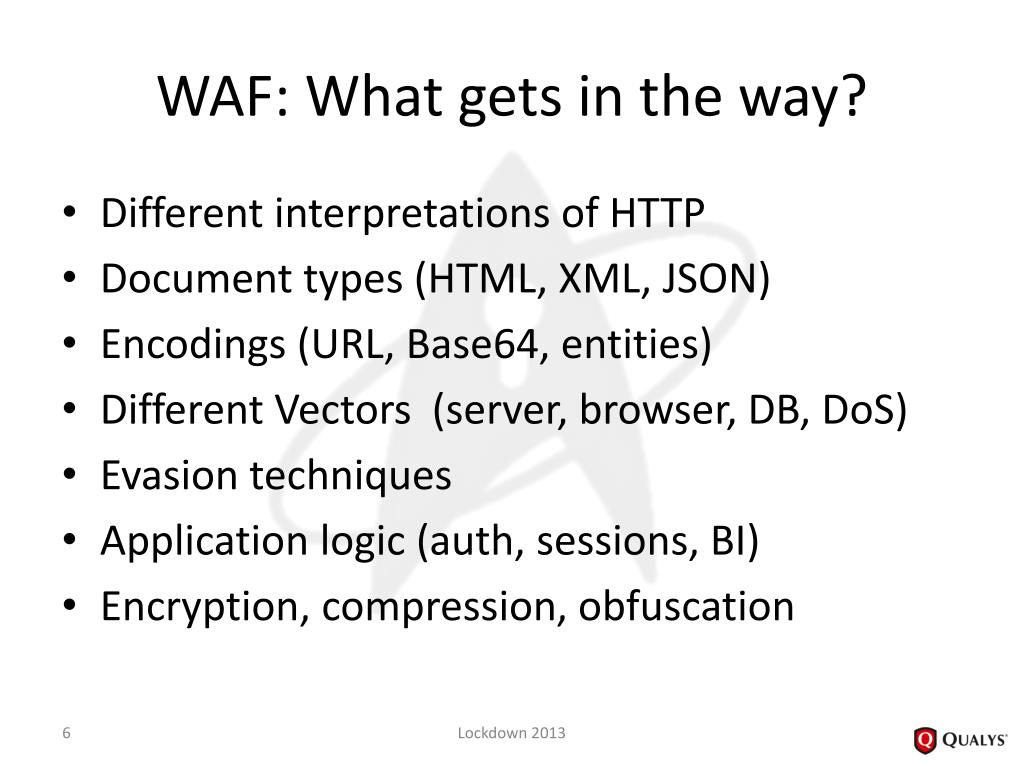

  6. WAF: What gets in the way? • Different interpretations of HTTP • Document types (HTML, XML, JSON) • Encodings (URL, Base64, entities) • Different Vectors (server, browser, DB, DoS) • Evasion techniques • Application logic (auth, sessions, BI) • Encryption, compression, obfuscation Lockdown 2013

  7. WAF: What can go wrong? • False Positives (oops) • False Negatives (didn't see it) • Performance cannot suffer (too much) • Device failure (site is down) Lockdown 2013

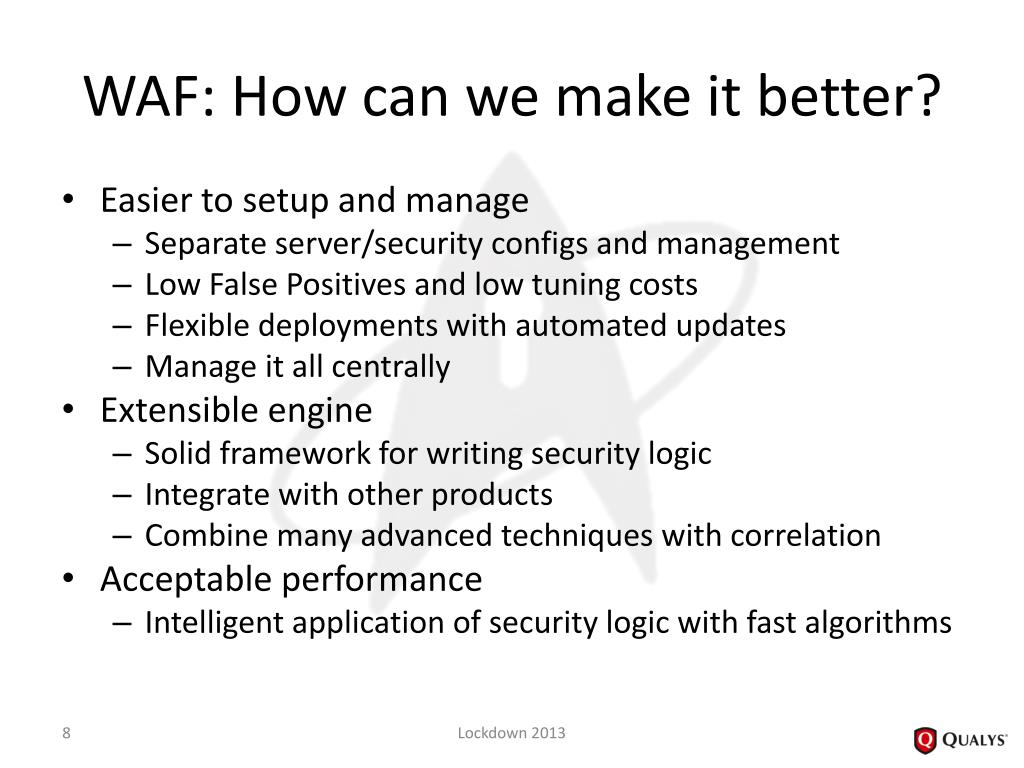

  8. WAF: How can we make it better? • Easier to setup and manage • Separate server/security configs and management • Low False Positives and low tuning costs • Flexible deployments with automated updates • Manage it all centrally • Extensible engine • Solid framework for writing security logic • Integrate with other products • Combine many advanced techniques with correlation • Acceptable performance • Intelligent application of security logic with fast algorithms Lockdown 2013

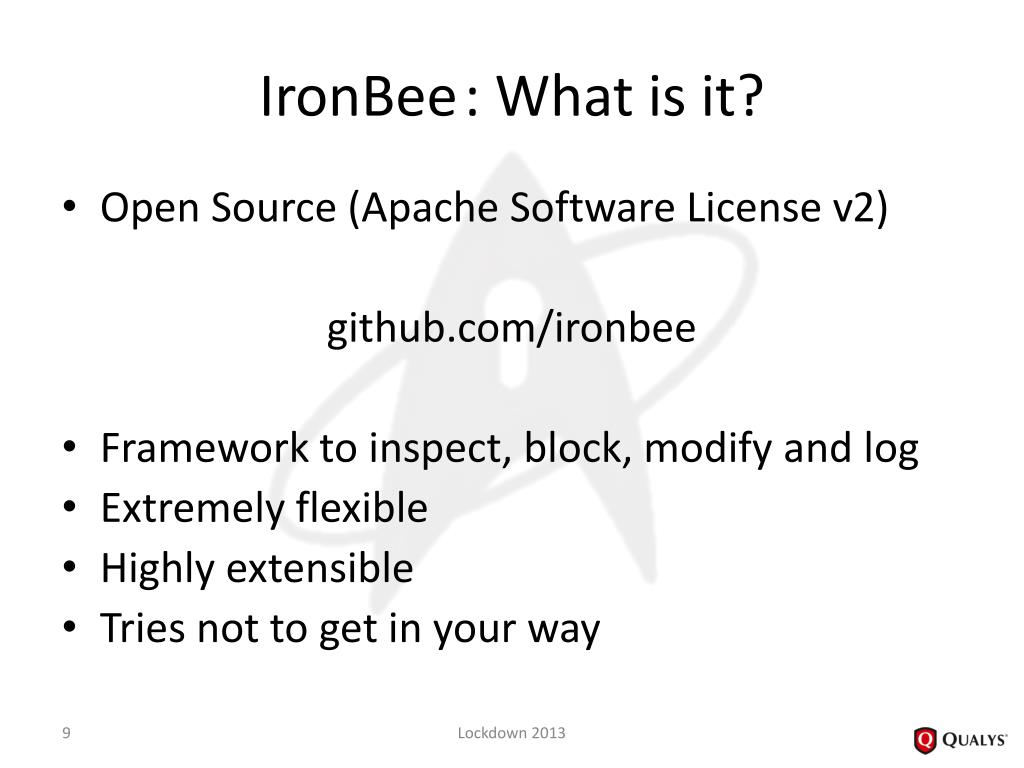

  9. IronBee : What is it? • Open Source (Apache Software License v2) github.com/ironbee • Framework to inspect, block, modify and log • Extremely flexible • Highly extensible • Tries not to get in your way Lockdown 2013

  10. IronBee: Who is involved? Christopher Alfeld, PhD Mathematics and UW alumni Experimental projects, performance, algorithms, C++ API Sam Baskinger Data structures, Configuration, Lua API Nick Kew, Apache Foundation Server plugins: Apache Trafficserver, Apache httpd, nginx, tserver, … Nick LeRoy Core engine, Testing Brian Rectanus Initial IronBee author, now architect and manager Ivan Ristić Security Research (SSL Labs – ssllabs.com, LibHTP, ModSecurity) Many other supporting players at Qualys – too many to name here. Lockdown 2013

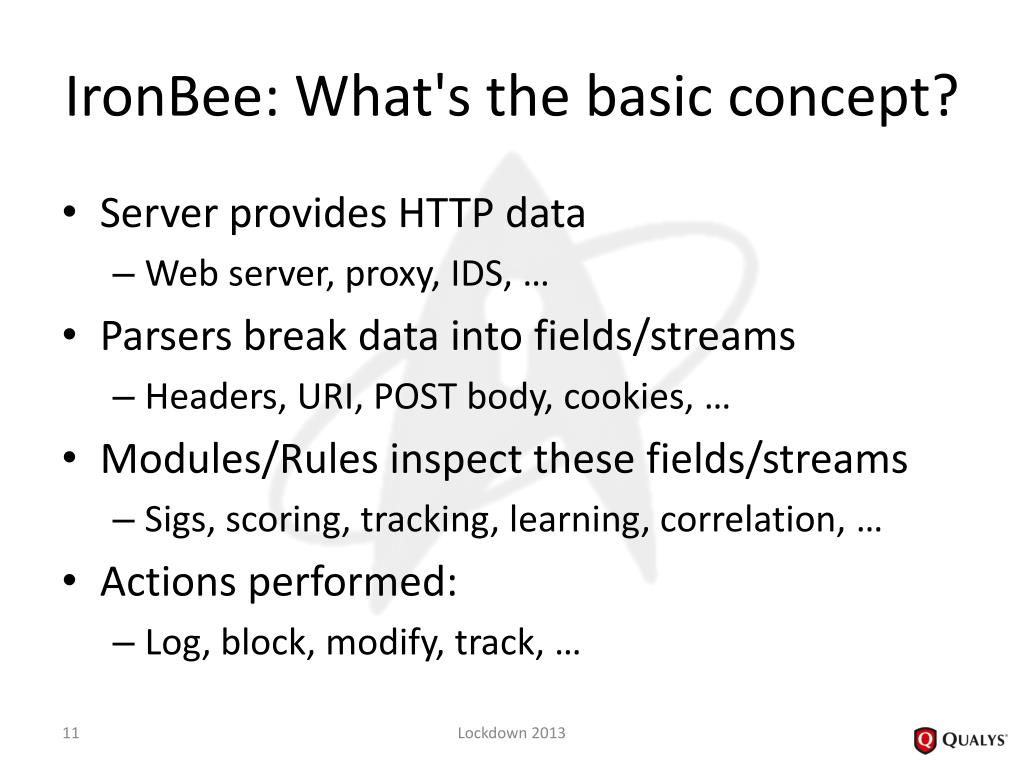

  11. IronBee: What's the basic concept? • Server provides HTTP data • Web server, proxy, IDS, … • Parsers break data into fields/streams • Headers, URI, POST body, cookies, … • Modules/Rules inspect these fields/streams • Sigs, scoring, tracking, learning, correlation, … • Actions performed: • Log, block, modify, track, … Lockdown 2013

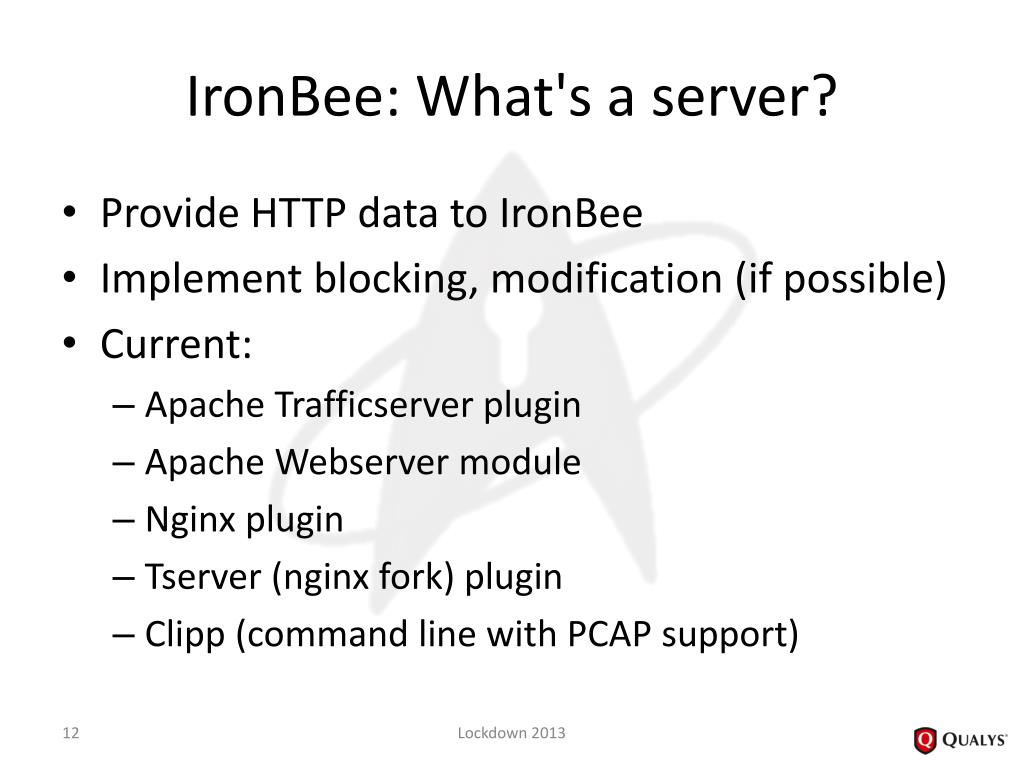

  12. IronBee: What's a server? • Provide HTTP data to IronBee • Implement blocking, modification (if possible) • Current: • Apache Trafficserver plugin • Apache Webserver module • Nginx plugin • Tserver (nginx fork) plugin • Clipp (command line with PCAP support) Lockdown 2013

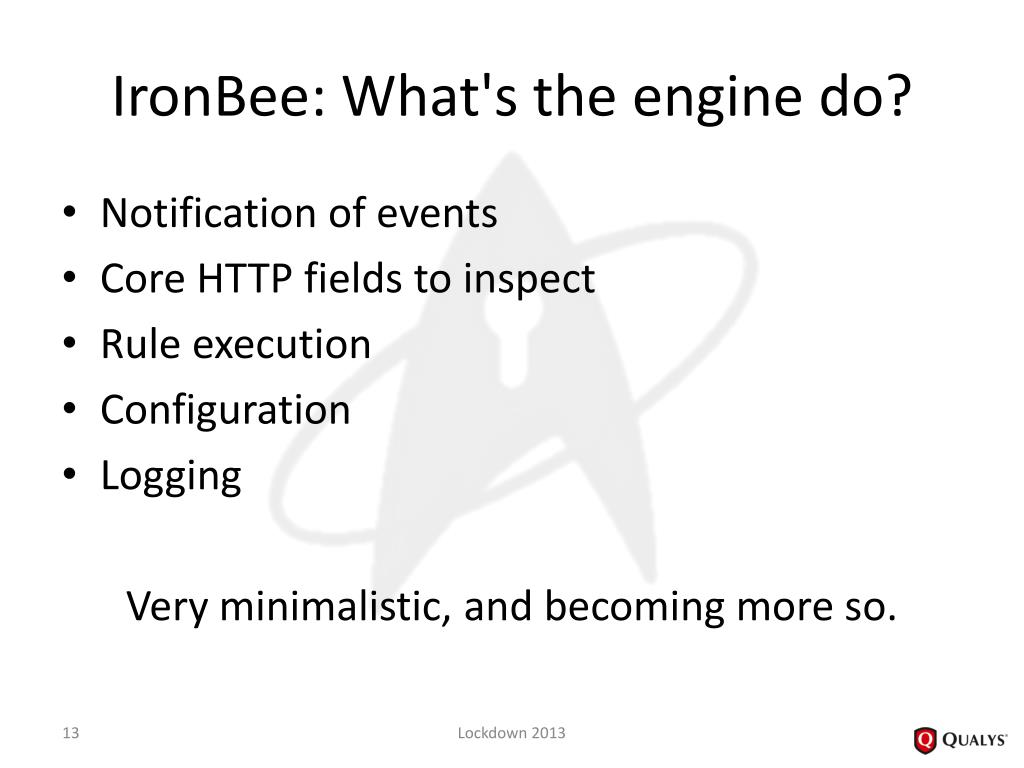

  13. IronBee: What's the engine do? • Notification of events • Core HTTP fields to inspect • Rule execution • Configuration • Logging Very minimalistic, and becoming more so. Lockdown 2013

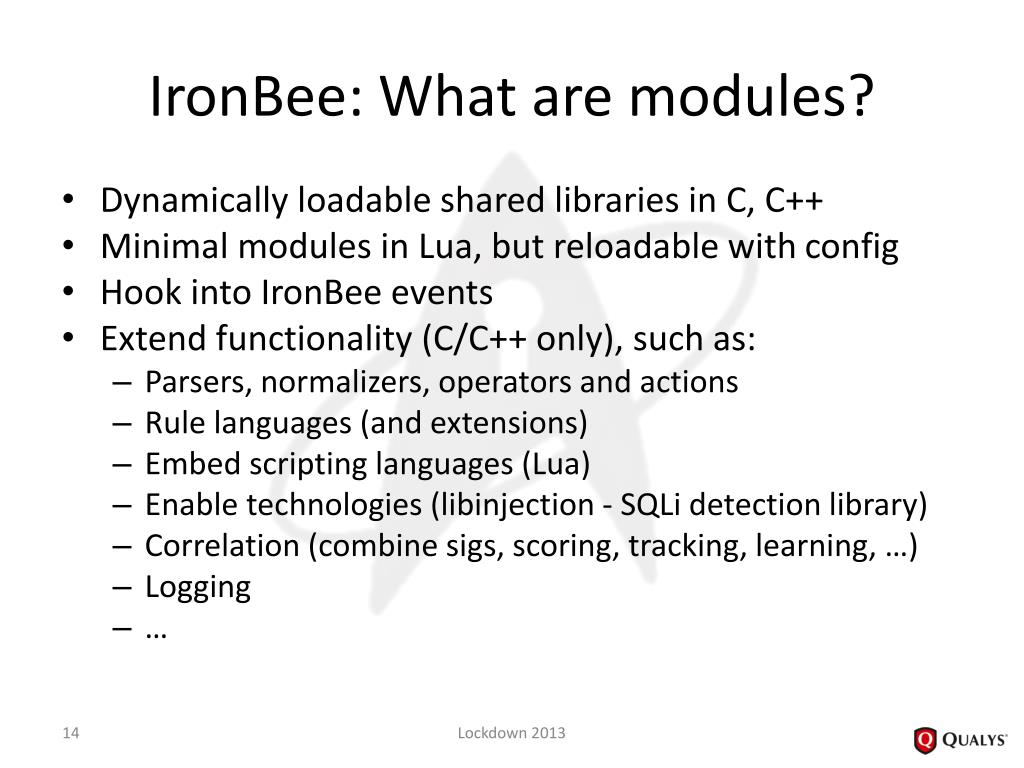

  14. IronBee: What are modules? • Dynamically loadable shared libraries in C, C++ • Minimal modules in Lua, but reloadable with config • Hook into IronBee events • Extend functionality (C/C++ only), such as: • Parsers, normalizers, operators and actions • Rule languages (and extensions) • Embed scripting languages (Lua) • Enable technologies (libinjection - SQLi detection library) • Correlation (combine sigs, scoring, tracking, learning, …) • Logging • … Lockdown 2013

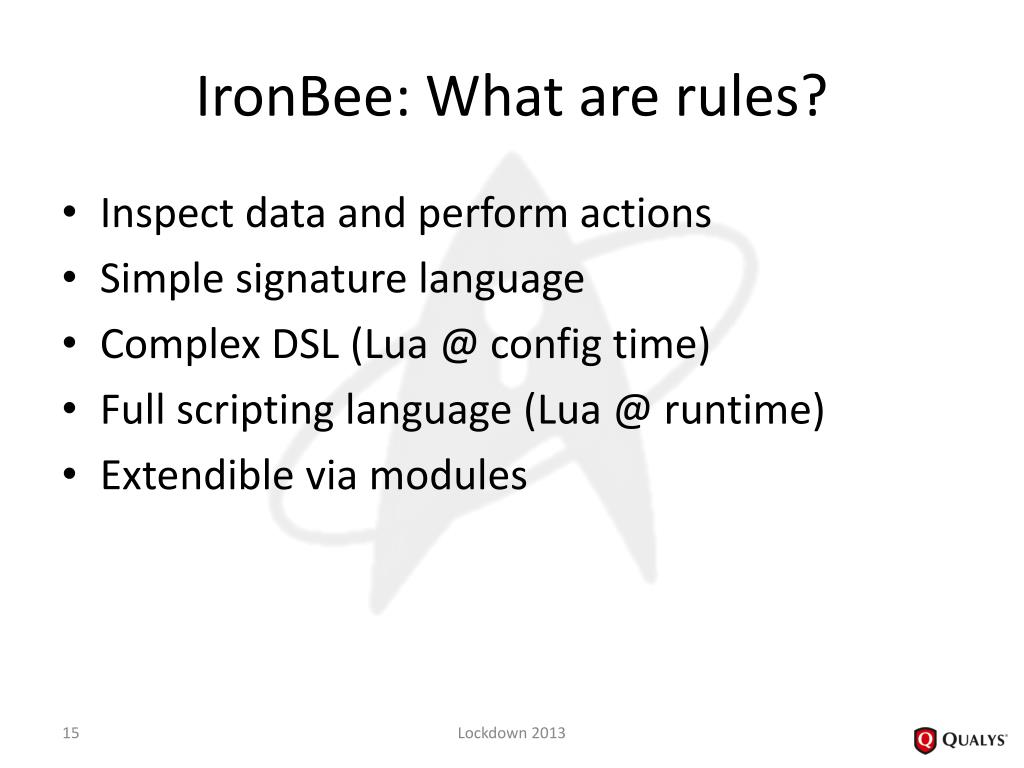

  15. IronBee: What are rules? • Inspect data and perform actions • Simple signature language • Complex DSL (Lua @ config time) • Full scripting language (Lua @ runtime) • Extendible via modules Lockdown 2013

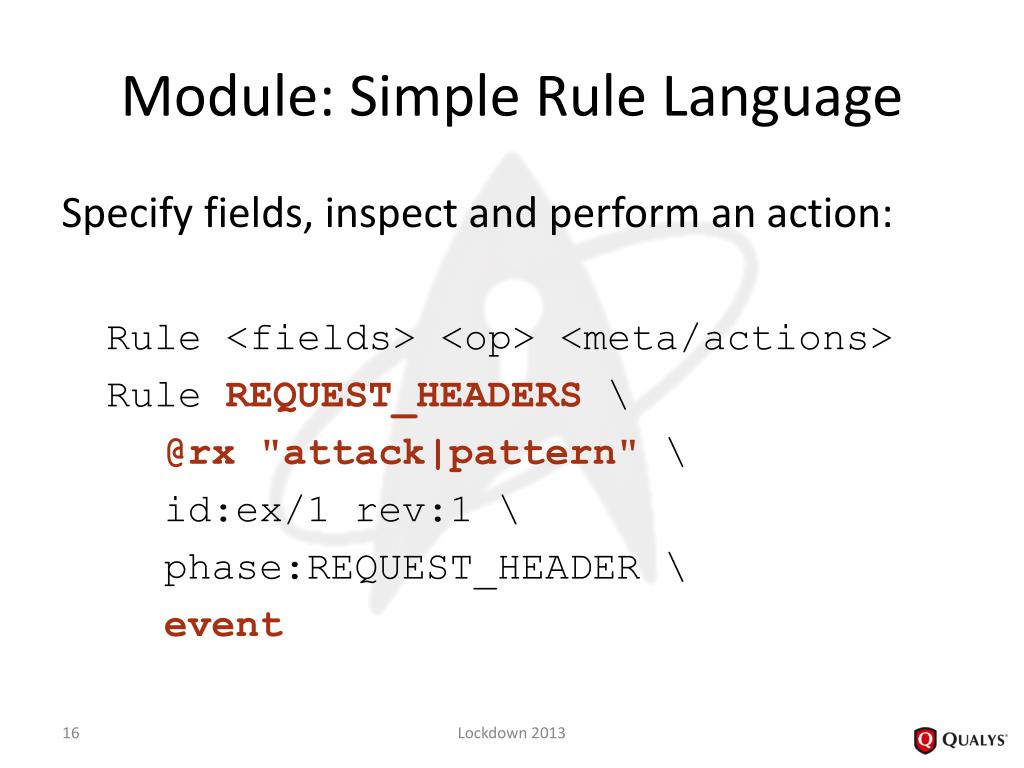

  16. Module: Simple Rule Language Specify fields, inspect and perform an action: Rule <fields> <op> <meta/actions> Rule REQUEST_HEADERS\ @rx"attack|pattern"\ id:ex/1 rev:1 \ phase:REQUEST_HEADER \ event Lockdown 2013

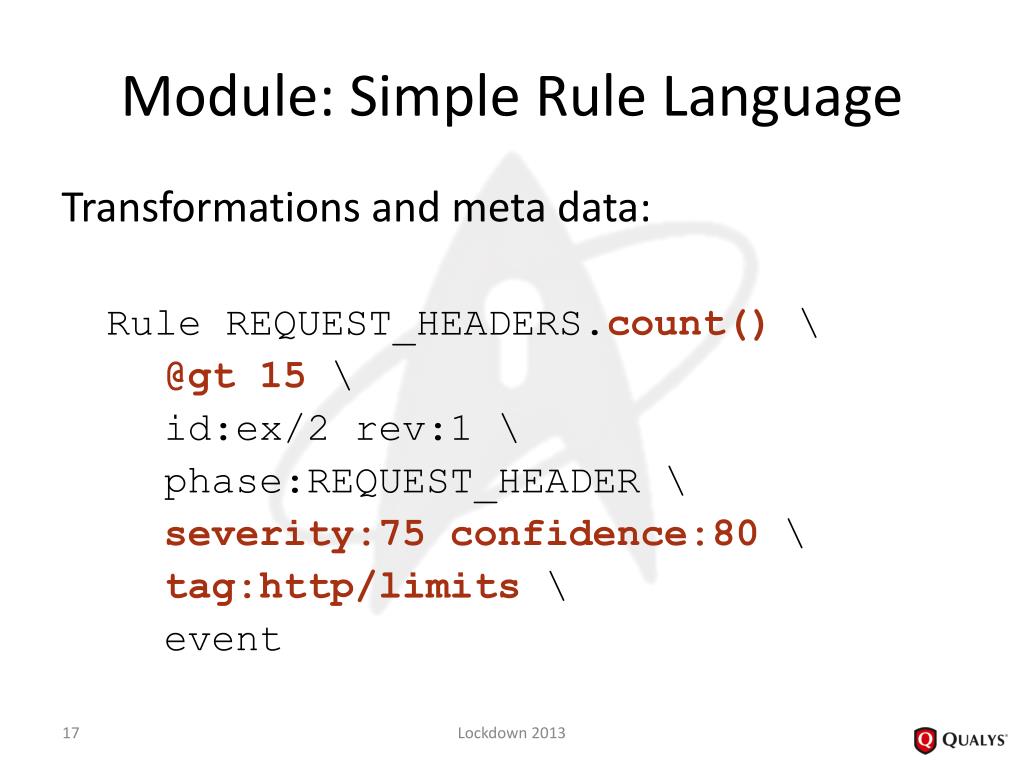

  17. Module: Simple Rule Language Transformations and meta data: Rule REQUEST_HEADERS.count() \ @gt 15 \ id:ex/2 rev:1 \ phase:REQUEST_HEADER \ severity:75 confidence:80 \ tag:http/limits \ event Lockdown 2013

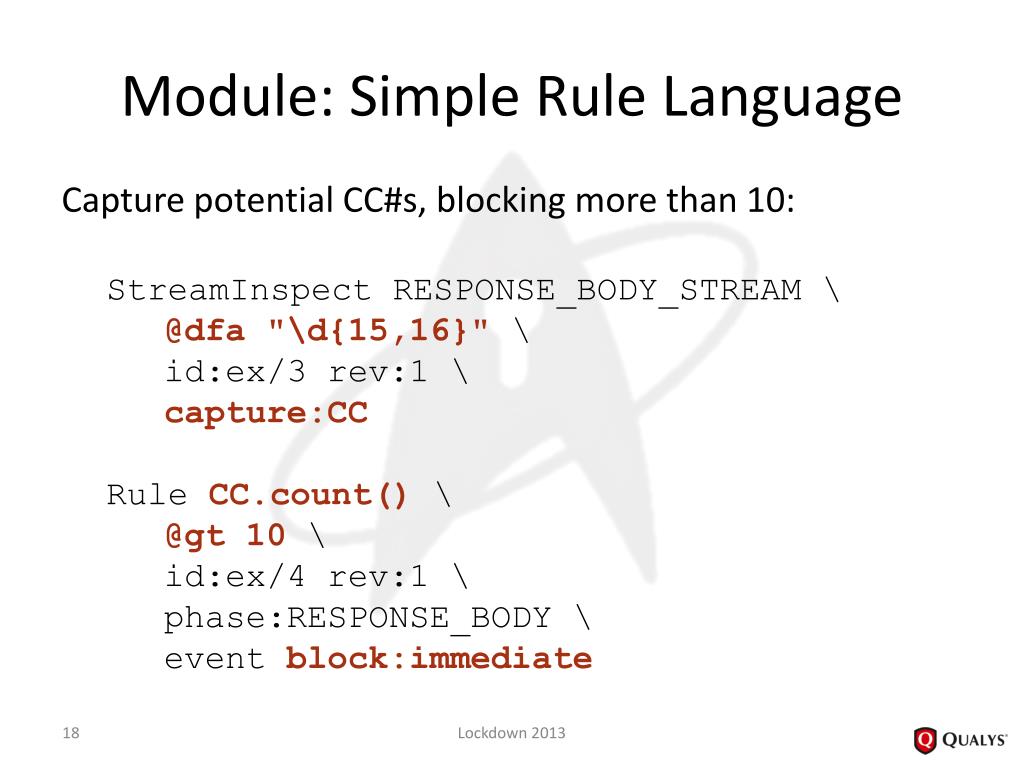

  18. Module: Simple Rule Language Capture potential CC#s, blocking more than 10: StreamInspect RESPONSE_BODY_STREAM \ @dfa "\d{15,16}" \ id:ex/3 rev:1 \ capture:CC Rule CC.count() \ @gt 10 \ id:ex/4 rev:1 \ phase:RESPONSE_BODY \ event block:immediate Lockdown 2013

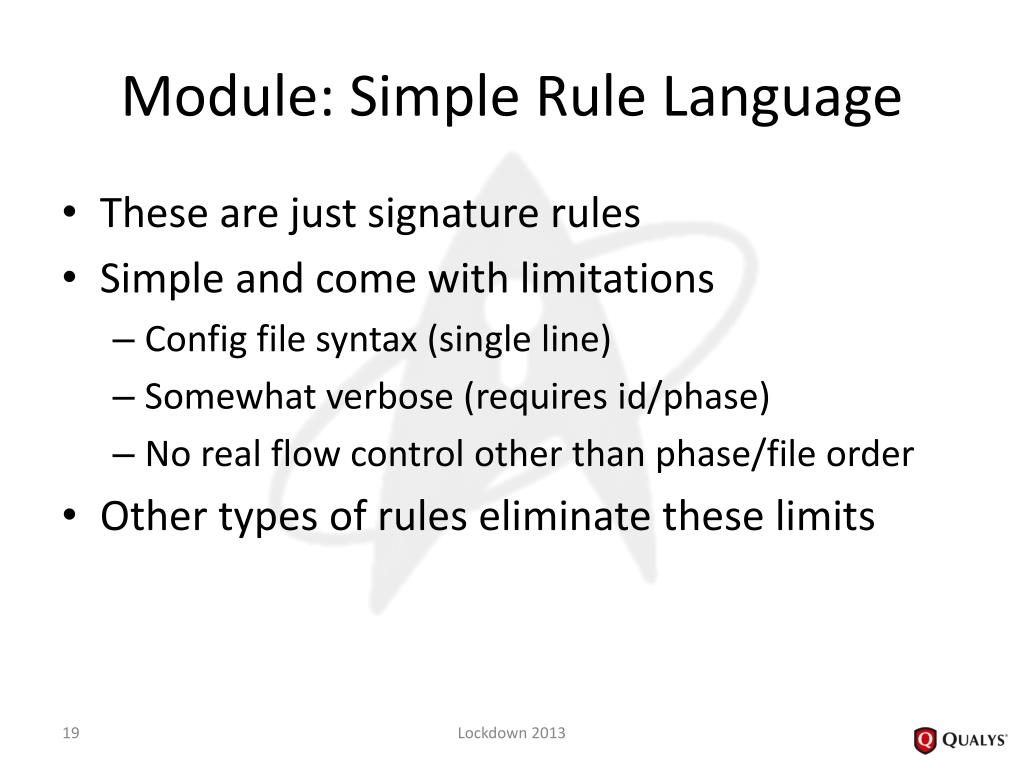

  19. Module: Simple Rule Language • These are just signature rules • Simpleand come with limitations • Config file syntax (single line) • Somewhat verbose (requires id/phase) • No real flow control other than phase/file order • Other types of rules eliminate these limits Lockdown 2013

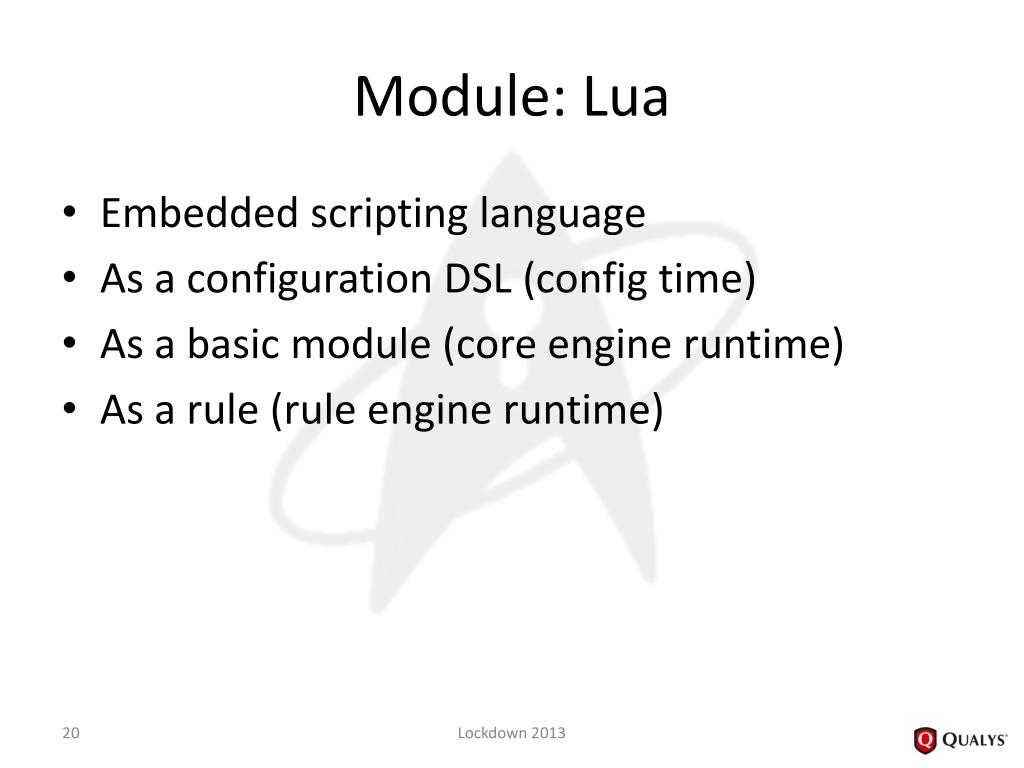

  20. Module: Lua • Embedded scripting language • As a configuration DSL (config time) • As a basic module (core engine runtime) • As a rule (rule engine runtime) Lockdown 2013

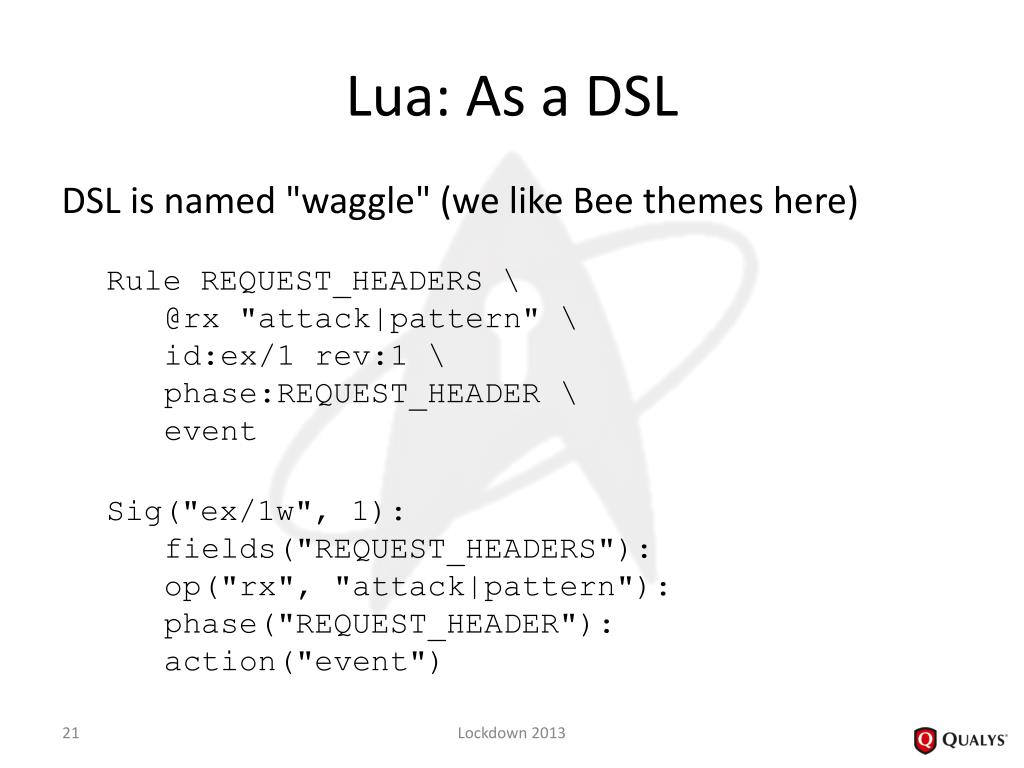

  21. Lua: As a DSL DSL is named "waggle" (we like Bee themes here) Rule REQUEST_HEADERS \ @rx"attack|pattern" \ id:ex/1 rev:1 \ phase:REQUEST_HEADER \ event Sig("ex/1w", 1): fields("REQUEST_HEADERS"): op("rx", "attack|pattern"): phase("REQUEST_HEADER"): action("event") Lockdown 2013

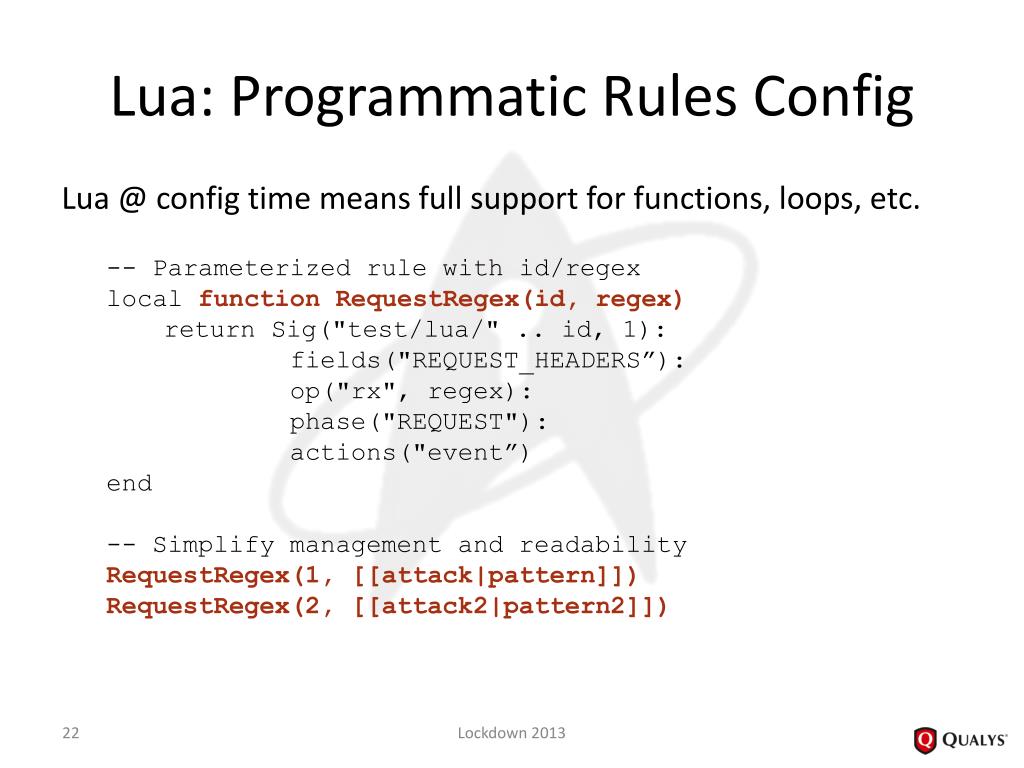

  22. Lua: Programmatic Rules Config Lua @ config time means full support for functions, loops, etc. -- Parameterized rule with id/regex local function RequestRegex(id, regex) return Sig("test/lua/" .. id, 1): fields("REQUEST_HEADERS”): op("rx", regex): phase("REQUEST"): actions("event”) end -- Simplify management and readability RequestRegex(1, [[attack|pattern]]) RequestRegex(2, [[attack2|pattern2]]) Lockdown 2013

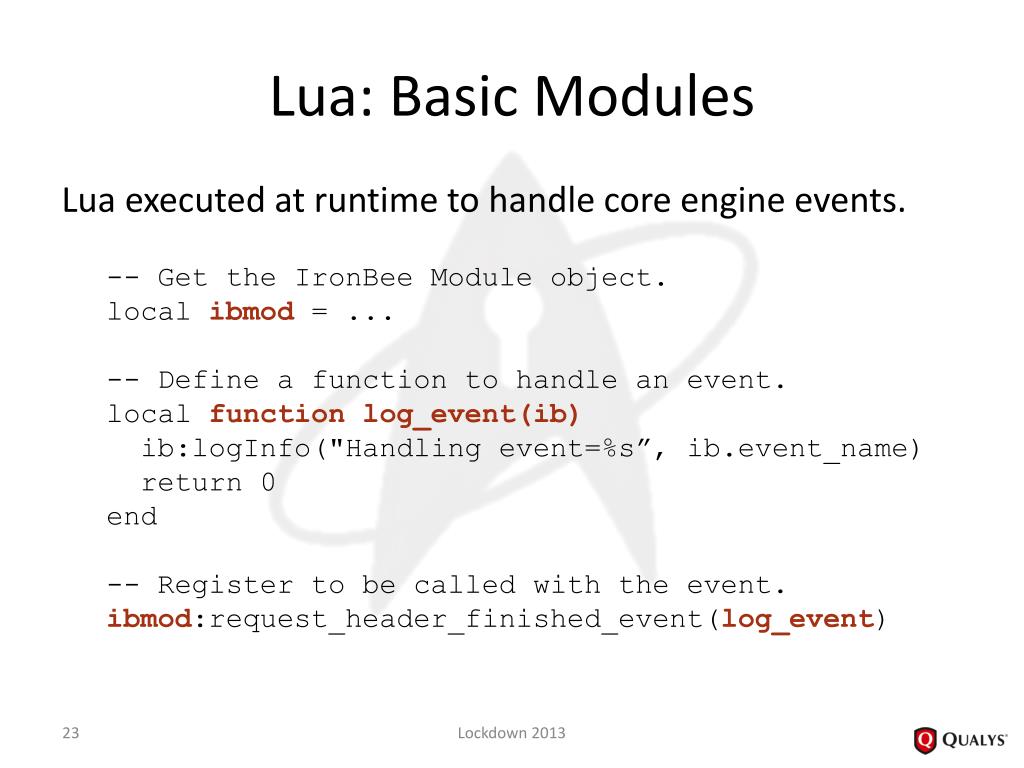

  23. Lua: Basic Modules Lua executed at runtime to handle core engine events. -- Get the IronBeeModule object. local ibmod= ... -- Define a function to handle an event. local function log_event(ib) ib:logInfo("Handling event=%s”, ib.event_name) return 0 end -- Register to be called with the event. ibmod:request_header_finished_event(log_event) Lockdown 2013

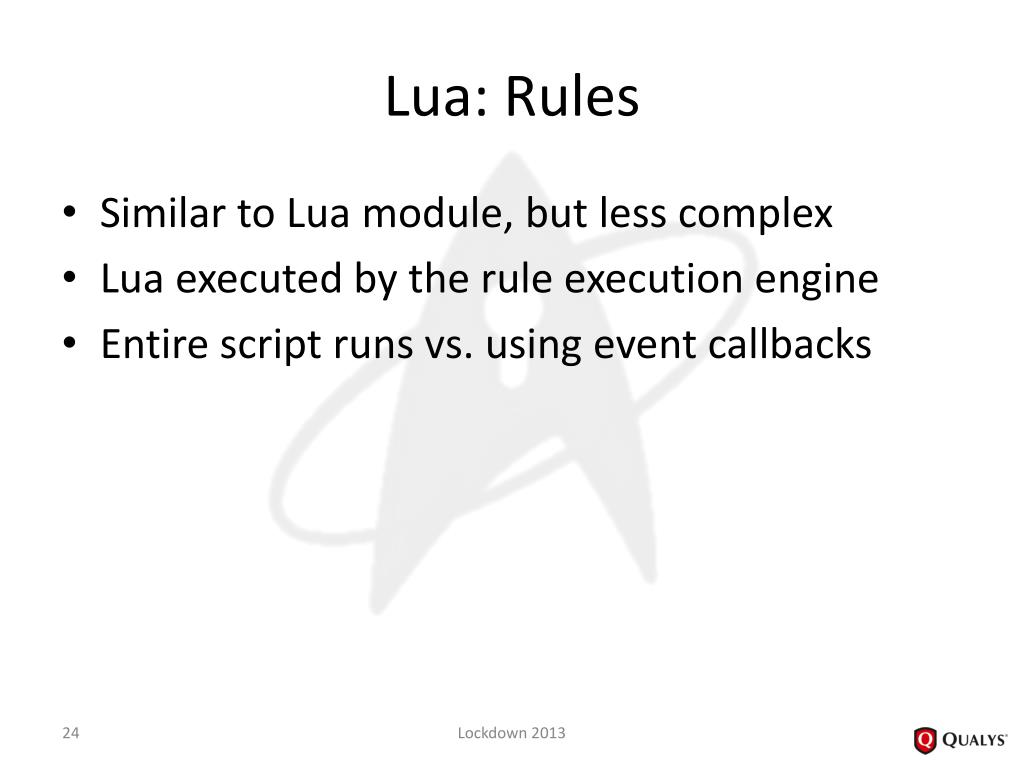

  24. Lua: Rules • Similar to Lua module, but less complex • Lua executed by the rule execution engine • Entire script runs vs. using event callbacks Lockdown 2013

  25. Rules: Scaling to the non-trivial • Simple linear execution with basic rules • Executes a list of rules per phase • All rules are executed • What about 1000s or 100,000s of rules? • Need a way to limit execution • Need a way to specify dependencies/order • Need a way to cache results • Need a higher level of logic and correlation Lockdown 2013

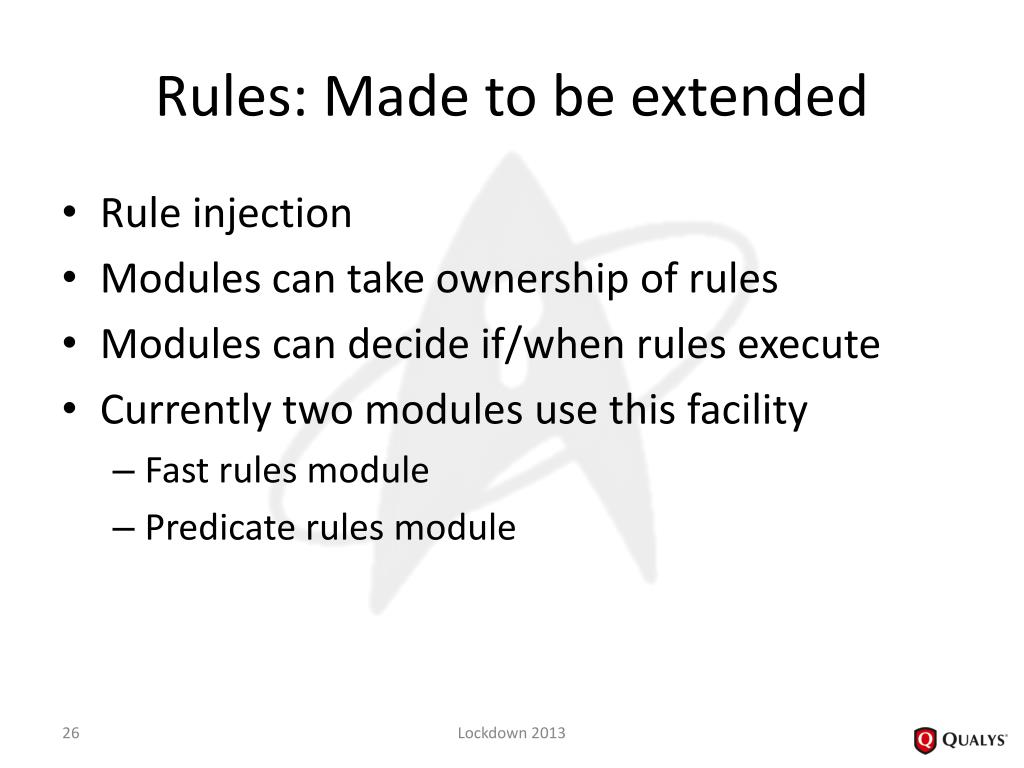

  26. Rules: Made to be extended • Rule injection • Modules can take ownership of rules • Modules can decide if/when rules execute • Currently two modules use this facility • Fast rules module • Predicate rules module Lockdown 2013

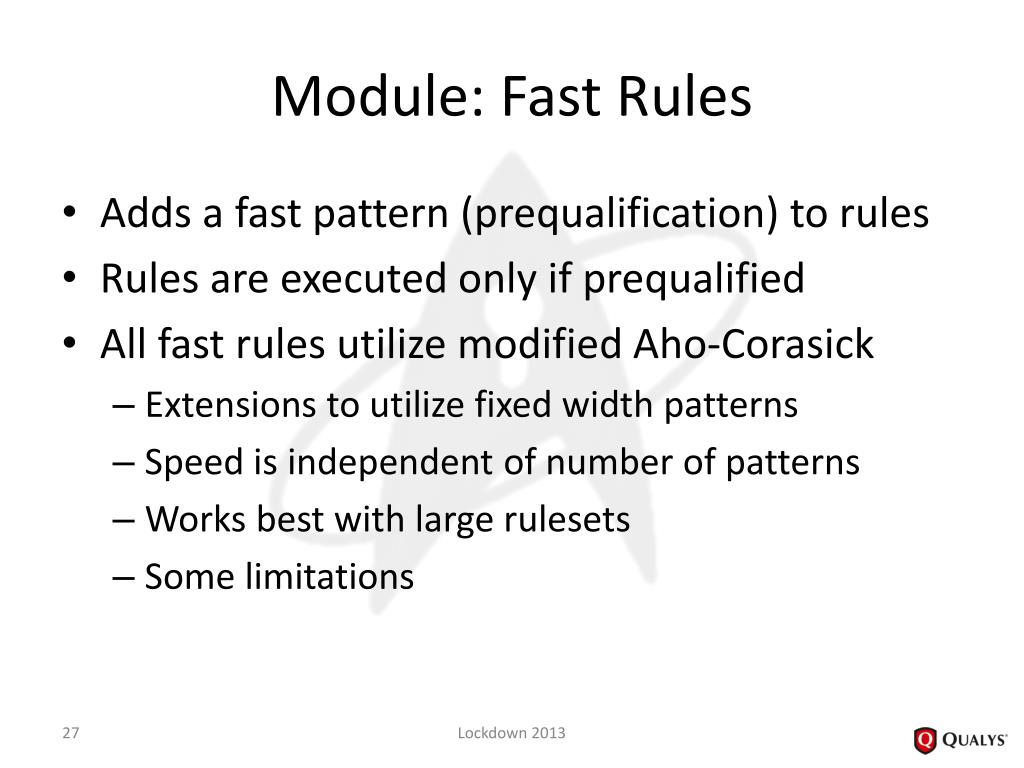

  27. Module: Fast Rules • Adds a fast pattern (prequalification) to rules • Rules are executed only if prequalified • All fast rules utilize modified Aho-Corasick • Extensions to utilize fixed width patterns • Speed is independent of number of patterns • Works best with large rulesets • Some limitations Lockdown 2013

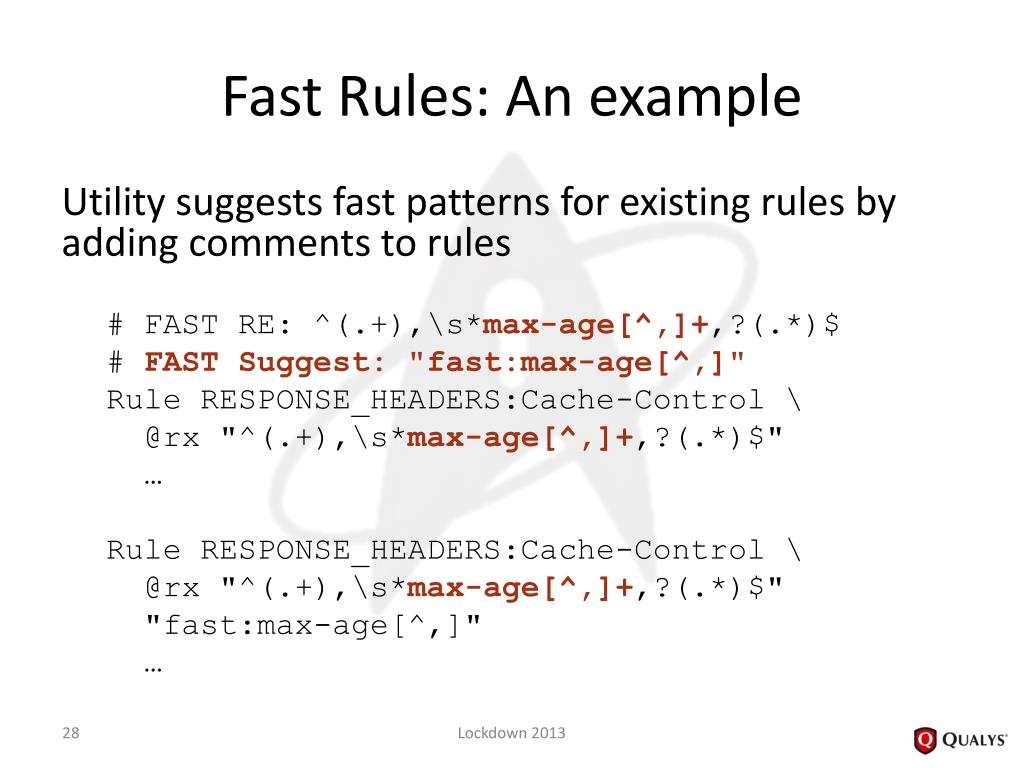

  28. Fast Rules: An example Utility suggests fast patterns for existing rules by adding comments to rules # FAST RE: ^(.+),\s*max-age[^,]+,?(.*)$ # FAST Suggest: "fast:max-age[^,]" Rule RESPONSE_HEADERS:Cache-Control \ @rx "^(.+),\s*max-age[^,]+,?(.*)$" … Rule RESPONSE_HEADERS:Cache-Control \ @rx "^(.+),\s*max-age[^,]+,?(.*)$" "fast:max-age[^,]" … Lockdown 2013

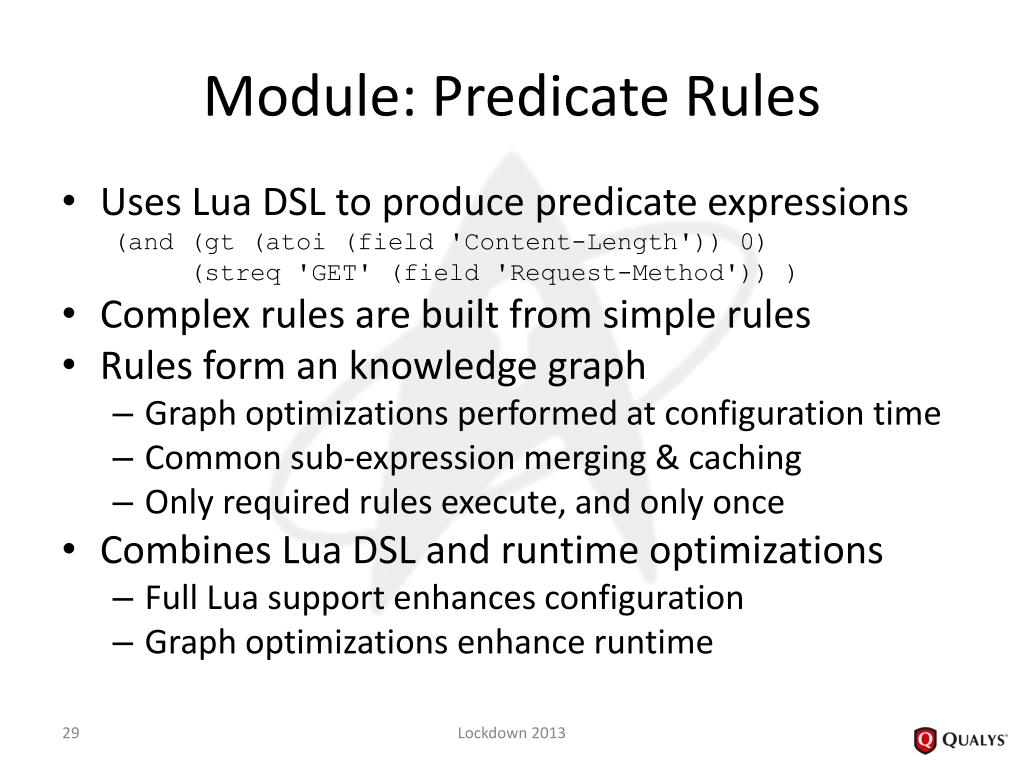

  29. Module: Predicate Rules • Uses Lua DSL to produce predicate expressions (and (gt (atoi (field 'Content-Length')) 0) (streq 'GET' (field 'Request-Method')) ) • Complex rules are built from simple rules • Rules form an knowledge graph • Graph optimizations performed at configuration time • Common sub-expression merging & caching • Only required rules execute, and only once • Combines Lua DSL and runtime optimizations • Full Lua support enhances configuration • Graph optimizations enhance runtime Lockdown 2013

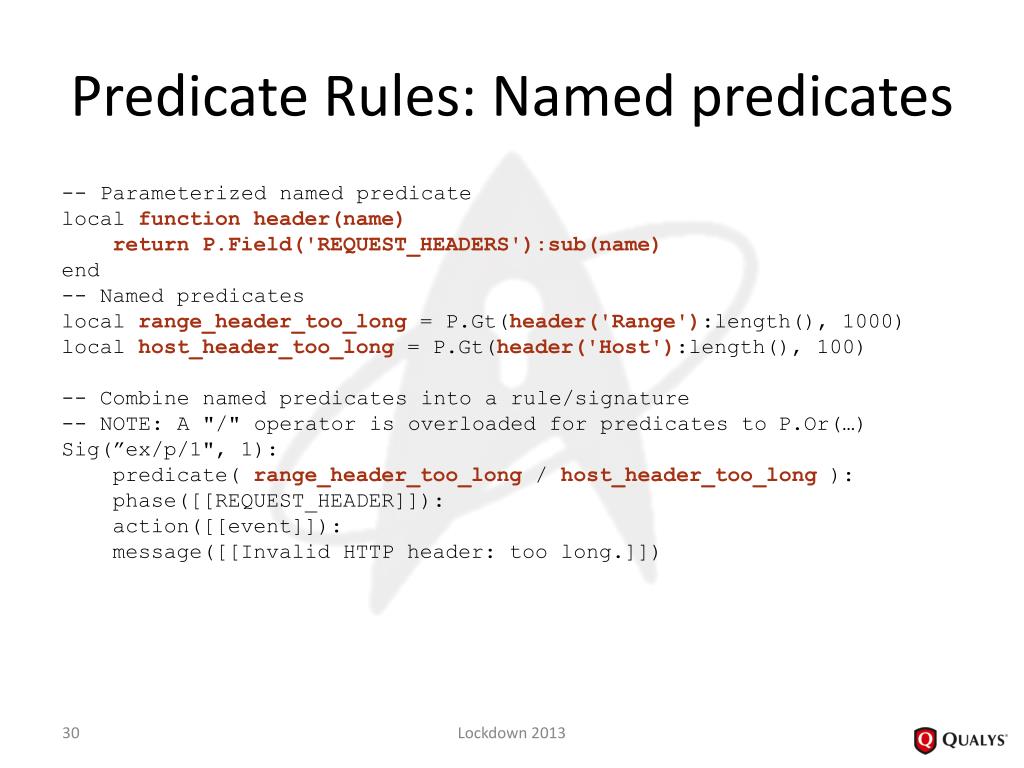

  30. Predicate Rules: Named predicates -- Parameterized named predicate local function header(name) return P.Field('REQUEST_HEADERS'):sub(name) end -- Named predicates local range_header_too_long = P.Gt(header('Range'):length(), 1000) local host_header_too_long= P.Gt(header('Host'):length(), 100) -- Combine named predicates into a rule/signature -- NOTE: A "/" operator is overloaded for predicates to P.Or(…) Sig(”ex/p/1", 1): predicate( range_header_too_long / host_header_too_long): phase([[REQUEST_HEADER]]): action([[event]]): message([[Invalid HTTP header: too long.]]) Lockdown 2013

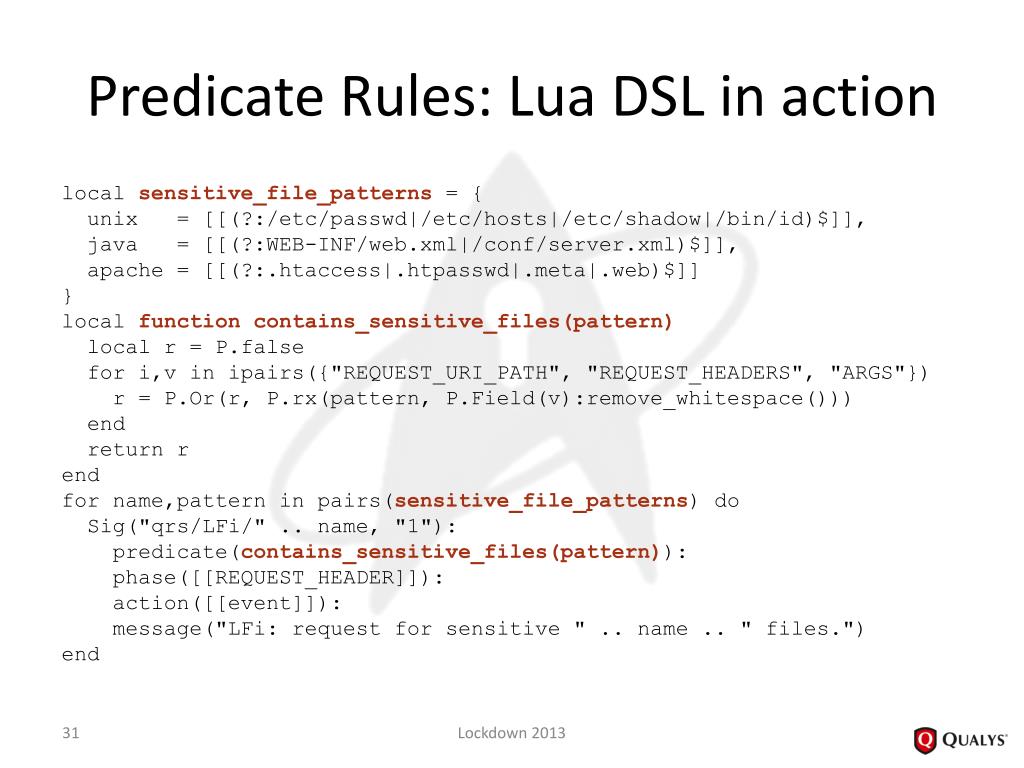

  31. Predicate Rules: Lua DSL in action local sensitive_file_patterns= { unix = [[(?:/etc/passwd|/etc/hosts|/etc/shadow|/bin/id)$]], java = [[(?:WEB-INF/web.xml|/conf/server.xml)$]], apache = [[(?:.htaccess|.htpasswd|.meta|.web)$]] } local function contains_sensitive_files(pattern) local r = P.false for i,v in ipairs({"REQUEST_URI_PATH", "REQUEST_HEADERS", "ARGS"}) r = P.Or(r, P.rx(pattern, P.Field(v):remove_whitespace())) end return r end for name,pattern in pairs(sensitive_file_patterns) do Sig("qrs/LFi/" .. name, "1"): predicate(contains_sensitive_files(pattern)): phase([[REQUEST_HEADER]]): action([[event]]): message("LFi: request for sensitive " .. name .. " files.") end Lockdown 2013

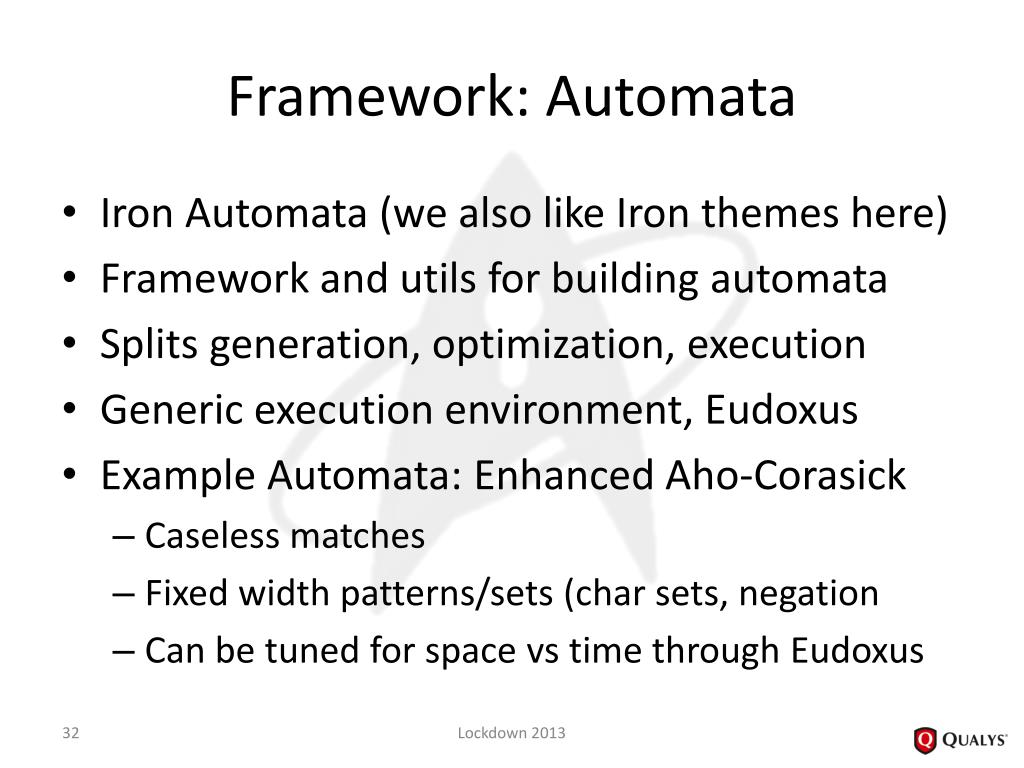

  32. Framework: Automata • Iron Automata (we also like Iron themes here) • Framework and utils for building automata • Splits generation, optimization, execution • Generic execution environment, Eudoxus • Example Automata: Enhanced Aho-Corasick • Caseless matches • Fixed width patterns/sets (char sets, negation • Can be tuned for space vs time through Eudoxus Lockdown 2013

  33. IronAutomata: Aho-Corasick Example1 • Aho-Corasick • Unoptimized • Patterns: • he • she • his • hers Lockdown 2013

  34. IronAutomata: Aho-Corasick Example2 • Aho-Corasick • Speed Optimized • Patterns: • he • she • his • hers Lockdown 2013

  35. IronAutomata: Optimization • Aho-Corasick • Patterns: ~250k English Dictionary • Data: Text of "Pride and Predjudice" novel 10x Lockdown 2013

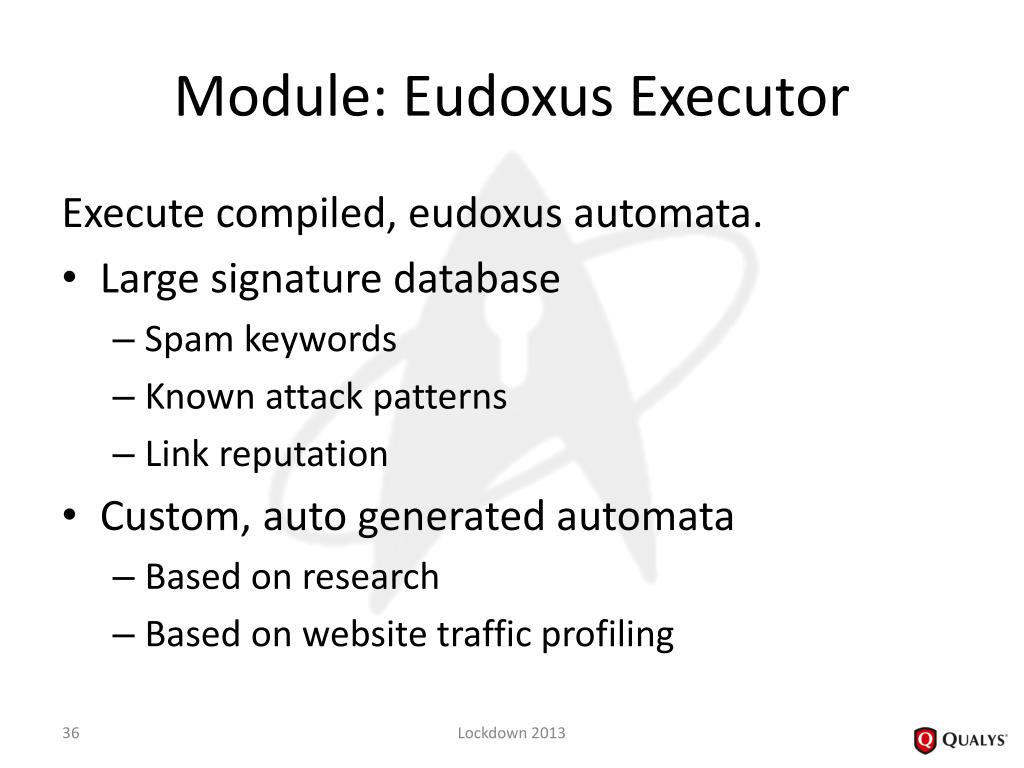

  36. Module: Eudoxus Executor Execute compiled, eudoxus automata. • Large signature database • Spam keywords • Known attack patterns • Link reputation • Custom, auto generated automata • Based on research • Based on website traffic profiling Lockdown 2013

  37. Utility: Clipp • Command line utility • Testing and rule development • HTTP data via: Raw files, PCAP, protobuf, … • Modify HTTP data via filters • Convert between formats • Highly extendible • Ruby wrapper for unit/regression testing Lockdown 2013

  38. IronBee: Batteries not included • Management is not dictated, so… • No Config Management • No Rule Management • No Log Management • Must do these yourself • You should already be doing this • The point is to stay out of your way • Allow you to use your own management tools Lockdown 2013

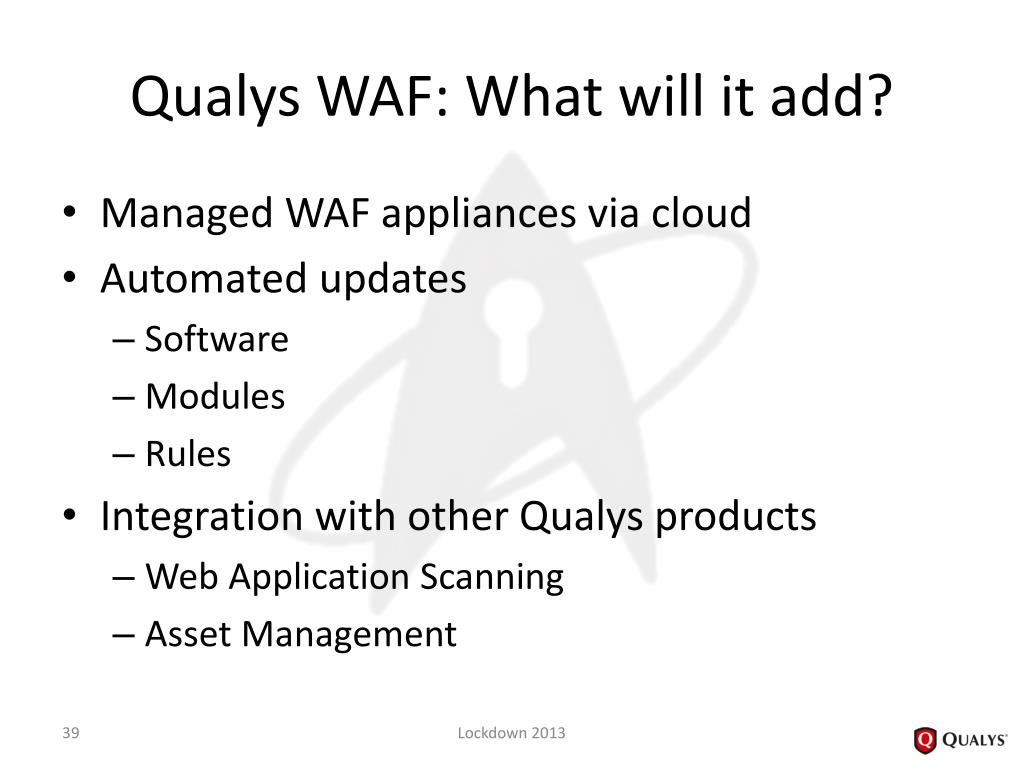

  39. Qualys WAF: What will it add? • Managed WAF appliances via cloud • Automated updates • Software • Modules • Rules • Integration with other Qualys products • Web Application Scanning • Asset Management Lockdown 2013

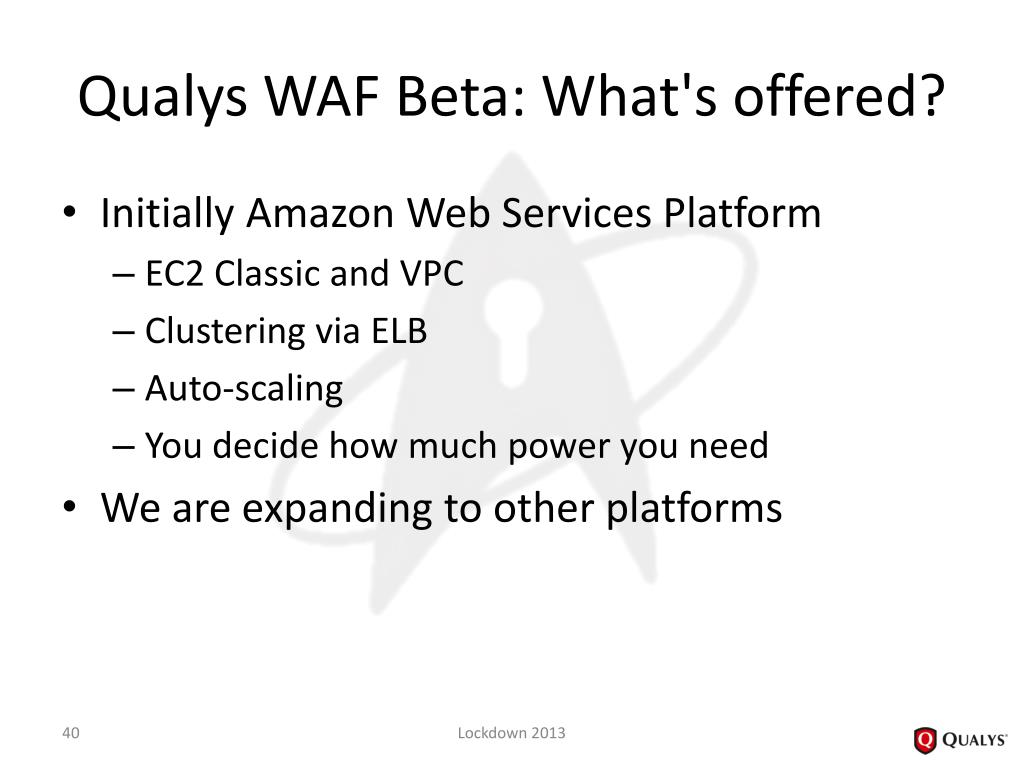

  40. Qualys WAF Beta: What's offered? • Initially Amazon Web Services Platform • EC2 Classic and VPC • Clustering via ELB • Auto-scaling • You decide how much power you need • We are expanding to other platforms Lockdown 2013

  41. Qualys Beta WAF: What's it do? • Manage AWS based WAF Appliances • Generic attack detection • Declarative security (fixup cookies/headers) • Data leakage detection • Reduce attack surface (HTTP limitations) • ACLs (IP and geo) Lockdown 2013

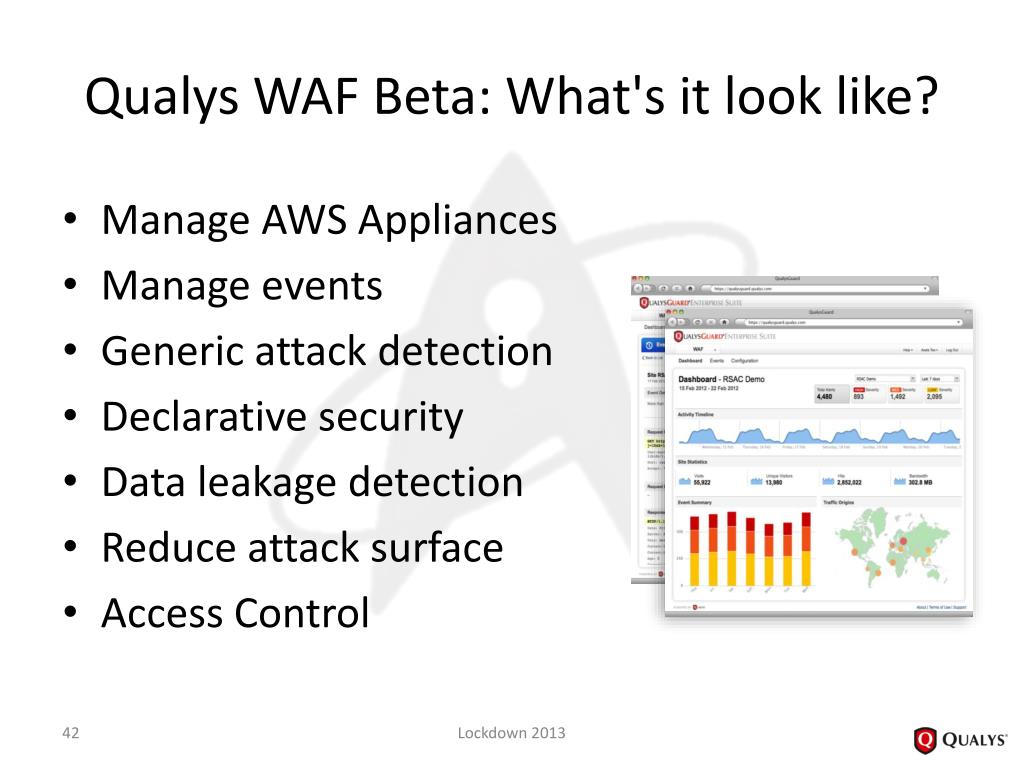

  42. Qualys WAF Beta: What's it look like? • Manage AWS Appliances • Manage events • Generic attack detection • Declarative security • Data leakage detection • Reduce attack surface • Access Control Lockdown 2013

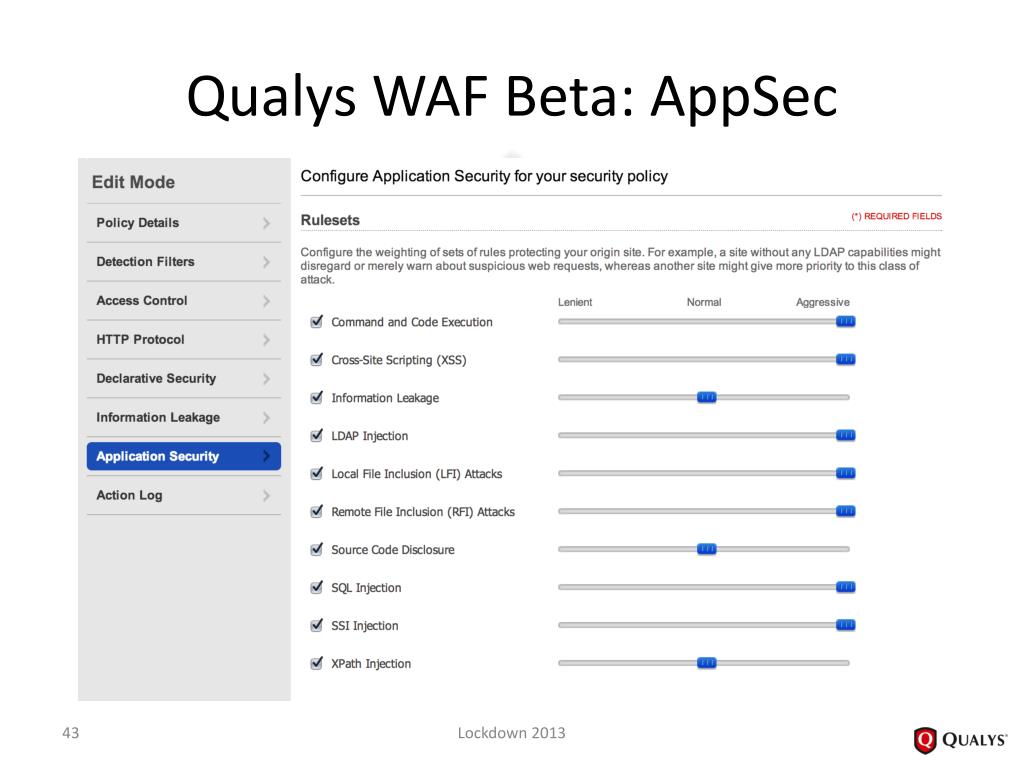

  43. QualysWAF Beta: AppSec Lockdown 2013

  44. Qualys WAF Beta: InfoLeak Lockdown 2013

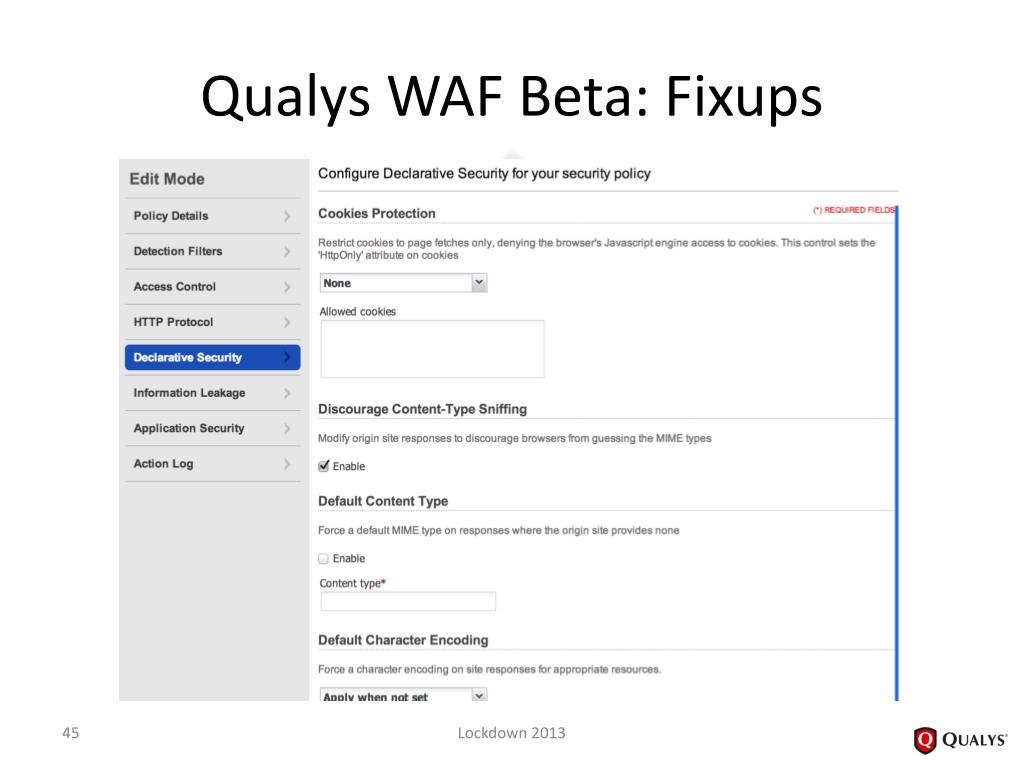

  45. Qualys WAF Beta: Fixups Lockdown 2013

  46. Qualys WAF Beta: HTTP Lockdown 2013

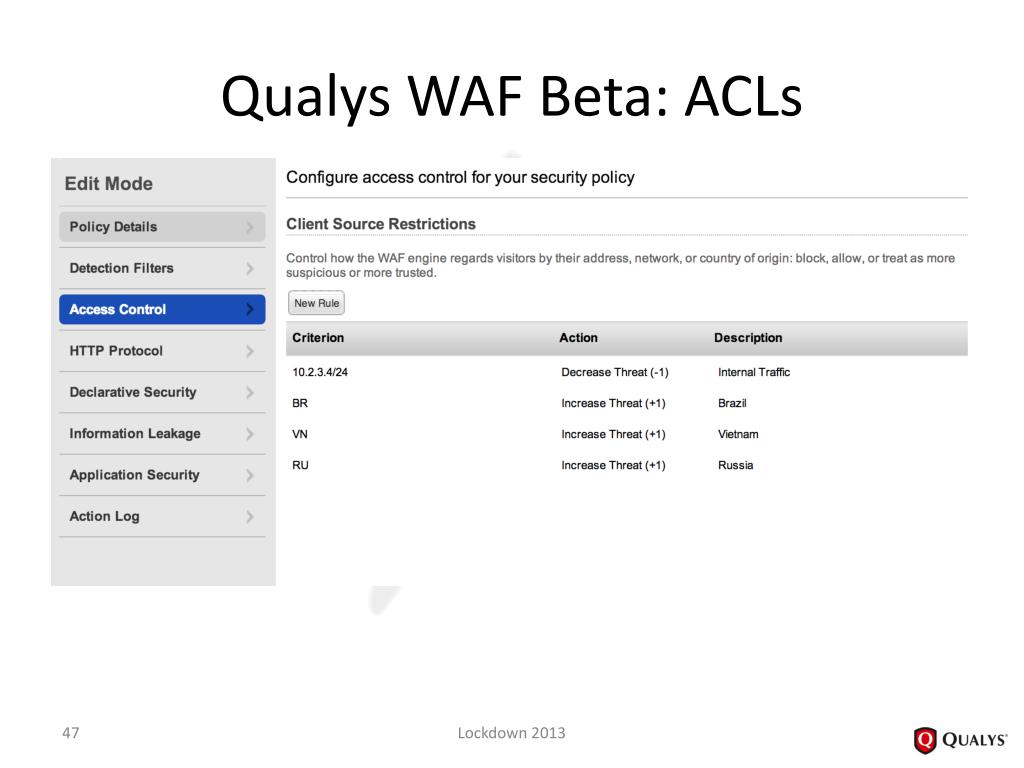

  47. Qualys WAF Beta: ACLs Lockdown 2013

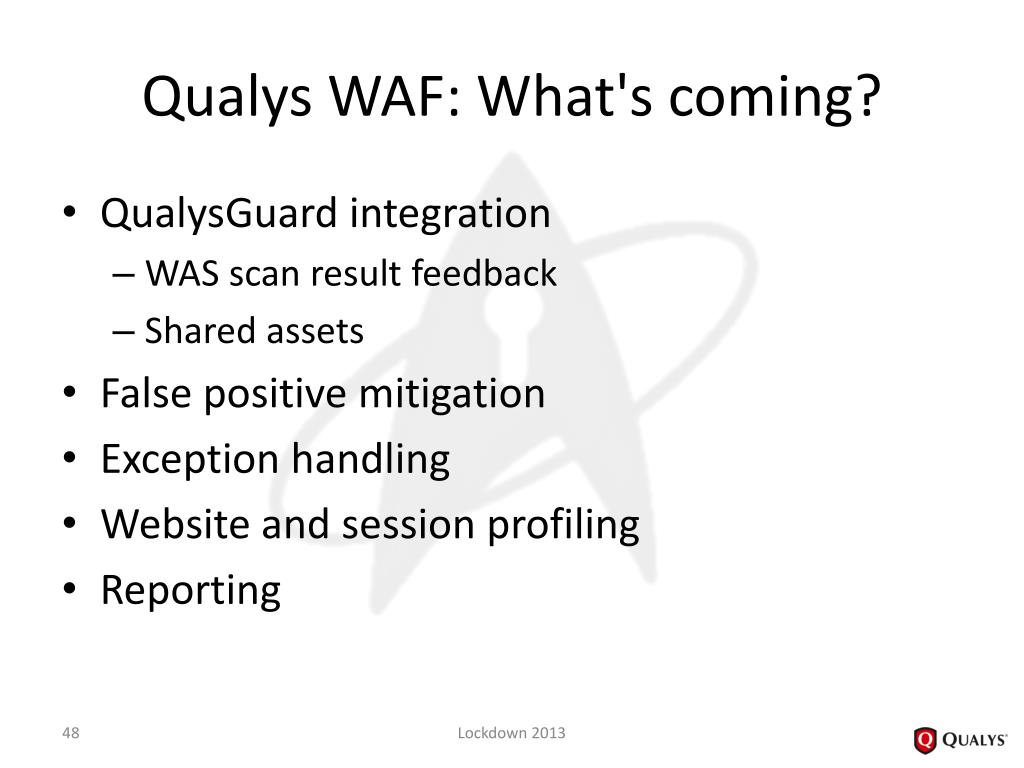

  48. Qualys WAF: What's coming? • QualysGuard integration • WAS scan result feedback • Shared assets • False positive mitigation • Exception handling • Website and session profiling • Reporting Lockdown 2013

  49. We are Hiring in the Madison! • Product Management • Application Security Researchers • Developers • QA Contact me if you are interested. Lockdown 2013

  50. Thanks! github.com/ironbee qualys.com/waf qualys.com/careers Feel free to contact me for more info. Brian Rectanus brectanus@qualys.com Lockdown 2013
