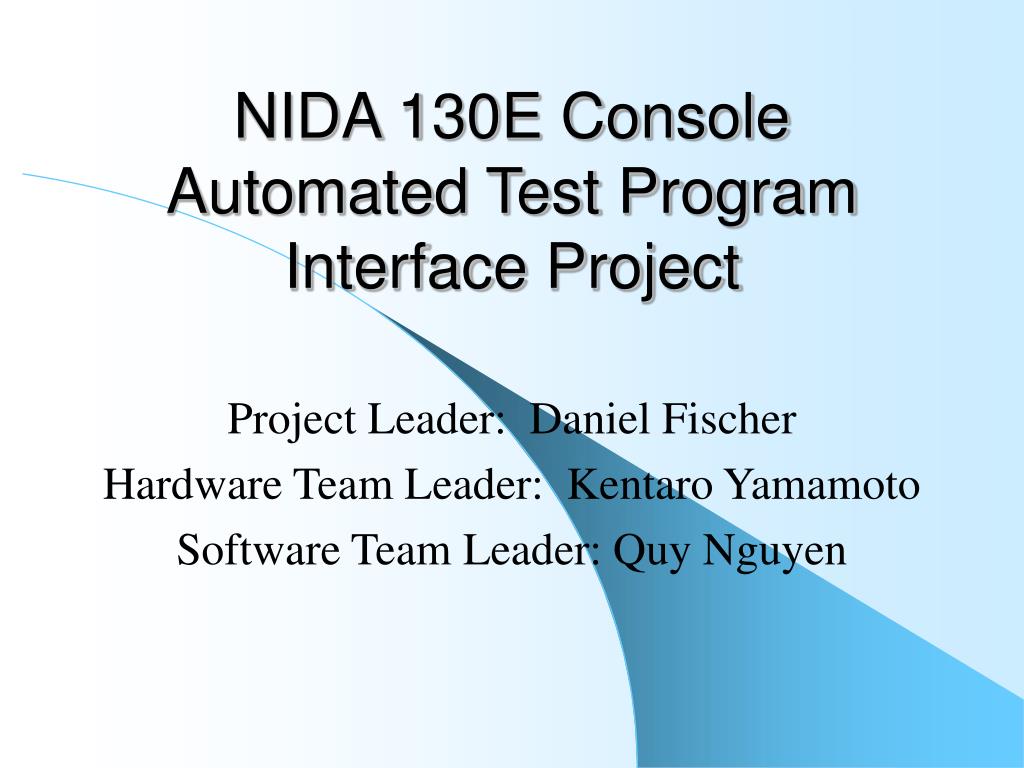

  1. NIDA 130E Console Automated Test Program Interface Project Project Leader: Daniel Fischer Hardware Team Leader: Kentaro Yamamoto Software Team Leader: Quy Nguyen

  2. Project Overview:Design a program controlled interface board to simulated manual keyboard circuit fault test simulation.

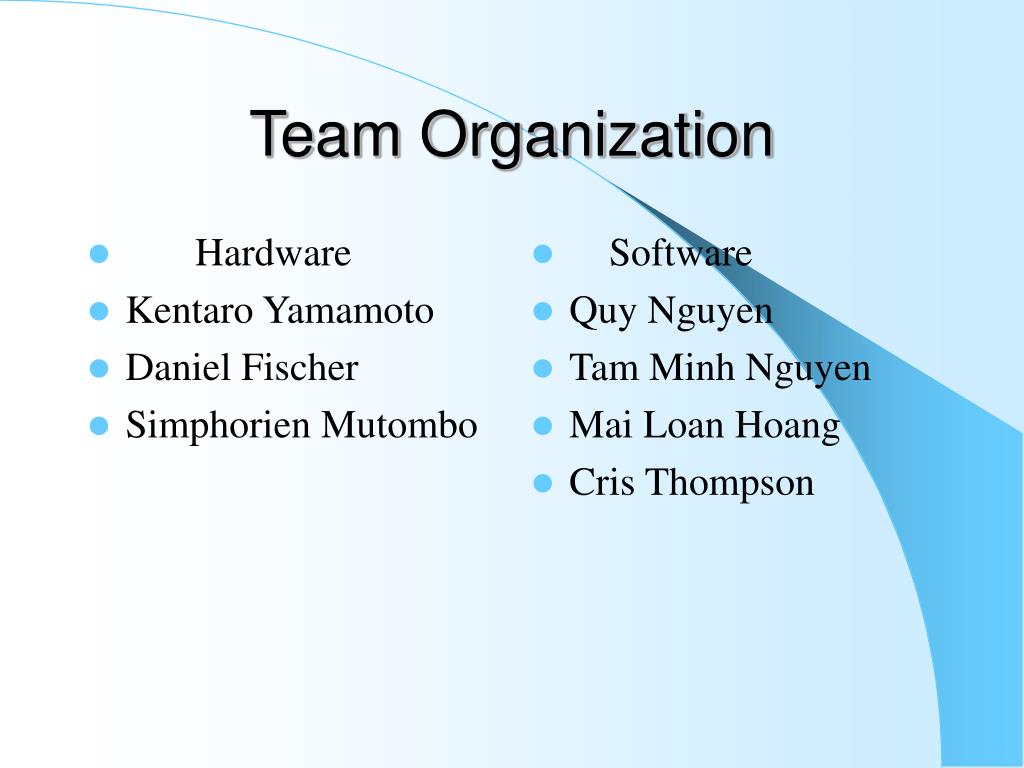

  3. Hardware Kentaro Yamamoto Daniel Fischer Simphorien Mutombo Software Quy Nguyen Tam Minh Nguyen Mai Loan Hoang Cris Thompson Team Organization

  4. Hardware Components ATMEL 8-bit Microcontroller, AT90S8535 (Development Board) Octal Peripheral Driver Array, ULN2803 Relays, KS24401 NIDA 130E Test Console

  5. Software Components • Visual Basic 6.0 , for microprocessor program design. • ATMEL AVR RISC assembly language for microcontoller program interface

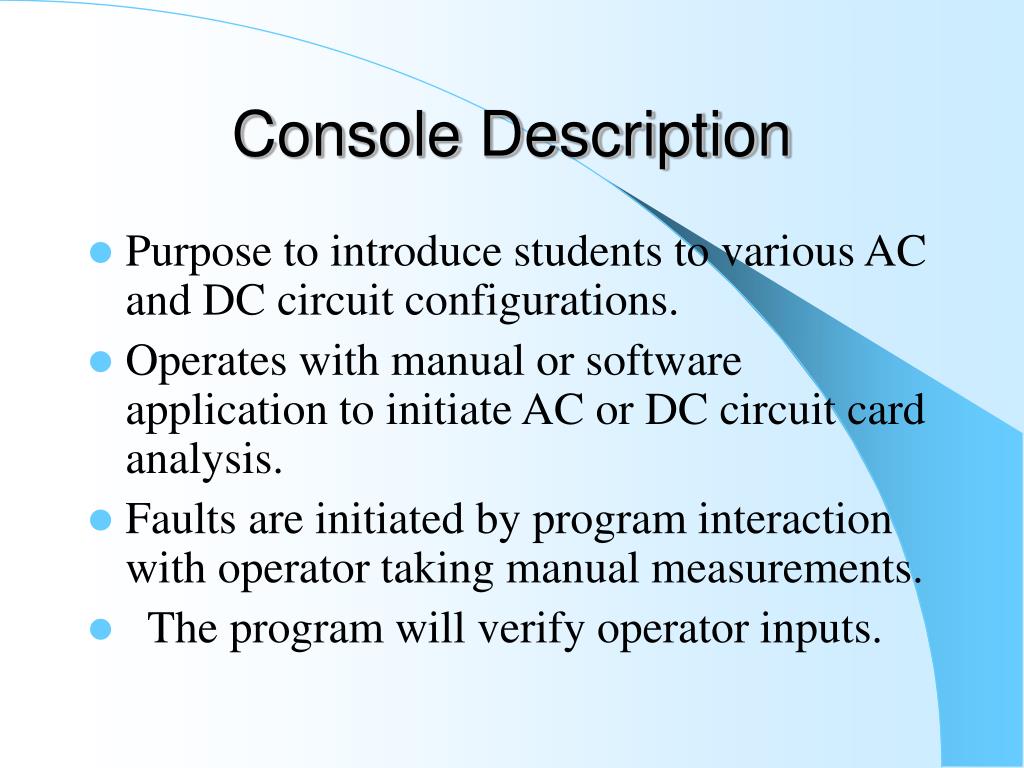

  6. Console Description • Purpose to introduce students to various AC and DC circuit configurations. • Operates with manual or software application to initiate AC or DC circuit card analysis. • Faults are initiated by program interaction with operator taking manual measurements. • The program will verify operator inputs.

  7. Purpose of Hardware • Interface computer program application with console test procedures. • Decode serial ASCII commands to simulate manual keyboard operation. • Separate keyboard from software application.

  8. Status • Completed • All part have been obtained. • Created Logic Analyzer timing charts of keyboard character representations. • Remaining • Write microcontroller programs to recognize ASCII character. • Simulate program tests.

  9. Hardware Configuration

  10. Function of MicroController

  11. The Flowchart

  12. The Main of Program

  13. The AC Frame

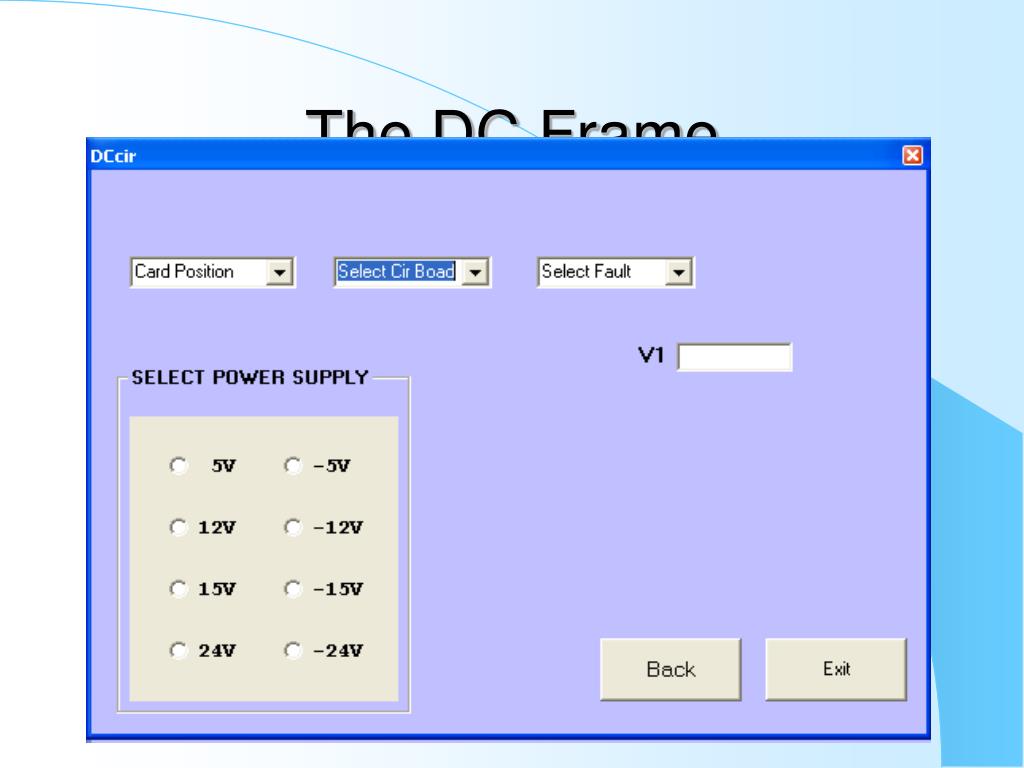

  14. The DC Frame
