Phylum Echinodermata

Phylum Echinodermata. Diversity. Over 7,000 species worldwide Live in aquatic, marine environments Name “ Echinodermata ” comes from their external spines Notable characteristics: 1) Spiny endoskeleton of plates 2) Water-vascular system 3) Special outer layer ( pedicellariae )

tilden
Download Presentation

Phylum Echinodermata

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Phylum Echinodermata

  2. Diversity • Over 7,000 species worldwide • Live in aquatic, marine environments • Name “Echinodermata” comes from their external spines • Notable characteristics: • 1) Spiny endoskeleton of plates • 2) Water-vascular system • 3) Special outer layer (pedicellariae) • 4) Respiratory system: dermal branchiae • 5) Radial symmetry (in adults) • 6) VERY bizarre and unique animals

  3. Diversity • Examples include: • starfish/sea star, brittle star, sea cucumber, sea lilies, sea daisies, sea urchins • Fill a wide range of ecological roles and have enormous variation • Food, bioindicators, decoration, etc • Called Echinoderms • Echinoderm means “prickly skin”

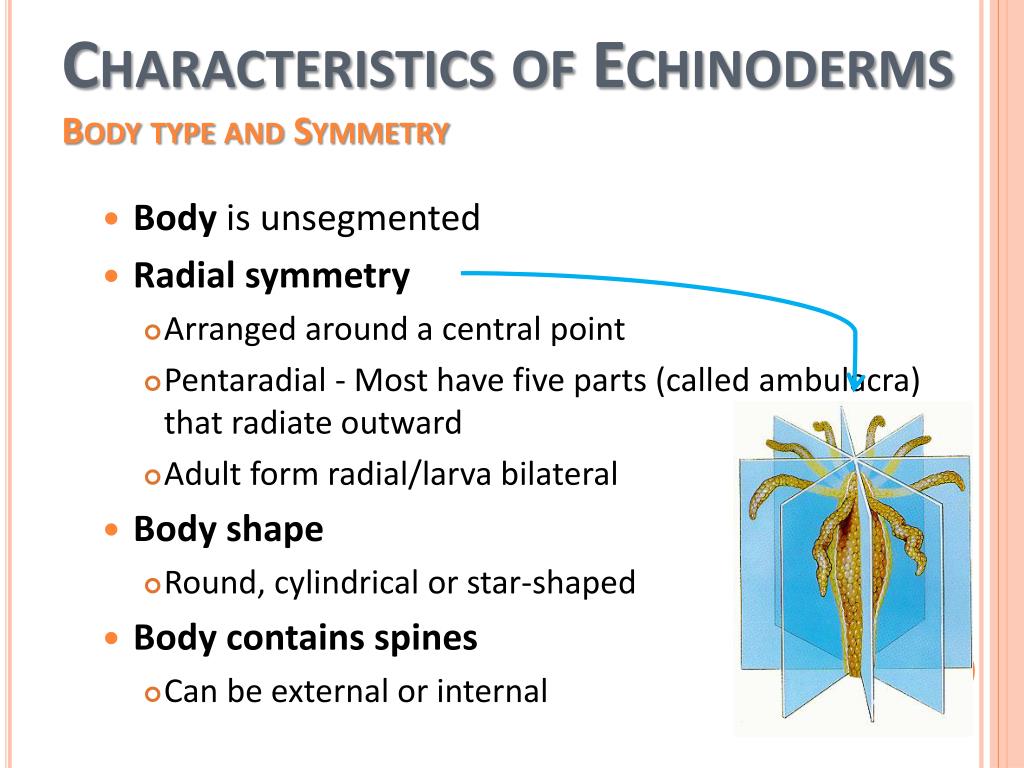

  4. Characteristics of EchinodermsBody type and Symmetry • Body is unsegmented • Radial symmetry • Arranged around a central point • Pentaradial - Most have five parts (called ambulacra) that radiate outward • Adult form radial/larva bilateral • Body shape • Round, cylindrical or star-shaped • Body contains spines • Can be external or internal

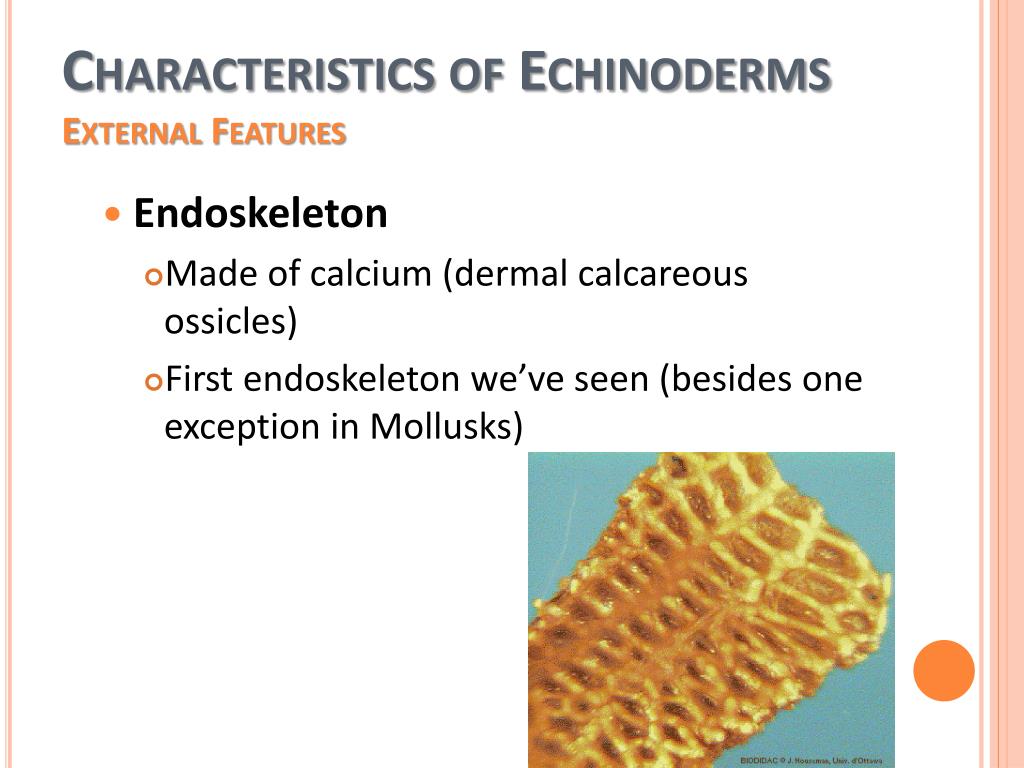

  5. Characteristics of EchinodermsExternal Features • Endoskeleton • Made of calcium (dermal calcareous ossicles) • First endoskeleton we’ve seen (besides one exception in Mollusks)

  6. Pedicellariae which keep debris off body, protect animal and food capture

  7. Characteristics of EchinodermsReproduction • Asexually (regeneration) • Separate sexes (except a few hermaphrodites) • Fertilization usually external • Free swimming, bilateral larval stages

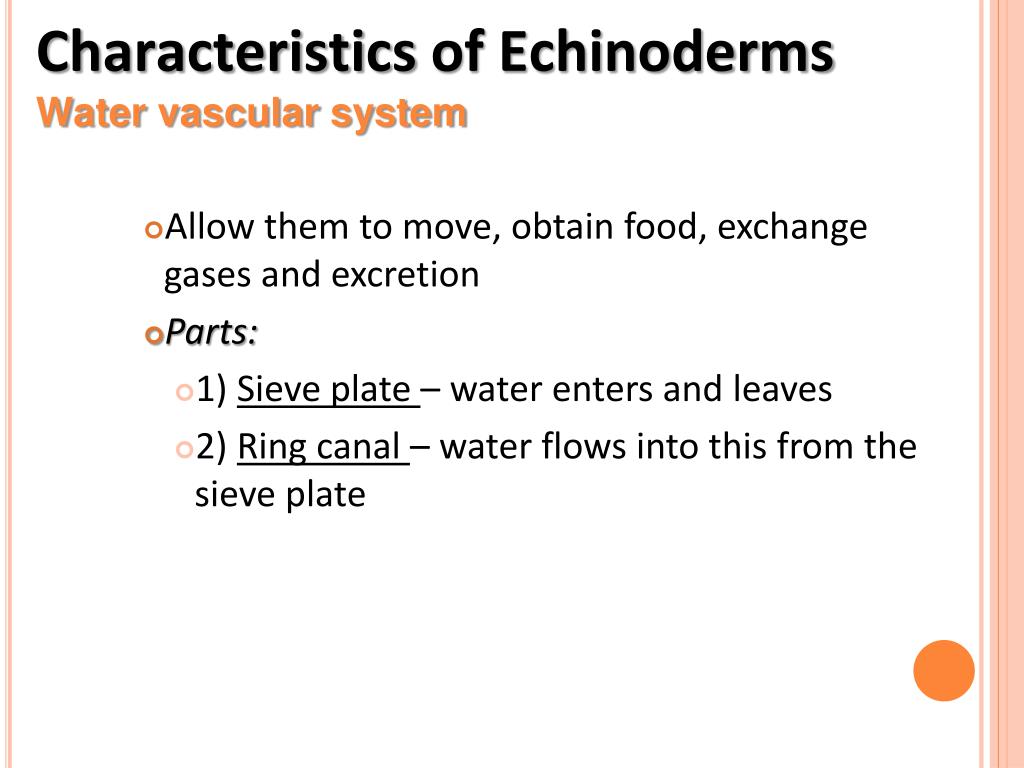

  8. Characteristics of EchinodermsWater vascular system • Allow them to move, obtain food, exchange gases and excretion • Parts: • 1) Sieve plate – water enters and leaves • 2) Ring canal – water flows into this from the sieve plate

  9. Characteristics of Echinoderms • Water Vascular system, cont. • Parts, cont.: • 3) Radial canal – each arm has one of these, connected to ring canal • 4) Ampulla – muscular sac that helps force water into a tube foot • 5) Tube foot – hollow tube with suction-cups on the end, helps with attachment, detachment Tube feet w/ moving sea star

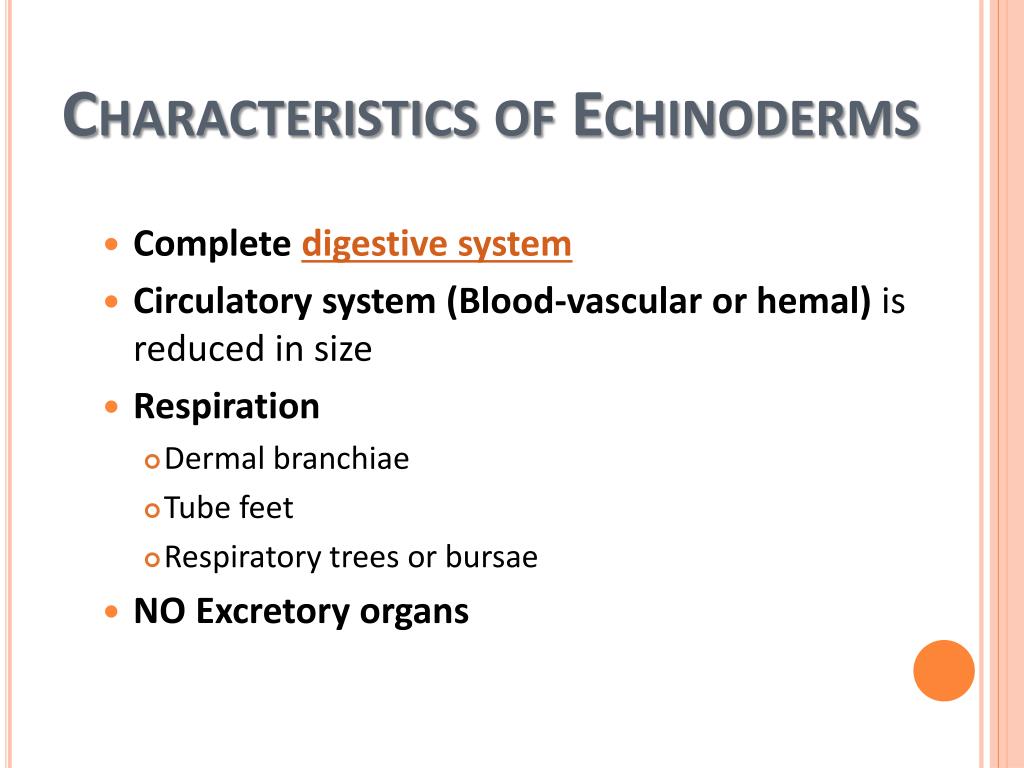

  10. Characteristics of Echinoderms • Complete digestive system • Circulatory system (Blood-vascular or hemal) is reduced in size • Respiration • Dermal branchiae • Tube feet • Respiratory trees or bursae • NO Excretory organs

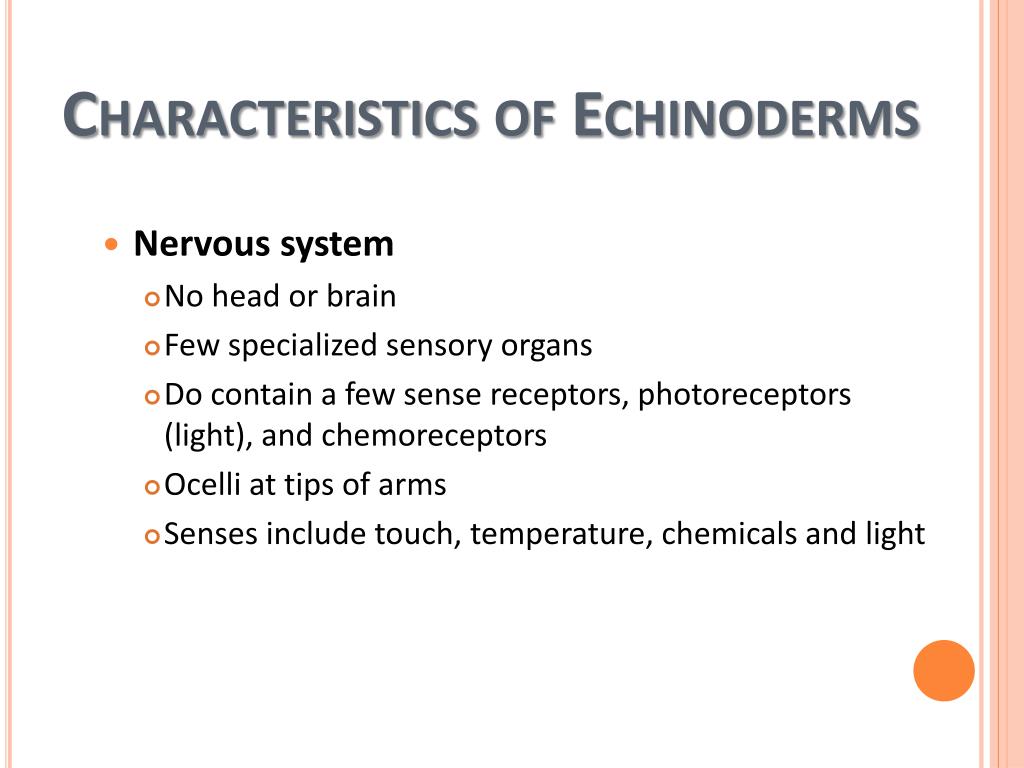

  11. Characteristics of Echinoderms • Nervous system • No head or brain • Few specialized sensory organs • Do contain a few sense receptors, photoreceptors (light), and chemoreceptors • Ocelli at tips of arms • Senses include touch, temperature, chemicals and light

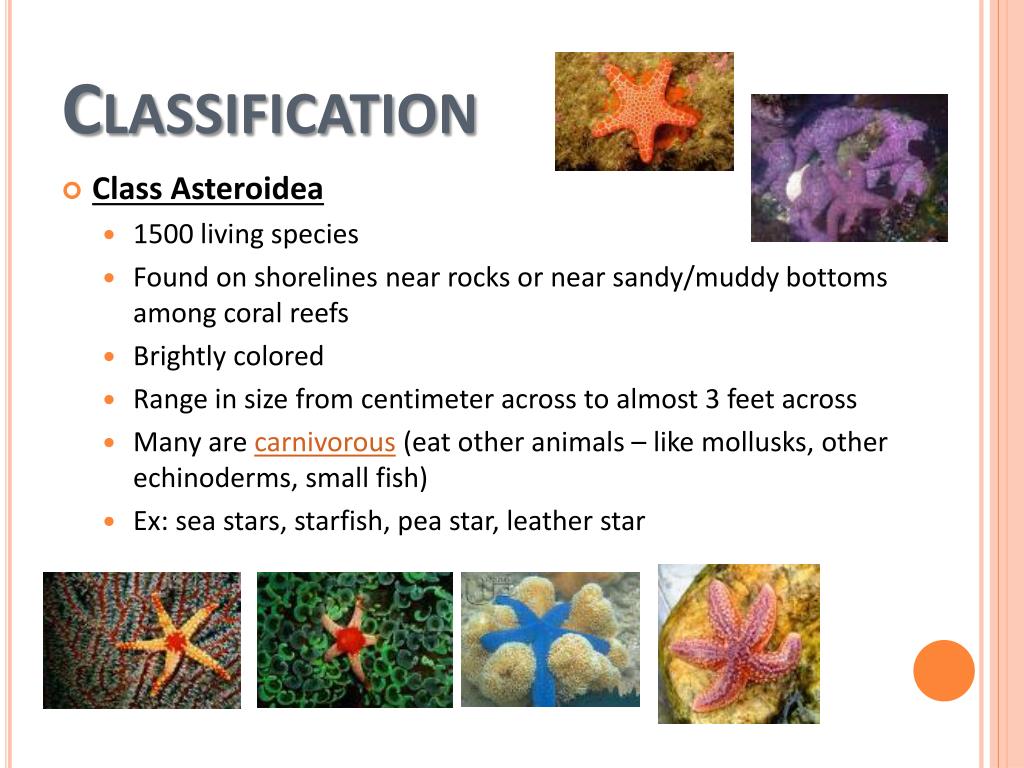

  12. Classification • Class Asteroidea • 1500 living species • Found on shorelines near rocks or near sandy/muddy bottoms among coral reefs • Brightly colored • Range in size from centimeter across to almost 3 feet across • Many are carnivorous (eat other animals – like mollusks, other echinoderms, small fish) • Ex: sea stars, starfish, pea star, leather star

  13. Classification • Class Ophiuroidea • 2000 living species • Found in ocean bottoms (benthic), marine areas • Very secretive animals where little to no light penetrates • Ex: brittle stars

  14. Classification • Class Echinoidea • 950 living species • Found in all sea areas (intertidal regions to deep ocean bottoms) • Lack arms, very brightly colored, some contain toxins • Ex: sea urchins, sand dollars, heart urchins

  15. Classification • Class Holothuroidea • 1150 living species • Found in all sea areas (intertidal regions to deep ocean bottoms) • Some crawl, others found beneath rocks, other burrow • Elongated bodies, bodies are soft • Ex: sea cucumbers

  16. Classification • Class Crinoidea • 625 living species • Found in all sea areas (intertidal regions to deep ocean bottoms) • Stay attached to ocean bottoms/rocks/coral most of their lives • Stiff, hardened bodies • Ex: sea lilies, feather stars

  17. Starfish Characteristics • General Characteristics • Radial symmetry • Contain five arms/rays • Each arm radiates out from a central disc • If an arm is lost/damaged, it can usually be regenerated.

  18. Starfish Characteristics • Contain a coelom • Water vascular system: • Use this to move, gather food, respiration and excrete wastes • Use tube feet (tiny podia that expel water) • Excretion: • Contain anus • Also use water vascular system

  19. Starfish Characteristics • General Characteristics, cont. • Digestion: • Contain mouth (on underside/ventral side of sea star) • Each arm is full of digestive glands (which digest food that enters mouth) • Contain a pyloric stomach (digests food) • Also contain cardiac stomach (which they can push OUT of body to engulf prey) • Intestines is SHORT (connects stomach to anus)

  20. Starfish Characteristics • Diet: • Clams, oysters, small fish, other arthropods, dead/decaying matter, coral, sponges, plankton • Reproduction: • Capable of both sexual and asexual reproduction • Separate sexes • External fertilization • Ecological importance: • Decoration • Bio-indicators (help us to determine how polluted water environments are)

  21. Dissection Starfish Video Dissection External and Internal
