  1. CERIF / Best Practice Brigitte Jörg, Ales Bosniak CERIF2006-1.1 - November 2007, Vienna

  2. CERIF 2006 1.1 in Brief Semantic Layer (Classification) Current Activities CERIF / Best Practice Type Definitions Role Definitions Normalization of Values Not yet Subject (Discipline)-related -> Recommendation to Members Outline CERIF2006-1.1 - November 2007, Vienna

  3. ERM Model -> SQL Scripts Introduction and Specification Document CERIF XML Interchange Specification Dynamic HTML Documentation XML Examples XML Schema Examples for Validation CERIF 2006-1.1 Release CERIF2006-1.1 - November 2007, Vienna

  4. ResultPublication OrganisationUnit Person Project CERIF CORE Entities CERIF2006-1.1 - November 2007, Vienna

  5. FundingProgramme Event ResultPublication Facility Skills Service OrganisationUnit Person CV Equipment ResultProduct ResultPatent Project CERIF 2nd Level Entities CERIF2006-1.1 - November 2007, Vienna

  6. Facility Event FundingProgramme Equipment ResultPublication OrganisationUnit Person CV Project Service Skills ResultPatent ResultProduct Interlinked CERIF Entities CERIF2006-1.1 - November 2007, Vienna

  7. CERIF Link Entities CERIF2006-1.1 - November 2007, Vienna

  8. ResultPublicationType=Article ResultPublication ResultPublication ResultPublication OrgUnit_ResultPublication OrgUnit_ResultPublication OrgUnit_ResultPublication OrgUnit_ResultPublication ResultPublication Role=Publisher Role=Publisher Person_ResultPublication Person_ResultPublication Person_ResultPublication Person_ResultPublication Role=Author Role=Author Project_ResultPublication Project_ResultPublication Project_ResultPublication Project_ResultPublication Role=TechnicalReport Role=TechnicalReport Person_OrganisationUnit Person_OrganisationUnit PersonType=open OrgUnit OrgUnit OrgUnit OrgUnit OrgUnit OrgUnit OrganisationUnit OrganisationUnitType=Academic Person Person Person Person Person OrgUnit Person Role=CEO Role=CEO Project_Person Project_Person Project_OrganisationUnit Project_OrganisationUnit Role=Co Role=Co ordinator - - ordinator Project_Person Project_Person Project_OrgUnit Project_OrgUnit Role=Organiser Role=Organiser Project ProjectType=EU Project Project Project Project Project CERIF Link Entitieswith Types/Roles CERIF2006-1.1 - November 2007, Vienna

  9. Language-dependent Entities CERIF2006-1.1 - November 2007, Vienna

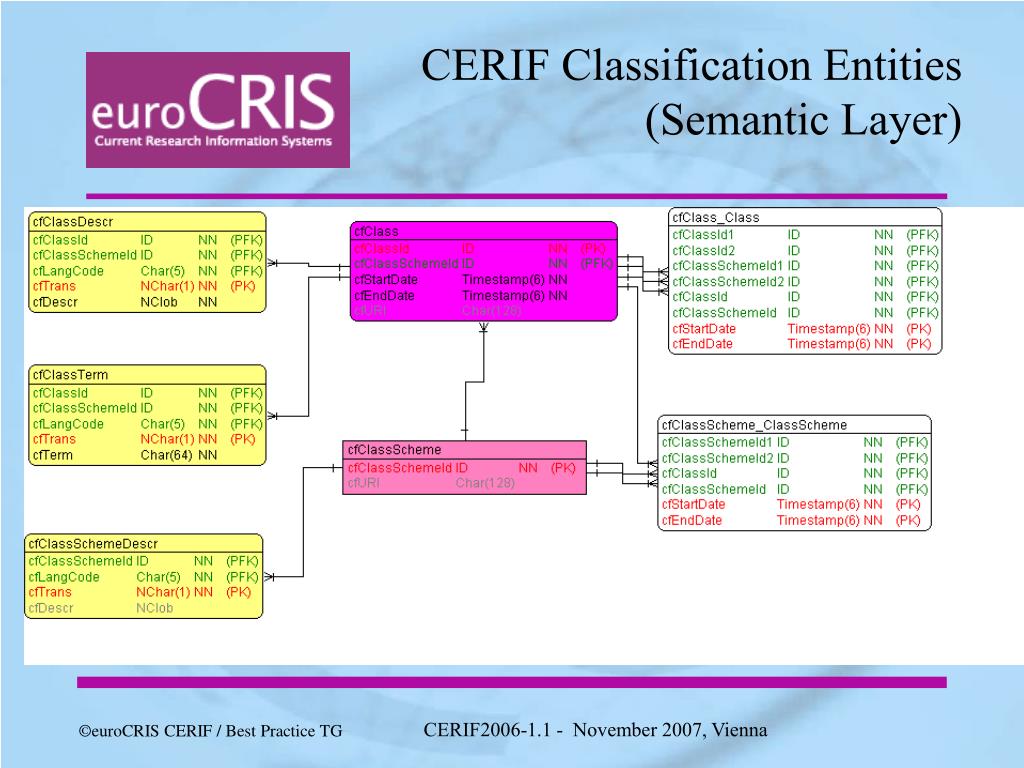

  10. CERIF Classification Entities (Semantic Layer) CERIF2006-1.1 - November 2007, Vienna

  11. CERIF XML Interchange Format • Specification Document • Each entity 1:1 representation • XML Schemas for validation <cfProj_Proj> <cfProjId1>Char(32)</cfProjId1> <cfProjId2>Char(32)</cfProjId2> <cfClassId>Char(32)</cfClassId> <cfClassSchemeId>Char(32)</cfClassSchemeId> <cfStartDate>2001-01-01T12:00:00-05:00</cfStartDate> <cfEndDate>2001-01-01T12:00:00-05:00</cfEndDate> </cfProj_Proj> CERIF2006-1.1 - November 2007, Vienna

  12. Misunderstandings Clarification • Short history: • at the last EUROCRIS membership meeting in Helsinki some 20 participants agreed to contribute in setting up a common European classification of types and roles of research entities • we aim to do it by collecting from all national roles/types which can be identified from the national CRIS systems. • after collection we will: • extract the most overlapped structure of roles and types provide the mappings between the common and national roles (mappings would carry the • expressions like "is a subtype of", "is equal to" and • "is a super type of") CERIF2006-1.1 - November 2007, Vienna

  13. Misunderstandings Clarification In general two problems occurred: people did not send the types/roles classification (instead of this we got contents classification like scientific disciplines etc., which belong to step 2) the received data of roles/types was at a certain amount not limited to real classification lookup tables with a predefined limited set of values but was related to ordinary free text (lookup tables represent a limited set of possibilities, like for instance LANGUAGE, COUNTRIES, …whereas free text is used for descriptive fields like name, abstract, … ) Current status and next steps: we finally got data from about 8 countries in the future we want to concentrate on the mappings by working in a smaller group (up to 4 countries) each country will help to do the mapping between his and the other 3 countries by filling out a selected E-questionnaire CERIF2006-1.1 - November 2007, Vienna

  14. Type / Role Schemes Classifications (Subject Terms / Scientific Disciplines) later ! Bottom Up Approach Analyze Input for Overlappings (not only values but also datatypes freetext / controlled vocabulary; i.e. academic titles) Goal: Global euroCRIS Type/Role Scheme for interconnecting Research Entities Current ActivitiesCERIF / Best Practice CERIF2006-1.1 - November 2007, Vienna

  15. SiCRIS IWETO CEES Current ActivitiesUse Case (OrgUnit) status not defined Research Unit Innovation organisation                                                                                                                                                                                                                                        public research institution PRI Administrative Unit public infrastructural institution Institution development-enterprise centre public higher education institution (university) PHEI Association faculty Virtual Organisation research-development centre art academy Faculty professional college innovation centre Department institute - research unit of PHEI Research Group other organisational unit of PHEI company providing infrastructure for innovation activity External faculty department independent higher education institution business-technological incubator                                                                                                                                                                                                                                  other institutions (not PRS or PHEI) commercial company sole trader science-technology park                                                                                                                                                                                                                                    private researcher private researcher keeping account books scholarship holder society, association of sicieties organisation organisation as part of the ministry and/or government CERIF2006-1.1 - November 2007, Vienna discontinued (no longer existent)

  16. Current ActivitiesUse Case Project / Publication Project Publications Scientific Report Contribution Encyclopedia Article Foreword / Postscript Scientific Book Scientific Anthology Doctoral Dissertation PhD Dissertation Scientific Report Preprint Conference Article Peer-reviewed Conference Article Poster Published Abstract Presentation Manuscript Presentation File CERIF2006-1.1 - November 2007, Vienna

  17. Smaller groups with TG leaders recruited from countries that provided data more effective real work within meetings plenary for presentations Work Strategy CERIF2006-1.1 - November 2007, Vienna

  18. DiscussionOpen Issues • Results from Discussion: • -> Start with Roles rather than Types CERIF2006-1.1 - November 2007, Vienna
