動態規劃 ( 一 )

1. 動態規劃(一) HKOI Training 2007 Kelly Choi 19 May 2007 Acknowledgement: References and slides extracted from [Advanced] Dynamic Programming, 24-04-2004, by cx [Intermediate] Dynamic Programming, 21-08-2004, by Ng Tung

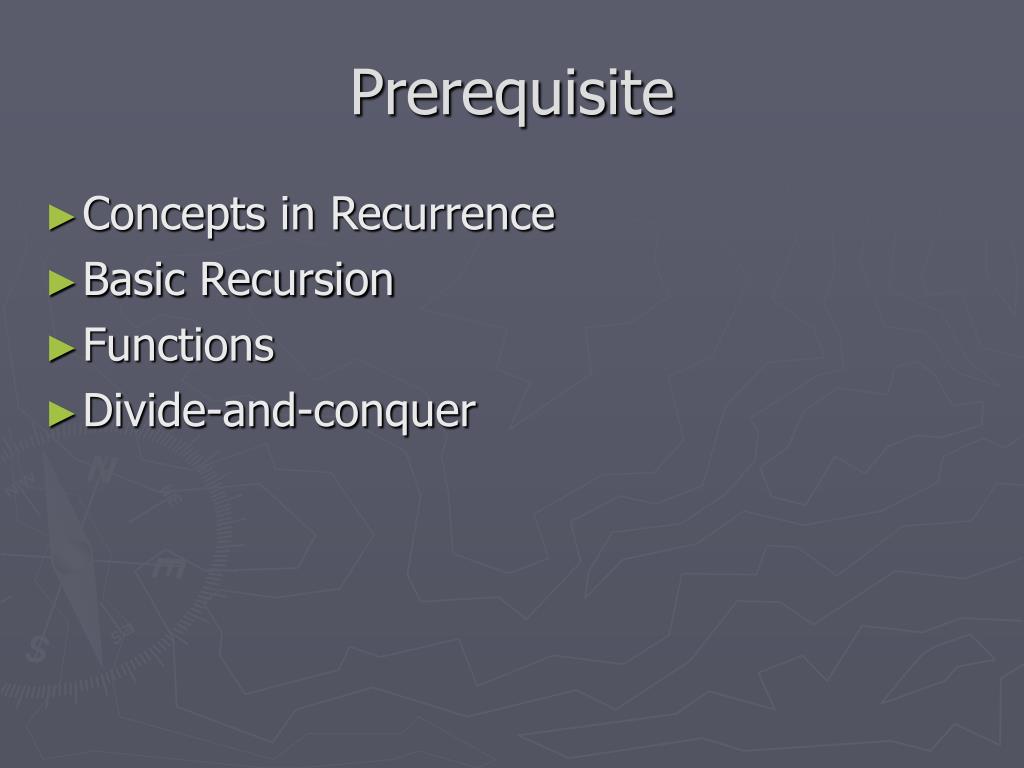

2. Prerequisite • Concepts in Recurrence • Basic Recursion • Functions • Divide-and-conquer

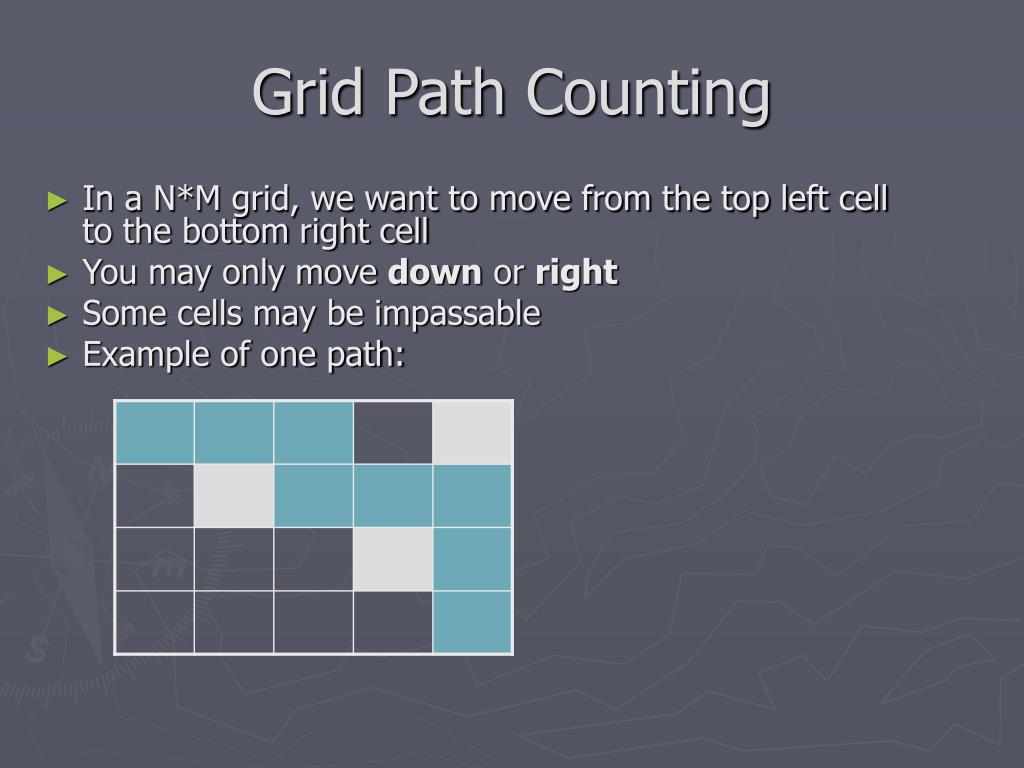

3. Grid Path Counting • In a N*M grid, we want to move from the top left cell to the bottom right cell • You may only move down or right • Some cells may be impassable • Example of one path:

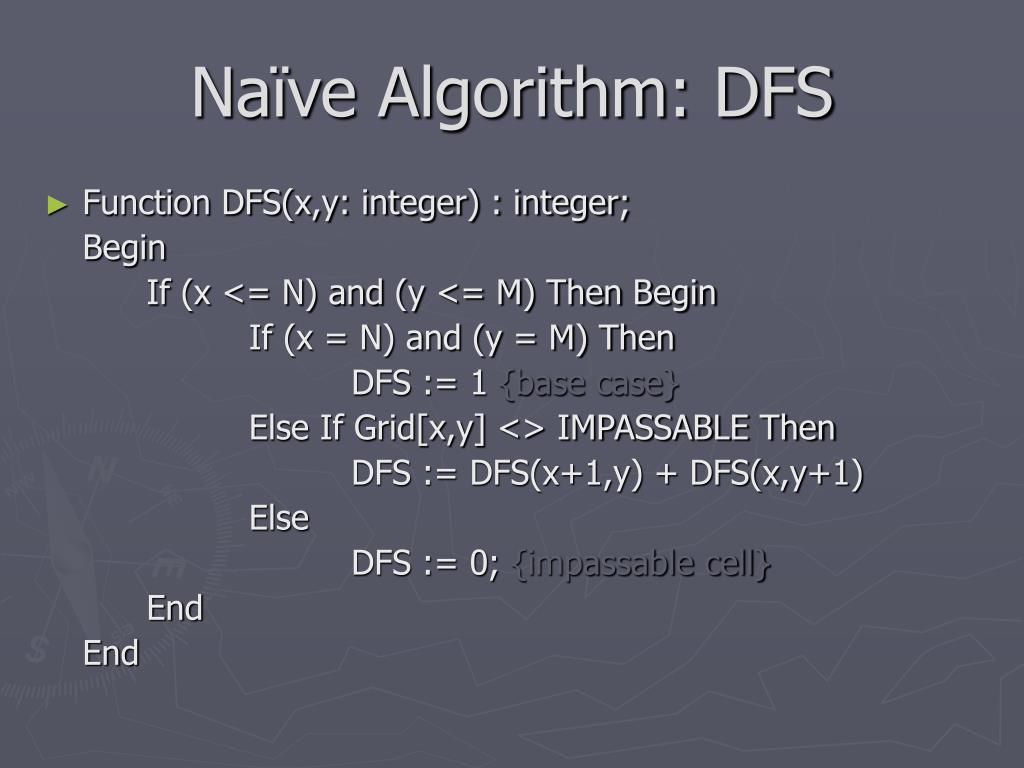

4. Naïve Algorithm: DFS • Function DFS(x,y: integer) : integer; Begin If (x <= N) and (y <= M) Then Begin If (x = N) and (y = M) Then DFS := 1 {base case} Else If Grid[x,y] <> IMPASSABLE Then DFS := DFS(x+1,y) + DFS(x,y+1) Else DFS := 0; {impassable cell} End End

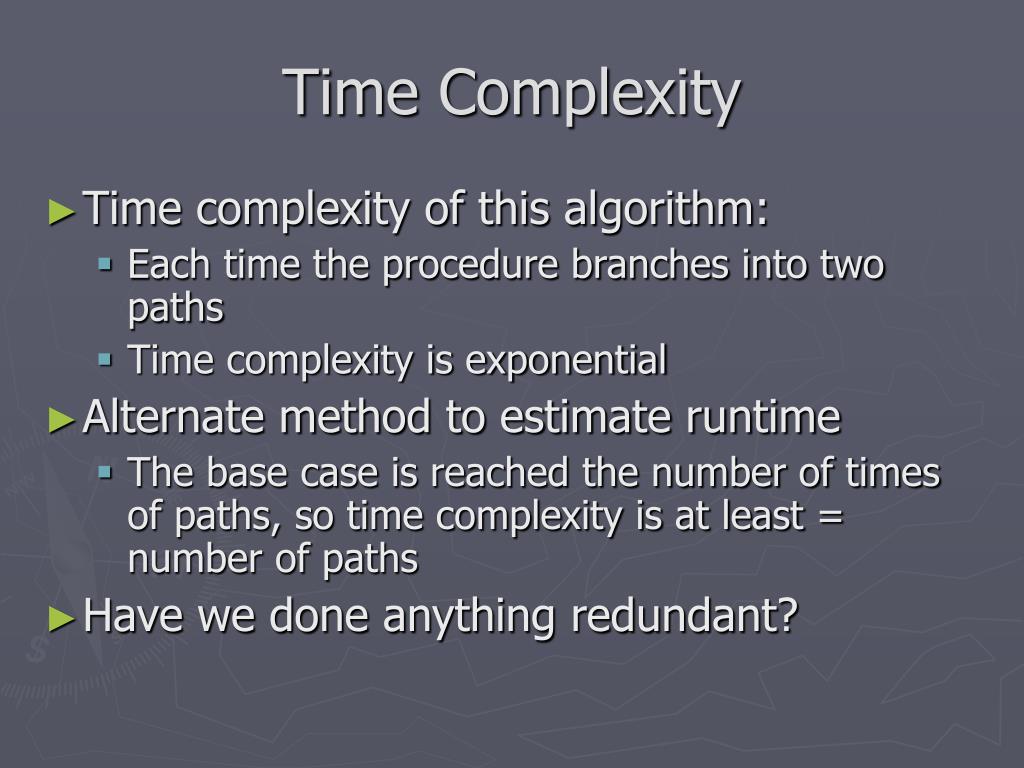

5. Time Complexity • Time complexity of this algorithm: • Each time the procedure branches into two paths • Time complexity is exponential • Alternate method to estimate runtime • The base case is reached the number of times of paths, so time complexity is at least = number of paths • Have we done anything redundant?

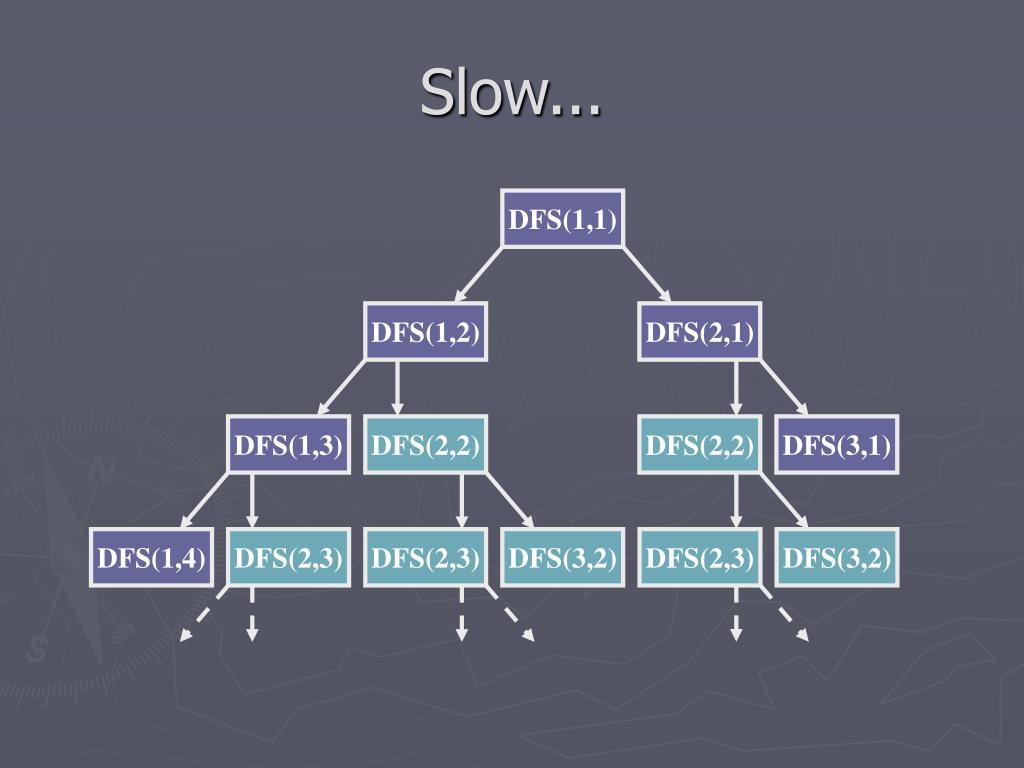

6. Slow... DFS(1,1) DFS(1,2) DFS(2,1) DFS(1,3) DFS(2,2) DFS(2,2) DFS(3,1) DFS(1,4) DFS(2,3) DFS(2,3) DFS(3,2) DFS(2,3) DFS(3,2)

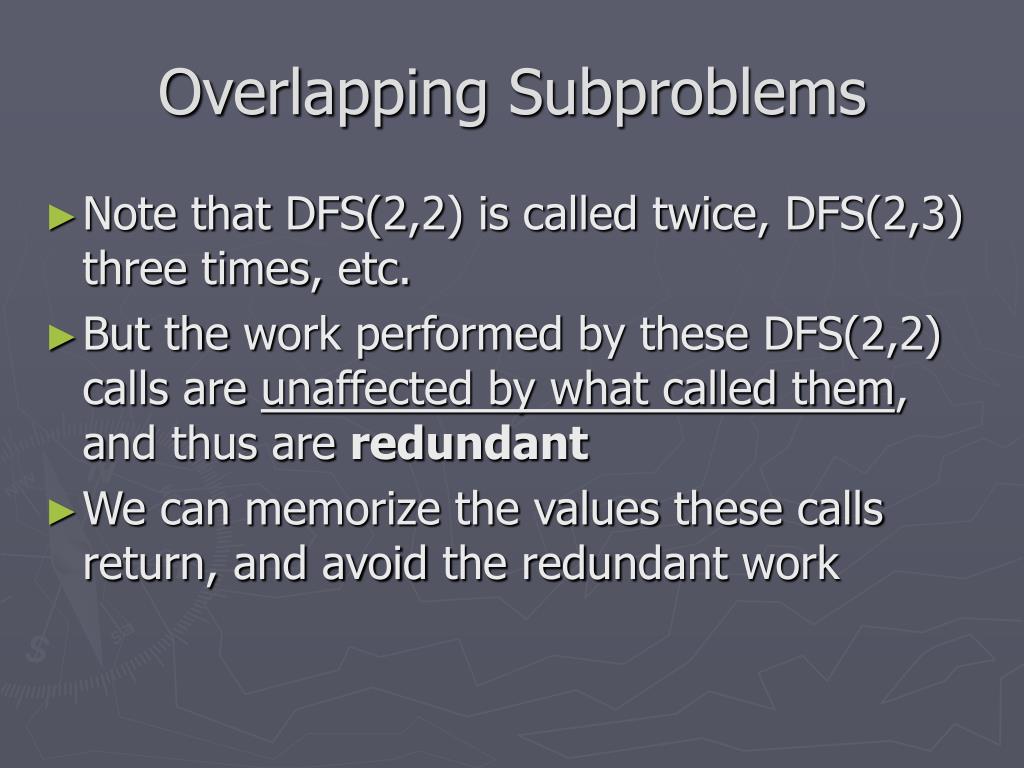

7. Overlapping Subproblems • Note that DFS(2,2) is called twice, DFS(2,3) three times, etc. • But the work performed by these DFS(2,2) calls are unaffected by what called them, and thus are redundant • We can memorize the values these calls return, and avoid the redundant work

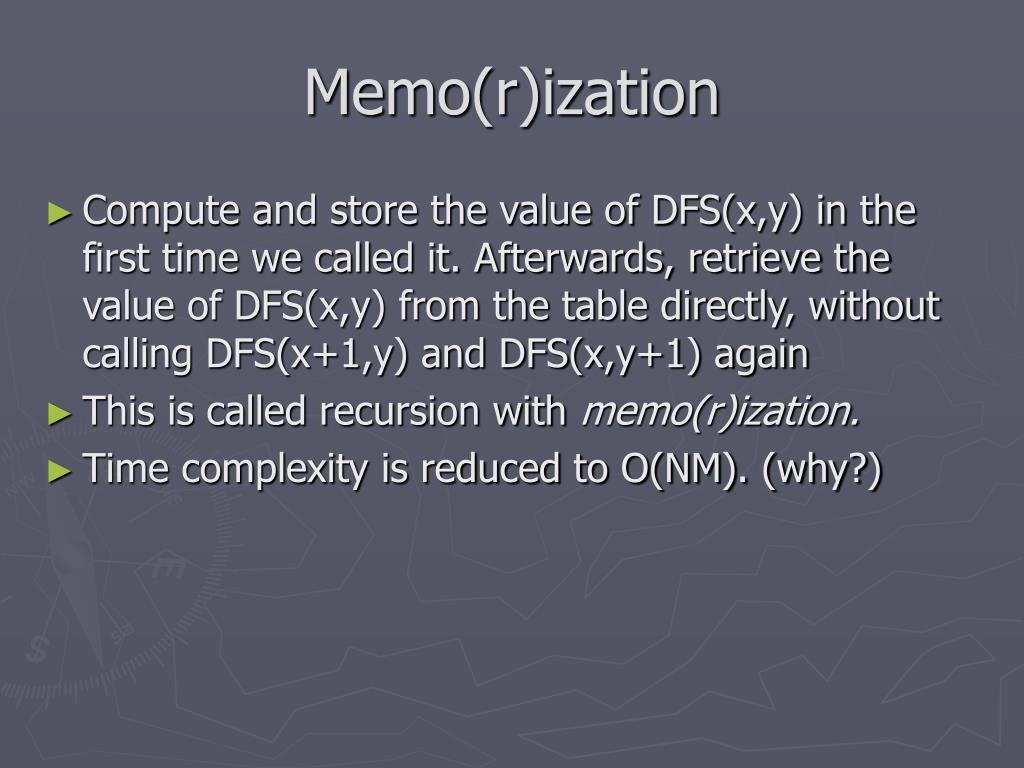

8. Memo(r)ization • Compute and store the value of DFS(x,y) in the first time we called it. Afterwards, retrieve the value of DFS(x,y) from the table directly, without calling DFS(x+1,y) and DFS(x,y+1) again • This is called recursion with memo(r)ization. • Time complexity is reduced to O(NM). (why?)

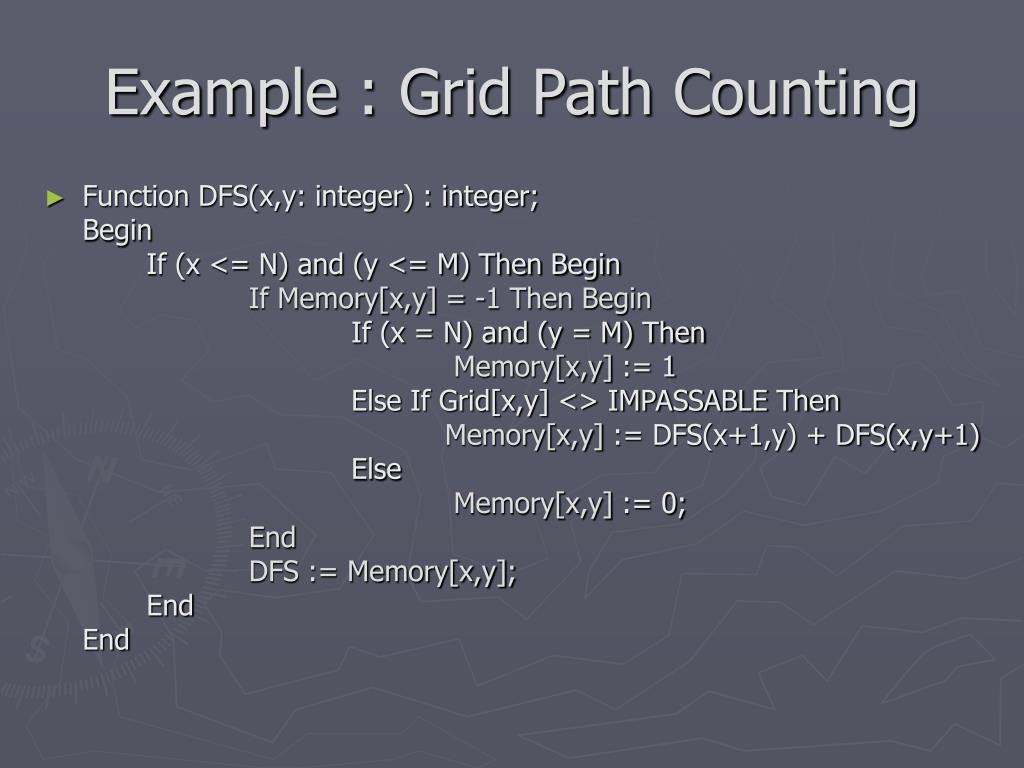

9. Example : Grid Path Counting • Function DFS(x,y: integer) : integer; Begin If (x <= N) and (y <= M) Then Begin If Memory[x,y] = -1 Then Begin If (x = N) and (y = M) Then Memory[x,y] := 1 Else If Grid[x,y] <> IMPASSABLE Then Memory[x,y] := DFS(x+1,y) + DFS(x,y+1) Else Memory[x,y] := 0; End DFS := Memory[x,y]; End End

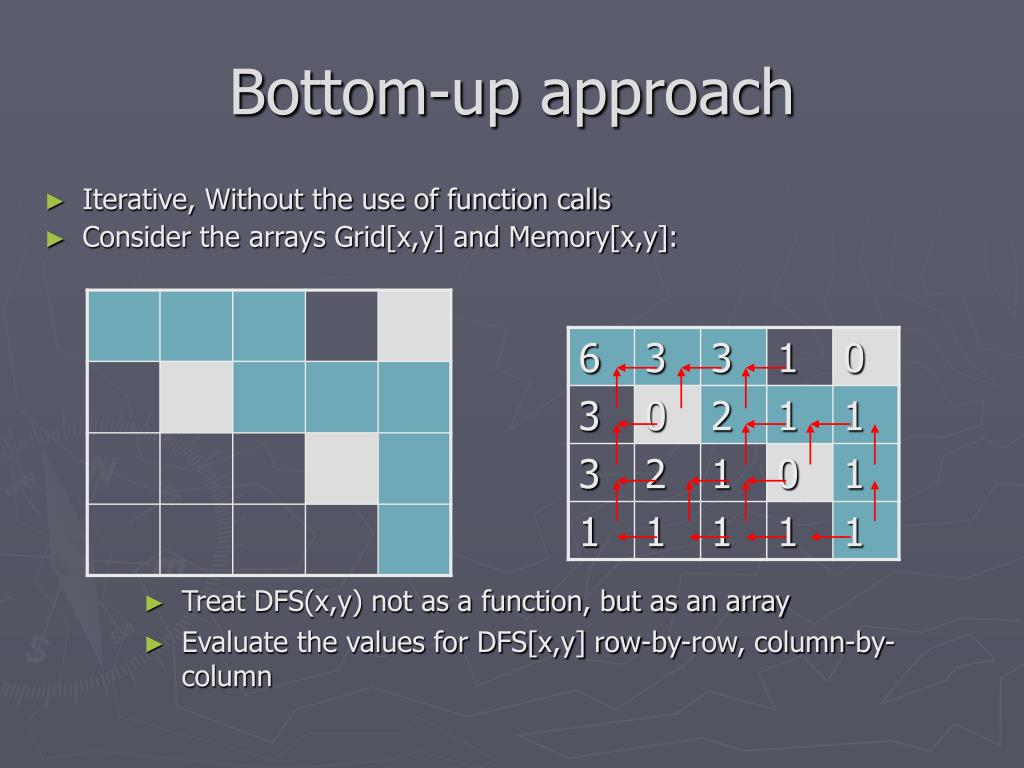

10. Bottom-up approach • Iterative, Without the use of function calls • Consider the arrays Grid[x,y] and Memory[x,y]: • Treat DFS(x,y) not as a function, but as an array • Evaluate the values for DFS[x,y] row-by-row, column-by-column

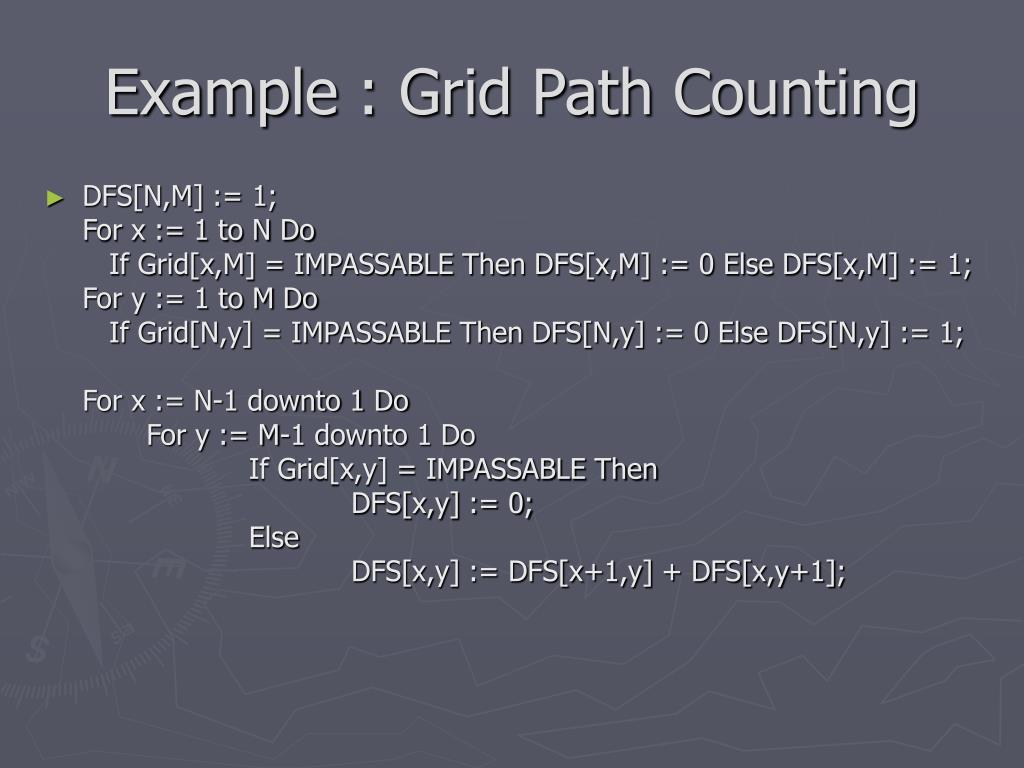

11. Example : Grid Path Counting • DFS[N,M] := 1; For x := 1 to N Do If Grid[x,M] = IMPASSABLE Then DFS[x,M] := 0 Else DFS[x,M] := 1; For y := 1 to M Do If Grid[N,y] = IMPASSABLE Then DFS[N,y] := 0 Else DFS[N,y] := 1; For x := N-1 downto 1 Do For y := M-1 downto 1 Do If Grid[x,y] = IMPASSABLE Then DFS[x,y] := 0; Else DFS[x,y] := DFS[x+1,y] + DFS[x,y+1];

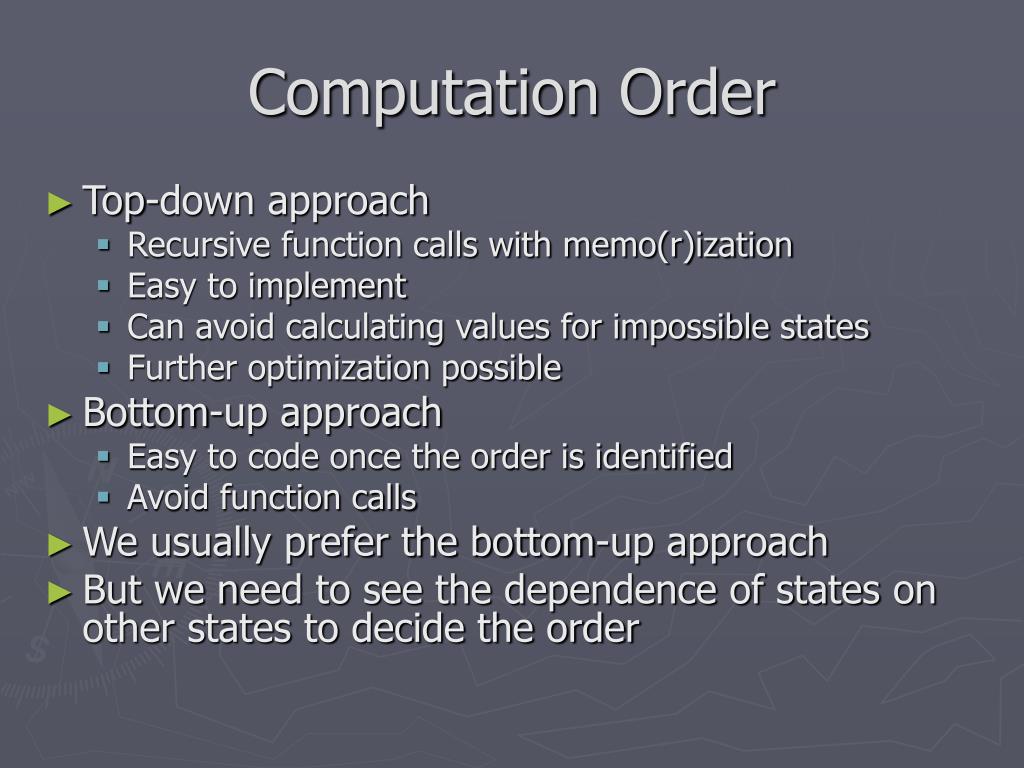

12. Computation Order • Top-down approach • Recursive function calls with memo(r)ization • Easy to implement • Can avoid calculating values for impossible states • Further optimization possible • Bottom-up approach • Easy to code once the order is identified • Avoid function calls • We usually prefer the bottom-up approach • But we need to see the dependence of states on other states to decide the order

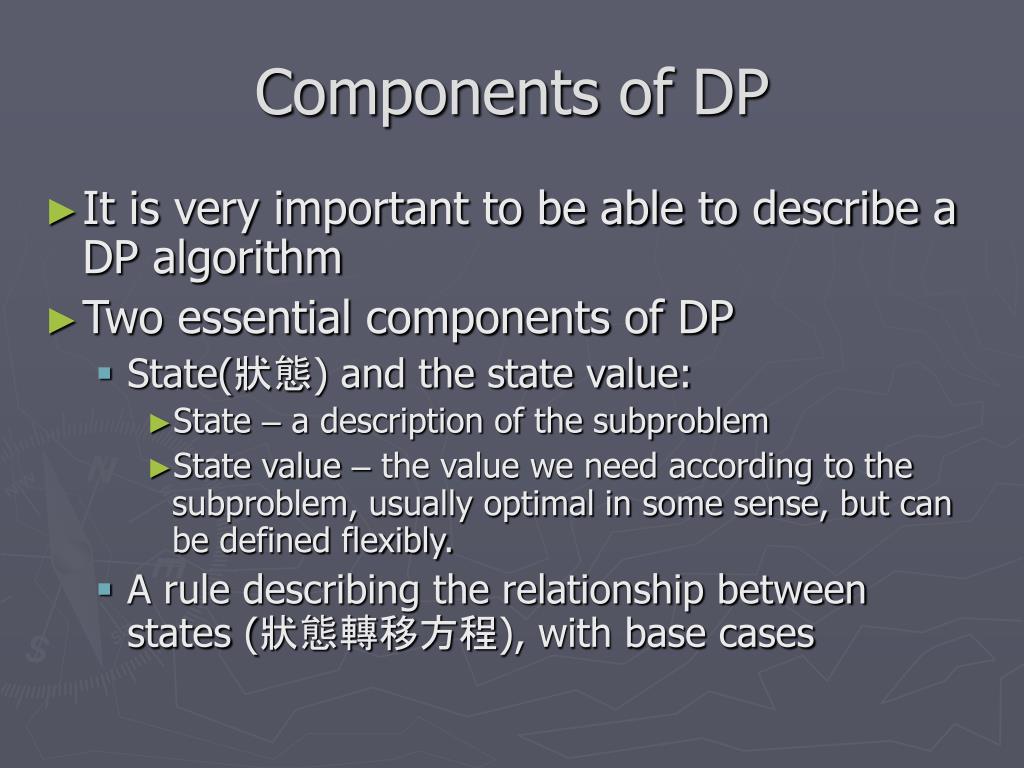

13. Components of DP • It is very important to be able to describe a DP algorithm • Two essential components of DP • State(狀態) and the state value: • State – a description of the subproblem • State value – the value we need according to the subproblem, usually optimal in some sense, but can be defined flexibly. • A rule describing the relationship between states (狀態轉移方程), with base cases

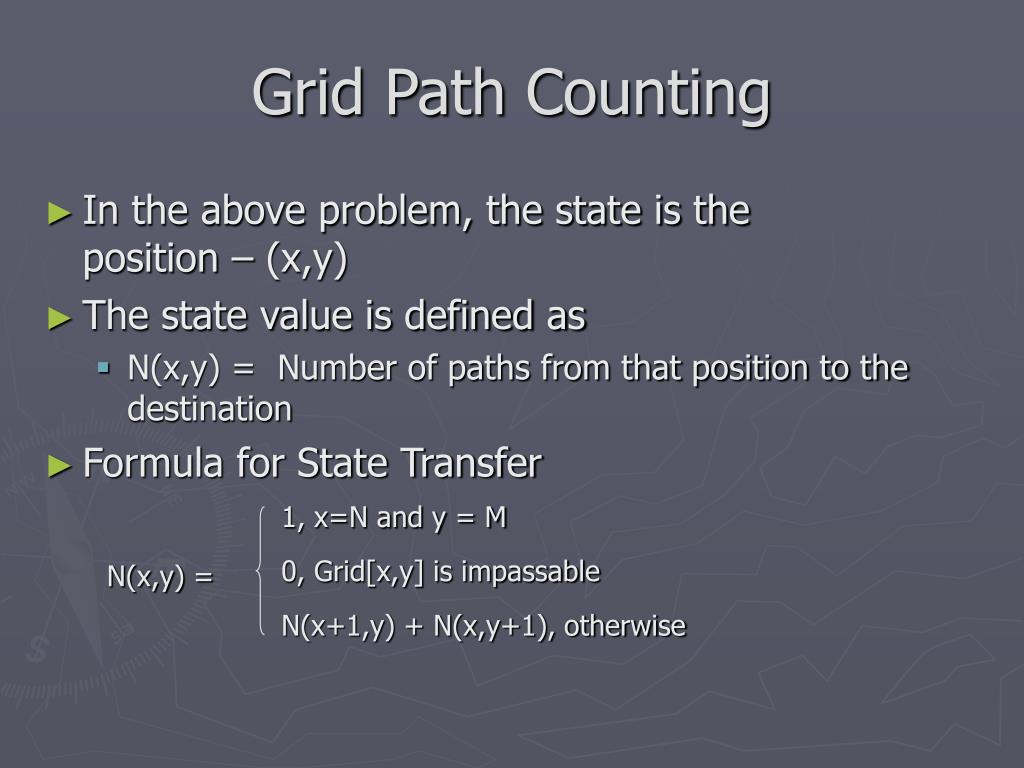

14. Grid Path Counting • In the above problem, the state is the position – (x,y) • The state value is defined as • N(x,y) = Number of paths from that position to the destination • Formula for State Transfer

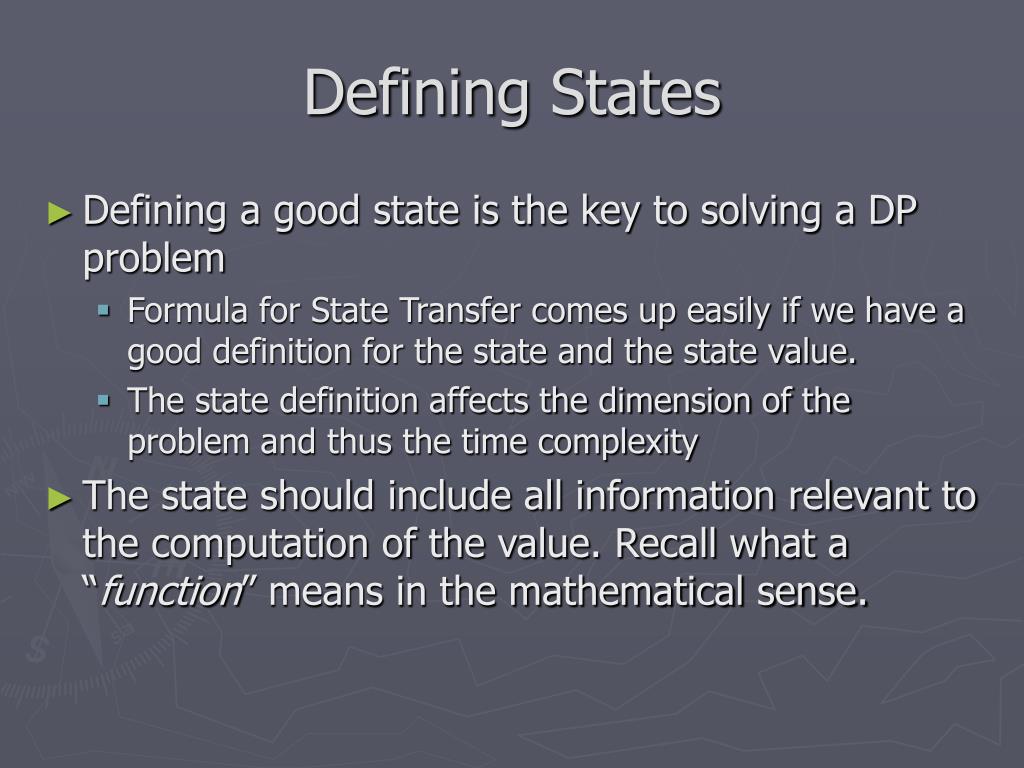

15. Defining States • Defining a good state is the key to solving a DP problem • Formula for State Transfer comes up easily if we have a good definition for the state and the state value. • The state definition affects the dimension of the problem and thus the time complexity • The state should include all information relevant to the computation of the value. Recall what a “function” means in the mathematical sense.

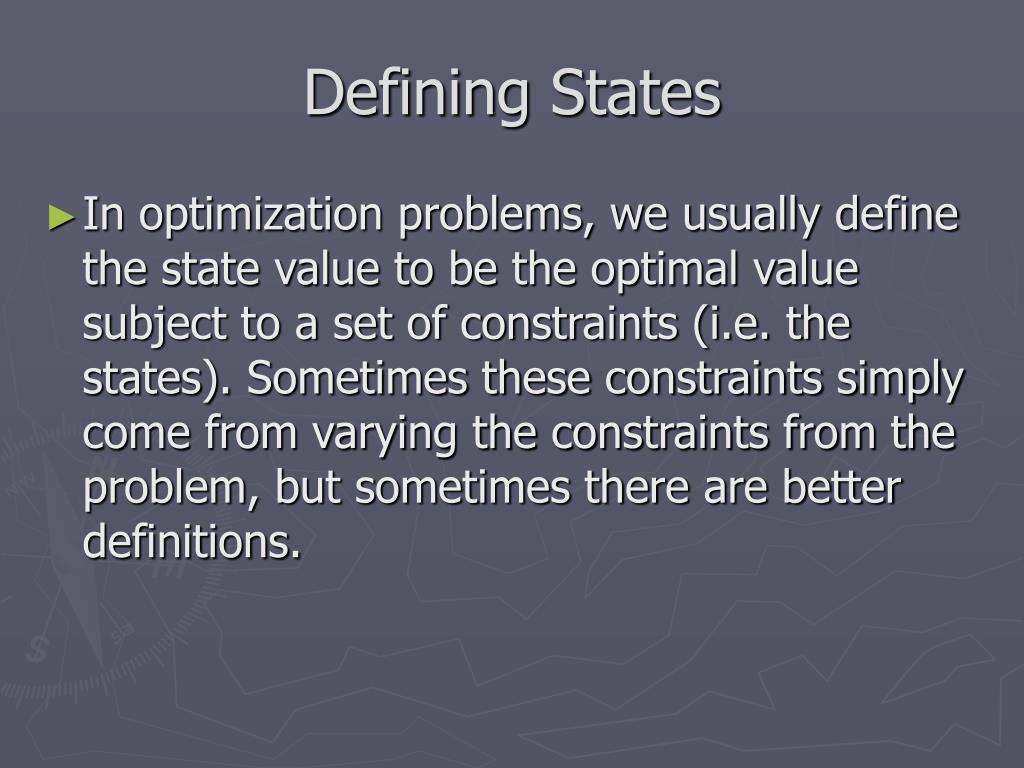

16. Defining States • In optimization problems, we usually define the state value to be the optimal value subject to a set of constraints (i.e. the states). Sometimes these constraints simply come from varying the constraints from the problem, but sometimes there are better definitions.

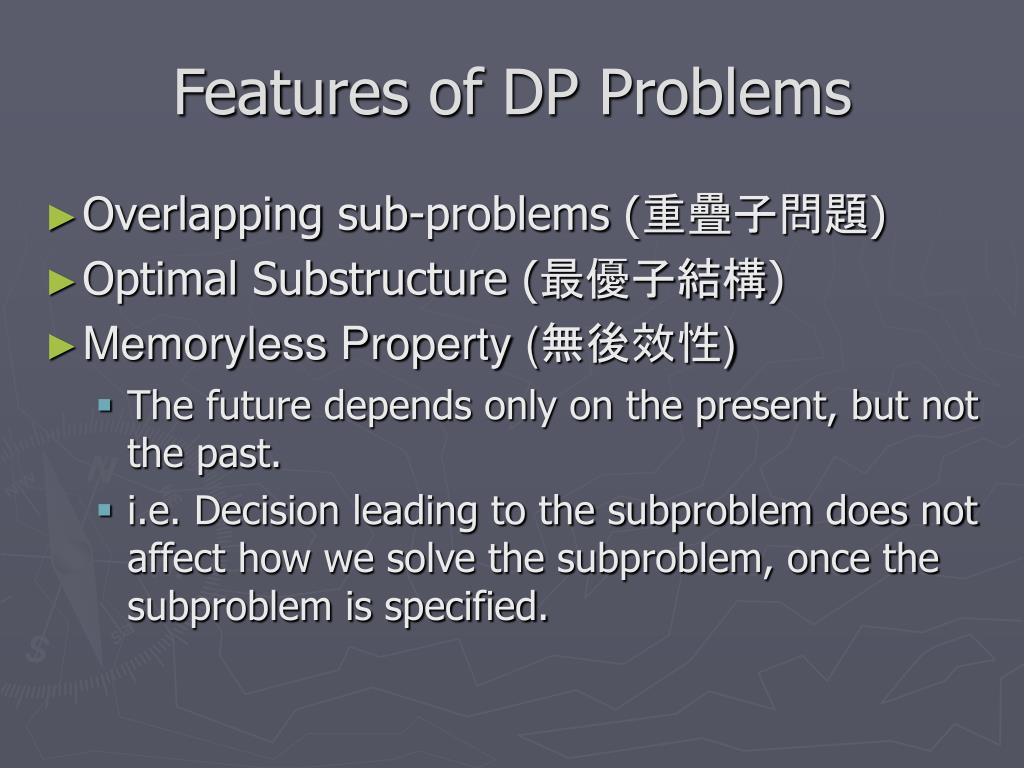

17. Features of DP Problems • Overlapping sub-problems (重疊子問題) • Optimal Substructure (最優子結構) • Memoryless Property (無後效性) • The future depends only on the present, but not the past. • i.e. Decision leading to the subproblem does not affect how we solve the subproblem, once the subproblem is specified.

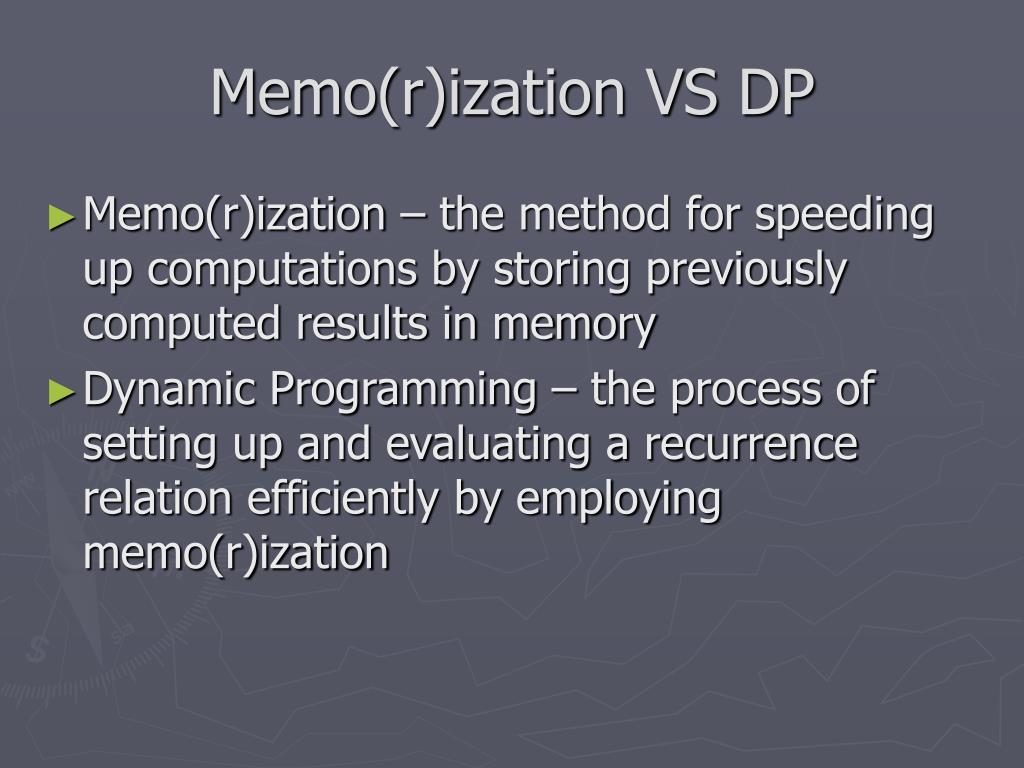

18. Memo(r)ization VS DP • Memo(r)ization – the method for speeding up computations by storing previously computed results in memory • Dynamic Programming – the process of setting up and evaluating a recurrence relation efficiently by employing memo(r)ization

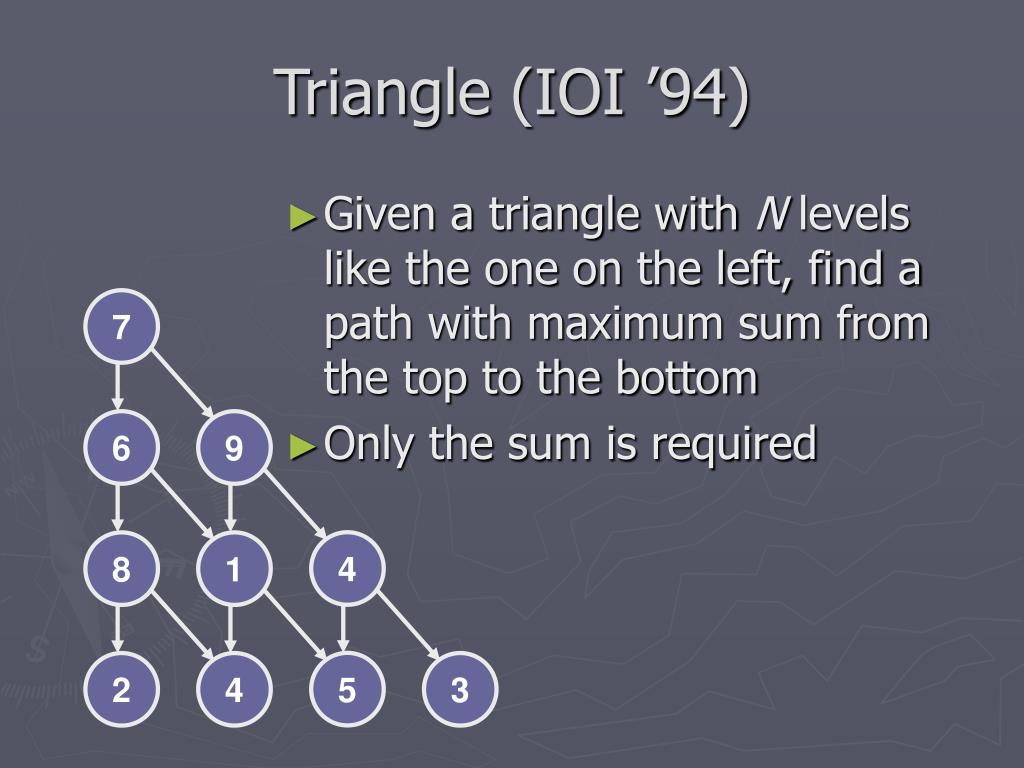

19. 7 6 9 4 8 1 5 2 4 3 Triangle (IOI ’94) • Given a triangle with N levels like the one on the left, find a path with maximum sum from the top to the bottom • Only the sum is required

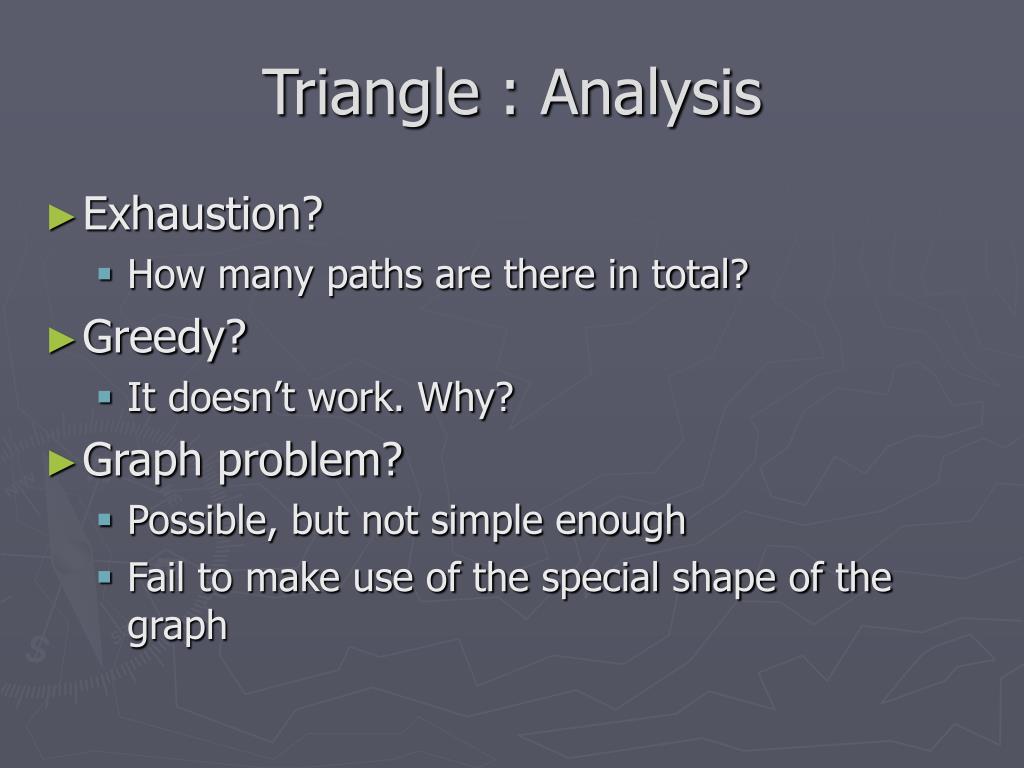

20. Triangle : Analysis • Exhaustion? • How many paths are there in total? • Greedy? • It doesn’t work. Why? • Graph problem? • Possible, but not simple enough • Fail to make use of the special shape of the graph

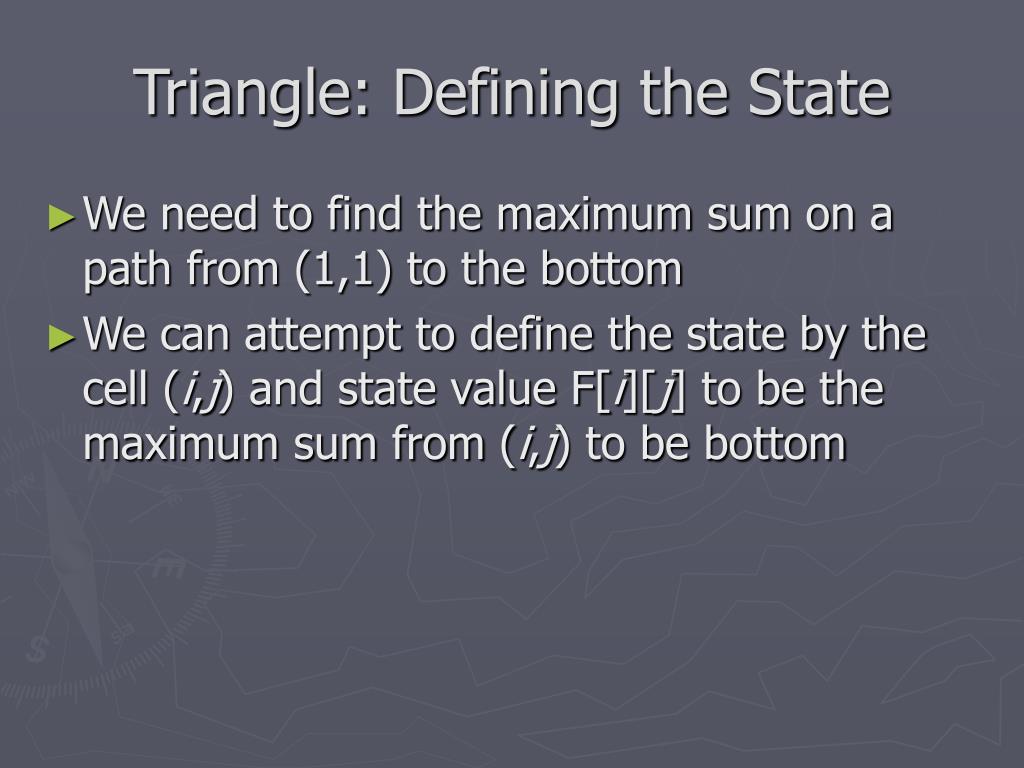

21. Triangle: Defining the State • We need to find the maximum sum on a path from (1,1) to the bottom • We can attempt to define the state by the cell (i,j) and state value F[i][j] to be the maximum sum from (i,j) to be bottom

22. Triangle: Formulation • Let A[i][j] denote the number in the i-th row and j-th column, (i, j) • Let F[i][j] denote the maximum sum of the numbers on a path from the bottom to (i, j) • Answer = F[1][1] • The problem exhibits optimal substructure here

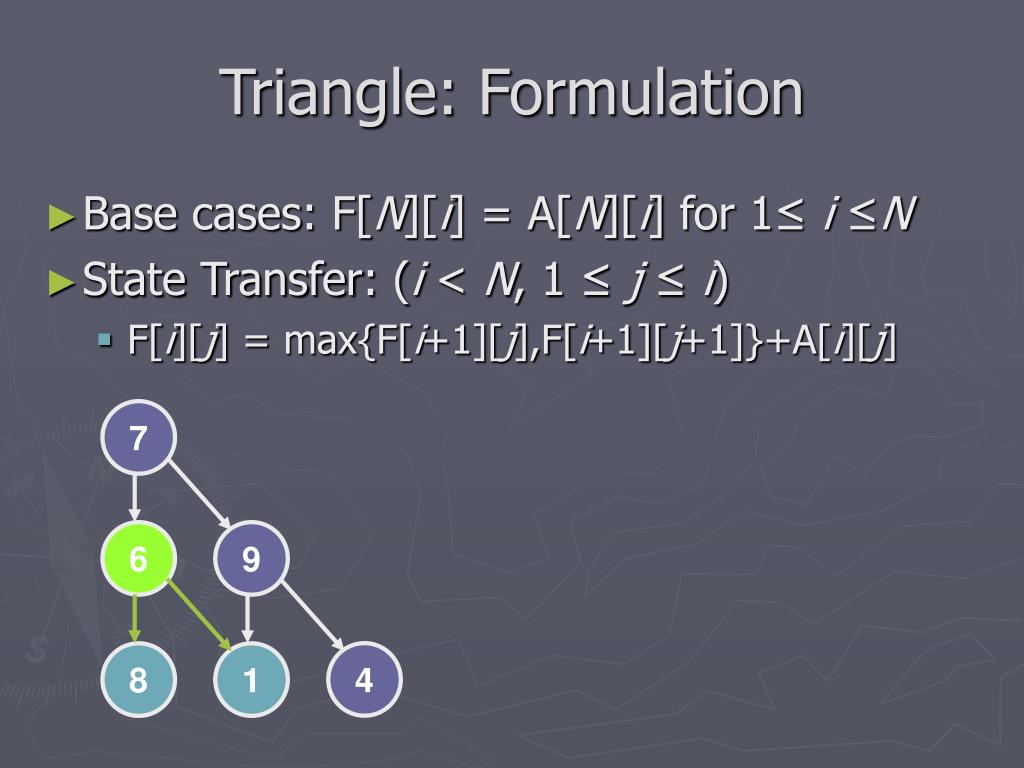

23. 7 6 9 4 8 1 Triangle: Formulation • Base cases: F[N][i] = A[N][i] for 1≤ i≤N • State Transfer: (i<N, 1 ≤j≤i) • F[i][j] = max{F[i+1][j],F[i+1][j+1]}+A[i][j]

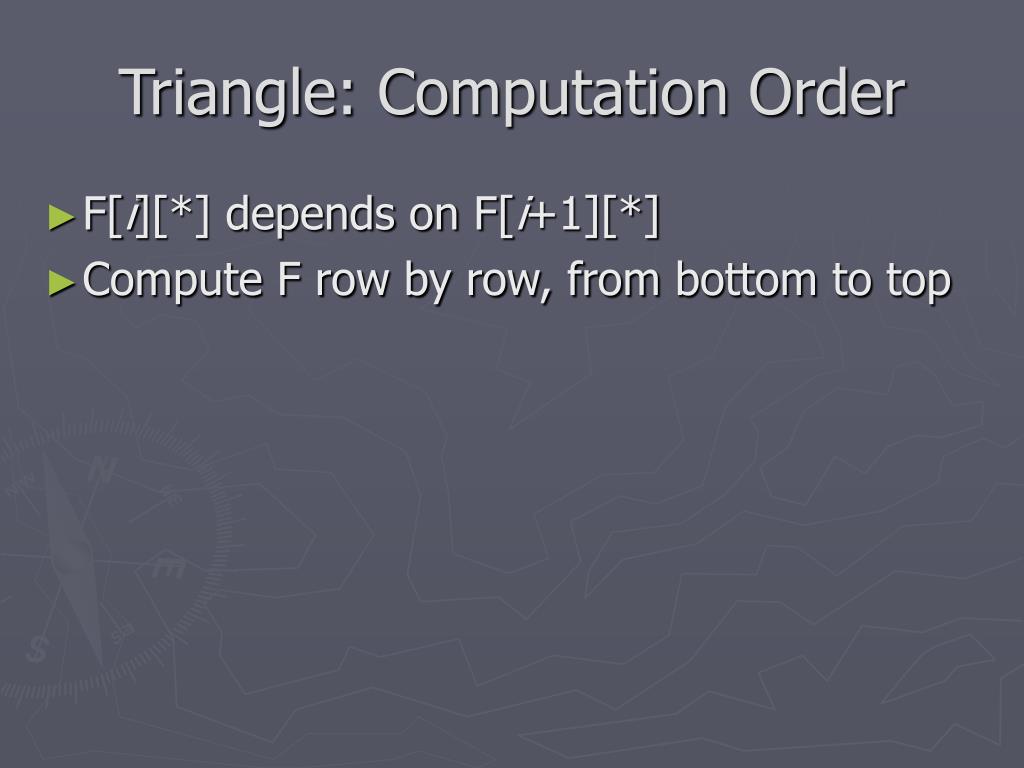

24. Triangle: Computation Order • F[i][*] depends on F[i+1][*] • Compute F row by row, from bottom to top

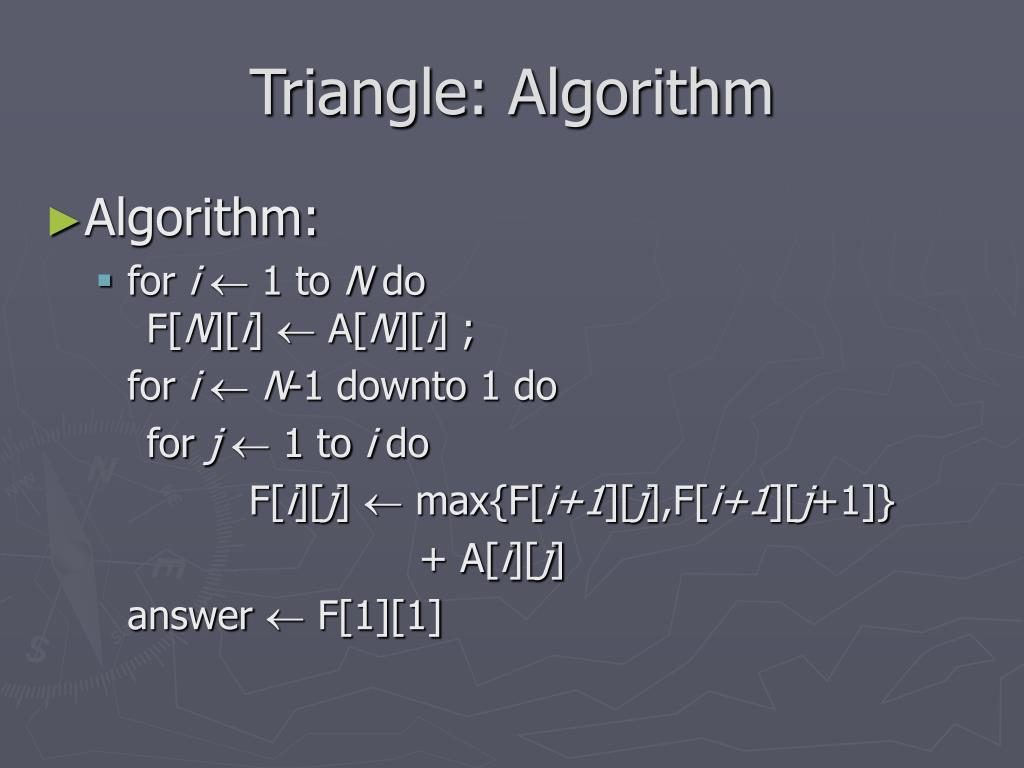

25. Triangle: Algorithm • Algorithm: • for i 1 to N doF[N][i]  A[N][i] ; for i N-1downto 1 do for j 1 to i do F[i][j]  max{F[i+1][j],F[i+1][j+1]} + A[i][j] answer  F[1][1]

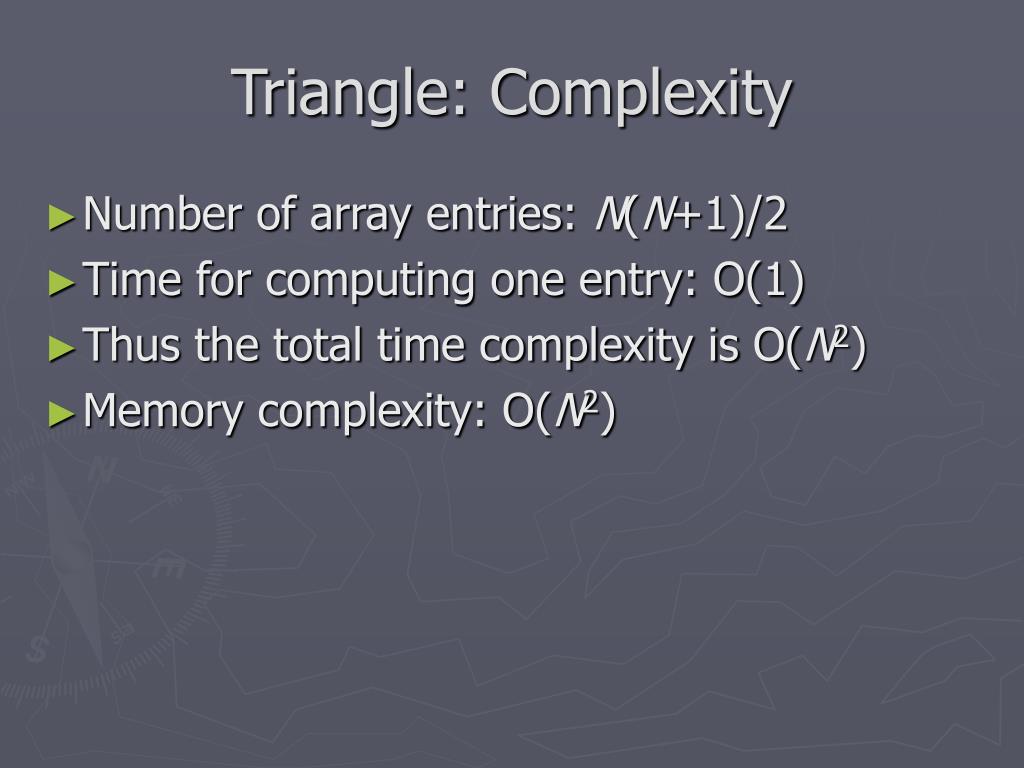

26. Triangle: Complexity • Number of array entries: N(N+1)/2 • Time for computing one entry: O(1) • Thus the total time complexity is O(N2) • Memory complexity: O(N2)

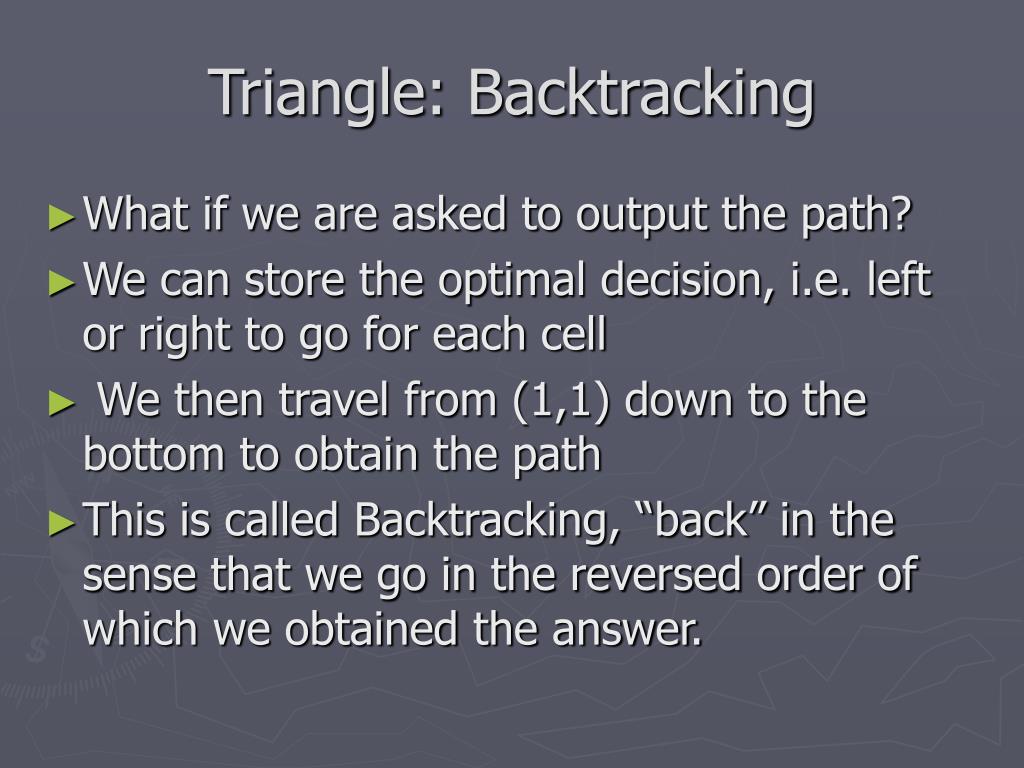

27. Triangle: Backtracking • What if we are asked to output the path? • We can store the optimal decision, i.e. left or right to go for each cell • We then travel from (1,1) down to the bottom to obtain the path • This is called Backtracking, “back” in the sense that we go in the reversed order of which we obtained the answer.

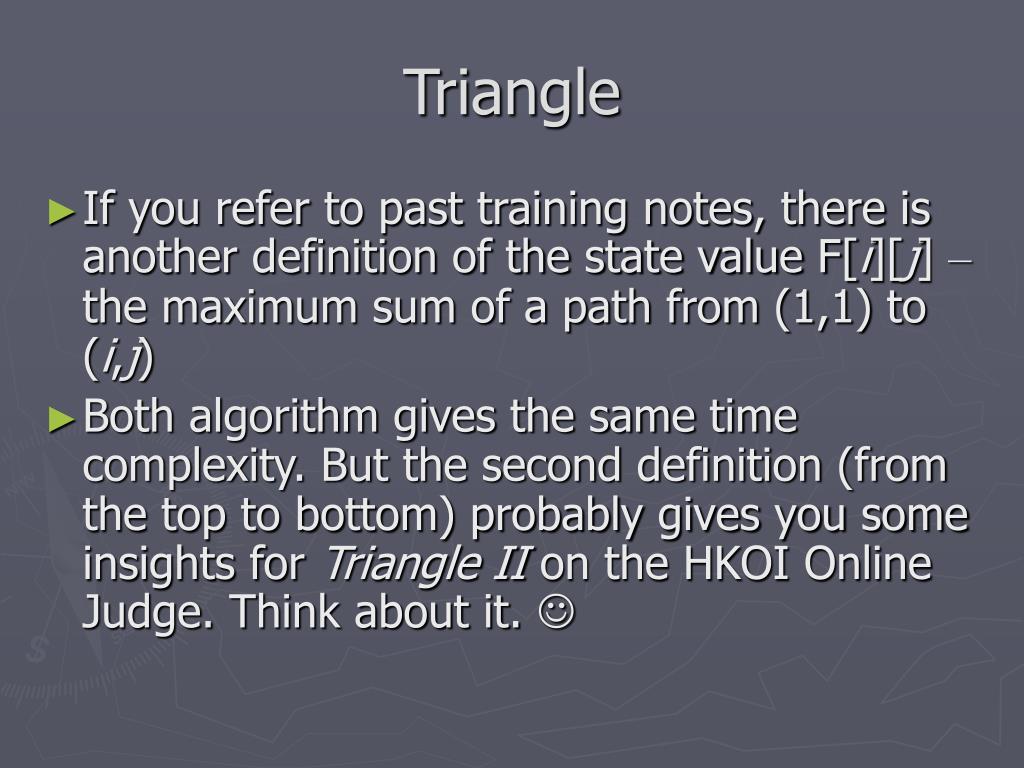

28. Triangle • If you refer to past training notes, there is another definition of the state value F[i][j] – the maximum sum of a path from (1,1) to (i,j) • Both algorithm gives the same time complexity. But the second definition (from the top to bottom) probably gives you some insights for Triangle II on the HKOI Online Judge. Think about it. 

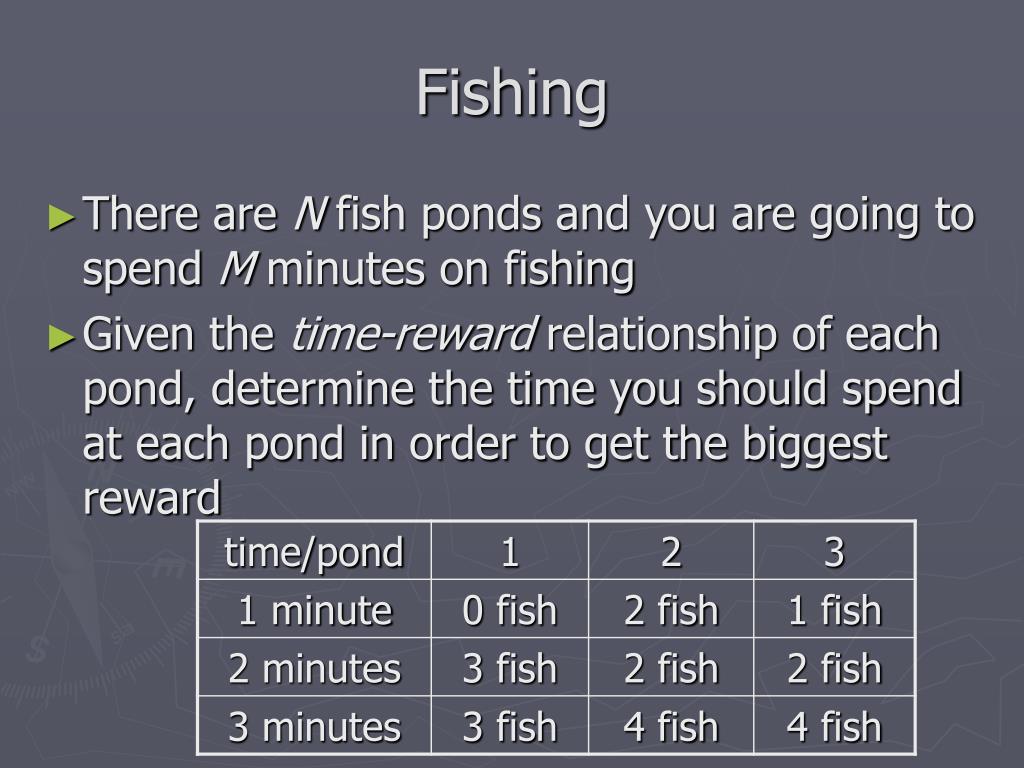

29. Fishing • There are N fish ponds and you are going to spend M minutes on fishing • Given the time-reward relationship of each pond, determine the time you should spend at each pond in order to get the biggest reward

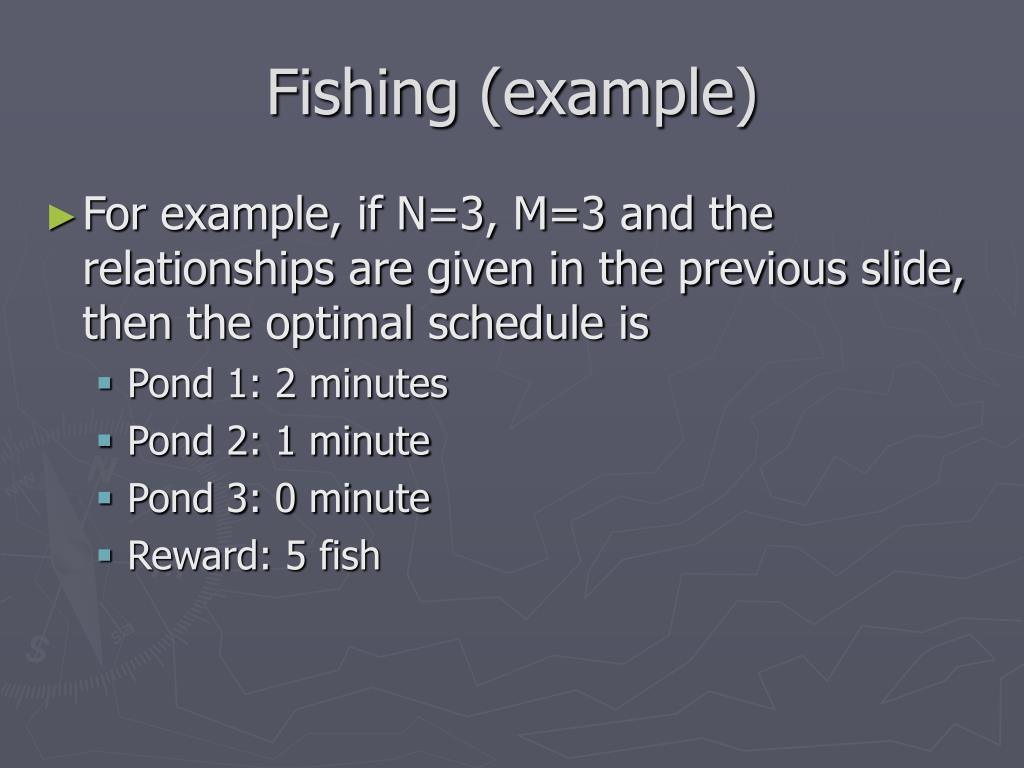

30. Fishing (example) • For example, if N=3, M=3 and the relationships are given in the previous slide, then the optimal schedule is • Pond 1: 2 minutes • Pond 2: 1 minute • Pond 3: 0 minute • Reward: 5 fish

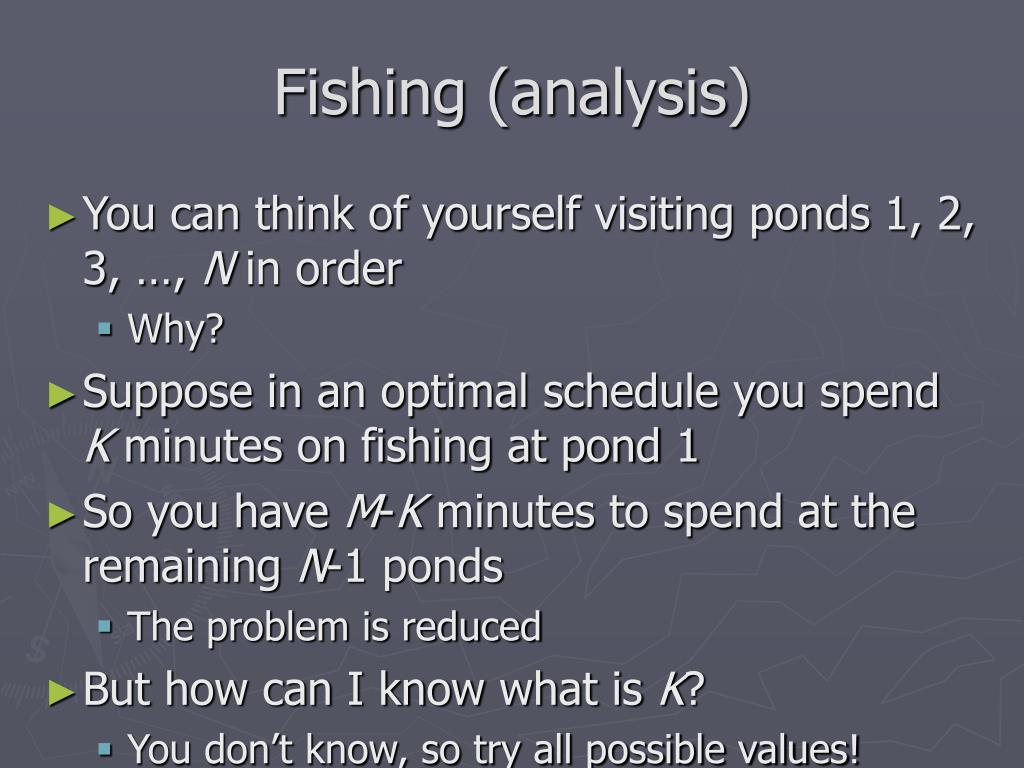

31. Fishing (analysis) • You can think of yourself visiting ponds 1, 2, 3, …, N in order • Why? • Suppose in an optimal schedule you spend K minutes on fishing at pond 1 • So you have M-K minutes to spend at the remaining N-1 ponds • The problem is reduced • But how can I know what is K? • You don’t know, so try all possible values!

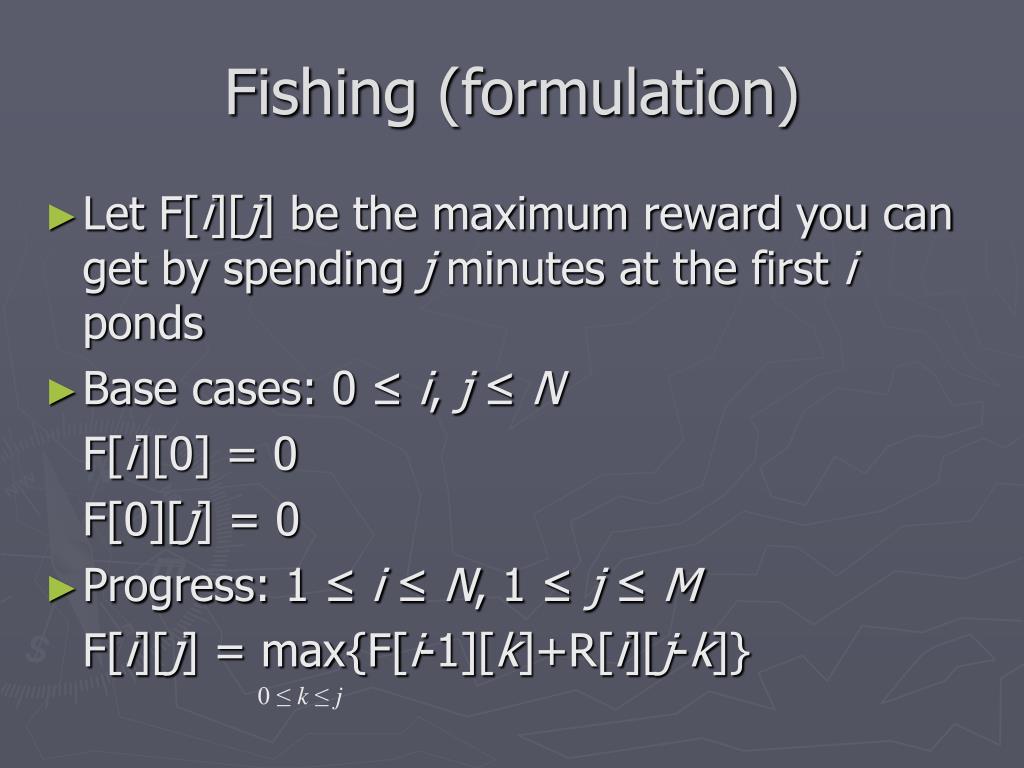

32. Fishing (formulation) • Let F[i][j] be the maximum reward you can get by spending j minutes at the first i ponds • Base cases: 0 ≤ i, j ≤ N F[i][0] = 0 F[0][j] = 0 • Progress: 1 ≤ i ≤ N, 1 ≤ j ≤ M F[i][j] = max{F[i-1][k]+R[i][j-k]} 0 ≤ k ≤ j

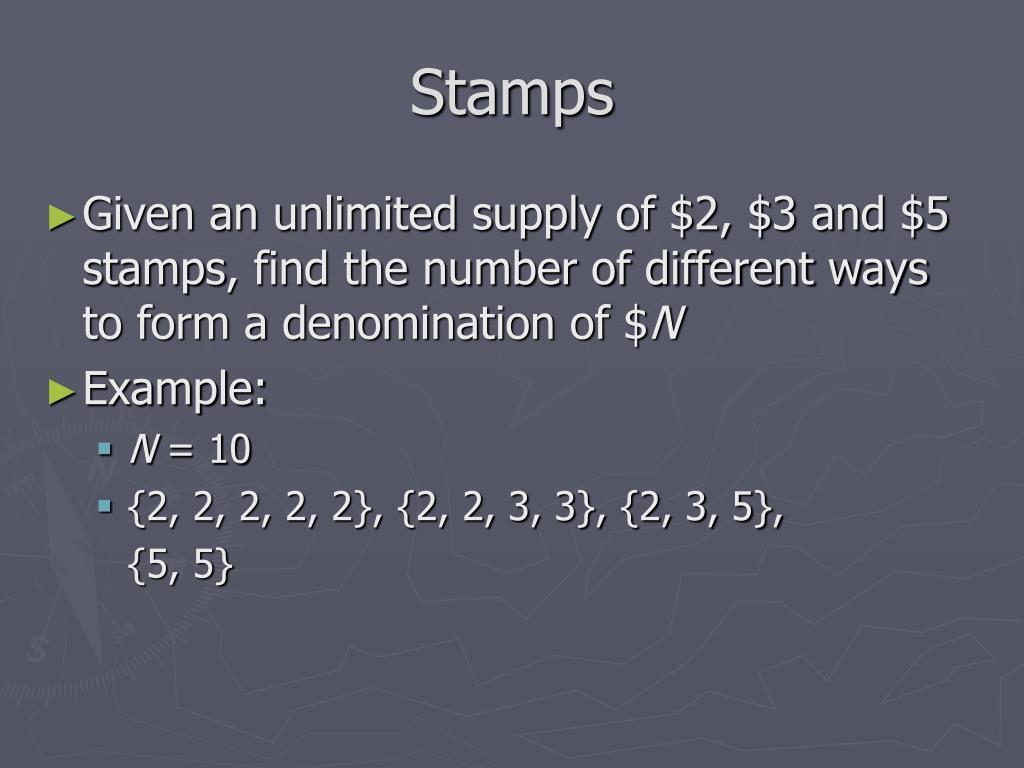

33. Stamps • Given an unlimited supply of $2, $3 and $5 stamps, find the number of different ways to form a denomination of $N • Example: • N = 10 • {2, 2, 2, 2, 2}, {2, 2, 3, 3}, {2, 3, 5}, {5, 5}

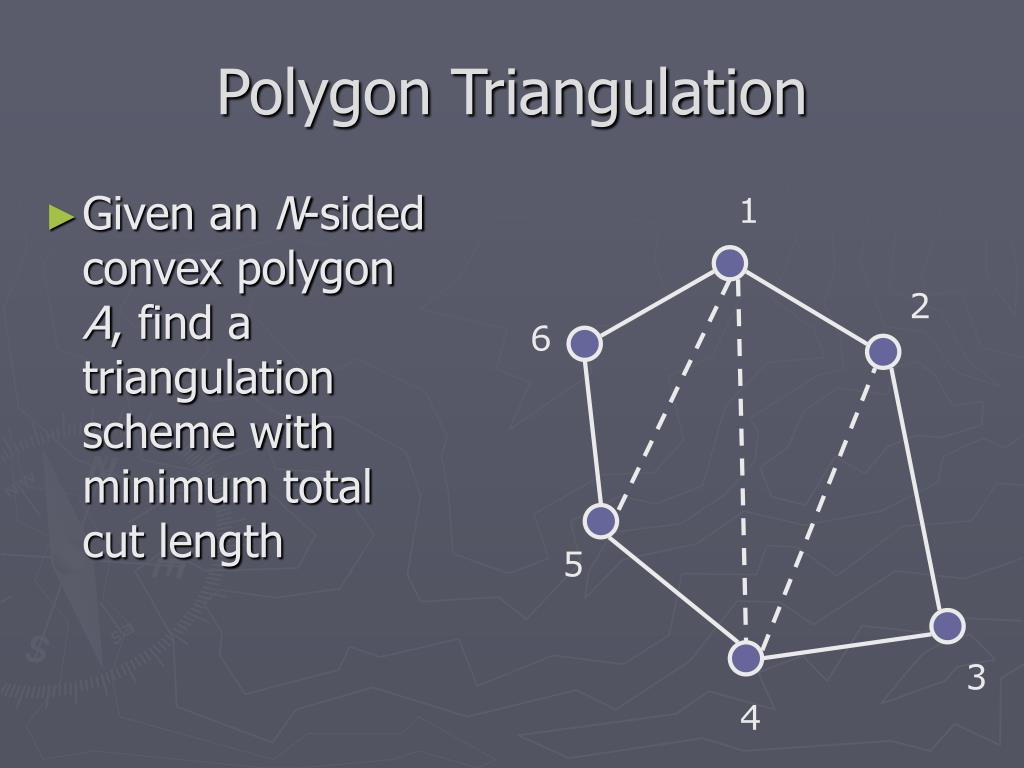

34. 1 2 6 5 3 4 Polygon Triangulation • Given an N-sided convex polygon A, find a triangulation scheme with minimum total cut length

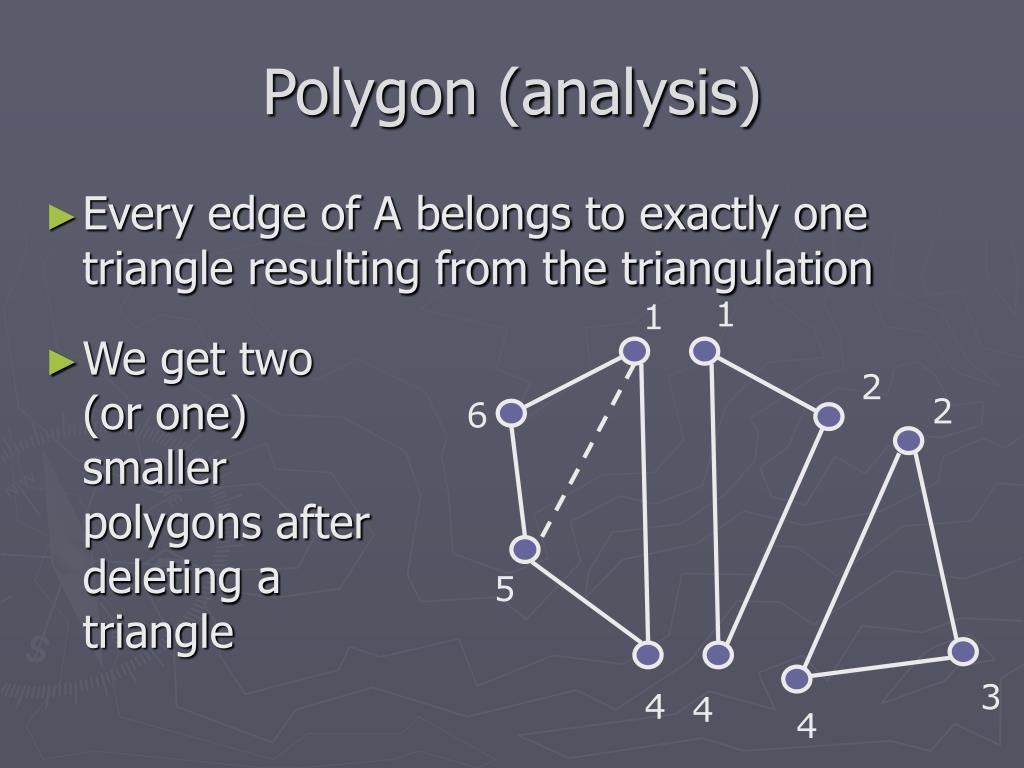

35. 1 1 2 2 6 5 3 4 4 4 Polygon (analysis) • Every edge of A belongs to exactly one triangle resulting from the triangulation • We get two (or one) smaller polygons after deleting a triangle

36. A C B Polygon (analysis) • The order of cutting does not matter • Optimal substructure • If the cutting scheme for A is optimal, then the cutting schemes for B and C must also be optimal

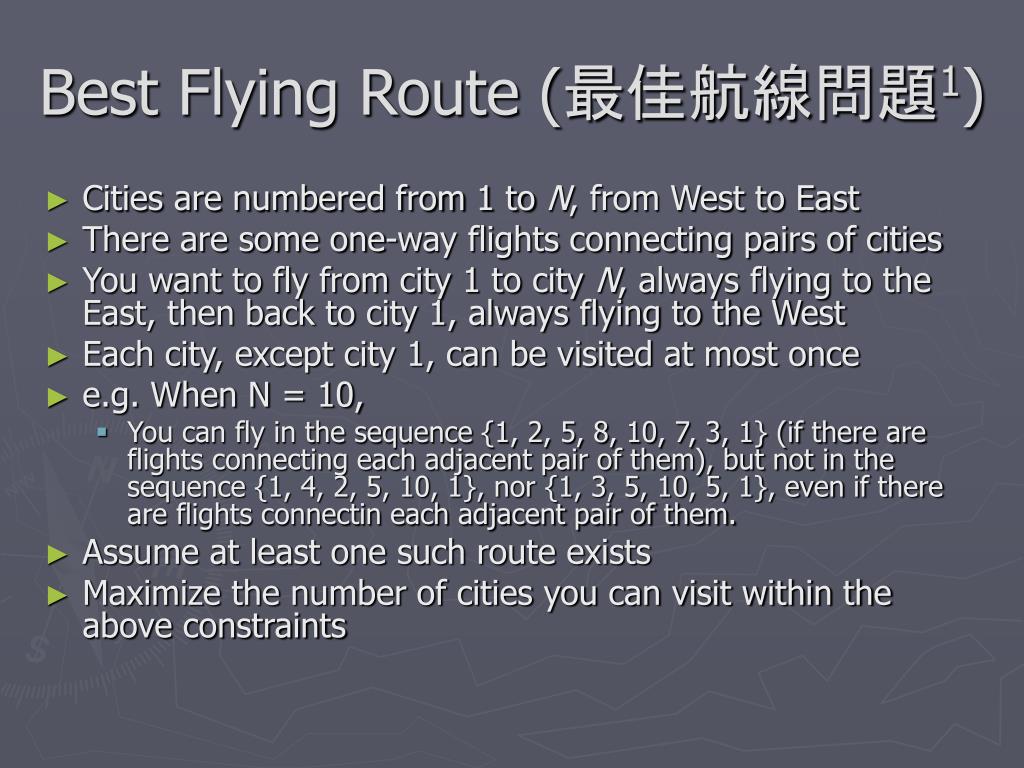

37. Best Flying Route (最佳航線問題1) • Cities are numbered from 1 to N, from West to East • There are some one-way flights connecting pairs of cities • You want to fly from city 1 to city N, always flying to the East, then back to city 1, always flying to the West • Each city, except city 1, can be visited at most once • e.g. When N = 10, • You can fly in the sequence {1, 2, 5, 8, 10, 7, 3, 1} (if there are flights connecting each adjacent pair of them), but not in the sequence {1, 4, 2, 5, 10, 1}, nor {1, 3, 5, 10, 5, 1}, even if there are flights connectin each adjacent pair of them. • Assume at least one such route exists • Maximize the number of cities you can visit within the above constraints

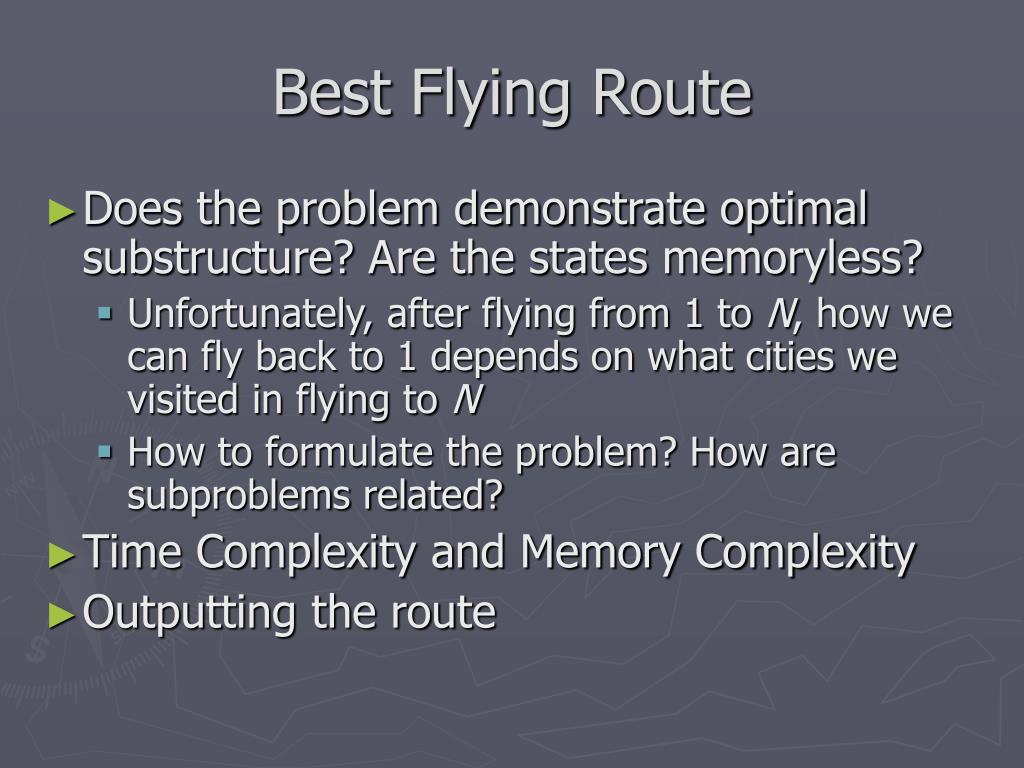

38. Best Flying Route • Does the problem demonstrate optimal substructure? Are the states memoryless? • Unfortunately, after flying from 1 to N, how we can fly back to 1 depends on what cities we visited in flying to N • How to formulate the problem? How are subproblems related? • Time Complexity and Memory Complexity • Outputting the route

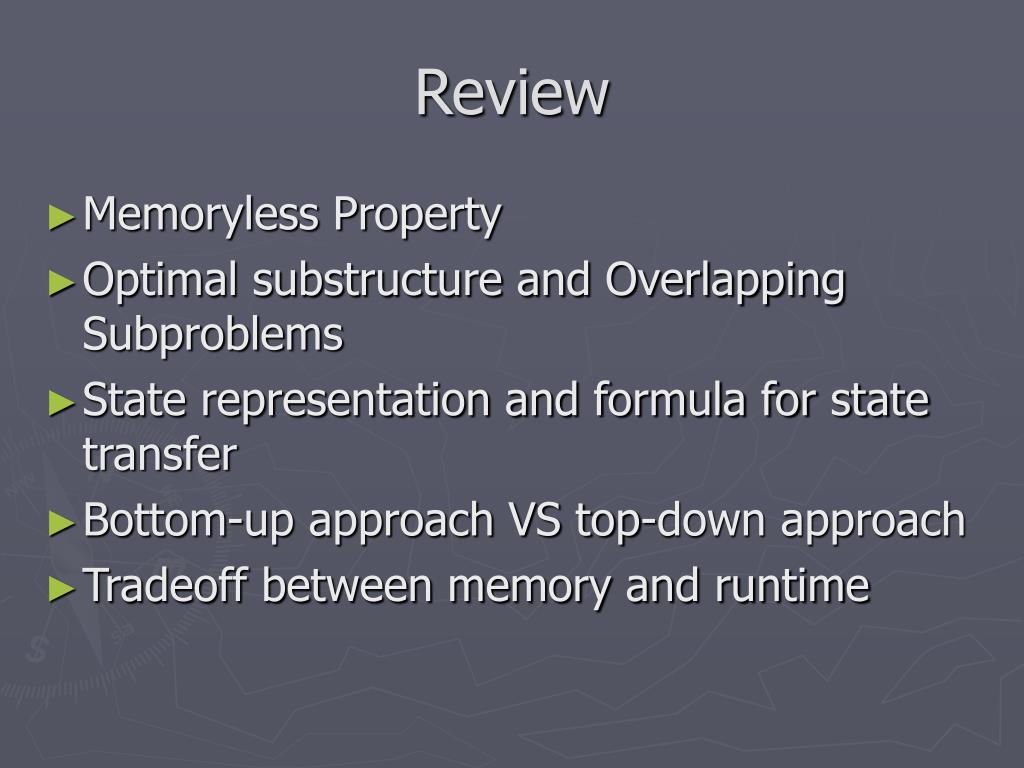

39. Review • Memoryless Property • Optimal substructure and Overlapping Subproblems • State representation and formula for state transfer • Bottom-up approach VS top-down approach • Tradeoff between memory and runtime

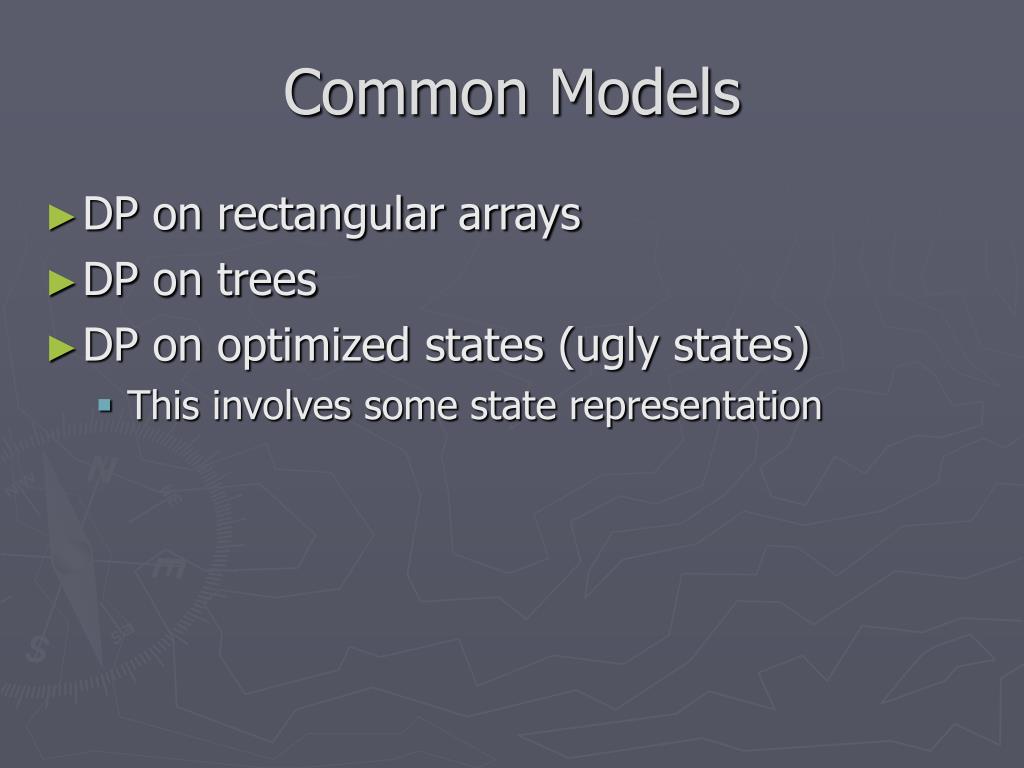

40. Common Models • DP on rectangular arrays • DP on trees • DP on optimized states (ugly states) • This involves some state representation

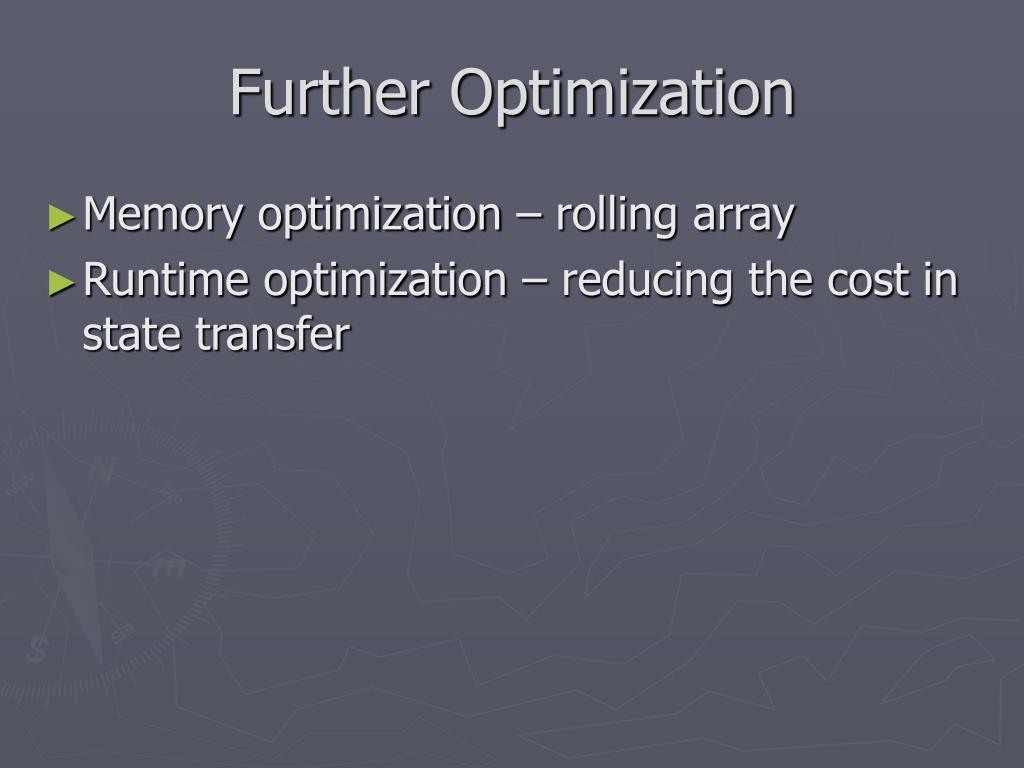

41. Further Optimization • Memory optimization – rolling array • Runtime optimization – reducing the cost in state transfer

42. Challenge: The Bookcase • N books with their height hi and thickness ti • You are required to make a bookcase with three (nonempty) shelves • You would like to minimize the area of the bookcase: • the sum of the heights of the three shelves multiplied by the maximum of the sum of thickness in each of the shelves

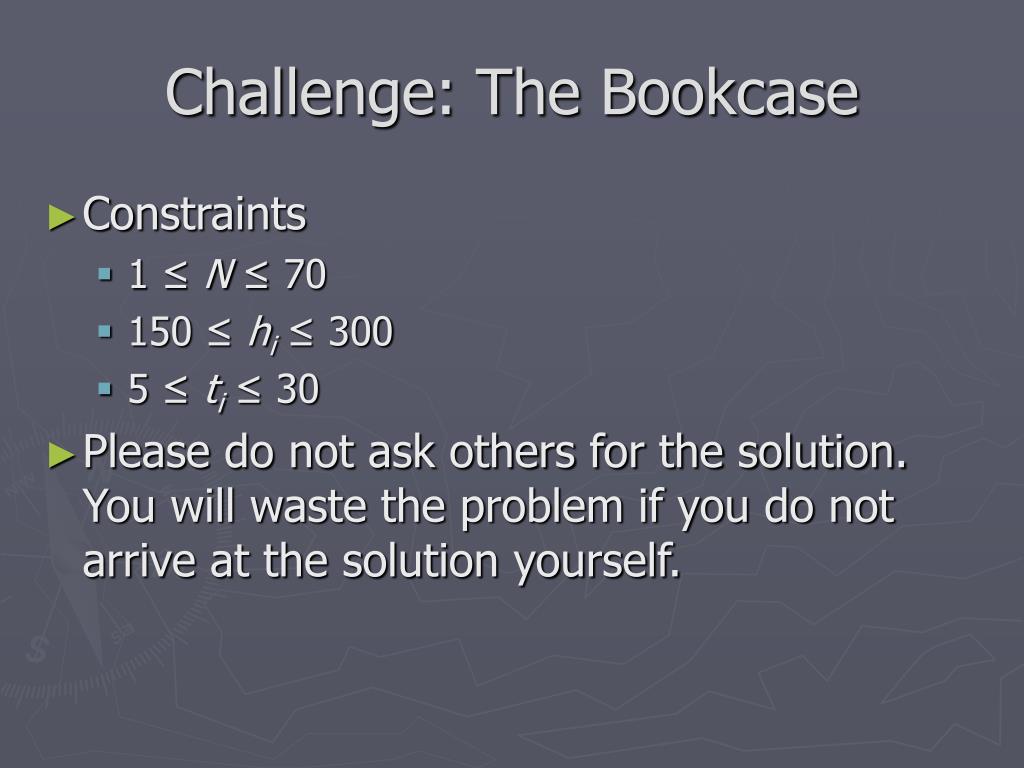

43. Challenge: The Bookcase • Constraints • 1 ≤ N≤ 70 • 150 ≤hi≤ 300 • 5 ≤ti≤ 30 • Please do not ask others for the solution. You will waste the problem if you do not arrive at the solution yourself.

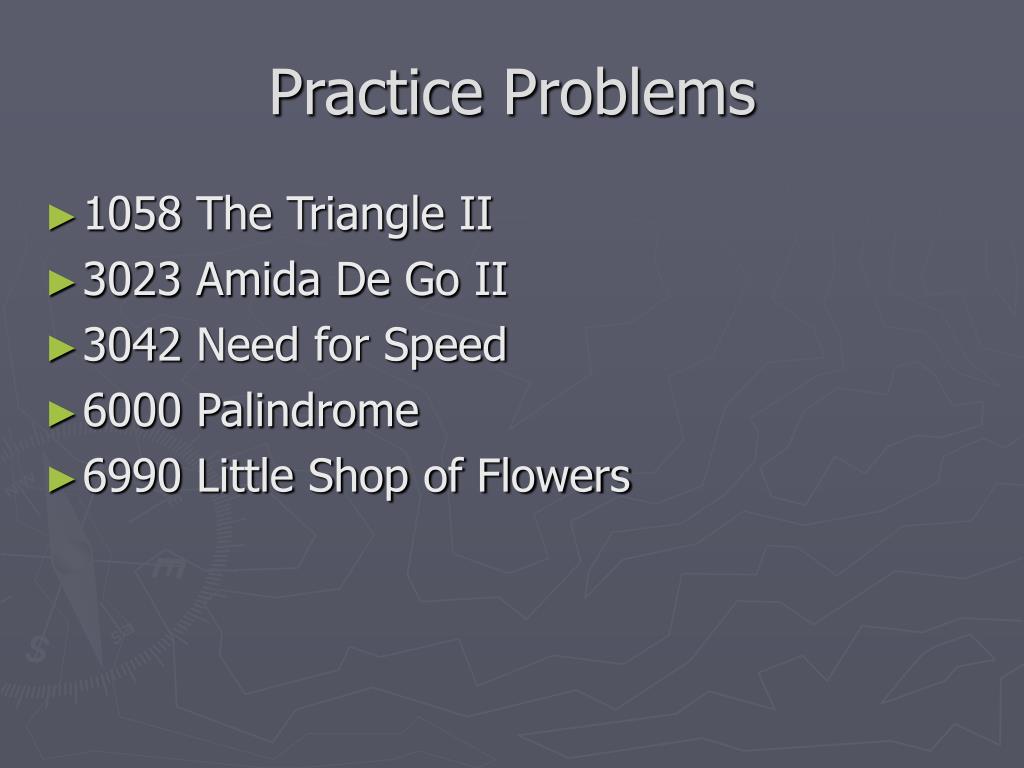

44. Practice Problems • 1058 The Triangle II • 3023 Amida De Go II • 3042Need for Speed • 6000 Palindrome • 6990 Little Shop of Flowers

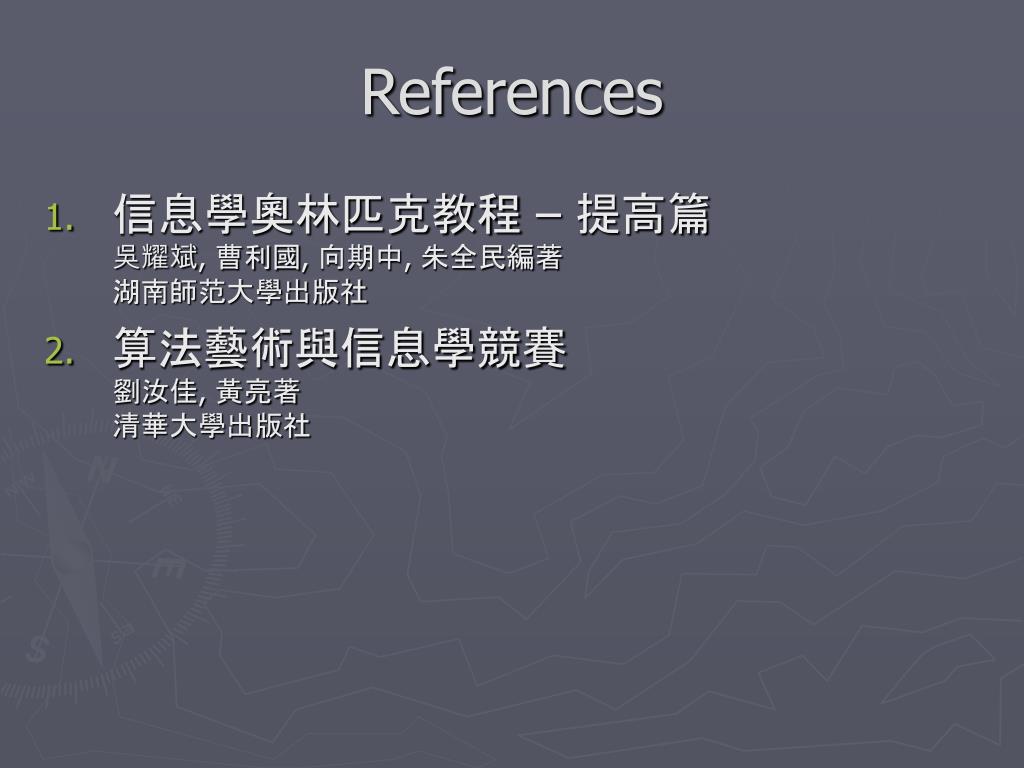

45. References • 信息學奧林匹克教程 – 提高篇 吳耀斌, 曹利國, 向期中, 朱全民編著湖南師范大學出版社 • 算法藝術與信息學競賽劉汝佳, 黃亮著清華大學出版社
