Statically Indeterminate

B. A. C. T. L AC. L CB. L. Statically Indeterminate. Objective:. To determine the internal torque and the associated shear stress for statically indeterminate problems. Find,. Reaction at A and B . Internal torque at segment AC and CB . Stress at AC and CB. A. B. T A. T B.

tosca
Download Presentation

Statically Indeterminate

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. B A C T LAC LCB L Statically Indeterminate Objective: To determine the internal torque and the associated shear stress for statically indeterminate problems. Find, • Reaction at A and B. • Internal torque at segment AC and CB. • Stress at AC and CB.

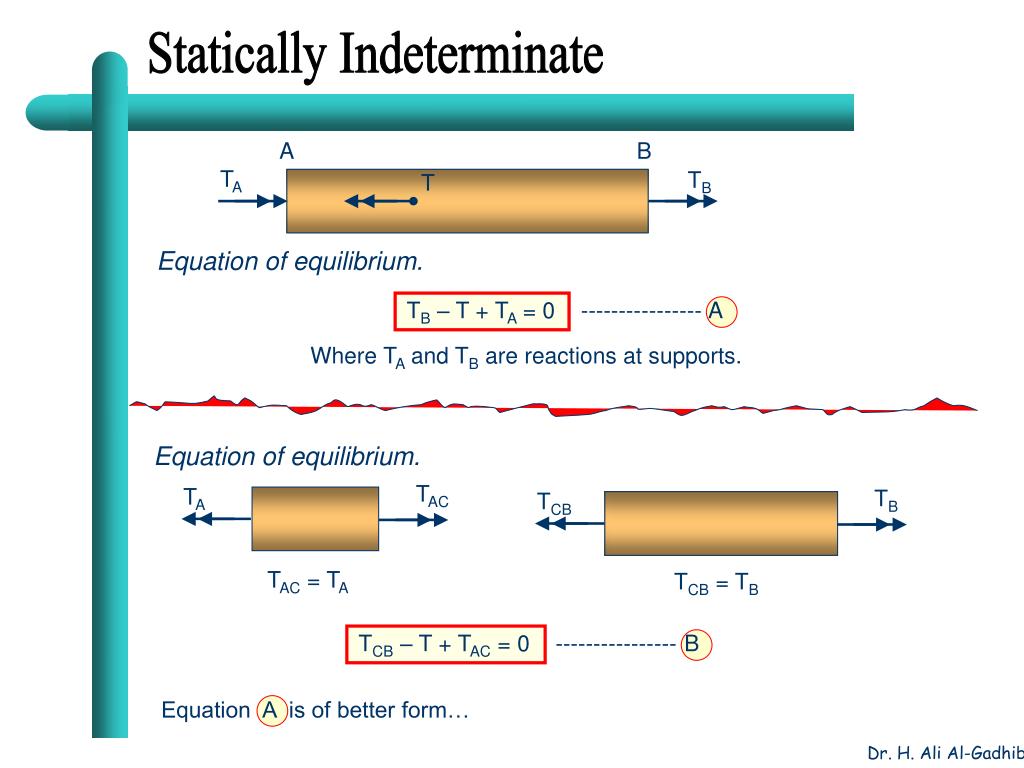

  2. A B TA TB T TB – T + TA = 0 ---------------- A TAC TA TB TCB TCB – T + TAC = 0 ---------------- B TAC = TA TCB = TB Equation A is of better form… Statically Indeterminate Equation of equilibrium. Where TA and TB are reactions at supports. Equation of equilibrium.

  3. TACLAC + TCBLCB = 0 ---------------- C Solving equations B & C for the internal torque (TAC and TCB) and then find reactions and stress. Compatibility Equations:

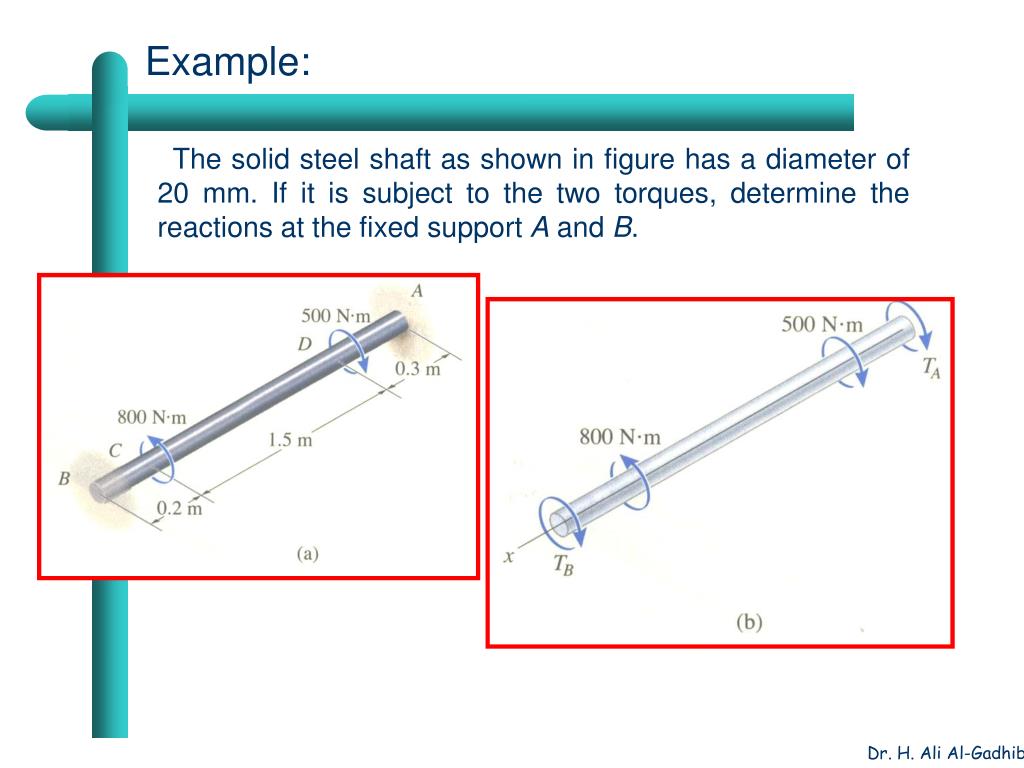

  4. Example: The solid steel shaft as shown in figure has a diameter of 20 mm. If it is subject to the two torques, determine the reactions at the fixed support A and B.

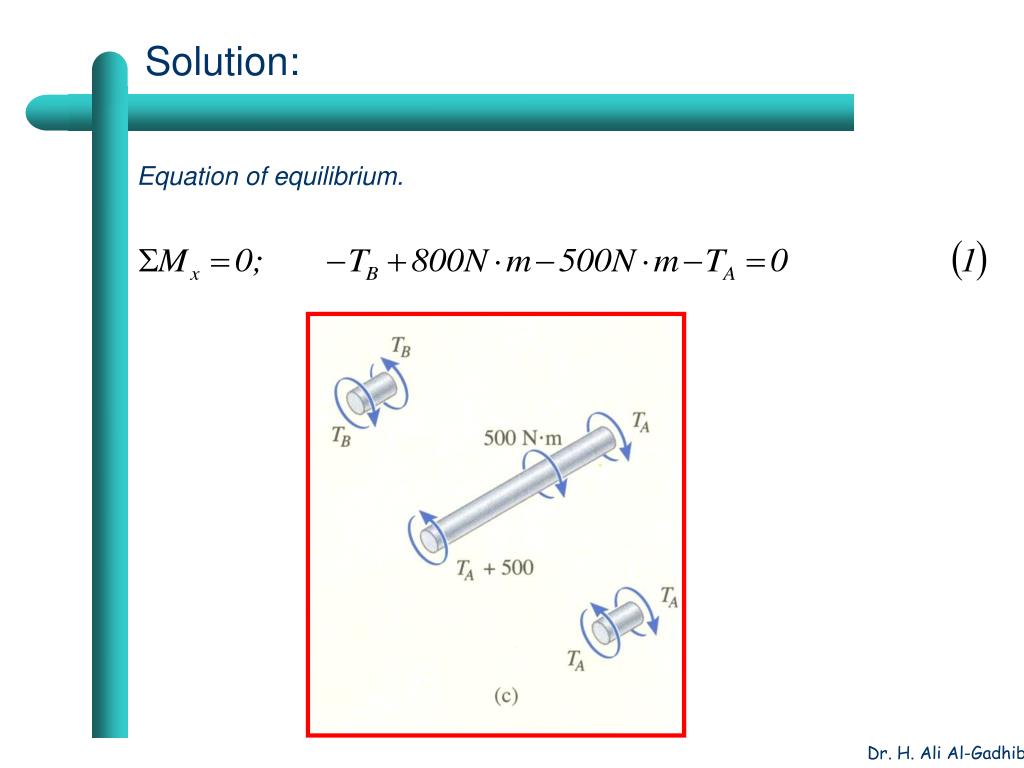

  5. Solution: Equation of equilibrium.

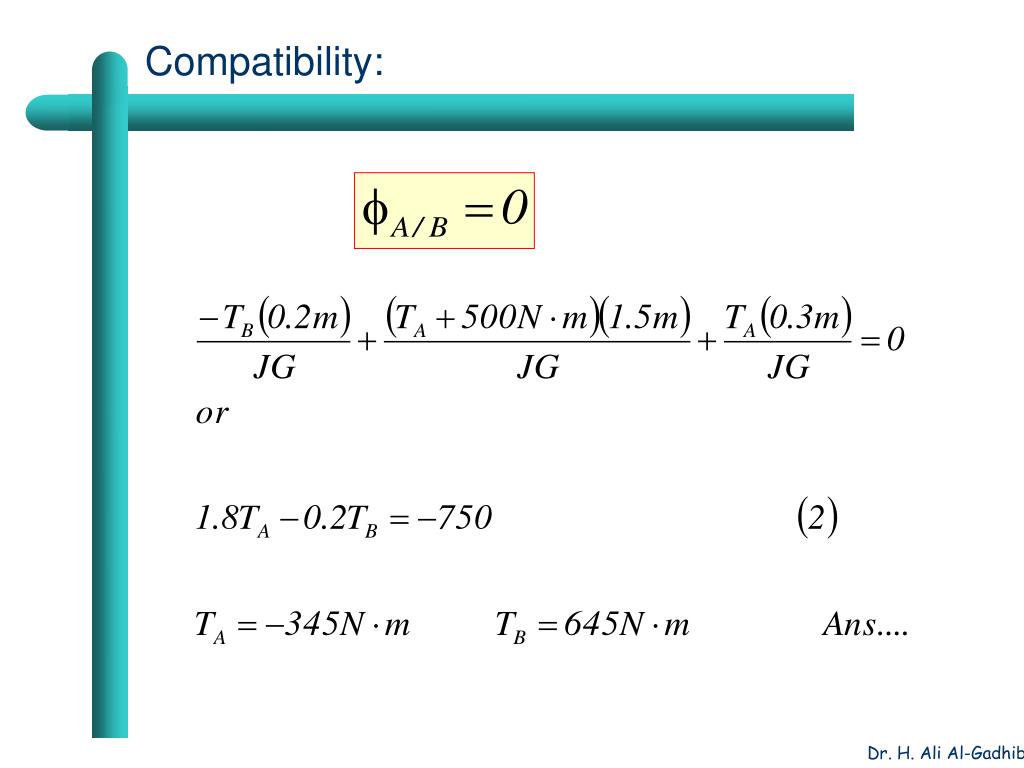

  6. Compatibility:

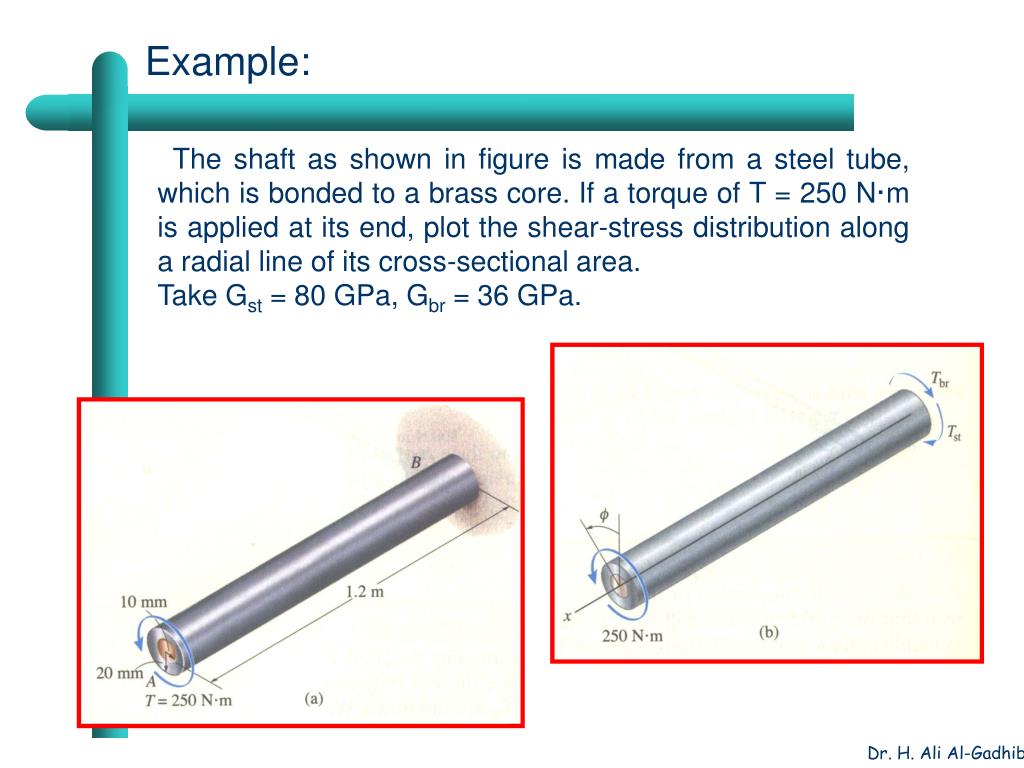

  7. Example: The shaft as shown in figure is made from a steel tube, which is bonded to a brass core. If a torque of T = 250 N·m is applied at its end, plot the shear-stress distribution along a radial line of its cross-sectional area. Take Gst = 80 GPa, Gbr = 36 GPa.

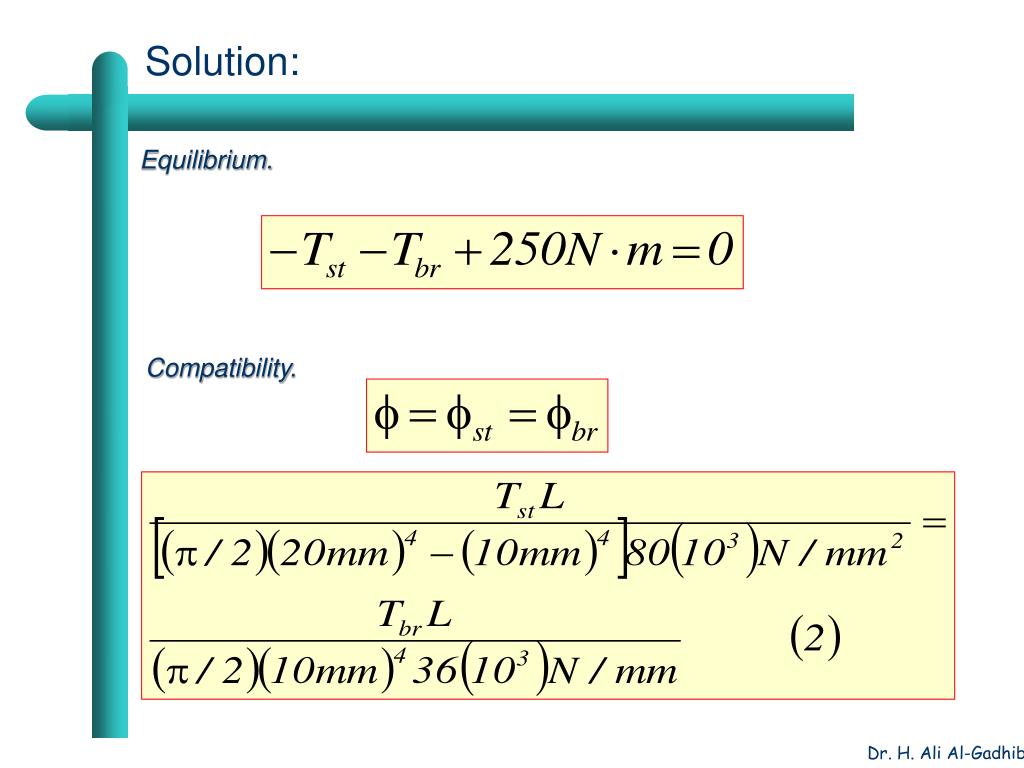

  8. Solution: Equilibrium. Compatibility.

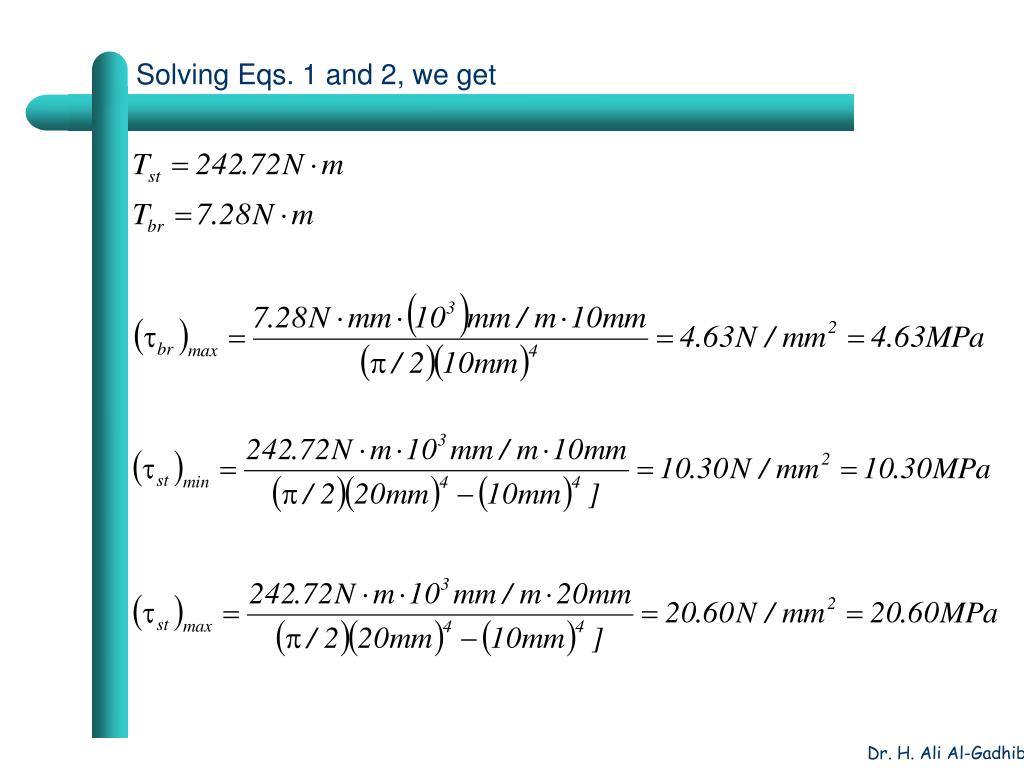

  9. Solving Eqs. 1 and 2, we get

  10. The enD
