  1. Government Data Integration หลักสูตรเบื้องต้น REST songrit@gmail.com 083-788-7769

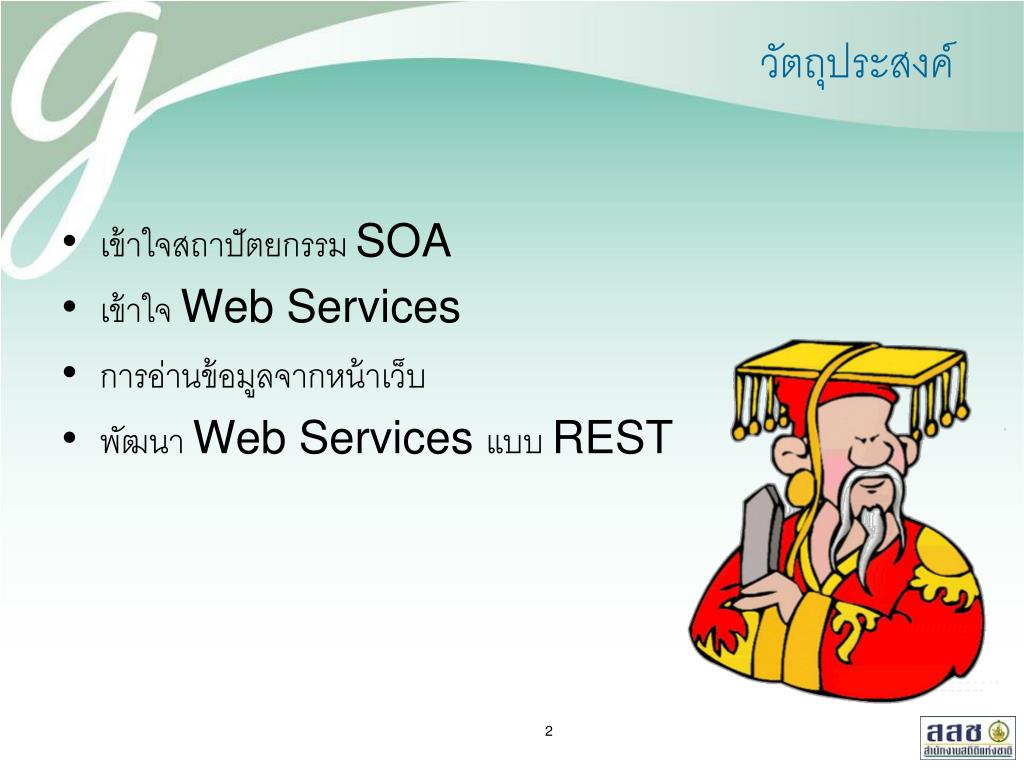

  2. วัตถุประสงค์ เข้าใจสถาปัตยกรรม SOA เข้าใจ Web Services การอ่านข้อมูลจากหน้าเว็บ พัฒนา Web Services แบบ REST

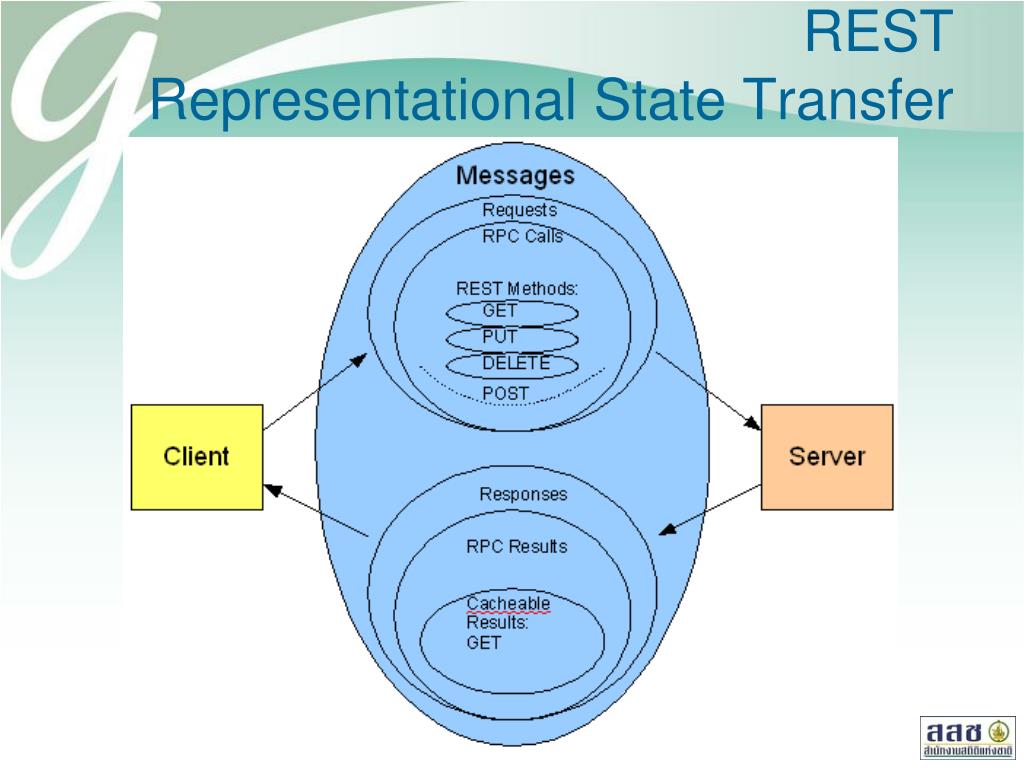

  3. RESTRepresentational State Transfer

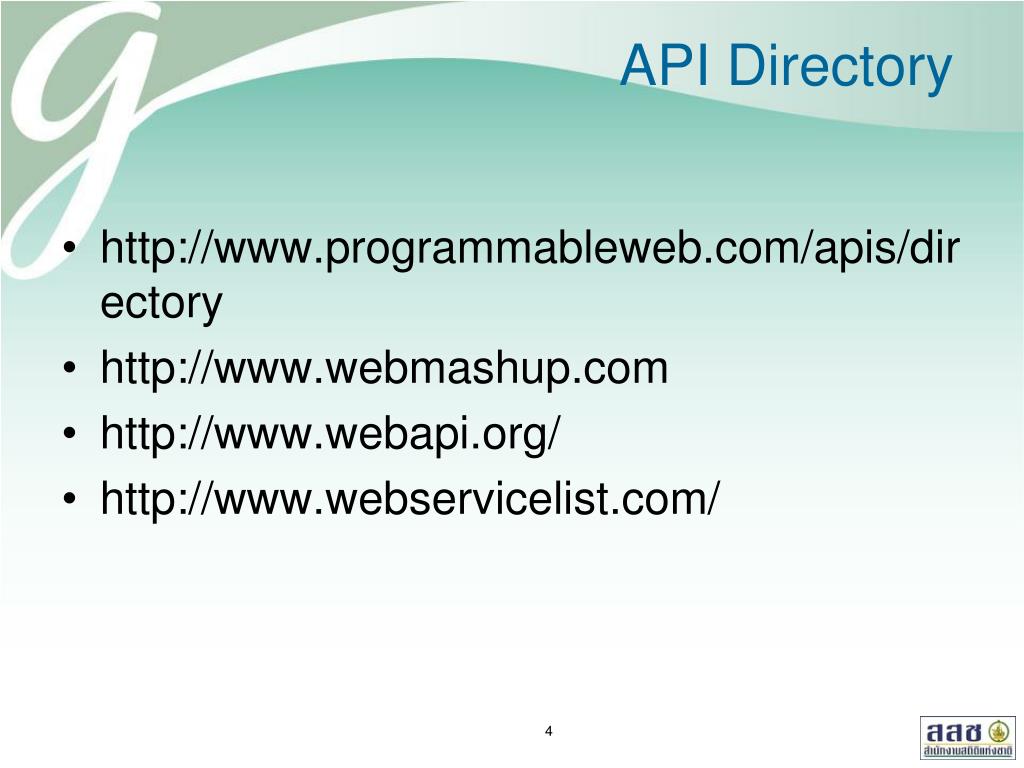

  4. API Directory http://www.programmableweb.com/apis/directory http://www.webmashup.com http://www.webapi.org/ http://www.webservicelist.com/

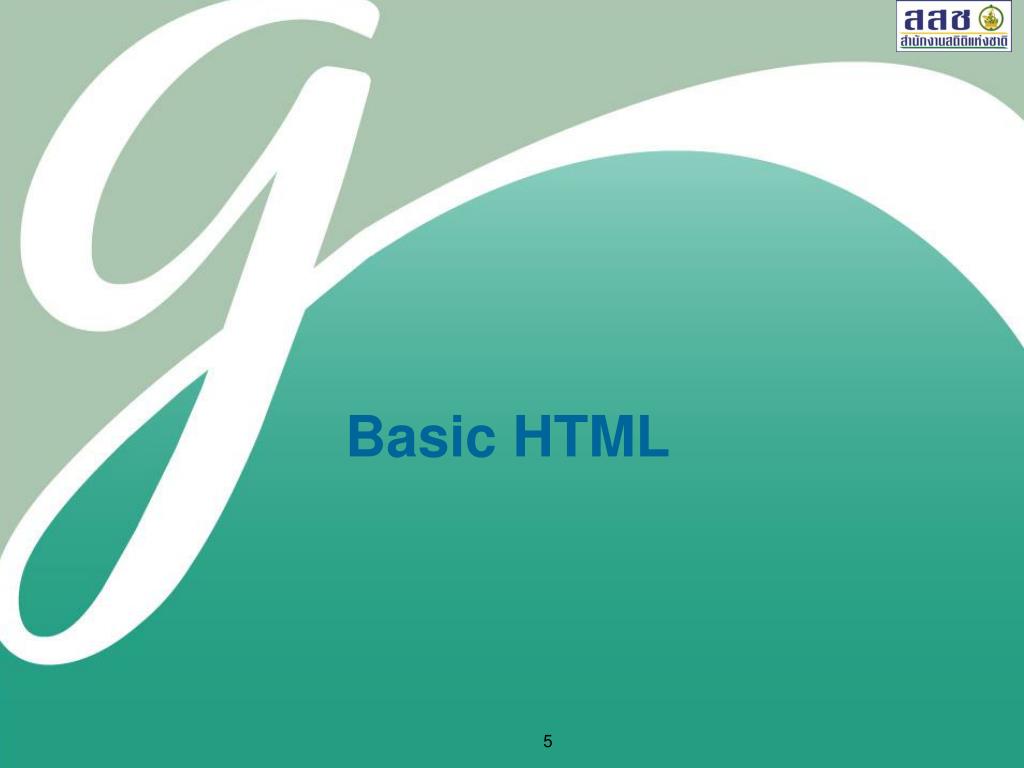

  5. Basic HTML

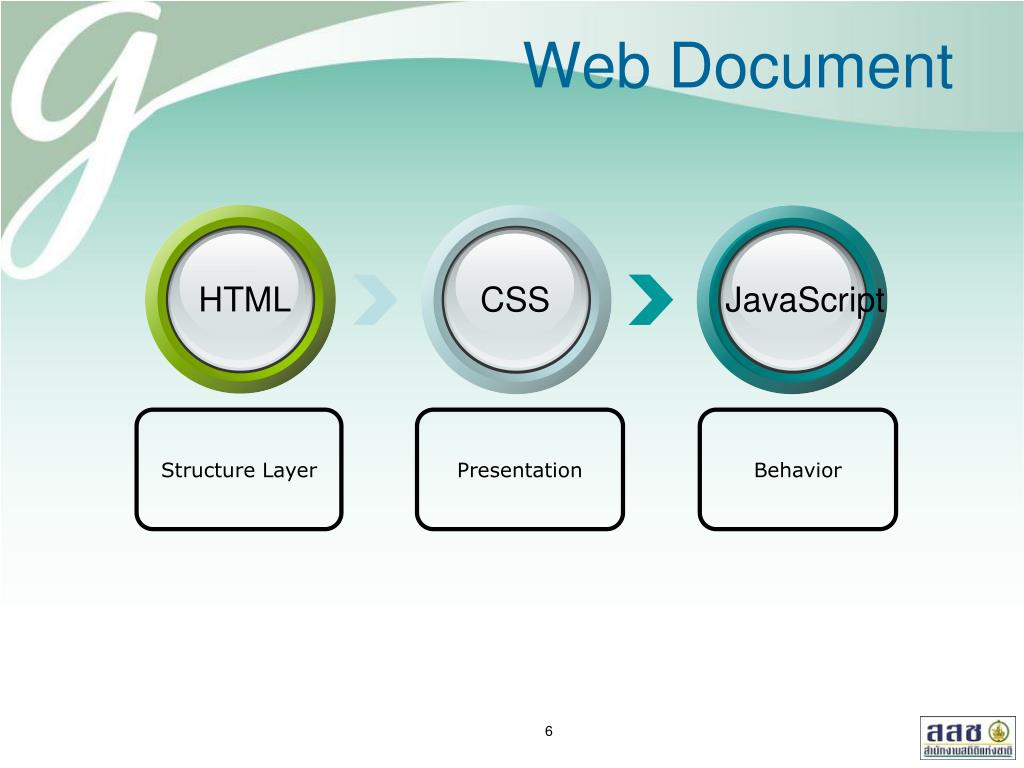

  6. HTML CSS JavaScript Structure Layer Presentation Behavior Web Document

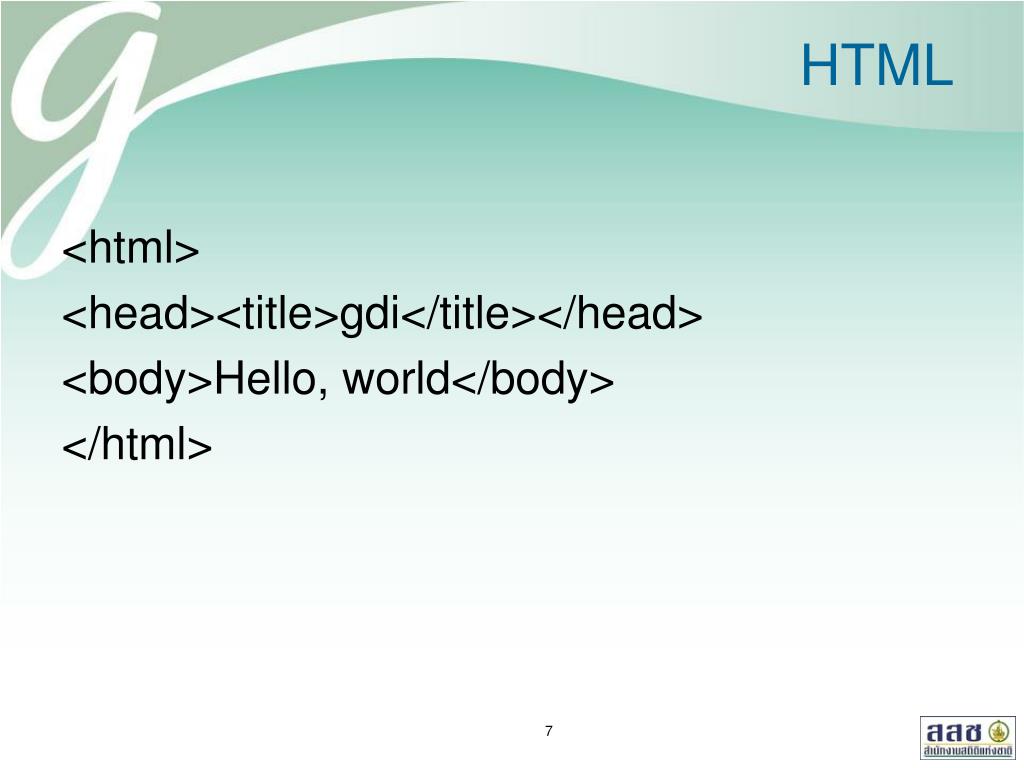

  7. HTML <html> <head><title>gdi</title></head> <body>Hello, world</body> </html>

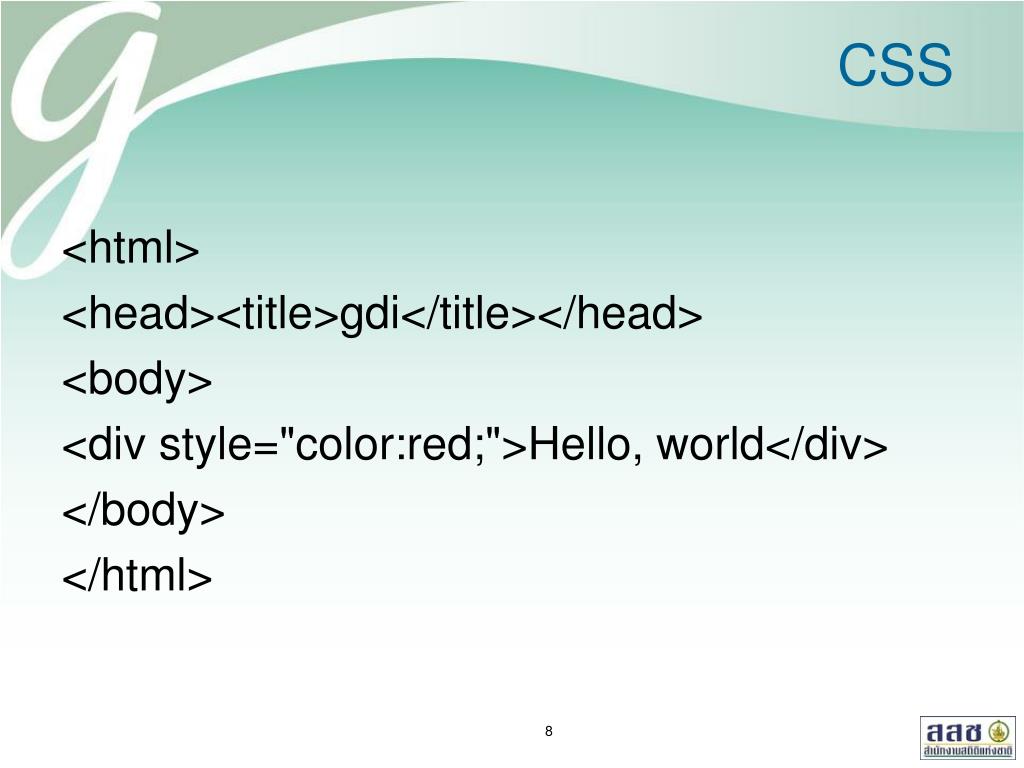

  8. CSS <html> <head><title>gdi</title></head> <body> <div style="color:red;">Hello, world</div> </body> </html>

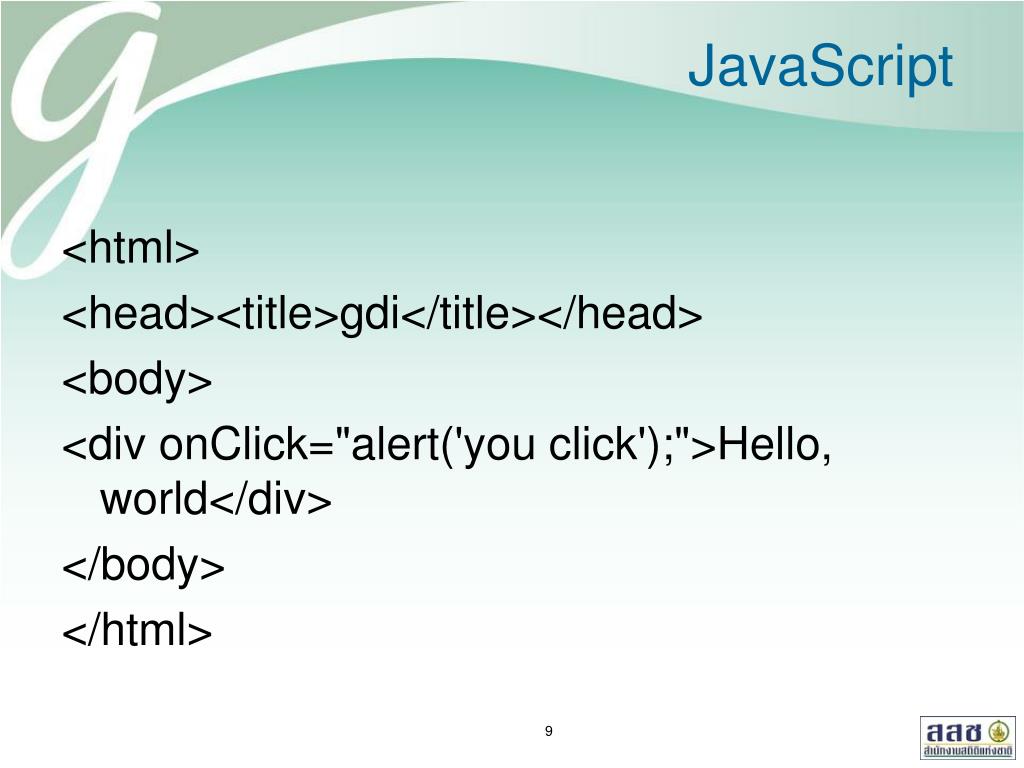

  9. JavaScript <html> <head><title>gdi</title></head> <body> <div onClick="alert('you click');">Hello, world</div> </body> </html>

  10. Scrapper

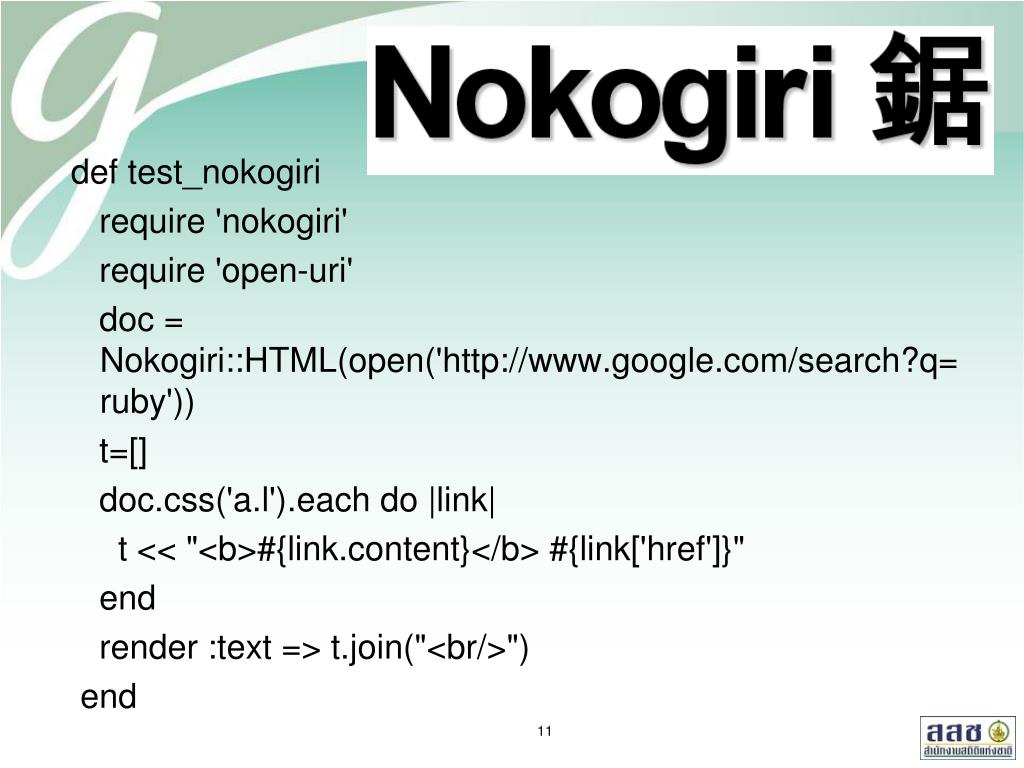

  11. def test_nokogiri require 'nokogiri' require 'open-uri' doc = Nokogiri::HTML(open('http://www.google.com/search?q=ruby')) t=[] doc.css('a.l').each do |link| t << "<b>#{link.content}</b> #{link['href']}" end render :text => t.join("<br/>") end

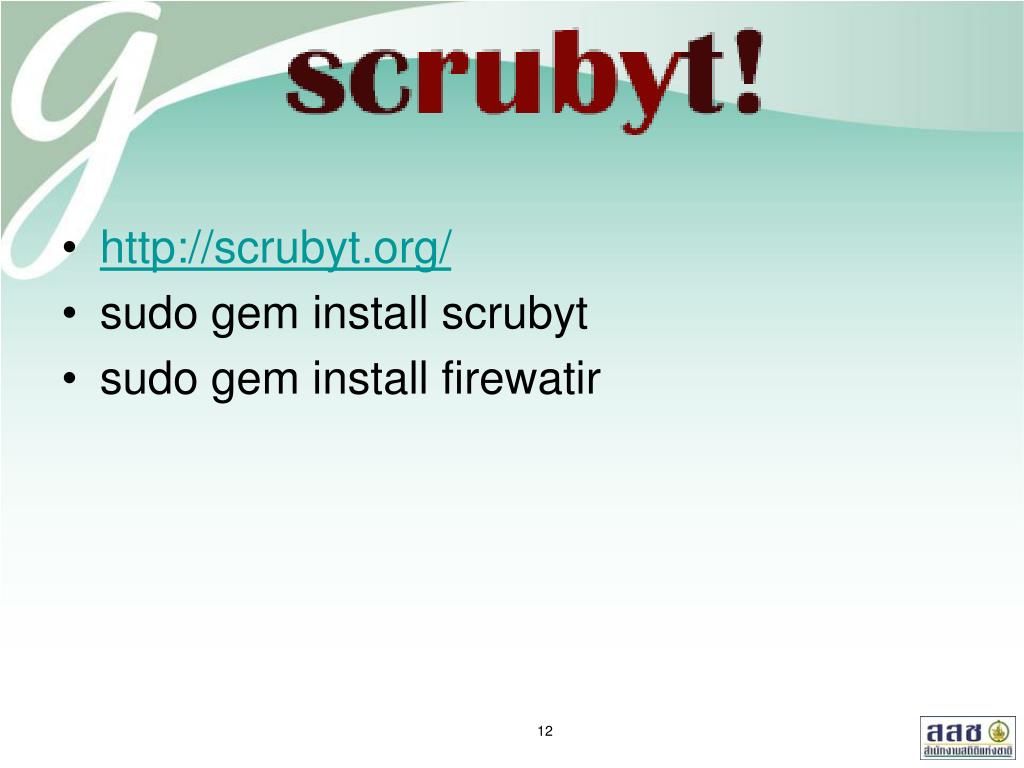

  12. http://scrubyt.org/ sudo gem install scrubyt sudo gem install firewatir

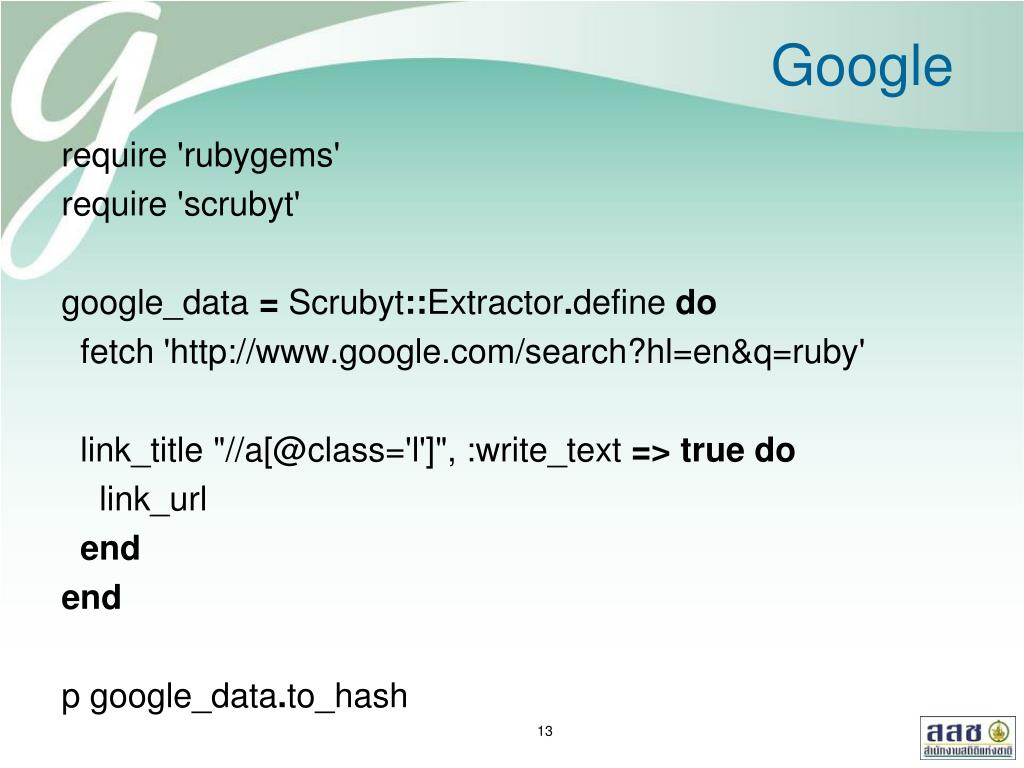

  13. Google require 'rubygems' require 'scrubyt' google_data = Scrubyt::Extractor.define do   fetch 'http://www.google.com/search?hl=en&q=ruby'   link_title "//a[@class='l']", :write_text =>truedo     link_url end end p google_data.to_hash

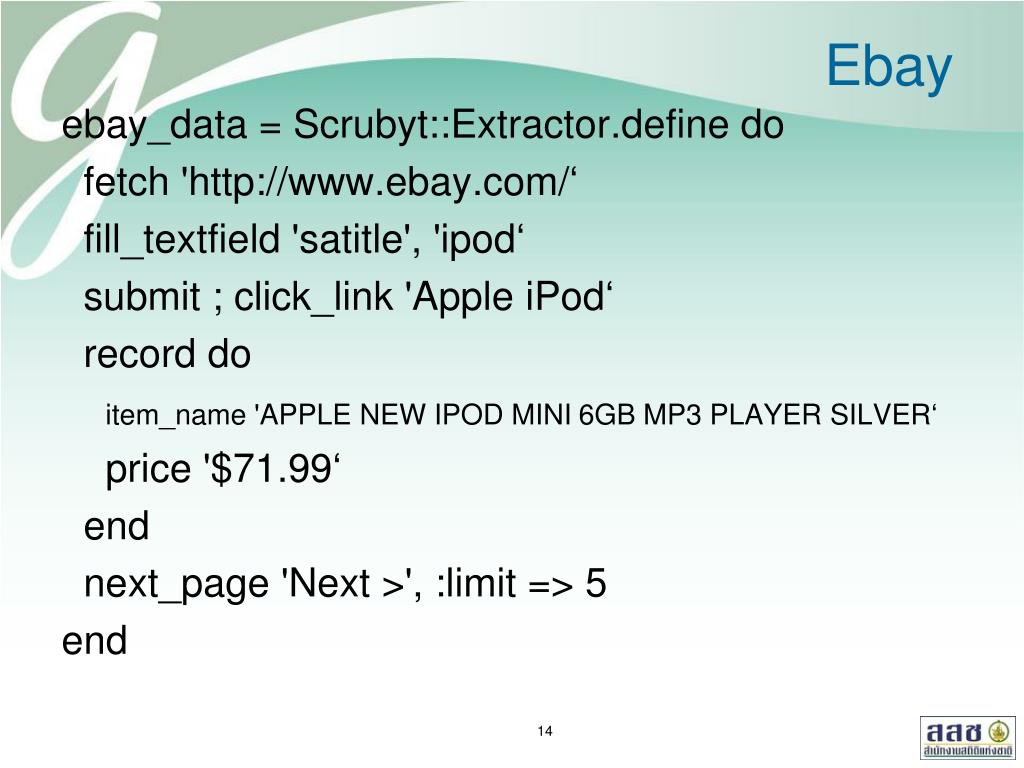

  14. Ebay ebay_data = Scrubyt::Extractor.define do fetch 'http://www.ebay.com/‘ fill_textfield 'satitle', 'ipod‘ submit ; click_link 'Apple iPod‘ record do item_name 'APPLE NEW IPOD MINI 6GB MP3 PLAYER SILVER‘ price '$71.99‘ end next_page 'Next >', :limit => 5 end

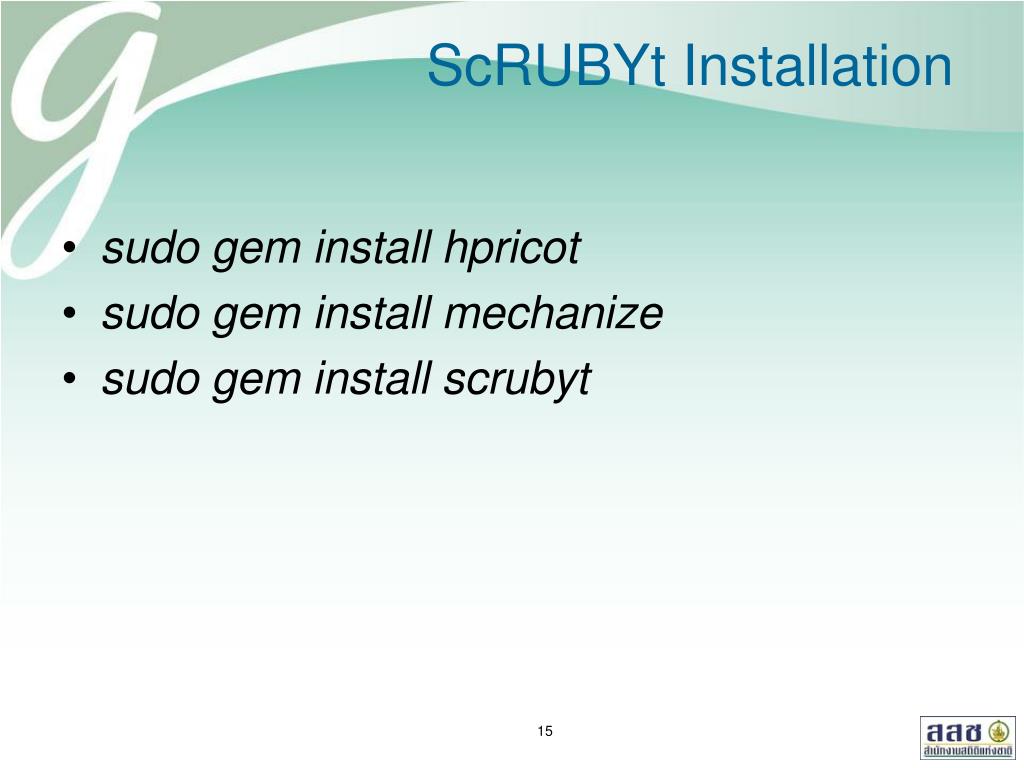

  15. ScRUBYt Installation sudo gem install hpricot sudo gem install mechanize sudo gem install scrubyt

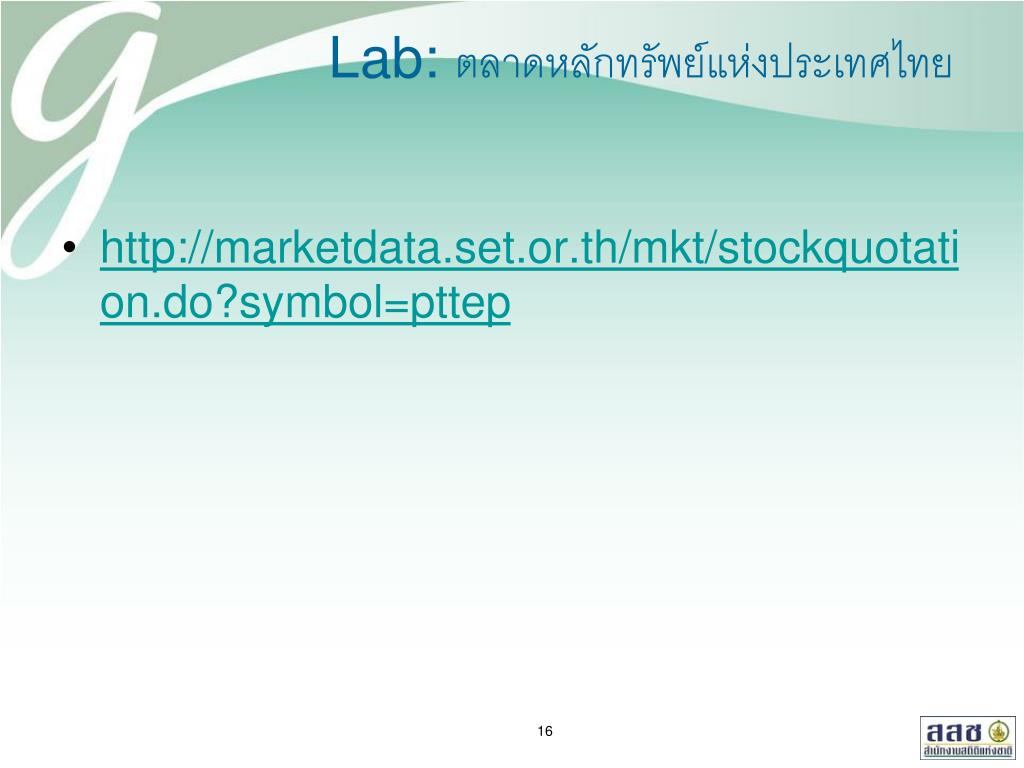

  16. Lab: ตลาดหลักทรัพย์แห่งประเทศไทย http://marketdata.set.or.th/mkt/stockquotation.do?symbol=pttep

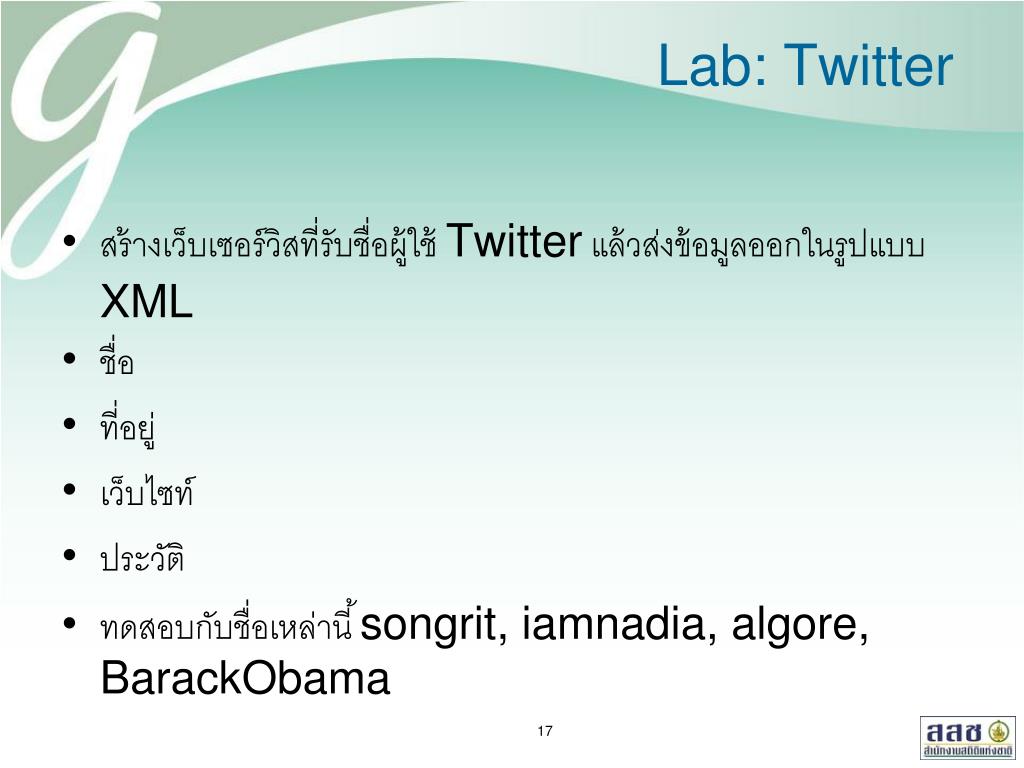

  17. Lab: Twitter สร้างเว็บเซอร์วิสที่รับชื่อผู้ใช้ Twitter แล้วส่งข้อมูลออกในรูปแบบ XML ชื่อ ที่อยู่ เว็บไซท์ ประวัติ ทดสอบกับชื่อเหล่านี้ songrit, iamnadia, algore, BarackObama

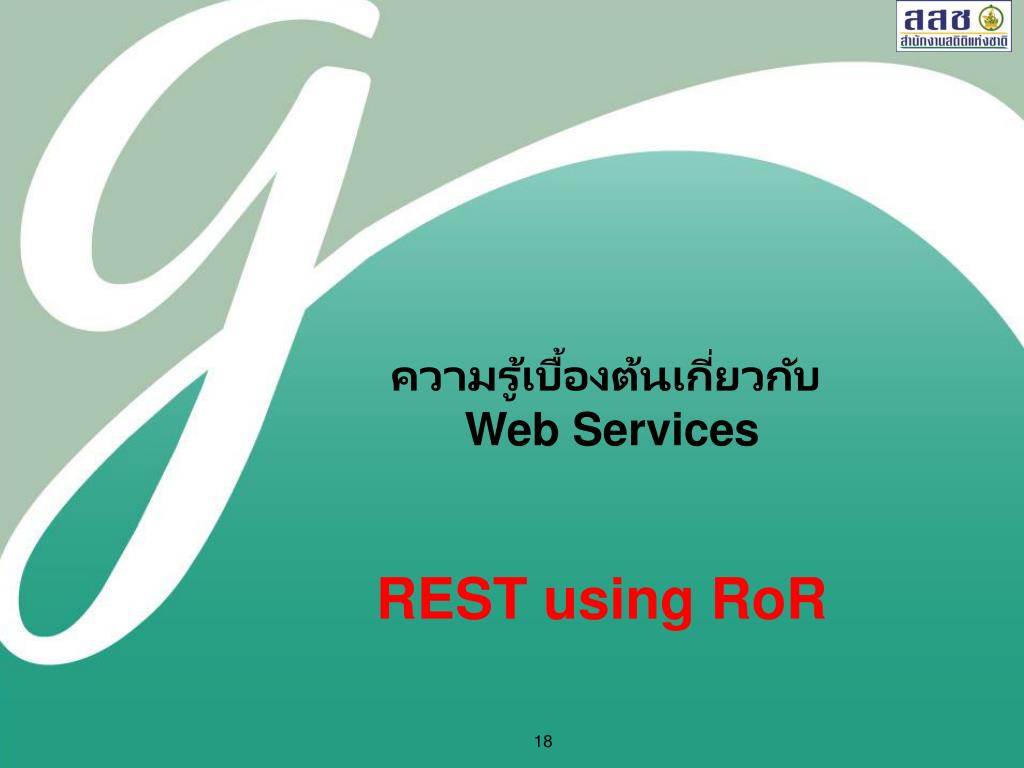

  18. ความรู้เบื้องต้นเกี่ยวกับWeb Services REST using RoR

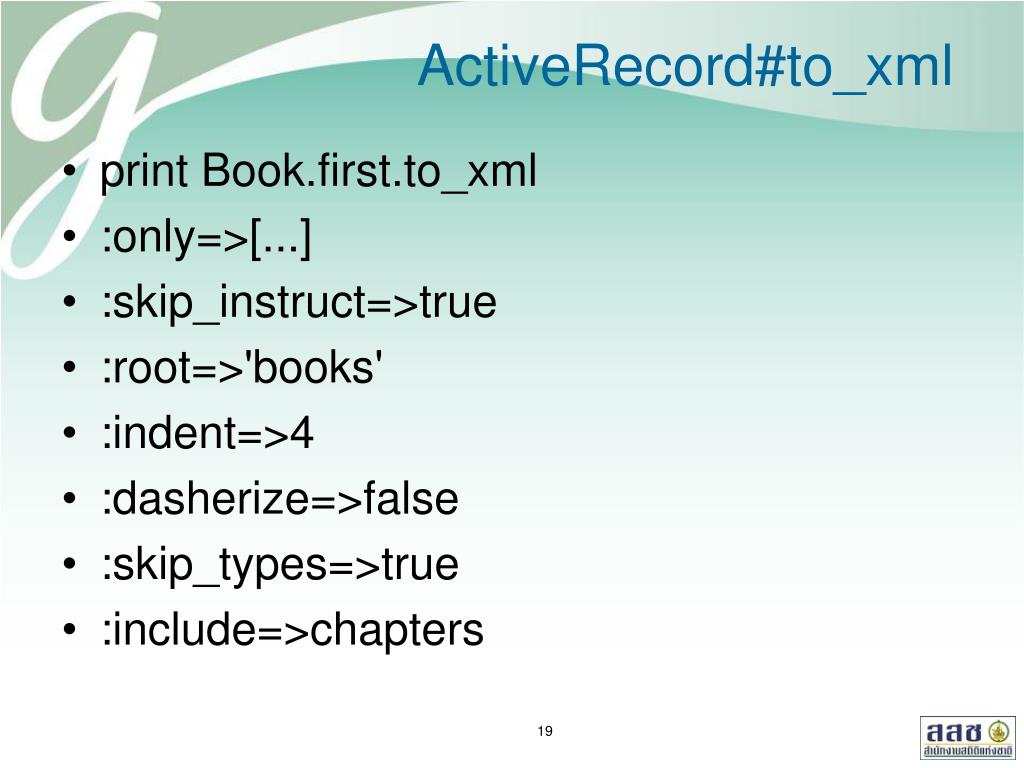

  19. ActiveRecord#to_xml print Book.first.to_xml :only=>[...] :skip_instruct=>true :root=>'books' :indent=>4 :dasherize=>false :skip_types=>true :include=>chapters

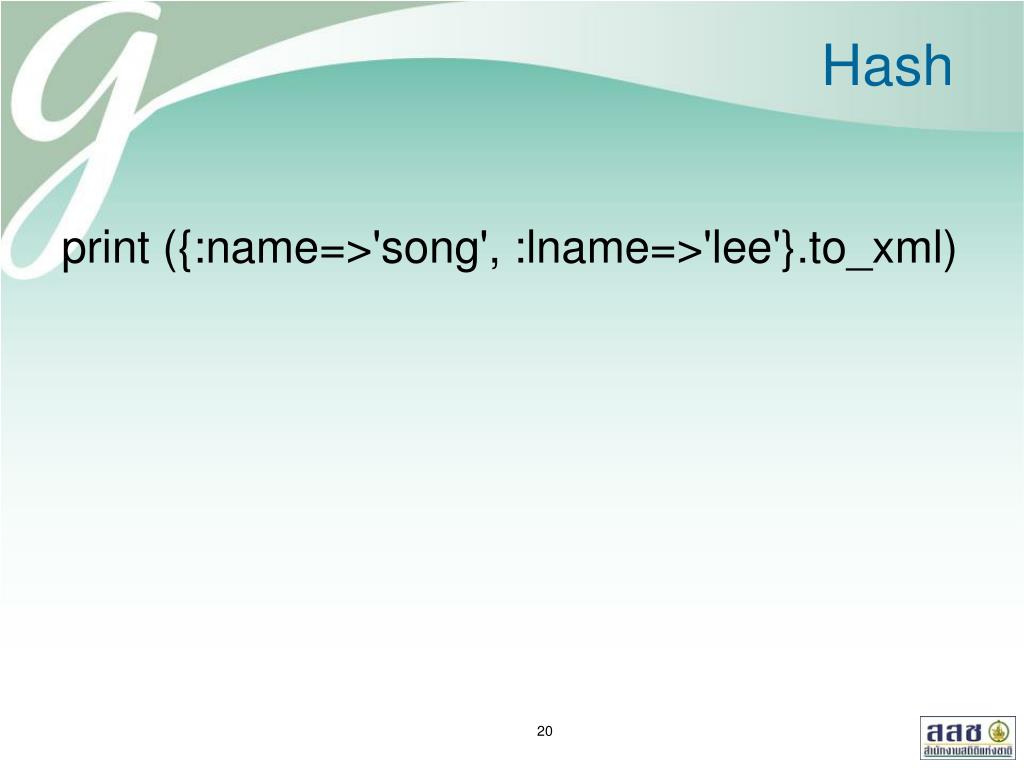

  20. Hash print ({:name=>'song', :lname=>'lee'}.to_xml)

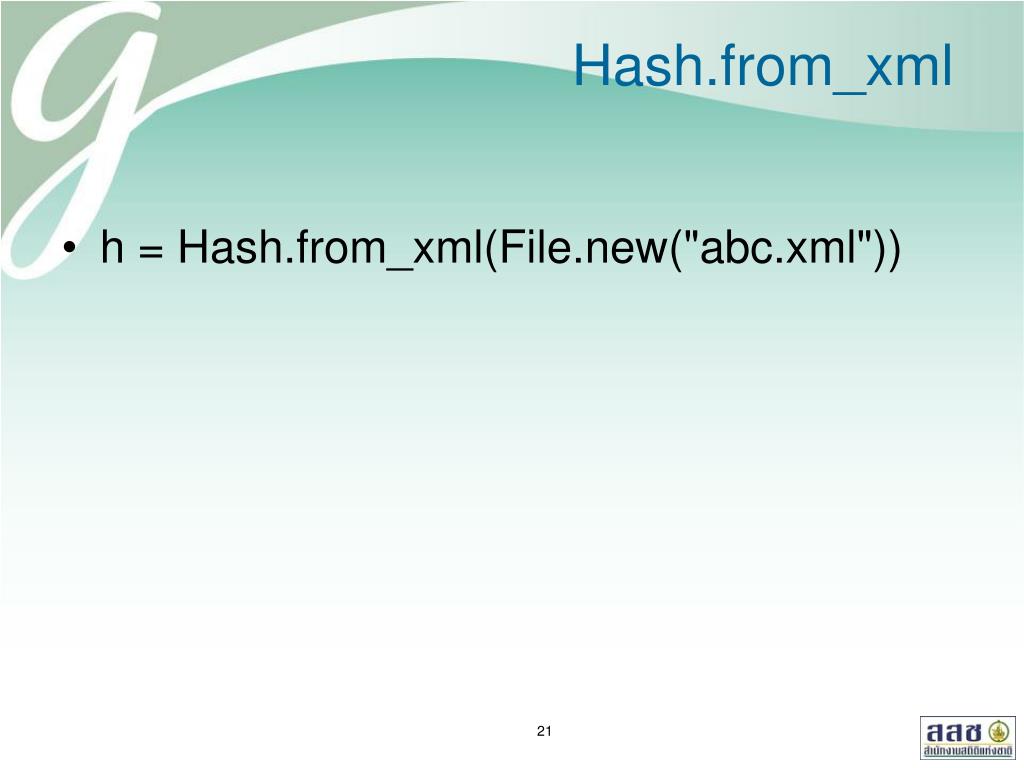

  21. Hash.from_xml h = Hash.from_xml(File.new("abc.xml"))

  22. Lab x = <<-EOT <export> <mineral>20_000</mineral> <electronic>300_000</electronic> <fishery>50_000</fishery> </export> EOT Hash.from_xml(x)

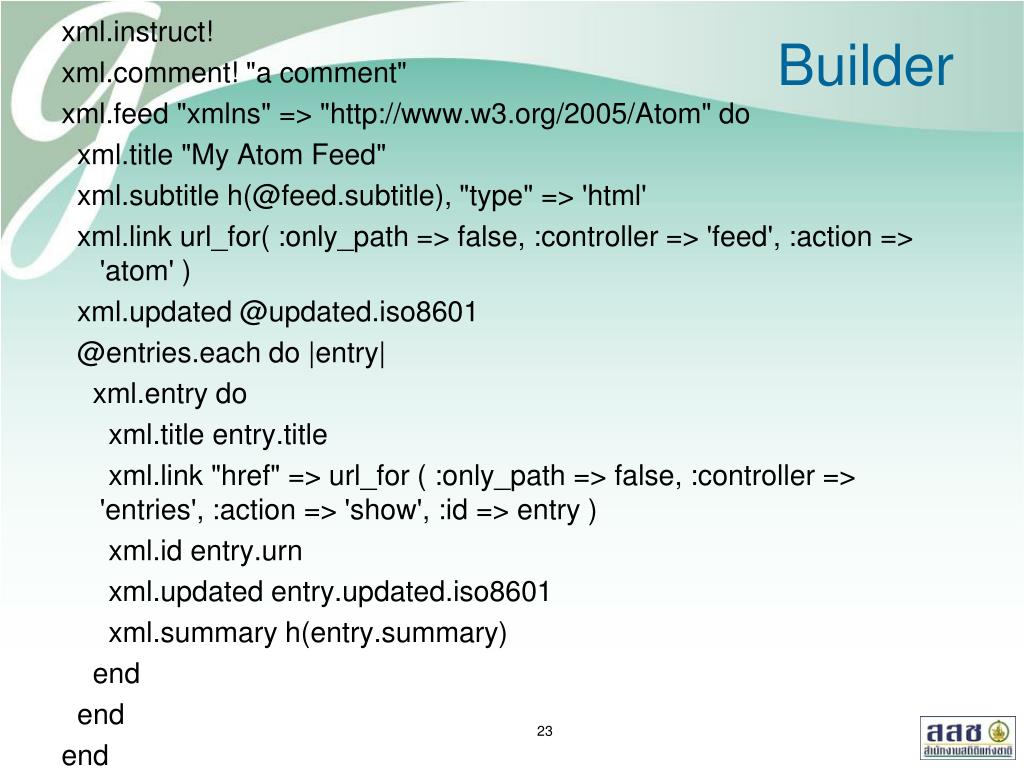

  23. Builder xml.instruct! xml.comment! "a comment" xml.feed "xmlns" => "http://www.w3.org/2005/Atom" do xml.title "My Atom Feed" xml.subtitle h(@feed.subtitle), "type" => 'html' xml.link url_for( :only_path => false, :controller => 'feed', :action => 'atom' ) xml.updated @updated.iso8601 @entries.each do |entry| xml.entry do xml.title entry.title xml.link "href" => url_for ( :only_path => false, :controller => 'entries', :action => 'show', :id => entry ) xml.id entry.urn xml.updated entry.updated.iso8601 xml.summary h(entry.summary) end end end

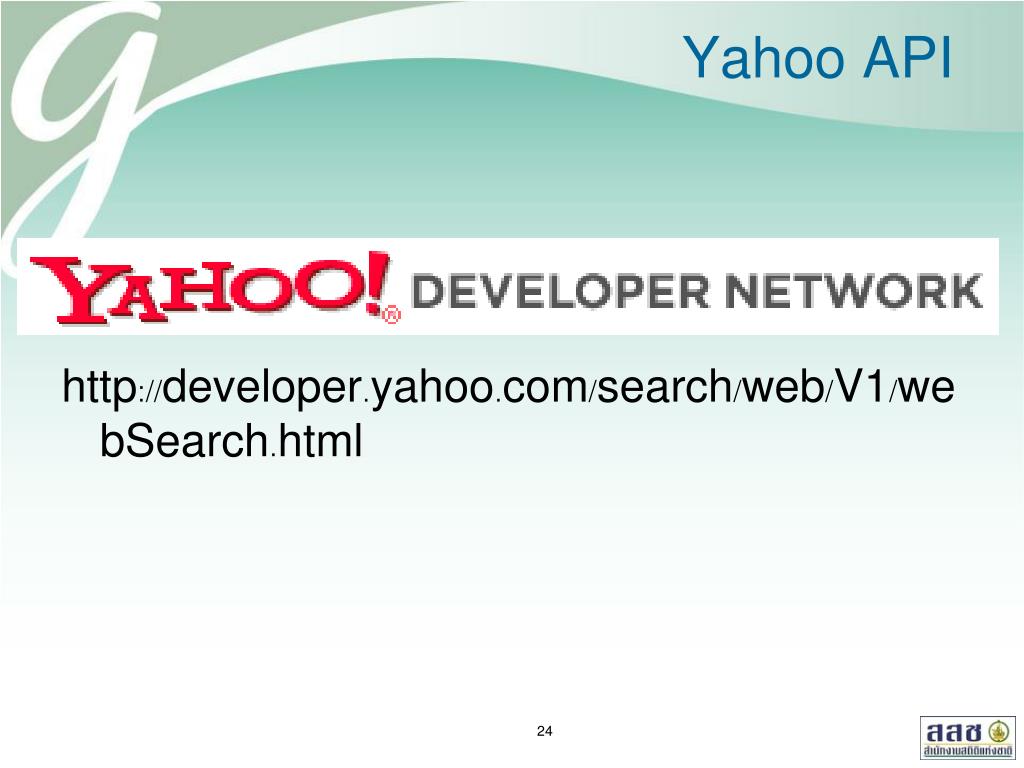

  24. Yahoo API http://developer.yahoo.com/search/web/V1/webSearch.html

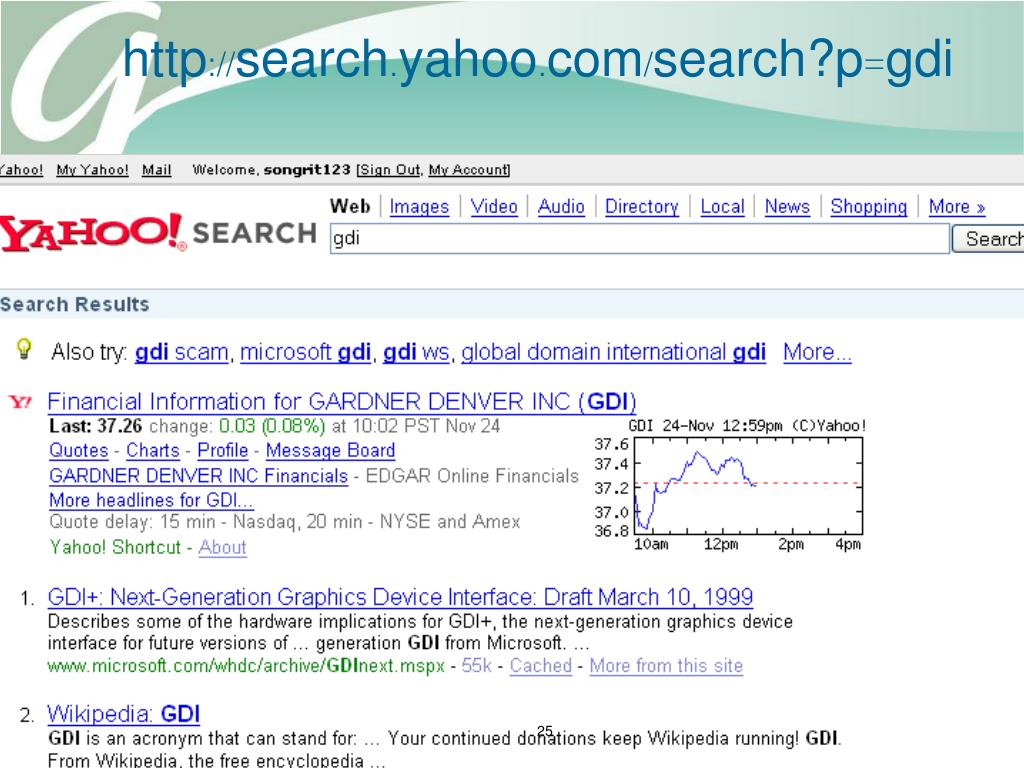

  25. http://search.yahoo.com/search?p=gdi

  26. http://api.search.yahoo.com/WebSearchService/V1/webSearch?appid=songrit_gdi&query=gdihttp://api.search.yahoo.com/WebSearchService/V1/webSearch?appid=songrit_gdi&query=gdi

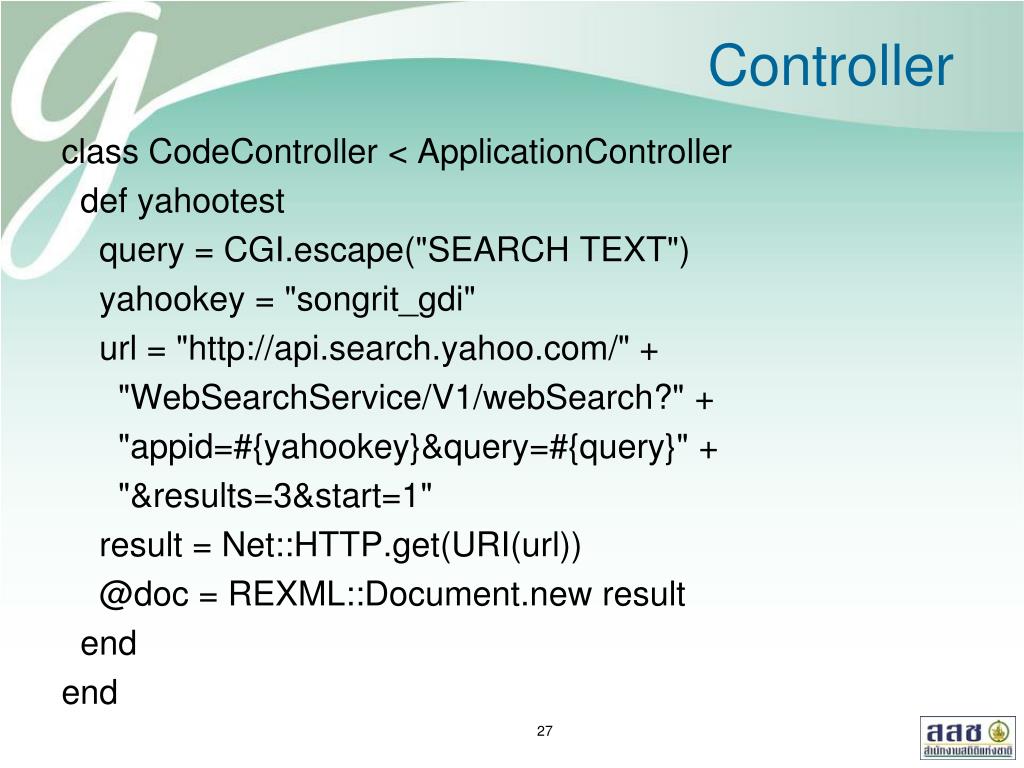

  27. Controller class CodeController < ApplicationController def yahootest query = CGI.escape("SEARCH TEXT") yahookey = "songrit_gdi" url = "http://api.search.yahoo.com/" + "WebSearchService/V1/webSearch?" + "appid=#{yahookey}&query=#{query}" + "&results=3&start=1" result = Net::HTTP.get(URI(url)) @doc = REXML::Document.new result end end

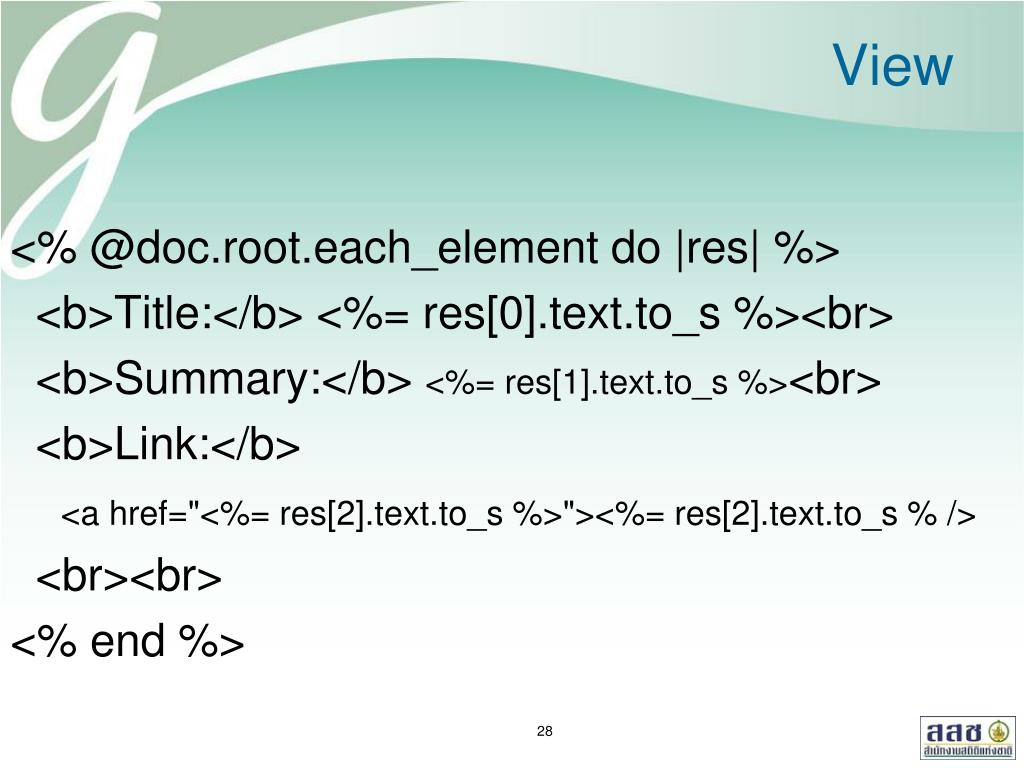

  28. View <% @doc.root.each_element do |res| %> <b>Title:</b> <%= res[0].text.to_s %><br> <b>Summary:</b> <%= res[1].text.to_s %><br> <b>Link:</b> <a href="<%= res[2].text.to_s %>"><%= res[2].text.to_s % /> <br><br> <% end %>

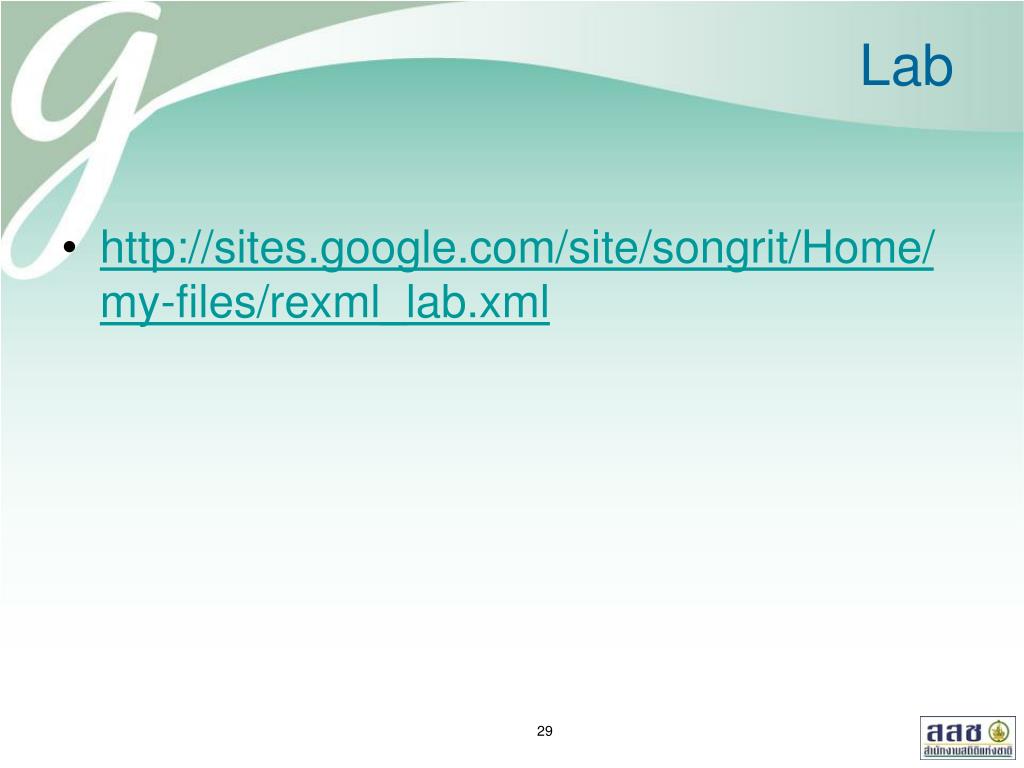

  29. Lab http://sites.google.com/site/songrit/Home/my-files/rexml_lab.xml

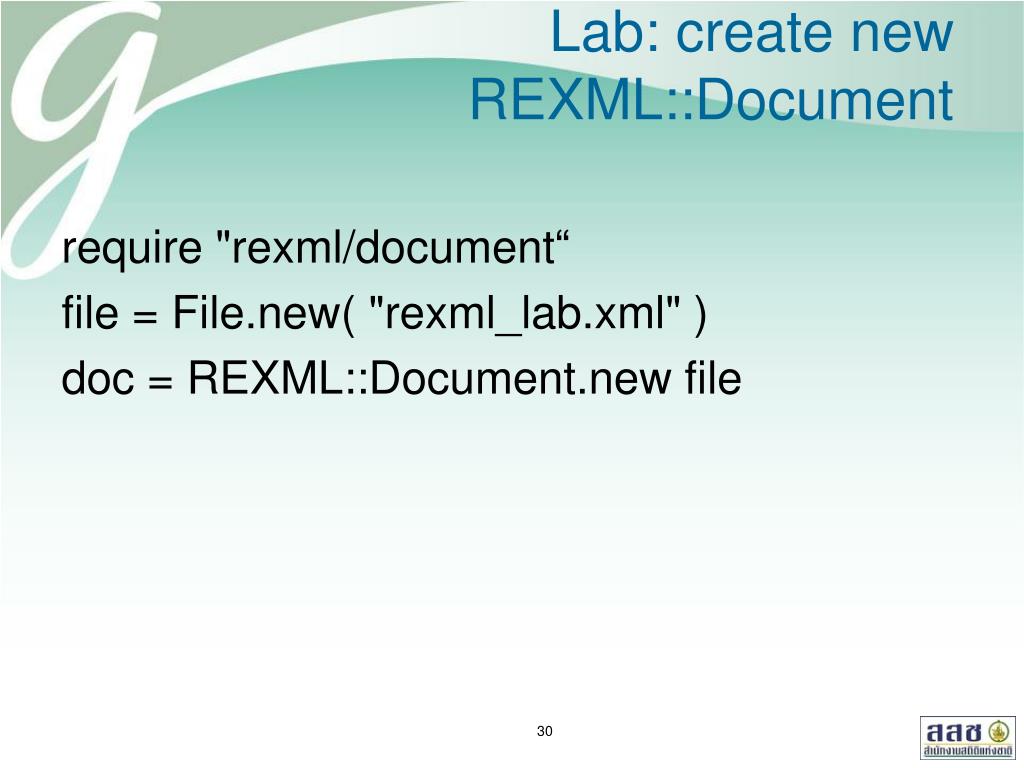

  30. Lab: create new REXML::Document require "rexml/document“ file = File.new( "rexml_lab.xml" ) doc = REXML::Document.new file

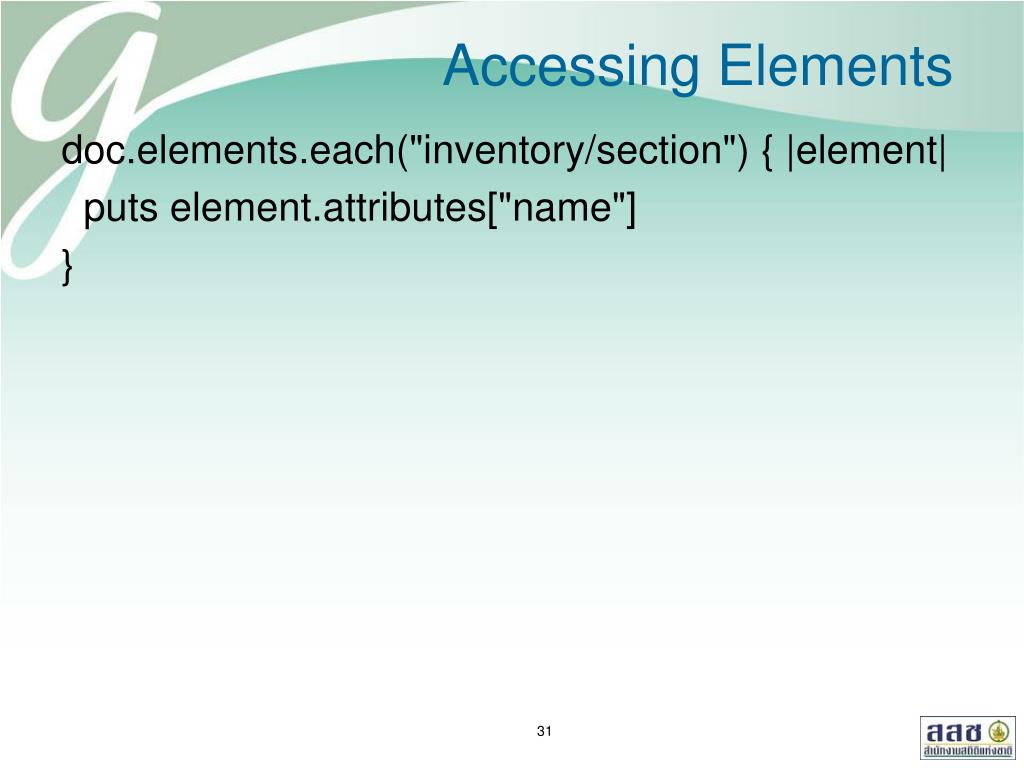

  31. Accessing Elements doc.elements.each("inventory/section") { |element| puts element.attributes["name"] }

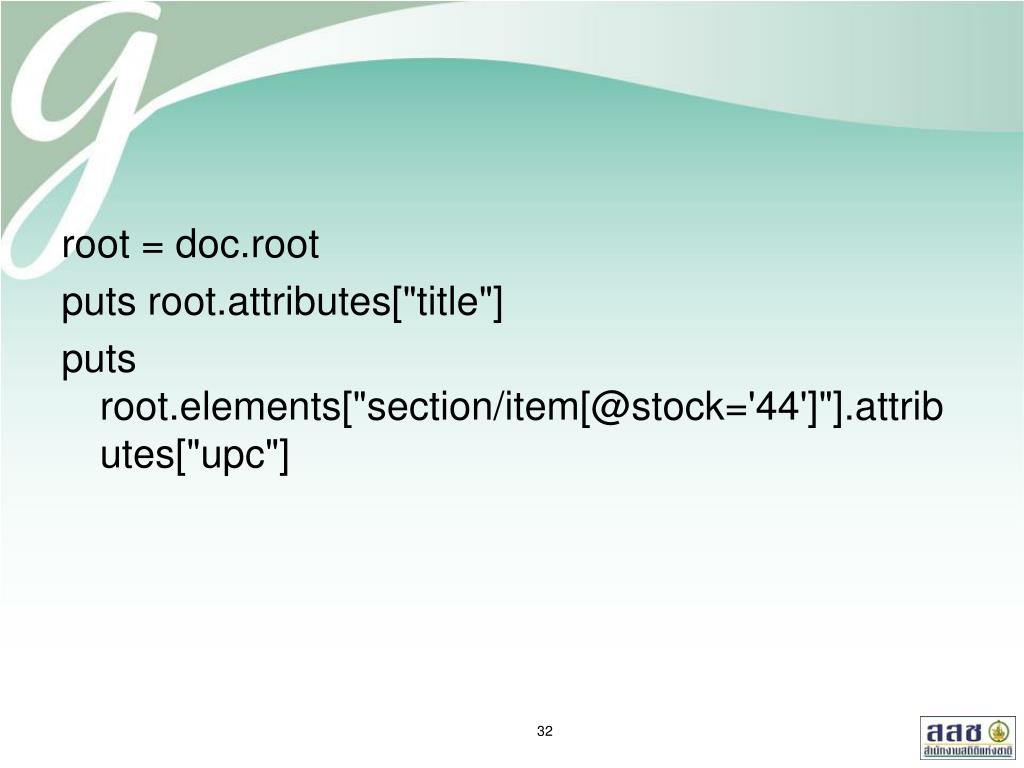

  32. root = doc.root puts root.attributes["title"] puts root.elements["section/item[@stock='44']"].attributes["upc"]

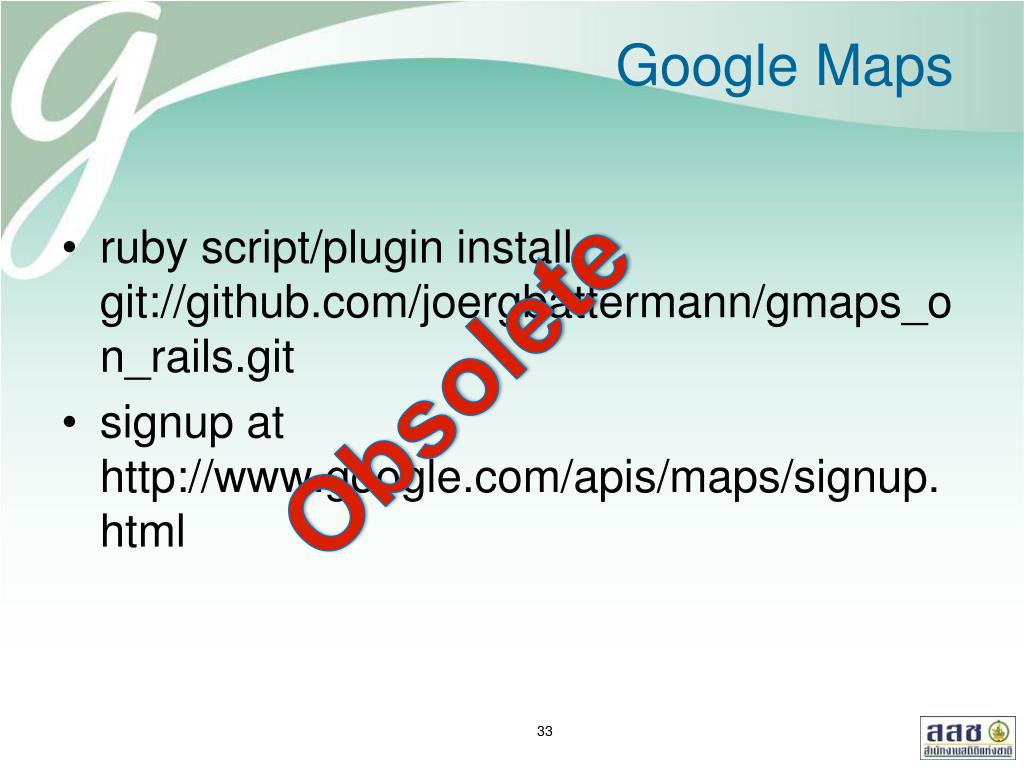

  33. Google Maps Obsolete ruby script/plugin install git://github.com/joergbattermann/gmaps_on_rails.git signup at http://www.google.com/apis/maps/signup.html

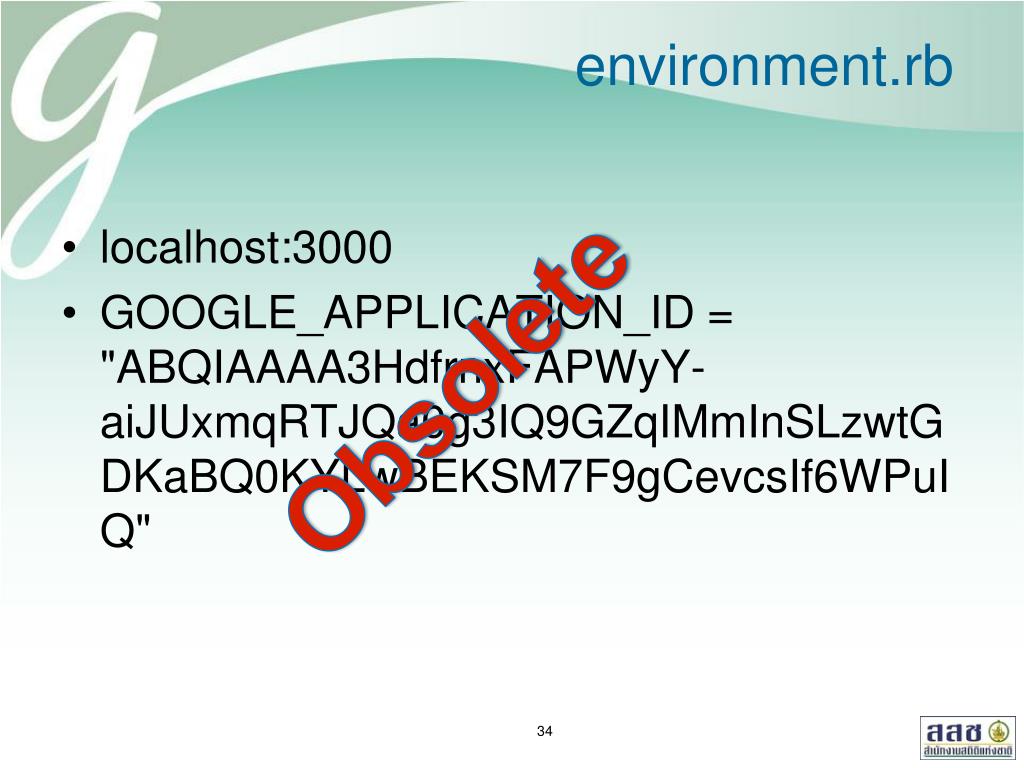

  34. environment.rb Obsolete localhost:3000 GOOGLE_APPLICATION_ID = "ABQIAAAA3HdfrnxFAPWyY-aiJUxmqRTJQa0g3IQ9GZqIMmInSLzwtGDKaBQ0KYLwBEKSM7F9gCevcsIf6WPuIQ"

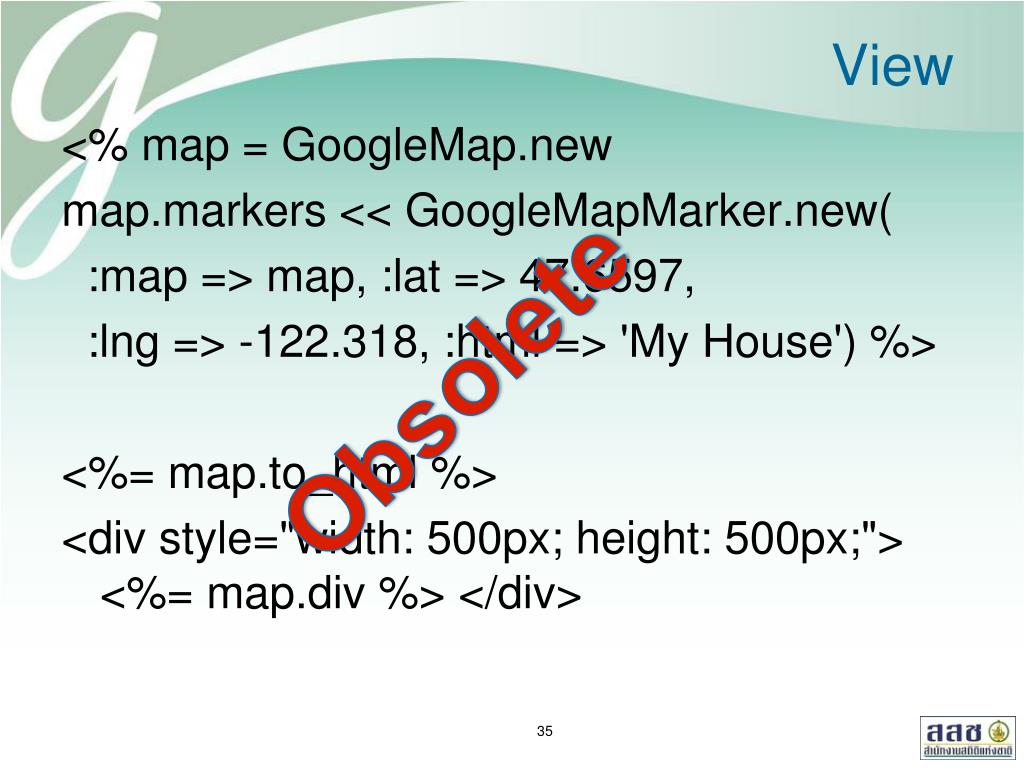

  35. View Obsolete <% map = GoogleMap.new map.markers << GoogleMapMarker.new( :map => map, :lat => 47.6597, :lng => -122.318, :html => 'My House') %> <%= map.to_html %> <div style="width: 500px; height: 500px;"> <%= map.div %> </div>

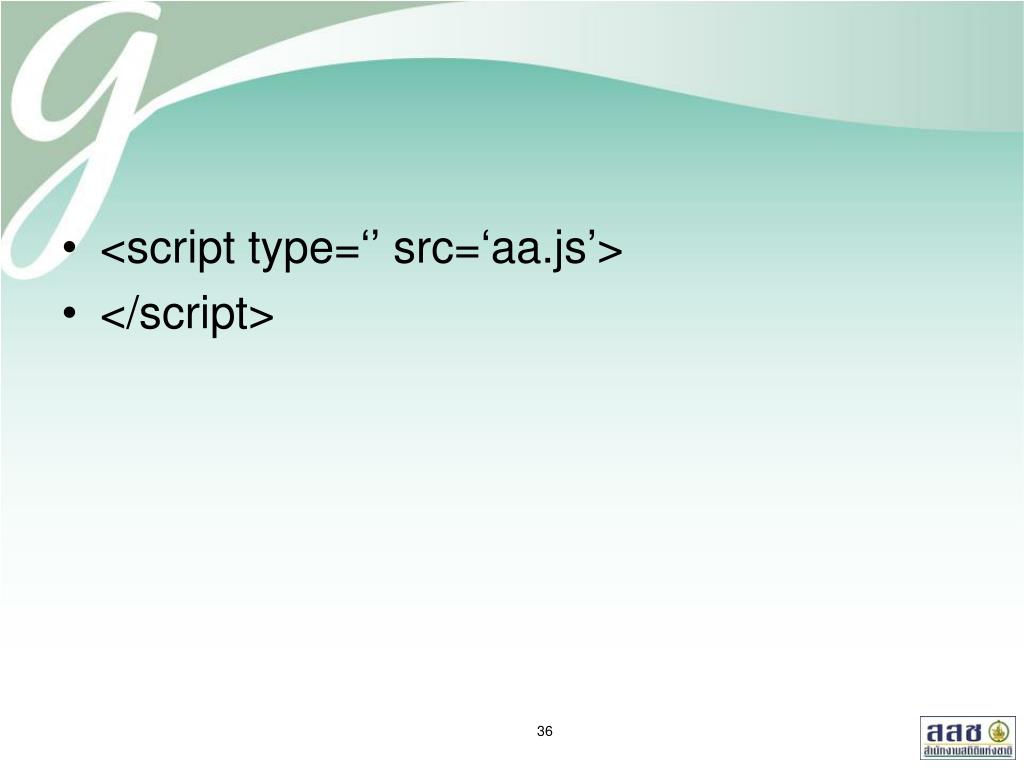

  36. <script type=‘’ src=‘aa.js’> </script>

  37. Google Map V3 <script type="text/javascript" src="http://maps.google.com/maps/api/js?sensor=false"> </script>

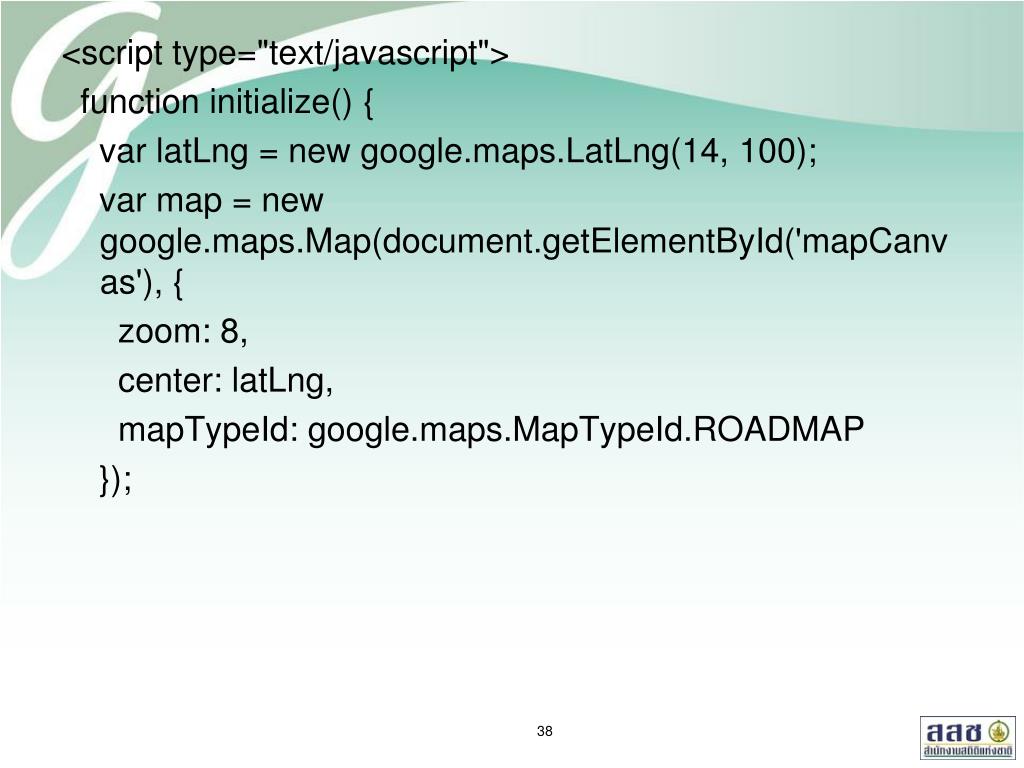

  38. <script type="text/javascript"> function initialize() { var latLng = new google.maps.LatLng(14, 100); var map = new google.maps.Map(document.getElementById('mapCanvas'), { zoom: 8, center: latLng, mapTypeId: google.maps.MapTypeId.ROADMAP });

  39. var marker = new google.maps.Marker({ position: latLng, title: 'Point A', map: map, draggable: true }); } google.maps.event.addDomListener(window, 'load', initialize); </script>

  40. <style> #mapCanvas { width: 500px; height: 500px; } </style> <div id="mapCanvas"></div>

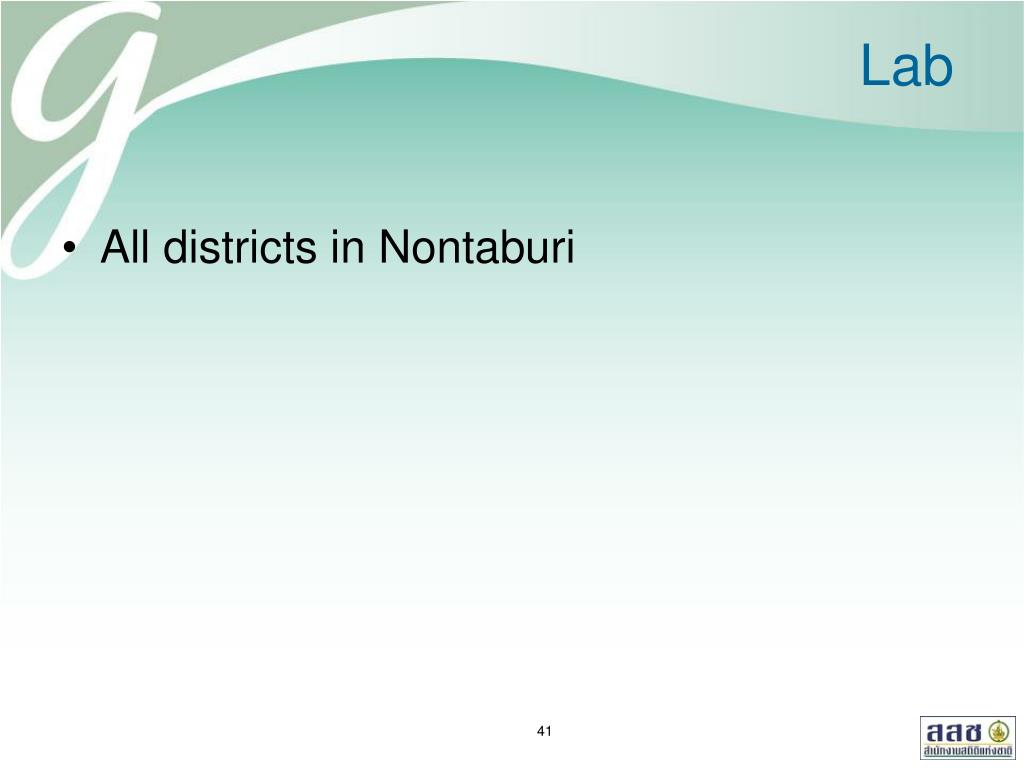

  41. Lab All districts in Nontaburi

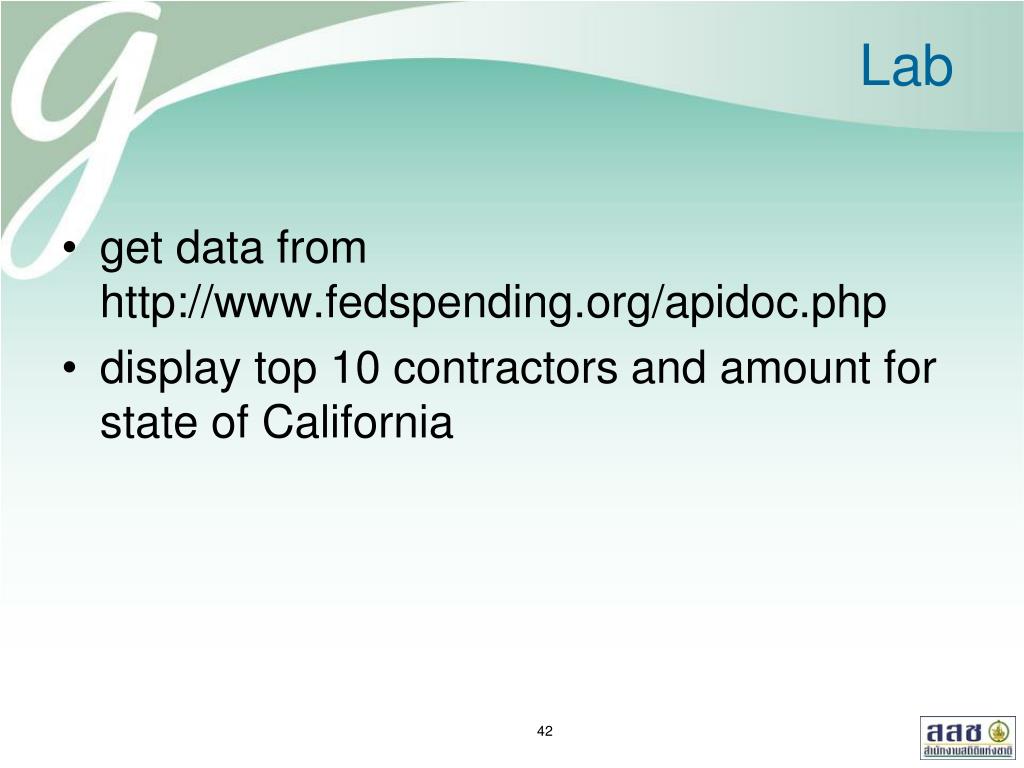

  42. Lab get data from http://www.fedspending.org/apidoc.php display top 10 contractors and amount for state of California

  43. StatXML
