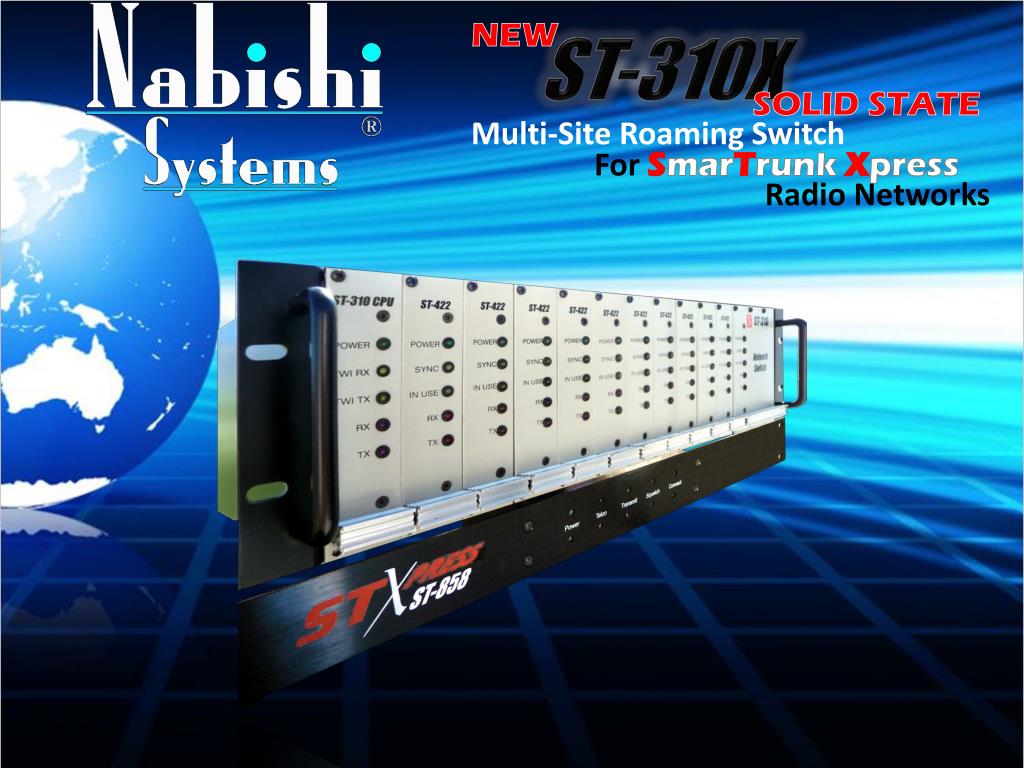

  1. NEW ST-310X SOLID STATE Multi-Site Roaming Switch For SmarTrunkXpress Radio Networks

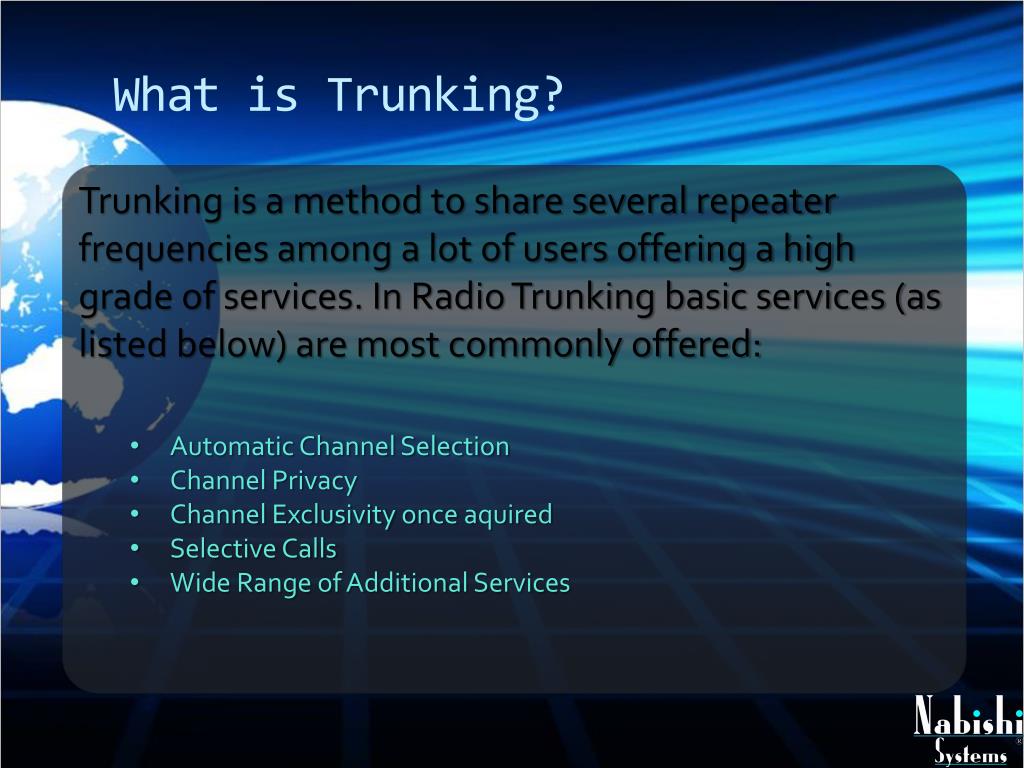

  2. What is Trunking? • Trunking is a method to share several repeater frequencies among a lot of users offering a high grade of services. In Radio Trunking basic services (as listed below) are most commonly offered: • Automatic Channel Selection • Channel Privacy • Channel Exclusivity once aquired • Selective Calls • Wide Range of Additional Services

  3. What is Trunking? In Radio Trunking there are 2 basic groups of Trunking Protocols: • Analog Trunking Protocols • Digital Trunking Protocols

  4. What is Trunking? Analog Trunking Protocols are obsolete due to their low performance compared to the new technologies.

  5. What is Trunking? Digital trunking protocols may be broken down in 3 main types: • Centralized • Decentralized • SmarTrunk Xpress™

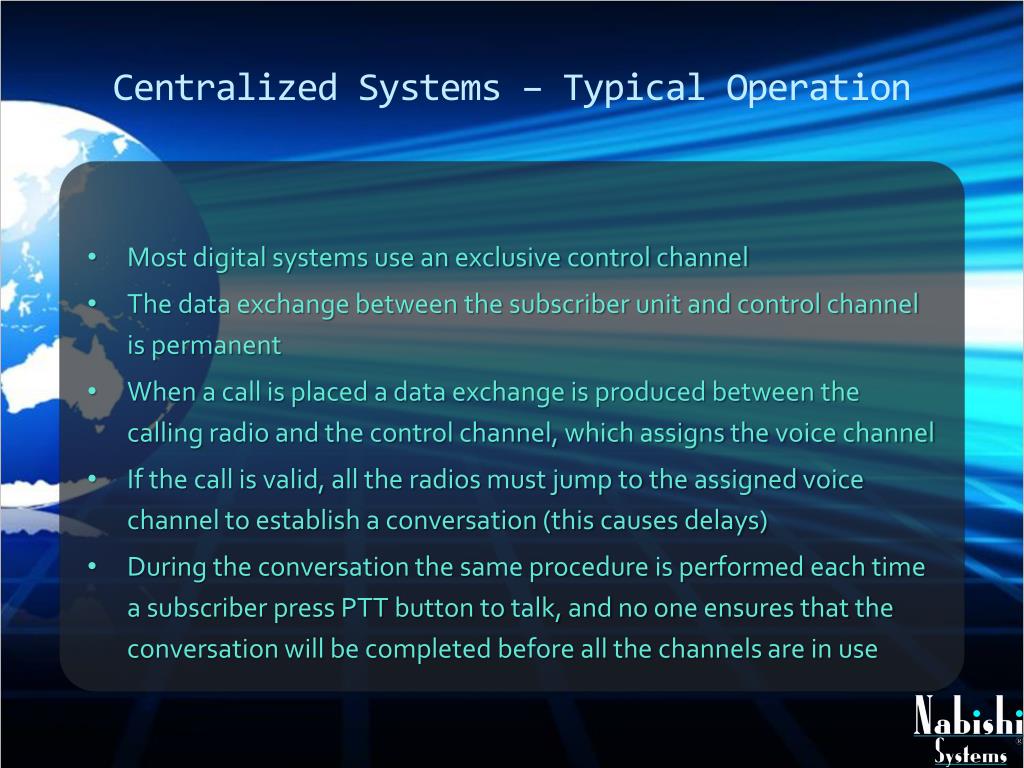

  6. Centralized Systems – Typical Operation • Most digital systems use an exclusive control channel • The data exchange between the subscriber unit and control channel is permanent • When a call is placed a data exchange is produced between the calling radio and the control channel, which assigns the voice channel • If the call is valid, all the radios must jump to the assigned voice channel to establish a conversation (this causes delays) • During the conversation the same procedure is performed each time a subscriber press PTT button to talk, and no one ensures that the conversation will be completed before all the channels are in use

  7. Centralized Systems - Typical Operation • Continuous data flow between control channel and subscriber terminal

  8. Centralized Systems - Typical Operation • If subscriber ‘A’ initiates a call to subscribers ‘C’ and ‘E’, a call request is placed on the control channel

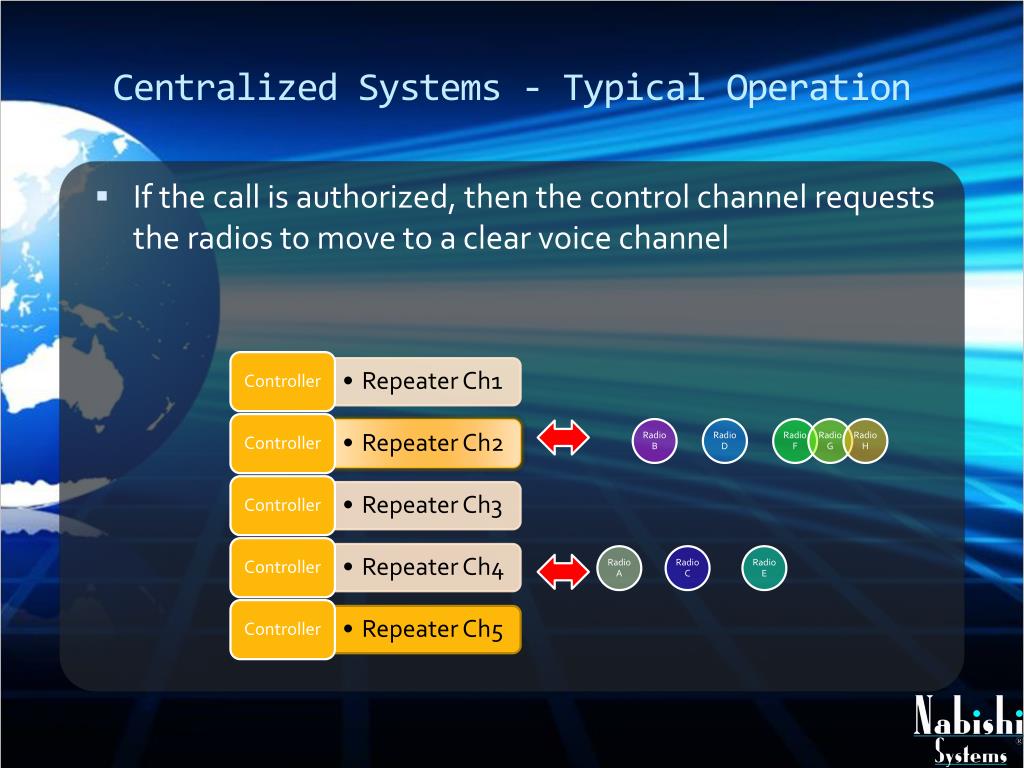

  9. Centralized Systems - Typical Operation • If the call is authorized, then the control channel requests the radios to move to a clear voice channel

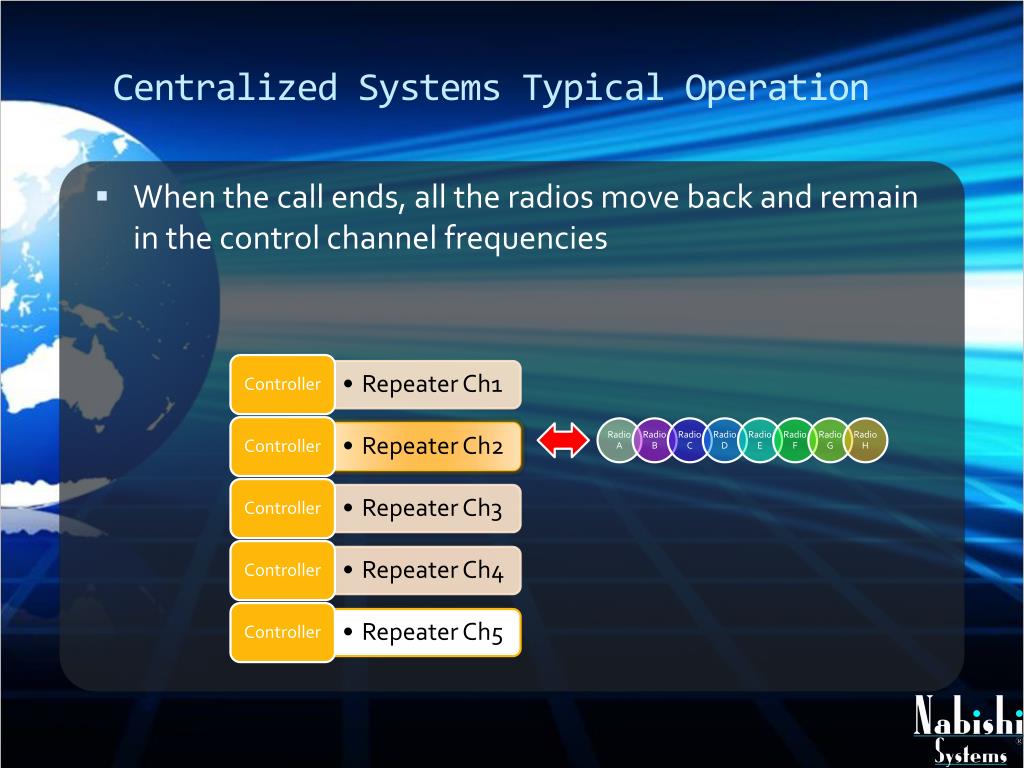

  10. Centralized Systems Typical Operation • When the call ends, all the radios move back and remain in the control channel frequencies

  11. Centralized Systems - Typical Operation • Advantages: • High speed • High efficiency on large systems • Data transmission supported (AVL) • Disadvantages • High Cost • Proprietary terminals (captive market) • Exclusive licensing required • Use dedicated control channel frequencies • Low sensitivity • High power repeaters required • Very expensive Wide area solution

  12. De-Centralized Systems - Operation • Distributed intelligence • Scan Based (radios scanning continuously thru all the system frequencies) • When a call starts, once authorized, all radios must stop on the channel where the call has been requested • Only the subscribers involved on that call stay on the channel. All other radios continue scanning • The call remains on the channel operating with instant PTT (like in standard repeater channel) • When the call ends, the radios start the scan process again • Call setup time becomes longer if more channels in the scan list are added. Large systems demands huge time to setup a call ( a 12 channels site demands about three seconds to setup a call)

  13. De-Centralized Systems - Operation • Advantages • Low cost • NO Proprietary Terminals • NO exclusive channels • NO special license on most of the countries • Low cost networking • Disadvantages • Low call connect speed • Effective only on small size system

  14. SmarTrunk Xpress® System Operation • All radios remain in idle mode on a dynamic Parking Channel • When a call is requested, if authorized, the controllers send a data frame, and all involved radios open the speaker immediately • The same data frame commands all other radios are to jump to the next parking channel • During the call, PTT transmit is instantaneous, and the channel remains occupied during the call • When a call ends, all radios on that call are ordered to jump to the current parking channel • If all channels are busy, the radios start roaming thru all the frequency channels, until receiving a site beacon to move to the available Parking Channel

  15. SmarTrunk Xpress® System Operation • In Standby, all the radios remain in a parking channel (Stand By with battery saver)

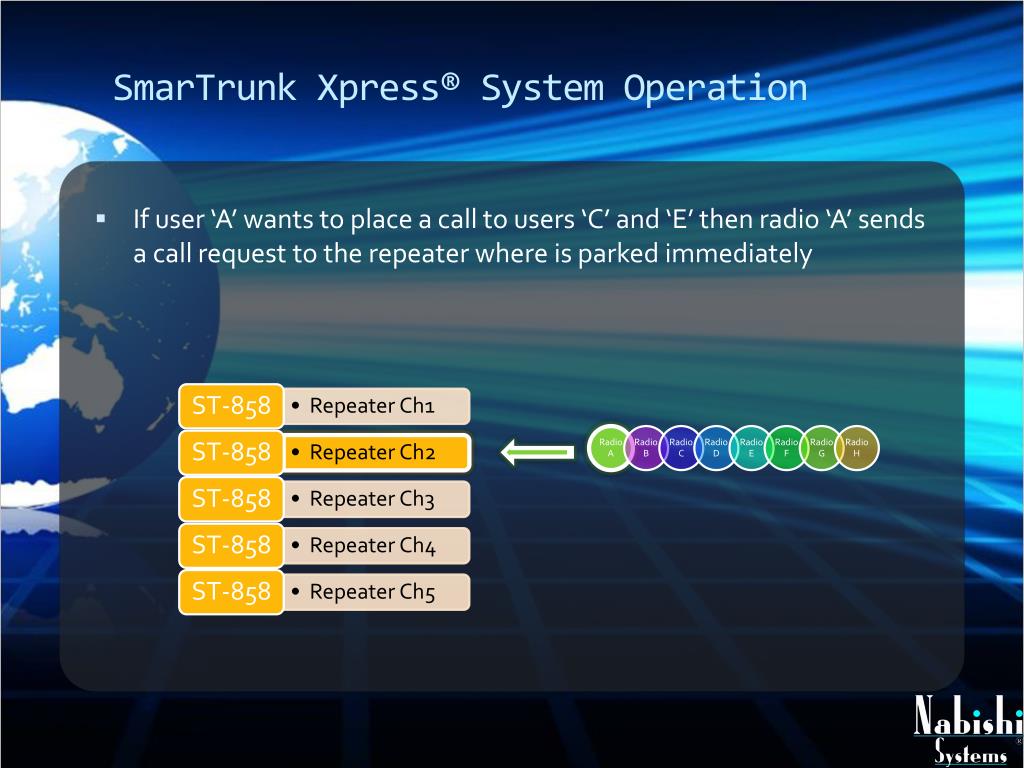

  16. SmarTrunk Xpress® System Operation • If user ‘A’ wants to place a call to users ‘C’ and ‘E’ then radio ‘A’ sends a call request to the repeater where is parked immediately

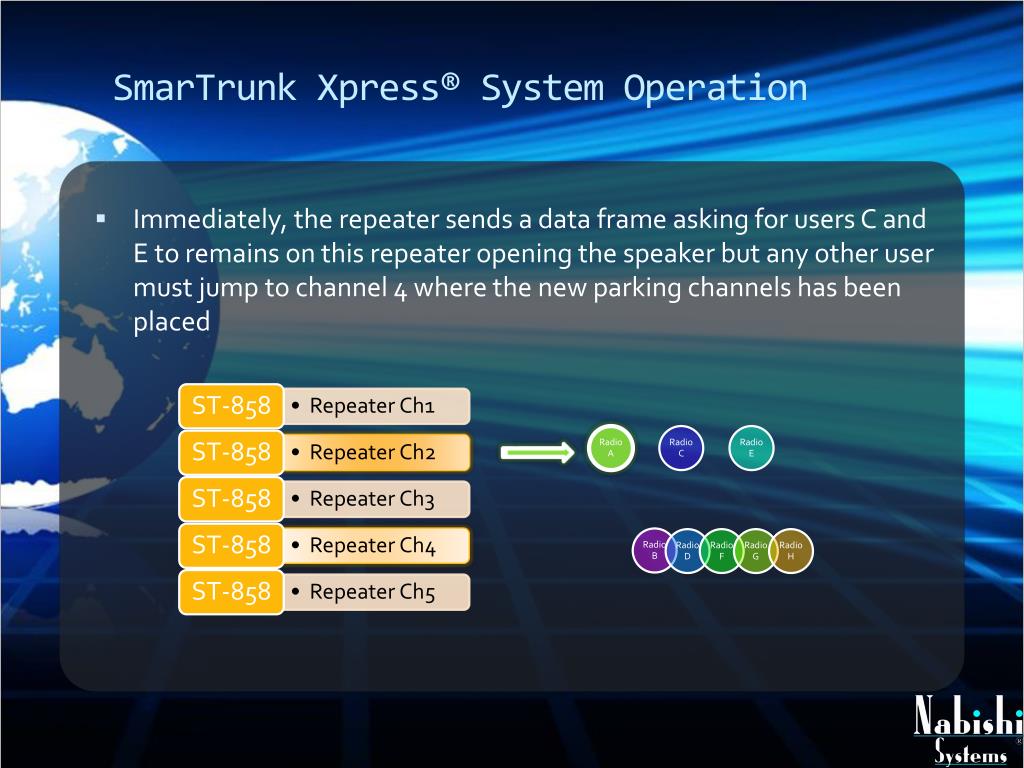

  17. SmarTrunk Xpress® System Operation • Immediately, the repeater sends a data frame asking for users C and E to remains on this repeater opening the speaker but any other user must jump to channel 4 where the new parking channels has been placed

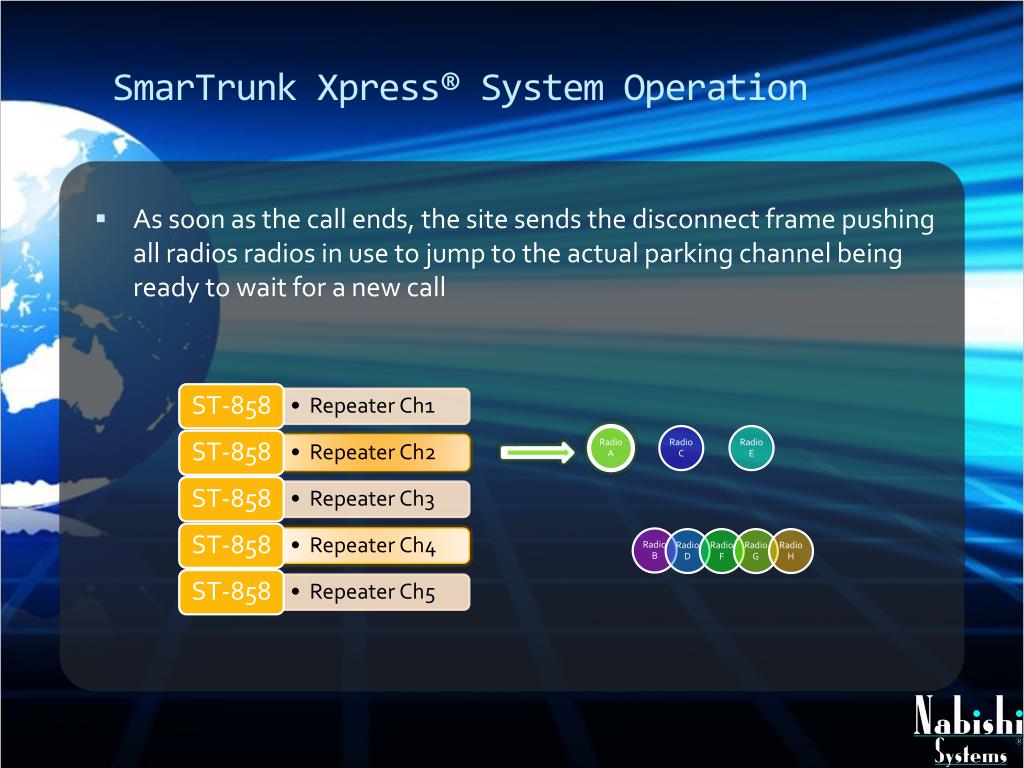

  18. SmarTrunk Xpress® System Operation • As soon as the call ends, the site sends the disconnect frame pushing all radios radios in use to jump to the actual parking channel being ready to wait for a new call

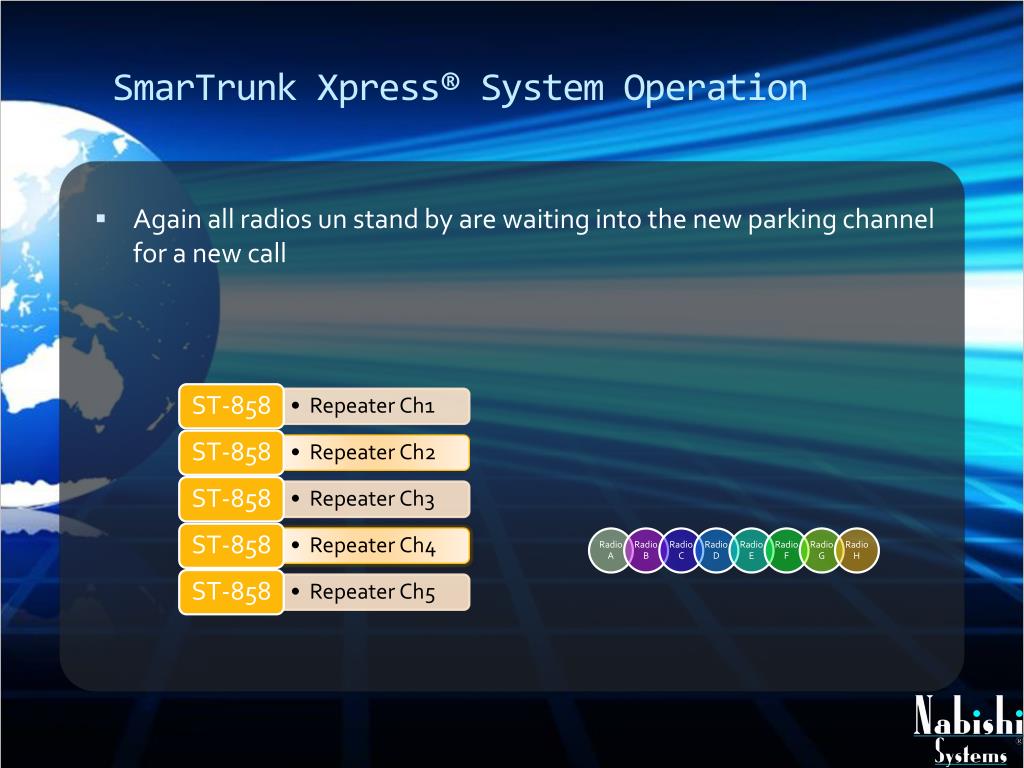

  19. SmarTrunk Xpress® System Operation • Again all radios un stand by are waiting into the new parking channel for a new call

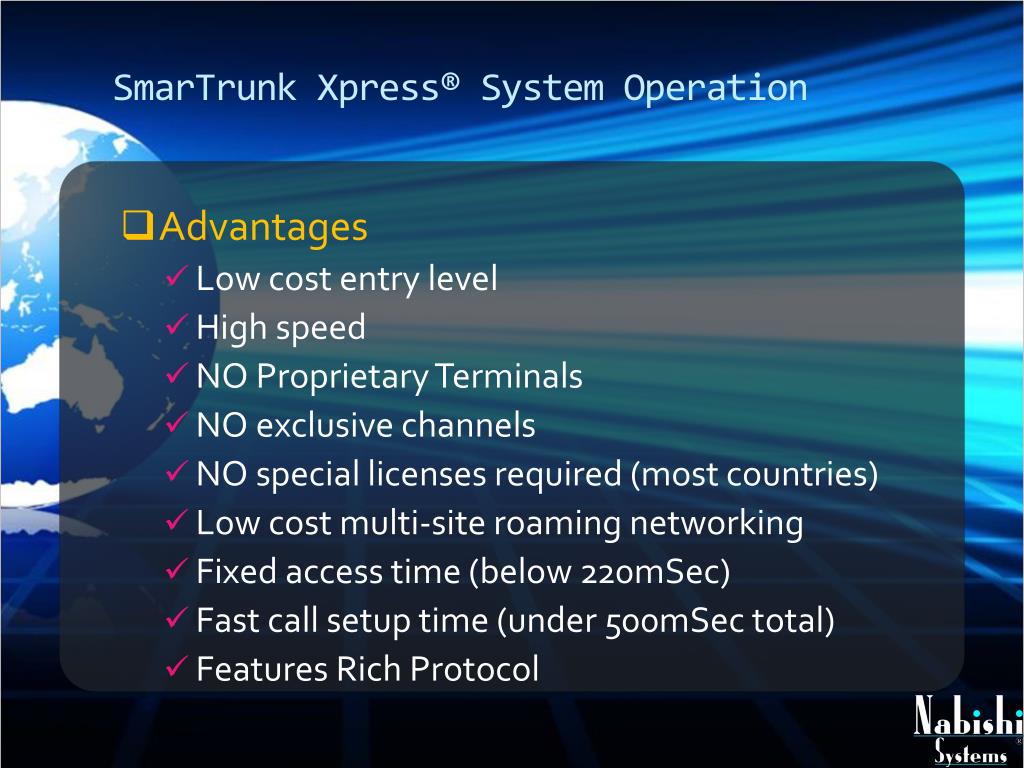

  20. SmarTrunk Xpress® System Operation • Advantages • Low cost entry level • High speed • NO Proprietary Terminals • NO exclusive channels • NO special licenses required (most countries) • Low cost multi-site roaming networking • Fixed access time (below 220mSec) • Fast call setup time (under 500mSec total) • Features Rich Protocol

  21. Trunking Systems Comparison Chart

  22. SmarTrunk Xpress® Highlights • High Speed Channel Acquisition • Faster Dispatch Connection • Compatible with most popular radio brands • Longer Battery Life • Text Messaging • Status Messages • Remote Monitoring and Control • Remote Radio Kill/Revive • Address Book • Scrollable Menus Using Radio Display and Buttons • Automatic Vehicle Location • Voice Encryption • Anti Hacker’s Privacy • Multi-Site Roaming Requires ST-510 Server Software • No Scanning • No Continuous Data Exchange Applies to Mobile Radios - 2 I/O Ports (requires ST-510 Server Software)

  23. Typical Network Diagram REMOTE SITE IP BACKBONE RS-232 to Ethernet ST-858 Site Data Access Bridge VoIP ST-858 Controllers Repeater Channels Full Duplex Base Stations

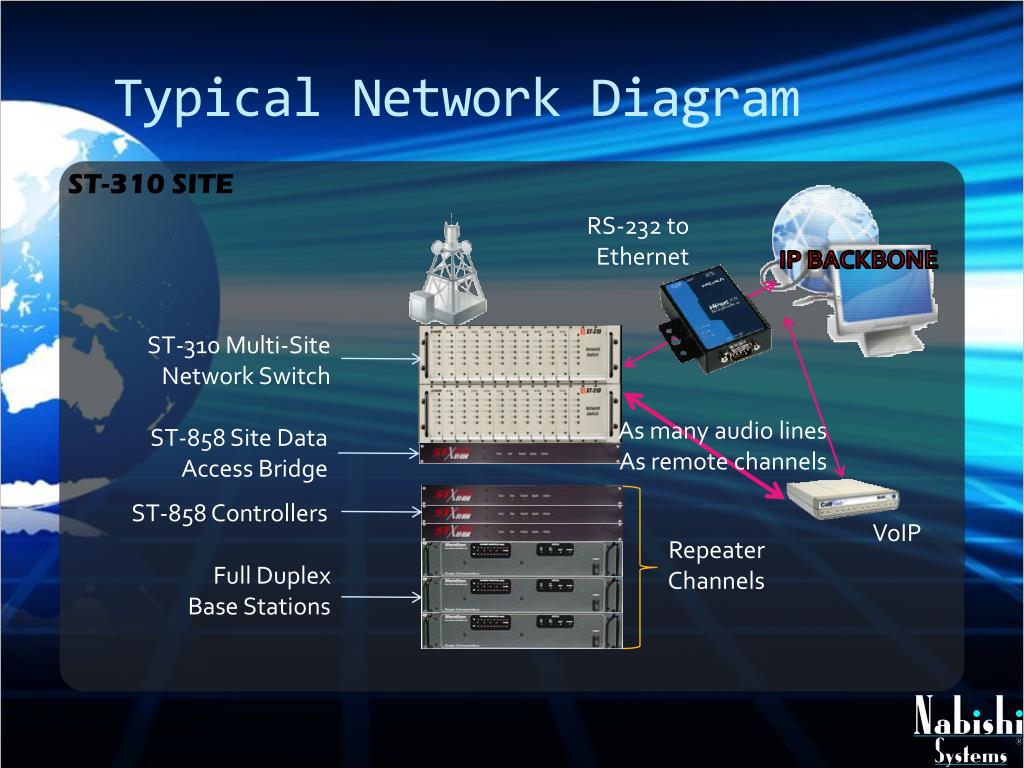

  24. Typical Network Diagram ST-310 SITE RS-232 to Ethernet IP BACKBONE ST-310 Multi-Site Network Switch As many audio lines As remote channels ST-858 Site Data Access Bridge ST-858 Controllers VoIP Repeater Channels Full Duplex Base Stations

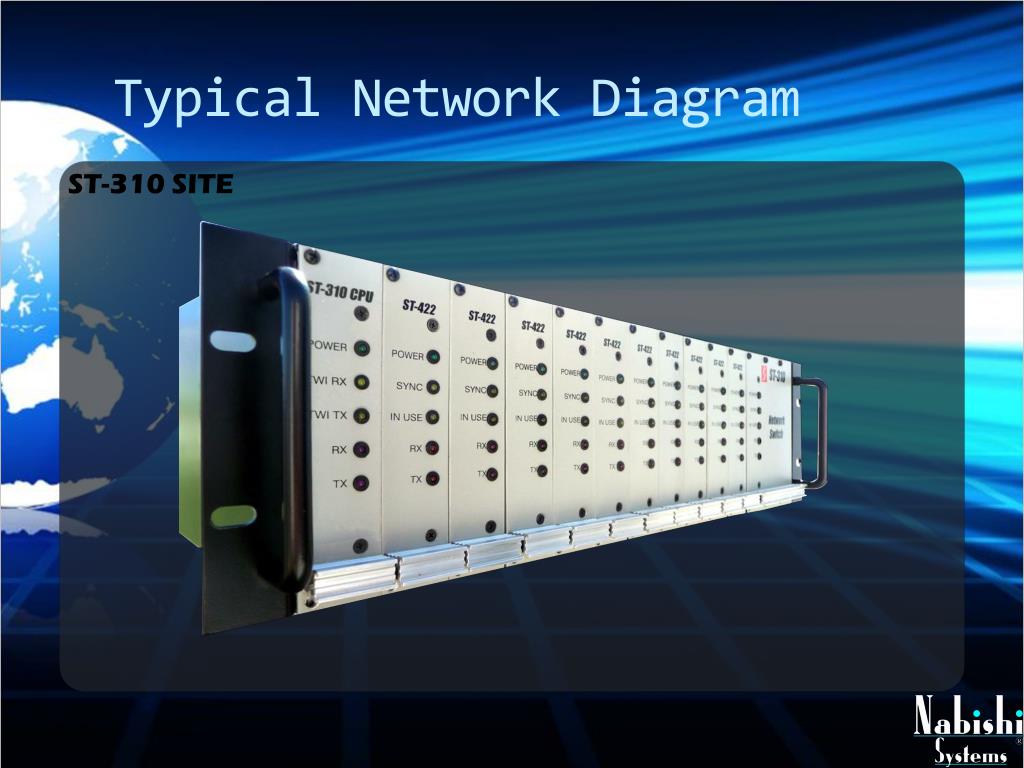

  25. Typical Network Diagram ST-310 SITE

  26. Typical Network Diagram ST-310X can be equipped with a local PC for remote users’ database management, remote system control and realtime monitoring. IP Remote Dispatch Consoles IP Remote GPS Fleet Management Consoles IP Network Ethernet RS-232 IP based - Remote Control & Supervision Software ST-510 Server

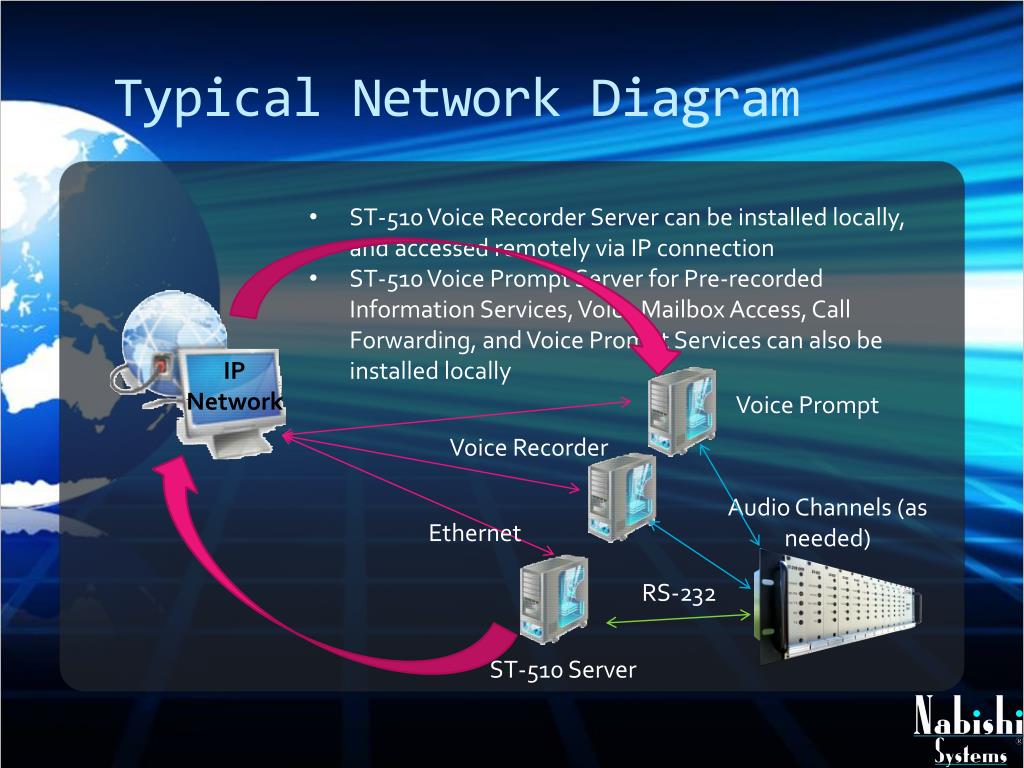

  27. Typical Network Diagram • ST-510 Voice Recorder Server can be installed locally, and accessed remotely via IP connection • ST-510 Voice Prompt Server for Pre-recorded Information Services, Voice Mailbox Access, Call Forwarding, and Voice Prompt Services can also be installed locally IP Network Voice Prompt Ethernet Voice Recorder RS-232 Audio Channels (as needed) ST-510 Server

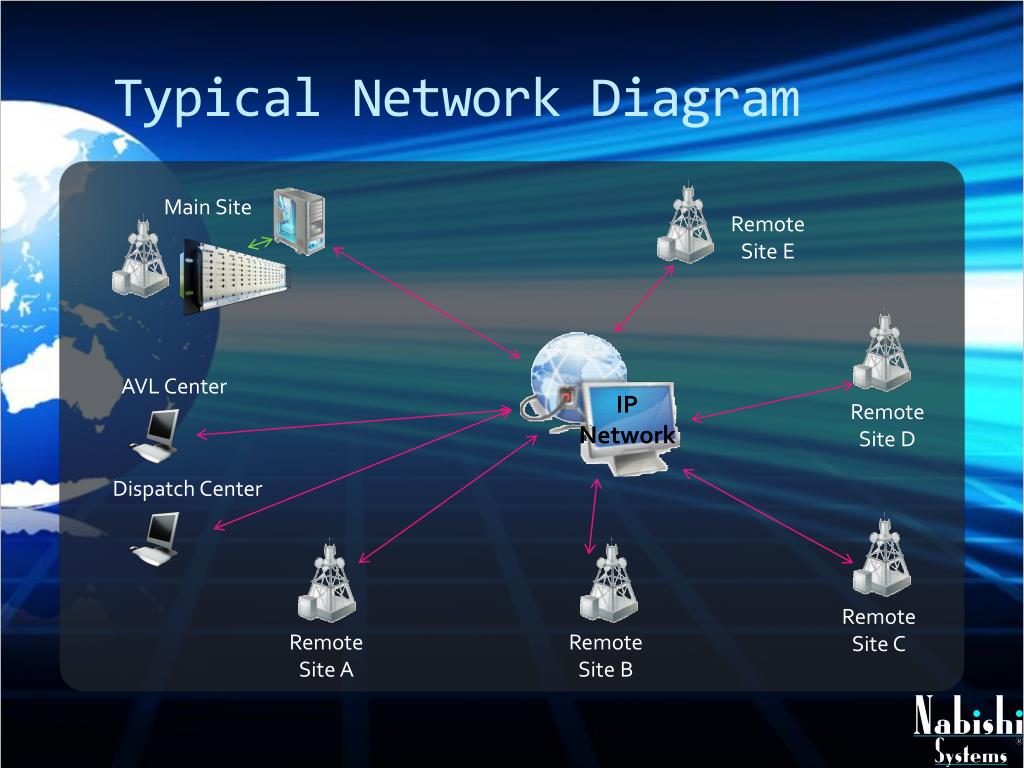

  28. Typical Network Diagram Main Site Remote Site E IP Network AVL Center Remote Site D Dispatch Center Remote Site C Remote Site A Remote Site B

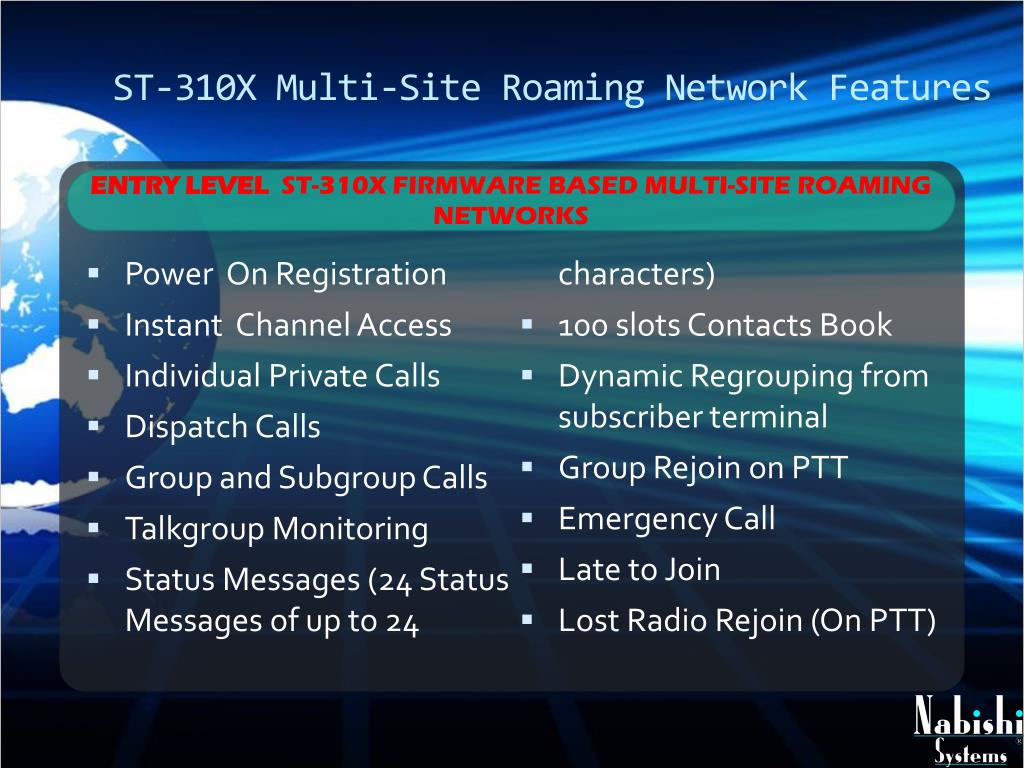

  29. ST-310X Multi-Site Roaming Network Features ENTRY LEVEL ST-310X FIRMWARE BASED MULTI-SITE ROAMING NETWORKS • Power On Registration • Instant Channel Access • Individual Private Calls • Dispatch Calls • Group and Subgroup Calls • Talkgroup Monitoring • Status Messages (24 Status Messages of up to 24 characters) • 100 slots Contacts Book • DynamicRegroupingfromsubscriber terminal • Group Rejoinon PTT • EmergencyCall • Late toJoin • Lost Radio Rejoin (On PTT)

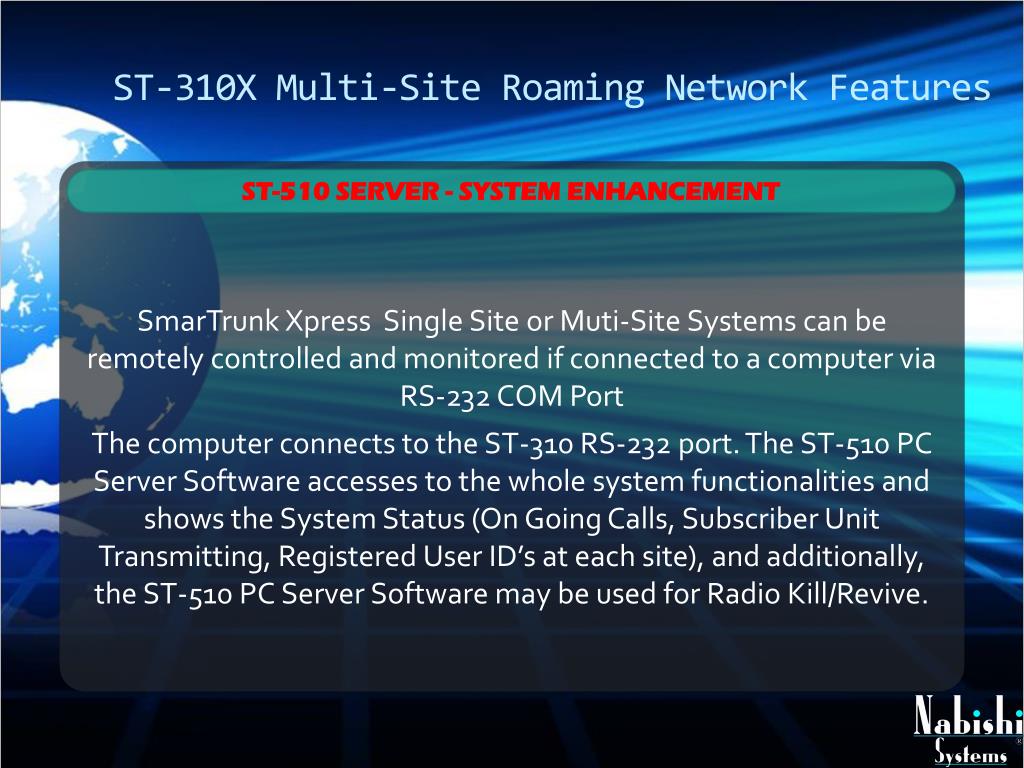

  30. ST-310X Multi-Site Roaming Network Features ST-510 SERVER - SYSTEM ENHANCEMENT SmarTrunk Xpress Single Site or Muti-Site Systems can be remotely controlled and monitored if connected to a computer via RS-232 COM Port The computer connects to the ST-310 RS-232 port. The ST-510 PC Server Software accesses to the whole system functionalities and shows the System Status (On Going Calls, Subscriber Unit Transmitting, Registered User ID’s at each site), and additionally, the ST-510 PC Server Software may be used for Radio Kill/Revive.

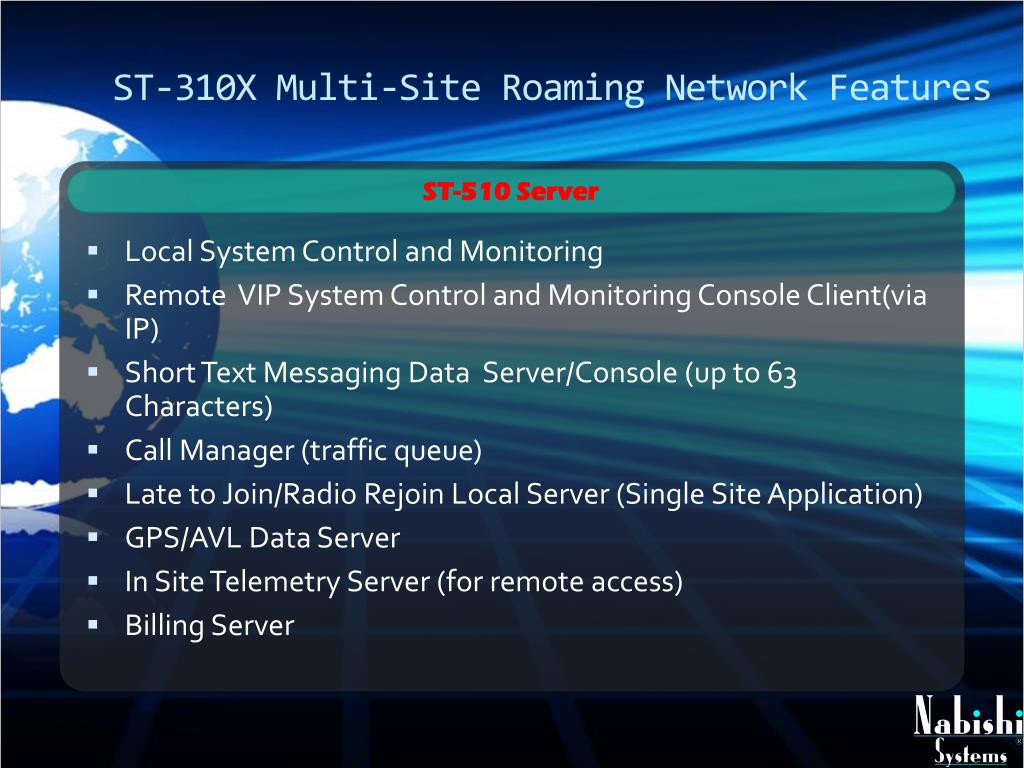

  31. ST-310X Multi-Site Roaming Network Features ST-510 Server • Local System Control and Monitoring • Remote VIP System Control and Monitoring Console Client(via IP) • Short Text Messaging Data Server/Console (up to 63 Characters) • Call Manager (traffic queue) • Late to Join/Radio Rejoin Local Server (Single Site Application) • GPS/AVL Data Server • In Site Telemetry Server (for remote access) • Billing Server

  32. ST-310X Multi-Site Roaming Network Features ST-510 VoiceRecorder • External computer records all audio channels for security reasons • Playback Management from local or remote PC • If used with ST-510 Voice Prompt Server, Voice Mailbox is enabled

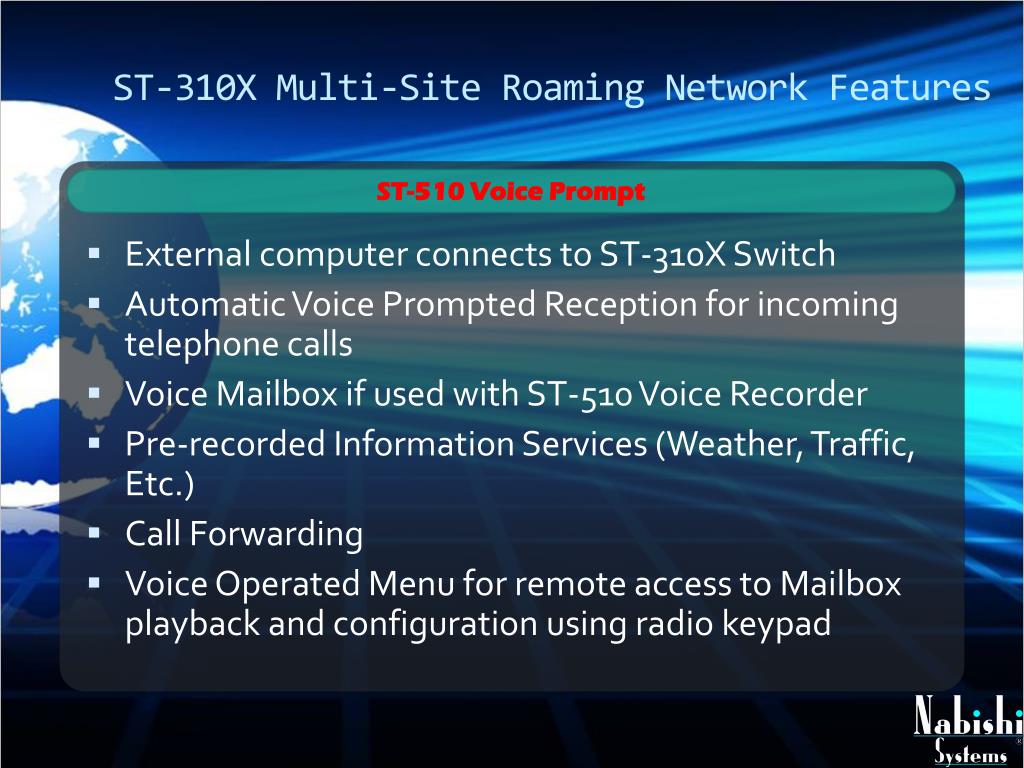

  33. ST-310X Multi-Site Roaming Network Features ST-510 VoicePrompt • External computer connects to ST-310X Switch • Automatic Voice Prompted Reception for incoming telephone calls • Voice Mailbox if used with ST-510 Voice Recorder • Pre-recorded Information Services (Weather, Traffic, Etc.) • Call Forwarding • Voice Operated Menu for remote access to Mailbox playback and configuration using radio keypad

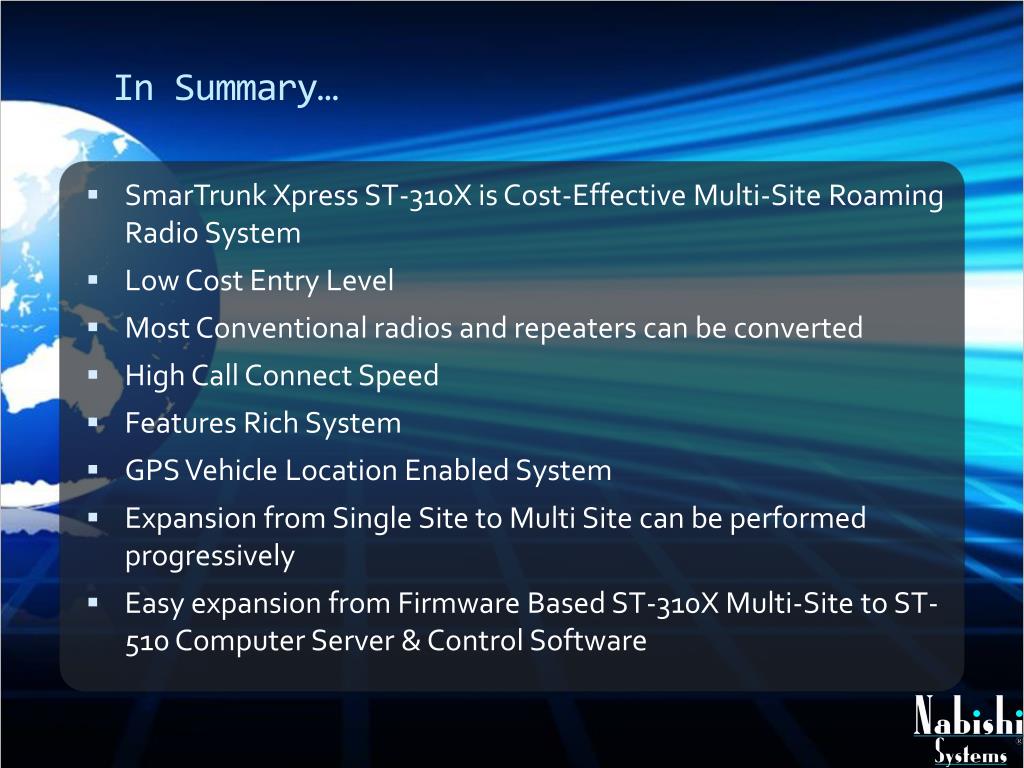

  34. In Summary… • SmarTrunk Xpress ST-310X is Cost-Effective Multi-Site Roaming Radio System • Low Cost Entry Level • Most Conventional radios and repeaters can be converted • High Call Connect Speed • Features Rich System • GPS Vehicle Location Enabled System • Expansion from Single Site to Multi Site can be performed progressively • Easy expansion from Firmware Based ST-310X Multi-Site to ST-510 Computer Server & Control Software

  35. Application Success Stories 2009 Barrick Gold, open sky gold/silver mine in Veladero, San Juan (Argentina) 4 Sites, 11 Channels, 600 teminals, in-site telemetry. System Integrator: Radio-Com S.A.

  36. Success Stories 2006 Konin S.A., open sky coal mine near Konin, Poland. 4 Sites, 12 Channels, over 400 terminals. System Integrator: Komtek2006.

  37. Success Stories 2007 Kumba Iron Ore,. 4 Sites, 12 Channels, over 400 terminals. System Integrator: Verstay Pty. Ltd.

  38. ST-858 Repeater Controller and ST-310X Wide Area Network Switch combination is converts any conventional system into the most powerfull Muti-Site Trunking System in the market

  39. ANY QUESTIONS?
