  1. Solid of Revolution Revolution about x-axis

  2. What is a Solid of Revolution - 1 Consider the area under the graph of y = 0.5x from x = 0 to x = 1:

  3. What is a Solid of Revolution - 2 If the shaded area is now rotated about the x-axis, then a three-dimensional solid (called Solid of Revolution) will be formed: What will it look like? Pictures from http://chuwm2.tripod.com/revolution/

  4. What is a Solid of Revolution - 3 Actually, if the shaded triangle is regarded as made up of straight lines perpendicular to the x-axis, then each of them will give a circular plate when rotated about the x-axis.  The collection of all such plates then pile up to form the solid of revolution, which is a cone in this case.

  5. Finding Volume http://clem.mscd.edu/~talmanl/HTML/VolumeOfRevolution.html

  6. What will it look like? http://www.worldofgramophones.com/ victor-victrola-gramophone-II.jpg How is it calculated - 1 Consider the solid of revolution formed by the graph of y = x2 from x = 0 to x = 2:

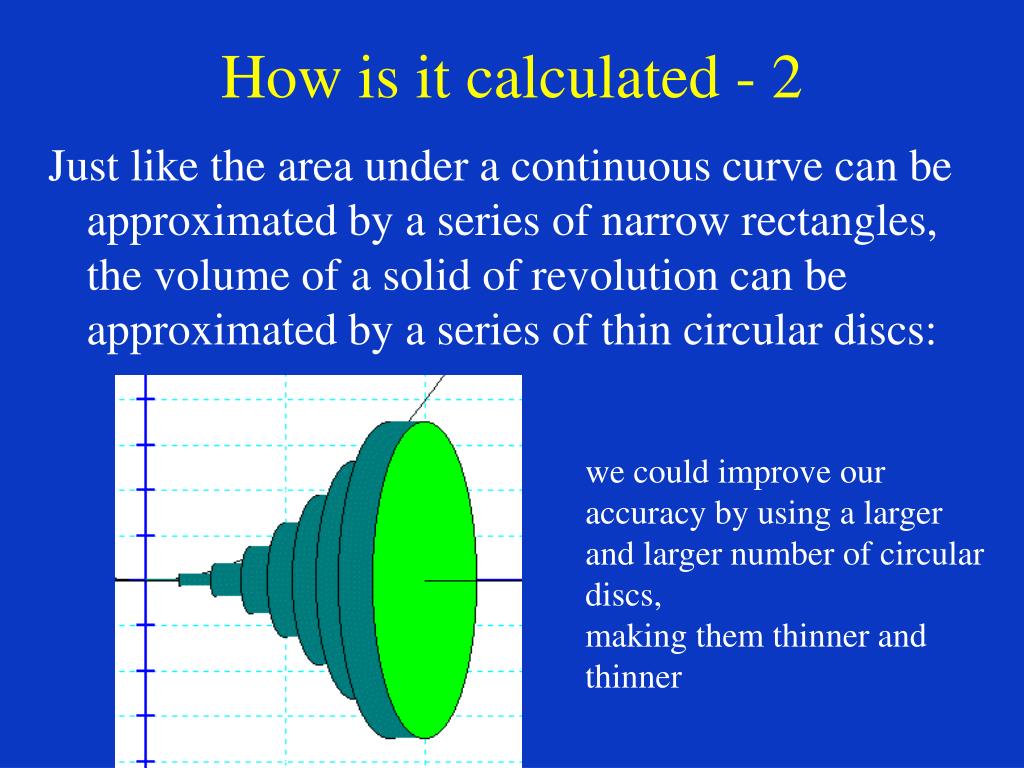

  7. How is it calculated - 2 Just like the area under a continuous curve can be approximated by a series of narrow rectangles, the volume of a solid of revolution can be approximated by a series of thin circular discs: we could improve our accuracy by using a larger and larger number of circular discs, making them thinner and thinner

  8. As n tends to infinity, It means the discs get thinner and thinner. And it becomes a better and better approximation. How is it calculated - 3 x x x As n tends to infinity, It means the discs get thinner and thinner. And it becomes a better and better approximation. It can be replaced by an integral

  9. Think of is as the um of lots of circles … where area of circle = r2 Volume of Revolution Formula The volume of revolution about the x-axis between x = a and x = b, as , is : This formula you do need to know

  10. Example of a disk The volume of each disk is: How could we find the volume of the cone? One way would be to cut it into a series of disks (flat circular cylinders) and add their volumes. In this case: r= the y value of the function thickness = a small change in x =dx

  11. The volume of each flat cylinder (disk) is: If we add the volumes, we get:

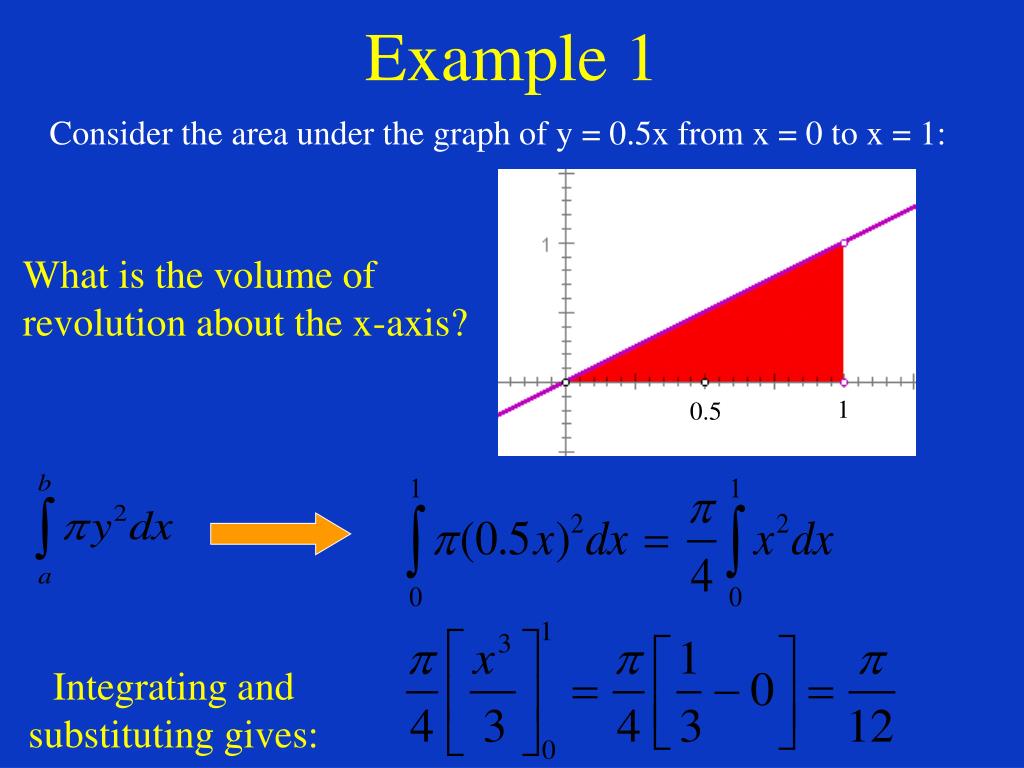

  12. Example 1 Consider the area under the graph of y = 0.5x from x = 0 to x = 1: What is the volume of revolution about the x-axis? 1 0.5 Integrating and substituting gives:

  13. Example 2 What is the volume of revolution about the x-axis between x = 1 and x = 4 for Integrating gives:

  14. http://clem.mscd.edu/~talmanl/HTML/DetailedVolRev.html

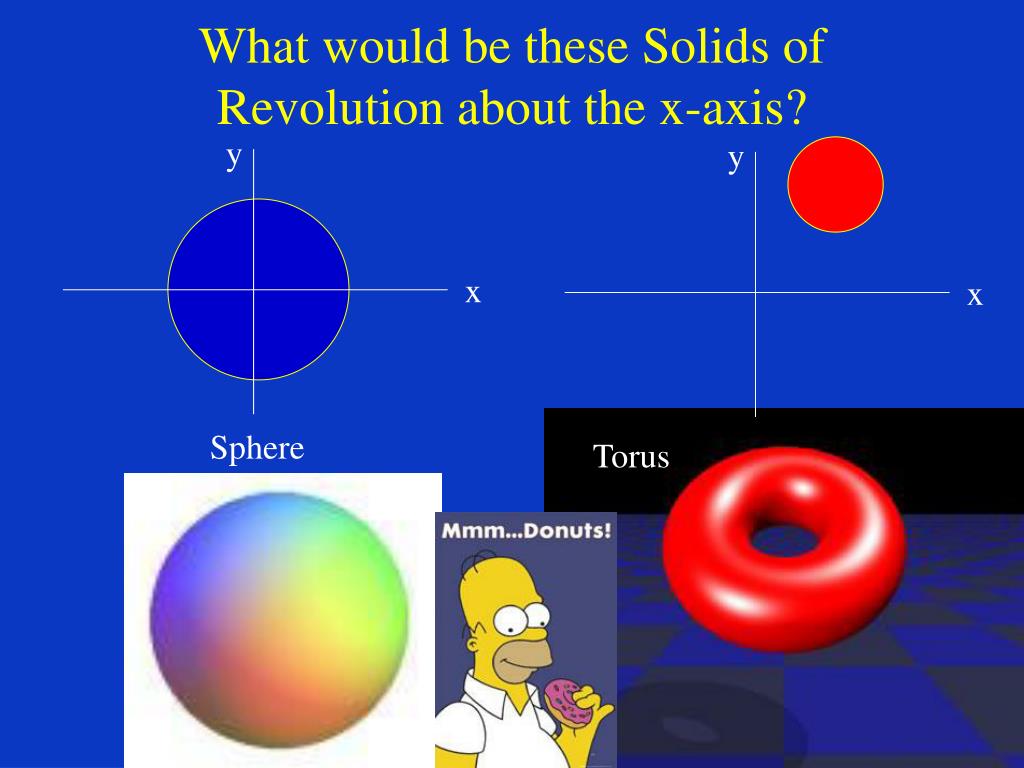

  15. What would be these Solids of Revolution about the x-axis? y y x x Sphere Torus

  16. What would be these Solids of Revolution about the x-axis? y y x x Sphere Torus

  17. http://curvebank.calstatela.edu/volrev/volrev.htm
