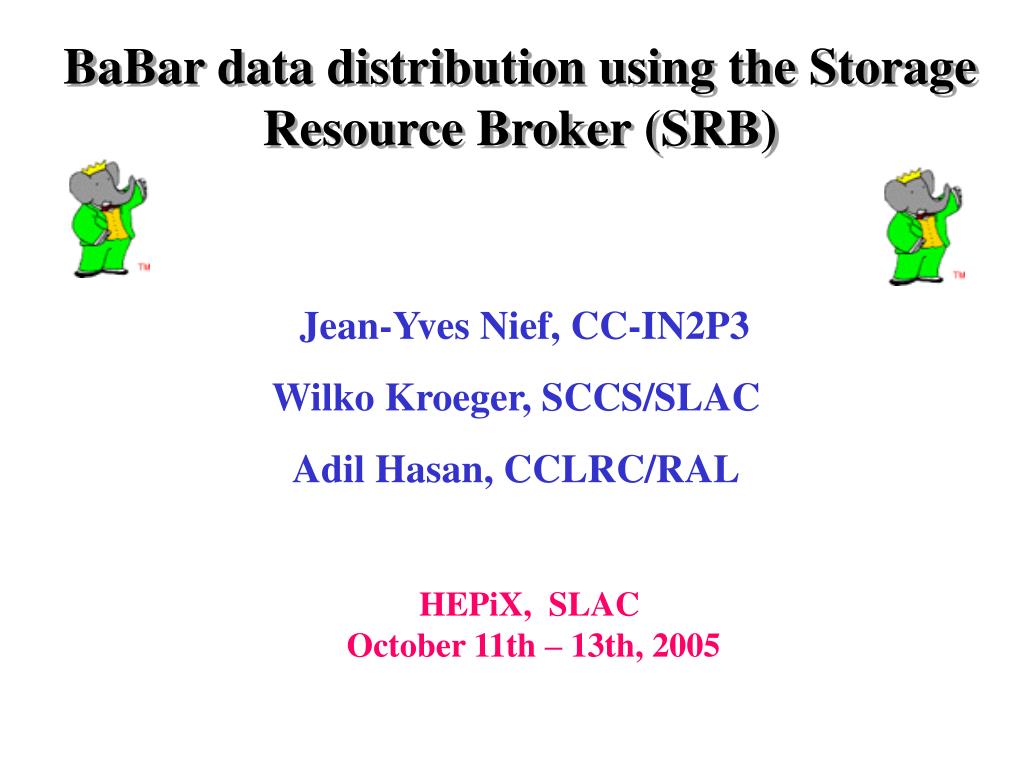

  1. BaBar data distribution using the Storage Resource Broker (SRB) Jean-Yves Nief, CC-IN2P3 Wilko Kroeger, SCCS/SLAC Adil Hasan, CCLRC/RAL HEPiX, SLAC October 11th – 13th, 2005

  2. BaBar overview. • Large amount of data produced by BaBar: > 800 TB. • Using the collaboration Computing Centres: • Data (re)processing (prompt reco, skimming). • Simulation production. • Data analysis  allow foreign collaborators to access data. • 6 Tier A: • SLAC stores all the data + simulation: central repository. • Computing tasks divided among all the Tier A sites. HEPiX Conference, SLAC, October 11th-13th 2005

  3. BaBar data organization. + simulation production (~20 sites involved)  Lots of data movement HEPiX Conference, SLAC, October 11th-13th 2005

  4. Requirements. • Short turn-around between data production and analysis. • Data must be transfered efficiently and quickly to Computing Centres. • Data transfer tools must be: • Reliable. • Robust. • Automated. • Scalable. • Easy to use. HEPiX Conference, SLAC, October 11th-13th 2005

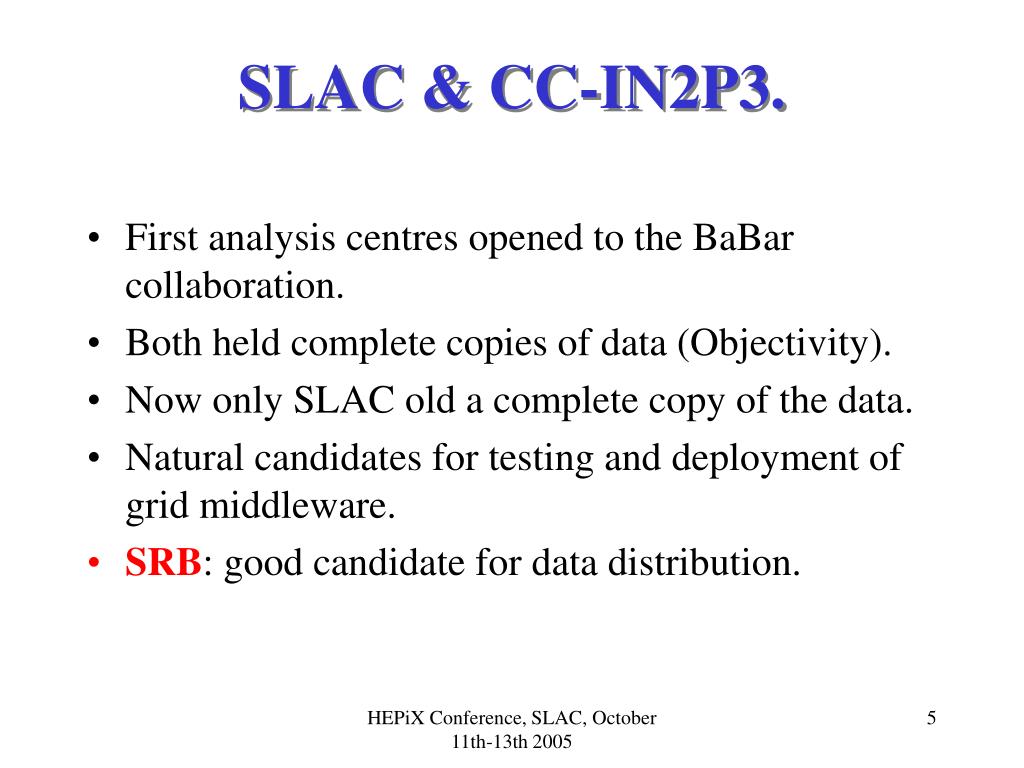

  5. SLAC & CC-IN2P3. • First analysis centres opened to the BaBar collaboration. • Both held complete copies of data (Objectivity). • Now only SLAC old a complete copy of the data. • Natural candidates for testing and deployment of grid middleware. • SRB: good candidate for data distribution. HEPiX Conference, SLAC, October 11th-13th 2005

  6. What’s SRB ? • Storage Resource Broker: developed by SDSC (San Diego). • Provides an uniform interface to heterogeneous storage system (disk, tape, databases) for data distributed in multiple sites. • Who is using SRB ? • Biology, biomedical applications (e.g: BIRN). • Astrophysics, Earth Sciences (e.g: NASA). • Digital libraries (e.g: NARA). • Used world wide: USA, Europe, Asia, Australia. HEPiX Conference, SLAC, October 11th-13th 2005

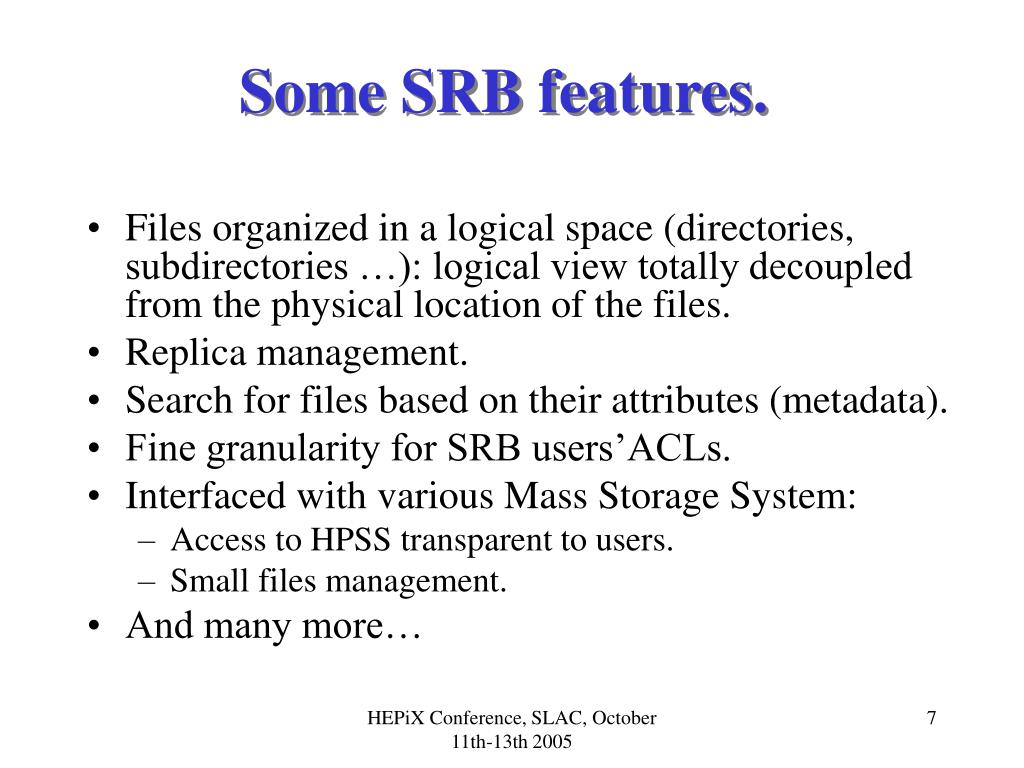

  7. Some SRB features. • Files organized in a logical space (directories, subdirectories …): logical view totally decoupled from the physical location of the files. • Replica management. • Search for files based on their attributes (metadata). • Fine granularity for SRB users’ACLs. • Interfaced with various Mass Storage System: • Access to HPSS transparent to users. • Small files management. • And many more… HEPiX Conference, SLAC, October 11th-13th 2005

  8. MCAT SRB SRB SRB Site 2 Site 3 (4) (1) (2) SRB architecture. • 1 zone: • 1 SRB/MetaCatalog server: contains list of files, physical resources, users registered. • several SRB servers to access the data at their physical location. (3) Site 1 test1.txt Application (asking for test1.txt) HEPiX Conference, SLAC, October 11th-13th 2005

  9. (2) (1) (3) HPSS/Lyon HPSS/SLAC MCAT SRB SRB SRB client SRB SRB BaBar architecture (2001-2004). 1 Zone (SLAC) client CC-IN2P3 (Lyon) SLAC (Stanford, CA) HEPiX Conference, SLAC, October 11th-13th 2005

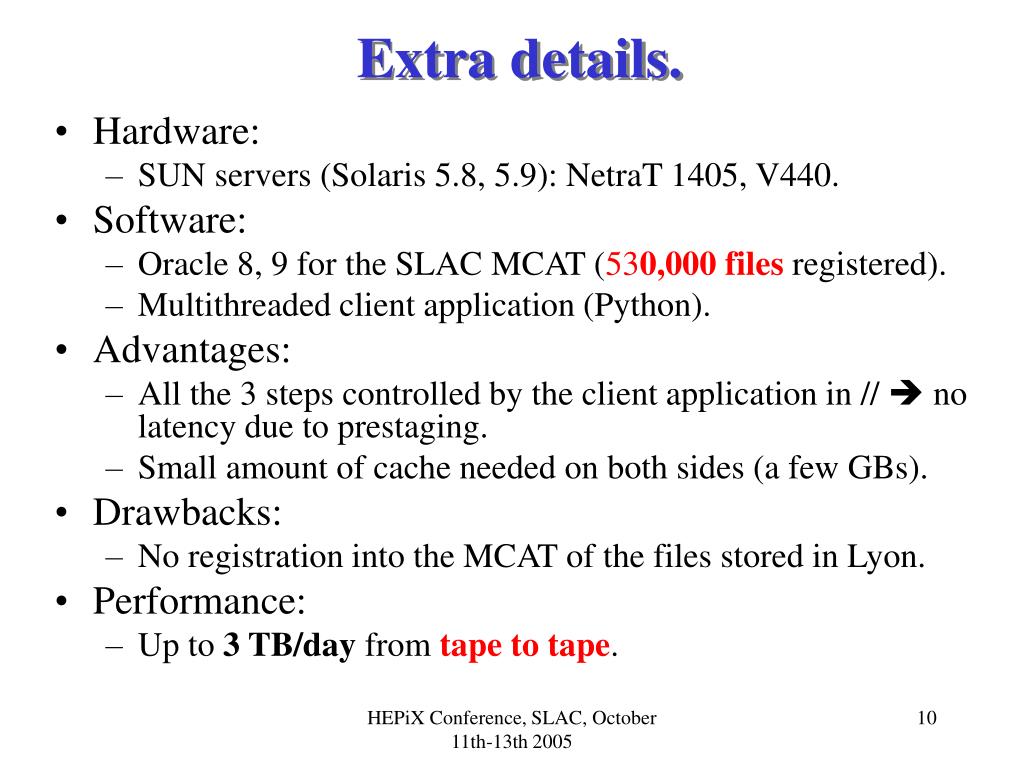

  10. Extra details. • Hardware: • SUN servers (Solaris 5.8, 5.9): NetraT 1405, V440. • Software: • Oracle 8, 9 for the SLAC MCAT (530,000 files registered). • Multithreaded client application (Python). • Advantages: • All the 3 steps controlled by the client application in //  no latency due to prestaging. • Small amount of cache needed on both sides (a few GBs). • Drawbacks: • No registration into the MCAT of the files stored in Lyon. • Performance: • Up to 3 TB/day from tape to tape. HEPiX Conference, SLAC, October 11th-13th 2005

  11. ESNET Traffic with one server on both sides (April 2004). SLAC (US)  IN2P3 (FR) 1 Terabyte/day Fermilab (US) CERN SLAC (US) INFN Padva (IT) Fermilab (US)  U. Chicago (US) U. Toronto (CA)  Fermilab (US) Helmholtz-Karlsruhe (DE) SLAC (US) CEBAF (US)  IN2P3 (FR) INFN Padva (IT)  SLAC (US) Fermilab (US)  JANET (UK) SLAC (US)  JANET (UK) DOE Lab  DOE Lab Argonne (US)  Level3 (US) DOE Lab  DOE Lab Fermilab (US)  INFN Padva (IT) Argonne  SURFnet (NL) IN2P3 (FR)  SLAC (US) HEPiX Conference, SLAC, October 11th-13th 2005

  12. (2) (1) (3) HPSS/Lyon HPSS/SLAC SRB MCAT SRB MCAT SRB SRB SRB SRB BaBar architecture (since 2005). 2 Zones (SLAC + Lyon) SRB CC-IN2P3 (Lyon) SLAC (Stanford, CA) HEPiX Conference, SLAC, October 11th-13th 2005

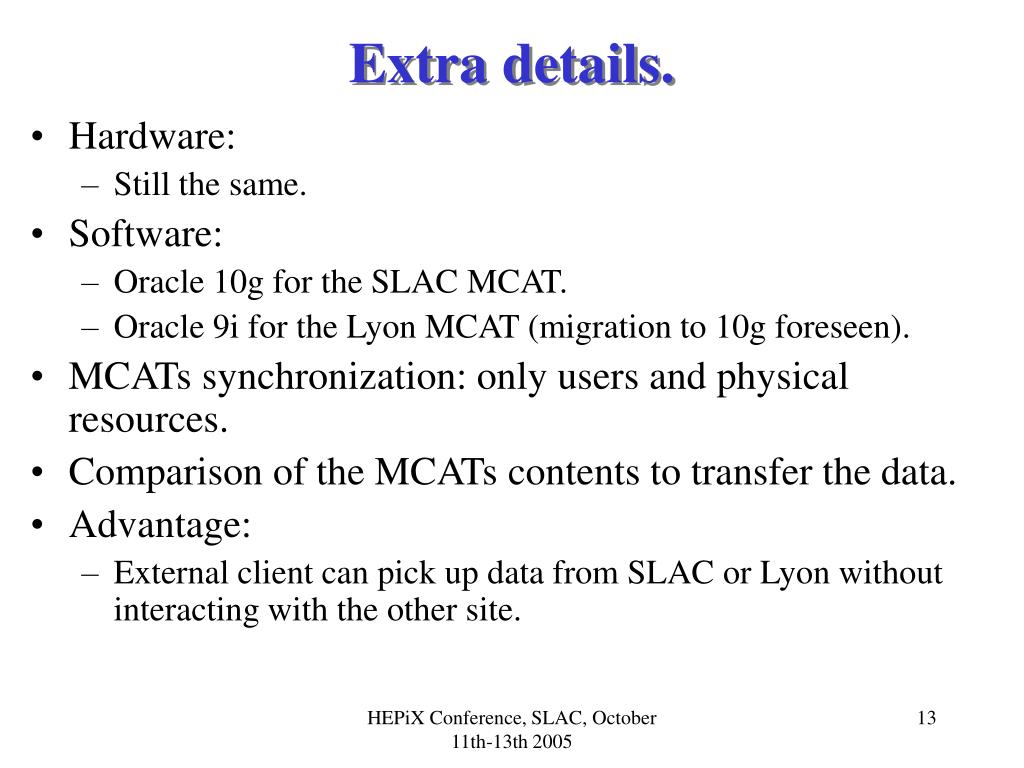

  13. Extra details. • Hardware: • Still the same. • Software: • Oracle 10g for the SLAC MCAT. • Oracle 9i for the Lyon MCAT (migration to 10g foreseen). • MCATs synchronization: only users and physical resources. • Comparison of the MCATs contents to transfer the data. • Advantage: • External client can pick up data from SLAC or Lyon without interacting with the other site. HEPiX Conference, SLAC, October 11th-13th 2005

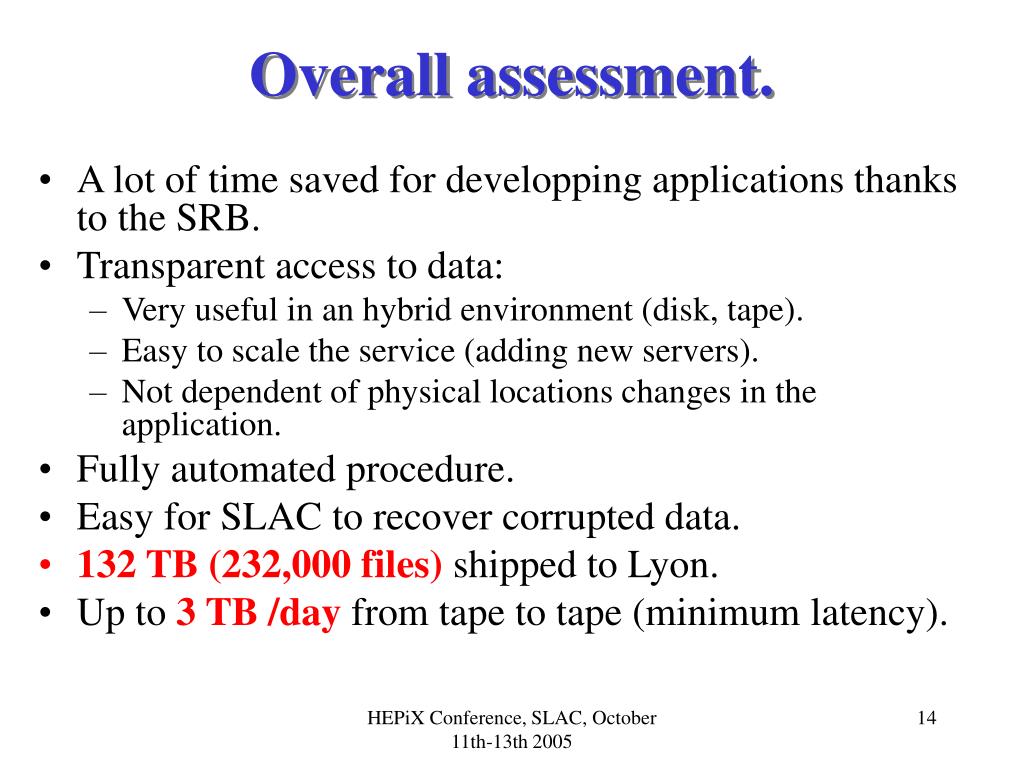

  14. Overall assessment. • A lot of time saved for developping applications thanks to the SRB. • Transparent access to data: • Very useful in an hybrid environment (disk, tape). • Easy to scale the service (adding new servers). • Not dependent of physical locations changes in the application. • Fully automated procedure. • Easy for SLAC to recover corrupted data. • 132 TB (232,000 files) shipped to Lyon. • Up to 3 TB /day from tape to tape (minimum latency). HEPiX Conference, SLAC, October 11th-13th 2005

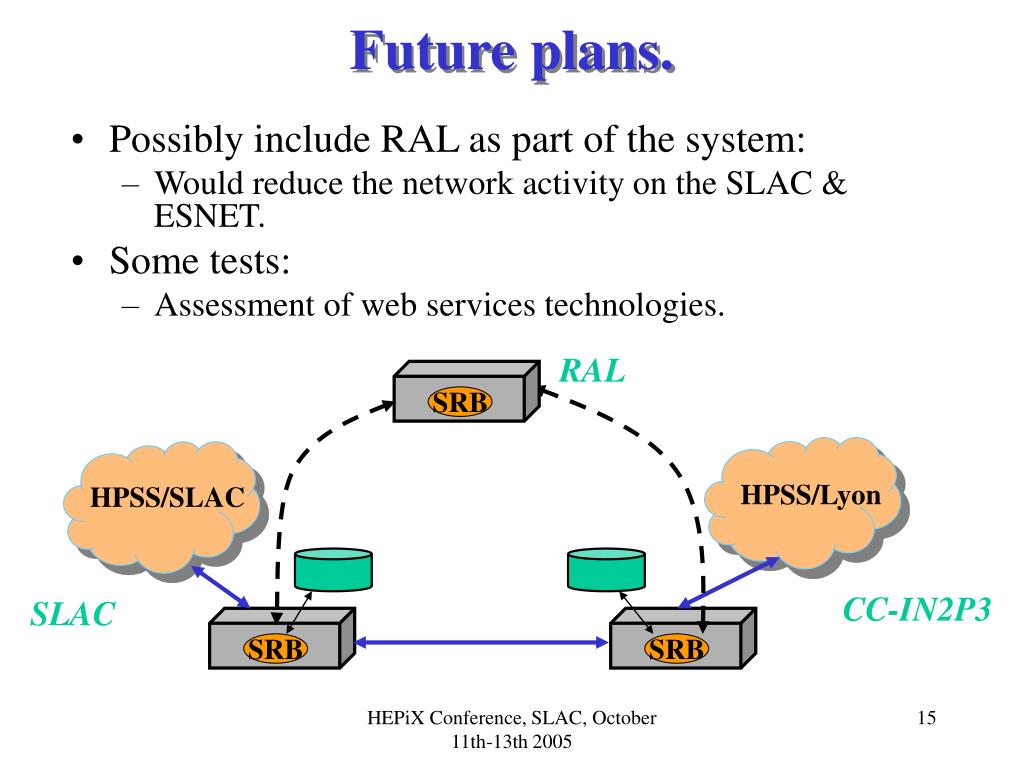

  15. RAL SRB HPSS/Lyon HPSS/SLAC CC-IN2P3 SLAC SRB SRB Future plans. • Possibly include RAL as part of the system: • Would reduce the network activity on the SLAC & ESNET. • Some tests: • Assessment of web services technologies. HEPiX Conference, SLAC, October 11th-13th 2005

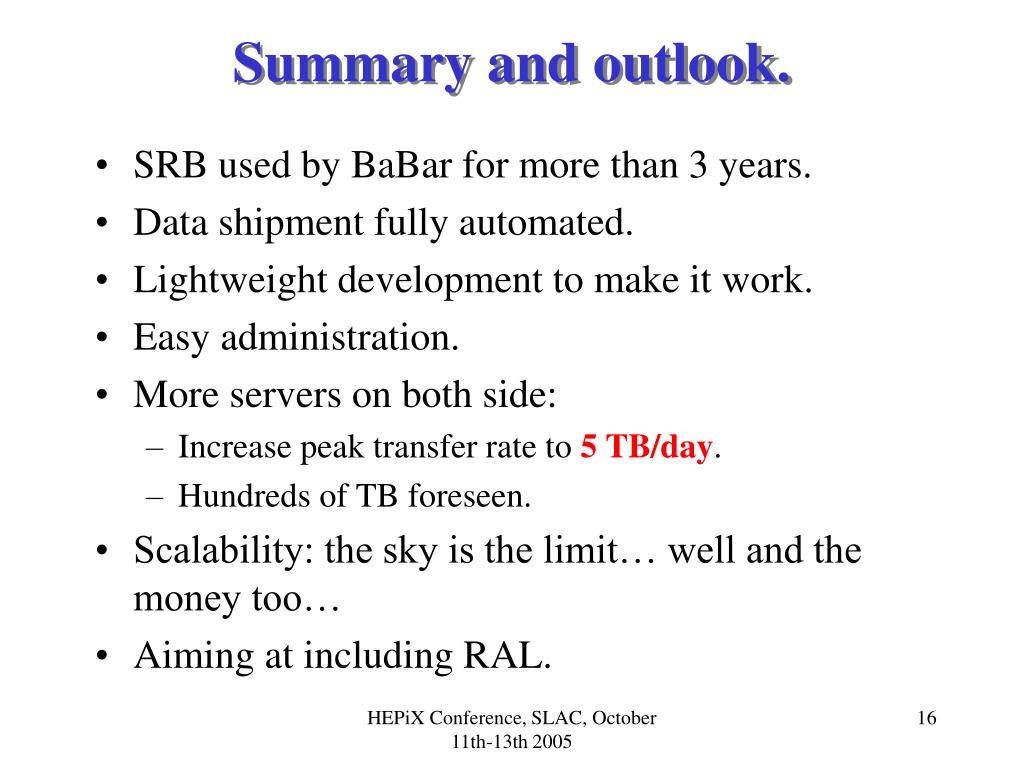

  16. Summary and outlook. • SRB used by BaBar for more than 3 years. • Data shipment fully automated. • Lightweight development to make it work. • Easy administration. • More servers on both side: • Increase peak transfer rate to 5 TB/day. • Hundreds of TB foreseen. • Scalability: the sky is the limit… well and the money too… • Aiming at including RAL. HEPiX Conference, SLAC, October 11th-13th 2005

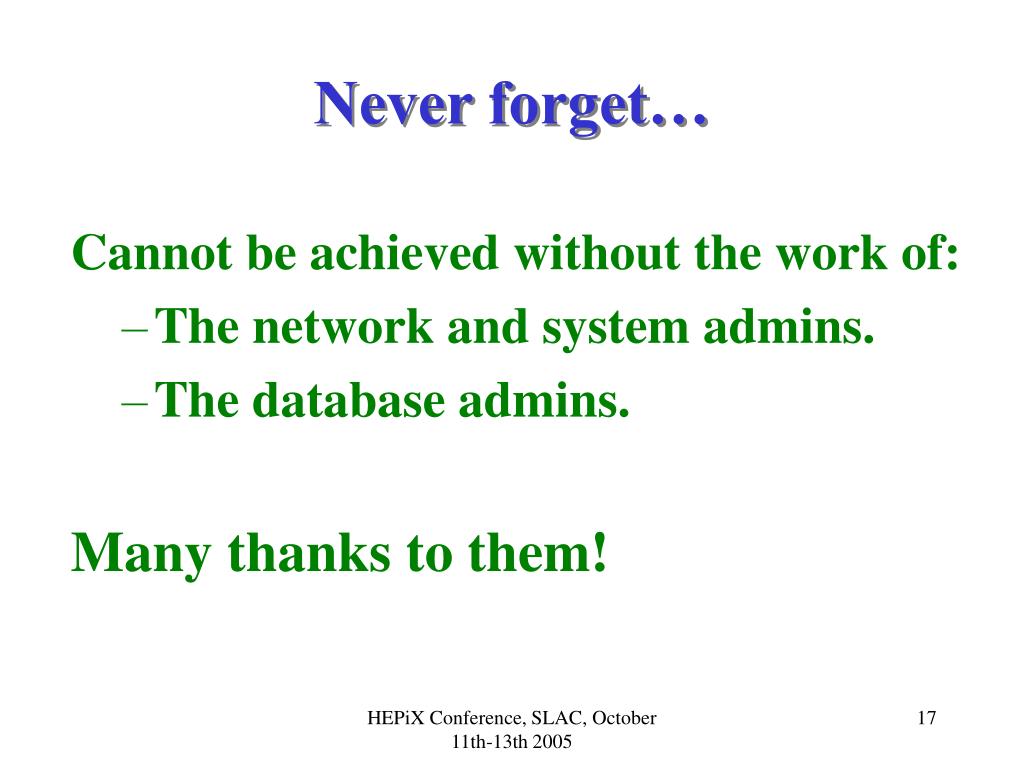

  17. Never forget… Cannot be achieved without the work of: • The network and system admins. • The database admins. Many thanks to them! HEPiX Conference, SLAC, October 11th-13th 2005
