  1. SI31Advanced Computer GraphicsAGR Ken Brodlie kwb@comp.leeds.ac.uk Lecture 1 - Overview

  2. Objectives • To understand how 3D scenes can be modelled - in terms of geometry, appearance and behaviour - and rendered on a display • To understand how to deliver interactive animated 3D graphics over the Internet • To be able to create interactive 3D graphics applications using industry standard software (OpenGL, VRML and POVRAY)

  3. Lecture Outline - The Basics • MODELLING • representing objects in 3D • transforming objects and composing scenes • VIEWING • projecting 3D scenes onto a 2D display surface • RENDERING • illumination • shading • adding realism via textures, shadows

  4. Basic Modelling y objects represented as set of faces - ie polygons- and faces as a set of points x z scenes composed by scaling, rotating, translating objects to create a 3D world

  5. camera Viewing • Clipping • selects a volume of interest • Projection • 3D scene is projected onto a 2D plane

  6. Rendering illumination: how is light reflected from surfaces? ?? shading: how do we use our knowledge of illumination to shade surfaces in our world?

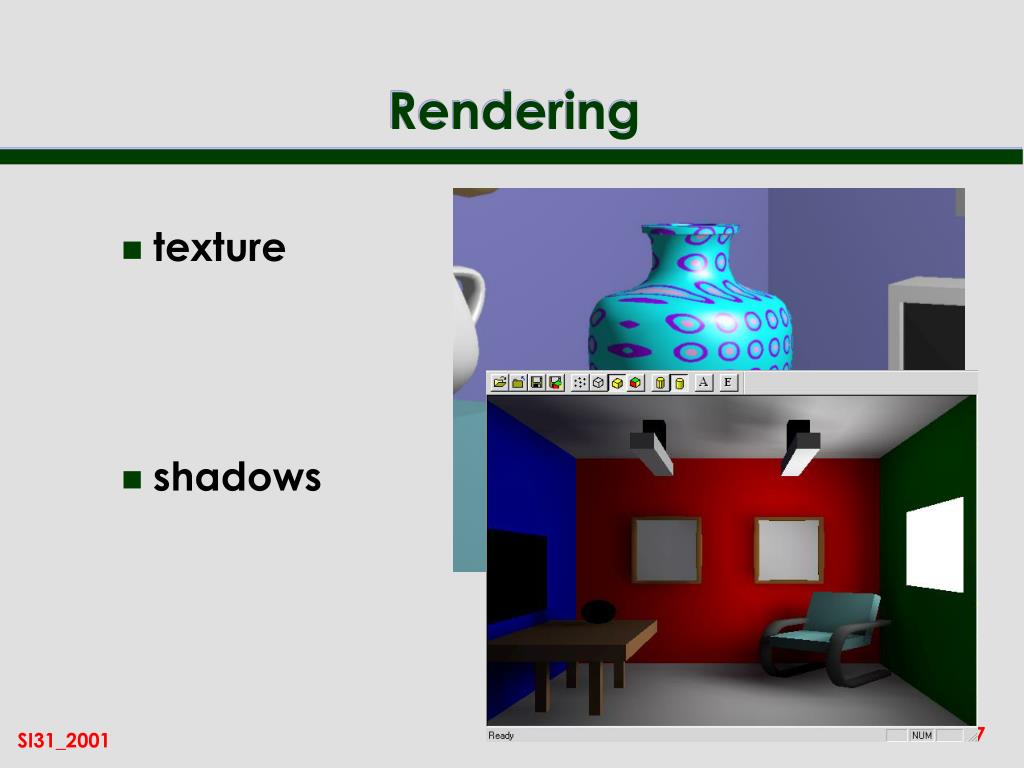

  7. Rendering • texture • shadows

  8. Lecture Outline - Internet • VRML • ISO standard for 3D graphics over the Web • allows modelling of geometry, appearance and behaviour

  9. Lecture Outline - Advanced • ADVANCED RENDERING • direct versus global illumination methods • ray tracing and radiosity • OTHER ADVANCED FEATURES • curve and surface modelling • image based rendering • non-photorealistic rendering

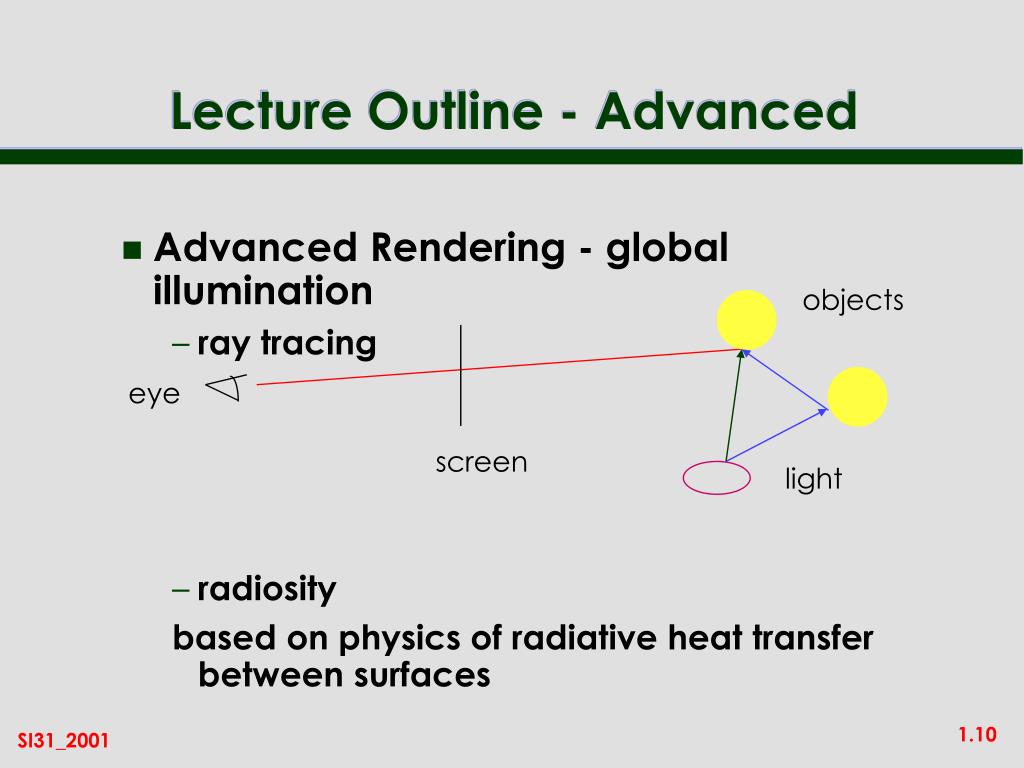

  10. eye screen Lecture Outline - Advanced • Advanced Rendering - global illumination • ray tracing • radiosity based on physics of radiative heat transfer between surfaces objects light

  11. Ray Tracing

  12. POVRAY - freely available ray tracing software http://www.povray.org Ray Tracing

  13. Radiosity from www.lightscape.com

  14. Practical Outline • Basic graphics programming • creation of interactive 3D worlds using OpenGL • Web graphics • creating interactive, animated 3D virtual worlds on the Web using VRML • Advanced rendering • using POVRAY • Practical work will use the Linux and NT machines

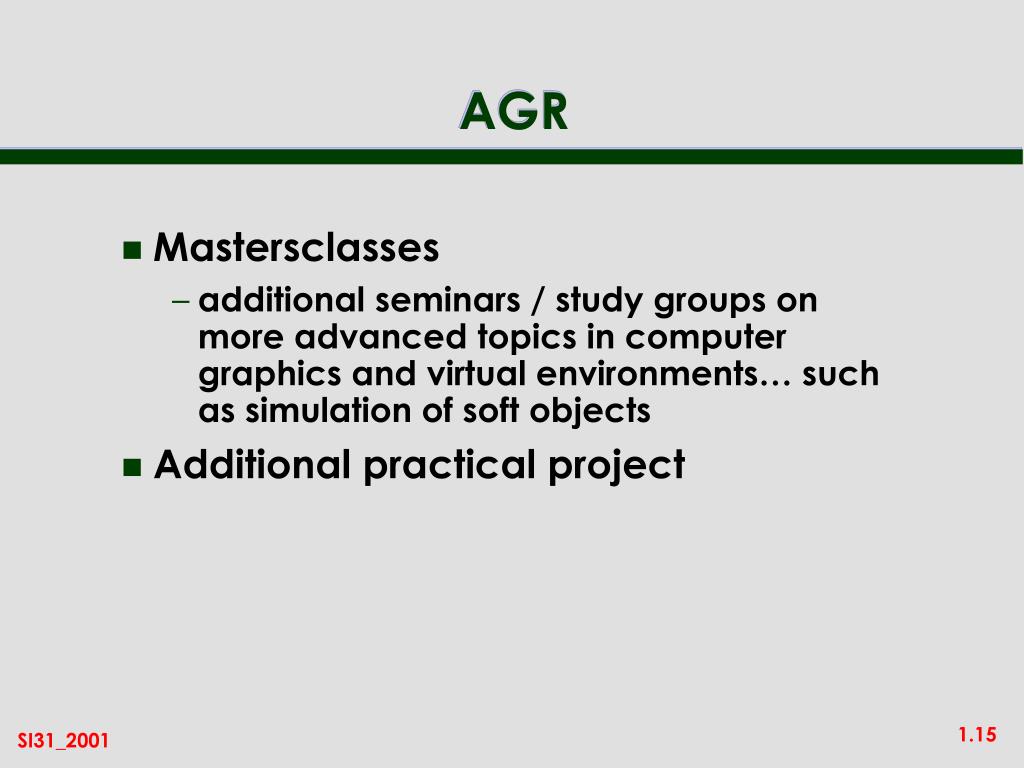

  15. AGR • Mastersclasses • additional seminars / study groups on more advanced topics in computer graphics and virtual environments… such as simulation of soft objects • Additional practical project

  16. Course Info • Lectures • Monday 2.00 - 3.00 (LT19) • Tuesday 1.00 - 2.00 (LT25) • Practicals • Web site • http://www.comp.leeds.ac.uk/kwb/si31 • Newsgroups • local.modules.si31 local.modules.agr • local.modules.si31.talk local.modules.agr.talk

  17. Books • Computer Graphics (second edition) • Hearn and Baker, Prentice Hall • 3D Computer Graphics (third edition) • Alan Watt, Addison Wesley • OpenGL Manual

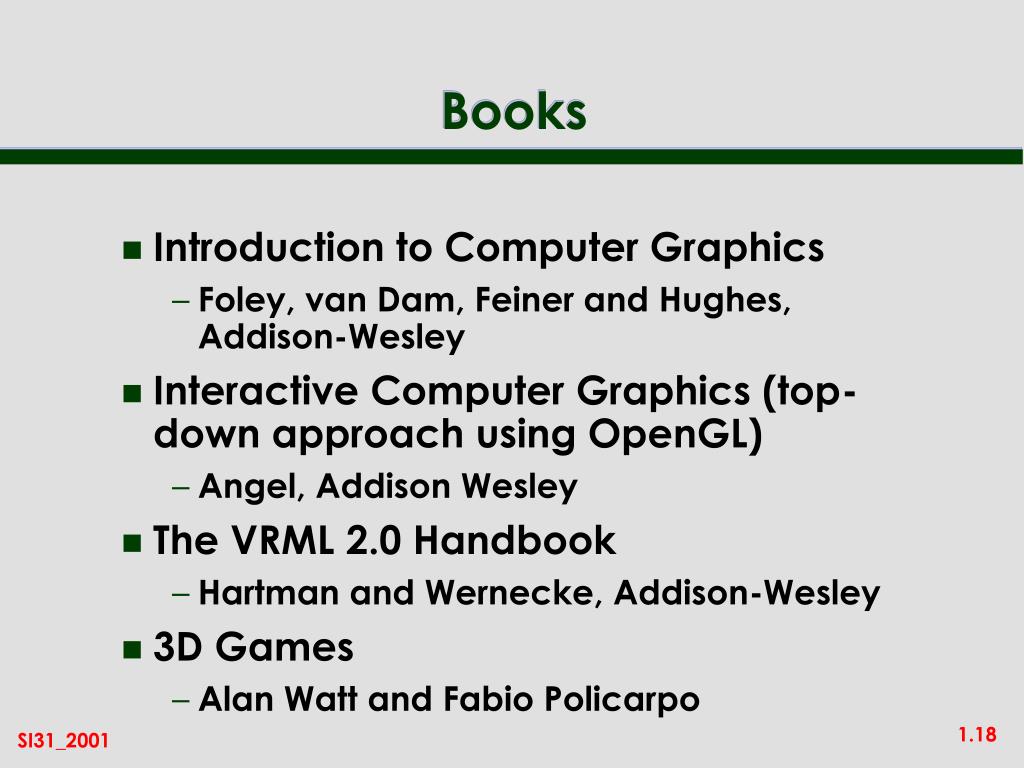

  18. Books • Introduction to Computer Graphics • Foley, van Dam, Feiner and Hughes, Addison-Wesley • Interactive Computer Graphics (top-down approach using OpenGL) • Angel, Addison Wesley • The VRML 2.0 Handbook • Hartman and Wernecke, Addison-Wesley • 3D Games • Alan Watt and Fabio Policarpo

  19. Module Examination Coursework SI31 67% 33% AGR 60% 40% Assessment

  20. Applications - Computer Games

  21. This is Hubble Space Telescope modeled using the BRL-CAD system Uses CSG modeling and ray tracing for rendering http://ftp.arl.mil/brlcad Applications - Computer-Aided Design

  22. Virtual oceanarium built for EXPO in Lisbon Example taken from Fraunhofer Institute site http://www.igd.fhg.de Applications - Virtual Reality

  23. Ordnance Survey http://www.ordsvy.gov.uk GIS-3D also from Fraunhofer Institute Applications - Cartography and GIS

  24. This example can be found on the SIGGRAPH Web Site Important computer graphics resource http:www.siggraph.org Applications - Computer Art

  25. Turning scientific data into pictures with applications to medicine and computer simulations Applications - Scientific Visualization

  26. Before we begin...mathematics! • 3D Co-ordinate Systems y y z x x z LEFT RIGHT z points away z points toward Align thumb with x, first finger with y, then second finger of appropriate hand gives z direction. Common now to use a RIGHT HANDED system.

  27. Points and Vectors • We shall write points as column vectors y P P = x y z x z Difference of two points gives a direction vector: D = P2 - P1 y P2 Note: If P1 and P2 are on a plane, then D lies in the plane x z P1

  28. Magnitude of a Vector • The magnitude of a vector V = (v1,v2,v3)T is given by: |V| = sqrt(v1*v1 + v2*v2 + v3*v3) eg (1,2,3)T has magnitude sqrt(14) • A unit vector has magnitude 1 • A unit vector in the direction of V is V / |V|

  29. Scalar or Dot Product • The scalar product, or dot product, of two vectors U and V is defined as: U.V = u1*v1 + u2*v2 + u3*v3 • It is important in computer graphics because we can show that also: U.V = |U|*|V|*cosq where q is the angle between U and V • This lets us calculate angle q as cos q = (u1*v1 + u2*v2 + u3*v3) / (|U|*|V|)

  30. Diffuse Lighting • Diffuse reflection depends on angle between light direction and surface normal: reflected intensity = light intensity * cosine of angle between light direction and surface normal normal light scalar product lets us calculate cosq q

  31. Vector or Cross Product • The vector or cross product is defined as: UxV = (u2v3 - u3v2, u3v1 - u1v3, u1v2 - u2v1) • We can also show that: UxV = N |U||V| sin  where N is unit vector orthogonal to U and V (forming a right handed system) and q is angle between U and V • This allows us to find the normal to a plane • cross-product of two directions lying in plane , eg (P3-P2), (P2-P1), where P1, P2, P3 are three points in the plane

  32. Convince yourself that the x-axis is represented by the vector (1,0,0) What is the unit normal in the direction (2,3,4)? What is the angle between the vectors (1,1,0) and (1,0,0)? Which vector is orthogonal to the vectors (1,0,0) and (0,1,0)? What is the normal to the plane through the points (1,2,3), (3,4,5) and (0,0,0)? Exercises
