GenBank. Nucleotide only sequence database Archival in nature Data shared nightly among three collaborating databases GenBank at NCBI DNA Database of Japan (DDBJ) EMBL at EBI. The International Sequence Database Collaboration. Source NCBI. NCBI site map: A good place to find resources.

viet
Download Presentation

GenBank

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. GenBank • Nucleotide only sequence database • Archival in nature • Data shared nightly among three collaborating databases • GenBank at NCBI • DNA Database of Japan (DDBJ) • EMBL at EBI

  2. The International Sequence Database Collaboration Source NCBI

  3. NCBI site map: A good place to find resources http://www.ncbi.nlm.nih.gov/Sitemap/index.html

  4. GeneBank Release 131.0December 15 2003 • 30968418 Sequences • 36553368485 Bases • full release every two months • incremental and cumulative updates daily • available only through internet ftp://ftp.ncbi.nih.gov/genbank/

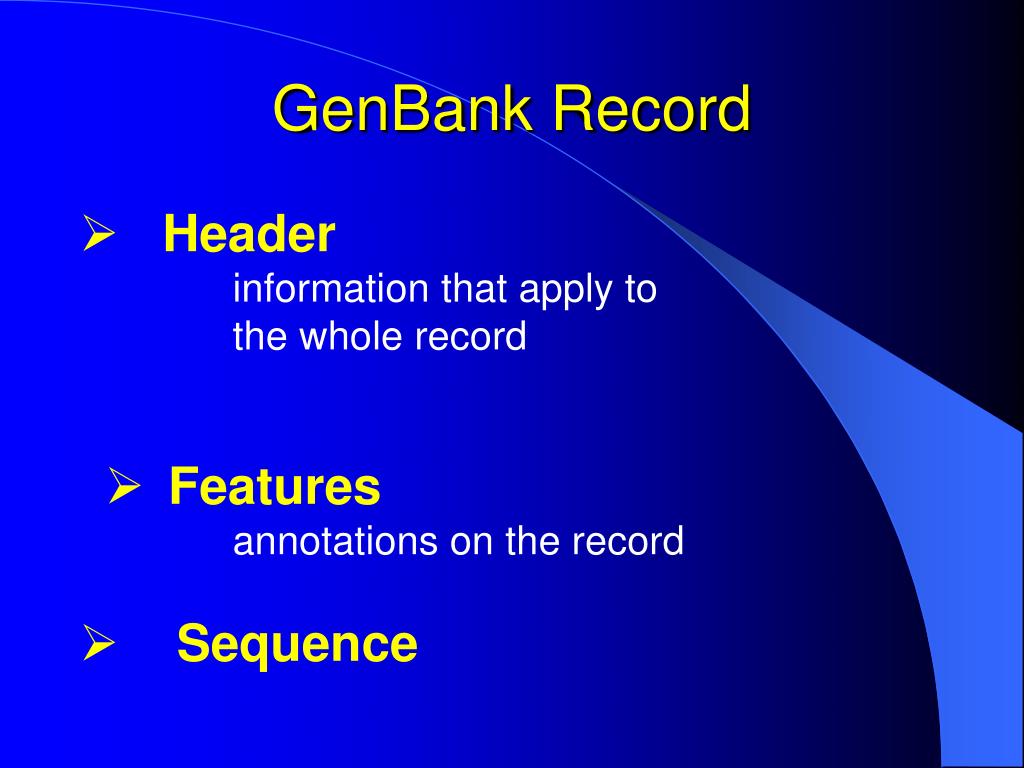

  5. GenBank Record • Header • information that apply to • the whole record • Features • annotations on the record • Sequence

  6. GenBank Record Header GeneBank Record modification date Molecule Type Locus Name Sequence Length Accession Number Modification Date Version Number GenBank Division

  7. FEATURE GeneBank Record Link to Seq

  8. Sequence GenBank Record

  9. Entrez

  10. Entrez http://www.ncbi.nlm.nih.gov/gquery/gquery.fcgi Select GenBank

  11. Find mRNA sequence for human “epidermal growth factor receptor”

  12. Specify human as an organism : Click Preview/Index Specify “human” by selecting “Organisms” from “All Fields” drop-down menu

  13. 2 1

  14. Limit your search Exclude all technology generated records Select mRNA in the “Molecule” list Select “Refseq” in the database list

  15. RefSeq • Database of reference sequences • Curated • Non-redundant; one record for each gene, or each splice variant, from each organism represented • Each record is intended to present an encapsulation of the current understanding of a gene or protein, similar to a review article RefSeq FAQ

  16. Molecular databases

  17. Find Gene Name by searching LocusLink : http://www.ncbi.nlm.nih.gov/LocusLink/ Select organism

  18. LocusLink

  19. Find mRNA sequence for epidermal growth factor receptor (EGFR): Starts with gene name EGFR • Limit search to • Gene Name • exclude all technology generated records • Select mRNA as Molecule • Select “Refseq” as source database

  20. PubMed abstracts Taxonomy Genomes Nucleotide sequences Entrez: Neighbors and Hard Links Word weight 3-D Structure 3 -D Structure Phylogeny VAST Protein sequences BLAST BLAST Source NCBI

  21. SRS – List of Public SRS Servers

  22. SRS – List of Public SRS Servers

  23. SRS Tutorial

  24. Permanent session List of public servers Temporary session Documentation http://srs.ebi.ac.uk Database Information -which are present -when indexed

  25. What is SRS? • Central resource for molecular biology data • Data retrieval system - more than 250 databanks have been indexed. More than 35 SRS servers over the WWW • Data analysis applications server - 11 protein applications - 6 nucleic acid applications • Uniform query interface on the web

  26. History of SRS • 1990 - Main author Dr. Thure Etzold • Development started in EMBL, Heidelberg • 1997 • Moved to EBI in Cambridge. Development work was supported by various grants amongst others from the EMBnet. • 1998 • Etzold and his group join LionBiosciences

  27. Why SRS? • Information retrieval • Easy way to retrieve information from sequence and sequence-related databases • Possibility to search for multiple words/other criteria • Linkage between different databases • E.g. Find all primary structures with known three-dimensional structure • ... and much more

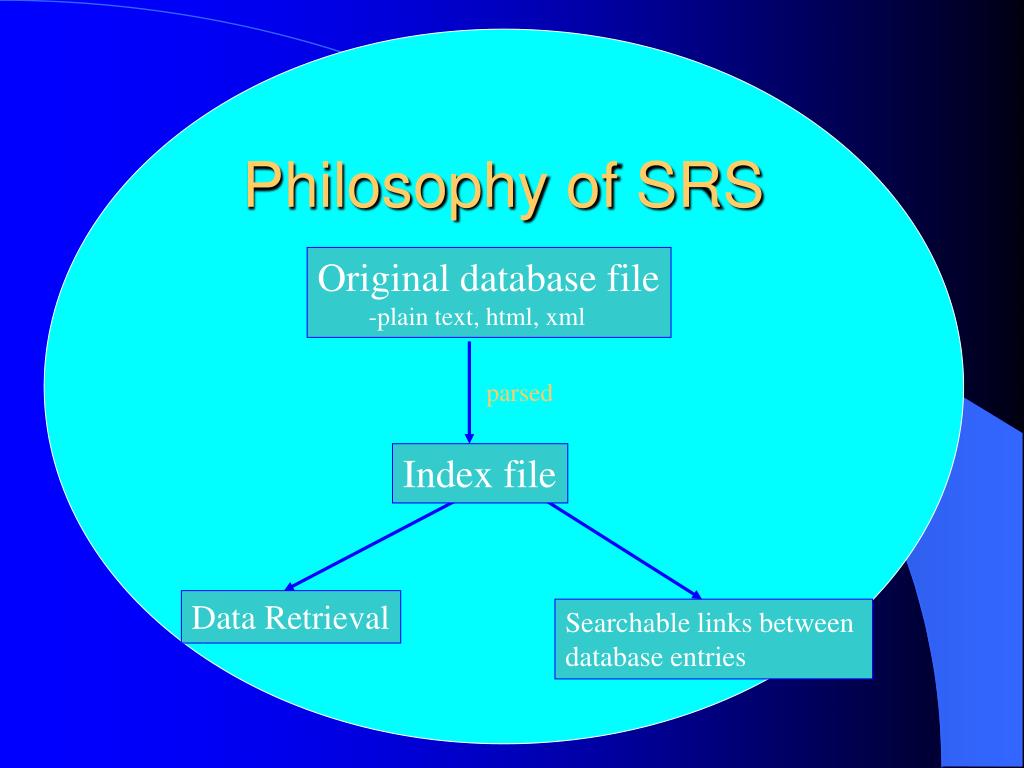

  28. parsed Index file Data Retrieval Searchable links between database entries Philosophy of SRS Original database file -plain text, html, xml

  29. Workbenches QueryForms Library groups Libraries The Library Select Page

  30. SRS main toolbar tabs • Top Page: displays databases in different database groups • Query: displays either the standard or extended query form • Resultsor “the query manager”: maintains a history of all the results obtained during a session • Projects or “the project manager”: maintains a history of all queries and views used during a session • Views: allows a user to define a user specific view for one or more databases • Databanks: contains a list and some facts about the databases available in the system

  31. Search terms in SRS • SRS indexed fields can be searched using any of the following: • Single word search • Multiple word phrases • Numbers and dates • Regular expressions • Wildcards
