  1. Tashkent: Uniting Durability & Ordering in Replicated Databases

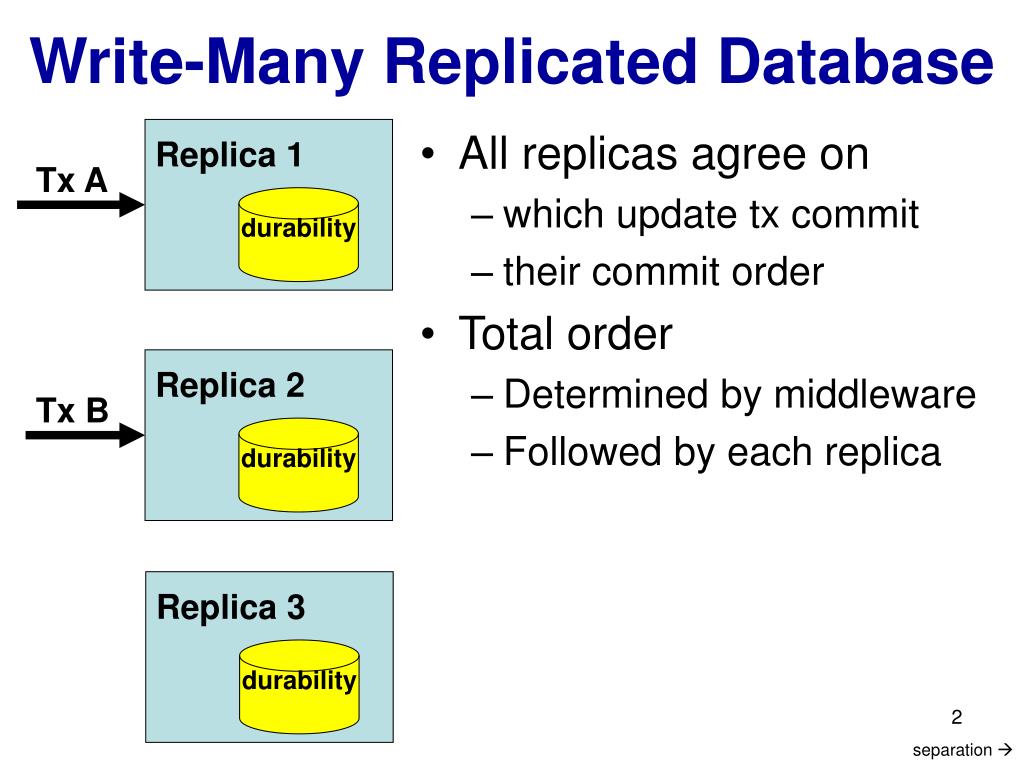

  2. Write-Many Replicated Database Replica 1 Tx A • All replicas agree on • which update tx commit • their commit order • Total order • Determined by middleware • Followed by each replica durability Replica 2 Tx B durability Replica 3 durability separation 

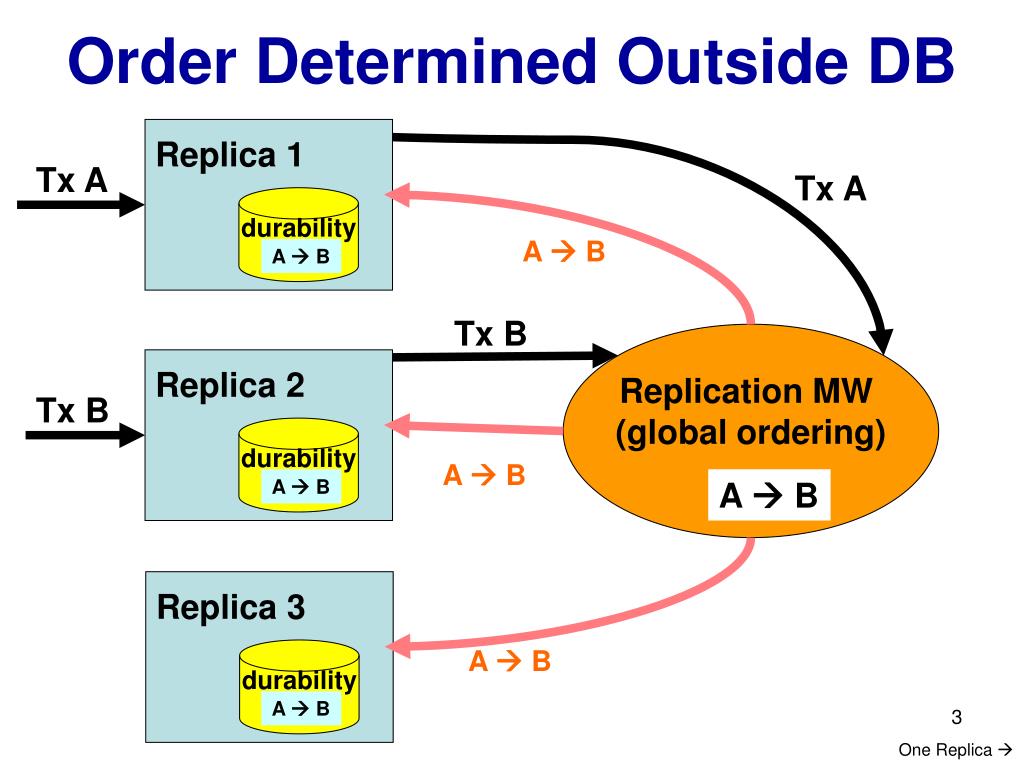

  3. Order Determined Outside DB Replica 1 Tx A Tx A durability A  B A  B Tx B Replication MW (global ordering) Replica 2 Tx B durability A  B A  B A  B Replica 3 A  B durability A  B One Replica 

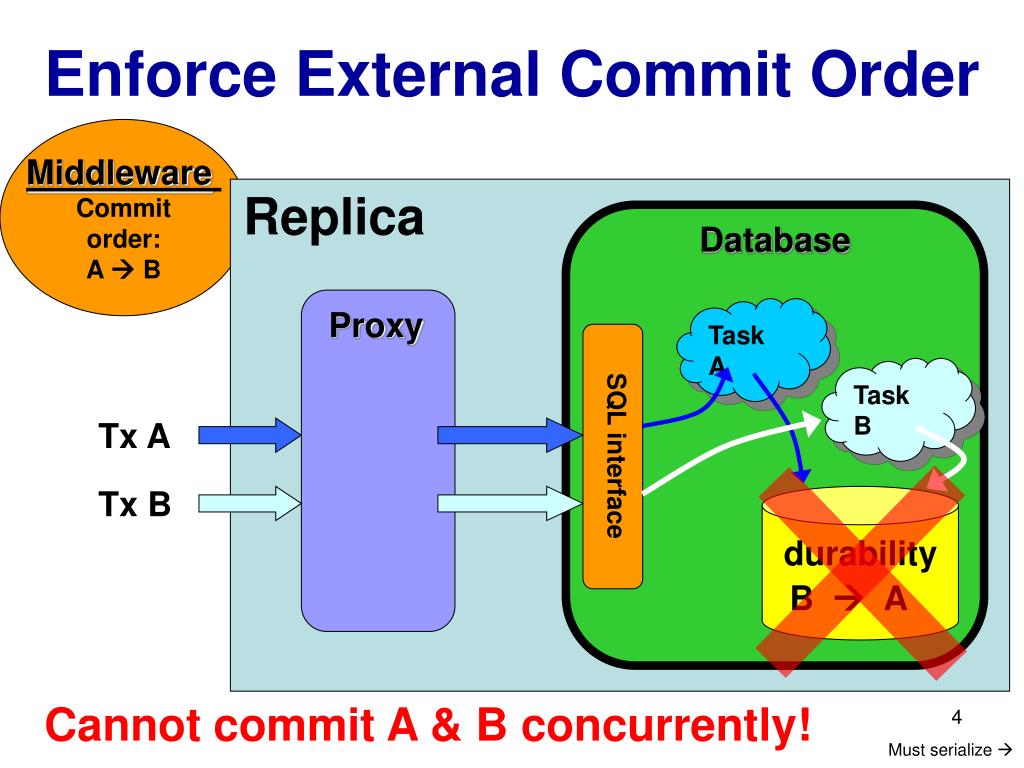

  4. Database Proxy Task A SQL interface Task B Tx A Tx B  A Enforce External Commit Order Middleware Commitorder: A  B Replica durability B Cannot commit A & B concurrently! Must serialize 

  5. Database Proxy Task A SQL interface Task B Tx A Tx B  B Enforce Order = Serial Commit Middleware Commitorder: A  B Replica durability A Serialization slow 

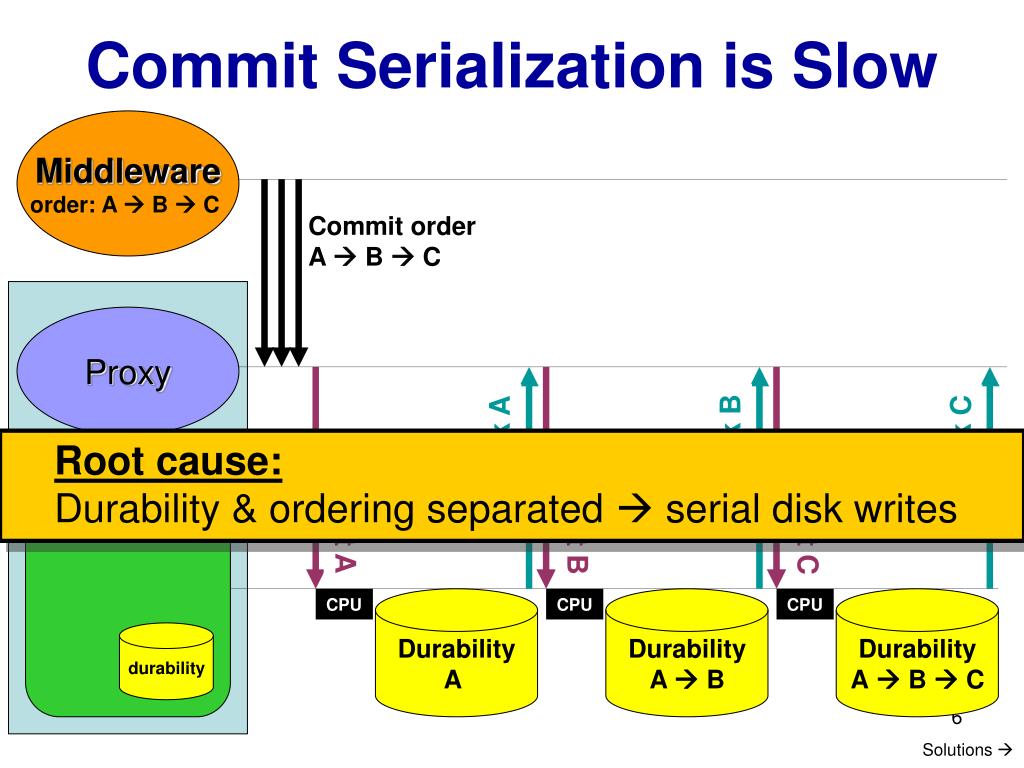

  6. Commit Serialization is Slow Middleware order: A B C Commit orderA B C Proxy Ack B Ack A Ack C Root cause: Durability & ordering separated  serial disk writes Database Commit A Commit B Commit C CPU DurabilityA CPU DurabilityA  B CPU DurabilityA B  C durability Solutions 

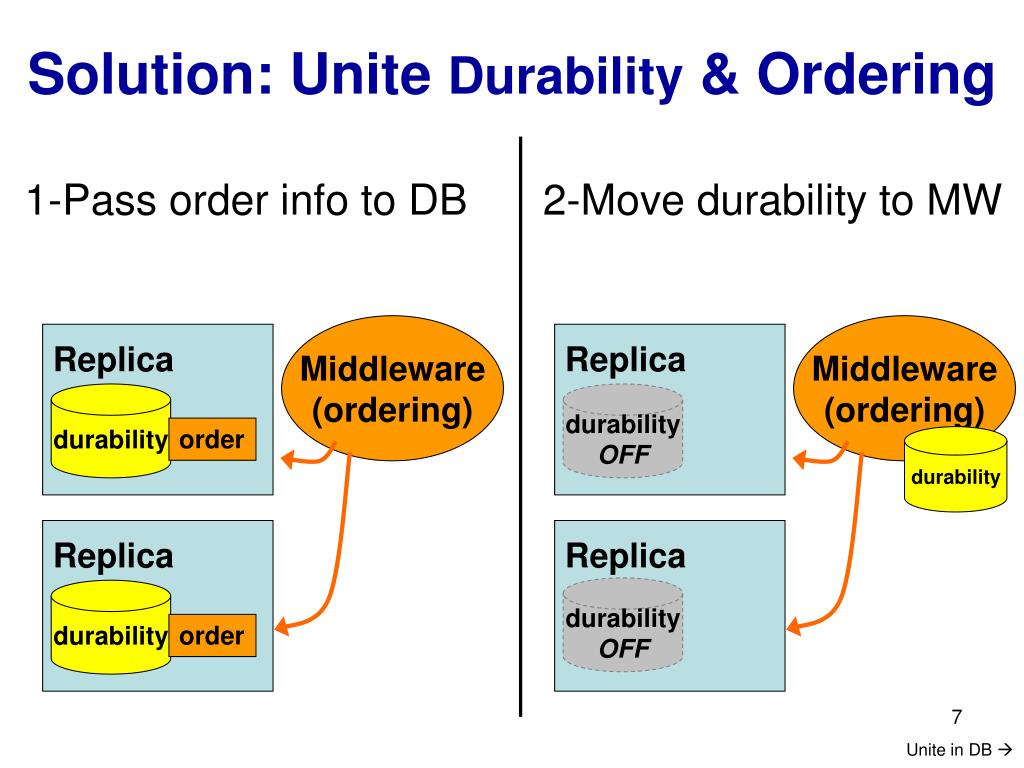

  7. Solution: Unite Durability & Ordering 1-Pass order info to DB 2-Move durability to MW Middleware (ordering) Middleware (ordering) Replica Replica durability durability OFF order durability Replica Replica durability OFF durability order Unite in DB 

  8. 1- Unite Dur. & Ord. in Database Middleware order: A B C Commit orderA B C Proxy Commit A at 1 Commit B at 2 Commit C at 3 Ack AAck B Ack C Database order CPU DurabilityA B  C Solution 1: pass order info to DB Durability & ordering in database  group commit durability Solutions 

  9. Solution: Unite Durability & Ordering 1-Pass order info to DB 2-Move durability to MW Middleware (ordering) Middleware (ordering) Replica Replica durability durability OFF order durability Replica Replica durability OFF durability order Unite in DB 

  10. 2- Unite D. & O. in Middleware Middleware order: A B C DurabilityA B  C Commit orderA B C durability Proxy Ack B Ack A Ack C Database Commit A Commit B Commit C CPU CPU CPU durability OFF Solution 2: move durability to MW Durability & ordering in middleware  group commit Roadmap 

  11. Roadmap • Durability & ordering • Separated  serial commit  slow • United  group commit  fast • Two Implementations • Tashkent-API: united in DB • Tashkent-MW: united in MW • Tashkent-MW • Implementation • Recovery • Performance

  12. Tashkent-MW Tx A Replica 1 Tx A A  B  C durability OFF A  B  C Replication MW (global ordering) Tx B Replica 2 Tx B durability A  B  C A  B  C A  B  C durability OFF A  B  C Replica 3 Tx C A  B  C A  B  C durability OFF Tx C One Replica 

  13. Tashkent-MW Durability & Ordering in Middleware • Middleware logs tx effects • Durability of update tx • Guaranteed in middleware • Turn durability off at database • Middleware performs durability & ordering • United  group commit  fast • Database commits update tx serially • Commit = quick main memory operation Back to Example 

  14. Recovery in Tashkent-MW Replica 1 durability OFF Replication MW (global ordering) Replica 2 durability durability OFF Replica 3 durability OFF Db i/o

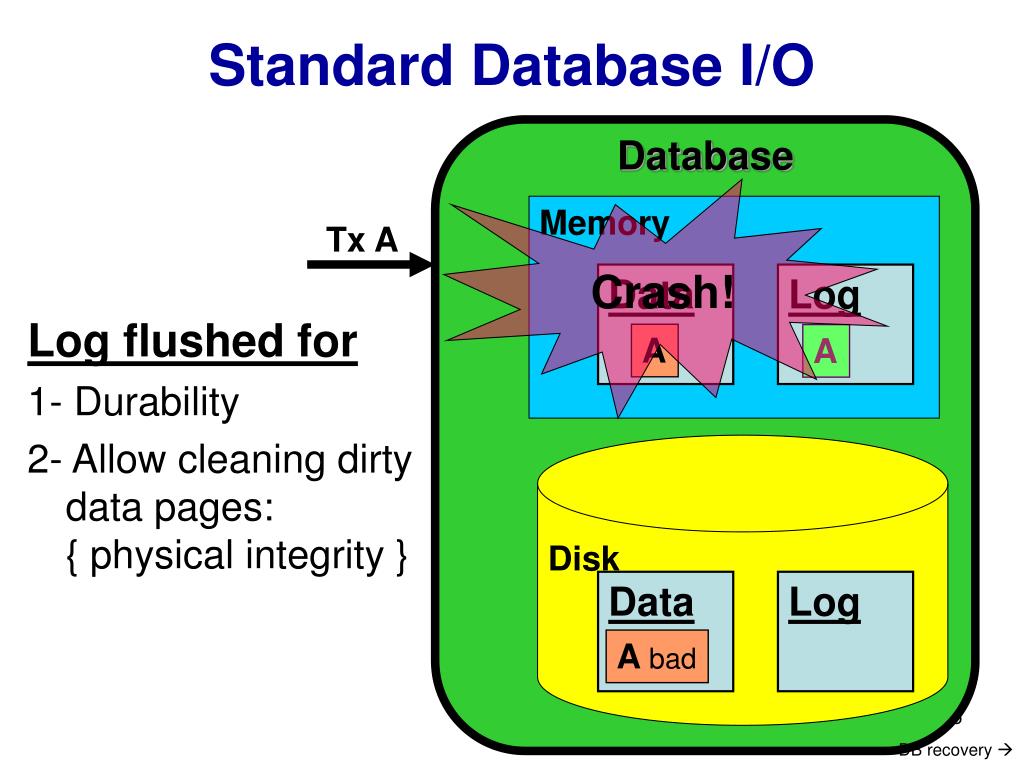

  15. Database Standard Database I/O Log flushed for 1- Durability 2- Allow cleaning dirty data pages:{ physical integrity } Crash! Memory Tx A Data Log A A Disk Data Log A bad DB recovery 

  16. Database Database I/O with Durability=off Middleware order: A B C Simple SolutionRecover from a data dump (checkpoint) Crash! Memory Tx A Durability A Data Log A A Disk Data Log A bad DB recovery 

  17. Roadmap • Durability & ordering • Separated  serial commit  slow • United  group commit  fast • Two Implementations • Tashkent-API: united in DB • Tashkent-MW: united in MW • Tashkent-MW • Implementation • Recovery • Performance

  18. Performance - Setup • Metrics: • Throughput • Response time • Workload: • AllUpdates: tx = { 1 update }, mix= %100 updates • TPC-B: tx={4 update,1 read}, mix=%100 updates • TPC-W: mix of long & short txs • System configuration: • Linux Cluster running PostgreSQL AllUpdates TH 

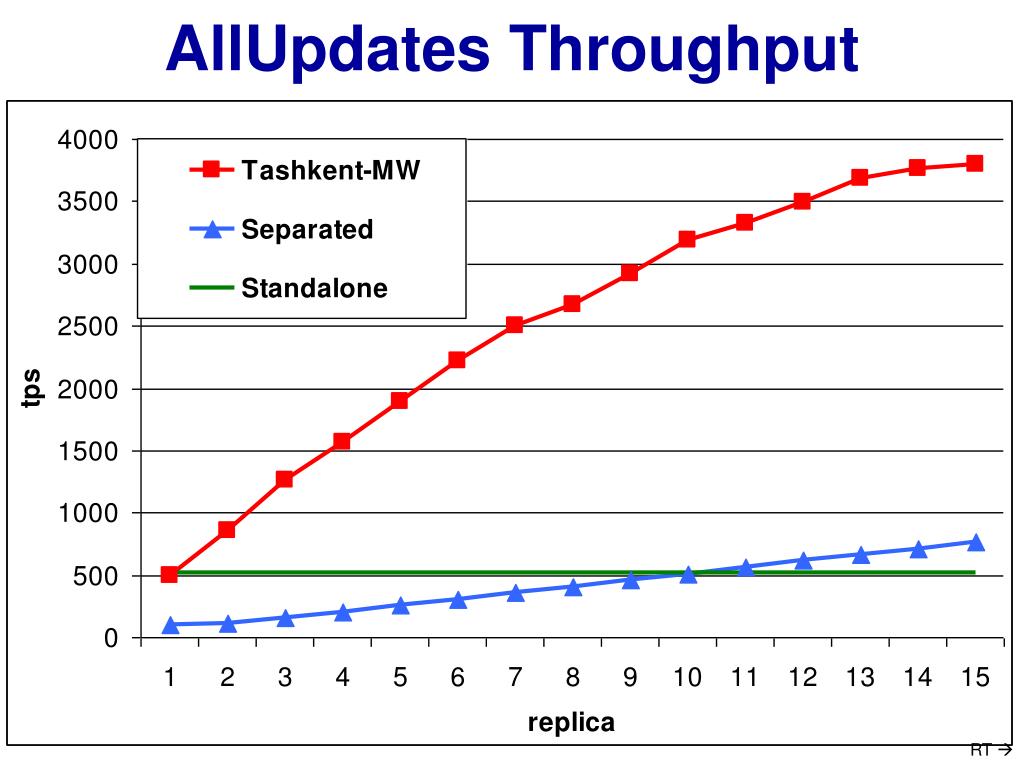

  19. AllUpdates Throughput Throughput 

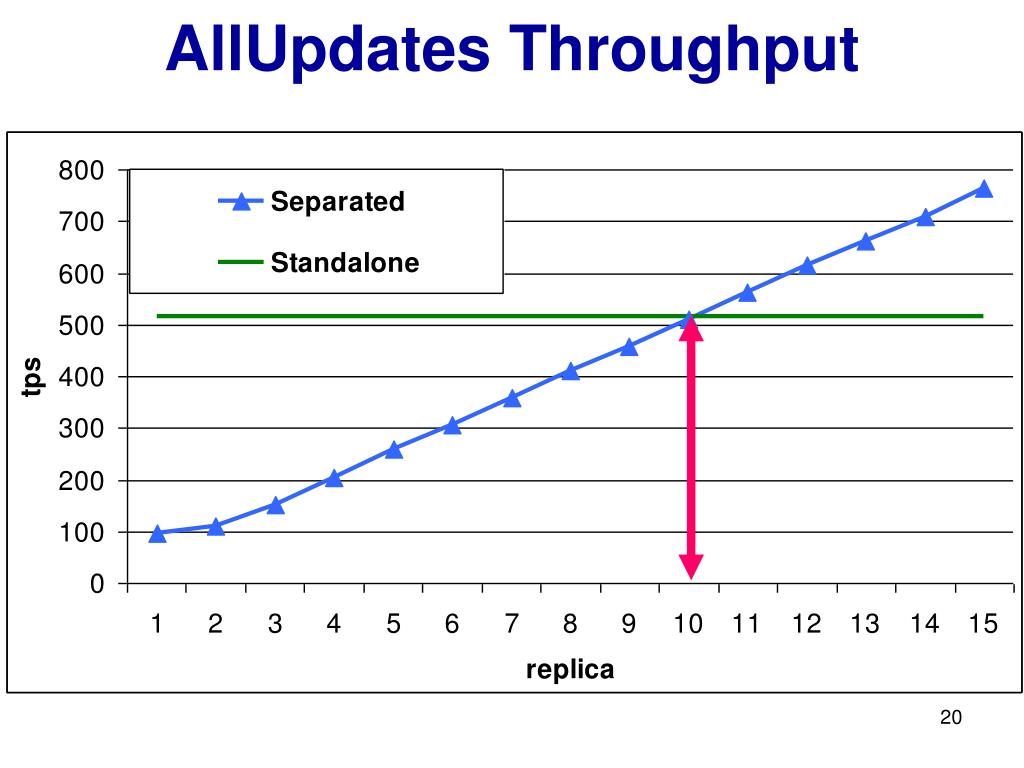

  20. AllUpdates Throughput

  21. AllUpdates Throughput RT 

  22. AllUpdates Response Time In paper 

  23. In the Paper • Design & Implementation • Tashkent-API • Performance results • TPC-B & TPC-W • Recovery times • Another I/O subsystems Conclusions 

  24. Conclusions • Durability & ordering • Separated  serial commit  slow • United  group commit  fast • Two Implementations • Tashkent-API: united in DB • Tashkent-MW: united in MW • Tashkent-MW system • Pure middleware replication • Significant performance improvement
