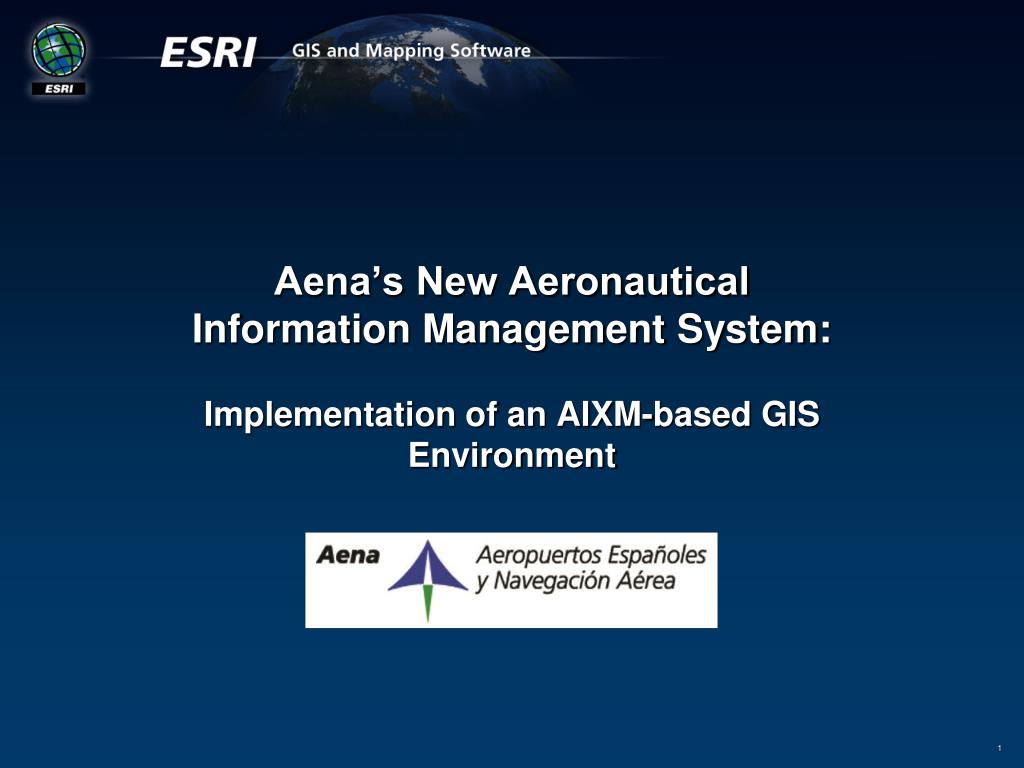

  1. Aena’s New Aeronautical Information Management System: Implementation of an AIXM-based GIS Environment

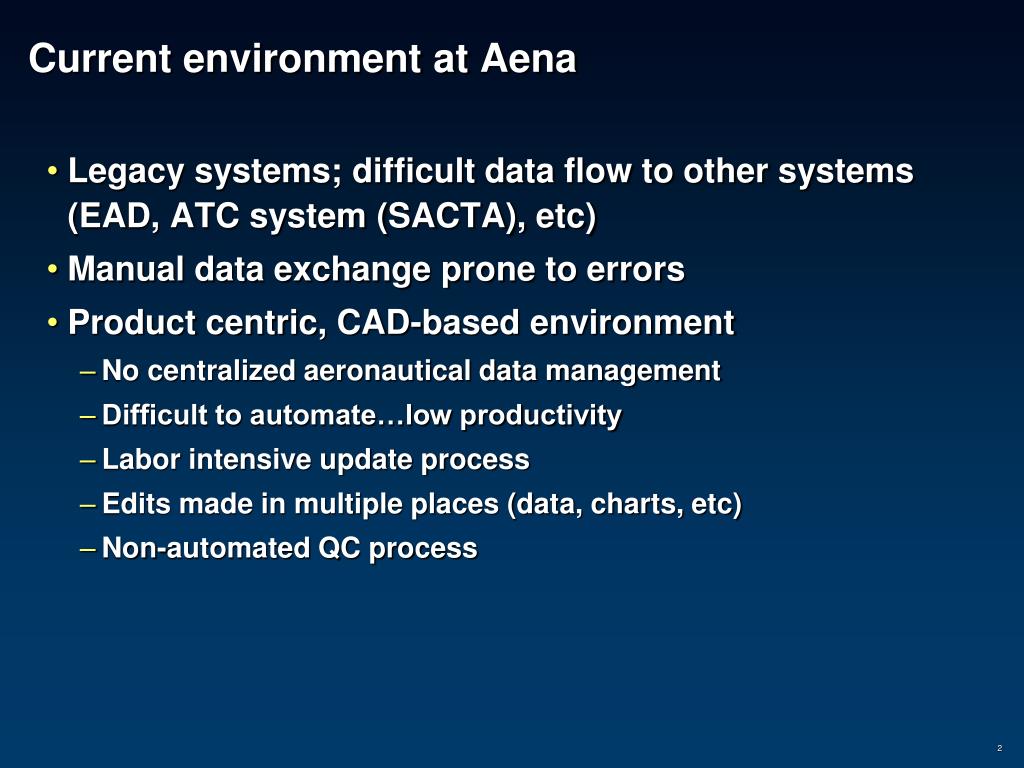

  2. Current environment at Aena • Legacy systems; difficult data flow to other systems (EAD, ATC system (SACTA), etc) • Manual data exchange prone to errors • Product centric, CAD-based environment • No centralized aeronautical data management • Difficult to automate…low productivity • Labor intensive update process • Edits made in multiple places (data, charts, etc) • Non-automated QC process

  3. Scope of Project Revamp current system to a GIS-based approach to managing aeronautical data and products • Automate aeronautical information system • Manage central database • Automate charting • Approach / Departure Charts • Enroute Charts • Visual Charts • Production to start end of 2008; progressive production schedule

  4. ESRI Technology Modernizing Aena’s operations • Centralized Geodatabase • Schema based on AICM 4.5 • Single edits reflected on all products • AIXM ingest and output • GIS repository ready for enterprise / web service publication and consumption • Data management with GIS-based editing tools • Quality control via GIS-based spatial and non-spatial checks • Automated charting with database driven charting tools • End-to-end workflow management application

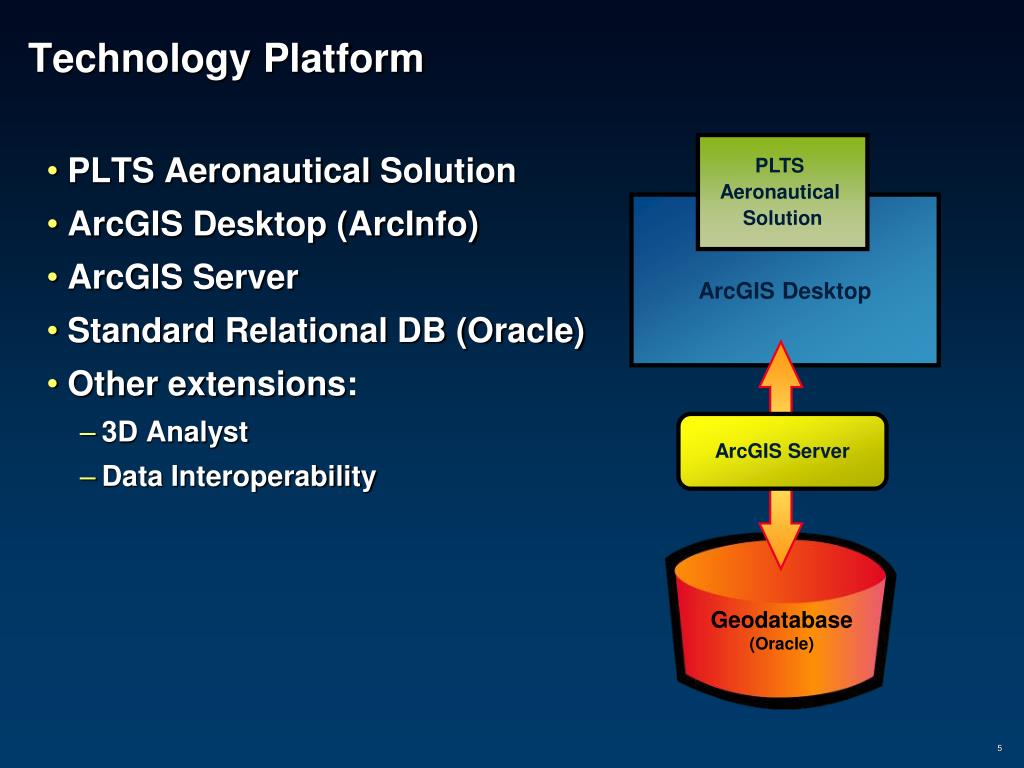

  5. Geodatabase (Oracle) Technology Platform PLTS Aeronautical Solution • PLTS Aeronautical Solution • ArcGIS Desktop (ArcInfo) • ArcGIS Server • Standard Relational DB (Oracle) • Other extensions: • 3D Analyst • Data Interoperability ArcGIS Desktop ArcGIS Server

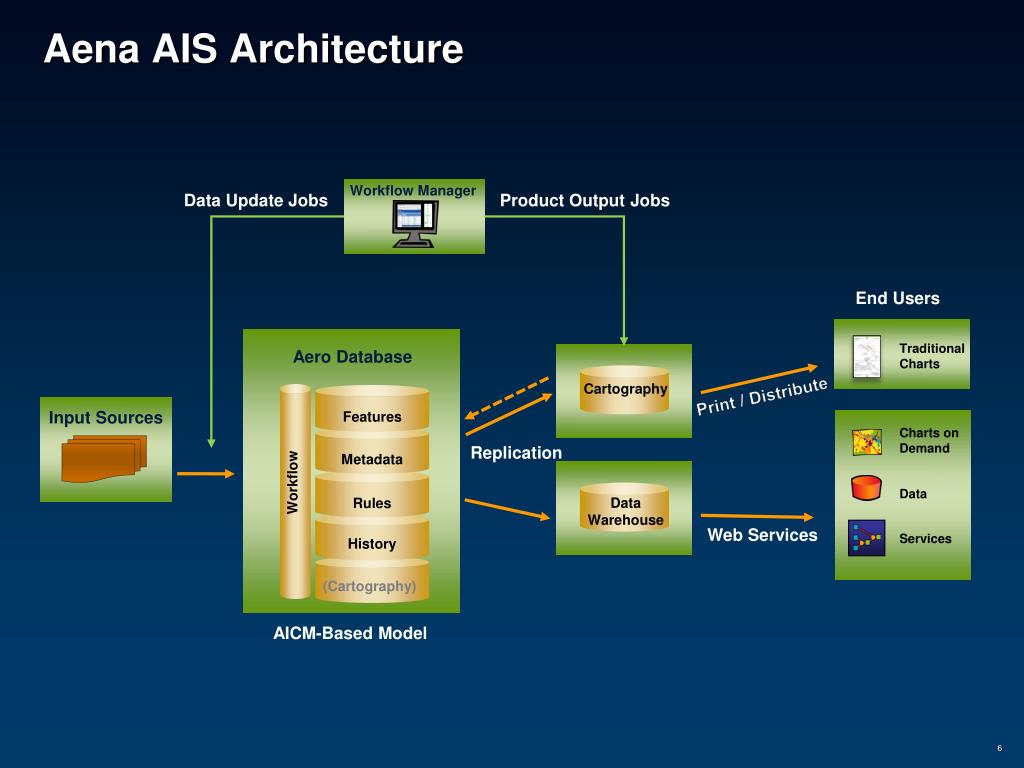

  6. Workflow Manager Aero Database Data Warehouse Cartography Aena AIS Architecture Data Update Jobs Product Output Jobs End Users Traditional Charts Print / Distribute Input Sources Features Charts on Demand Replication Metadata Workflow Data Rules Services Web Services History (Cartography) AICM-Based Model

  7. Centralized Geodatabase • Data centric environment • Consolidates disparate data sources • Central database supports agency GIS • One touch edits • Centralized chart management

  8. Data Management • Rich ingest capability • Data Interoperability Extension • Including AIXM 4.5 • Export to AIXM (EAD) • GIS Graphical editing environment • Precise creation of navigational features with Feature Builder

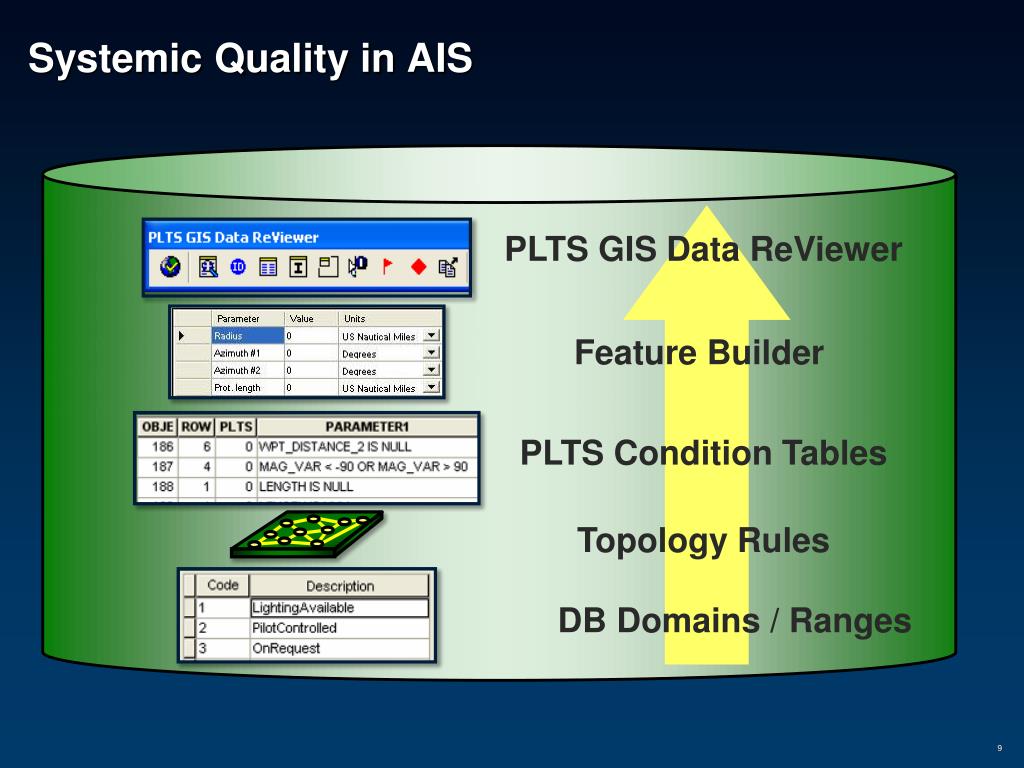

  9. Systemic Quality in AIS PLTS GIS Data ReViewer Feature Builder PLTS Condition Tables Topology Rules DB Domains / Ranges

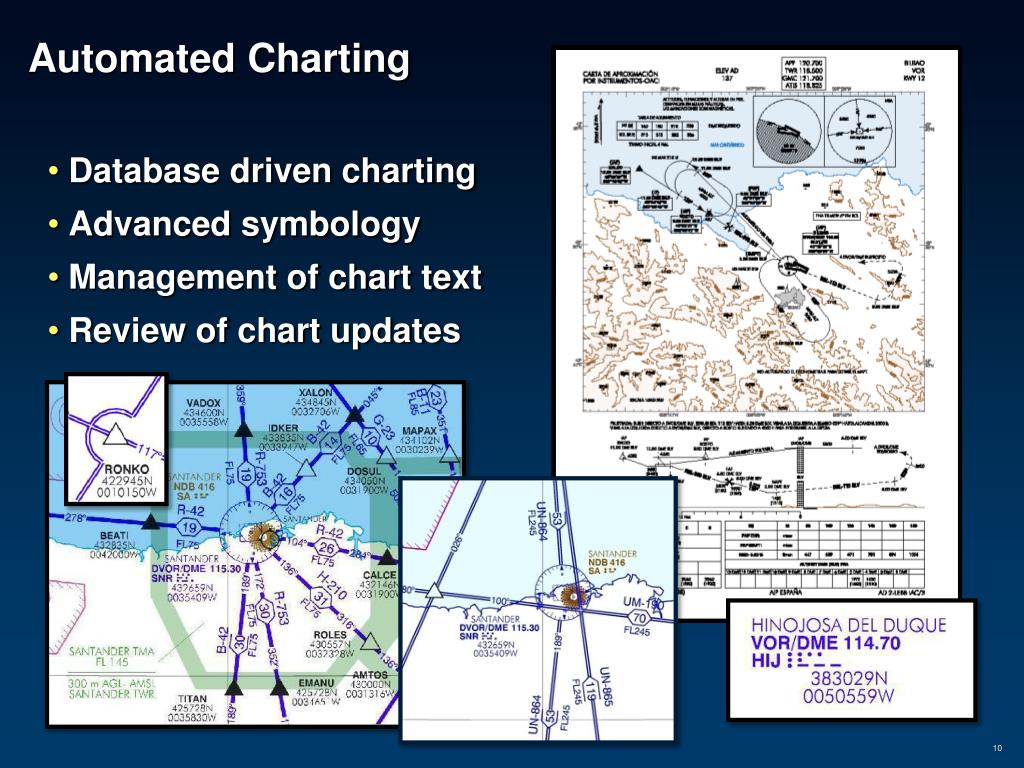

  10. Automated Charting • Database driven charting • Advanced symbology • Management of chart text • Review of chart updates

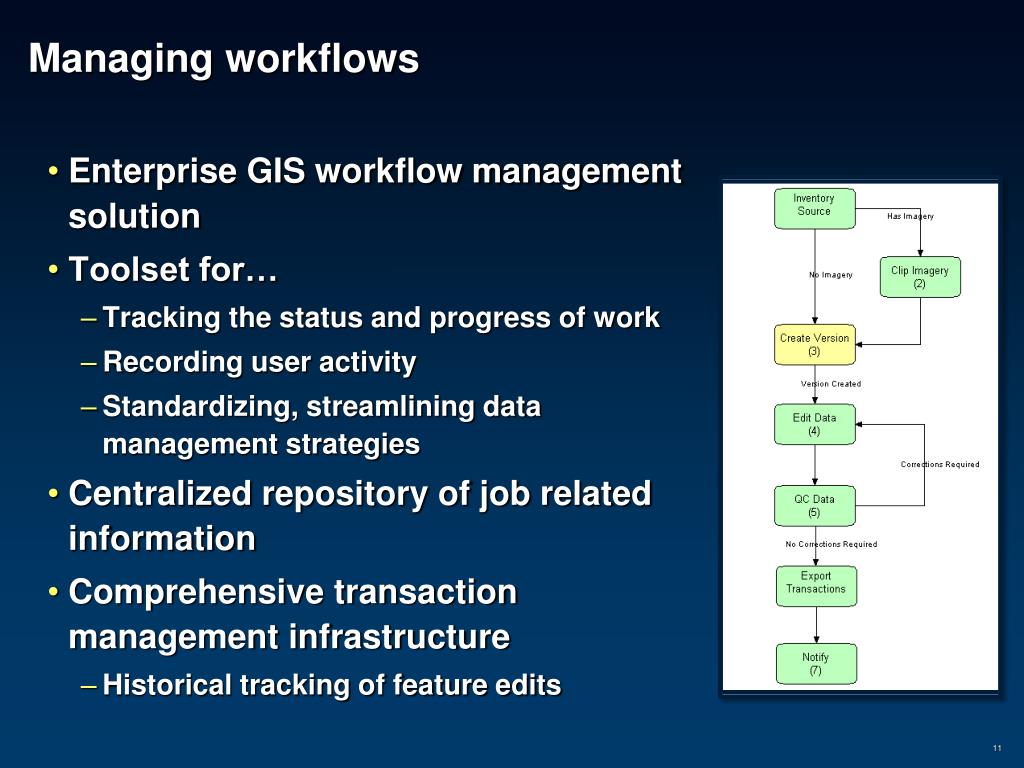

  11. Managing workflows • Enterprise GIS workflow management solution • Toolset for… • Tracking the status and progress of work • Recording user activity • Standardizing, streamlining data management strategies • Centralized repository of job related information • Comprehensive transaction management infrastructure • Historical tracking of feature edits

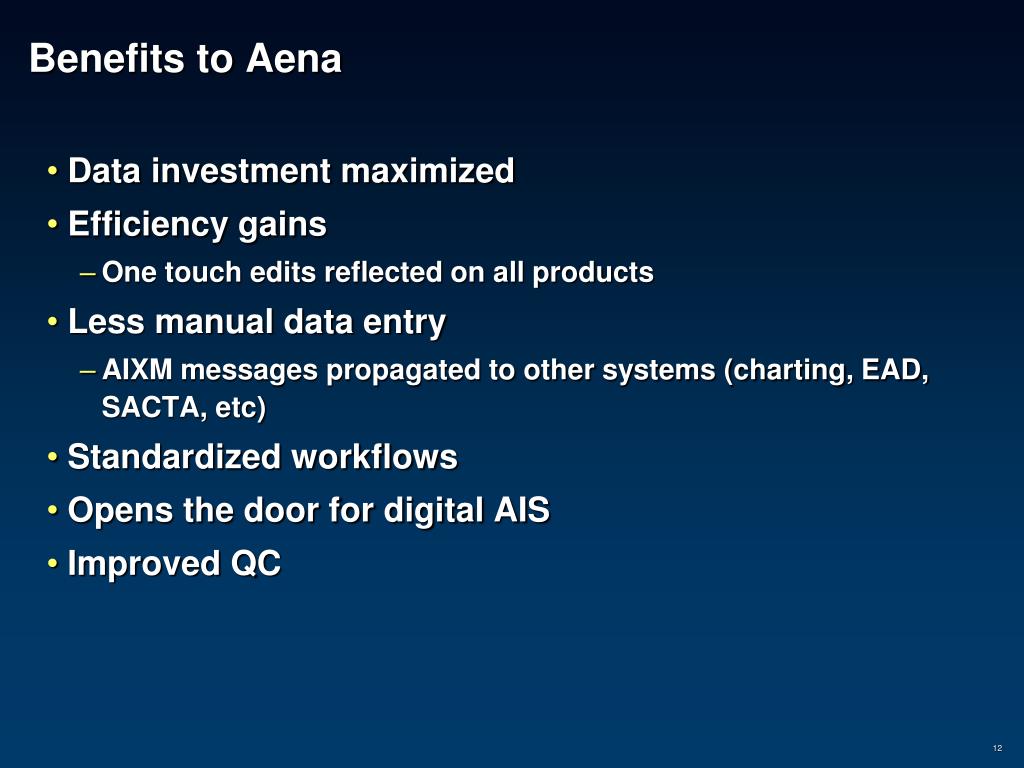

  12. Benefits to Aena • Data investment maximized • Efficiency gains • One touch edits reflected on all products • Less manual data entry • AIXM messages propagated to other systems (charting, EAD, SACTA, etc) • Standardized workflows • Opens the door for digital AIS • Improved QC
