Timing circuits

Timing circuits. Monostable multivibrators (one-shots) Digital storage circuit with only 1 stable state Temporarily driven into a transient state by a 01 or 10 transition on their inputs The duration of the transient state is controlled by the timing constant of an external RC network

webb
Download Presentation

Timing circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

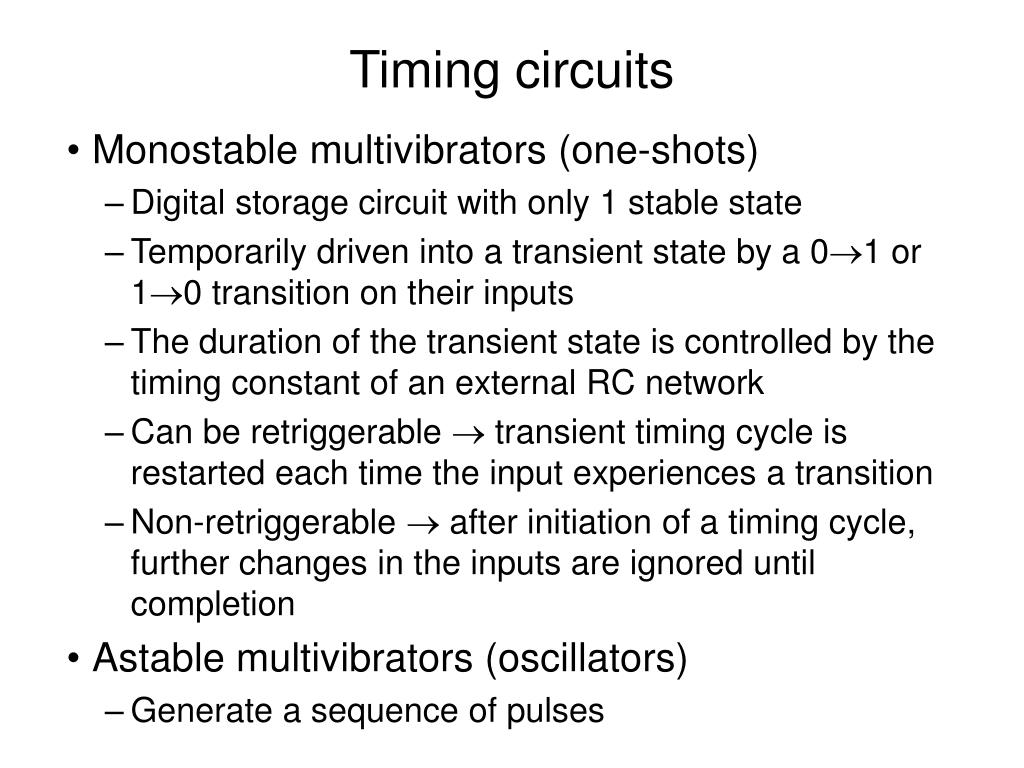

  1. Timing circuits • Monostable multivibrators (one-shots) • Digital storage circuit with only 1 stable state • Temporarily driven into a transient state by a 01 or 10 transition on their inputs • The duration of the transient state is controlled by the timing constant of an external RC network • Can be retriggerable  transient timing cycle is restarted each time the input experiences a transition • Non-retriggerable  after initiation of a timing cycle, further changes in the inputs are ignored until completion • Astable multivibrators (oscillators) • Generate a sequence of pulses

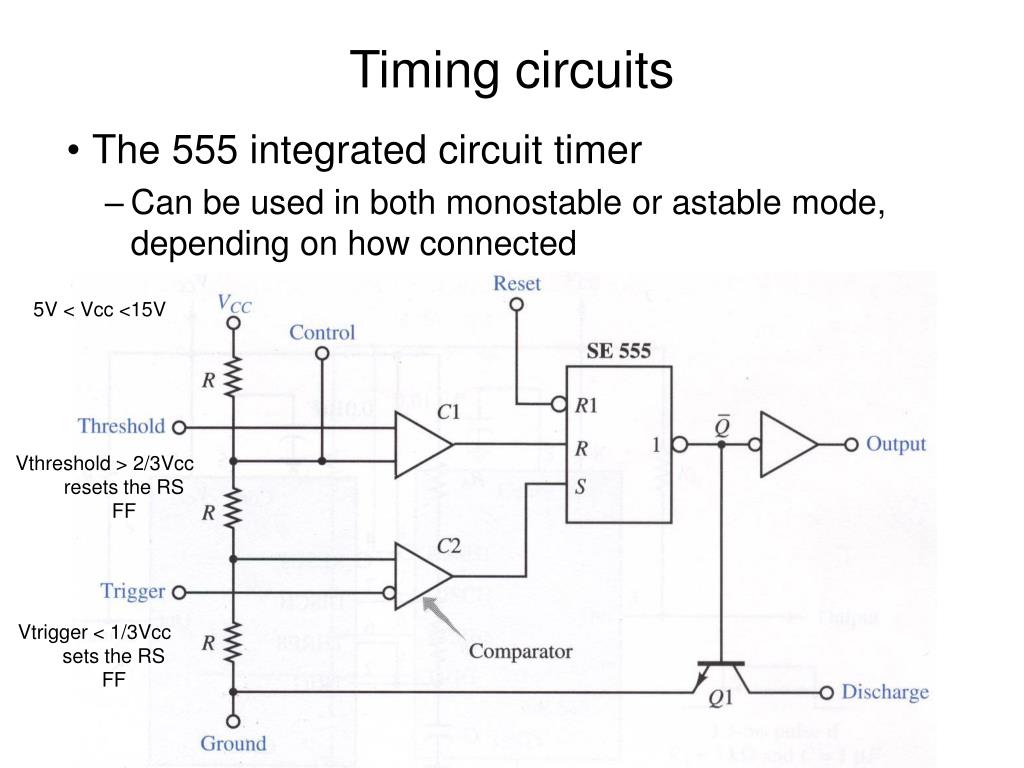

  2. Timing circuits • The 555 integrated circuit timer • Can be used in both monostable or astable mode, depending on how connected 5V < Vcc <15V Vthreshold > 2/3Vcc resets the RS FF Vtrigger < 1/3Vcc sets the RS FF

  3. Timing circuits • The 555 integrated circuit timer in monostable mode • Stable state: Q=0 (Q’=1), C is discharged (why?) • Pulse U on TRIG sets Q=1 • C charges through RA • Until VC=VTHRESH>2/3VCC • Ignores new TRIG pulsesuntil cycle complete(why?) • Tpulse  1.1RAC

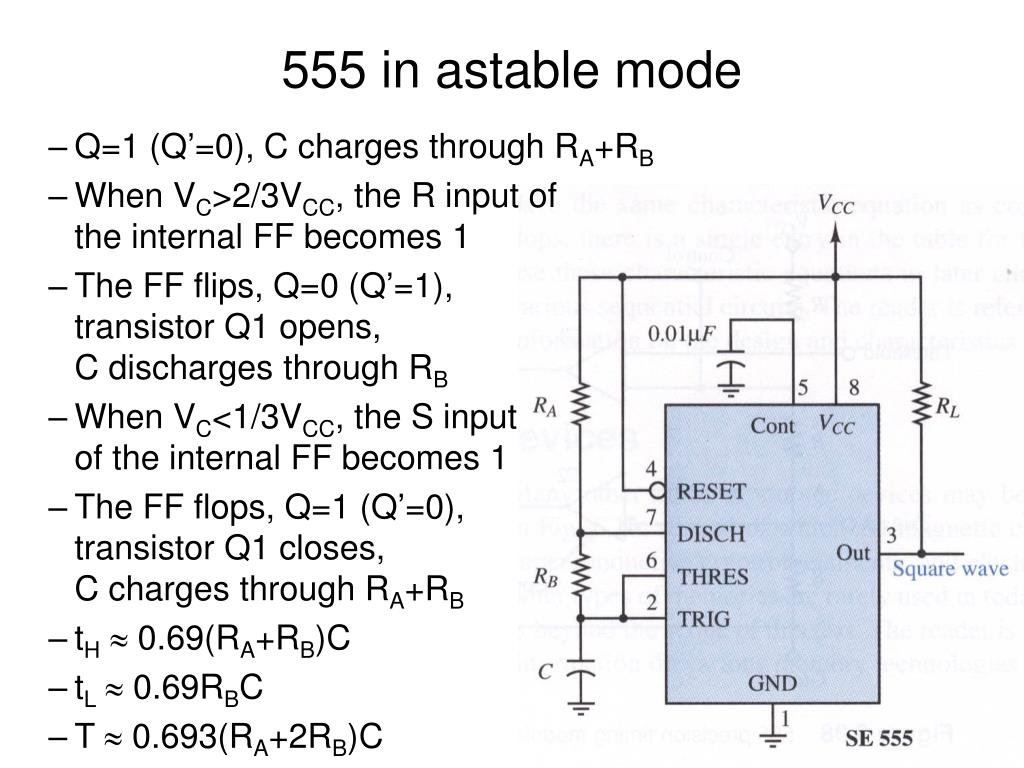

  4. 555 in astable mode • Q=1 (Q’=0), C charges through RA+RB • When VC>2/3VCC, the R input ofthe internal FF becomes 1 • The FF flips, Q=0 (Q’=1),transistor Q1 opens,C discharges through RB • When VC<1/3VCC, the S inputof the internal FF becomes 1 • The FF flops, Q=1 (Q’=0),transistor Q1 closes,C charges through RA+RB • tH  0.69(RA+RB)C • tL  0.69RBC • T  0.693(RA+2RB)C

  5. Rapid prototyping of sequential circuits • Use PROMs for the logic • Easy to re-program • Directly implement function • No need to optimize

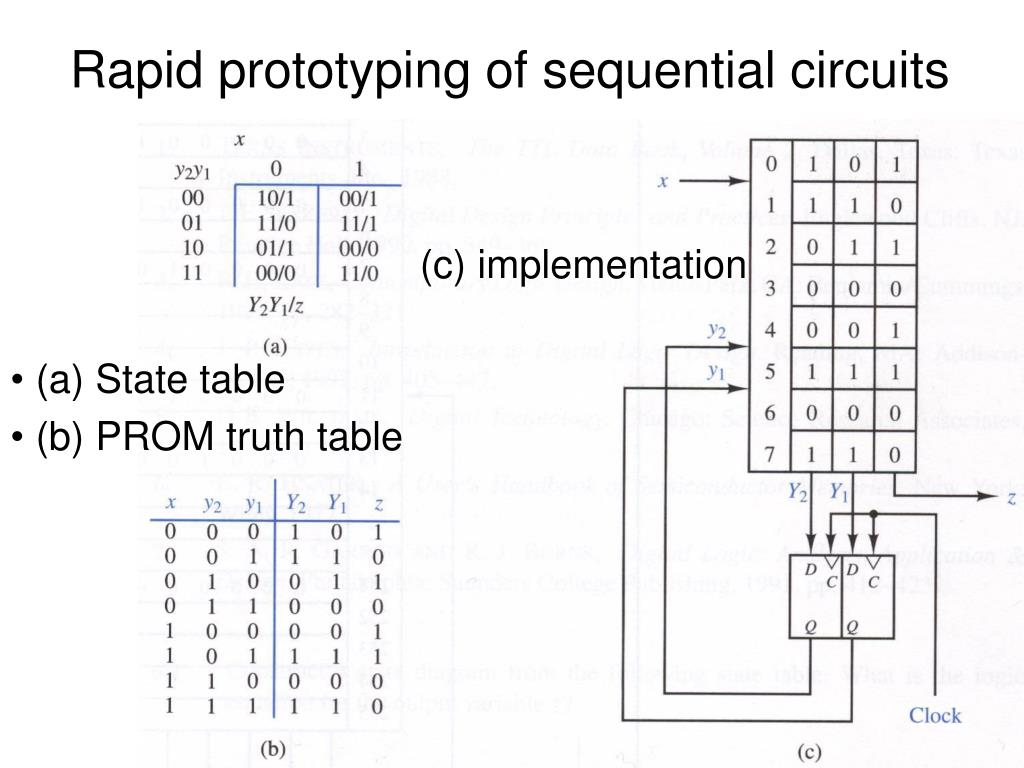

  6. Rapid prototyping of sequential circuits (c) implementation • (a) State table • (b) PROM truth table

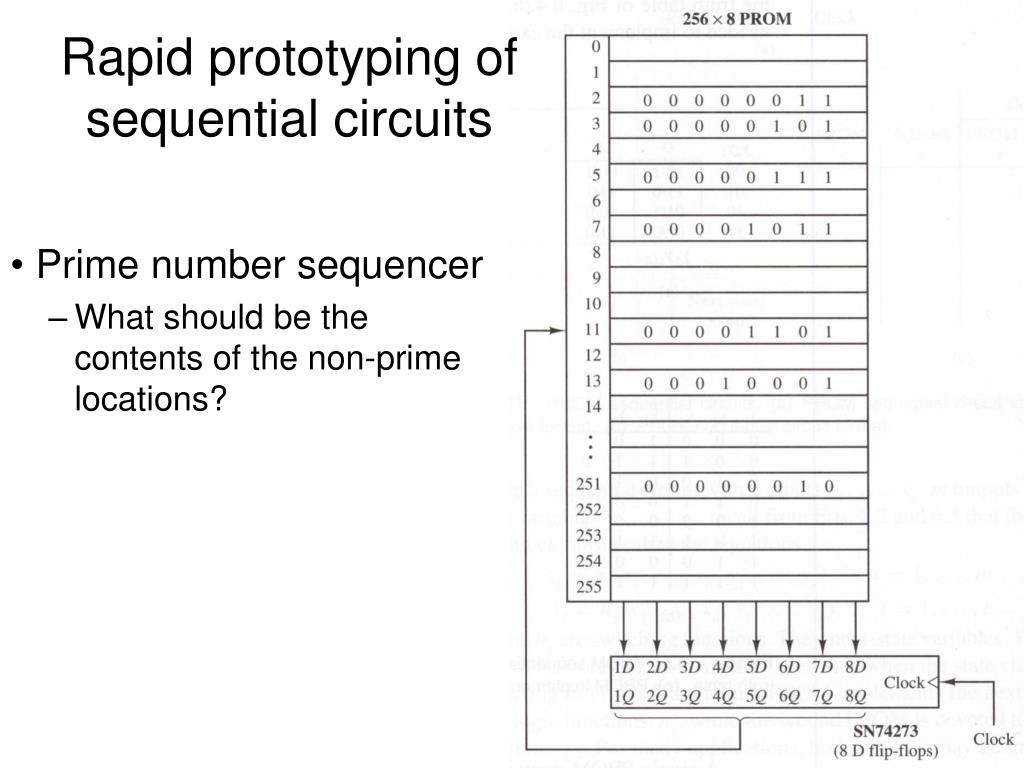

  7. Rapid prototyping of sequential circuits • Prime number sequencer • What should be the contents of the non-prime locations?
