  1. Storing data for integrated 1D, 2D, 3D models of rivers, estuaries and seas June 12th 2007 Bert Jagers

  2. general intro Delft Hydraulics Independent research foundation • since 1927 • about 300 people • research and expert advise projects worldwide: Europe, Asia (Japan, Hong Kong, Singapore, China, Middle East, …), Africa (Egypt, South Africa, …), America (USA, Panama, …), Australia • numerical simulation models and operational systems

  3. modelling system 1 Delft3D: Windows & Linux, parallel • Characteristics: 2D or 3D curvilinear model • Multi-domain (multi-tile), sigma- or z-layer • Application areas: ocean, sea, coast, estuary, river • Hydrodynamics, waves, meteorological forcing • Morphodynamics, stratigraphy • Ecology, water quality Many users around the world: research institutes, universities, and consultants

  4. Delft3D from global scale modelling … Aceh earthquake, Dec ‘04

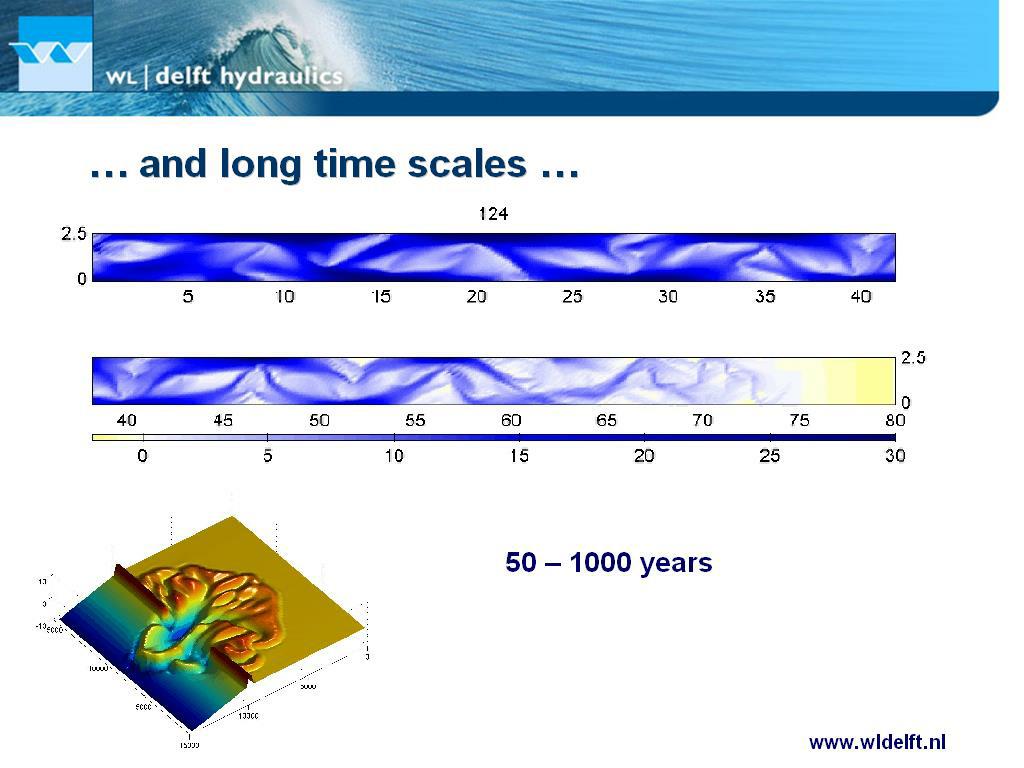

  5. … and long time scales … 50 – 1000 years

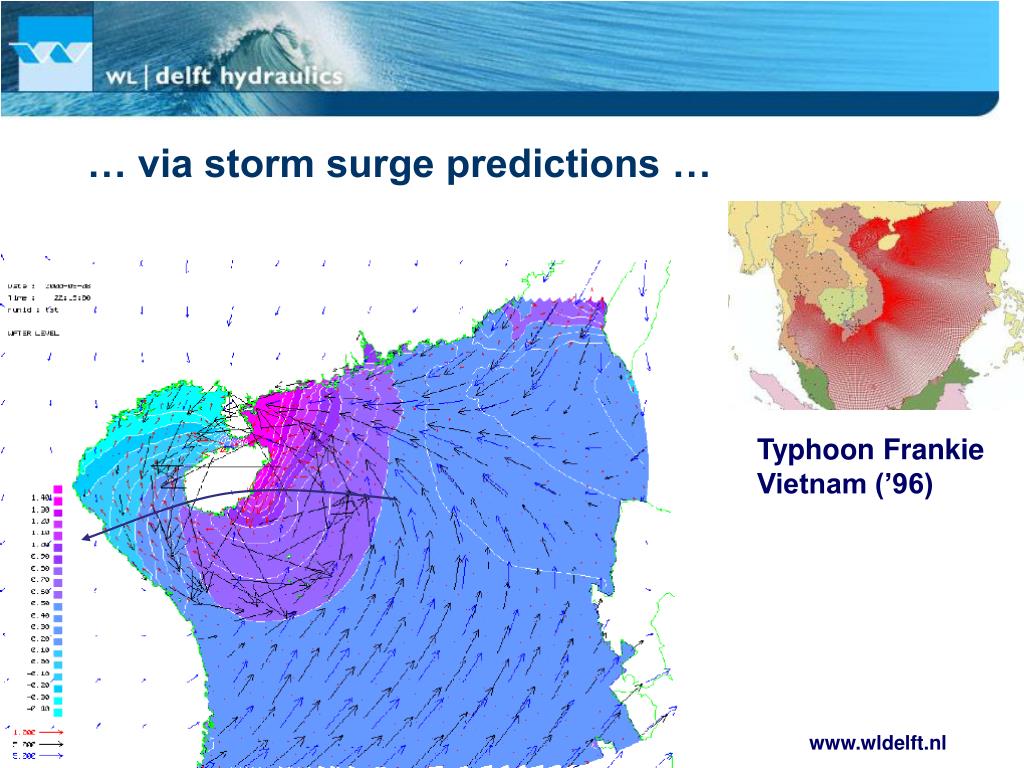

  6. … via storm surge predictions … Typhoon Frankie Vietnam (’96)

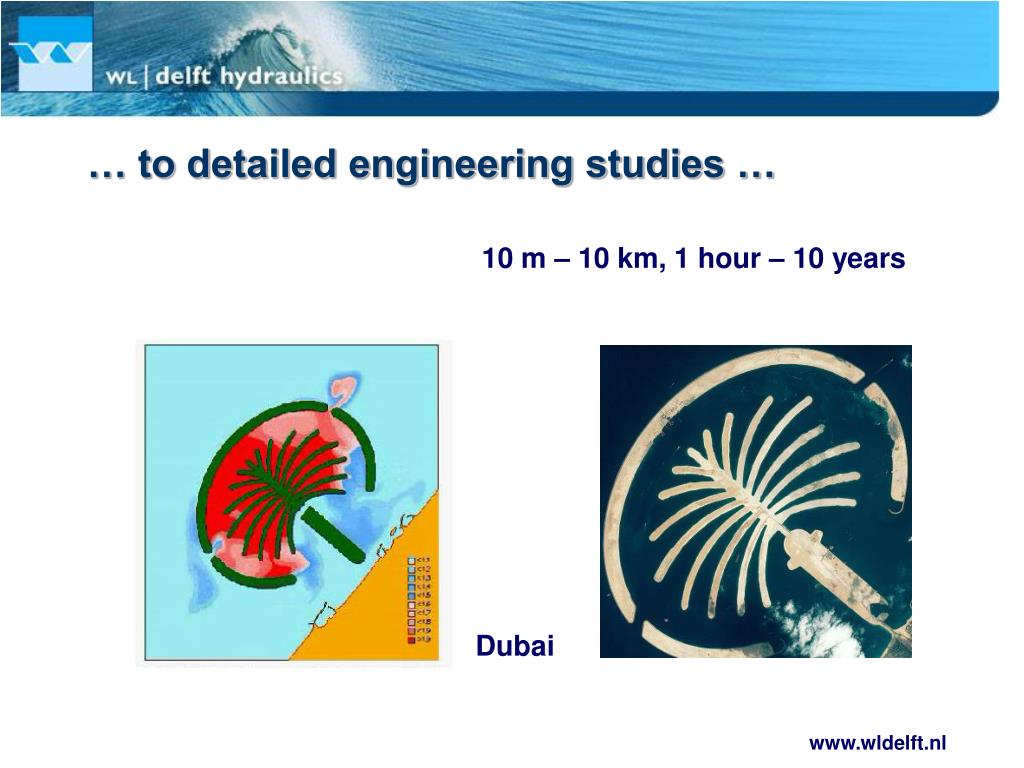

  7. … to detailed engineering studies … 10 m – 10 km, 1 hour – 10 years Dubai

  8. … and flume experiments

  9. netCDF/CF issues Curvilinear, multi-tile, clipped coordinates Staggered Arikawa-C style scheme: storing restart data versus generic output

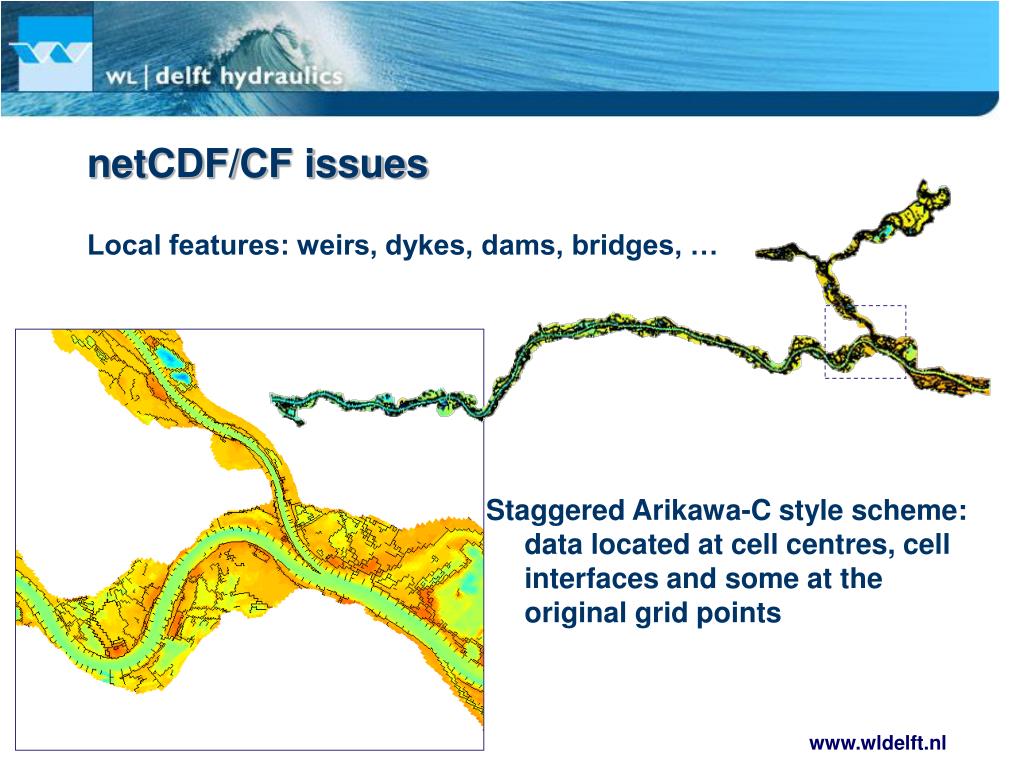

  10. netCDF/CF issues Local features: weirs, dykes, dams, bridges, … Staggered Arikawa-C style scheme: data located at cell centres, cell interfaces and some at the original grid points

  11. GIS integration preprocessing: grid generation data interpolation feature mapping

  12. GIS integration postprocessing online visualisation netCDF support by GIS systems (ArcGIS 9.2) will it be CF aware?

  13. German part  Dutch part  netCDF/CF issues regional models: 1) use coordinate systems of local data providers (grid mapping) & keep track of coordinate system used throughout modelling system 2) use global coordinates (like netCDF/CF) & use GIS for the projections (keep track of accuracy for local detailed models!) deal with vertical datums Dutch NAP = Belgian TAW + 2.32 m

  14. netCDF/CF issues Generalised sigma, mixed sigma-z-coordinates: extra vertical coordinate options Aggregation table: data provided on irregular “subgrid”

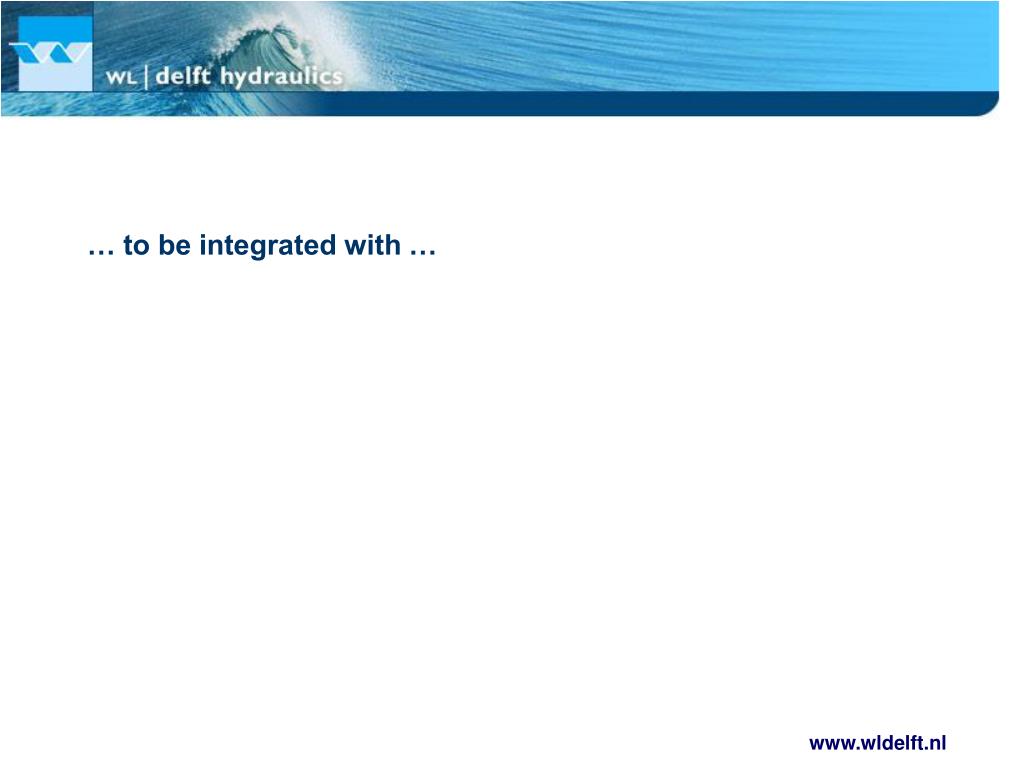

  15. … to be integrated with …

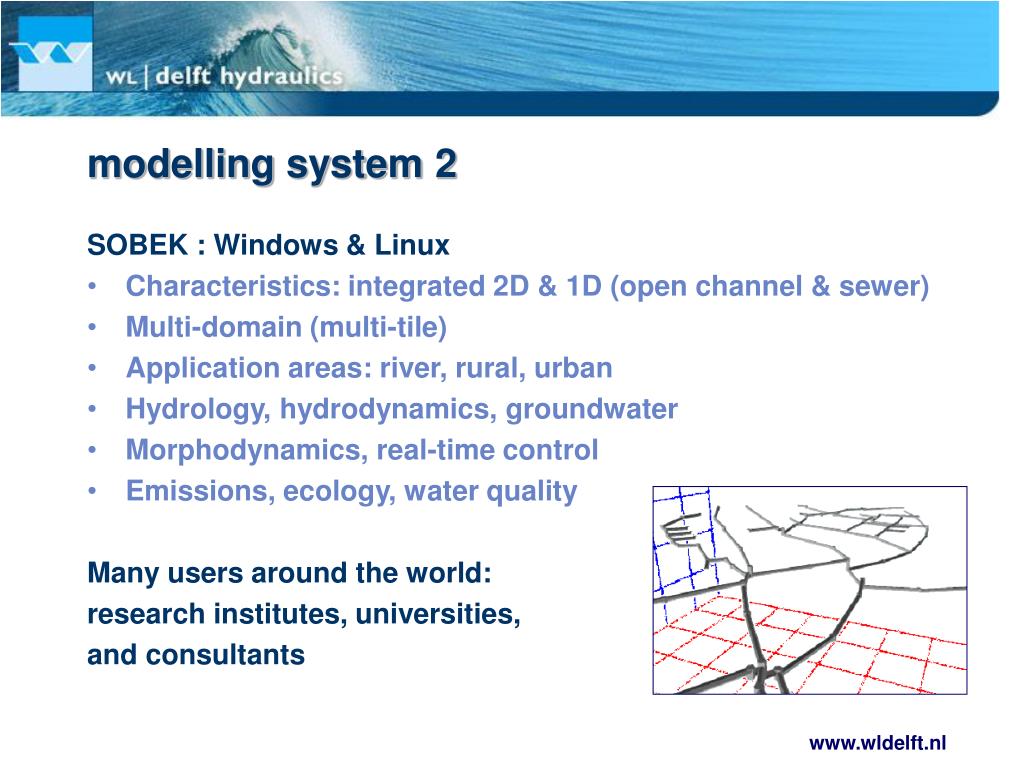

  16. modelling system 2 SOBEK : Windows & Linux • Characteristics: integrated 2D & 1D (open channel & sewer) • Multi-domain (multi-tile) • Application areas: river, rural, urban • Hydrology, hydrodynamics, groundwater • Morphodynamics, real-time control • Emissions, ecology, water quality Many users around the world: research institutes, universities, and consultants

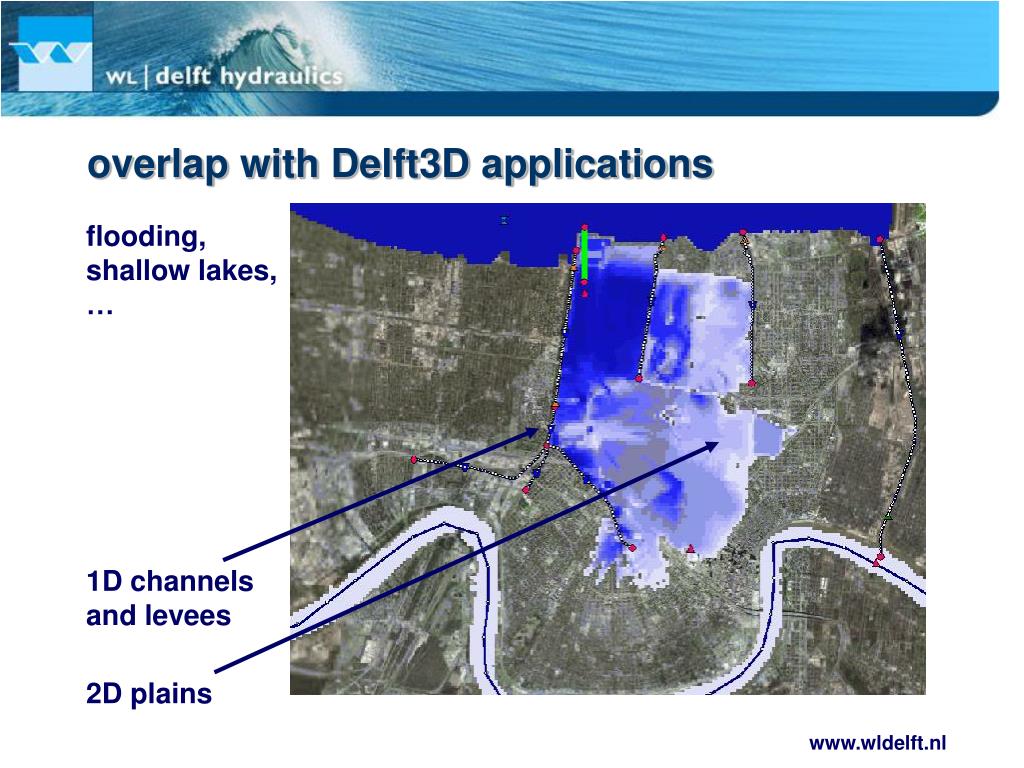

  17. 1D channels and levees 2D plains overlap with Delft3D applications flooding, shallow lakes, …

  18. regional scale applications albufera lake melbourne

  19. flood early warning systems from meteo data to flood prediction (as local as realistically possible) operational aspects: 24 hours, 7 days per week distributed data access

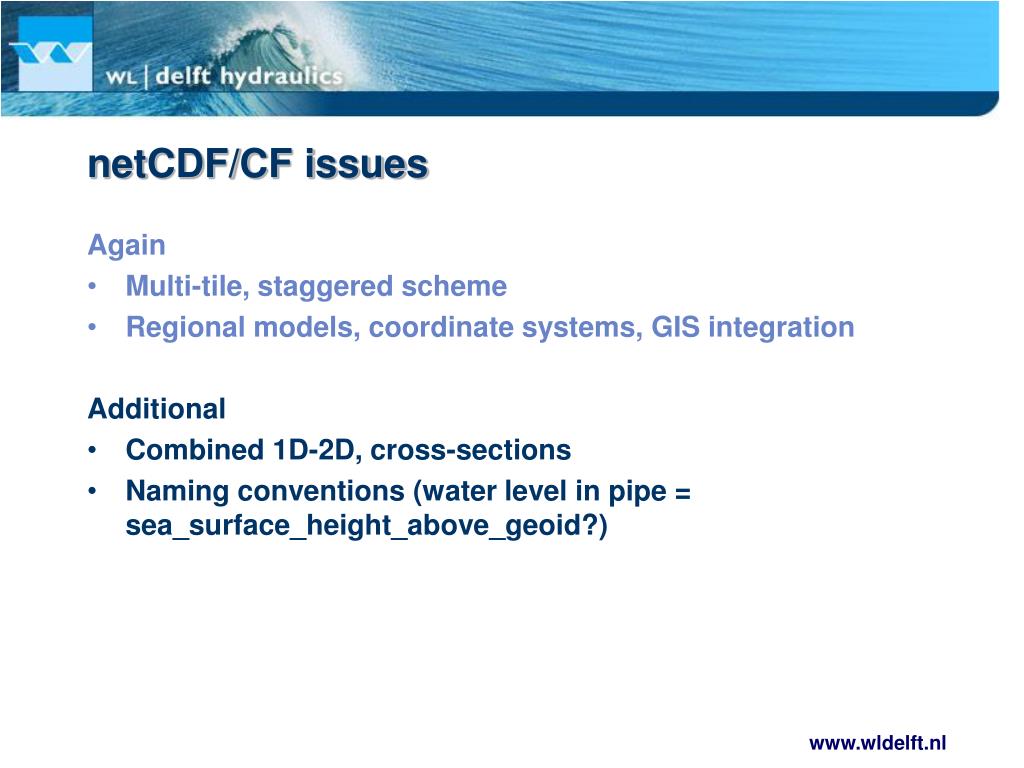

  20. netCDF/CF issues Again • Multi-tile, staggered scheme • Regional models, coordinate systems, GIS integration Additional • Combined 1D-2D, cross-sections • Naming conventions (water level in pipe = sea_surface_height_above_geoid?)

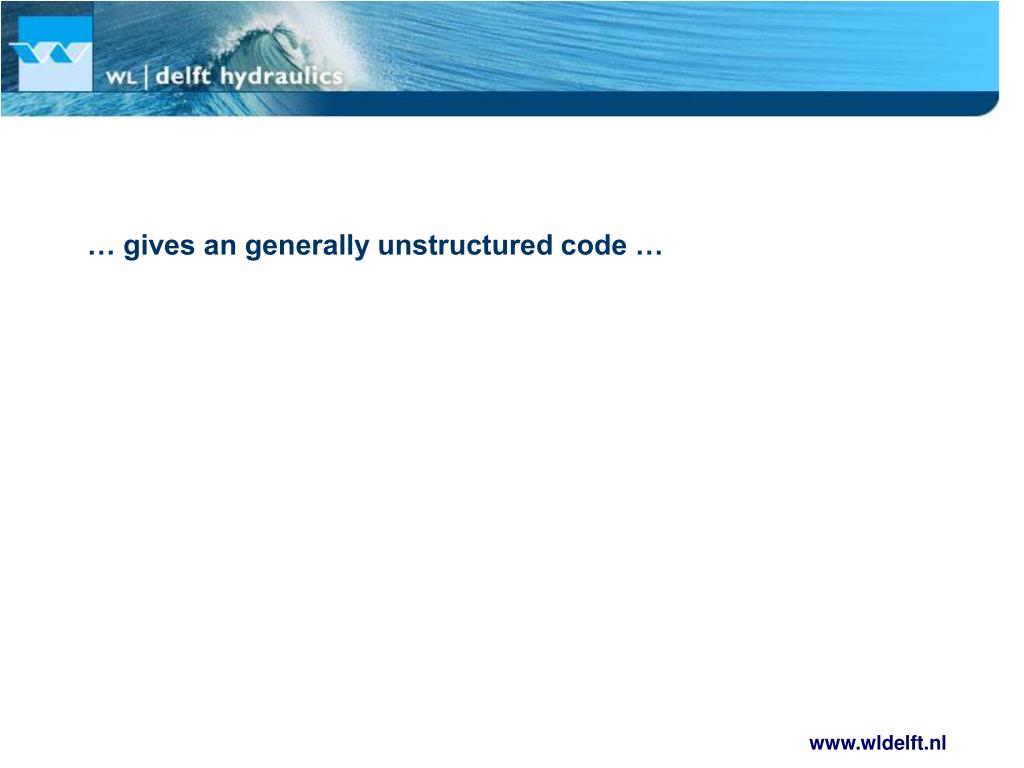

  21. … gives an generally unstructured code …

  22. netCDF/CF issues How to store unstructured grids and the associated data?  finite volume approach: distinguish volumes & fluxes multiple associated GIS expressable one grid one topology data location sets Why not use the same approach for LRG?

  23. the end Questions? bert.jagers@wldelft.nl
