Development of GI system

1. Development of GI system 陳建榮 http://web.nchu.edu.tw/pweb/index2.php?pid=75

2. GI system: • Primitive Gut Morphogenesis • Foregut • Midgut • Hindgut • Foregut embryology • Midgut embryology • Hindgut embryology

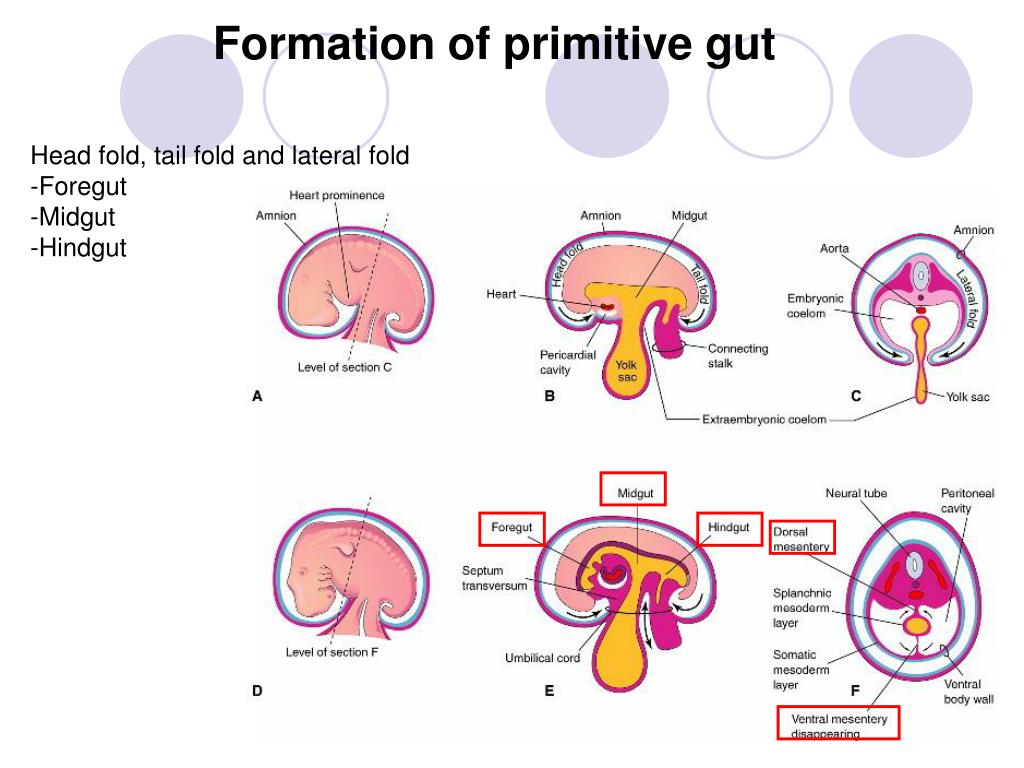

3. Formation of primitive gut • Head fold, tail fold and lateral fold • Foregut • Midgut • Hindgut

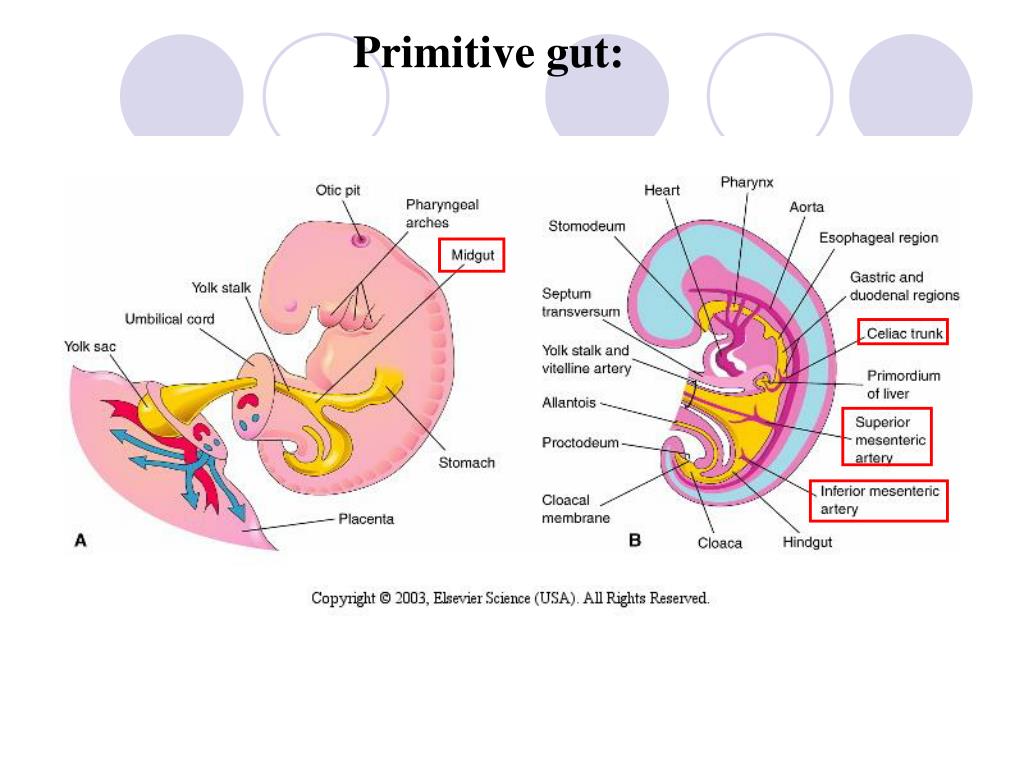

4. Primitive gut:

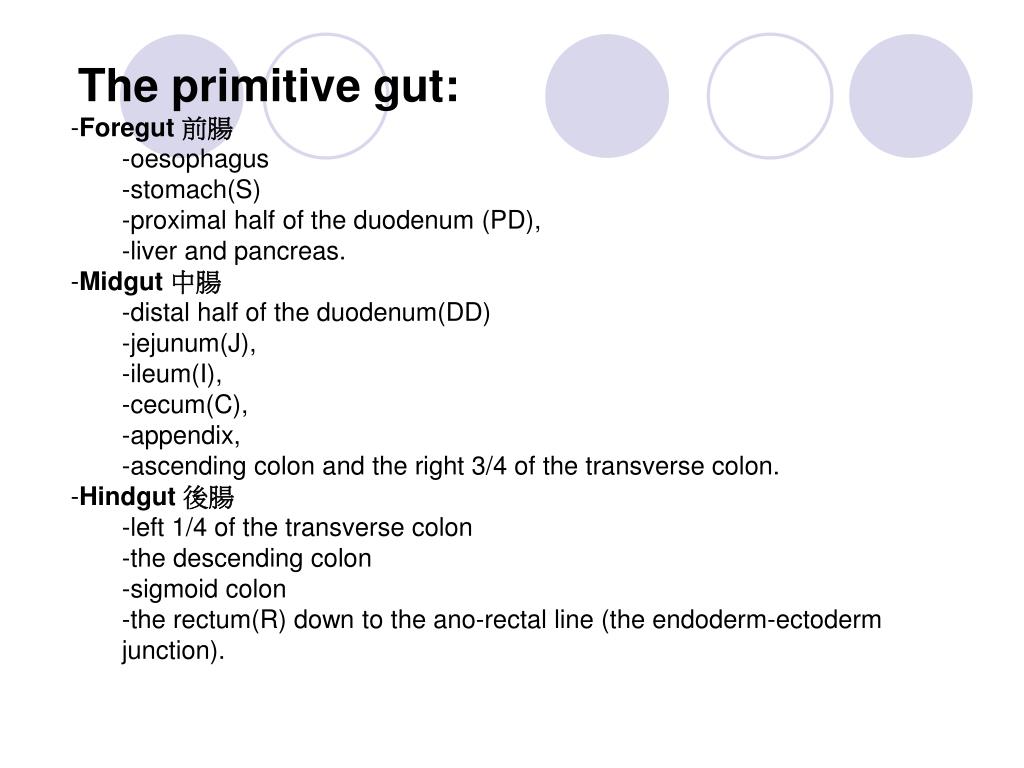

5. The primitive gut: • Foregut 前腸 • oesophagus • stomach(S) • proximal half of the duodenum (PD), • liver and pancreas. • Midgut 中腸 • distal half of the duodenum(DD) • jejunum(J), • ileum(I), • cecum(C), • appendix, • ascending colon and the right 3/4 of the transverse colon. • Hindgut 後腸 • left 1/4 of the transverse colon • the descending colon • sigmoid colon • the rectum(R) down to the ano-rectal line (the endoderm-ectoderm junction).

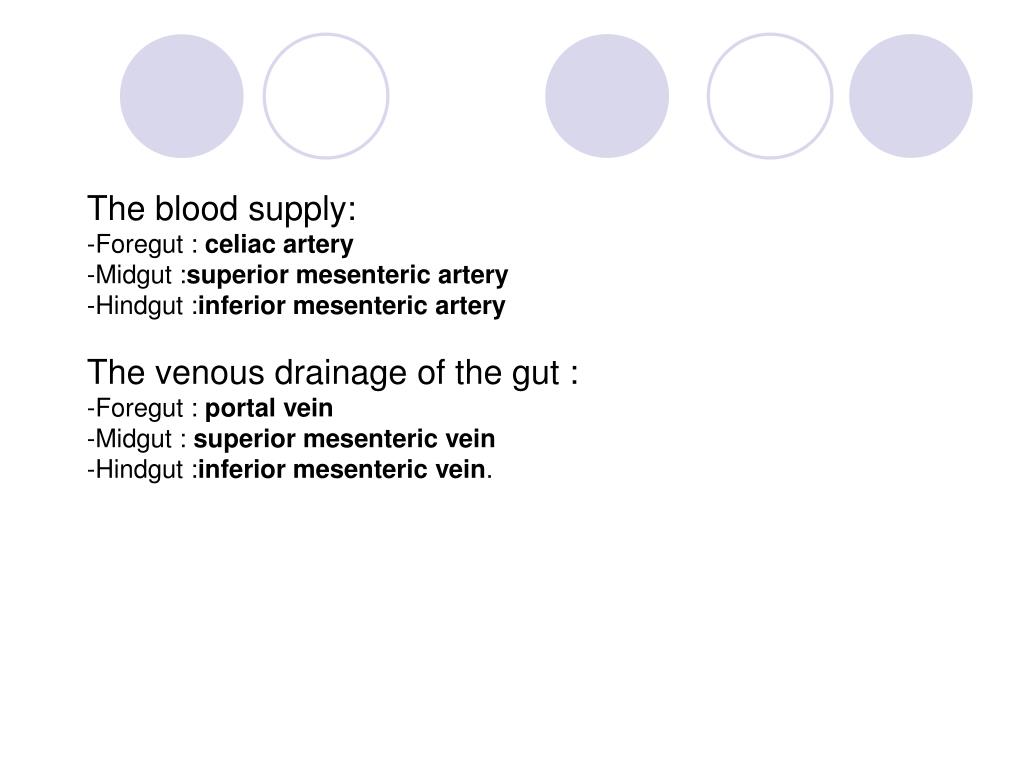

6. The blood supply: • Foregut : celiac artery • Midgut :superior mesenteric artery • Hindgut :inferior mesenteric artery • The venous drainage of the gut : • Foregut : portal vein • Midgut : superior mesenteric vein • Hindgut :inferior mesenteric vein.

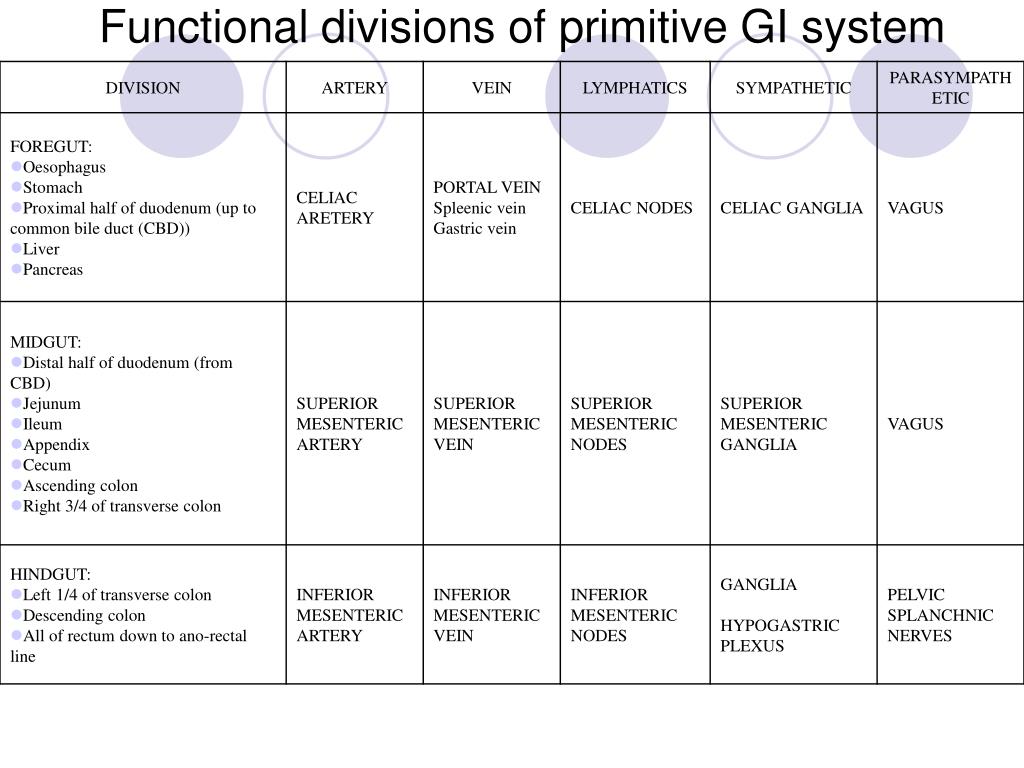

8. Functional divisions of primitive GI system

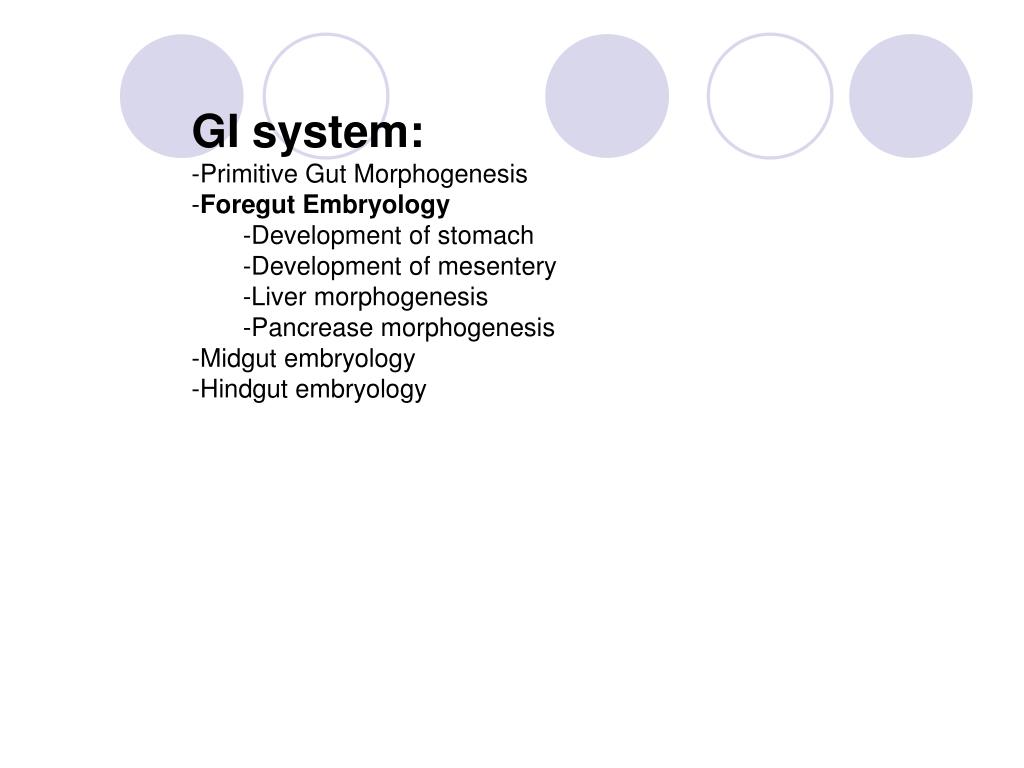

9. GI system: • Primitive Gut Morphogenesis  • Foregut Embryology • Development of stomach • Development of mesentery • Liver morphogenesis • Pancrease morphogenesis • Midgut embryology • Hindgut embryology

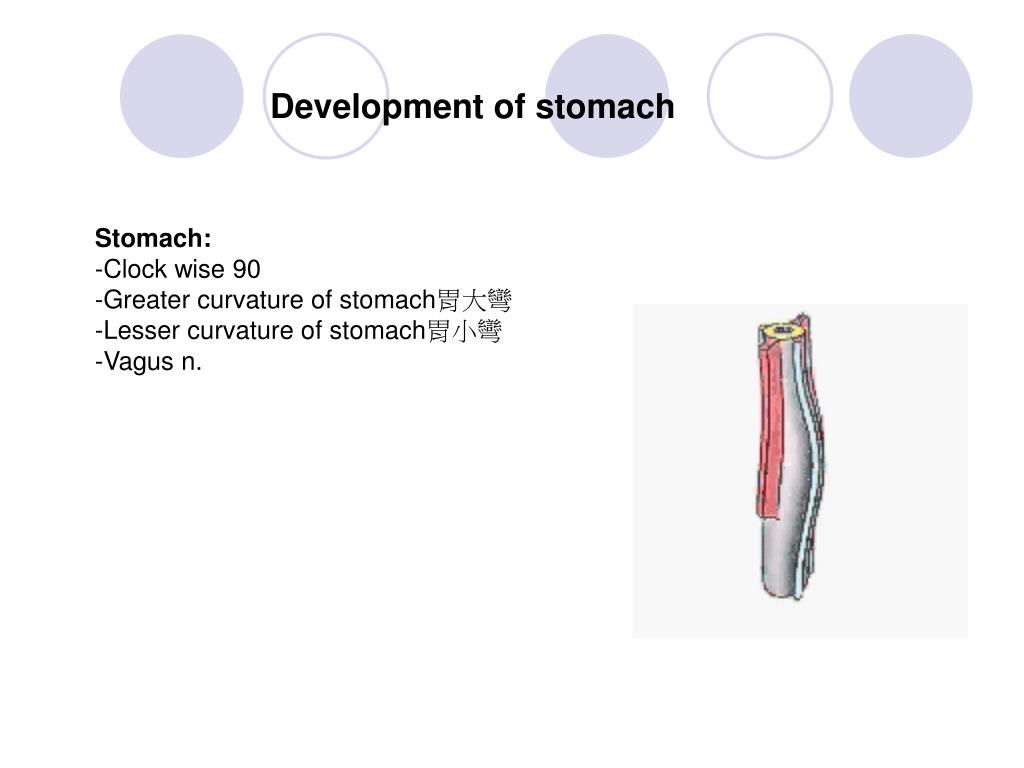

10. Development of stomach • Stomach: • Clock wise 90 • Greater curvature of stomach胃大彎 • Lesser curvature of stomach胃小彎 • Vagus n.

11. Development of stomach

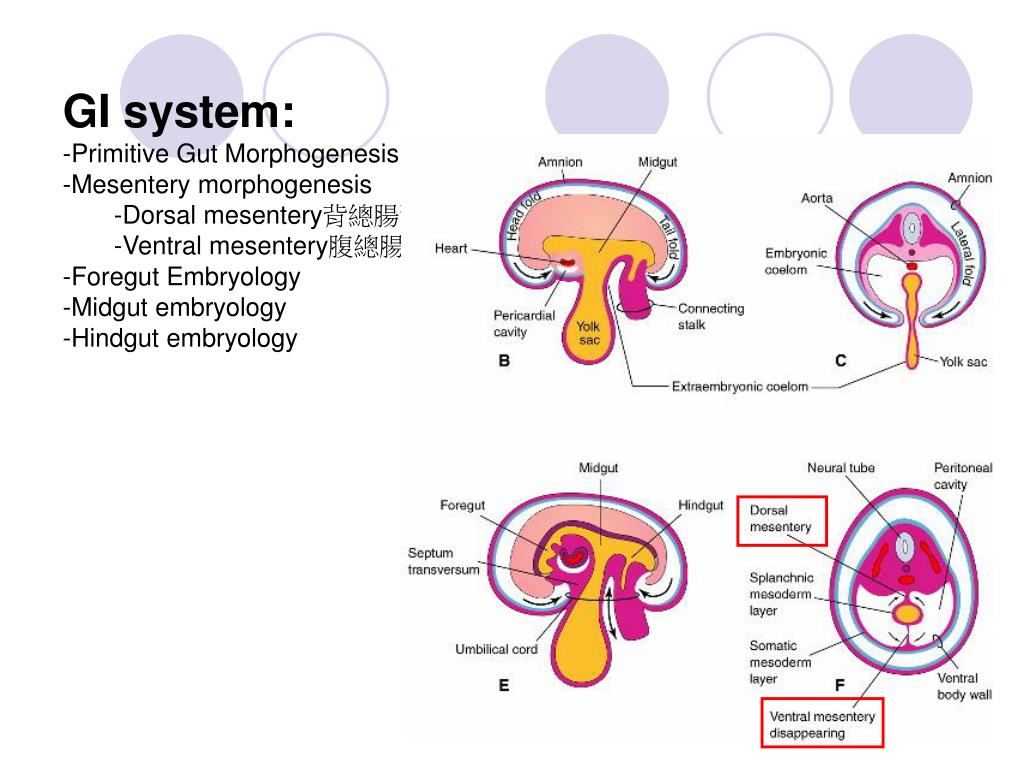

12. GI system: • Primitive Gut Morphogenesis • Mesentery morphogenesis • Dorsal mesentery背總腸繫膜 • Ventral mesentery腹總腸繫膜 • Foregut Embryology • Midgut embryology • Hindgut embryology

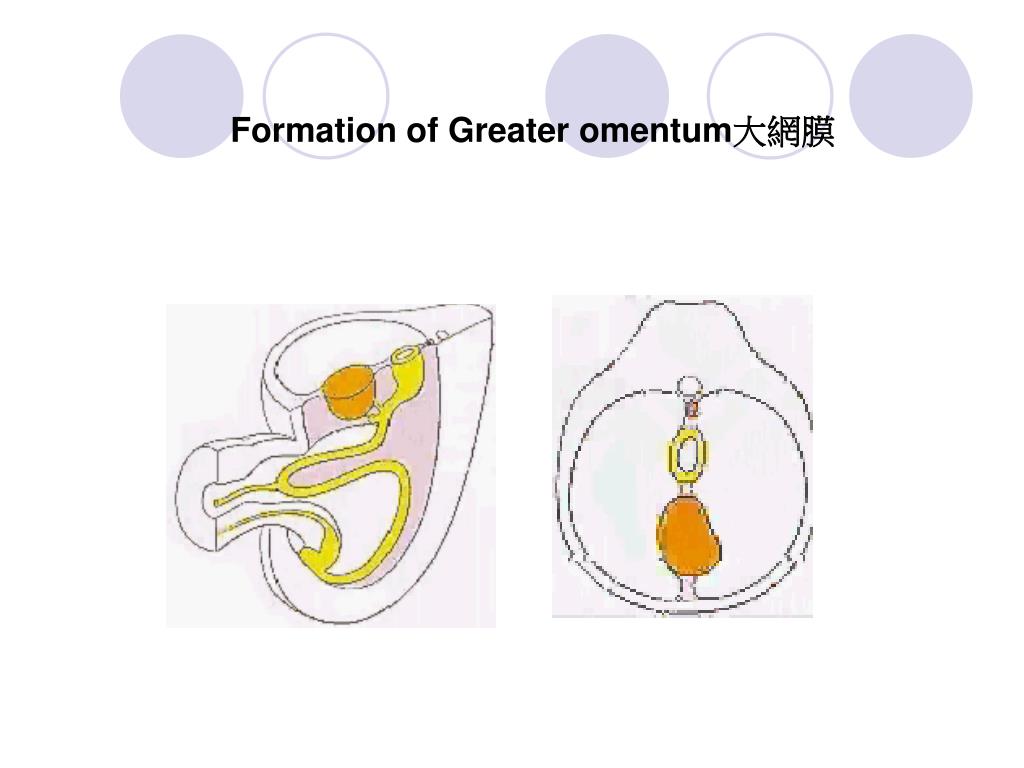

14. Formation of Greater omentum大網膜

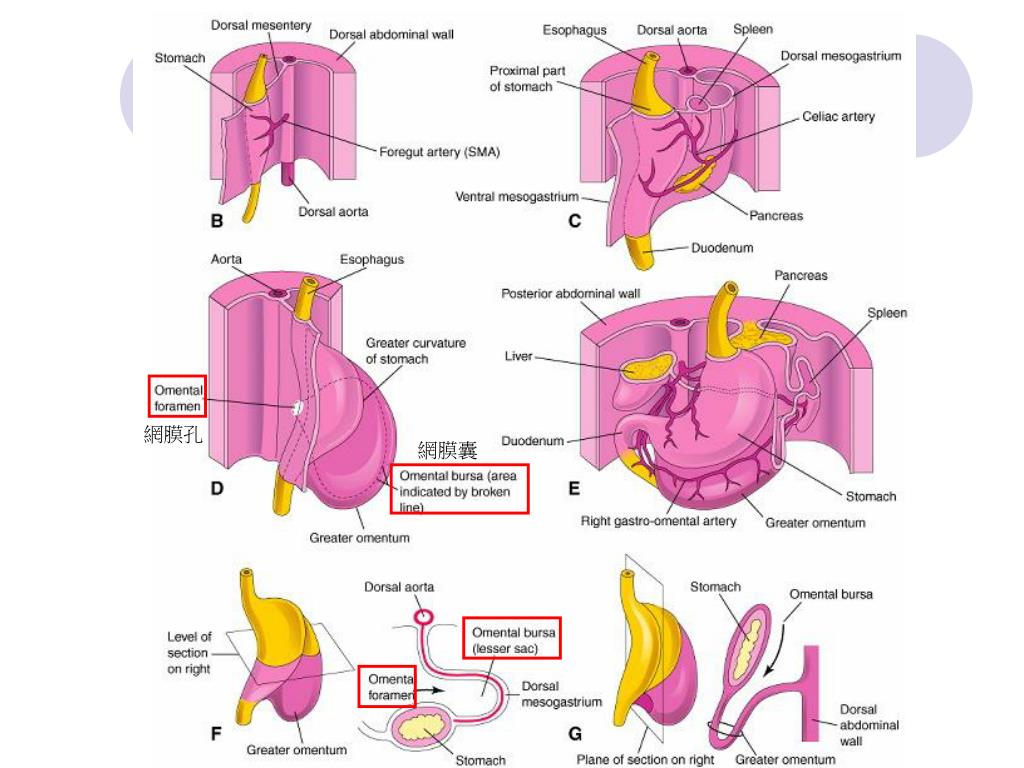

15. 網膜孔 網膜囊

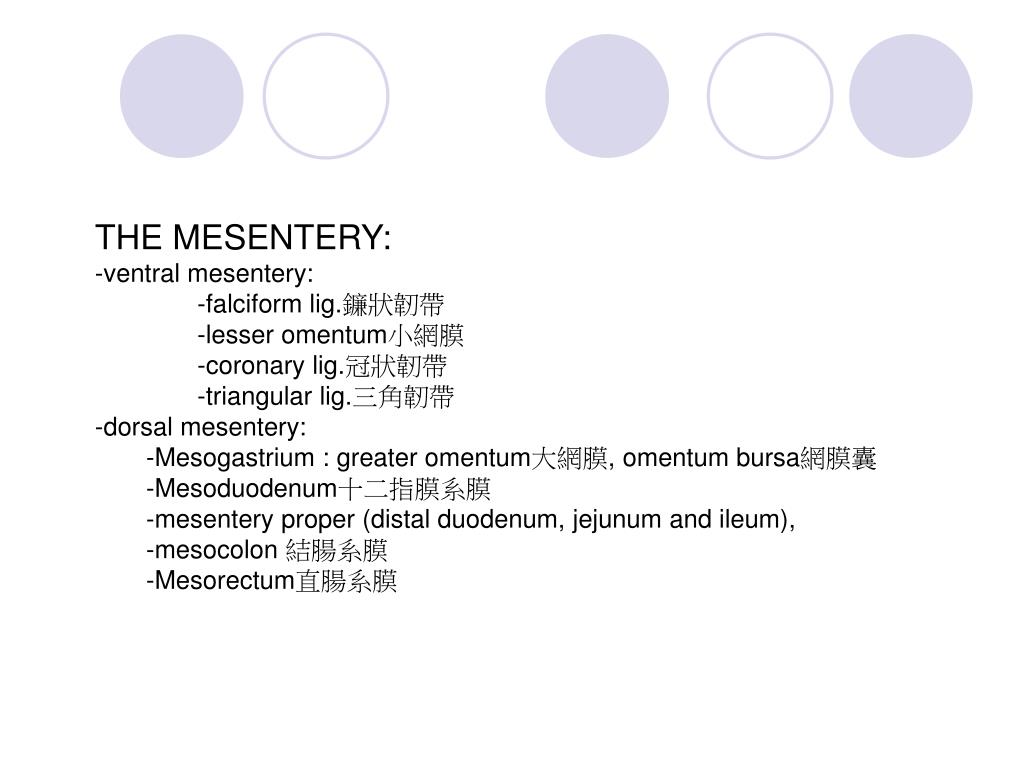

18. THE MESENTERY:-ventral mesentery: • -falciform lig.鐮狀韌帶 • -lesser omentum小網膜 • -coronary lig.冠狀韌帶 • -triangular lig.三角韌帶 • -dorsal mesentery: • Mesogastrium : greater omentum大網膜, omentum bursa網膜囊 • Mesoduodenum十二指膜系膜 • mesentery proper (distal duodenum, jejunum and ileum), • mesocolon 結腸系膜 • Mesorectum直腸系膜

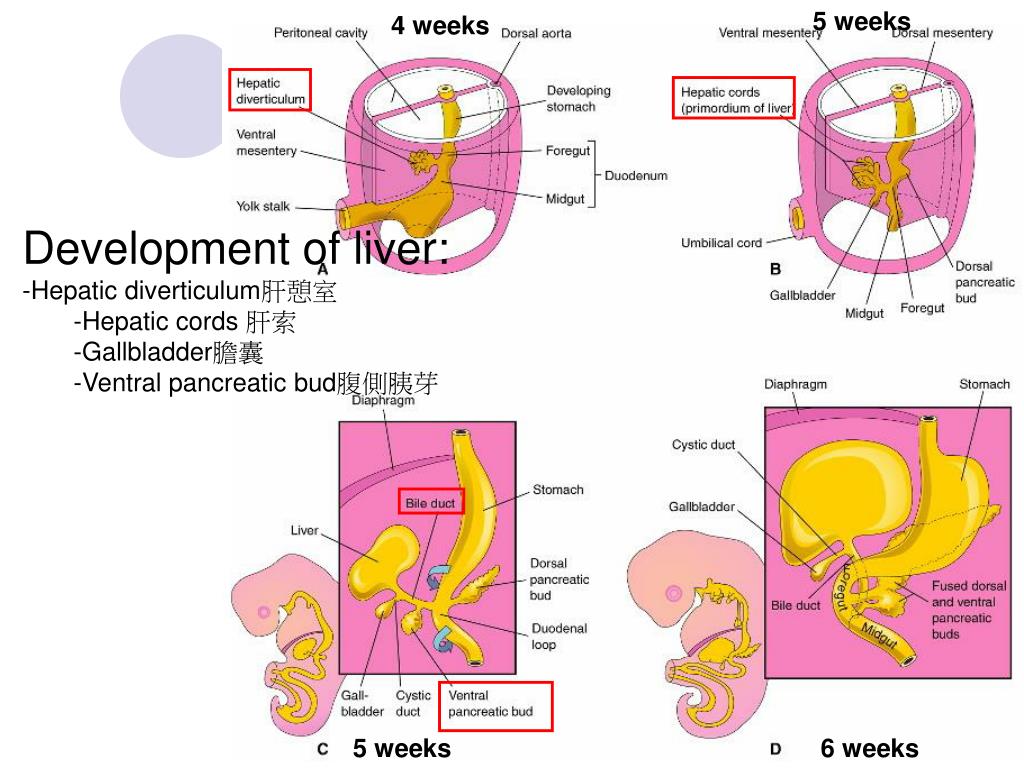

25. 5 weeks 4 weeks • Development of liver: • Hepatic diverticulum肝憩室 • Hepatic cords 肝索 • Gallbladder膽囊 • Ventral pancreatic bud腹側胰芽 5 weeks 6 weeks

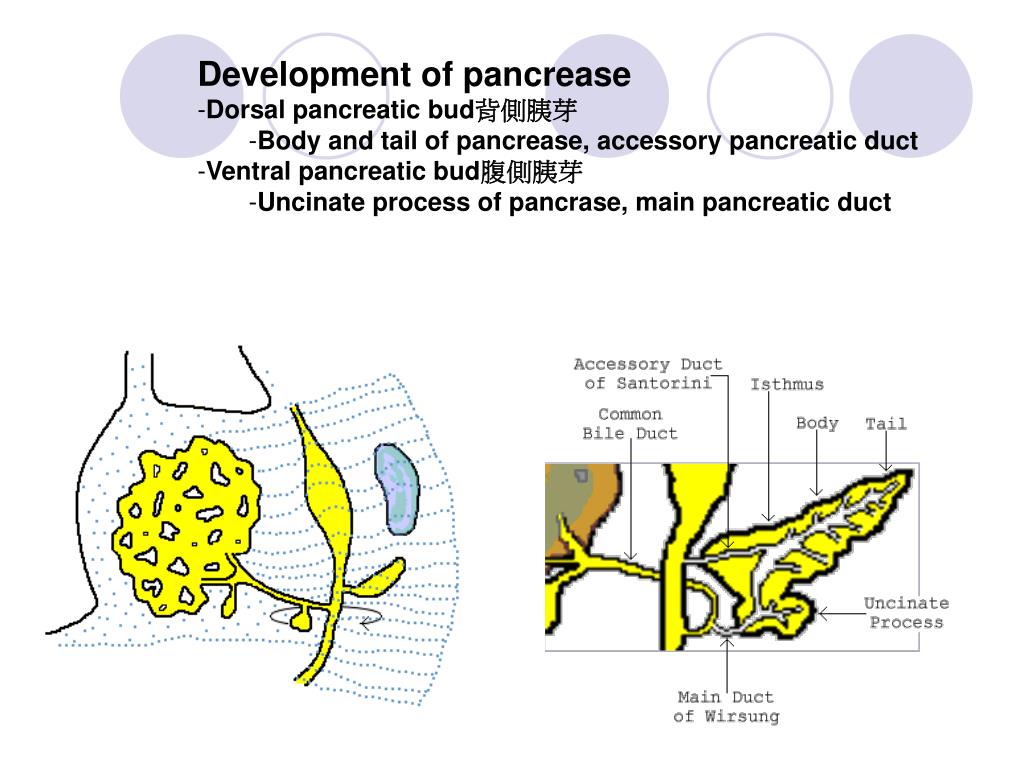

26. Development of pancrease • Dorsal pancreatic bud背側胰芽 • Body and tail of pancrease, accessory pancreatic duct • Ventral pancreatic bud腹側胰芽 • Uncinate process of pancrase, main pancreatic duct

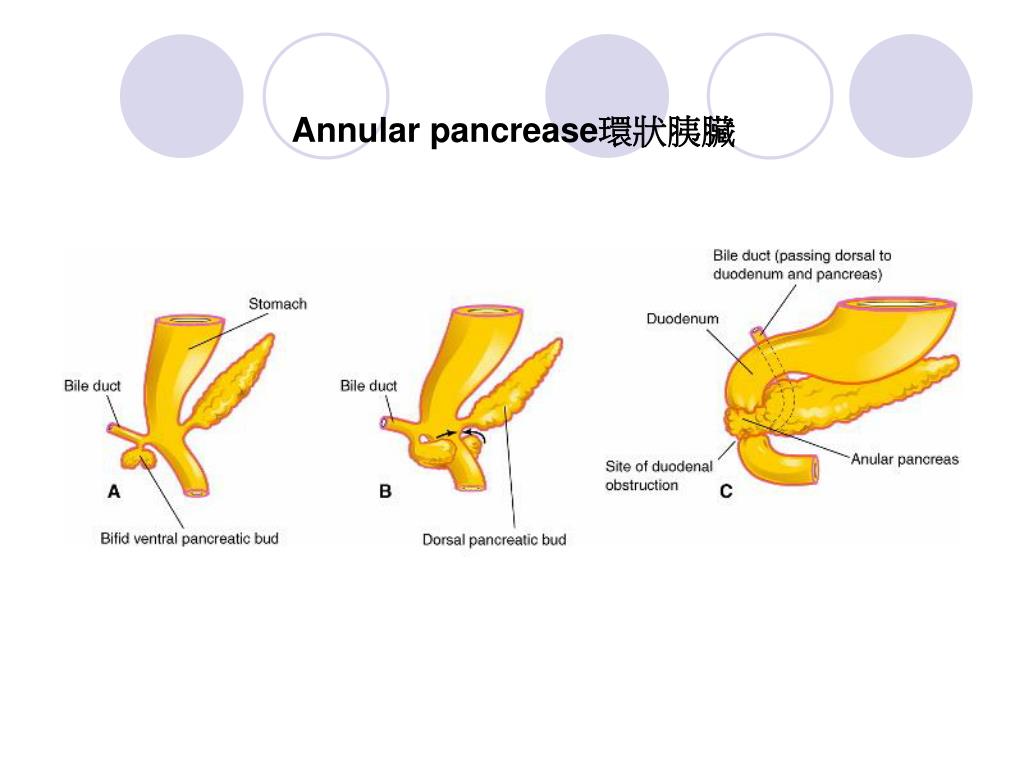

28. Annular pancrease環狀胰臟

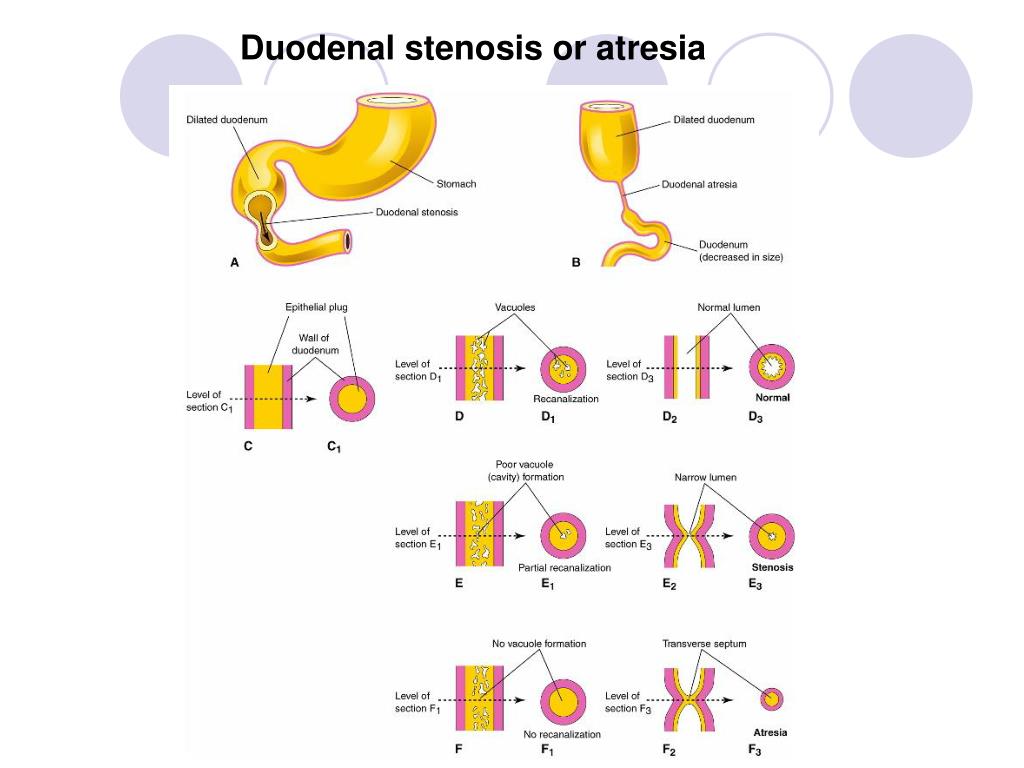

29. Duodenal stenosis or atresia

30. Development of spleen Accessory spleen副脾

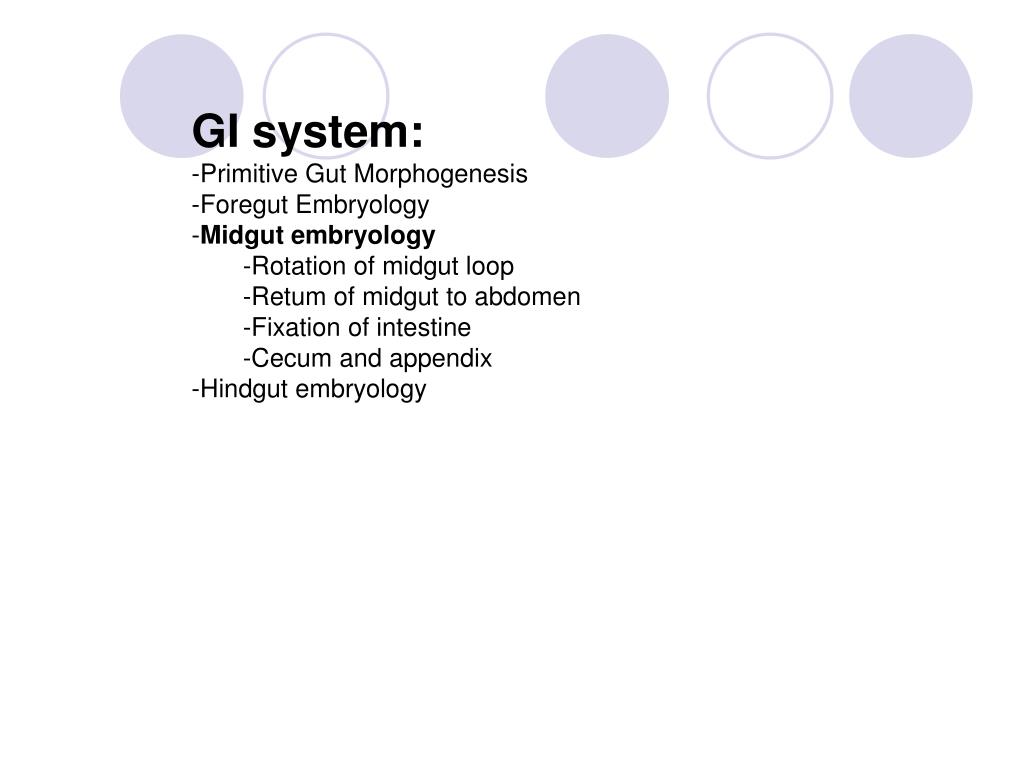

31. GI system: • Primitive Gut Morphogenesis  • Foregut Embryology • Midgut embryology • Rotation of midgut loop • Retum of midgut to abdomen • Fixation of intestine • Cecum and appendix • Hindgut embryology

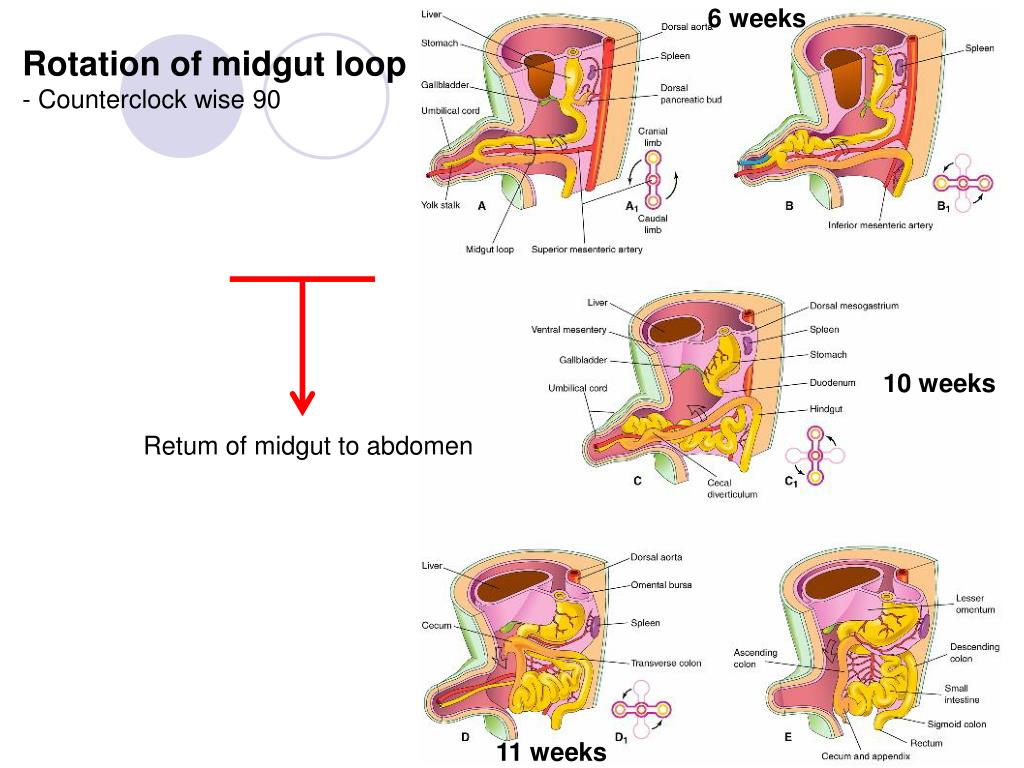

34. 6 weeks Rotation of midgut loop - Counterclock wise 90 10 weeks Retum of midgut to abdomen 11 weeks

36. Umbilical hernia

37. Gastroschisis 裂腹畸形(前腹壁缺損)

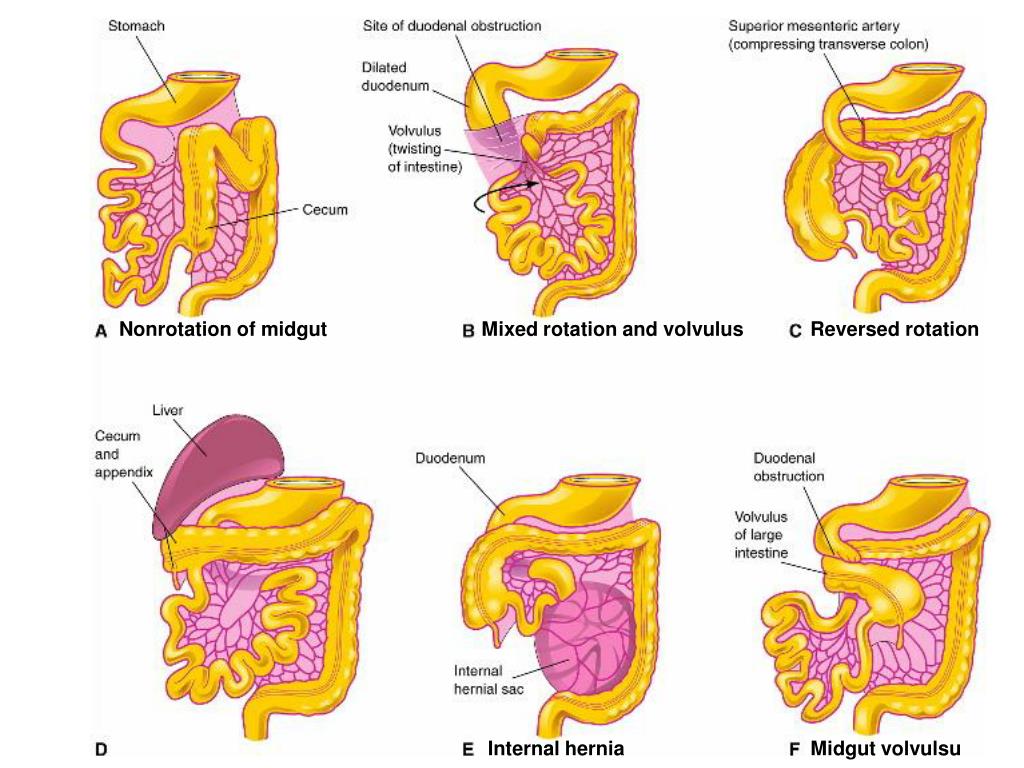

38. Nonrotation of midgut Mixed rotation and volvulus Reversed rotation Internal hernia Midgut volvulsu

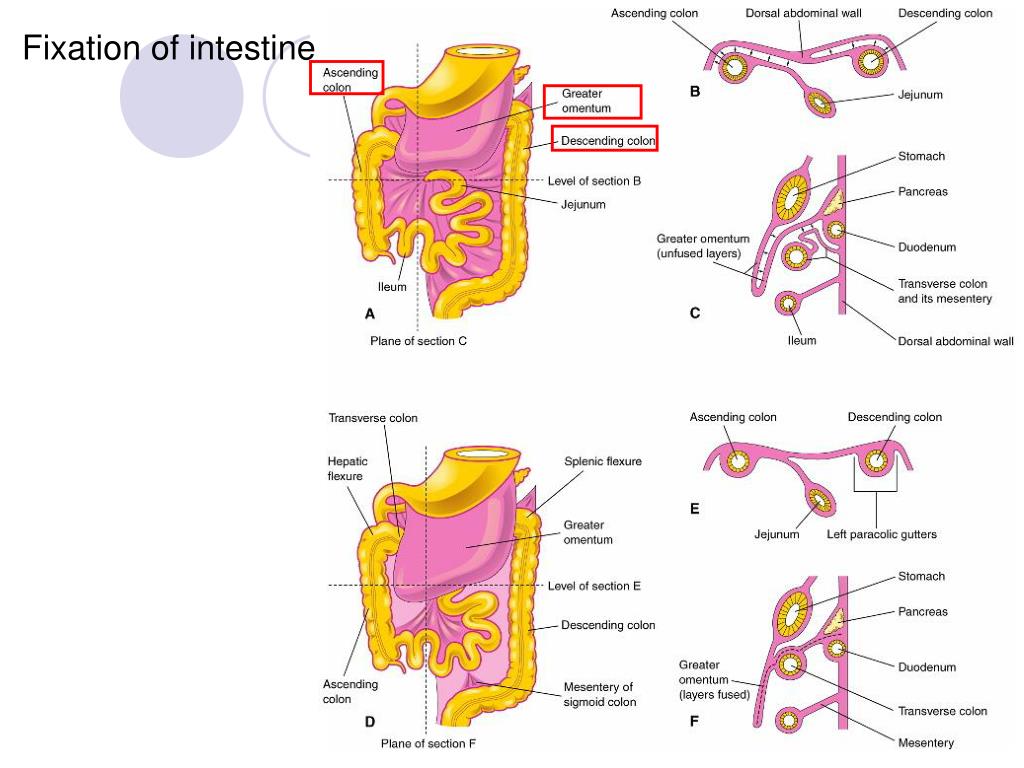

39. Fixation of intestine

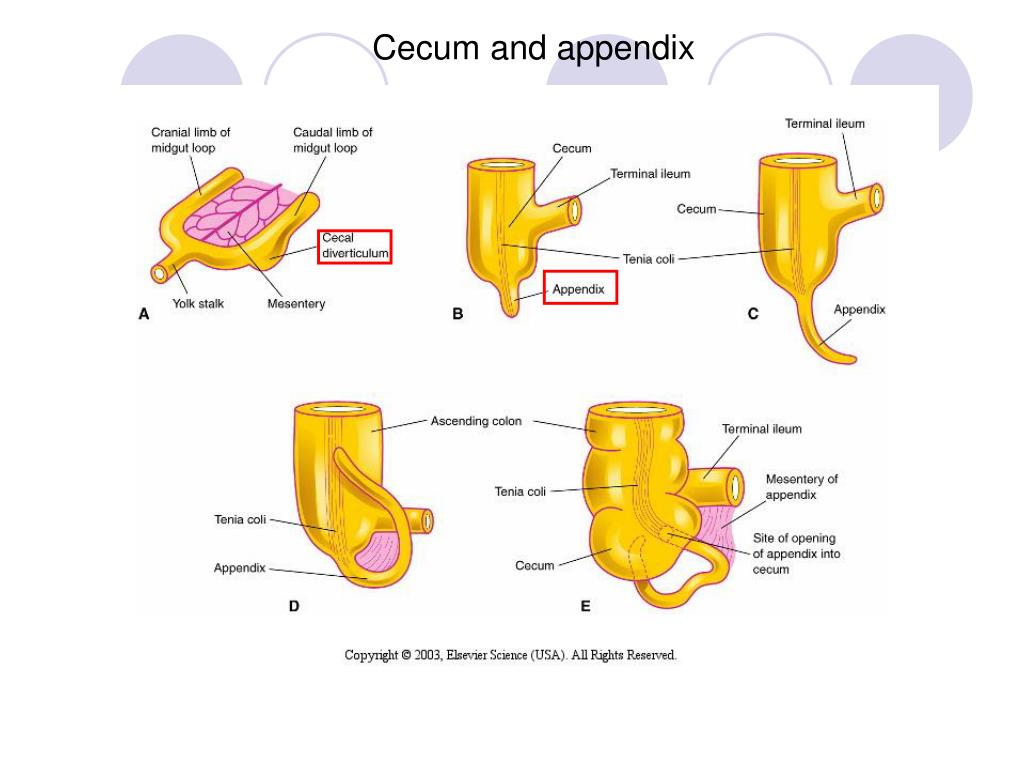

40. Cecum and appendix

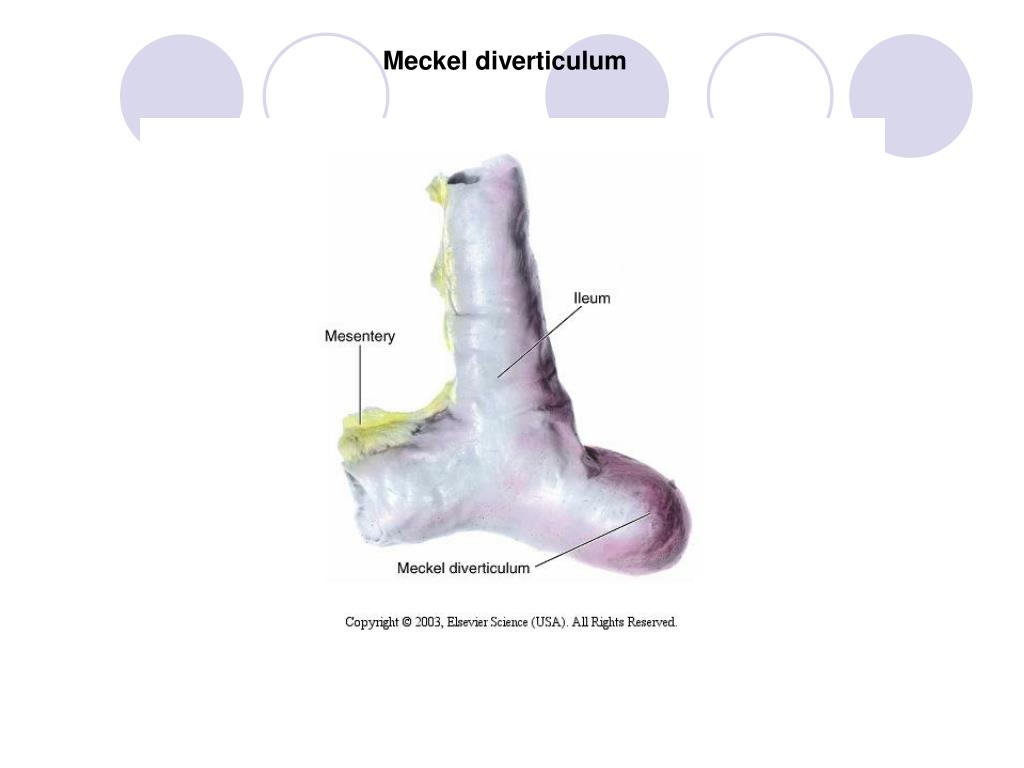

42. Meckel diverticulum

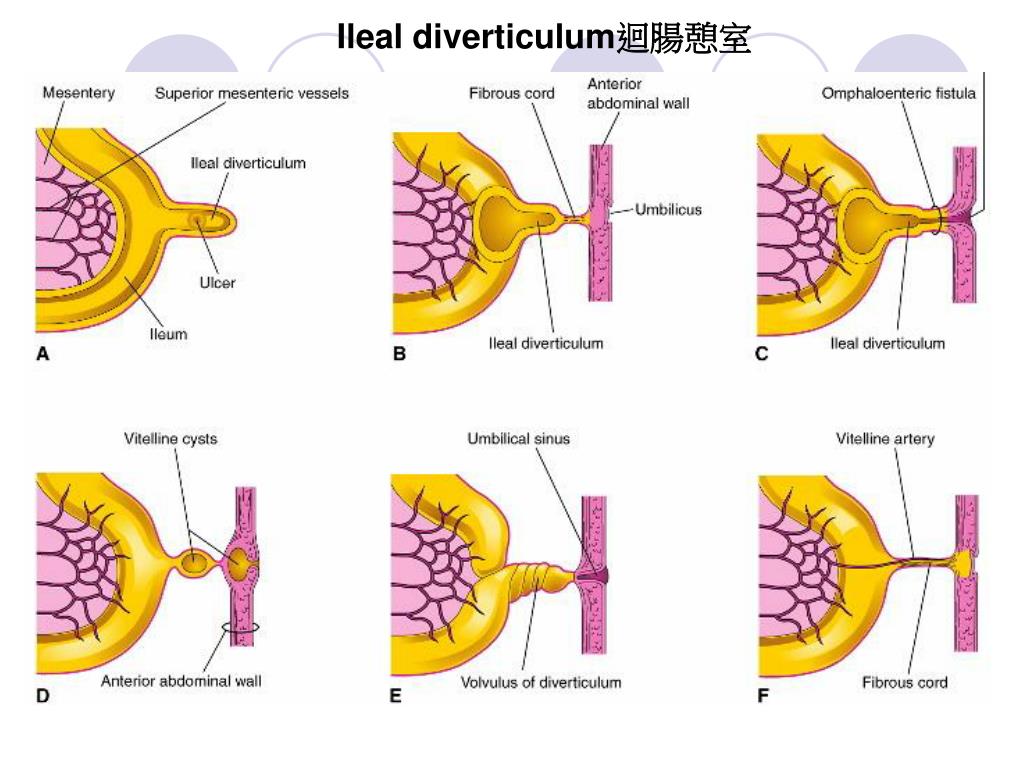

43. Ileal diverticulum迴腸憩室

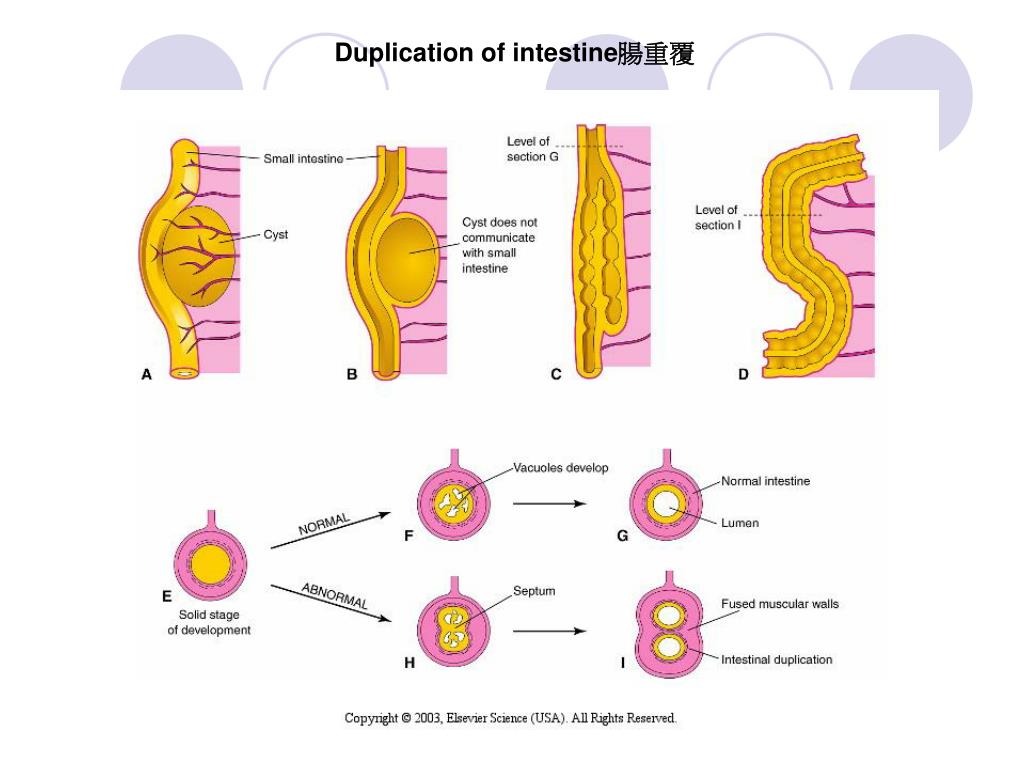

44. Duplication of intestine腸重覆

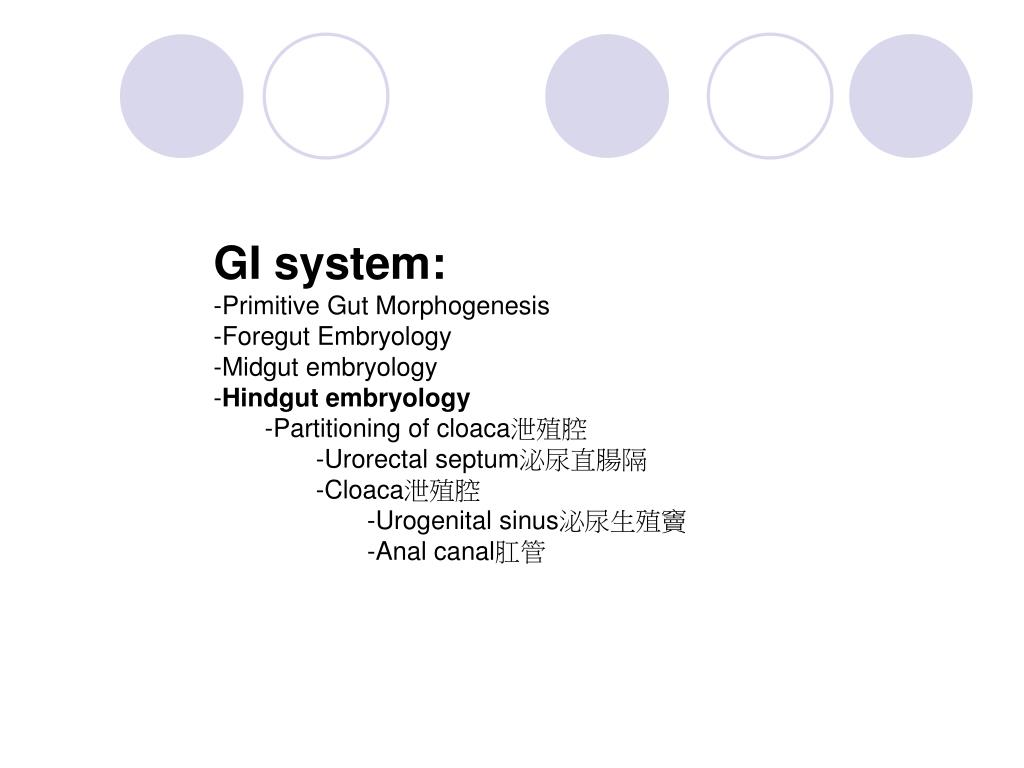

45. GI system: • Primitive Gut Morphogenesis  • Foregut Embryology • Midgut embryology • Hindgut embryology • Partitioning of cloaca泄殖腔 • Urorectal septum泌尿直腸隔 • Cloaca泄殖腔 • Urogenital sinus泌尿生殖竇 • Anal canal肛管

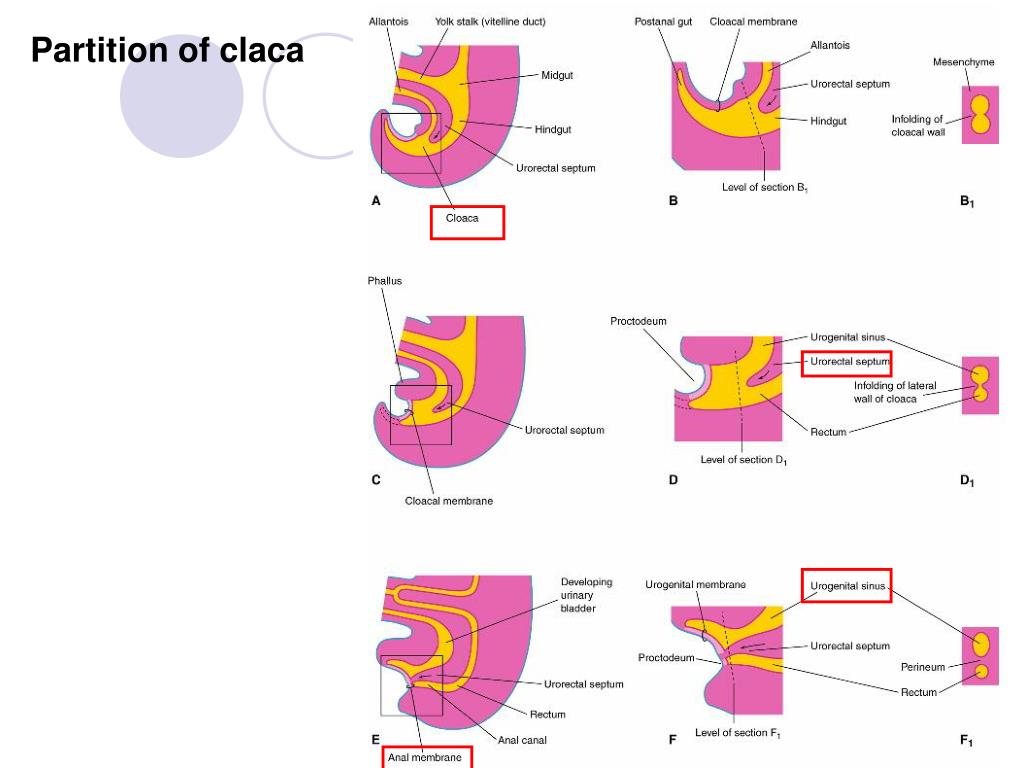

48. Partition of claca

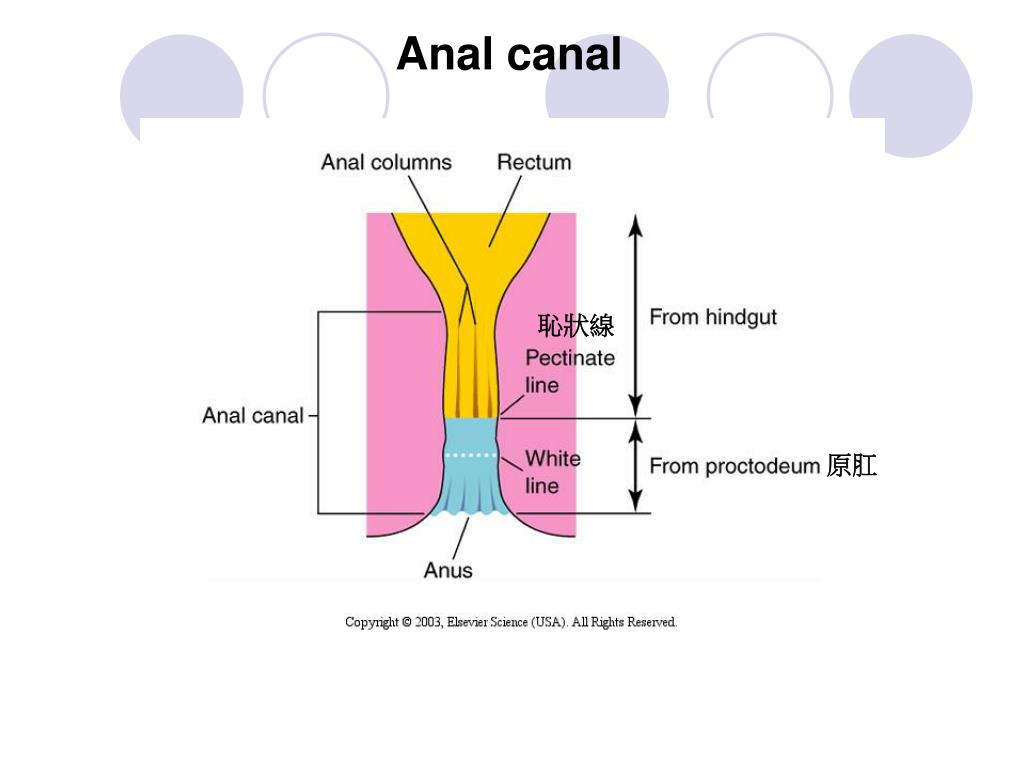

49. Anal canal 恥狀線 原肛

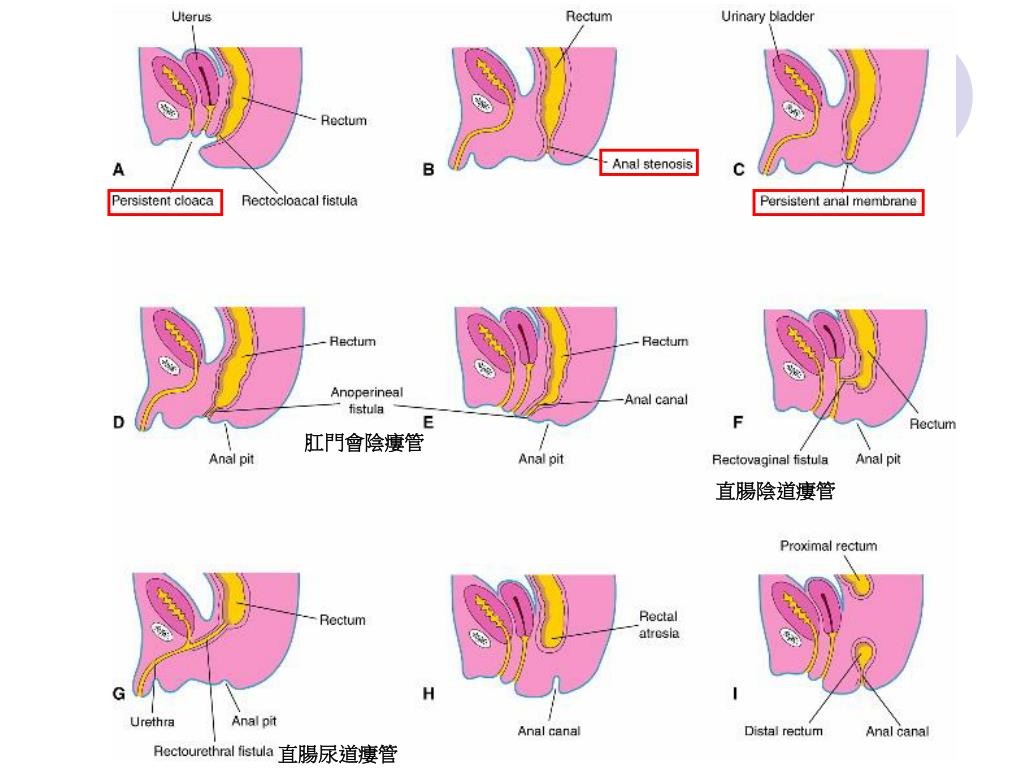

50. 肛門會陰瘻管 直腸陰道瘻管 直腸尿道瘻管
