Accelerated Bridge Construction (ABC): the Keys to Success from an Owners Perspective

Presented by James McMinimee , P.E., P.S.E. UDOT Chief Engineer, Director of Project Development. Accelerated Bridge Construction (ABC): the Keys to Success from an Owners Perspective. Learning Outcomes. By the end of this Module, you will be able to:

wyman
Download Presentation

Accelerated Bridge Construction (ABC): the Keys to Success from an Owners Perspective

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Presented by James McMinimee, P.E., P.S.E. UDOT Chief Engineer, Director of Project Development Accelerated Bridge Construction (ABC): the Keys to Success from an Owners Perspective

  2. Learning Outcomes By the end of this Module, you will be able to: • identify customer needs from a Utah perspective • recall the benefits of using PBES • recall the concept of user costs • identify associated risks from Utah’s perspective • identify lessons learned

  3. Utah • Small State • 2.5 M people • $350 M Federal Program • DOT 1650 employees • Big Transportation Program • 250+ projects • $2.0 B+ under construction

  4. UDOTs Need for Speed • Customer driven culture • Implement new technologies: • Accelerated Bridge Construction • Accelerate Pavement Construction • Diverging Diamond Interchanges • Increased partnerships • Match Legislative tempo

  5. Department Themes • Accelerate Delivery • Decrease and Minimize Detours or Delays • Encourage Innovation that speeds project or provides value • Get a Good Price Balance of good price vs. other themes

  6. Societal Costs Minimized • Lowest Construction Cost Lowest Project Cost • Public Praise • Political Capital New Business Model

  7. What is PBES from a Utah perspective? • Innovative methods to decrease bridge construction time • Build elements offsite/outside traffic area • Transport to site and install rapidly

  8. UDOT ABC History • UDOT has over 170 bridges total, completed or under construction that utilized ABC* • Self Propelled Modular Transports: 6 Projects/19 Bridges • Half Thickness Precast Deck Panels: 5 Projects/74 Bridges • Full Depth Precast Deck Panels: 15 Projects/21 Bridges • Precast Voided slabs: 1 Project/2 Bridges • Approach Slab Panels: 10 Projects/15 Bridges • Precast Sleeper Slabs 10 Projects/15 Bridges • Precast Abutments: 3 Projects/5 Bridges • Precast Bent Caps: 2 Projects/2 Bridges • Precast using Sliding: 5 Project/10 Bridges • Precast Box Culvert: 3 Projects/7Bridges • Heavy Lift Cranes: 3 Projects/4 Bridges

  9. Innovative Technology • First implementation costs more • Potential for new methods to cost less • Promise of time savings • Positive cost-benefit ratios • Promise of programmatic cost savings

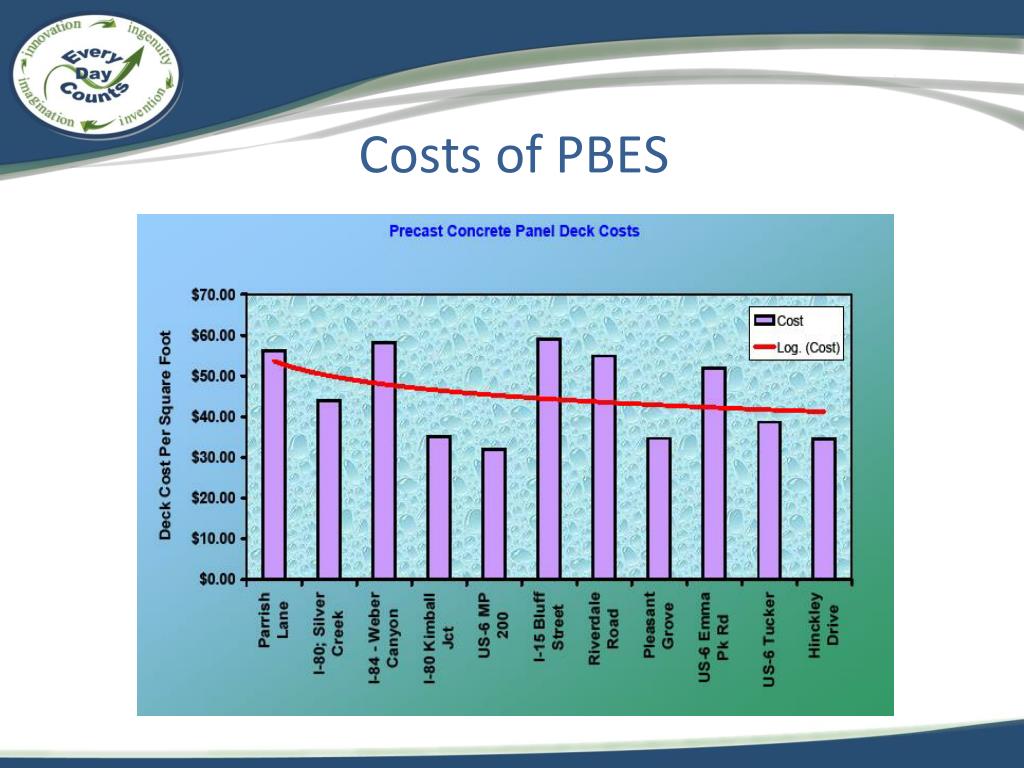

  10. Costs of PBES

  11. 7 Superstructures Constructed in a Single Location Operation Staging AreasBridge Farm @ 1300 East

  12. Risk Identification – Owner, Contractor and Engineer • Identified 5 Categories w/ 135 Items: • Carrier Beam • Perform 2 independent QCs • Utilities • Shutting down large H2O line • Travel Path • Verify/confirm travel over new bridges • Geotech • Re-evaluate projected utility/wall stresses • Launch • Re-evaluate all assumptions

  13. 2009 Slide-ins= Innovation

  14. Public Perceptions

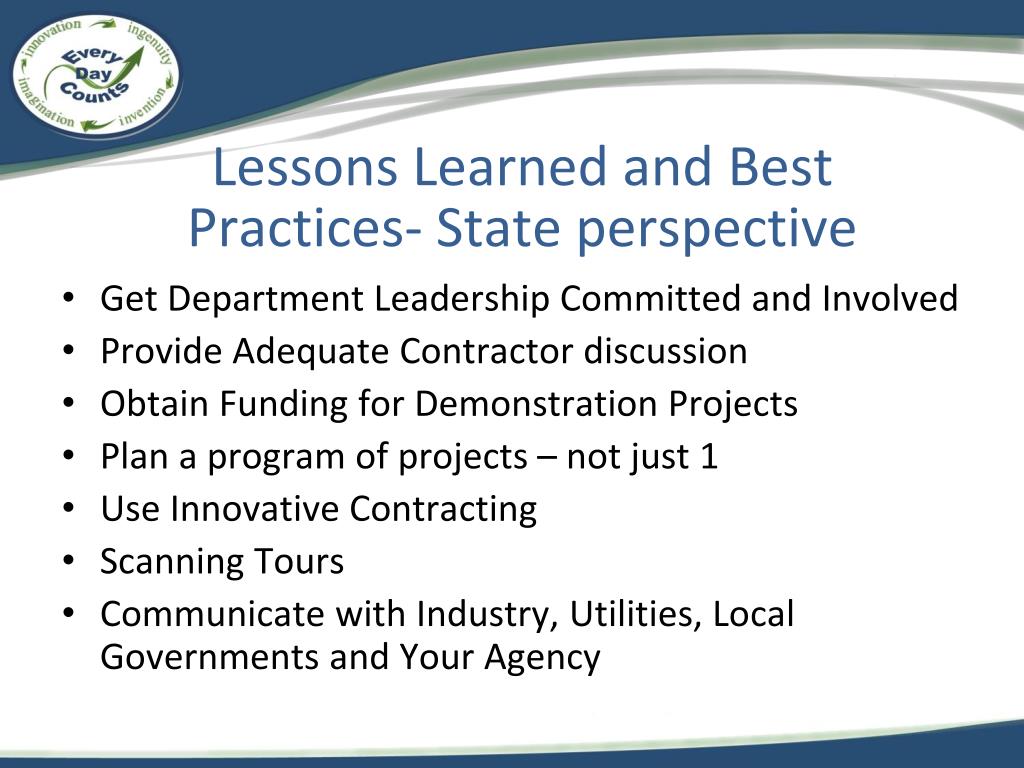

  15. Lessons Learned and Best Practices- State perspective • Get Department Leadership Committed and Involved • Provide Adequate Contractor discussion • Obtain Funding for Demonstration Projects • Plan a program of projects – not just 1 • Use Innovative Contracting • Scanning Tours • Communicate with Industry, Utilities, Local Governments and Your Agency

  16. Lessons Learned and Best Practices • Engage the industry A

  17. Culture or innovation You will know success when Regions and contractors are using and improving Innovation without central prompting ABC - SPMT, Precast, Improvements in Slide-in Projects.

  18. Module Conclusion You should now be able to: • identify customer needs from a Utah perspective • recall the concept of user costs • identify associated risks from Utah’s perspective • identify lessons learned and best practices

  19. Polling Questions • What are 3 best practices for implementing PBES

  20. Module Conclusion QUESTIONS & DISCUSSION
