  1. Linq Overview Vincent GERMAIN

  2. Evolution - Rappel • Langage • C# 2.0 • C# 3.0 (Local type inference, Lambda expression, Method extension,Anonymous type)

  3. Evolution - Rappel • .NET Framework • .NET 2.0 • .NET 3.0 (WPF, WCF, WF) • .NET 3.5 (AJAX, LINQ)

  4. Linq Overview • Introduction • Using Linq To Objects • Using Linq To XML • Using Linq To ADO.NET

  5. Introduction • LINQ : .NET Language Integrated Query • Queries/manipulations of results(from any datasource) • Integrated in .NET Framework • Existing datasources which use Linq : • Linq To ADO.NET • Linq To Object • Linq To XML

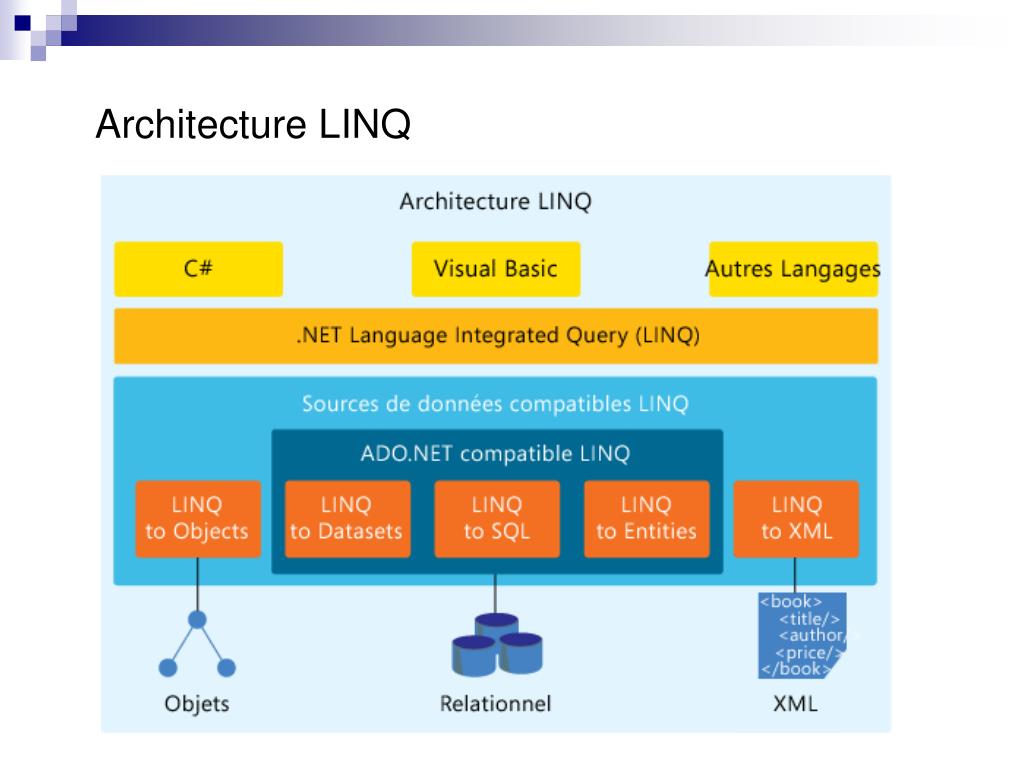

  6. Architecture LINQ

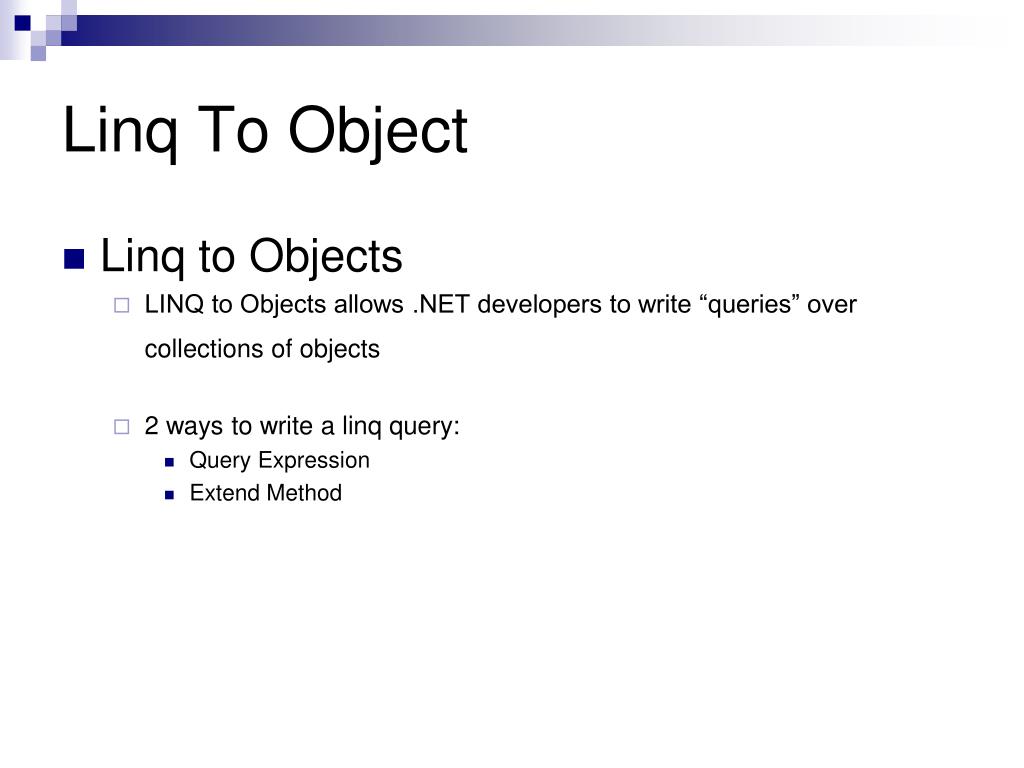

  7. Linq To Object • Linq to Objects • LINQ to Objects allows .NET developers to write “queries” over collections of objects • 2 ways to write a linq query: • Query Expression • Extend Method

  8. Linq Syntax int[] nums = new int[] {0,4,2,6,3,8,3,1};   var result = from n in nums where n < 5 select n;     Or var result = nums.Where(n=>n<5);

  9. Linq Operators

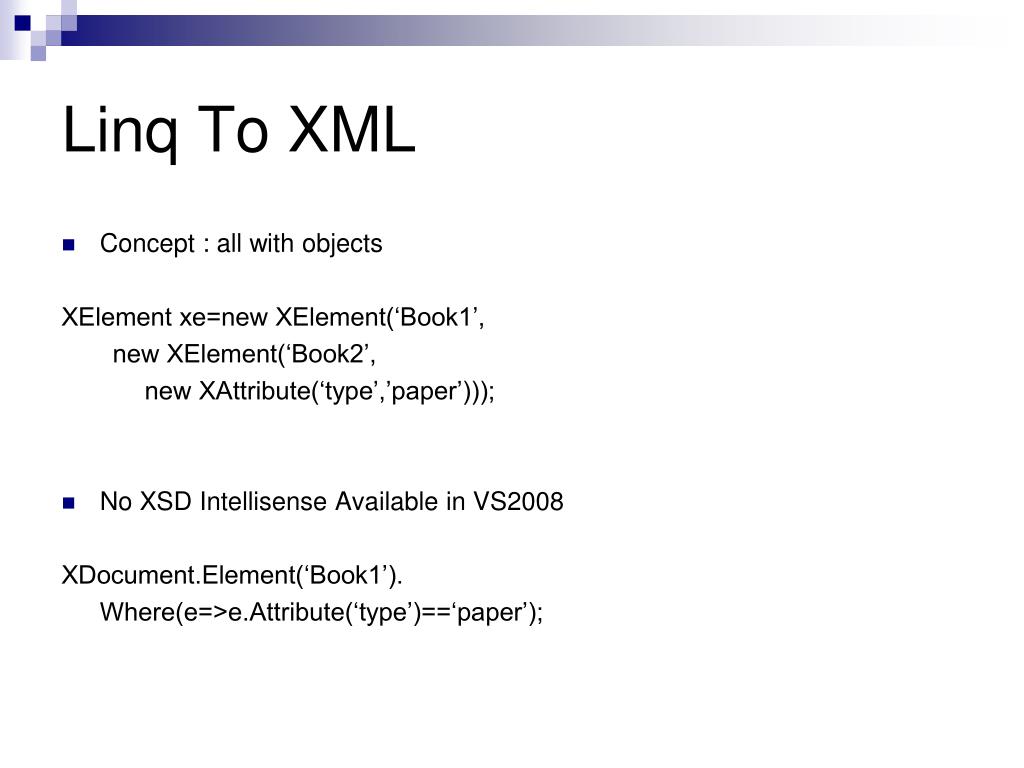

  10. Linq To XML • Concept : all with objects XElement xe=new XElement(‘Book1’, new XElement(‘Book2’, new XAttribute(‘type’,’paper’))); • No XSD Intellisense Available in VS2008 XDocument.Element(‘Book1’). Where(e=>e.Attribute(‘type’)==‘paper’);

  11. Linq To ADO.NET • Linq To DataSet • Linq To Entities • Linq To SQL

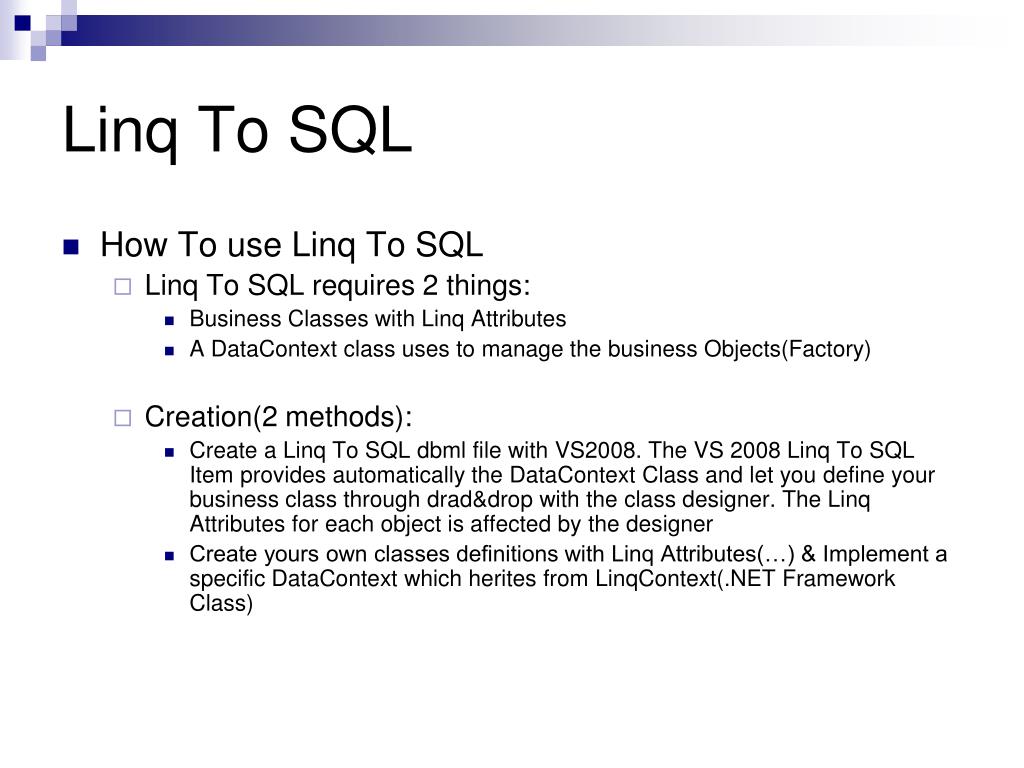

  12. Linq To SQL • How To use Linq To SQL • Linq To SQL requires 2 things: • Business Classes with Linq Attributes • A DataContext class uses to manage the business Objects(Factory) • Creation(2 methods): • Create a Linq To SQL dbml file with VS2008. The VS 2008 Linq To SQL Item provides automatically the DataContext Class and let you define your business class through drad&drop with the class designer. The Linq Attributes for each object is affected by the designer • Create yours own classes definitions with Linq Attributes(…) & Implement a specific DataContext which herites from LinqContext(.NET Framework Class)

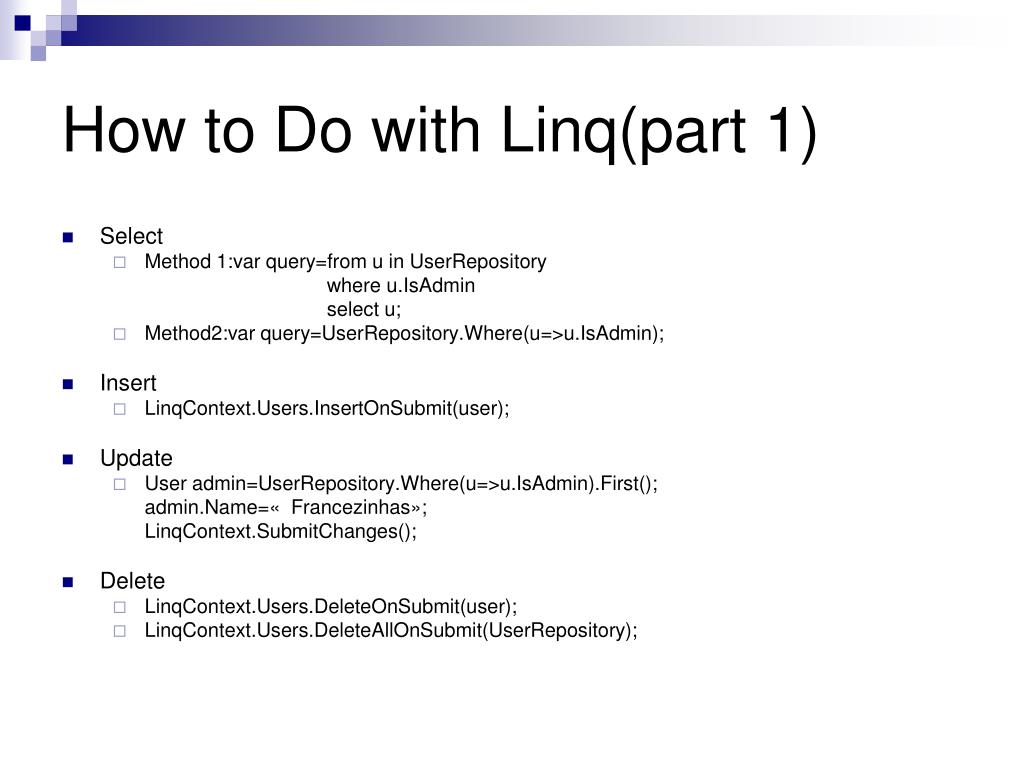

  13. How to Do with Linq(part 1) • Select • Method 1:var query=from u in UserRepository where u.IsAdmin select u; • Method2:var query=UserRepository.Where(u=>u.IsAdmin); • Insert • LinqContext.Users.InsertOnSubmit(user); • Update • User admin=UserRepository.Where(u=>u.IsAdmin).First(); admin.Name=«  Francezinhas»; LinqContext.SubmitChanges(); • Delete • LinqContext.Users.DeleteOnSubmit(user); • LinqContext.Users.DeleteAllOnSubmit(UserRepository);

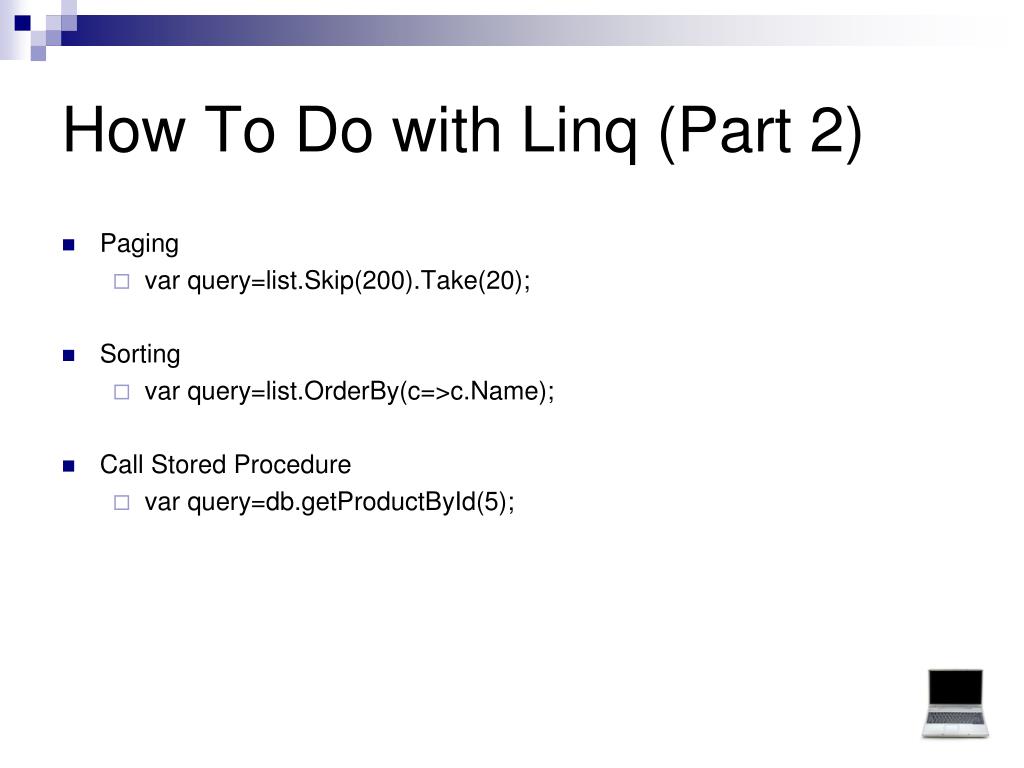

  14. How To Do with Linq (Part 2) • Paging • var query=list.Skip(200).Take(20); • Sorting • var query=list.OrderBy(c=>c.Name); • Call Stored Procedure • var query=db.getProductById(5);

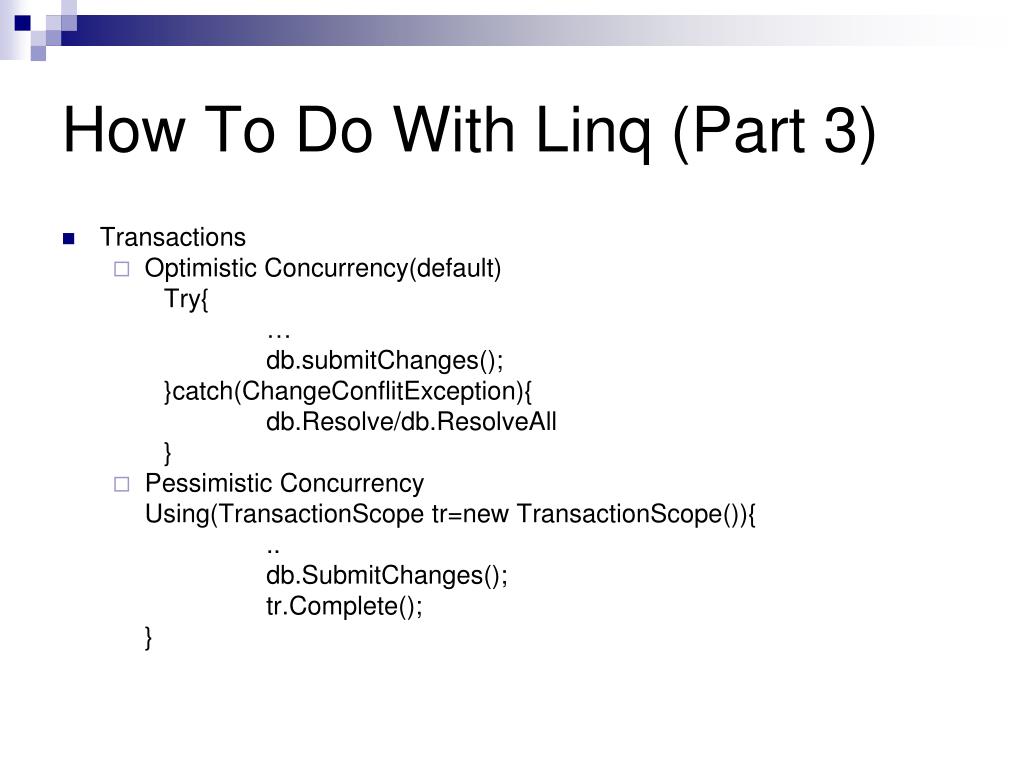

  15. How To Do With Linq (Part 3) • Transactions • Optimistic Concurrency(default) Try{ … db.submitChanges(); }catch(ChangeConflitException){ db.Resolve/db.ResolveAll } • Pessimistic Concurrency Using(TransactionScope tr=new TransactionScope()){ .. db.SubmitChanges(); tr.Complete(); }

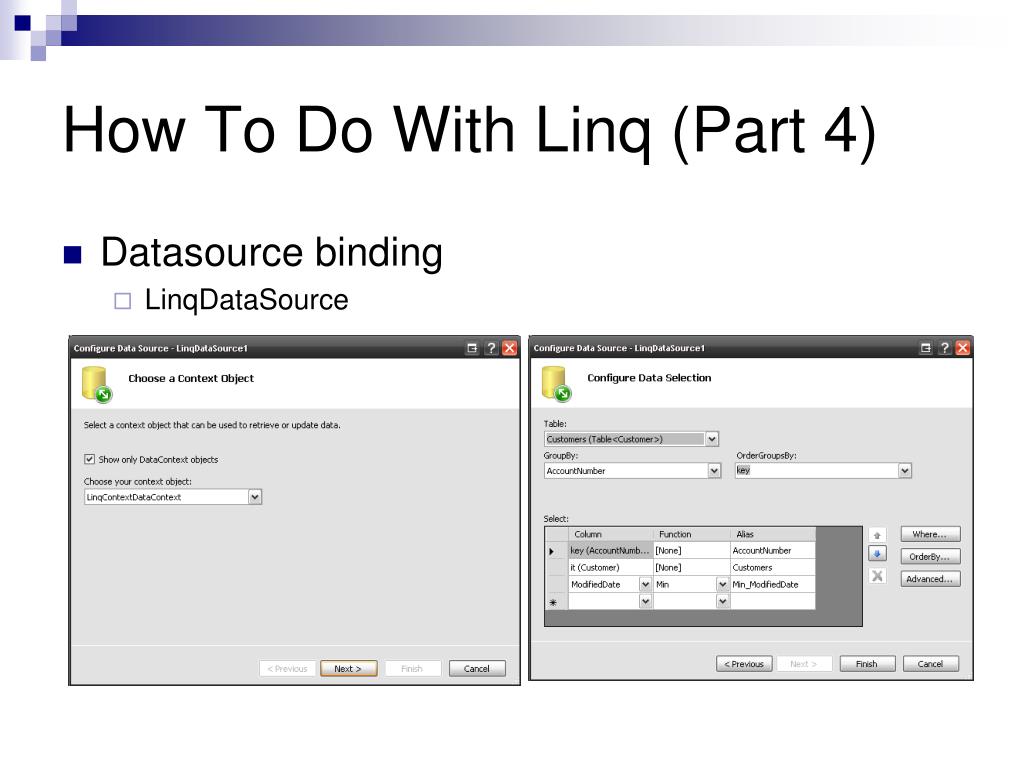

  16. How To Do With Linq (Part 4) • Datasource binding • LinqDataSource

  17. Linq Advantages & Architecture Vincent GERMAIN

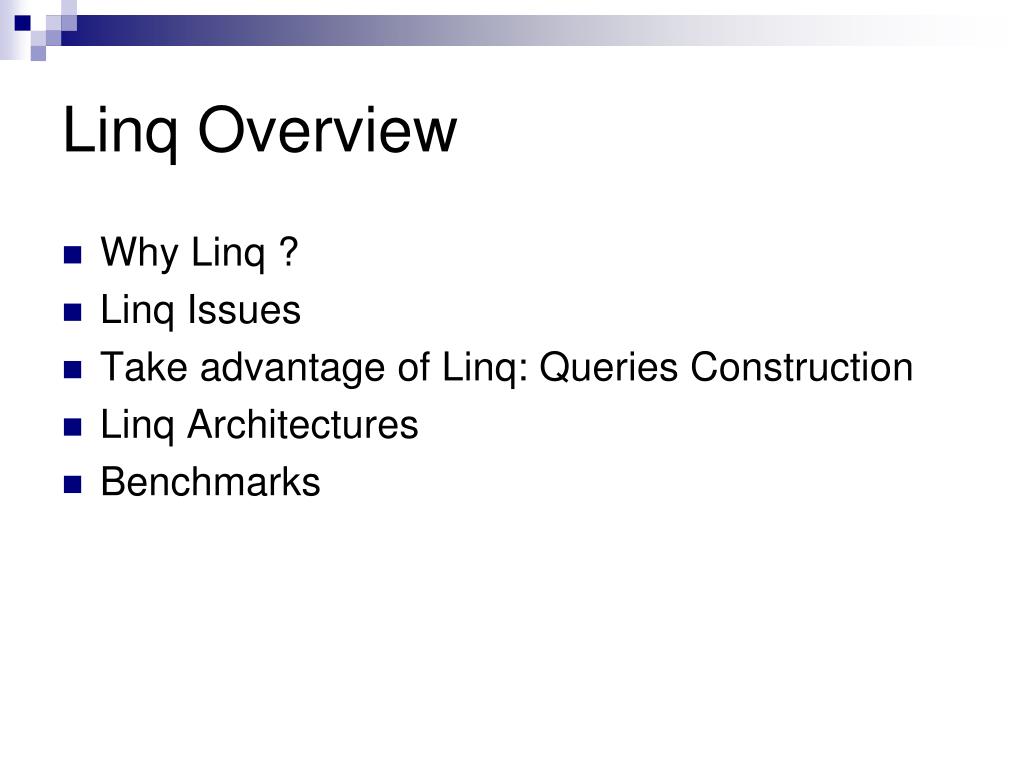

  18. Linq Overview • Why Linq ? • Linq Issues • Take advantage of Linq: Queries Construction • Linq Architectures • Benchmarks

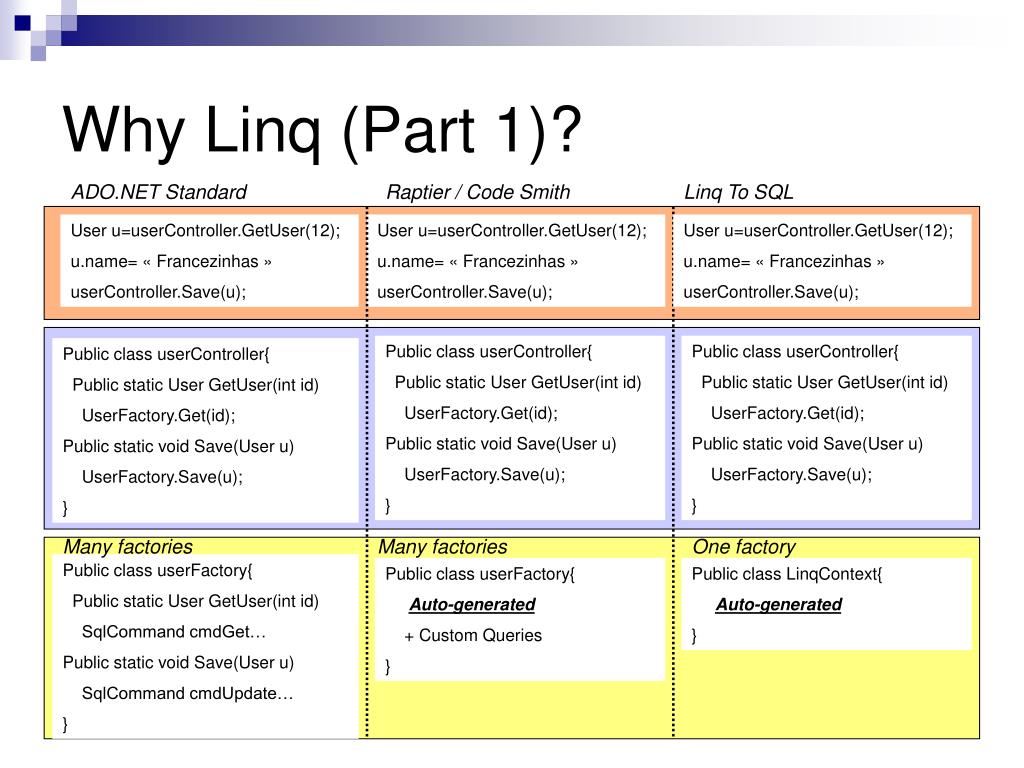

  19. Why Linq (Part 1)? ADO.NET Standard Raptier / Code Smith Linq To SQL UI.Web User u=userController.GetUser(12); u.name= « Francezinhas » userController.Save(u); User u=userController.GetUser(12); u.name= « Francezinhas » userController.Save(u); User u=userController.GetUser(12); u.name= « Francezinhas » userController.Save(u); BLL Public class userController{ Public static User GetUser(int id) UserFactory.Get(id); Public static void Save(User u) UserFactory.Save(u); } Public class userController{ Public static User GetUser(int id) UserFactory.Get(id); Public static void Save(User u) UserFactory.Save(u); } Public class userController{ Public static User GetUser(int id) UserFactory.Get(id); Public static void Save(User u) UserFactory.Save(u); } Many factories Many factories One factory DAL Public class userFactory{ Public static User GetUser(int id) SqlCommand cmdGet… Public static void Save(User u) SqlCommand cmdUpdate… } Public class userFactory{ Auto-generated + Custom Queries } Public class LinqContext{ Auto-generated }

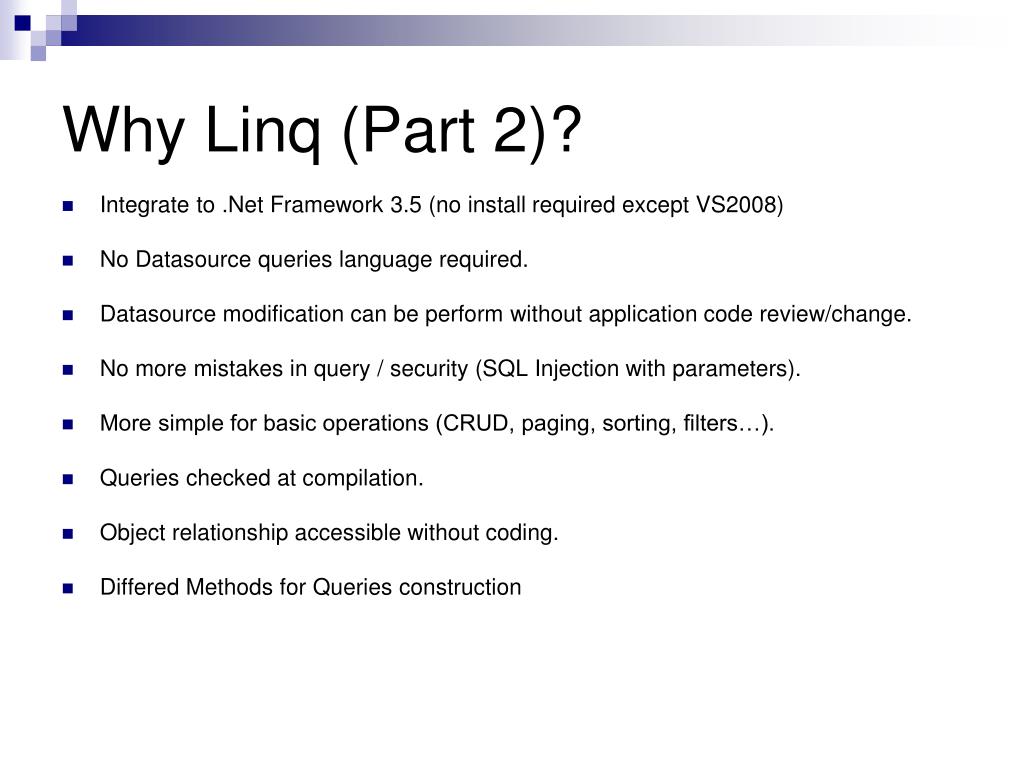

  20. Why Linq (Part 2)? • Integrate to .Net Framework 3.5 (no install required except VS2008) • No Datasource queries language required. • Datasource modification can be perform without application code review/change. • No more mistakes in query / security (SQL Injection with parameters). • More simple for basic operations (CRUD, paging, sorting, filters…). • Queries checked at compilation. • Object relationship accessible without coding. • Differed Methods for Queries construction

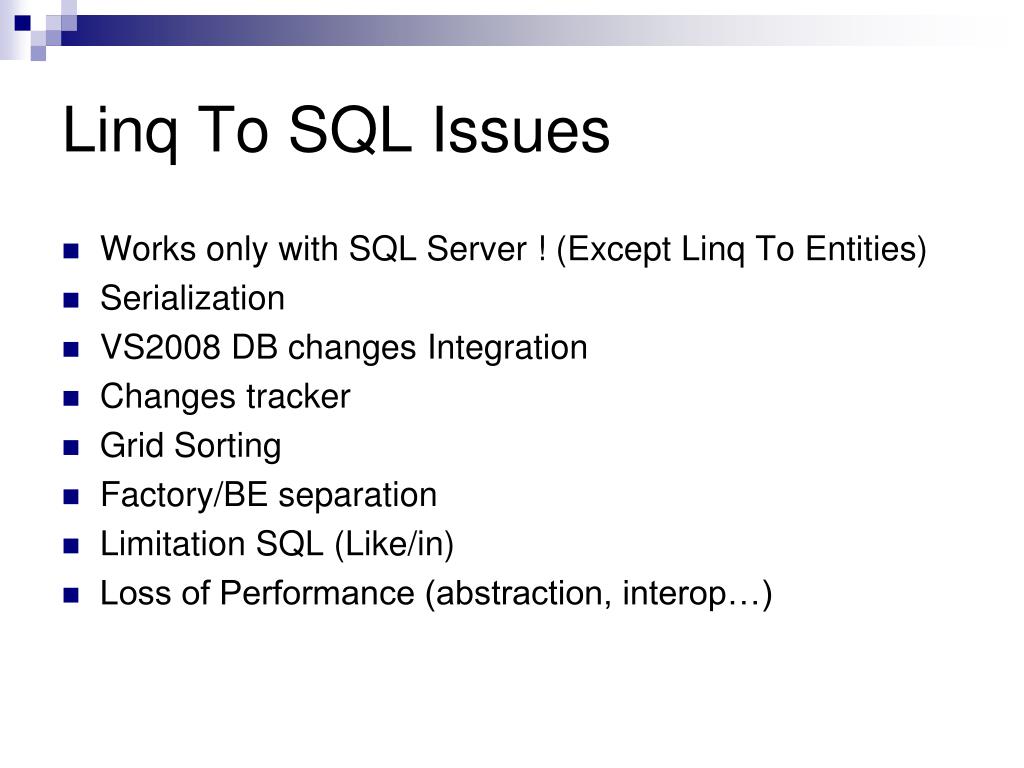

  21. Linq To SQL Issues • Works only with SQL Server ! (Except Linq To Entities) • Serialization • VS2008 DB changes Integration • Changes tracker • Grid Sorting • Factory/BE separation • Limitation SQL (Like/in) • Loss of Performance (abstraction, interop…)

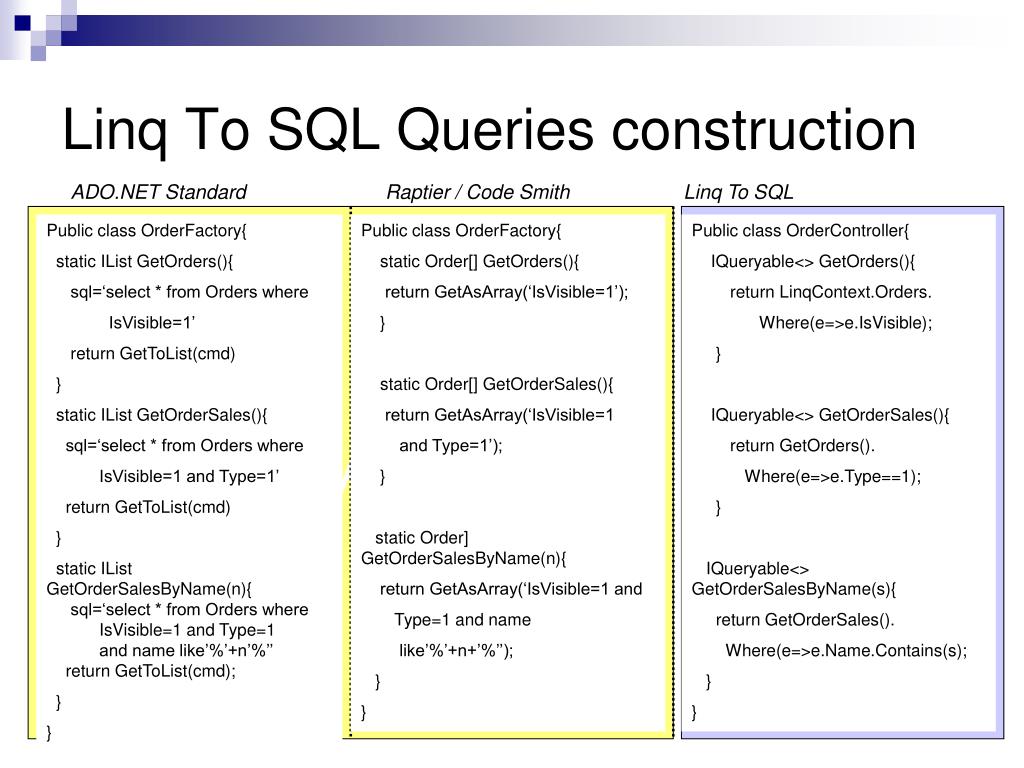

  22. Linq To SQL Queries construction ADO.NET Standard Raptier / Code Smith Linq To SQL DAL BLL Public class OrderFactory{ static IList GetOrders(){ sql=‘select * from Orders where IsVisible=1’ return GetToList(cmd) } static IList GetOrderSales(){ sql=‘select * from Orders where IsVisible=1 and Type=1’ return GetToList(cmd) } static IList GetOrderSalesByName(n){ sql=‘select * from Orders where IsVisible=1 and Type=1 and name like’%’+n’%’’ return GetToList(cmd); } } Public class OrderFactory{ static Order[] GetOrders(){ return GetAsArray(‘IsVisible=1’); } static Order[] GetOrderSales(){ return GetAsArray(‘IsVisible=1 and Type=1’); } static Order] GetOrderSalesByName(n){ return GetAsArray(‘IsVisible=1 and Type=1 and name like’%’+n+’%’’); } } Public class OrderController{ IQueryable<> GetOrders(){ return LinqContext.Orders. Where(e=>e.IsVisible); } IQueryable<> GetOrderSales(){ return GetOrders(). Where(e=>e.Type==1); } IQueryable<> GetOrderSalesByName(s){ return GetOrderSales(). Where(e=>e.Name.Contains(s); } }

  23. Linq to SQL – Deferred/Nondeferred Operators • Conversion (ToArray, ToList, ToDictionary, ToLookup) • Equality (SequenceEqual) • Element (First, Last, Single, ElementAt) • Quantifiers (Any, All, Contains) • Aggregate (Count,Sum, Min, Max, Average, Aggregate) • Restriction (where) • Projection (select) • Partitioning (take, skip) • Concatenation (Concat) • Ordering (OrderBy, Then, Reverse) • Join (Join, GroupJoin) • Grouping (GroupBy) • Set (Distrinct, Union, Intersect, Except) • Conversion (Cast, OfType, AsEnumerable) • Element (DefaultIfEmpty) • Generation (Range, Repeat, Empty)

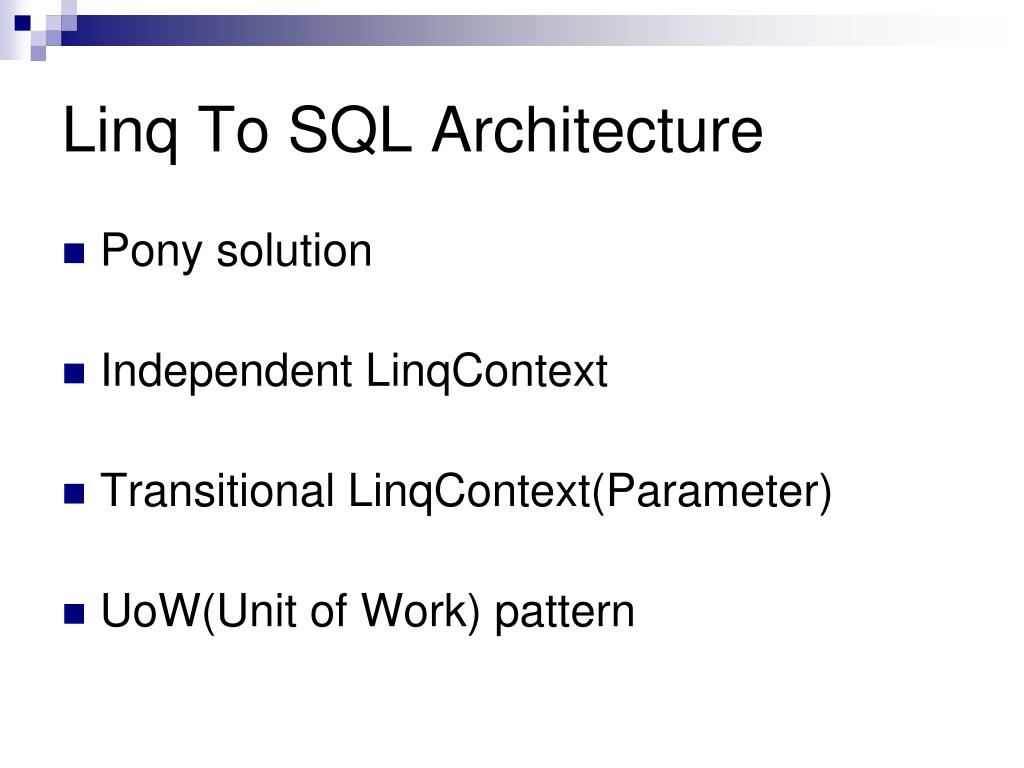

  24. Linq To SQL Architecture • Pony solution • Independent LinqContext • Transitional LinqContext(Parameter) • UoW(Unit of Work) pattern

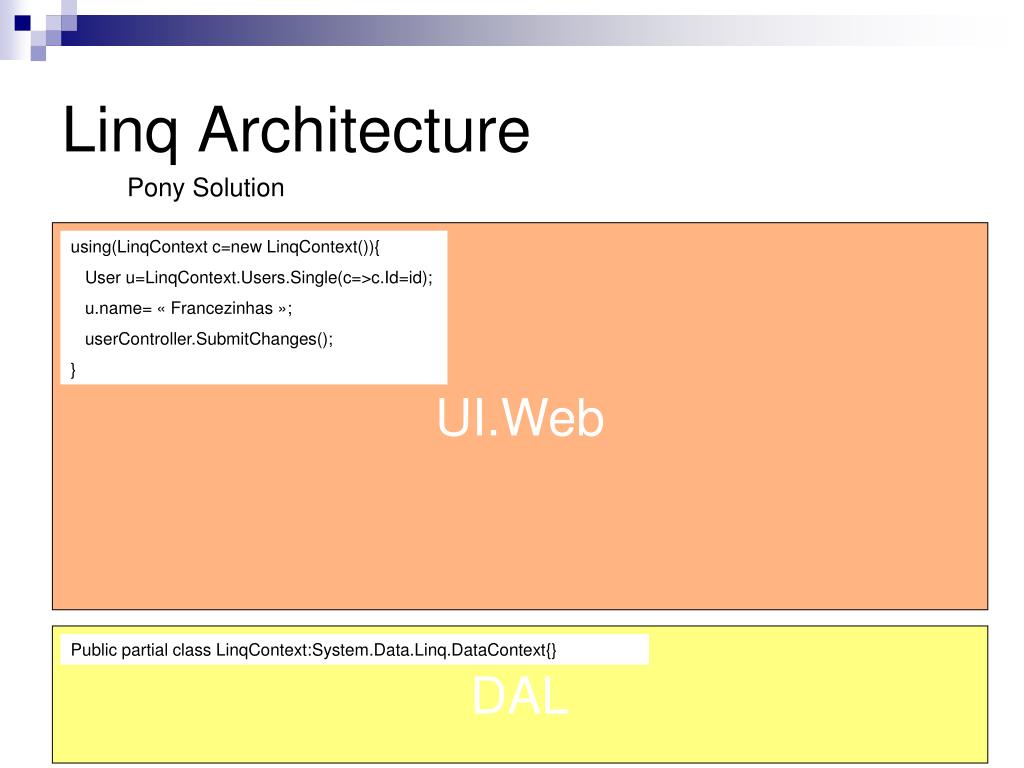

  25. Linq Architecture Pony Solution UI.Web using(LinqContext c=new LinqContext()){ User u=LinqContext.Users.Single(c=>c.Id=id); u.name= « Francezinhas »; userController.SubmitChanges(); } DAL Public partial class LinqContext:System.Data.Linq.DataContext{}

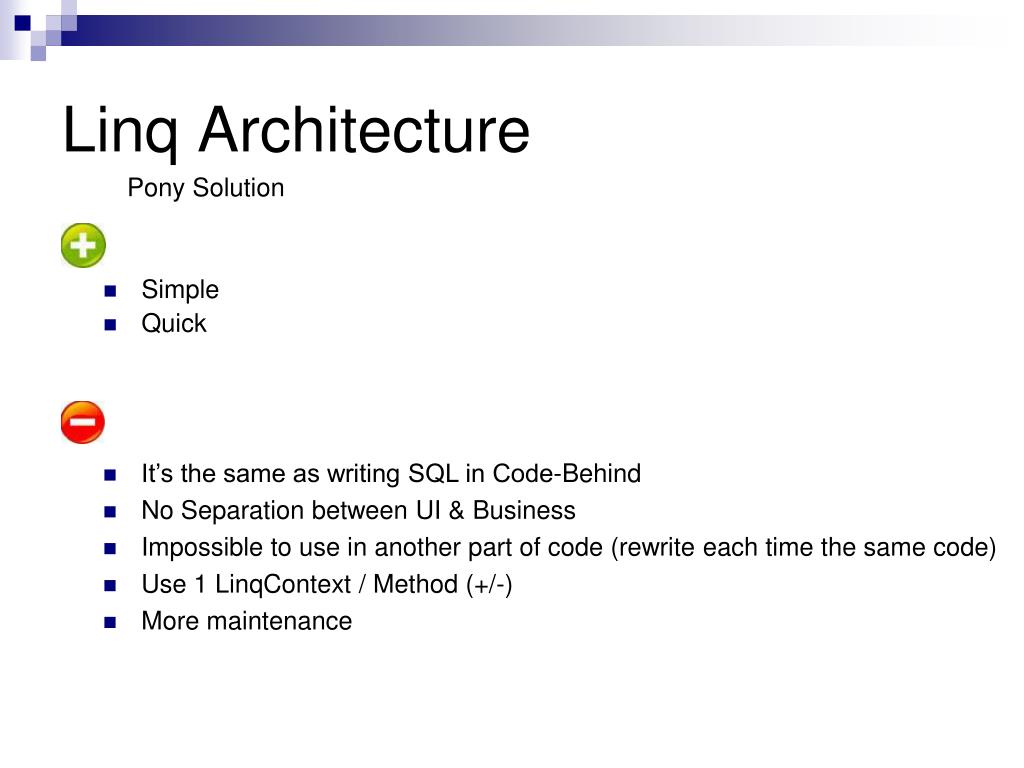

  26. Linq Architecture Pony Solution • Simple • Quick • It’s the same as writing SQL in Code-Behind • No Separation between UI & Business • Impossible to use in another part of code (rewrite each time the same code) • Use 1 LinqContext / Method (+/-) • More maintenance

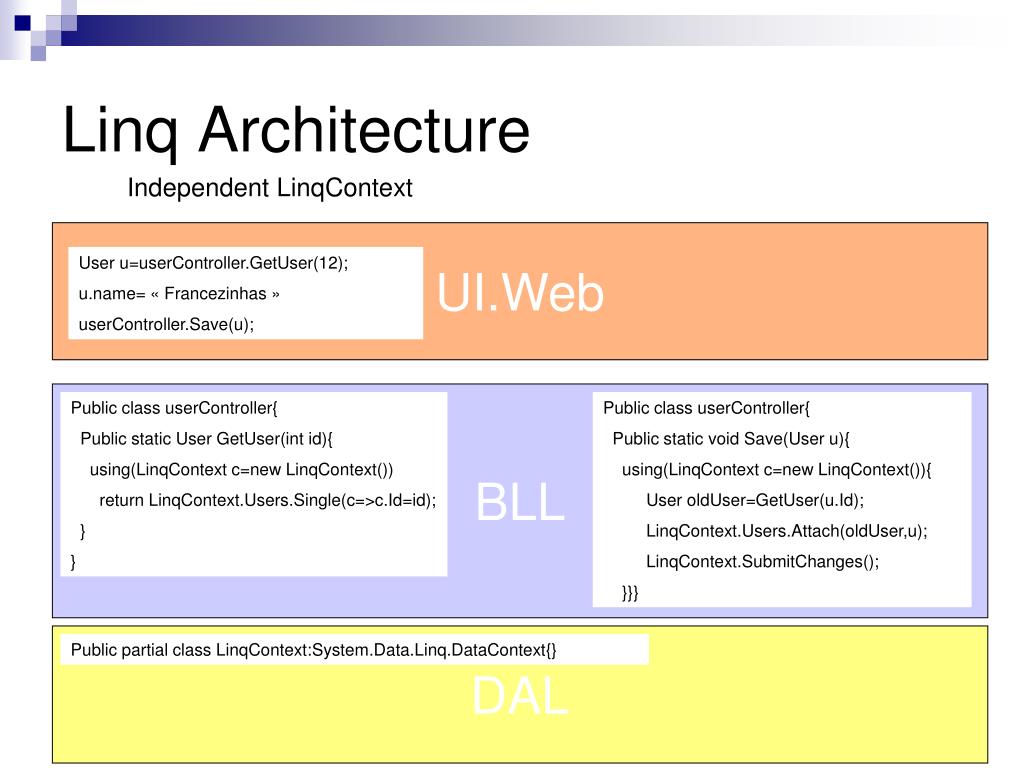

  27. Linq Architecture Independent LinqContext UI.Web User u=userController.GetUser(12); u.name= « Francezinhas » userController.Save(u); BLL Public class userController{ Public static User GetUser(int id){ using(LinqContext c=new LinqContext()) return LinqContext.Users.Single(c=>c.Id=id); } } Public class userController{ Public static void Save(User u){ using(LinqContext c=new LinqContext()){ User oldUser=GetUser(u.Id); LinqContext.Users.Attach(oldUser,u); LinqContext.SubmitChanges(); }}} DAL Public partial class LinqContext:System.Data.Linq.DataContext{}

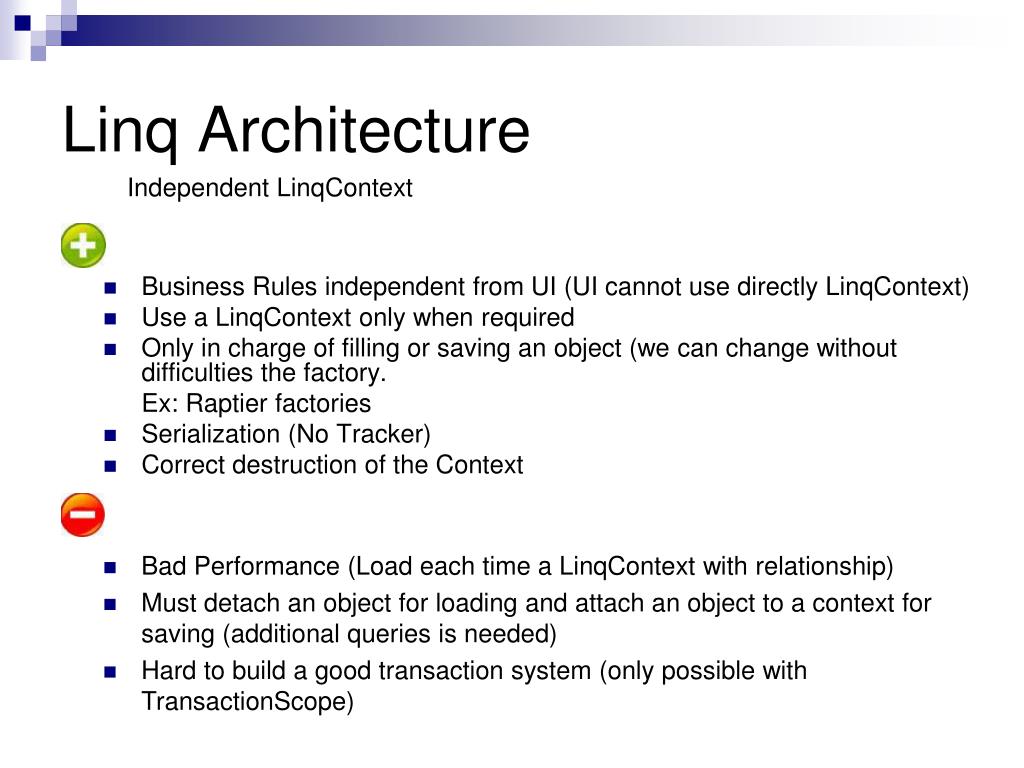

  28. Linq Architecture Independent LinqContext • Business Rules independent from UI (UI cannot use directly LinqContext) • Use a LinqContext only when required • Only in charge of filling or saving an object (we can change without difficulties the factory. Ex: Raptier factories • Serialization (No Tracker) • Correct destruction of the Context • Bad Performance (Load each time a LinqContext with relationship) • Must detach an object for loading and attach an object to a context for saving (additional queries is needed) • Hard to build a good transaction system (only possible with TransactionScope)

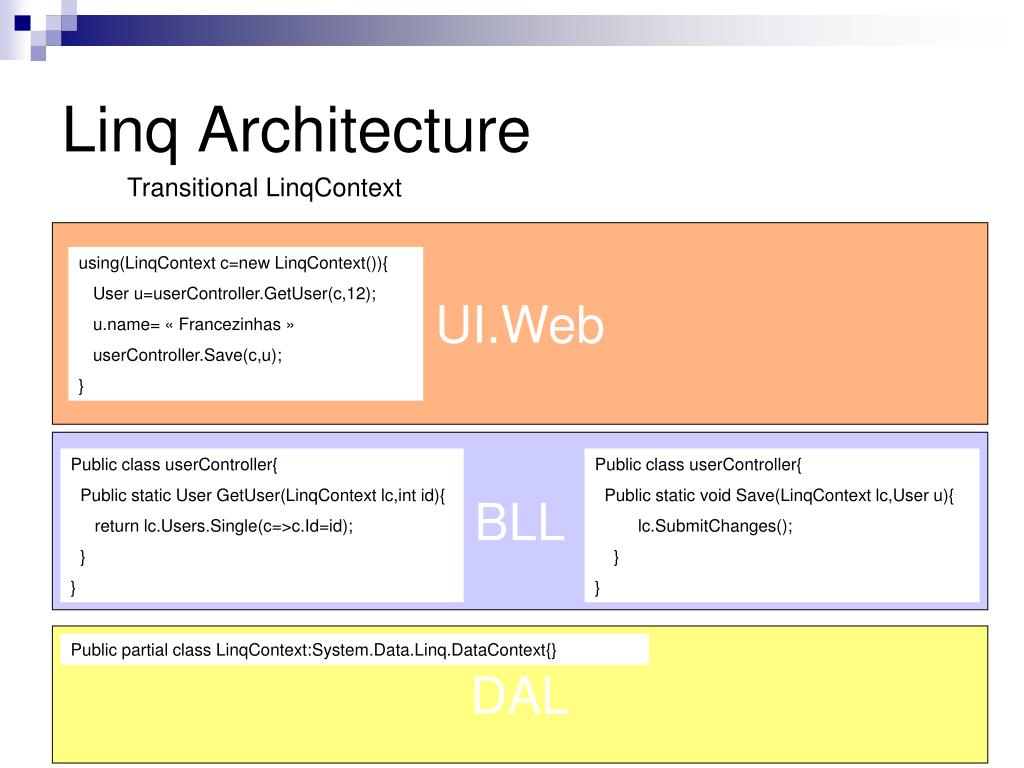

  29. Linq Architecture Transitional LinqContext UI.Web using(LinqContext c=new LinqContext()){ User u=userController.GetUser(c,12); u.name= « Francezinhas » userController.Save(c,u); } BLL Public class userController{ Public static User GetUser(LinqContext lc,int id){ return lc.Users.Single(c=>c.Id=id); } } Public class userController{ Public static void Save(LinqContext lc,User u){ lc.SubmitChanges(); } } DAL Public partial class LinqContext:System.Data.Linq.DataContext{}

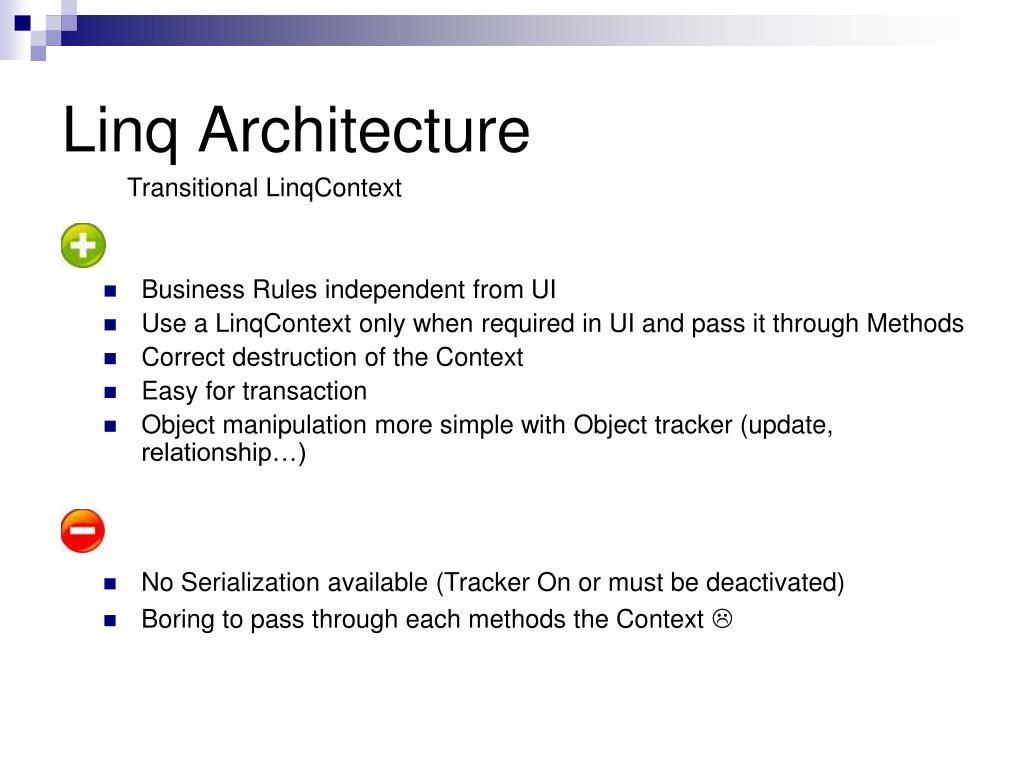

  30. Linq Architecture Transitional LinqContext • Business Rules independent from UI • Use a LinqContext only when required in UI and pass it through Methods • Correct destruction of the Context • Easy for transaction • Object manipulation more simple with Object tracker (update, relationship…) • No Serialization available (Tracker On or must be deactivated) • Boring to pass through each methods the Context 

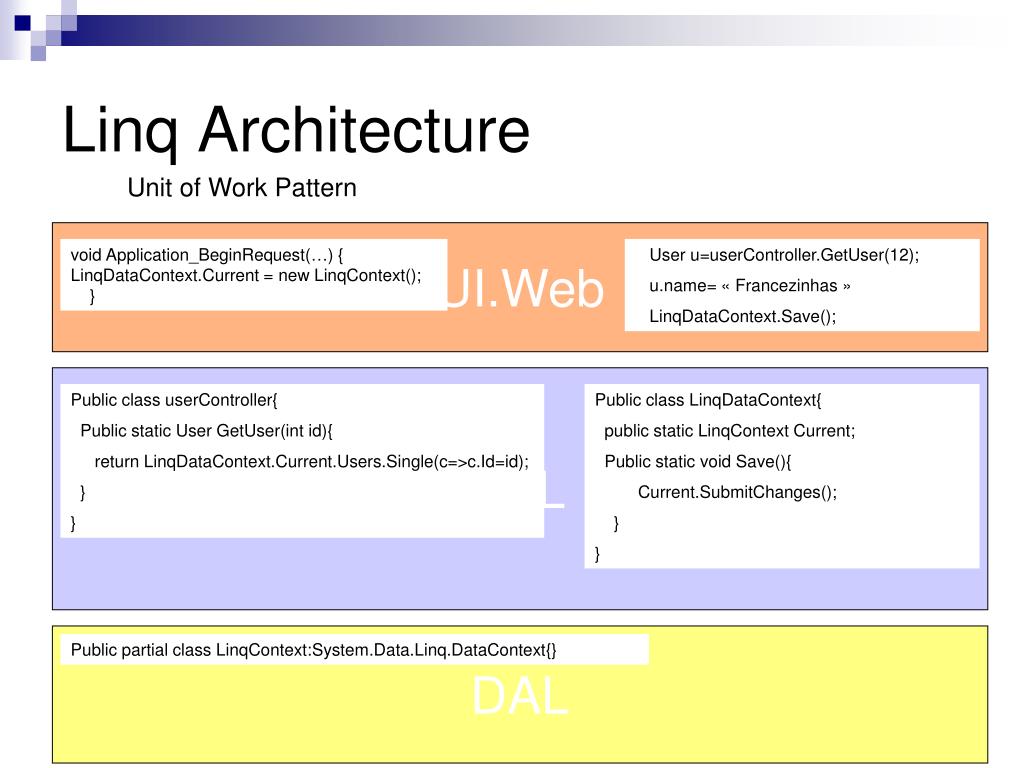

  31. Linq Architecture Unit of Work Pattern UI.Web void Application_BeginRequest(…) { LinqDataContext.Current = new LinqContext(); } User u=userController.GetUser(12); u.name= « Francezinhas » LinqDataContext.Save(); BLL Public class userController{ Public static User GetUser(int id){ return LinqDataContext.Current.Users.Single(c=>c.Id=id); } } Public class LinqDataContext{ public static LinqContext Current; Public static void Save(){ Current.SubmitChanges(); } } DAL Public partial class LinqContext:System.Data.Linq.DataContext{}

  32. Linq Architecture Unit of Work Pattern • Only one LinqContext used by user and request • Correct destruction of the Context (in Application_EndRequest) • Easy for transaction • Object manipulation more simple with Object tracker (update, relationship…) • No Serialization available (Tracker On or must be deactivated) • Common LinqContext cannot be used when using Thread (Web application)

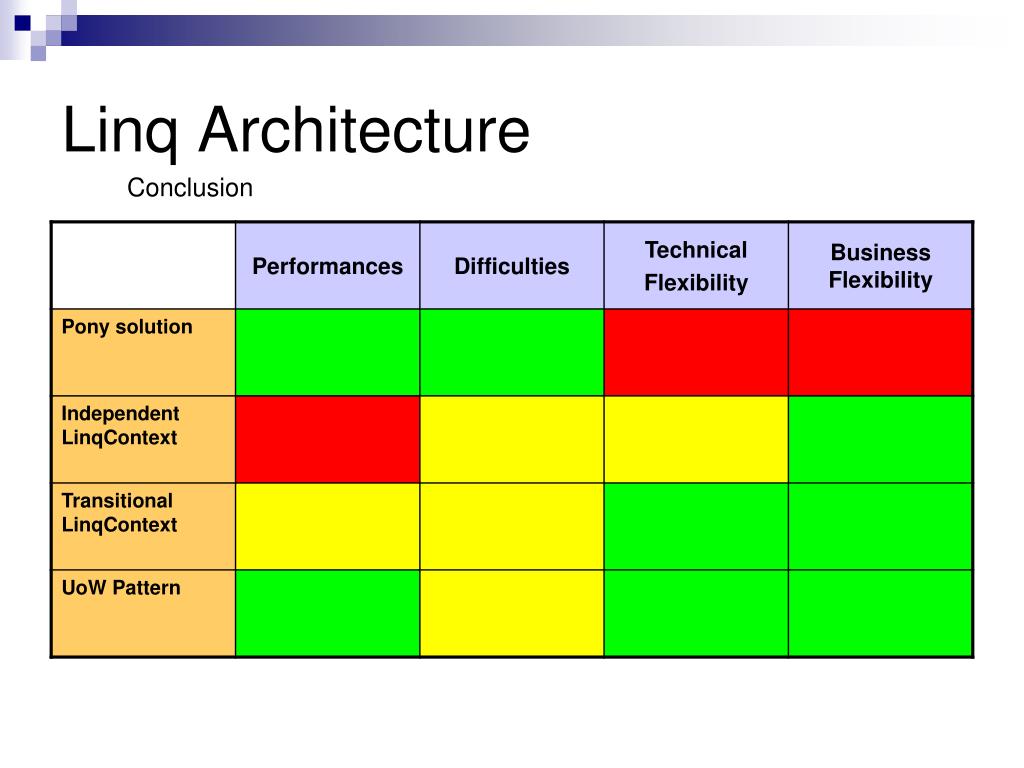

  33. Linq Architecture Conclusion

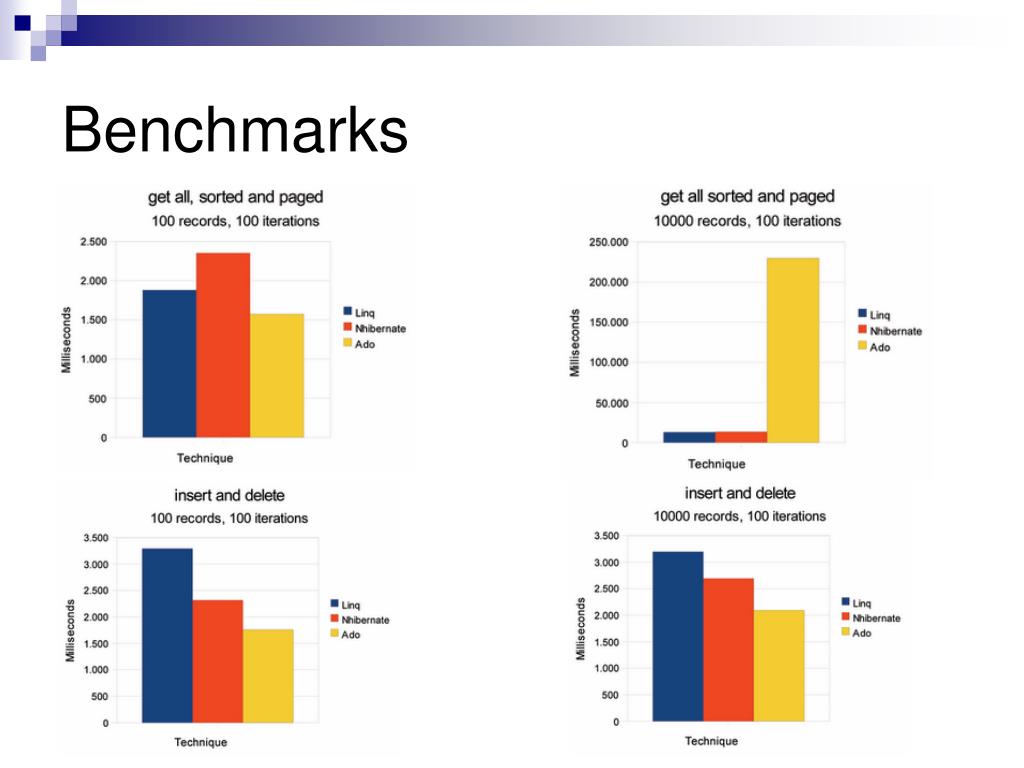

  34. Benchmarks

  35. Benchmarks

  36. Conclusion
