  1. Introduce:

  2. CLS DMX144 144 Channels DMX Light Mixer

  3. CLS makes the Light Equipment more compact

  4. Let’s take a look at the brand new DMX144

  5. This is the CLS DMX144Compact Light Mixer Let’s get starting

  6. The first you see in the display when you connect the power is the software version.

  7. Press one F-key to remove the startup text in the display.

  8. MIX-MODE Mixing, Saving, EditingSCENES

  9. You will see The Mix-Mode screen in the display.

  10. Set the Master fader to maximum.

  11. Selecting a program: Press and hold the Prg

  12. The display tells you to Choose PROG with flash button

  13. The display tells you to Choose PROG with flash button Do it !

  14. Selecting a Group: STOP ! STOP ! STOP ! What is a group ??? Press and hold the Grp:

  15. GROUP = 1 page of the DMX144’s faders. Group 1 = DMX Channels 1- 12 Group 2 = DMX Channels 13- 24 Group 3 = DMX Channels 25- 36 Group 4 = DMX Channels 37- 48 Group 5 = DMX Channels 49- 60 Group 6 = DMX Channels 61- 72 Group 7 = DMX Channels 73- 84 Group 8 = DMX Channels 85- 96 Group 9 = DMX Channels 97-108 Group 10 = DMX Channels 109-120 Group 11 = DMX Channels 121-132 Group 12 = DMX Channels 133-144

  16. Selecting a Group: Press and hold the Grp:

  17. The display tells you to Choose GROUP with flash button Do it !

  18. The display tells you to Choose GROUP with flash button It is possible to select more than 1 group, up to 12, at the same time. The Led’s will light.

  19. Mix the lights the way you want them.

  20. Change Groups

  21. Mix more…

  22. Save the scene to memory: Press and hold the Mem button.

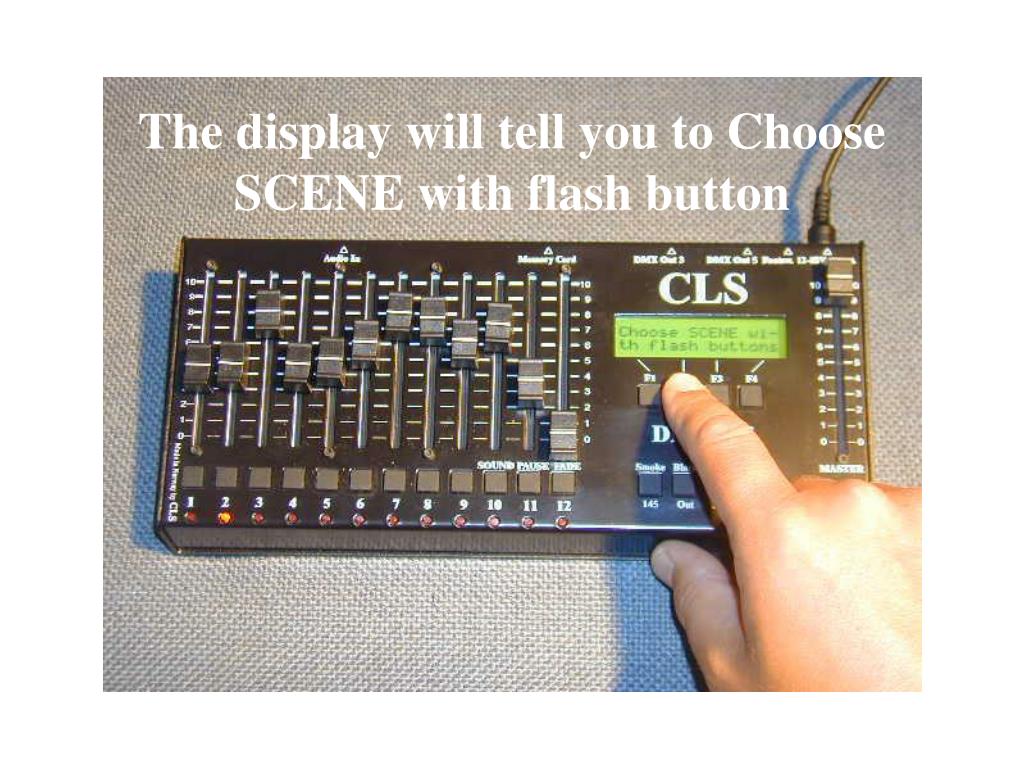

  23. The display will tell you to Choose SCENE with flash button

  24. The display will tell you that the Scene is now saved…

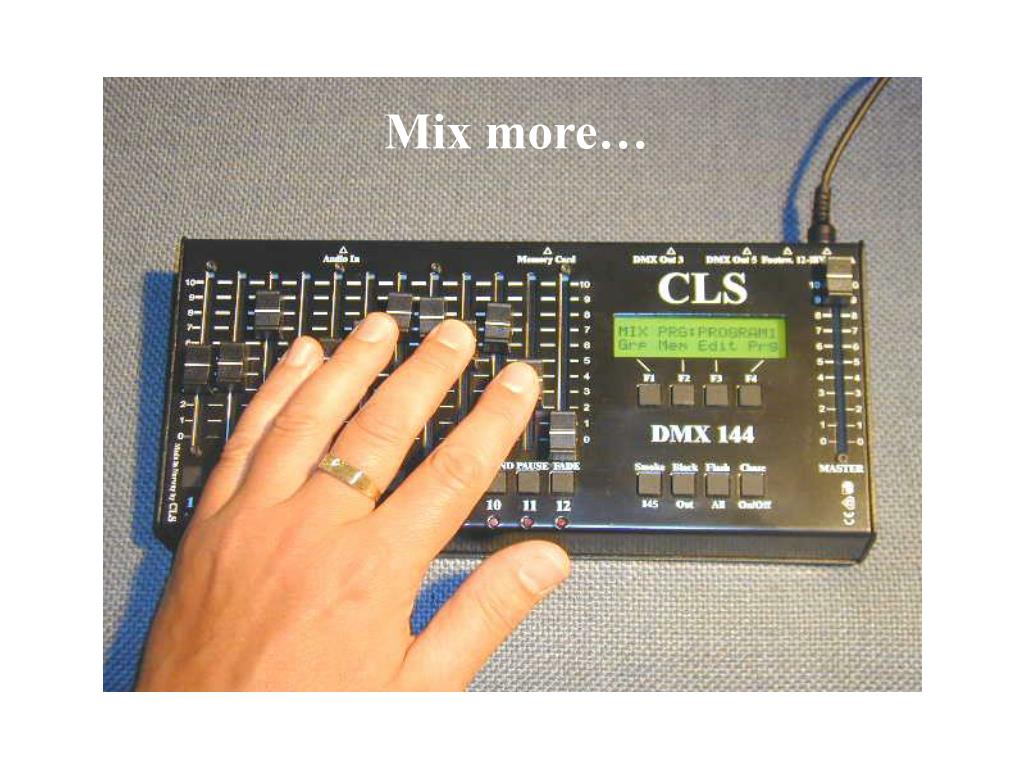

  25. Mix more…

  26. Save the Scene to the next flashknob…

  27. Mix again and save the Scene to the next flashknob… and so on, up to number 12.

  28. Select a new program: Press and hold the Prg

  29. The display tells you to Choose PROG with flash button

  30. The display tells you to Choose PROG with flash button Choose the next Prog

  31. The display tells you the nameof the next program The internal limit of capacity: 12 Prog with 12 Scene each.

  32. Press and Hold the Edit knob. With this function you can EDIT a Scene that is Saved.

  33. The display tells you to Choose SCENE with a flash knob.

  34. The display tells you that the Scene is loaded and it is ready for Editing.

  35. Change the Scene as you wish.

  36. Save the Scene to the same location or another by holding the… Mem knob and…

  37. Save the Scene to the same location or another by holding the… Mem knob while…

  38. Pressing a flash knob. The display tells you that the Scene is Saved. This function can also be used to Copy Scenes to other locations.

  39. PROGRAM-MODE Running, Naming, CopyingPROGRAMS

  40. Press and release the Prg knob: This takes you to Program-Mode.

  41. Program-Mode: Running, Naming, Copying of Programs.

  42. Selecting a program in Program-Mode: Press and hold the Prg knob:

  43. The display tells you to Choose PROG with flash button Do it !

  44. The display tells you that you Get Prg: and the name of it.

  45. Choose the SCENES directly on flashknobs.
