Warm Up

Warm Up. Problem of the Day. Lesson Presentation. Lesson Quizzes. Warm Up 1. 6 n – 10 = 44 2. 27 = 3 – 8 n 3. 41 + 7 x = –8 4. 14 = –6 n – 16. Solve. n = 9. n = –3. n = –7. n = –5. Problem of the Day

Download Presentation

Warm Up

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Warm Up Problem of the Day Lesson Presentation Lesson Quizzes

  2. Warm Up 1.6n – 10 = 44 2. 27 = 3 – 8n 3. 41 + 7x = –8 4. 14 = –6n – 16 Solve. n = 9 n = –3 n = –7 n = –5

  3. Problem of the Day A data set has a range of 24 and a mean of 104. If the data set contains three numbers and the highest number is 118, then what are the other two numbers in the data set? 94 and 100

  4. Sunshine State Standards MA.8.S.3.1 Select, organize and construct appropriate data displays…to convey information and make conjectures about possible relationships.

  5. Data can be represented in several different ways, depending both on the type of data and the message to be conveyed.

  6. Additional Example 1A: Selecting a Data Display Which graph is a better display of the data on temperature changes? 40 50 60 70 80 The line graph shows the change in data over time, so it is the better representation.

  7. 1 2 3 4 5 6 7 8 9 10 11 12 Additional Example 1B: Selecting a Data Display Which graph better shows the relationship between the two data sets? xx x x x x x The scatter plot shows the relationship of two sets of data, so it is the better representation.

  8. Check It Out: Example 1A Which graph is a better display of the number of students who own a dog, versus a snake? The bar graph shows comparison between groups, so it is the better representation.

  9. Check It Out: Example 1B Which graph is a better display of Macarena’s height? The line graph shows the change in data over time, so it is the better representation.

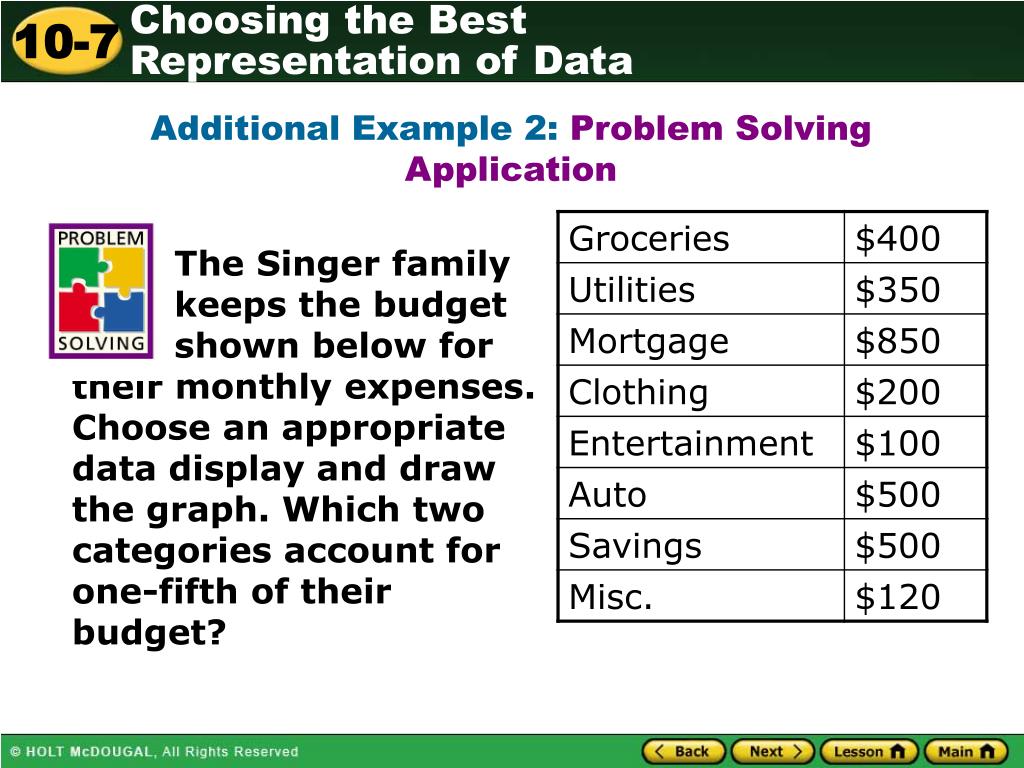

  10. Additional Example 2: Problem Solving Application The Singer family keeps the budget shown below for their monthly expenses. Choose an appropriate data display and draw the graph. Which two categories account for one-fifth of their budget?

  11. 1 Make a Plan Understand the Problem 2 Additional Example 2 Continued You are looking for the best data display and the two categories that take up one-fifth of the Singer family budget . You need to find one-fifth of the whole amount of the budget. Since the data can be organized as a whole, display it in a circle graph.

  12. 3 Solve Additional Example 2 Continued Create a circle graph. For each category calculate the percentage spent. The 2 categories that add up to one-fifth or 20% of the Singer’s budget are auto and entertainment.

  13. 4 Additional Example 2 Continued Look Back Look at the table. Entertainment has a budget of $100 and Auto has a budget of $500. So, $600 of the total budget of $3,020, is approximately 20%. The answer is reasonable.

  14. Check It Out: Example 2 The table shows the number of new students every two years from 1990 to 2004. Choose an appropriate data display and draw the graph. About how many new students were there in 2003?

  15. 1 Make a Plan Understand the Problem 2 Check It Out: Example 2 Continued You are looking for the best data display and the number of new students in 2003. You need to find an estimate of the number of new students in 2003. Since the data occurs over time you can use a line graph.

  16. 3 Solve Check It Out: Example 2 Continued Create a line graph. For each year plot a point and connect the line. You can estimate that in 2003 there were about 48 new students.

  17. 4 Check It Out: Example 2 Continued Look Back Look at the table. In 2002 there were 42 new students. In 2004 there were 50 new students, so the answer of 48 new students in 2003 in reasonable.

  18. Lesson Quizzes Standard Lesson Quiz Lesson Quiz for Student Response Systems

  19. Lesson Quiz: Part I 1. Which is a better display of the number of miles ran by members of the track team during one week: a box-and-whisker plot or a scatter plot? box-and-whisker plot

  20. Lesson Quiz: Part II 2. The number of boys and girls enrolled in a middle school is shown in the table. Choose an appropriate display for these data and draw the graph. What percent of the students at the middle school are boys?

  21. Lesson Quiz: Part II Continued  48.3%

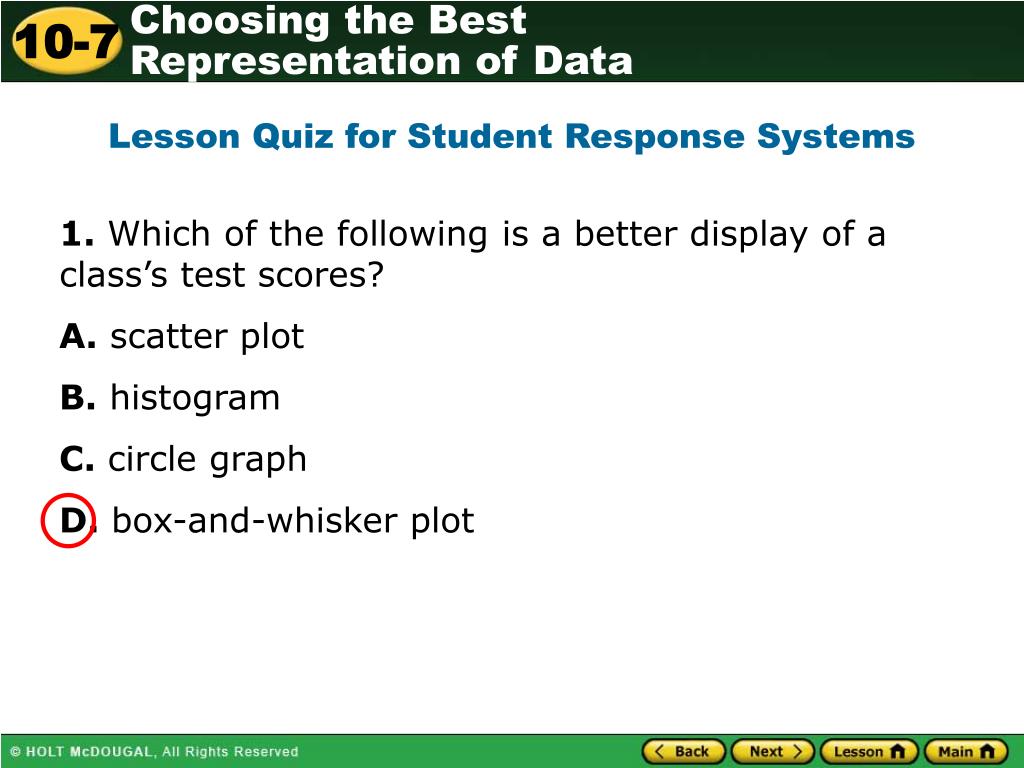

  22. Lesson Quiz for Student Response Systems 1. Which of the following is a better display of a class’s test scores? A.scatter plot B.histogram C. circle graph D. box-and-whisker plot

  23. Lesson Quiz for Student Response Systems 2. The diameters of four planets are shown in the table. Identify an appropriate display for this data and the graph that represents the data. Identify the planet that has the second largest diameter. A. VenusB. Venus
