  1. Test Plan Advanced Topics With Mario!

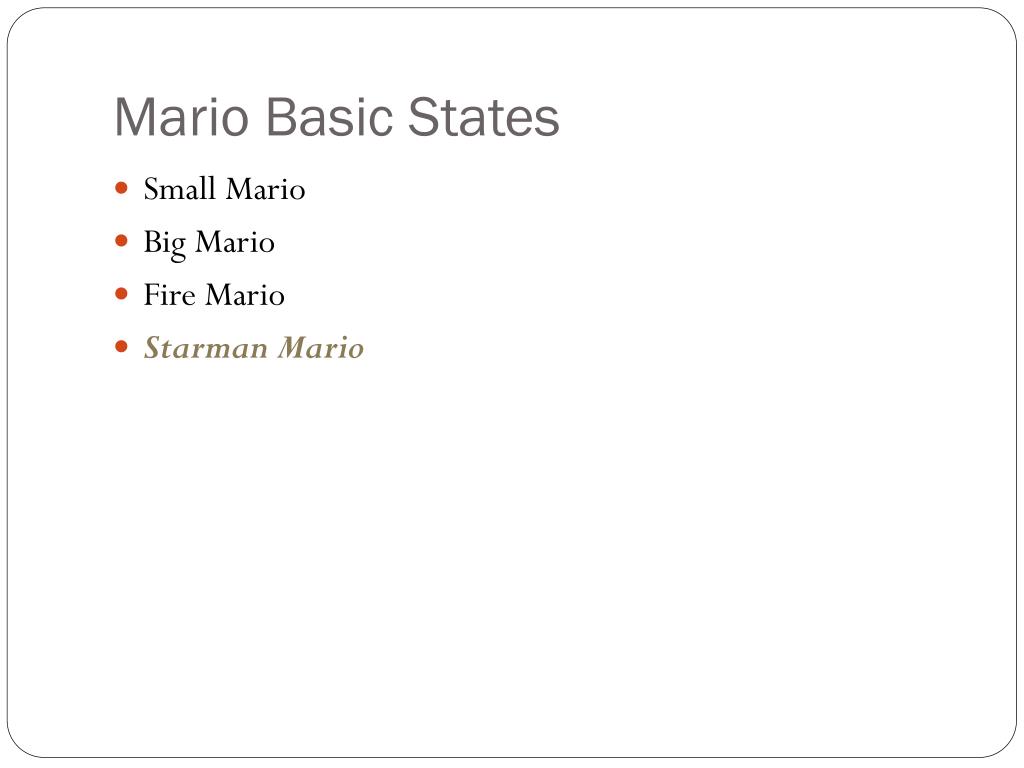

  2. Mario Basic States • Small Mario • Big Mario • Fire Mario • Starman Mario

  3. Mario Basic Moves • Run • Jump • Throw Fireballs • And Combinations: • Run + Jump + Throw Fireballs • Run + Jump • Etc.

  4. Objects in Mario • Goombas • Question Blocks • Power Ups (Starman, Fireflower, Mushroom) • Terrain (Ground, Pits, Pipes) • List goes on!

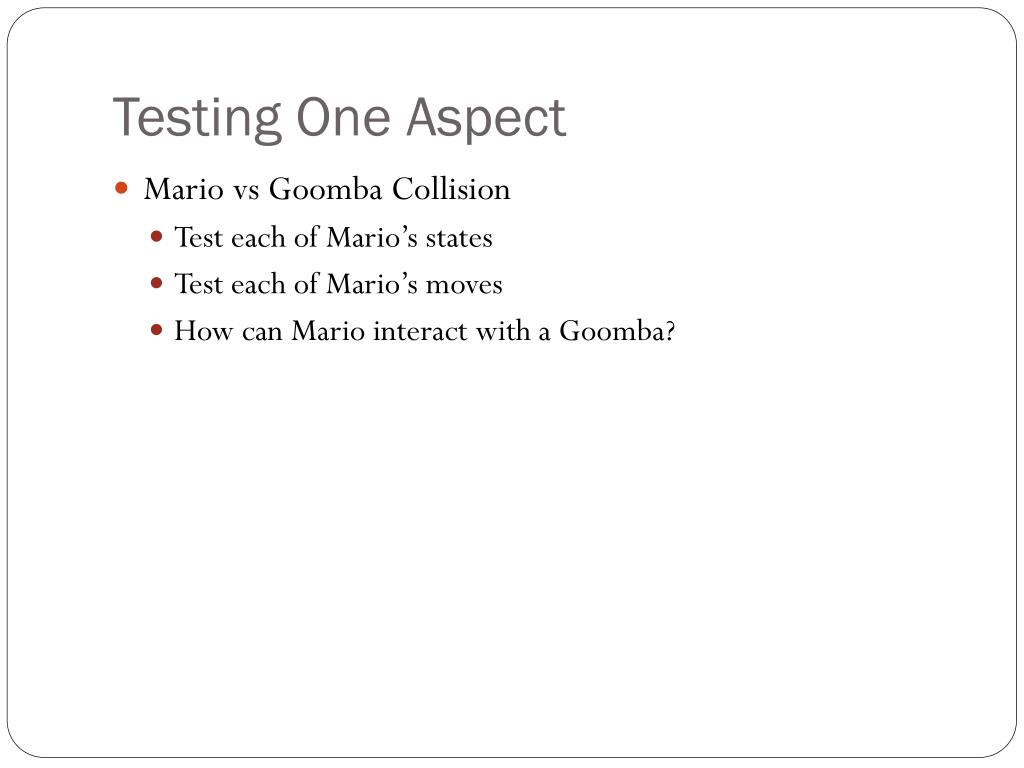

  5. Testing One Aspect • Mario vsGoomba Collision • Test each of Mario’s states • Test each of Mario’s moves • How can Mario interact with a Goomba?

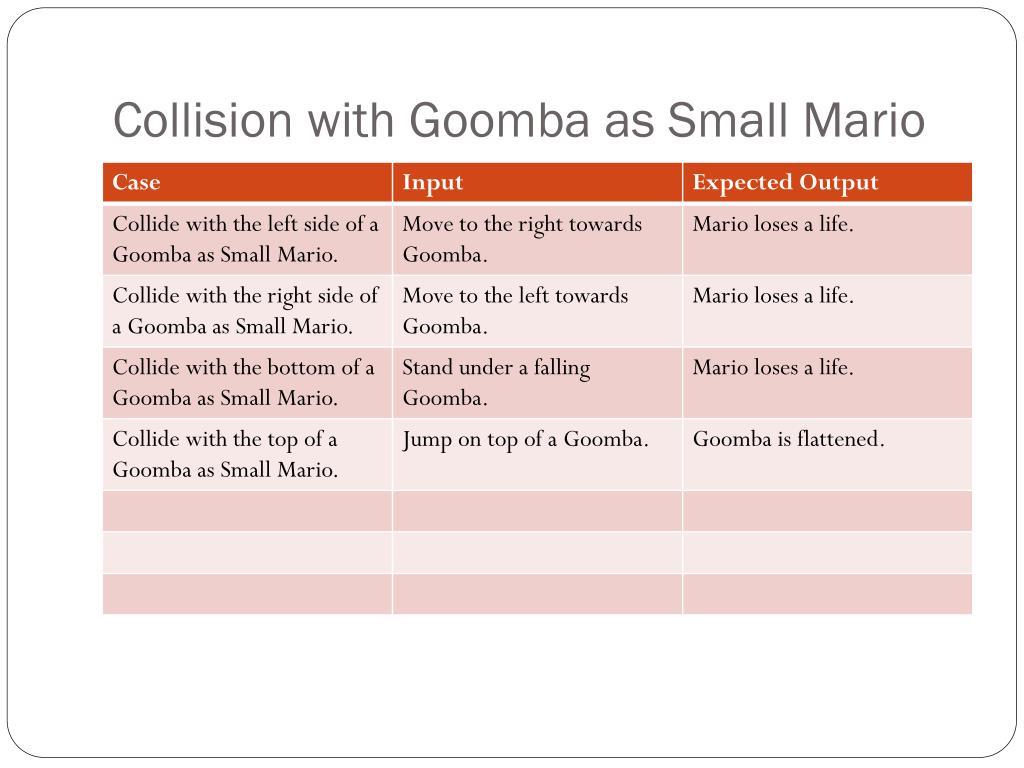

  6. Collision with Goombaas Small Mario

  7. Collision with Goomba as Big Mario

  8. Collision with Goomba as Fire Mario

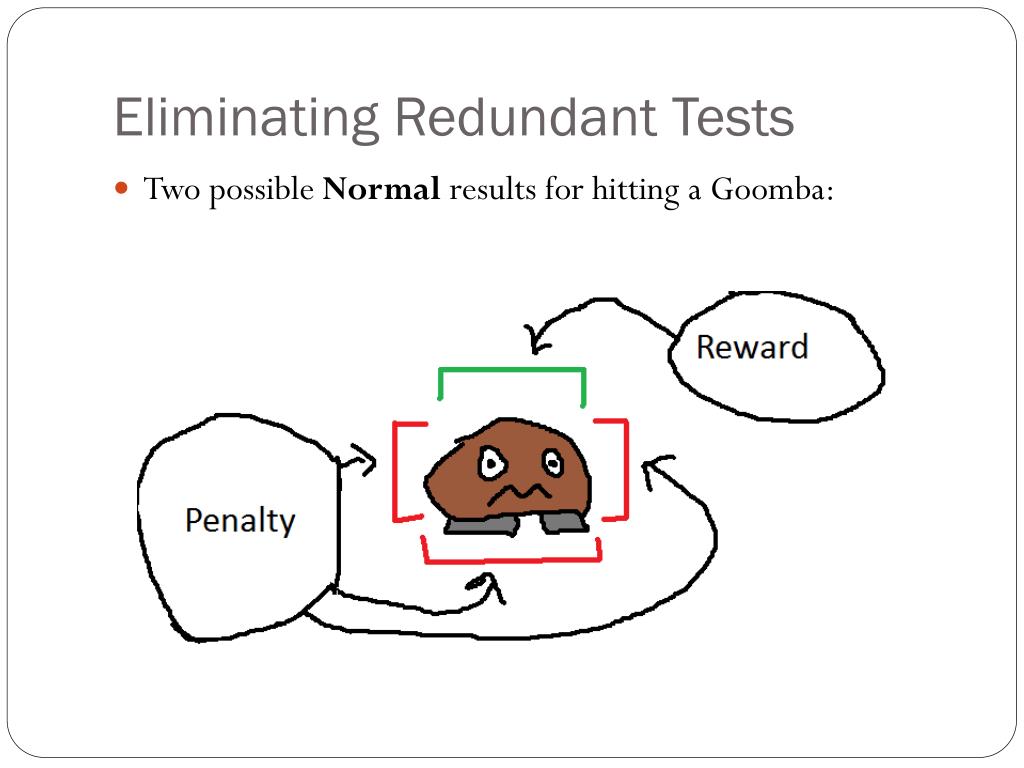

  9. Eliminating Redundant Tests • Two possible Normal results for hitting a Goomba:

  10. Mario State Penalties

  11. Collision with Goomba (Generalized)

  12. Safe Assumption? • If Penalty Interaction is independent of the source, yes! • Good coding will make this a good assumption. • Makes it easier to introduce additional elements, such as new enemies.

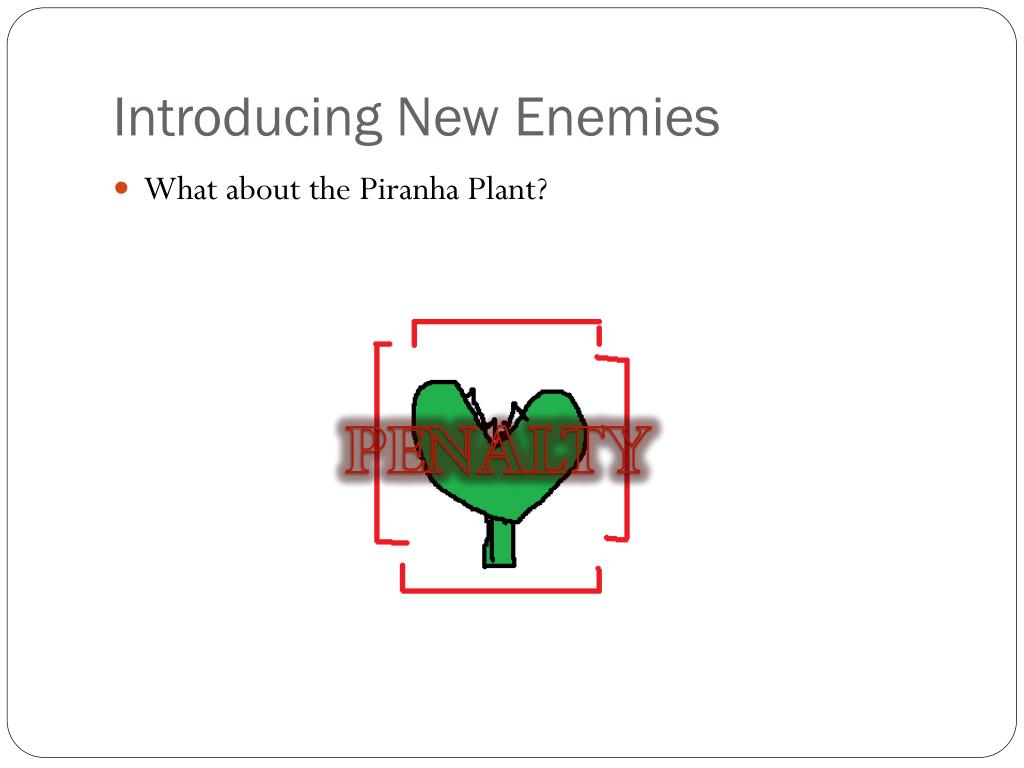

  13. Introducing New Enemies • What about the Piranha Plant? PENALTY

  14. Collision With Piranha Plant

  15. Collision With Piranha Plant

  16. Error Cases • Stuff that shouldn’t happen, but could (likely glitches). • Stuff that we know will cause runtime errors and can happen.

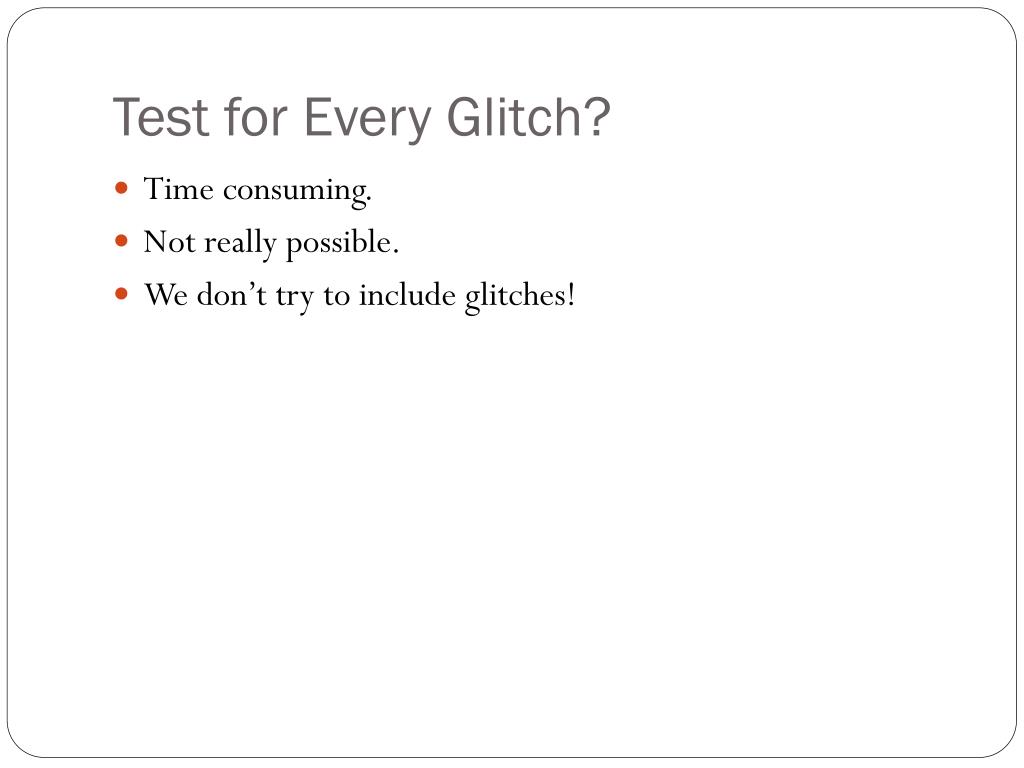

  17. Test for Every Glitch? • Time consuming. • Not really possible. • We don’t try to include glitches!

  18. Test for Likely Glitches • Most Mario enemies can be touched from any of four sides. • Piranha Plants should only be touched from three sides, since the bottom is attached to a pipe. • Should still test that fourth quadrant, as an error case, since this is an exception to the rule.

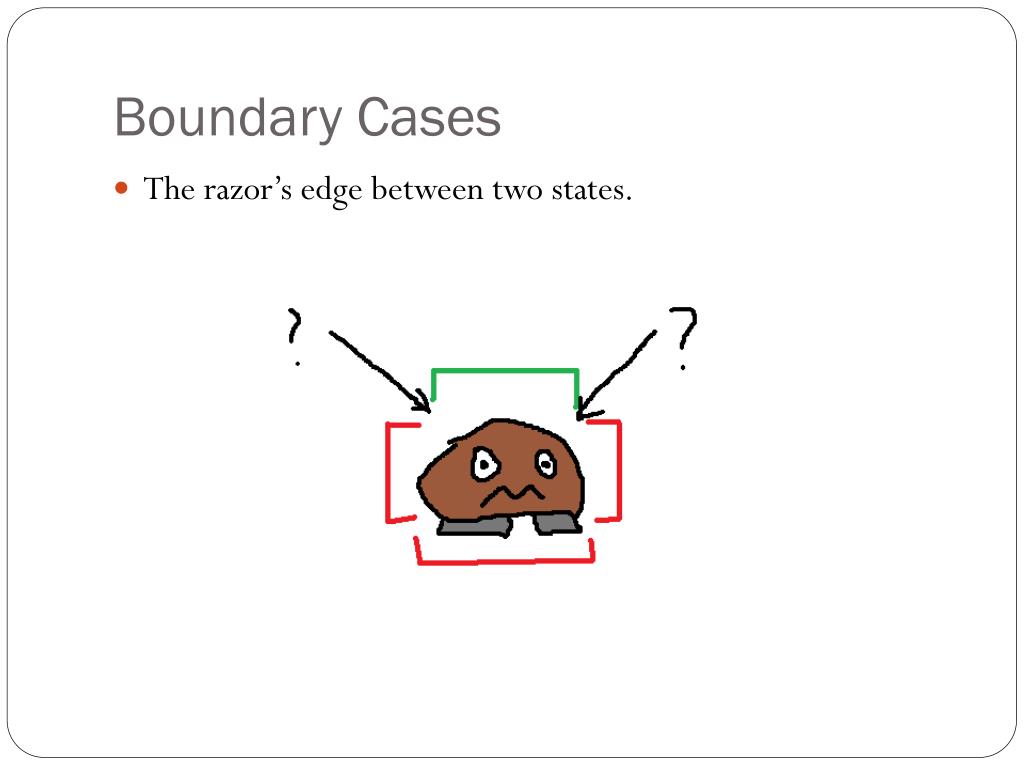

  19. Boundary Cases • The razor’s edge between two states.

  20. Boundary Cases are Precise • Exact Point which is the difference between one state (Stomp a Goomba) and another (Lose a Life). • Need Precise Values (Exact x,y coordinates)

  21. Collision with Goomba (Boundaries)

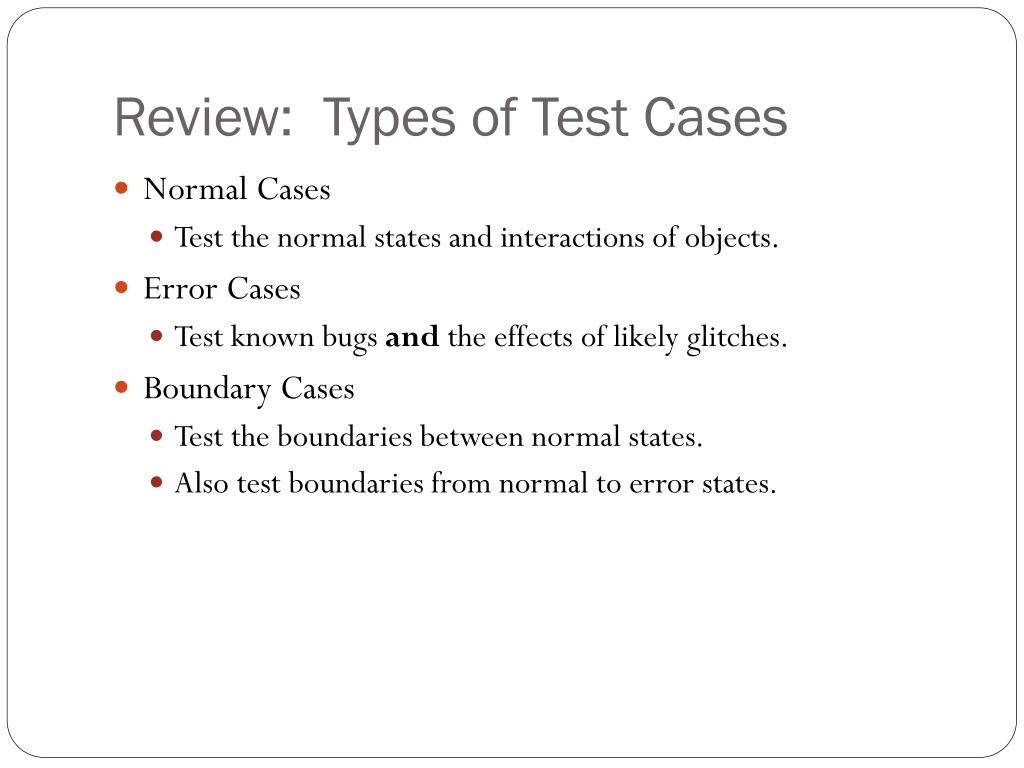

  22. Review: Types of Test Cases • Normal Cases • Test the normal states and interactions of objects. • Error Cases • Test known bugs and the effects of likely glitches. • Boundary Cases • Test the boundaries between normal states. • Also test boundaries from normal to error states.

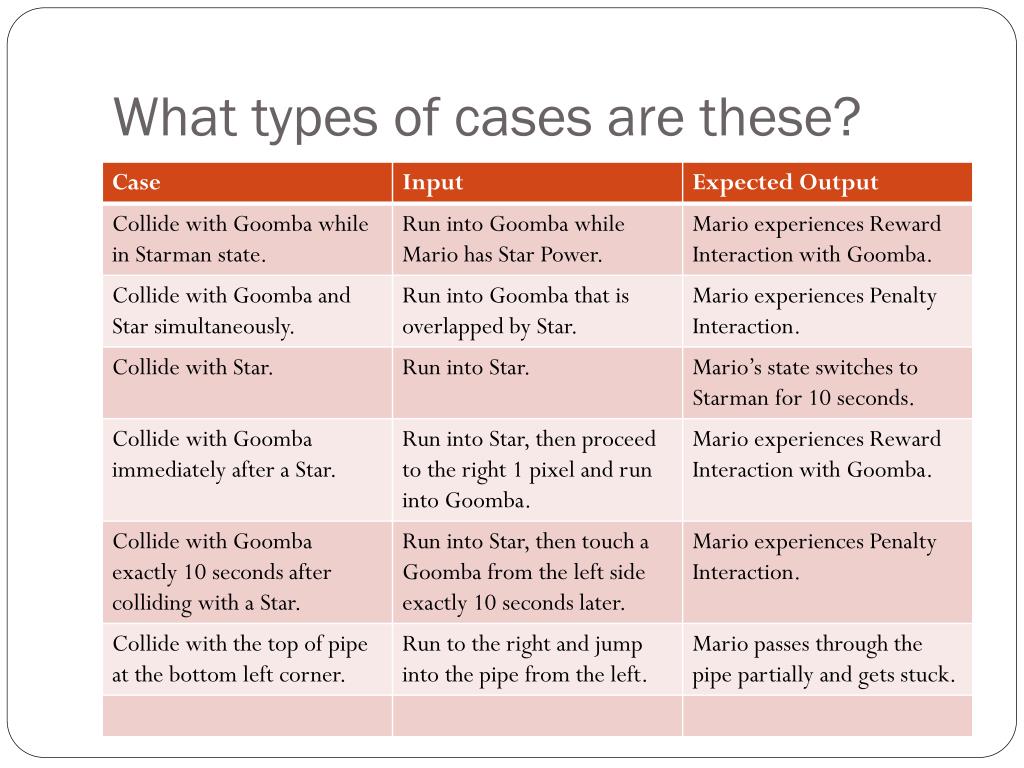

  23. What types of cases are these?

  24. Questions? • Email your professor!! • mjspra2@uky.edu
