  1. Lab 6: FSM Description • Separate combinational and memory circuits • State memory uses FFs • Others are combinational circuits

  2. Another approach

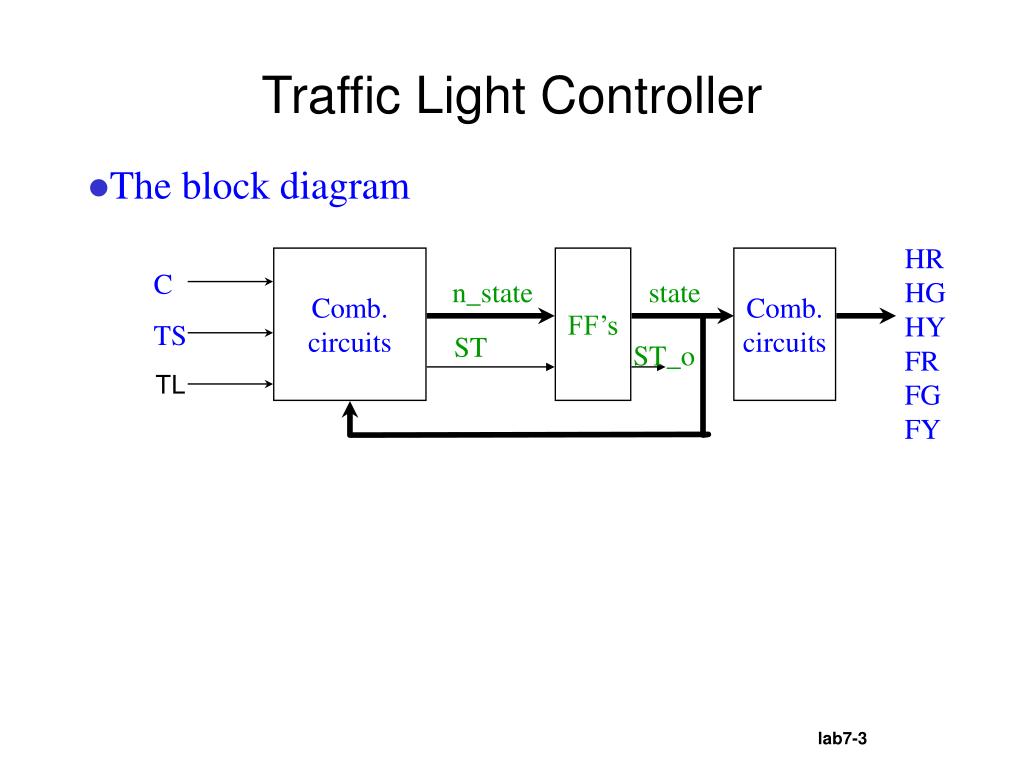

  3. Traffic Light Controller TL • The block diagram HR HG HY FR FG FY Comb. circuits FF’s Comb. circuits C n_state state TS ST ST_o

  4. State transition diagram TL + C Reset S0: HG S1: HY S2: FG S3: FY S0 TL•C/ST TS/ST TS S1 S3 TS TS/ST TL + C/ST S2 TL • C

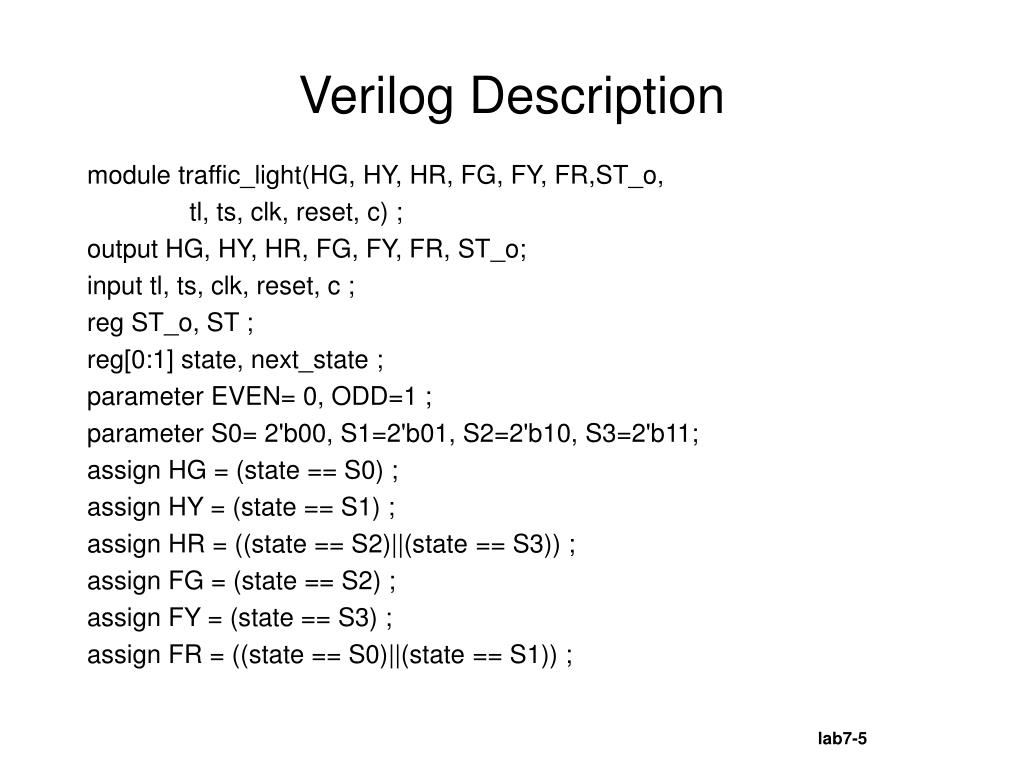

  5. Verilog Description module traffic_light(HG, HY, HR, FG, FY, FR,ST_o, tl, ts, clk, reset, c) ; output HG, HY, HR, FG, FY, FR, ST_o; input tl, ts, clk, reset, c ; reg ST_o, ST ; reg[0:1] state, next_state ; parameter EVEN= 0, ODD=1 ; parameter S0= 2'b00, S1=2'b01, S2=2'b10, S3=2'b11; assign HG = (state == S0) ; assign HY = (state == S1) ; assign HR = ((state == S2)||(state == S3)) ; assign FG = (state == S2) ; assign FY = (state == S3) ; assign FR = ((state == S0)||(state == S1)) ;

  6. // flip-flops always@ (posedge clk or posedge reset) if(reset) // an asynchronous reset begin state = S0 ; ST_o = 0 ; end else begin state = next_state ; ST_o = ST ; end

  7. always@ (state or c or tl or ts) case(state) // state transition S0: if(tl & c) begin next_state = S1 ; ST = 1 ; end else begin next_state = S0 ; ST = 0 ; end TL + C Reset S0 TL•C/ST TS/ST TS S1 S3 TS TS/ST TL + C/ST S2 TL • C

  8. S1: if (ts) begin next_state = S2 ; ST = 1 ; end else begin next_state = S1 ; ST = 0 ; end S2: if(tl | !c) begin next_state = S3 ; ST = 1 ; end else begin next_state = S2 ; ST = 0 ; end TL + C Reset S0 TL•C/ST TS/ST TS S1 S3 TS TS/ST TL + C/ST S2 TL • C

  9. S3: if(ts) begin next_state = S0 ; ST = 1 ; end else begin next_state = S3 ; ST = 0 ; end endcase endmodule TL + C Reset S0 TL•C/ST TS/ST TS S1 S3 TS TS/ST TL + C/ST S2 TL • C

  10. Counter Design • ST • when active, clear and enable the counter • TL/TS • terminal count • active to disable the counter • ST options • latched or non-latched output • Counter options • synchronous or asynchronous clear

  11. Timer Design • Timer/counter • clk • ST • TL/TS • TL/TS Sync. Clear Async. Clear

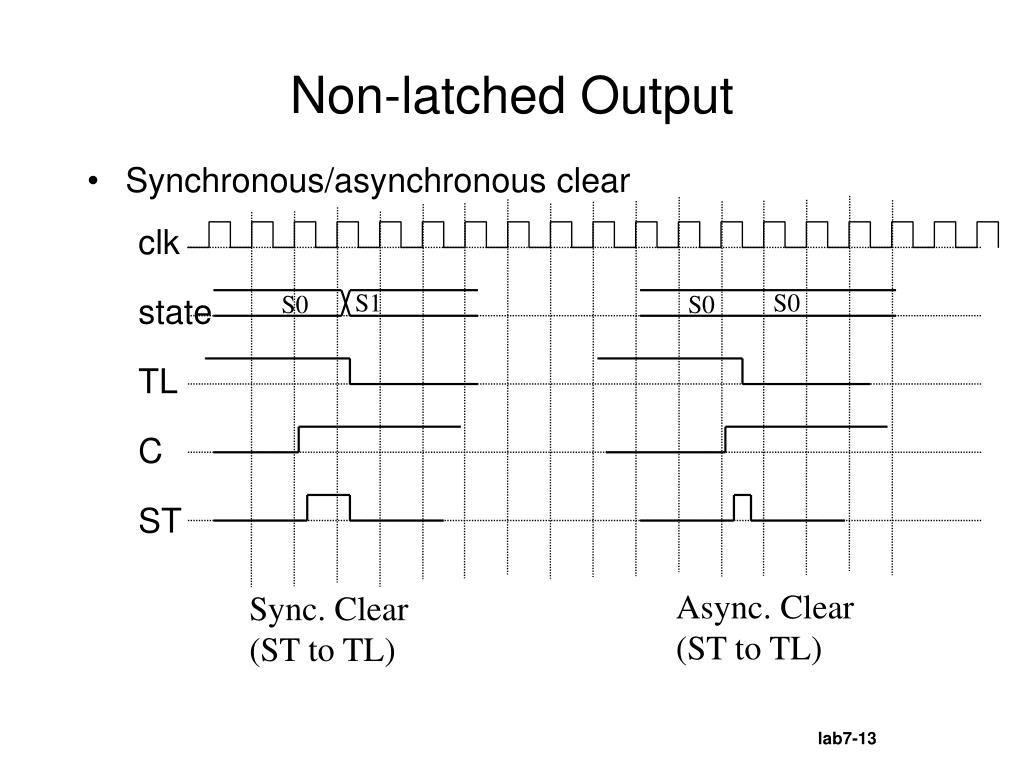

  12. Non-latched Output • Synchronous/asynchronous clear clk state TL C ST S1 S0 S0 S0 Async. Clear (ST to TL) Sync. Clear (ST to TL)

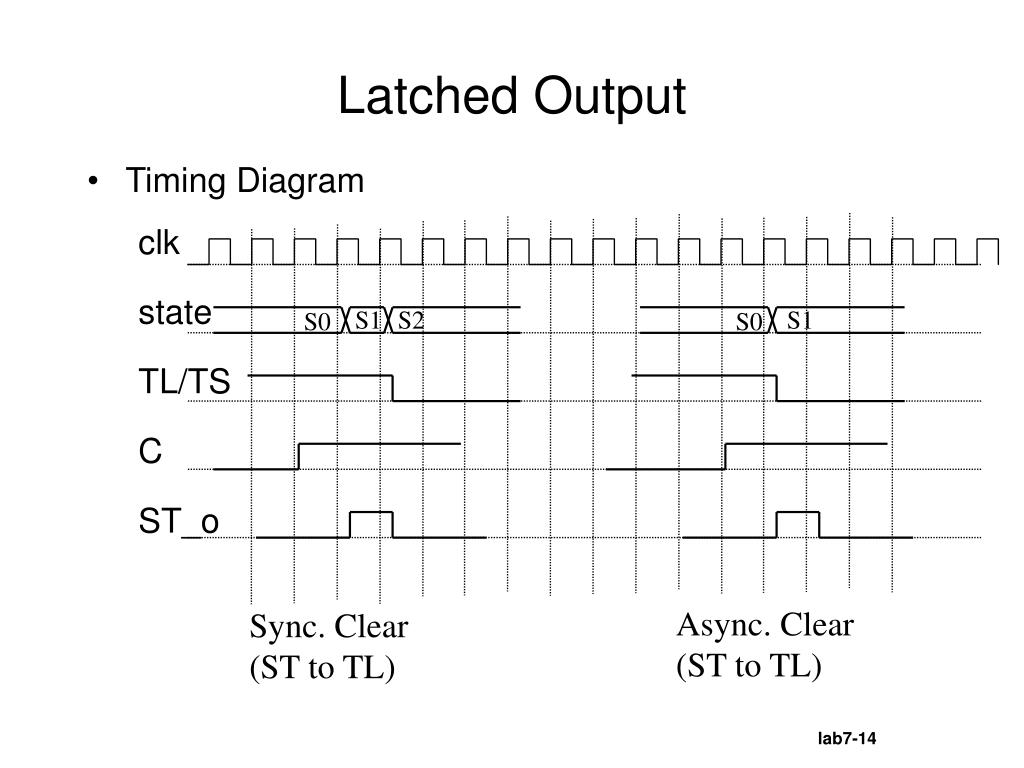

  13. Latched Output • Timing Diagram clk state TL/TS C ST_o S1 S2 S1 S0 S0 Async. Clear (ST to TL) Sync. Clear (ST to TL)

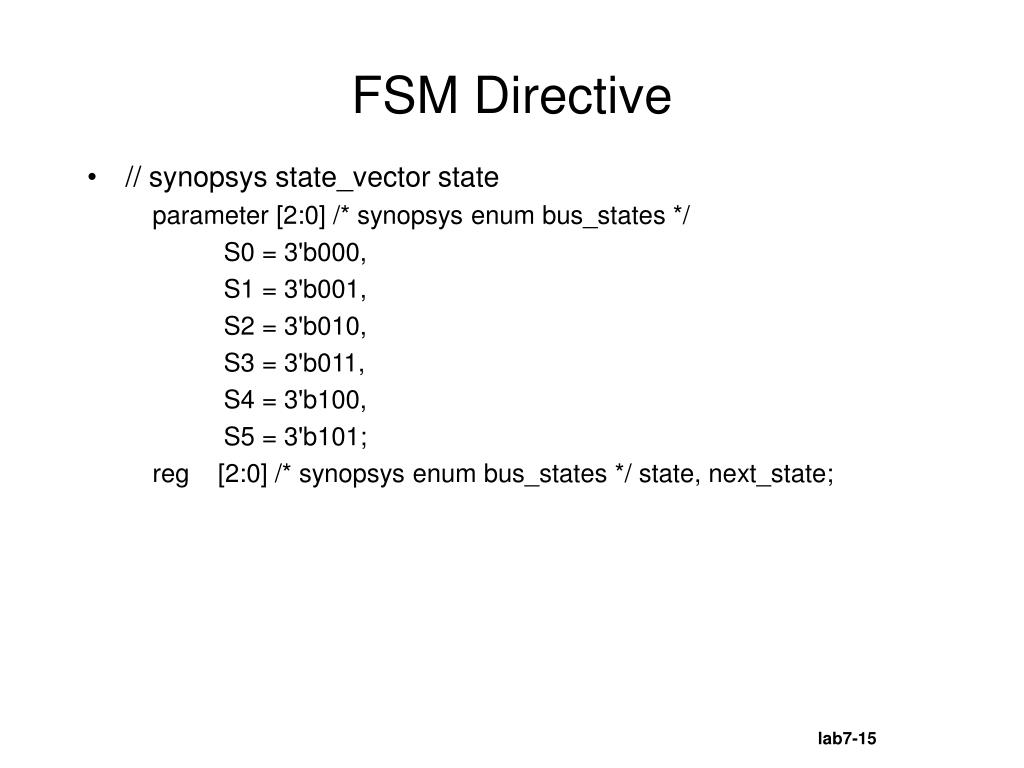

  14. FSM Directive • // synopsys state_vector state parameter [2:0] /* synopsys enum bus_states */ S0 = 3'b000, S1 = 3'b001, S2 = 3'b010, S3 = 3'b011, S4 = 3'b100, S5 = 3'b101; reg [2:0] /* synopsys enum bus_states */ state, next_state;

  15. always @ (posedge CLK) begin if (RESET == 1’b1) begin if (ADDR_A == 2’b00) begin DEC_Q[5:4] <= ADDR_D; DEC_Q[3:2] <= 2’b01; DEC_Q[1:0] <= 2’b00; if (ADDR_B == 2’b01) begin DEC_Q[3:2] <= ADDR_A + 1’b1; DEC_Q[1:0] <= ADDR_B + 1’b1; if (ADDR_C == 2’b10) An Inefficient Use of Nested If

  16. begin DEC_Q[5:4] <= ADDR_D + 1’b1; if (ADDR_D == 2’b11) DEC_Q[5:4] <= 2’b00; end else DEC_Q[5:4] <= ADDR_D; end end else DEC_Q[5:4] <= ADDR_D; DEC_Q[3:2] <= ADDR_A; DEC_Q[1:0] <= ADDR_B + 1’b1; end else DEC_Q <= 6’b000000; end

  17. Nested If = priority-encoded logic complex nested if => inefficient

  18. always @ (posedge CLK) begin if (RESET == 1’b1) begin casex (ADDR_ALL) 8’b00011011: begin DEC_Q[5:4] <= 2’b00; DEC_Q[3:2] <= ADDR_A + 1; DEC_Q[1:0] <= ADDR_B + 1’b1; end 8’b000110xx: begin DEC_Q[5:4] <= ADDR_D + 1’b1; DEC_Q[3:2] <= ADDR_A + 1’b1; DEC_Q[1:0] <= ADDR_B + 1’b1; end

  19. 8’b0001xxxx: begin DEC_Q[5:4] <= ADDR_D; DEC_Q[3:2] <= ADDR_A + 1’b1; DEC_Q[1:0] <= ADDR_B + 1’b1; end 8’b00xxxxxx: begin DEC_Q[5:4] <= ADDR_D; DEC_Q[3:2] <= 2’b01; DEC_Q[1:0] <= 2’b00; end default: begin DEC_Q[5:4] <= ADDR_D; DEC_Q[3:2] <= ADDR_A; DEC_Q[1:0] <= ADDR_B + 1’b1; end endcase end else DEC_Q <= 6’b000000; end

  20. Case statements creates balanced logic reduces the delay by 3 ns

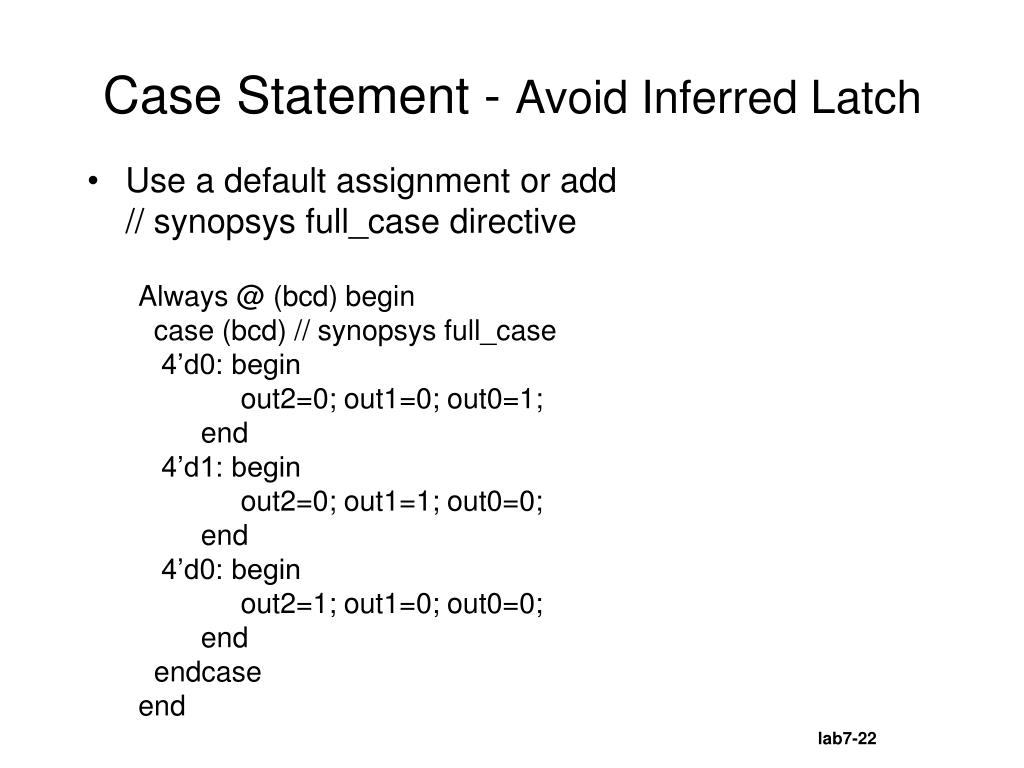

  21. Case Statement - Avoid Inferred Latch • Use a default assignment or add // synopsys full_case directive Always @ (bcd) begin case (bcd) // synopsys full_case 4’d0: begin out2=0; out1=0; out0=1; end 4’d1: begin out2=0; out1=1; out0=0; end 4’d0: begin out2=1; out1=0; out0=0; end endcase end

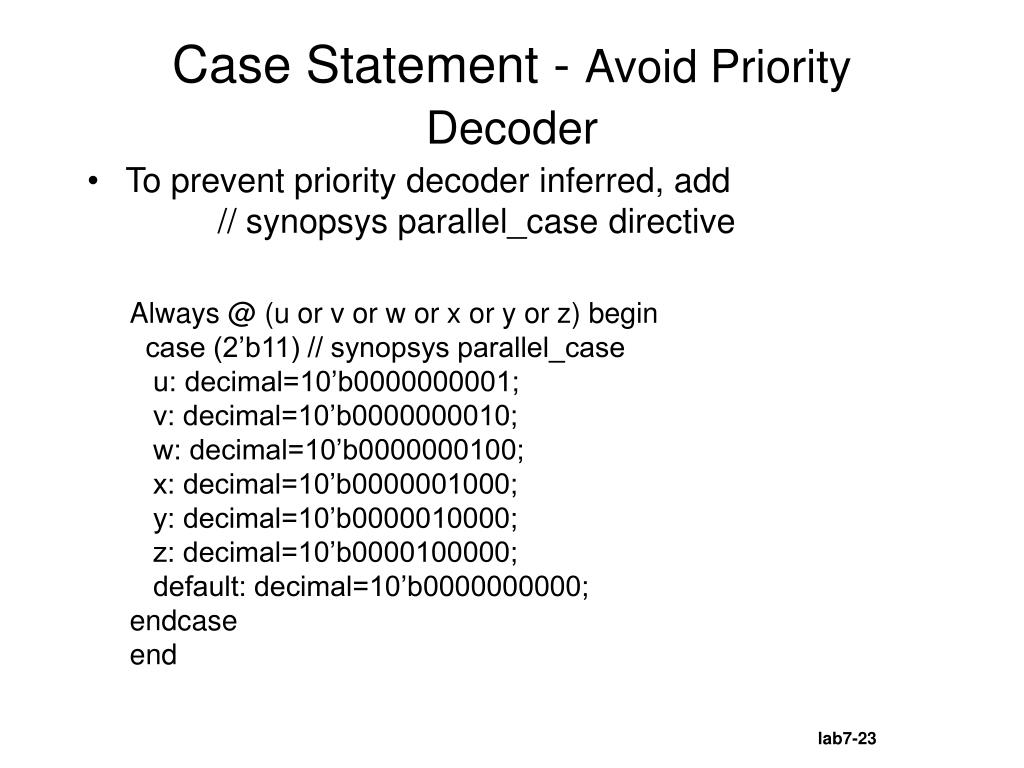

  22. Case Statement - Avoid Priority Decoder • To prevent priority decoder inferred, add // synopsys parallel_case directive Always @ (u or v or w or x or y or z) begin case (2’b11) // synopsys parallel_case u: decimal=10’b0000000001; v: decimal=10’b0000000010; w: decimal=10’b0000000100; x: decimal=10’b0000001000; y: decimal=10’b0000010000; z: decimal=10’b0000100000; default: decimal=10’b0000000000; endcase end

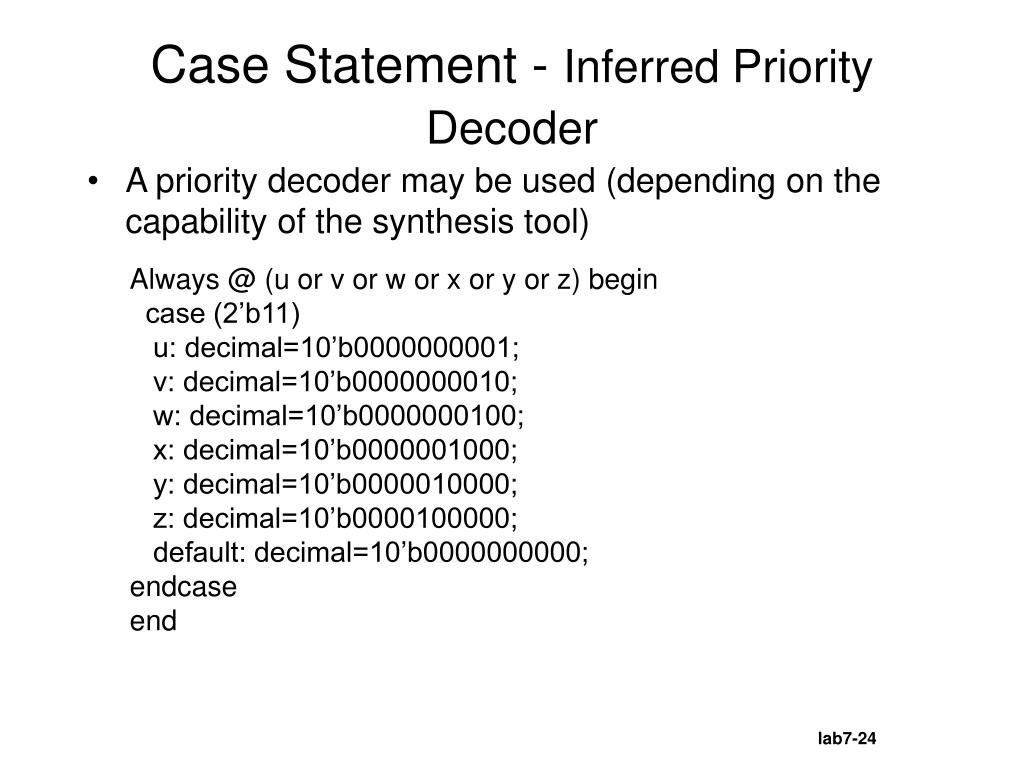

  23. Case Statement - Inferred Priority Decoder • A priority decoder may be used (depending on the capability of the synthesis tool) Always @ (u or v or w or x or y or z) begin case (2’b11) u: decimal=10’b0000000001; v: decimal=10’b0000000010; w: decimal=10’b0000000100; x: decimal=10’b0000001000; y: decimal=10’b0000010000; z: decimal=10’b0000100000; default: decimal=10’b0000000000; endcase end

  24. Case Statement - Avoid Priority Decoder • To prevent priority decoder inferred, add // synopsys parallel_case directive Always @ (u or v or w or x or y or z) begin case (2’b11) // synopsys parallel_case u: decimal=10’b0000000001; v: decimal=10’b0000000010; w: decimal=10’b0000000100; x: decimal=10’b0000001000; y: decimal=10’b0000010000; z: decimal=10’b0000100000; default: decimal=10’b0000000000; endcase end
