Fusion of light halo nuclei

Fusion of light halo nuclei. Alinka Lépine-Szily Instituto de Física-Universidade de São Paulo, São Paulo, Brazil. 18th International Conference on Few-Body Problems in Physics, 21-25 august 2006 - Santos, Brazil.

zenda
Download Presentation

Fusion of light halo nuclei

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Fusion of light halo nuclei • Alinka Lépine-Szily • Instituto de Física-Universidade de São Paulo, São Paulo, Brazil 18th International Conference on Few-Body Problems in Physics, 21-25 august 2006 - Santos, Brazil 1111118th 118th Intn Few-Body Problems in PhysIcs 8th International IUPAP Conference on Few-Body Problems in PhysIcs

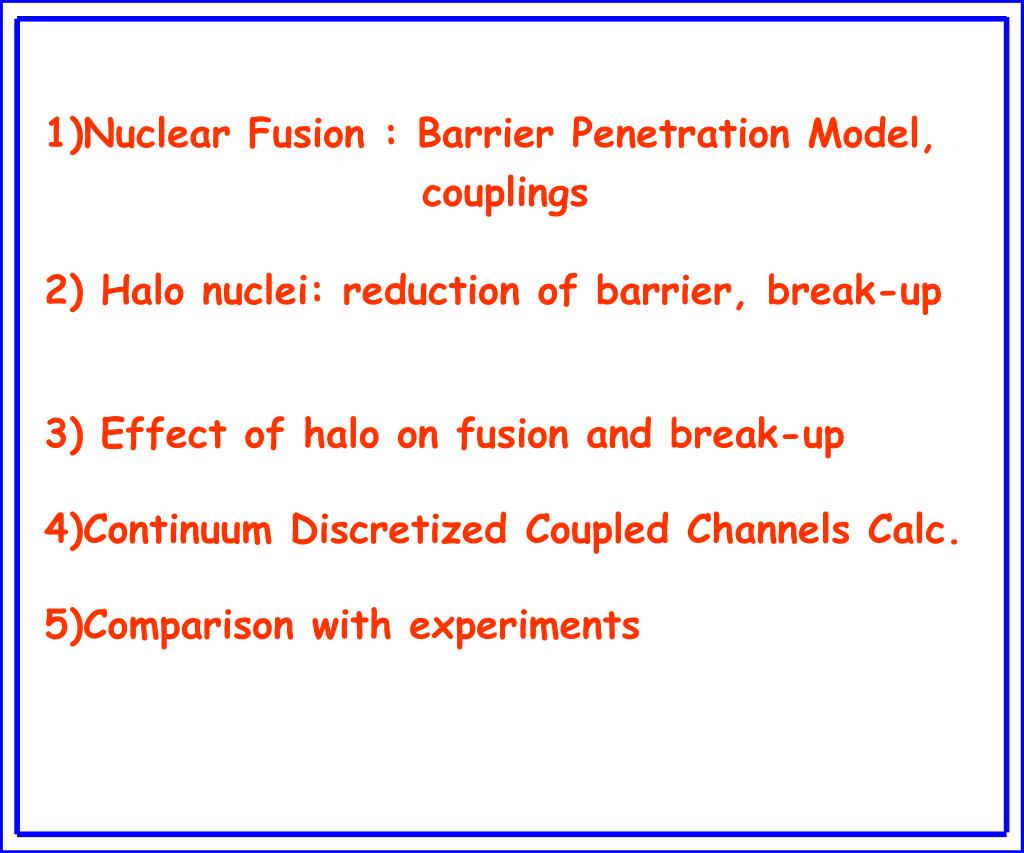

  2. 1)Nuclear Fusion : Barrier Penetration Model, • couplings • 2) Halo nuclei: reduction of barrier, break-up • 3) Effect of halo on fusion and break-up • 4)Continuum Discretized Coupled Channels Calc. • 5)Comparison with experiments 1111118th 118th Intn Few-Body Problems in PhysIcs 8th International IUPAP Conference on Few-Body Problems in PhysIcs

  3. Fusion of two atomic nuclei: quantum mechanical tunneling phenomenon. Barrier Penetration Model (BPM) works surprisingly well.

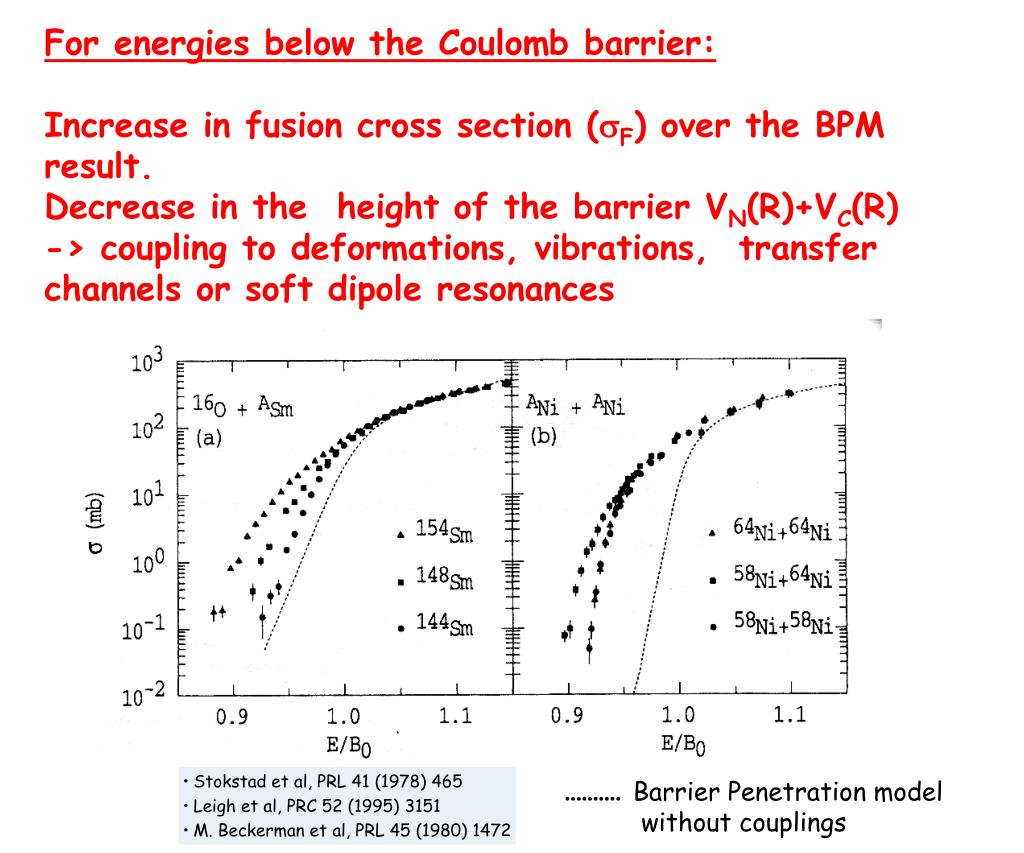

  4. Stokstad et al, PRL 41 (1978) 465 • Leigh et al, PRC 52 (1995) 3151 • M. Beckerman et al, PRL 45 (1980) 1472 For energies below the Coulomb barrier: Increase in fusion cross section (F) over the BPM result. Decrease in the height of the barrier VN(R)+VC(R) -> coupling to deformations, vibrations, transfer channels or soft dipole resonances .......... Barrier Penetration model without couplings

  5. “halo” nuclei 19 C n 18 C Section efficace (u.a.) 18 C 10 15 30 35 0 5 20 0 25 Angle Neutron (deg.) 11Li Nuclear chart and halo nuclei close to the drip-line Surprises Z Number of neutrons

  6. Halo nuclei Borromean nature of 2n halo nuclei

  7. core of 9Li 2 neutron halo 4 fm 11Li 16 fm Halo Nuclei 11Li9Li+2n 11Be10Be+n S2n = 0.33 MeV T1/2= 8.5 ms T. Nakamura etal. PRL 96, 252502 (2006) 11Li has strong E1 strength at 0.6 MeV, strong two-neutron correlation, <rc,2n2>1/2= 5.01(32)fm , <12> = 48(16)

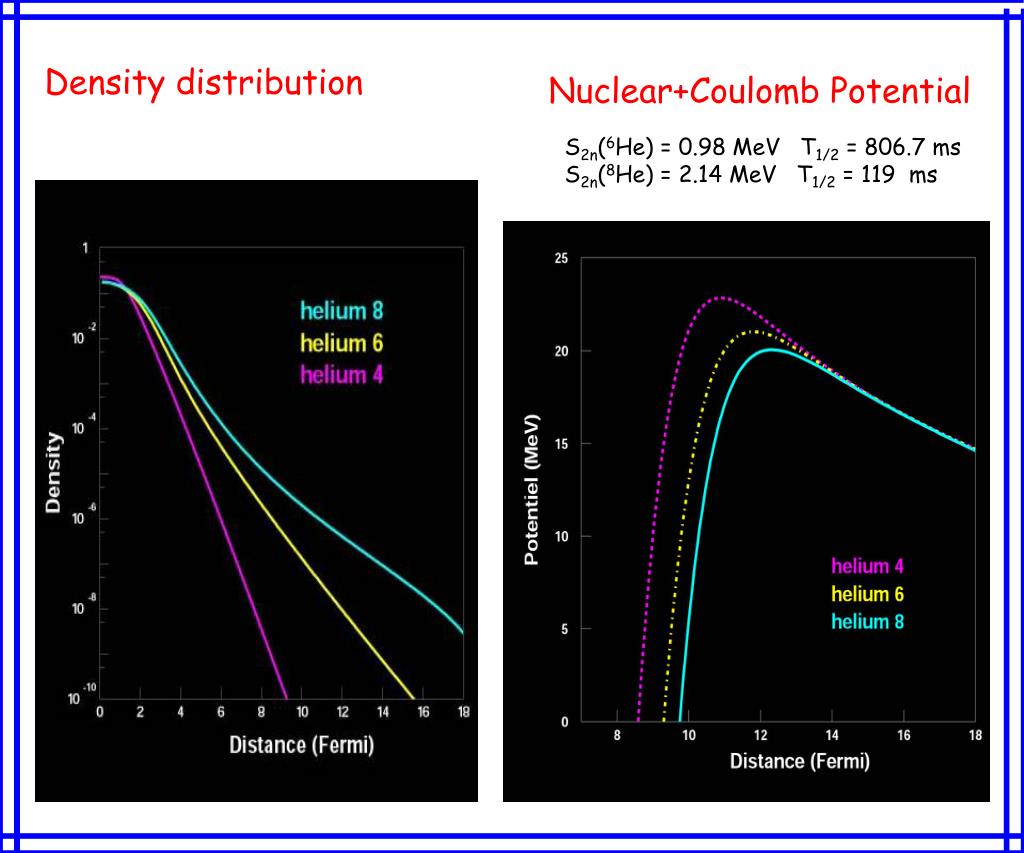

  8. Density distribution Nuclear+Coulomb Potential S2n(6He) = 0.98 MeV T1/2 = 806.7 ms S2n(8He) = 2.14 MeV T1/2 = 119 ms

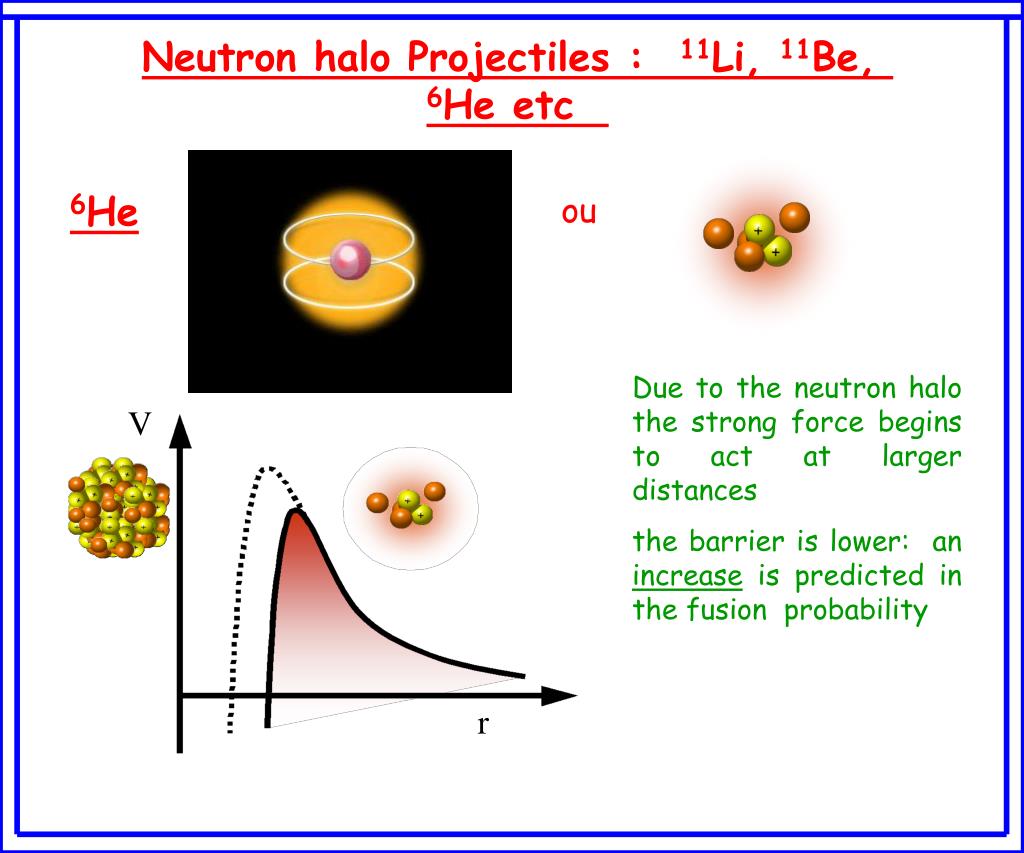

  9. Neutron halo Projectiles : 11Li, 11Be, 6He etc 6He ou Due to the neutron halo the strong force begins to act at larger distances the barrier is lower: an increase is predicted in the fusion probability V r

  10. Fusion with “halo” nucleus

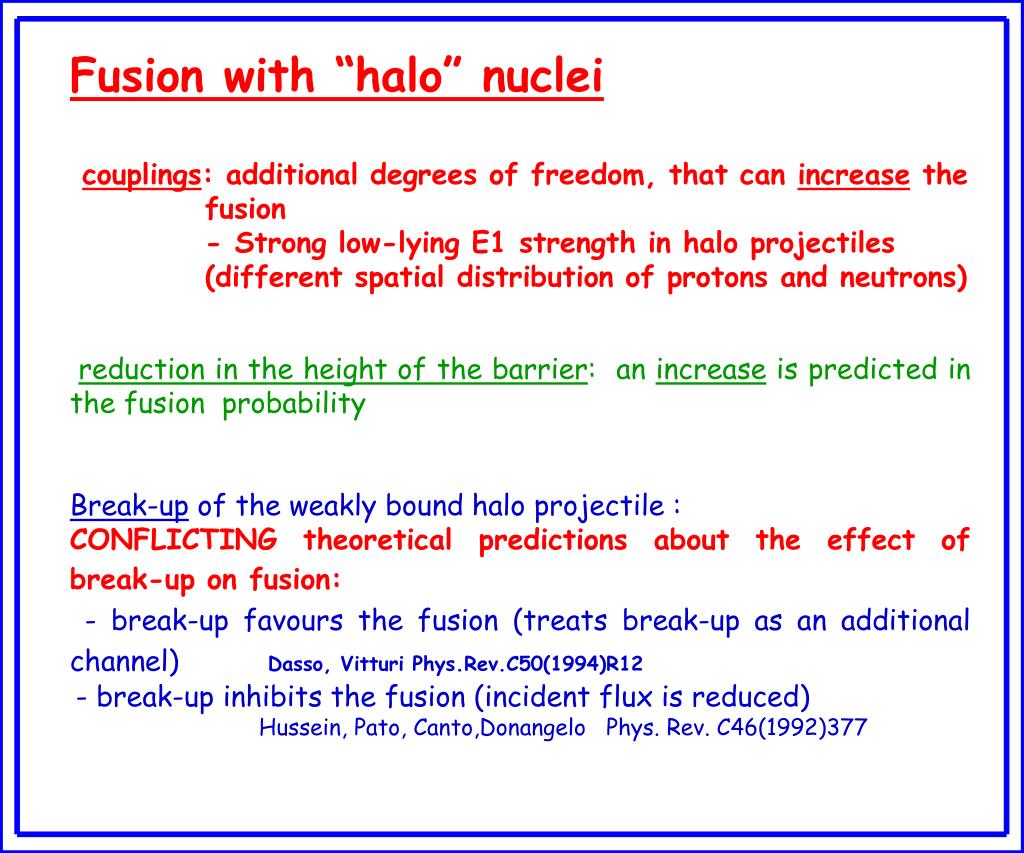

  11. Fusion with “halo” nuclei couplings: additional degrees of freedom, that can increase the fusion - Strong low-lying E1 strength in halo projectiles (different spatial distribution of protons and neutrons) reduction in the height of the barrier: an increase is predicted in the fusion probability Break-up of the weakly bound halo projectile : CONFLICTING theoretical predictions about the effect of break-up on fusion: - break-up favours the fusion (treats break-up as an additional channel)Dasso, Vitturi Phys.Rev.C50(1994)R12 - break-up inhibits the fusion (incident flux is reduced) Hussein, Pato, Canto,Donangelo Phys. Rev. C46(1992)377

  12. Fusion and Break-up of weakly bound halo nuclei 1111118th 118th Intn Few-Body Problems in PhysIcs 8th International IUPAP Conference on Few-Body Problems in PhysIcs Break-up = coupling to the continuum, irreversible,

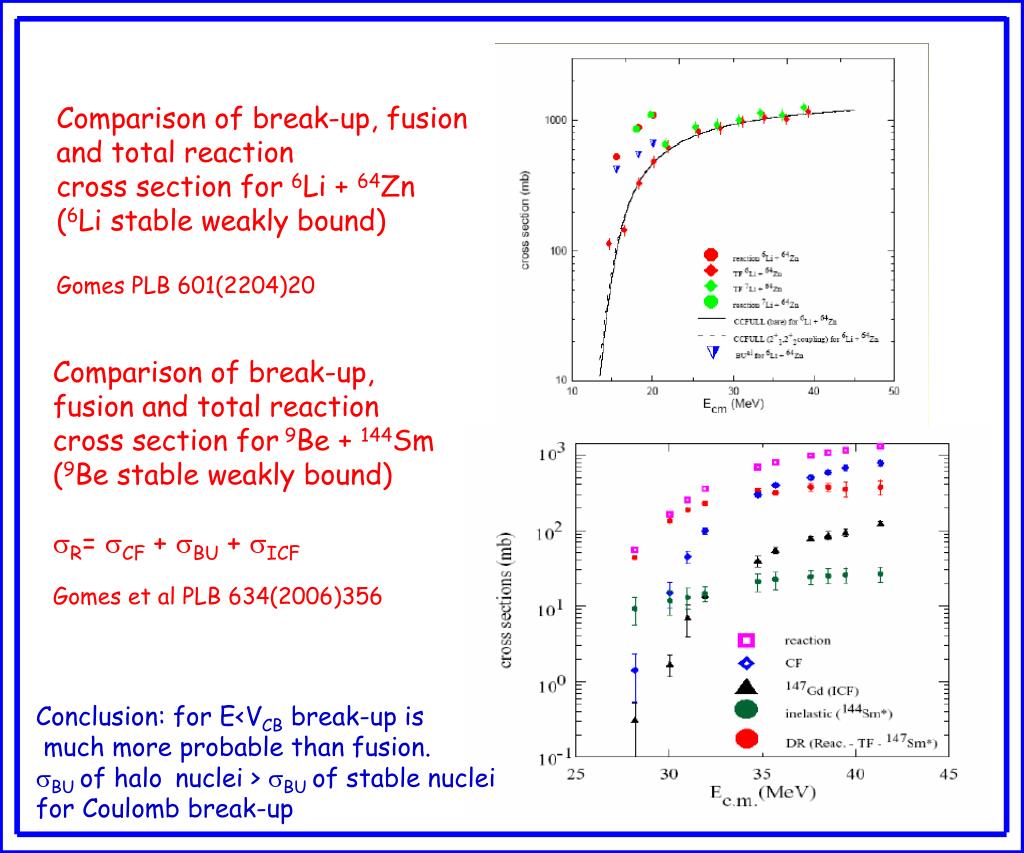

  13. Comparison of break-up, fusion and total reaction cross section for 6Li + 64Zn (6Li stable weakly bound) Gomes PLB 601(2204)20 Comparison of break-up, fusion and total reaction cross section for 9Be + 144Sm (9Be stable weakly bound) R= CF + BU + ICF Gomes et al PLB 634(2006)356 1111118th 118th Intn Few-Body Problems in PhysIcs 8th International IUPAP Conference on Few-Body Problems in PhysIcs Conclusion: for E<VCB break-up is much more probable than fusion. BU of halo nuclei > BU of stable nuclei for Coulomb break-up

  14. ContinuumCContinuum • Continuum Discretized Coupled Channels • Calculation (CDCC) • Since the weakly bound nuclei break-up, it is necessary to include at least 3 body effects in the description of the collision. • The continuum must be considered. One has to truncate the number of states (CDCC). • CDCC calculations describing the break-up of the projectile P are performed replacing the continuum by a finite number of configurations of the P = F1 + F2 system. • CDCC calculations require the inclusion of both Coulomb and nuclear couplings, a large set of continuum states and multi-step processes. 1111118th 118th Intn Few-Body Problems in PhysIcs 8th International IUPAP Conference on Few-Body Problems in PhysIcs

  15. Schematic representation of bound and continuum states and their couplings in CDCC calculations Schematic 1111118th 118th Intn Few-Body Problems in PhysIcs 8th International IUPAP Conference on Few-Body Problems in PhysIcs Full lines: Hagino 2000. Dashed lines: additional couplings by Diaz-Torres and Thompson 2002

  16. Full CDCC calculation for 11Be + 208Pb Diaz-Torres, Thompson- PRC65 (2002), 024606 • Complete fusion (solid) • only couplings to bound states b) complete fusion (solid) also continuum – continuum couplings are included 1111118th 118th Intn Few-Body Problems in PhysIcs 8th International IUPAP Conference on Few-Body Problems in PhysIcs

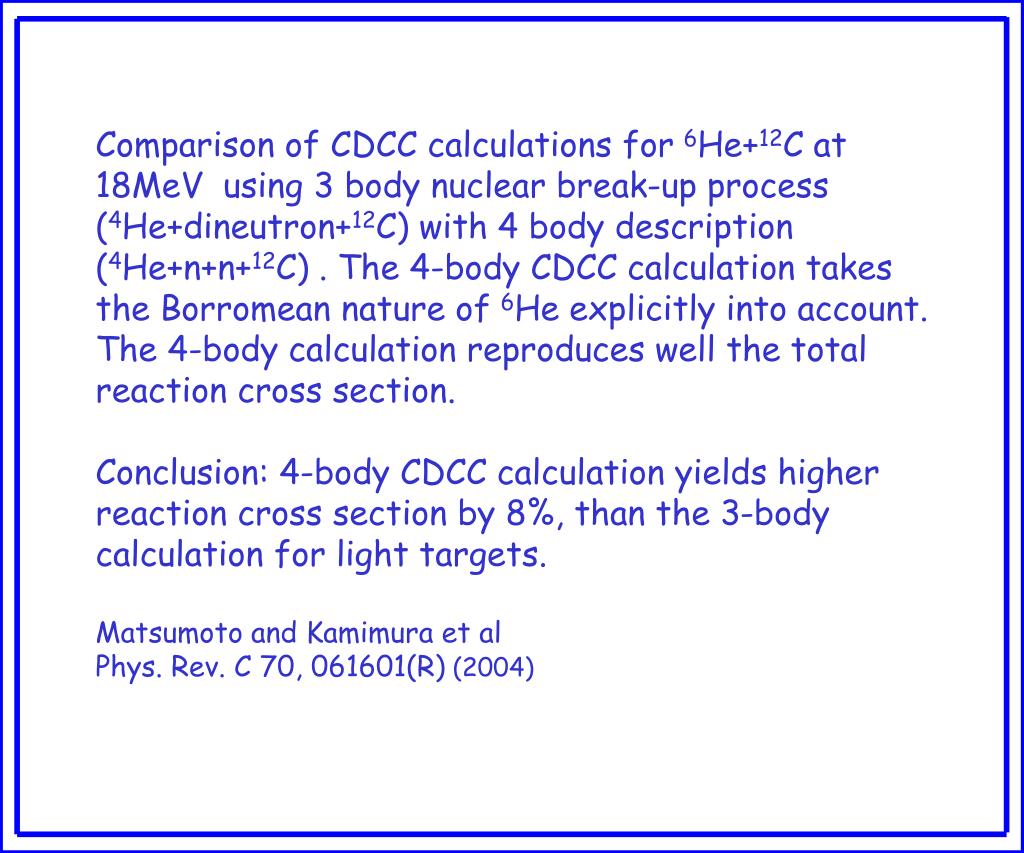

  17. Comparison of CDCC calculations for 6He+12C at 18MeV using 3 body nuclear break-up process (4He+dineutron+12C) with 4 body description (4He+n+n+12C) . The 4-body CDCC calculation takes the Borromean nature of 6He explicitly into account. The 4-body calculation reproduces well the total reaction cross section. Conclusion: 4-body CDCC calculation yields higher reaction cross section by 8%, than the 3-body calculation for light targets. Matsumoto and Kamimura et al Phys. Rev. C 70, 061601(R) (2004) PhysIcs

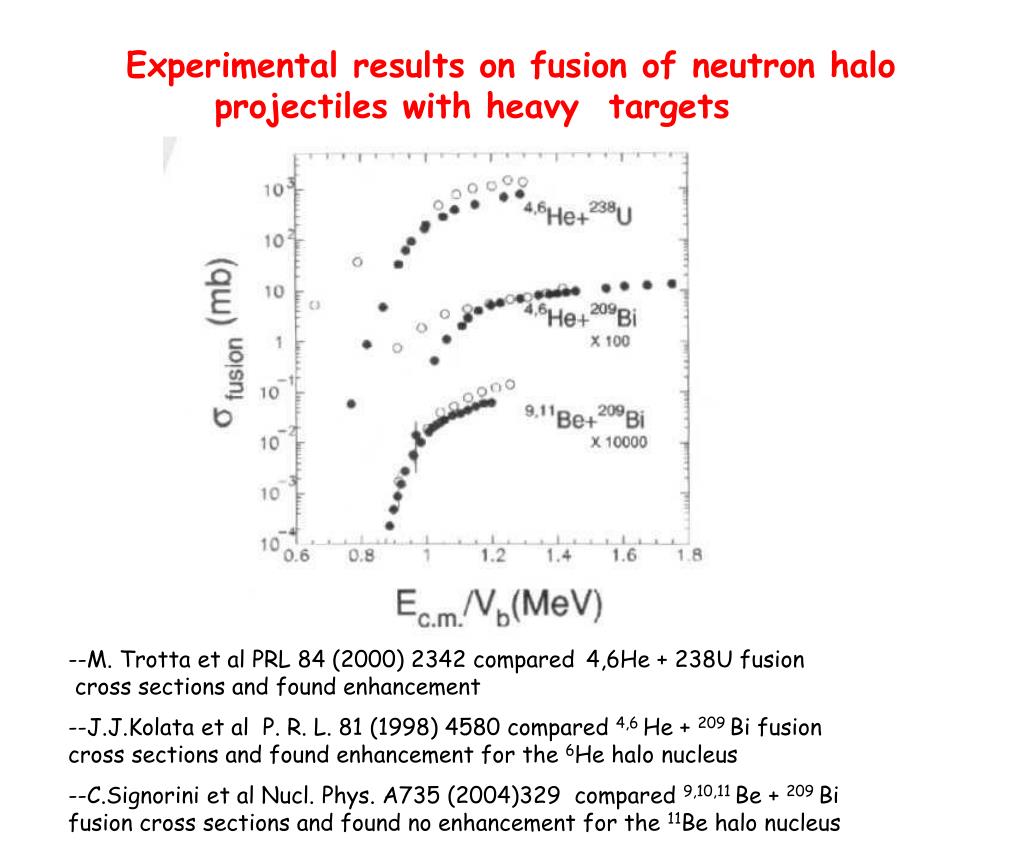

  18. Experimental results on fusion of neutron halo projectiles with heavy targets --M. Trotta et al PRL 84 (2000) 2342 compared 4,6He + 238U fusion cross sections and found enhancement --J.J.Kolata et al P. R. L. 81 (1998) 4580 compared 4,6 He + 209 Bi fusion cross sections and found enhancement for the 6He halo nucleus --C.Signorini et al Nucl. Phys. A735 (2004)329 compared 9,10,11 Be + 209 Bi fusion cross sections and found no enhancement for the 11Be halo nucleus

  19. 6He + 238U experiment in Louvain-la Neuve Fission as signature • Experiments in Louvain-la-NeuveBeam intensity of 6He 106 – 107 pps • 238U target 500 μg/cm2 • Detection of back-to-back fission fragments in an array of Si detectors (angular coverageabout 70% of 4π) • Fission induced by transfer or inelasticexcitation channels: a quasi-projectile particleis detected in coincidence

  20. 6He + 238U in Louvain-la-Neuve Transfer and fusion 2 fission fragments and a 3rd particle in coincidence. Angular distribution and energy spectrum indicates the direct transfer of 2n. 238U(6He,4He)240U Q (transferencia) = +9.76 MeV E*(240U) >20MeV  fissão DWBA calculation with FRESCO including the continuum

  21. No enhancementof the fusion cross section R. Raabe et al, Nature, 431 (2004) 823

  22. Conclusions • The additional degrees of freedom in the halo nuclei 6He and 11Be enhance the break-up and reaction cross section on heavy and medium mass targets at energies around and below the potential barrier. • The results on Fusion are still controversial: The additional degrees of freedom in the halo nuclei do not enhance the fusion cross section for 6He + 238U and 11Be + 209Bi , while the 6He + 209Bi seems to exhibit some enhancement at energies around and below the potential barrier.

  23. Outlook : more experimental data on fusion and break-up of halo nuclei is needed theory has to take into account Coulomb and nuclear interaction, Borromean nature (3-4 body problem),coupling to and into the continuum RIBRAS (Radioactive Ion Beams Brasil) installed in the Pelletron Laboratory of IF - USP allows the study of this kind of experiments
