Numerical Analysis – Linear Equations(II)

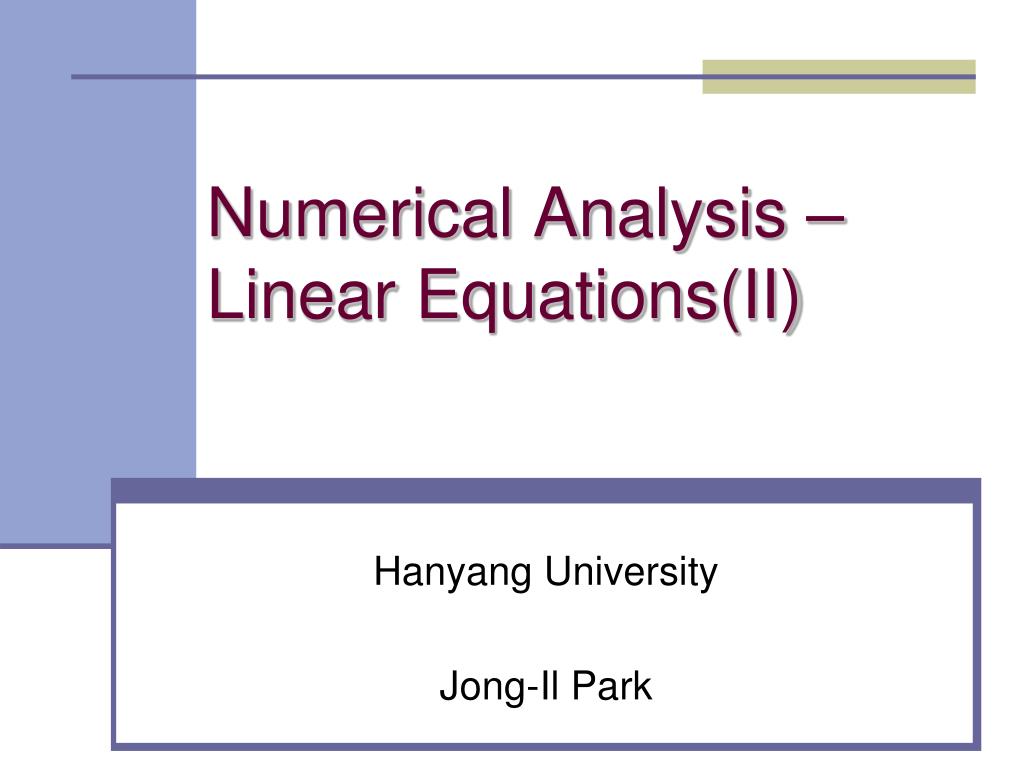

1. Numerical Analysis – Linear Equations(II) Hanyang University Jong-Il Park

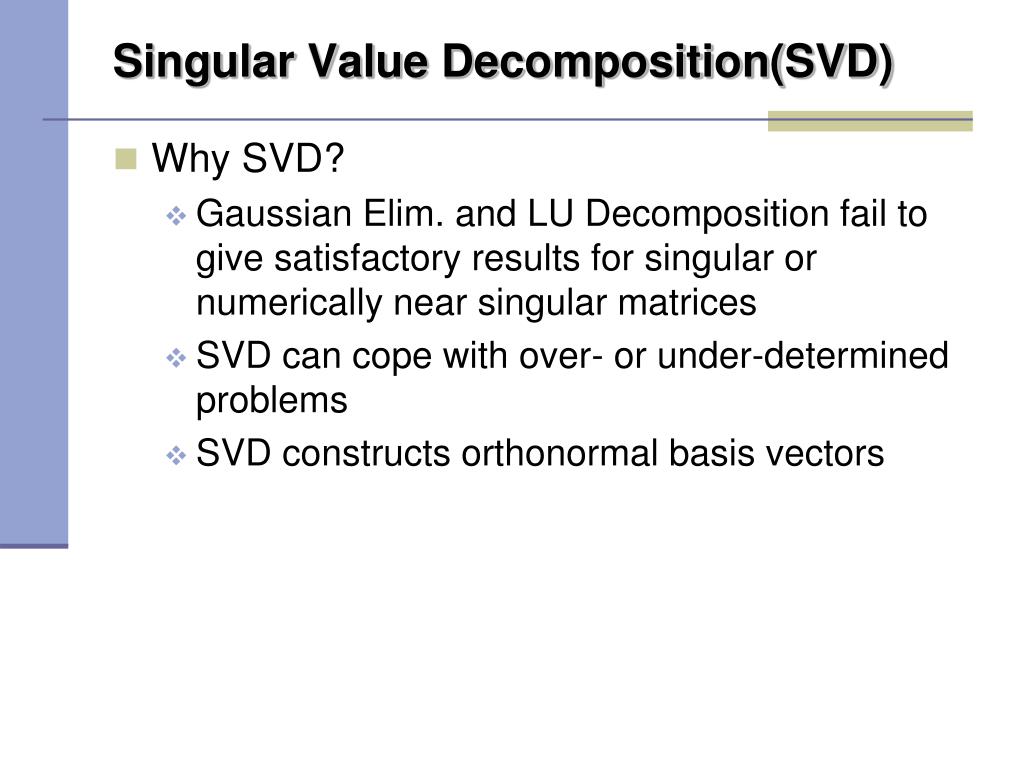

2. Singular Value Decomposition(SVD) • Why SVD? • Gaussian Elim. and LU Decomposition fail to give satisfactory results for singular or numerically near singular matrices • SVD can cope with over- or under-determined problems • SVD constructs orthonormal basis vectors

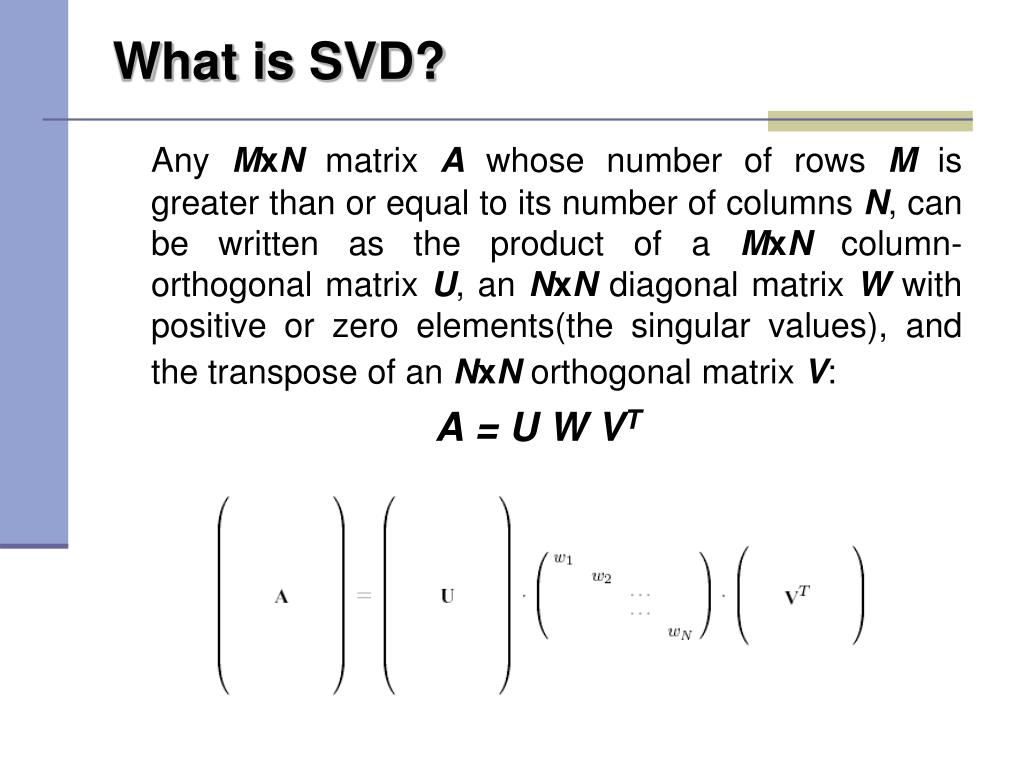

3. What is SVD? Any MxN matrix A whose number of rows M is greater than or equal to its number of columns N, can be written as the product of a MxN column-orthogonal matrix U, an NxN diagonal matrix W with positive or zero elements(the singular values), and the transpose of an NxN orthogonal matrix V: A = U W VT

4. Properties of SVD • Orthonormality • UTU=I=> U-1=UT • VTV=I=> V-1=VT • Uniqueness • The decomposition can always be done, no matter how singular the matrix is, and it is almost unique.

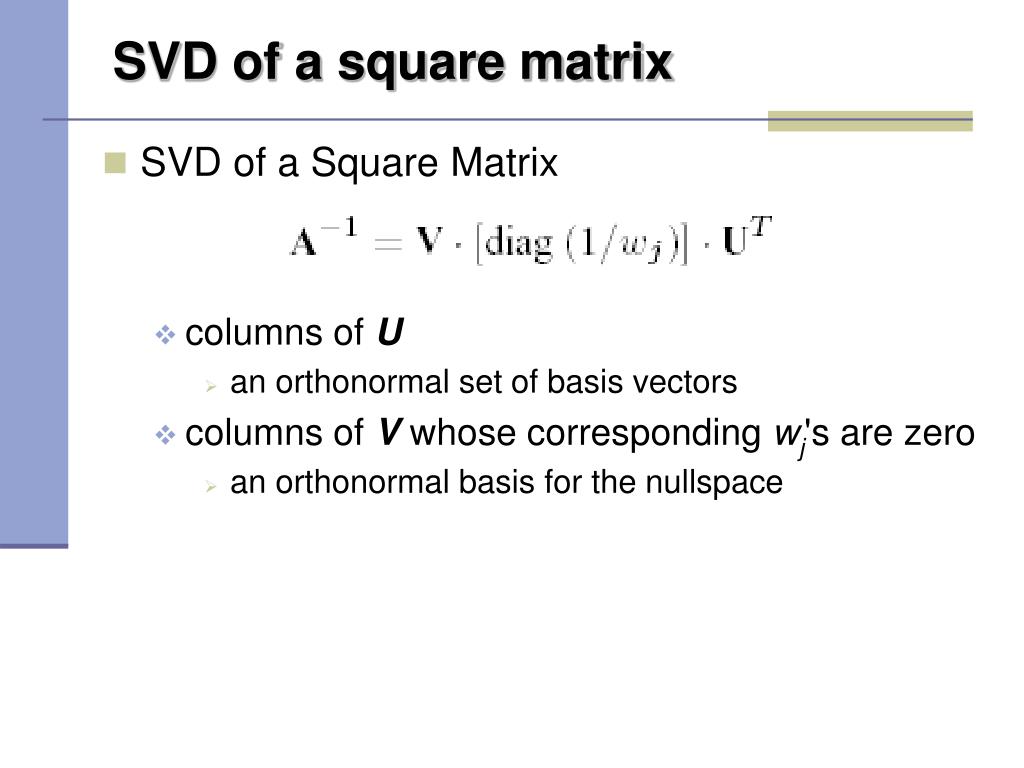

5. SVD of a square matrix • SVD of a Square Matrix • columns of U • an orthonormal set of basis vectors • columns of V whose corresponding wj's are zero • an orthonormal basis for the nullspace

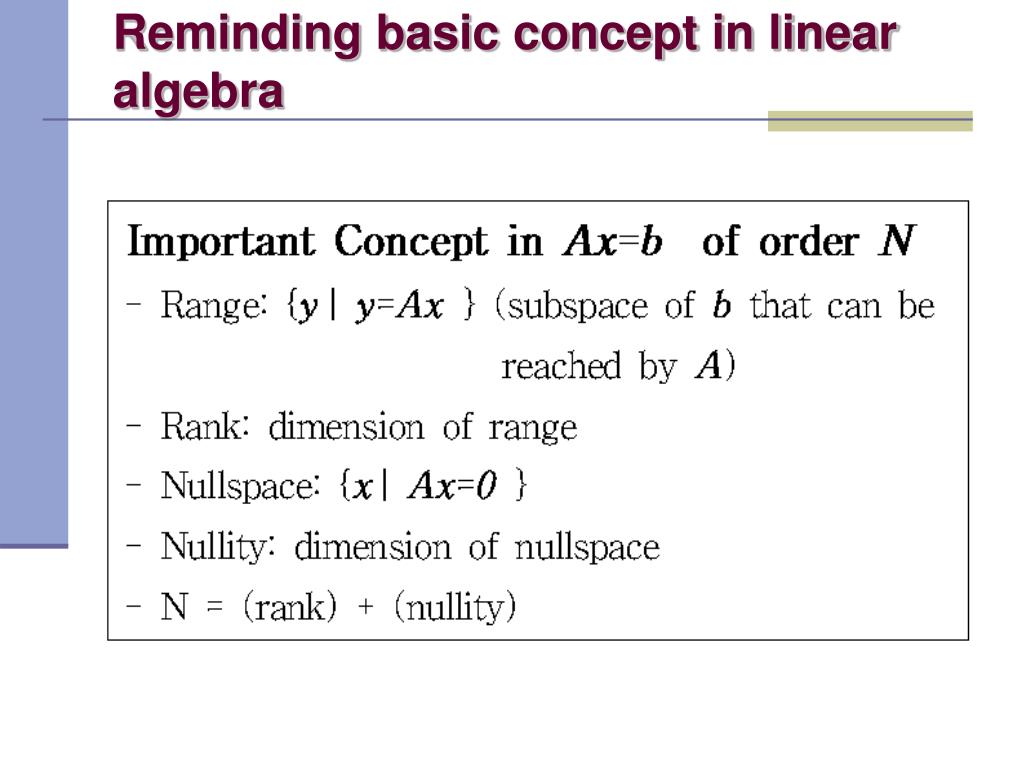

6. Reminding basic concept in linear algebra

7. Homogeneous equation • Homegeneous equations (b=0) + A is singular • Any columns of V whose corresponding wjis zero yields a solution

8. Nonhomogeneous equation • Nonhomegeneous eq. with singular A where we replace 1/wj by zero if wj=0 ※ The solution x obtained by this method is the solution vector of the smallest length. ※ If b is not in the range of A SVD find the solution x in the least-square sense, i.e. x which minimize r = |Ax-b|

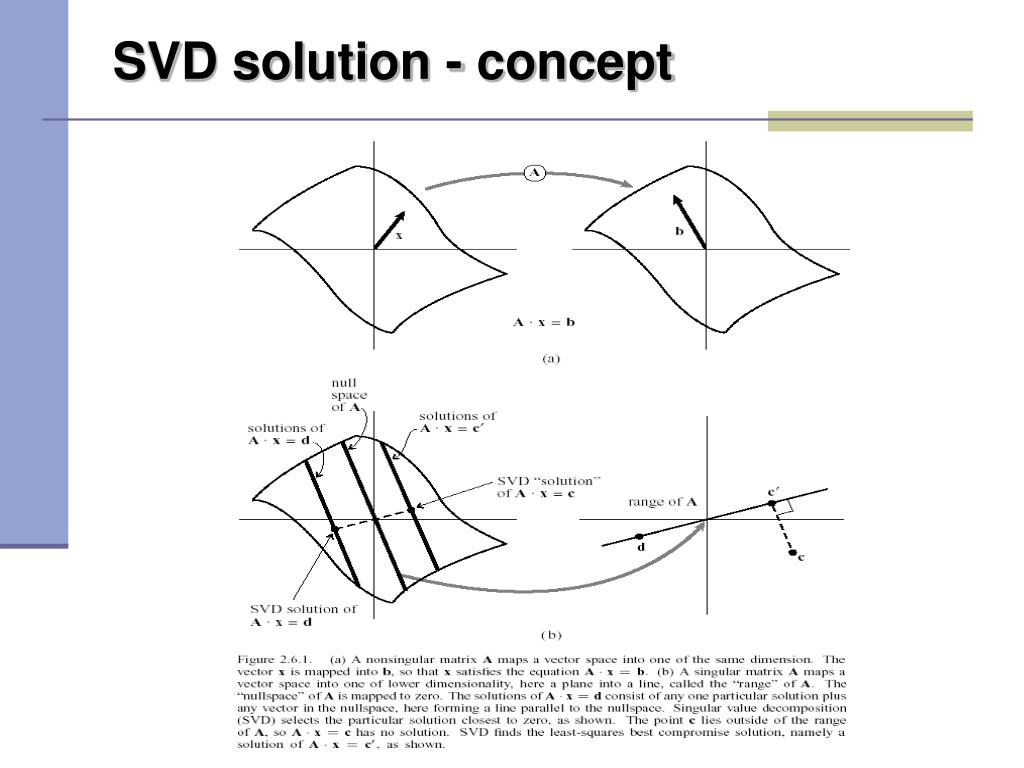

9. SVD solution - concept

10. SVD – under/over-determined problems • SVD for Fewer Equations than Unknowns • SVD for More Equations than Unknowns • SVD yields the least-square solution • In general, non-singular

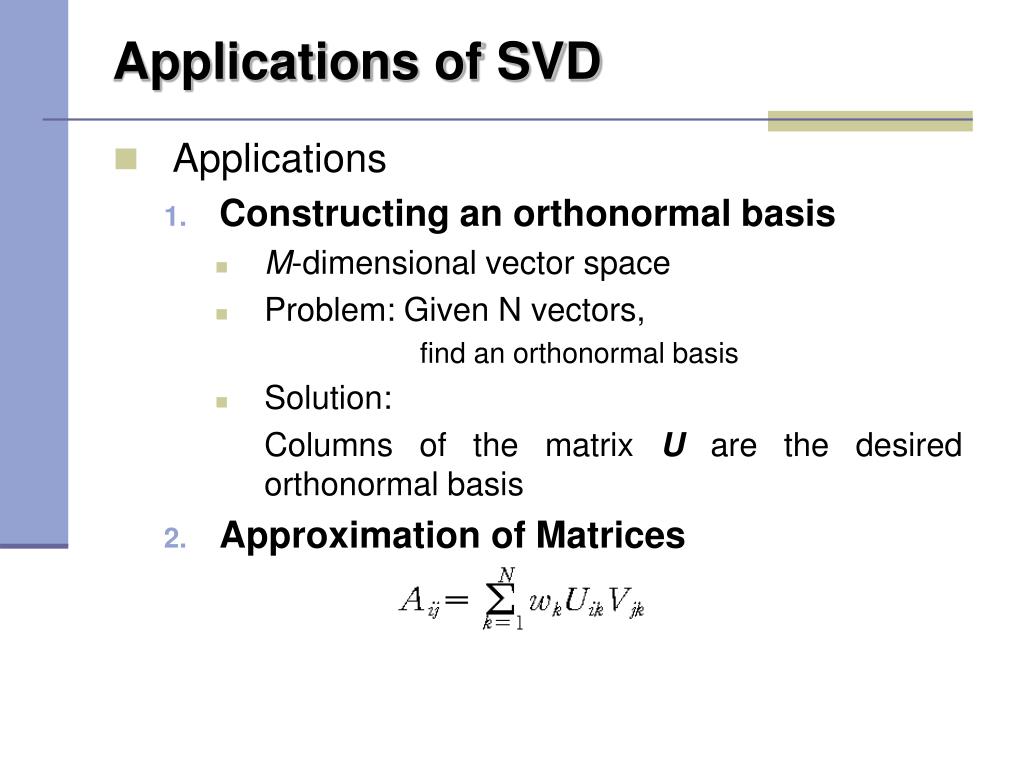

11. Applications of SVD • Applications • Constructing an orthonormal basis • M-dimensional vector space • Problem: Given N vectors, find an orthonormal basis • Solution: Columns of the matrix U are the desired orthonormal basis • Approximation of Matrices

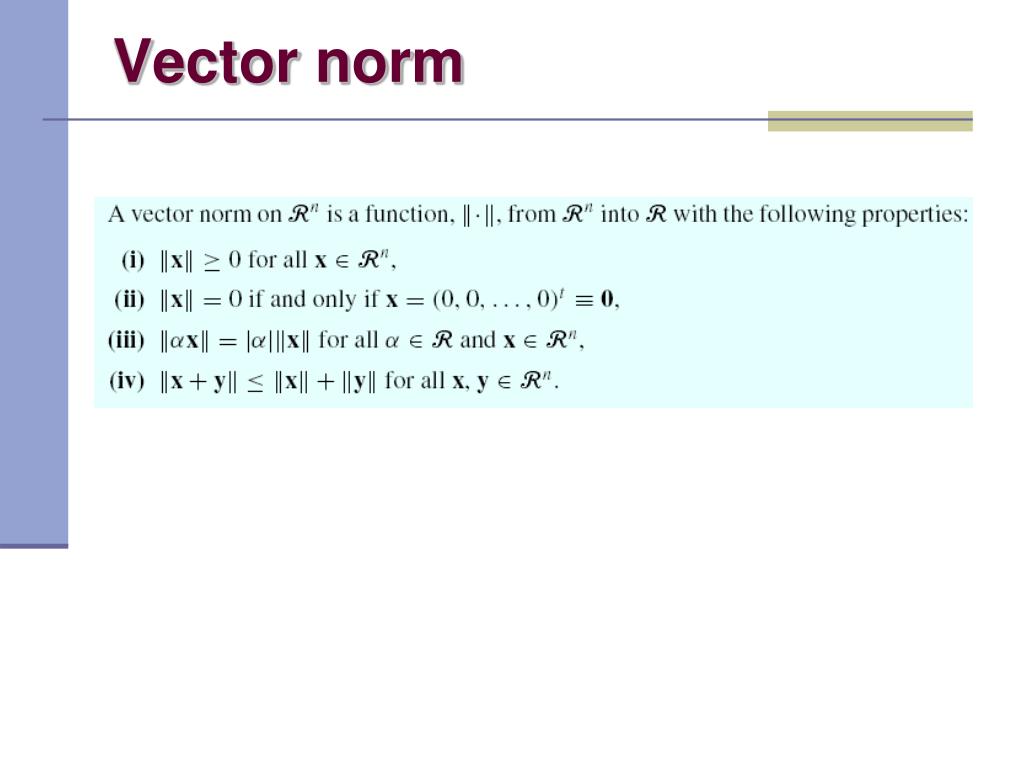

12. Vector norm

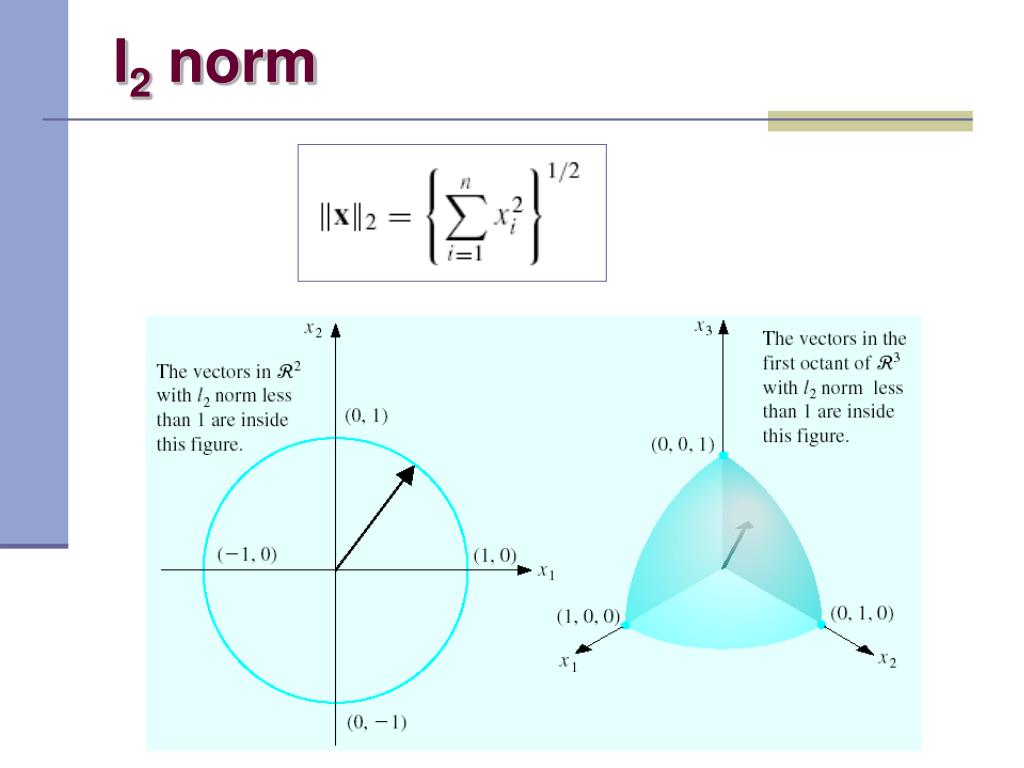

13. l2 norm

14. l norm 8

15. Distance between vectors

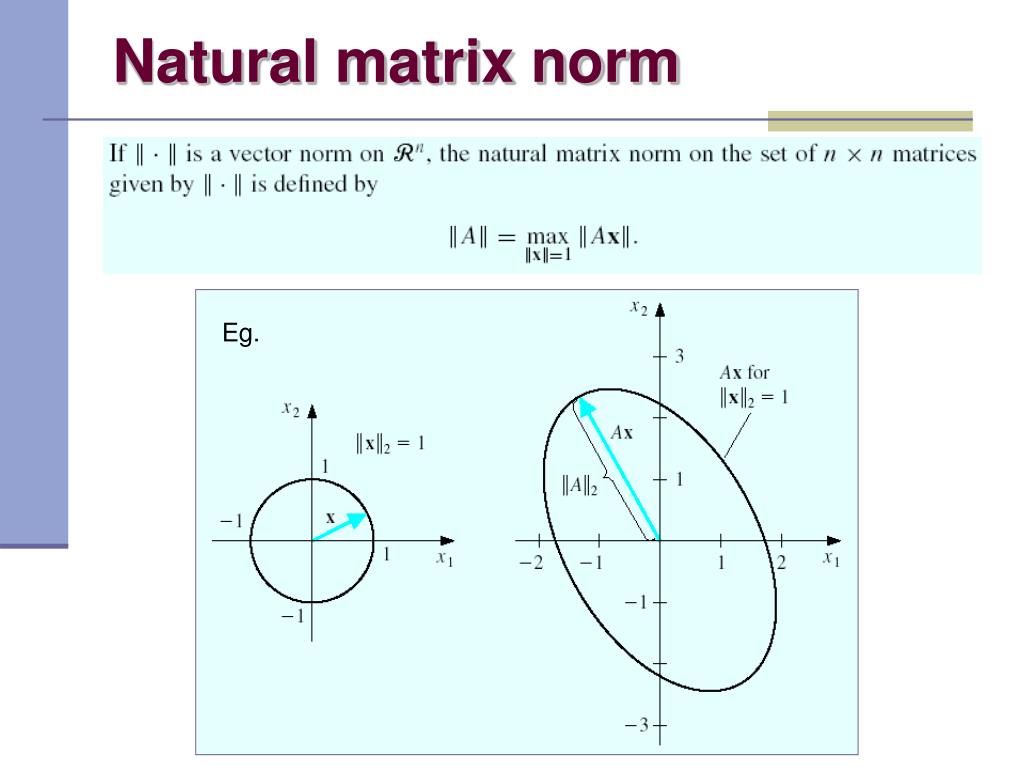

16. Natural matrix norm Eg.

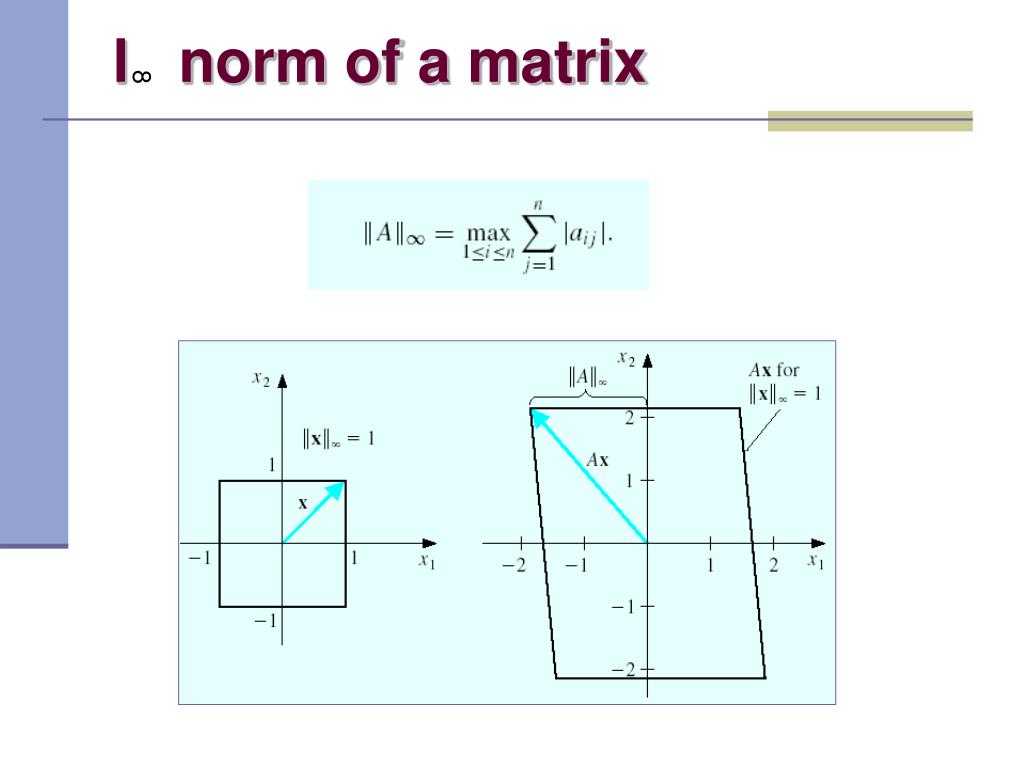

17. l norm of a matrix 8

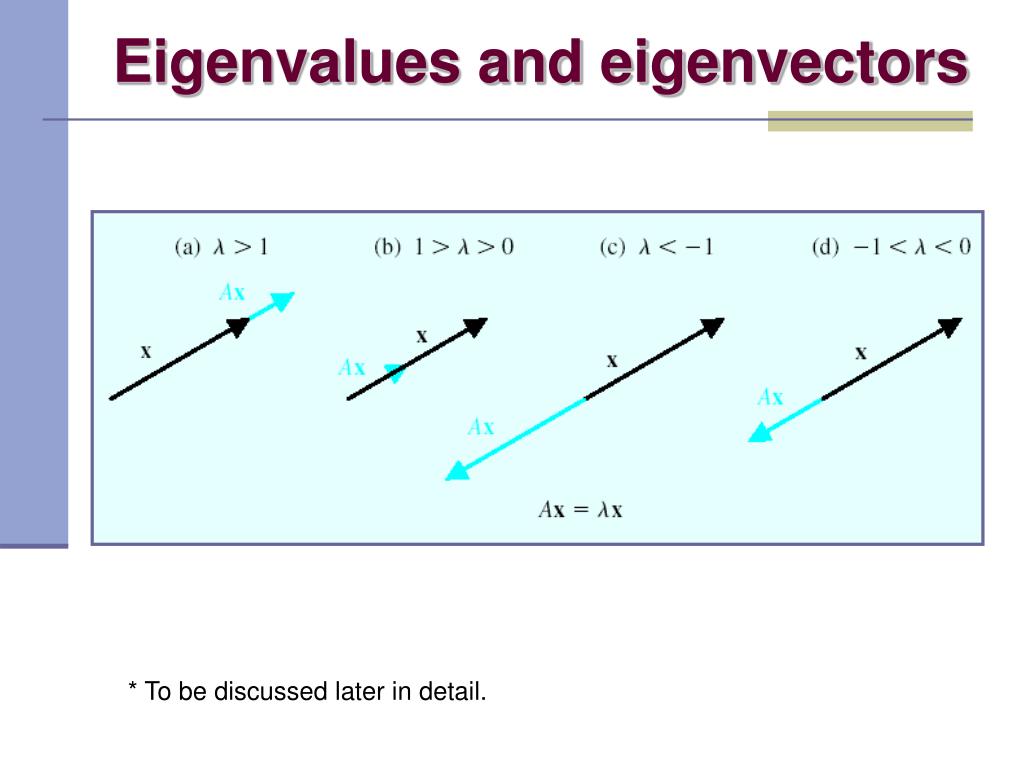

18. Eigenvalues and eigenvectors * To be discussed later in detail.

19. Spectral radius

20. Convergent matrix equivalences

21. Convergence of a sequence • An important connection between the eigen values of the matrix T and the expectation that the iterative method will converge  spectral radius

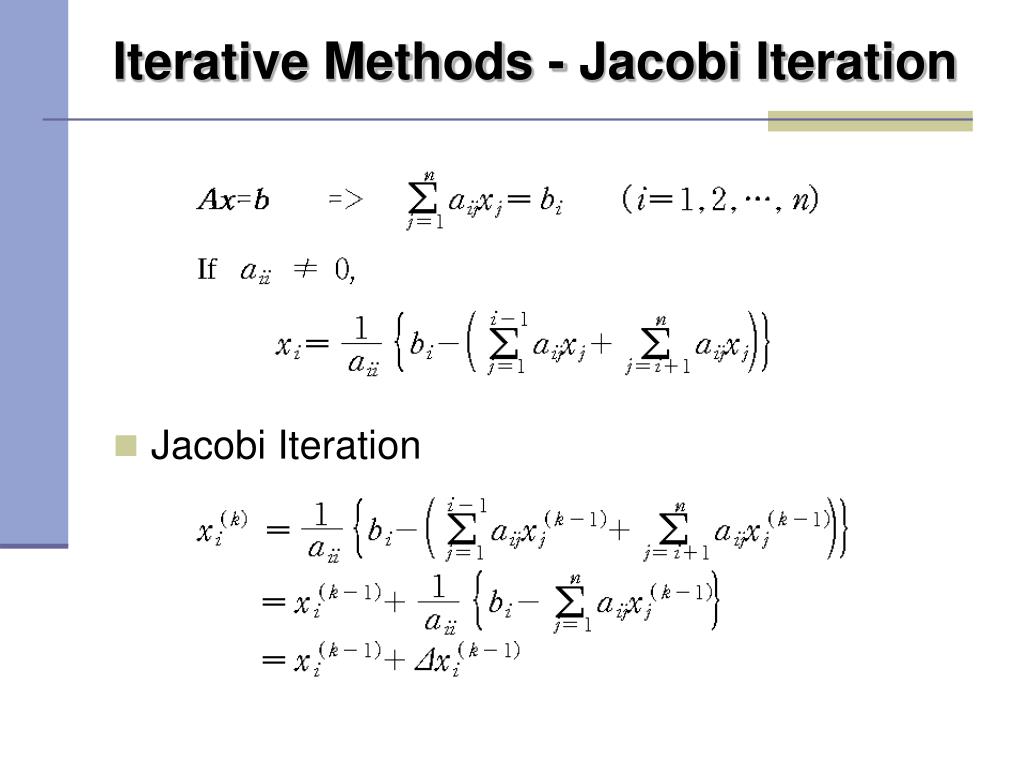

22. Iterative Methods - Jacobi Iteration • Jacobi Iteration

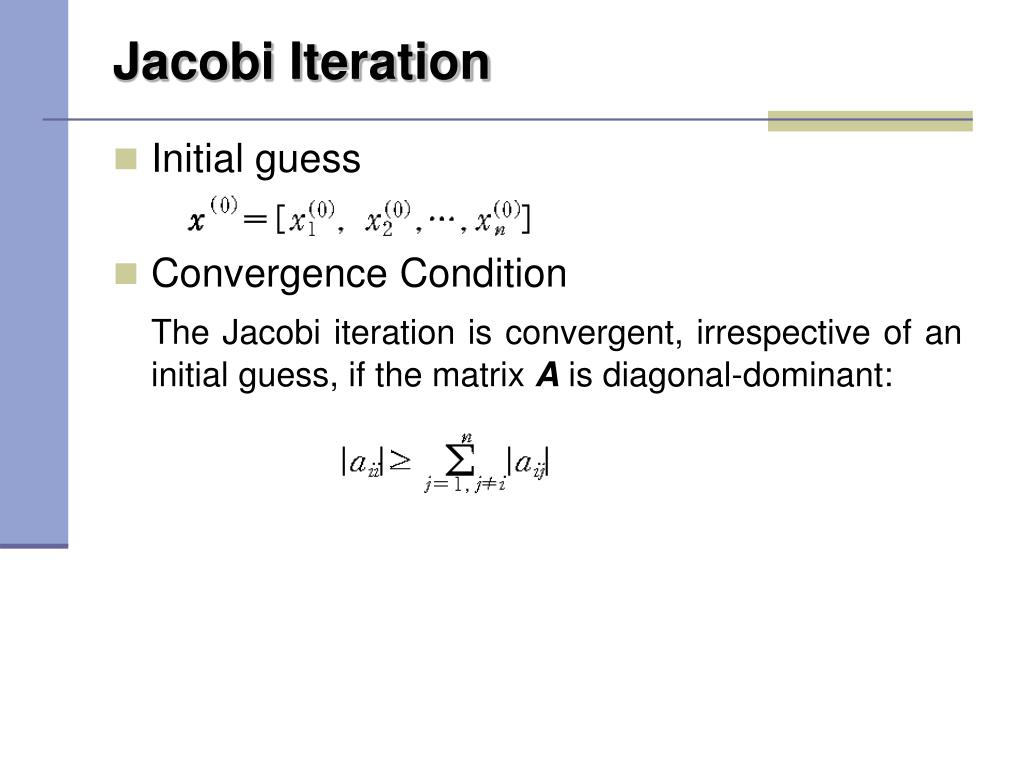

23. Jacobi Iteration • Initial guess • Convergence Condition The Jacobi iteration is convergent, irrespective of an initial guess, if the matrix A is diagonal-dominant:

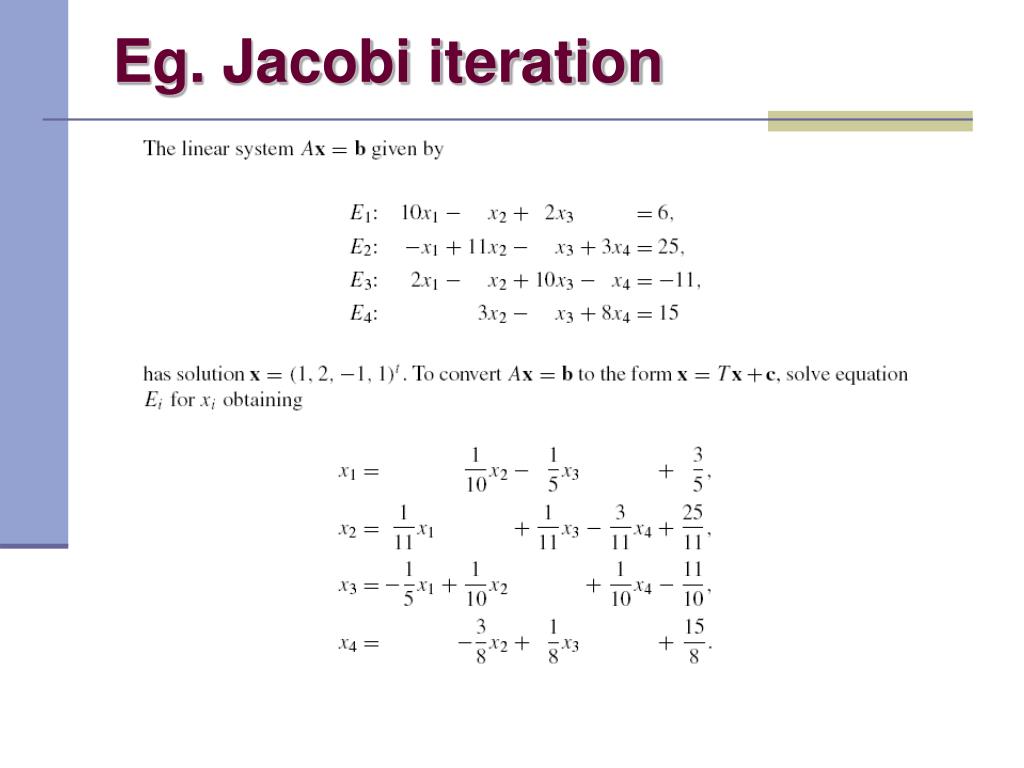

24. Eg. Jacobi iteration

26. Gauss-Seidel Iteration • Idea • Utilize recently updated • Iteration formula • Convergence Condition • The same as the Jacobi iteration • Advantage over Jacobi iteration • Fast convergence

27. Eg. Gauss-Seidel iteration

28. Jacobi vs. Gauss-Seidel • Comparison: Eg. 1 vs. Eg. 2 Eg. 1 Jacobi Faster convergence Eg. 2 Gauss-Seidel

29. Variation of Gauss-Seidel Iteration • Successive Over Relaxation(SOR) • fast convergence • Well-suited for linear problem • Successive Under Relaxation(SUR) • slow convergence • stable • Well-suited for nonlinear problem

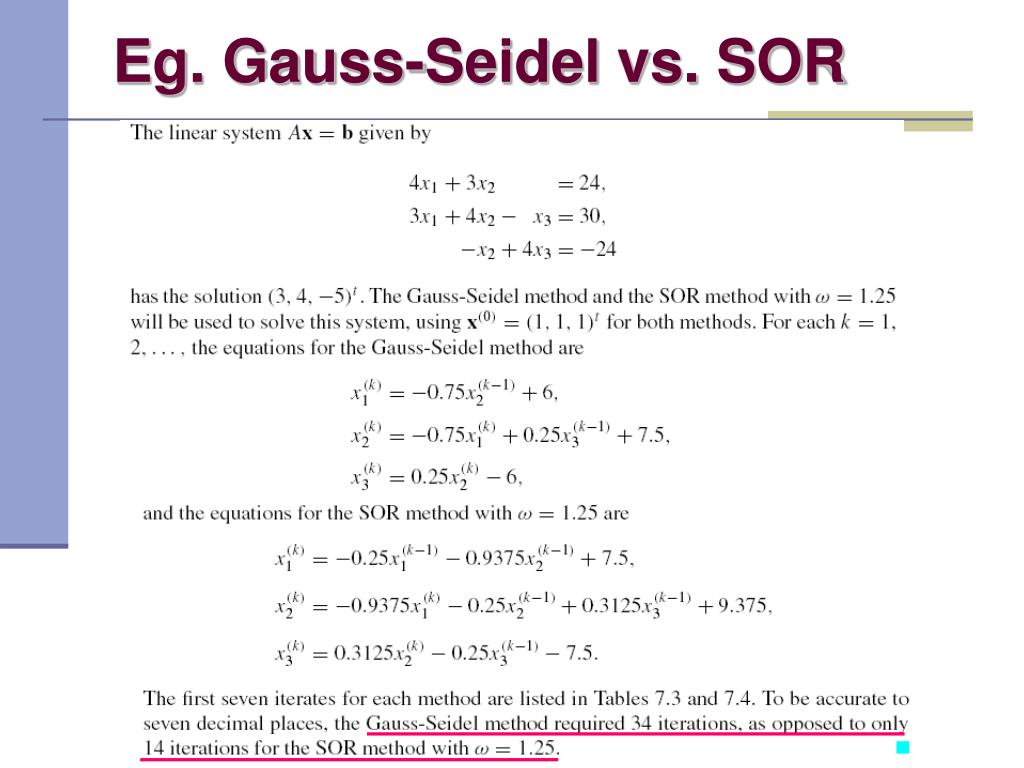

30. Eg. Gauss-Seidel vs. SOR

31. (cont.) Faster convergence

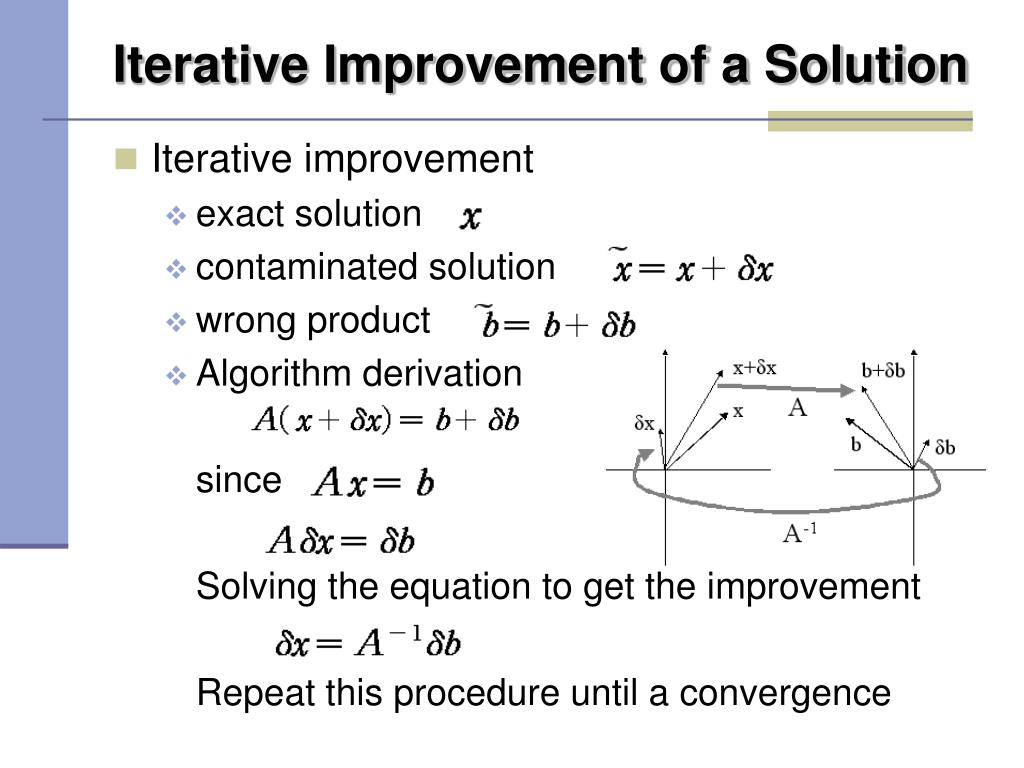

32. Iterative Improvement of a Solution • Iterative improvement • exact solution • contaminated solution • wrong product • Algorithm derivation since Solving the equation to get the improvement Repeat this procedure until a convergence

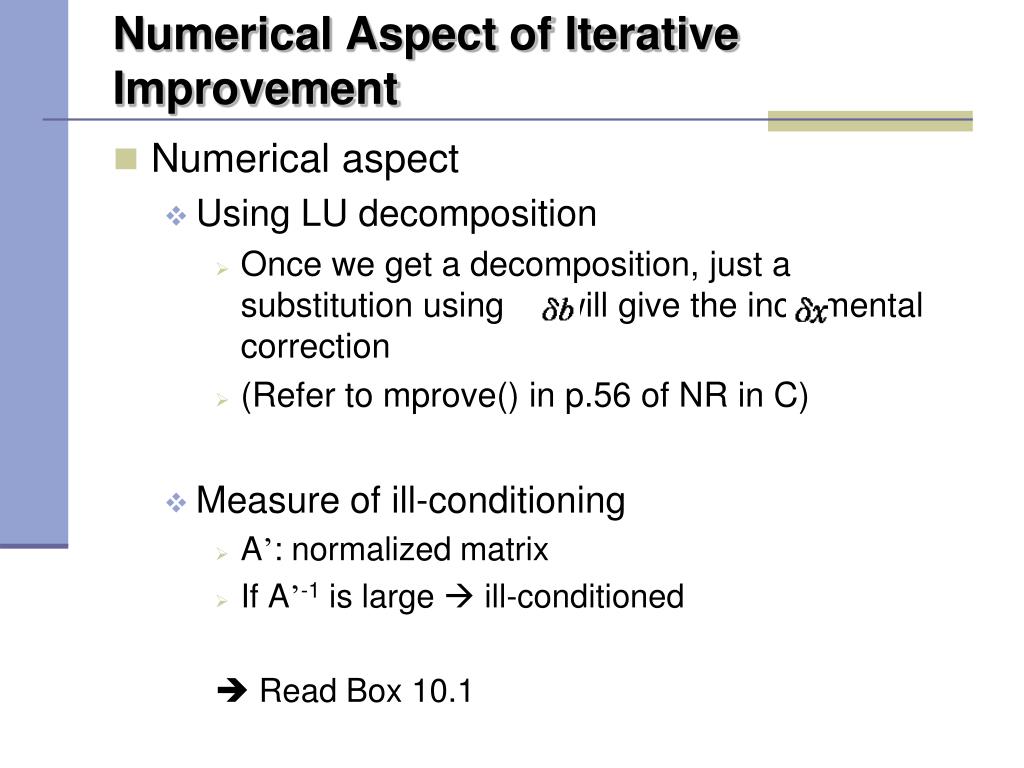

33. Numerical Aspect of Iterative Improvement • Numerical aspect • Using LU decomposition • Once we get a decomposition, just a substitution using will give the incremental correction • (Refer to mprove() in p.56 of NR in C) • Measure of ill-conditioning • A’: normalized matrix • If A’-1 is large  ill-conditioned  Read Box 10.1

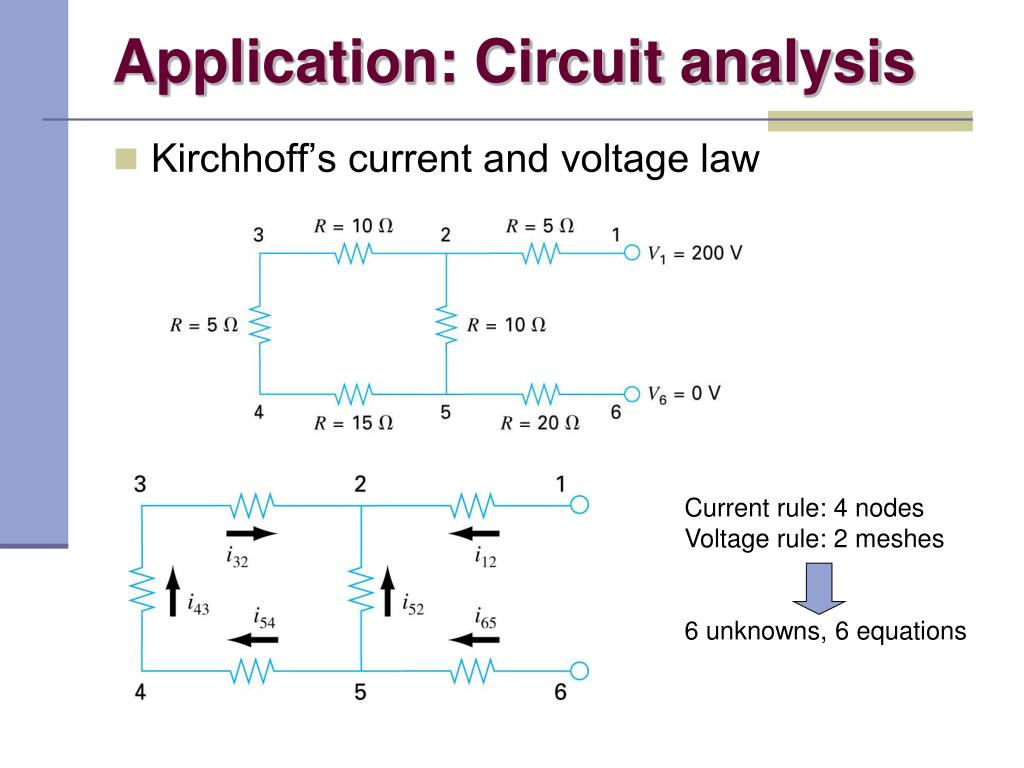

34. Application: Circuit analysis • Kirchhoff’s current and voltage law Current rule: 4 nodes Voltage rule: 2 meshes 6 unknowns, 6 equations
