  1. The Crossfire Attack Min Suk Kang, Soo Bum Lee, Virgil D. Gligor ECE Department and CyLab Carnegie Mellon University 2013 IEEE Symposium on Security and Privacy

  2. Outline • INTRODUCTION • THE CROSSFIREATTACK • ATTACKPERSISTENCEANDCOST • EXPERIMENTSETUPANDRESULTS • RELATEDWORK CONCLUSION

  3. Outline • INTRODUCTION • THE CROSSFIREATTACK • ATTACKPERSISTENCEANDCOST • EXPERIMENTSETUPANDRESULTS • RELATEDWORK • CONCLUSION

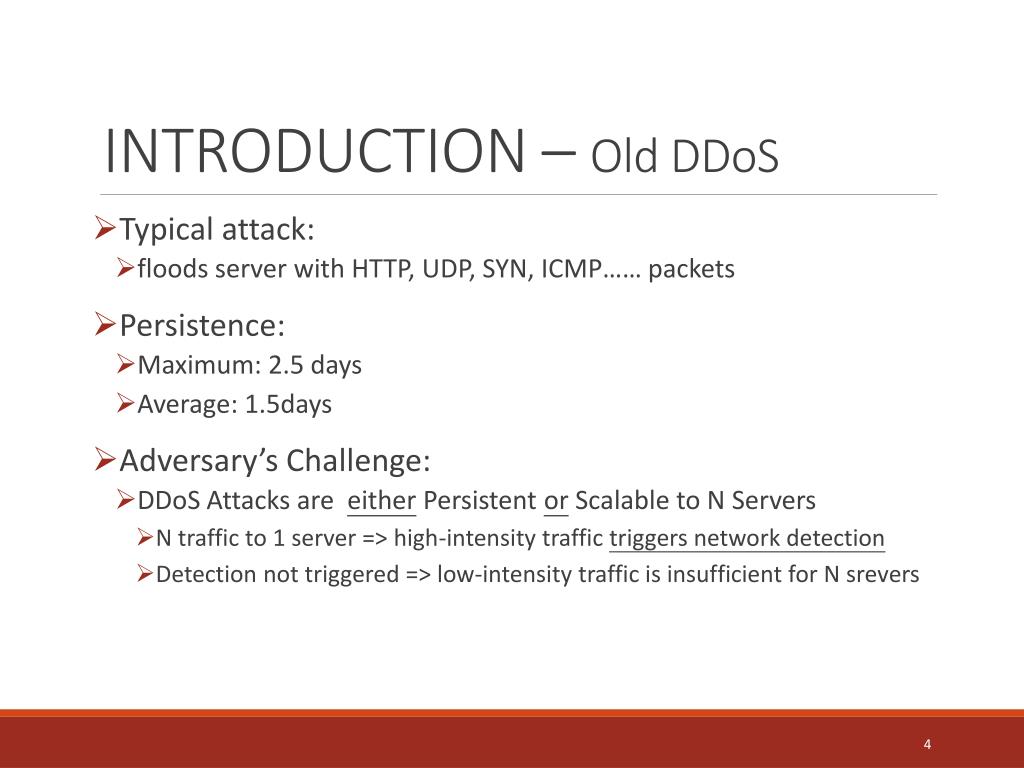

  4. INTRODUCTION–Old DDoS • Typical attack: • floods server with HTTP, UDP, SYN, ICMP…… packets • Persistence: • Maximum: 2.5 days • Average: 1.5days • Adversary’s Challenge: • DDoS Attacks are either Persistent or Scalable to N Servers • N traffic to 1 server => high-intensity traffic triggers network detection • Detection not triggered => low-intensity traffic is insufficient for N srevers

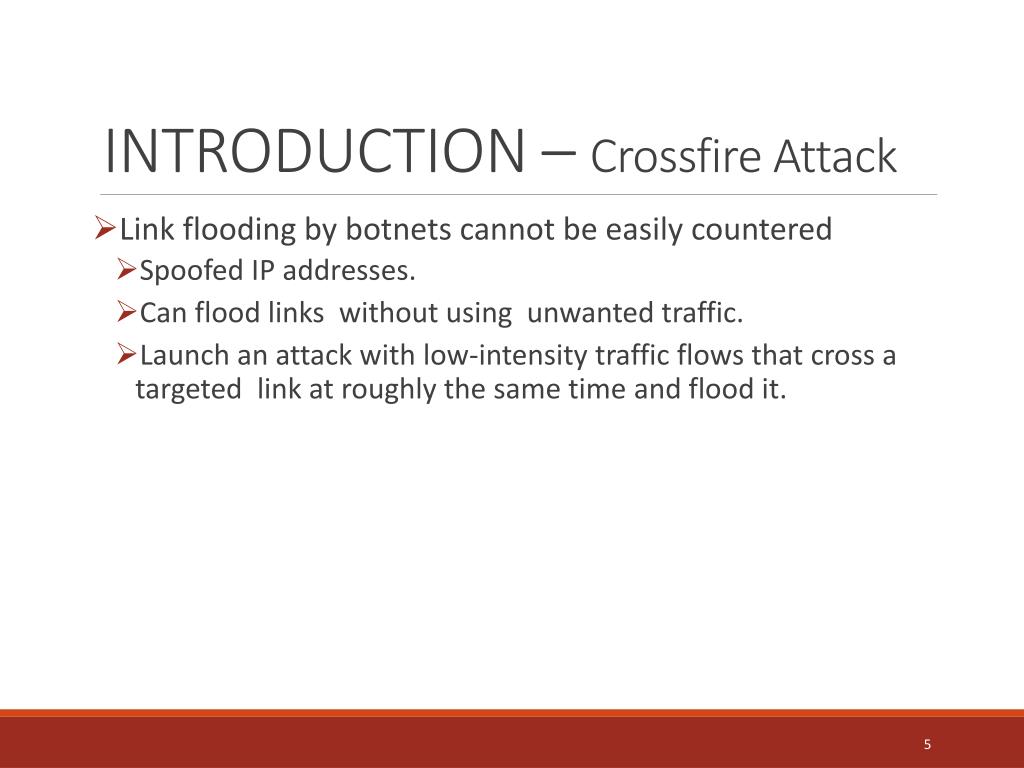

  5. INTRODUCTION – Crossfire Attack • Link flooding by botnets cannot be easily countered • Spoofed IP addresses. • Can flood links without using unwanted traffic. • Launch an attack with low-intensity traffic flows that cross a targeted link at roughly the same time and flood it.

  6. INTRODUCTION – Crossfire Attack • A link-flooding attack that degrades/cuts off network connections of scalable N-server area persistently. • Scalable N-Server areas • N = small(e.g., 1-1000 servers), medium(e.g., all servers in a US state), large(e.g., the West Coast of the US) • Persistent: • Attack traffic is indistinguishable from legitimate • Low-rate, changing sets of flows • Attack is “ moving target ” for same N-server area • Changing target links before triggering alarms

  7. INTRODUCTION – Definitions

  8. INTRODUCTION – 1 link crossfire • Attack flows => Indistinguishable from legitimate

  9. INTRODUCTION – 1 link crossfire • Attack flows => Alarms not triggered link-failure detection latency, Interior Gateway Protocol(IGP) routers (OSPF) Default waiting time: 40sec, Failure detection: 217 sec Exterior Gateway Protocol(EGP) routers(BGP) Default waiting time: 180sec, Failure detection : 1,076 sec

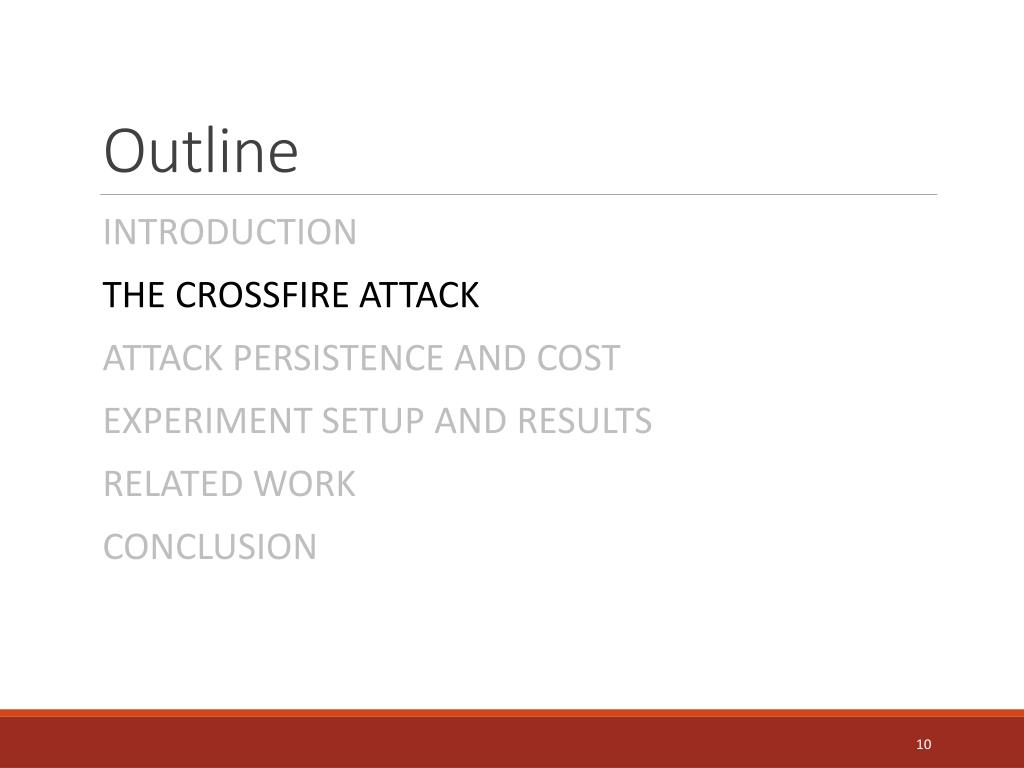

  10. Outline • INTRODUCTION • THE CROSSFIREATTACK • ATTACKPERSISTENCEANDCOST • EXPERIMENTSETUPANDRESULTS • RELATEDWORK • CONCLUSION

  11. THE CROSSFIREATTACK

  12. THE CROSSFIREATTACK • Public servers : • To construct an attack topology centered at target area • Decoy servers: • To create attack flow

  13. ATTACK - Step 1 : Link Map Construction ( 72% ) (1) Traceroute ( B->S ) (2) Link-Persistence

  14. ATTACK - Step 2 : Attack setup DR: Degradation Ratio (1) Flow-Density Computation (2) Target-Link Selection

  15. ATTACK - Step 3 : Bot Coordination (1) Attack-Flow Assignment (2) Target-Link Flooding

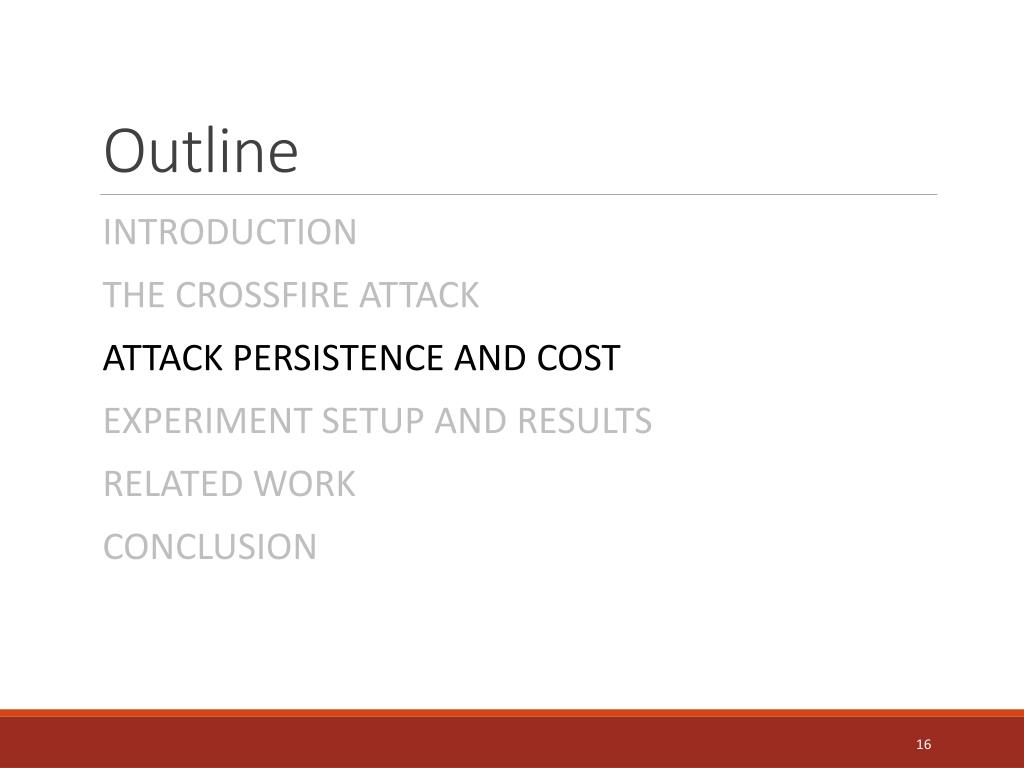

  16. Outline • INTRODUCTION • THE CROSSFIREATTACK • ATTACKPERSISTENCEANDCOST • EXPERIMENTSETUPANDRESULTS • RELATEDWORK • CONCLUSION

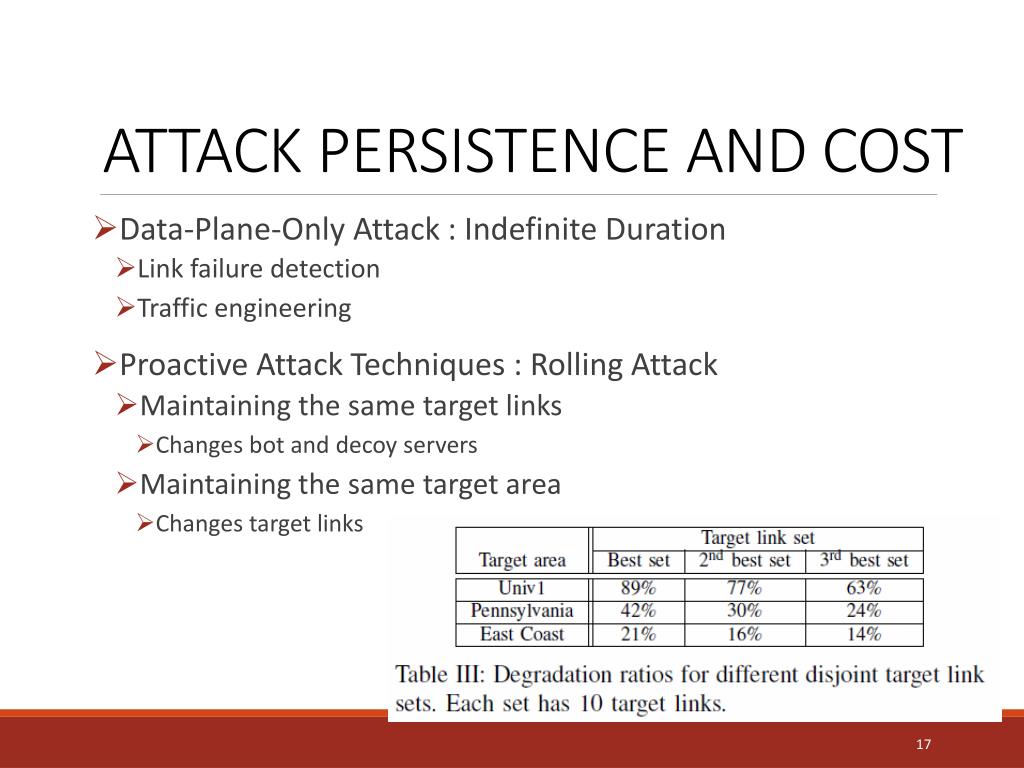

  17. ATTACKPERSISTENCEANDCOST • Data-Plane-Only Attack : Indefinite Duration • Link failure detection • Traffic engineering • Proactive Attack Techniques : Rolling Attack • Maintaining the same target links • Changes bot and decoy servers • Maintaining the same target area • Changes target links

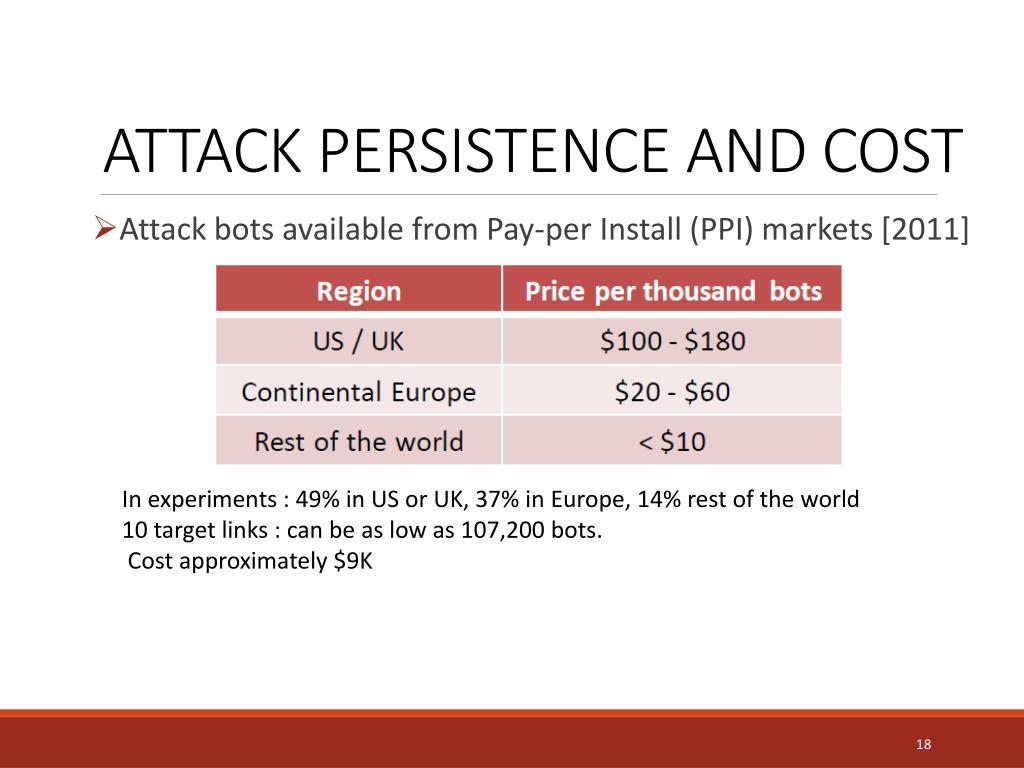

  18. ATTACKPERSISTENCEANDCOST • Attack bots available from Pay-per Install (PPI) markets [2011] In experiments : 49% in US or UK, 37% in Europe, 14% rest of the world 10 target links : can be as low as 107,200 bots. Cost approximately $9K

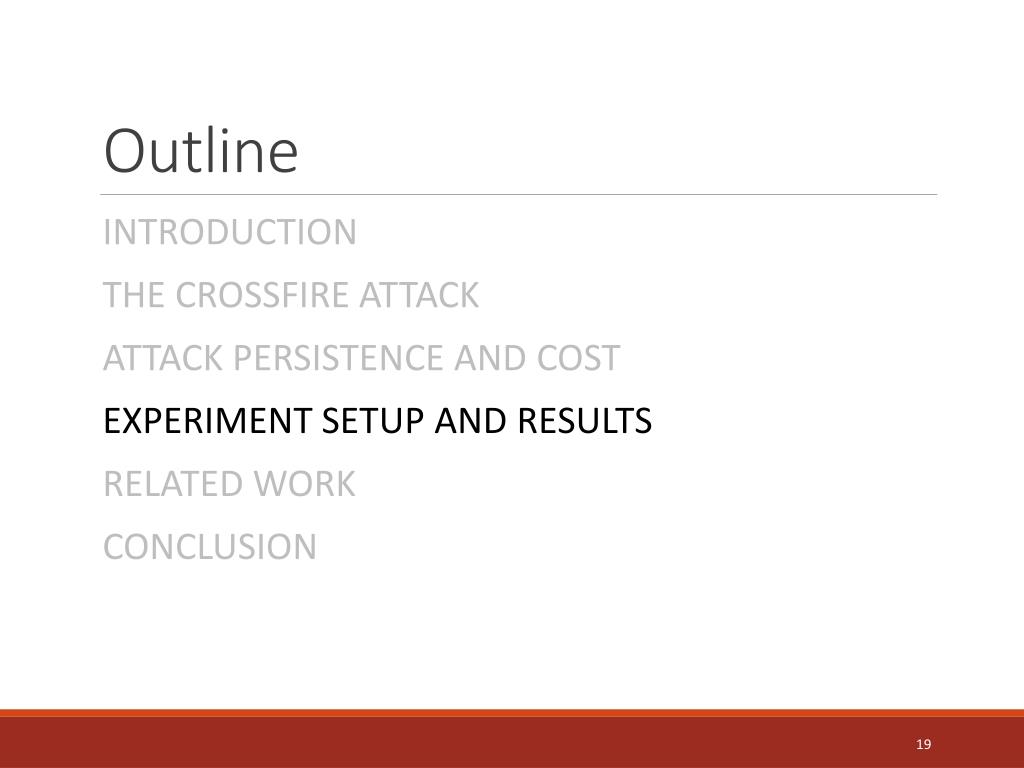

  19. Outline • INTRODUCTION • THE CROSSFIREATTACK • ATTACKPERSISTENCEANDCOST • EXPERIMENTSETUPANDRESULTS • RELATEDWORK • CONCLUSION

  20. EXPERIMENTSETUPANDRESULTS • Bots: • 1,072 traceroute nodes 620 PlanetLab nodes, 452 LG(Looking Glass) servers

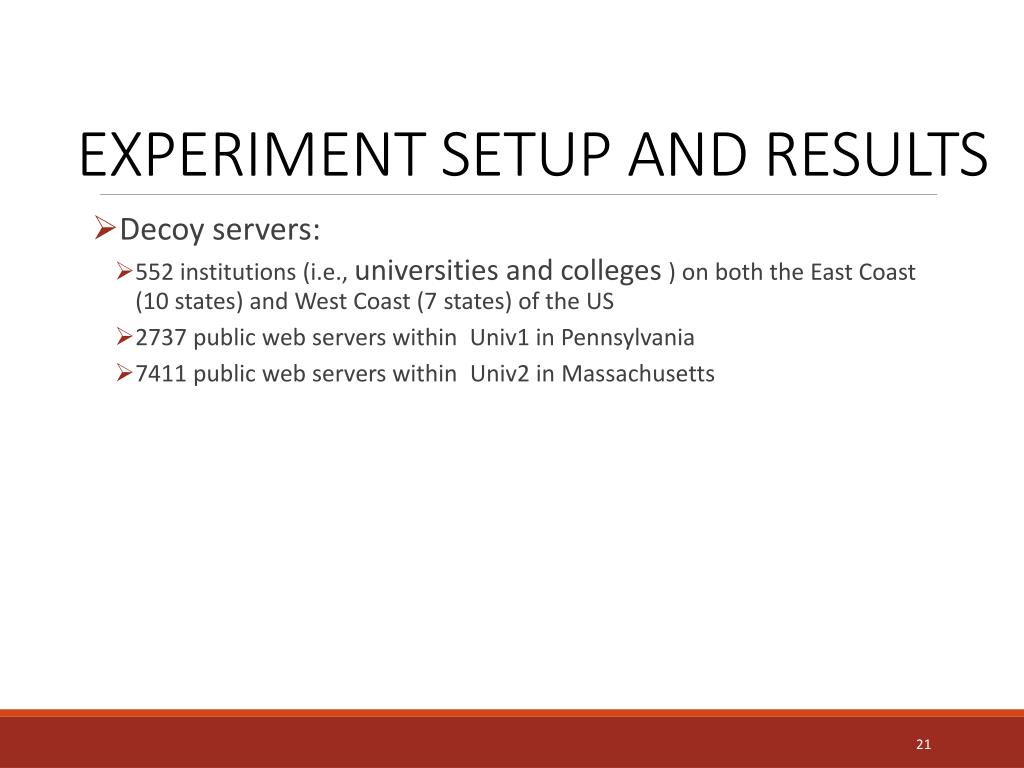

  21. EXPERIMENTSETUPANDRESULTS • Decoy servers: • 552 institutions (i.e., universities and colleges ) on both the East Coast (10 states) and West Coast (7 states) of the US • 2737 public web servers within Univ1 in Pennsylvania • 7411 public web servers within Univ2 in Massachusetts

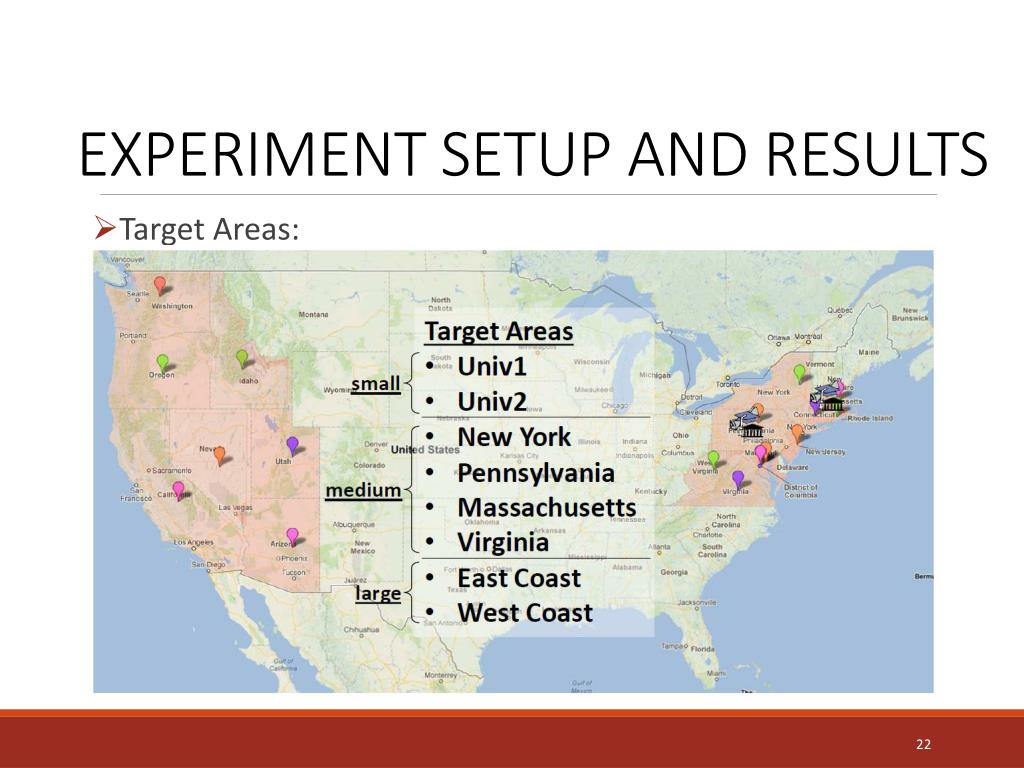

  22. EXPERIMENTSETUPANDRESULTS • Target Areas:

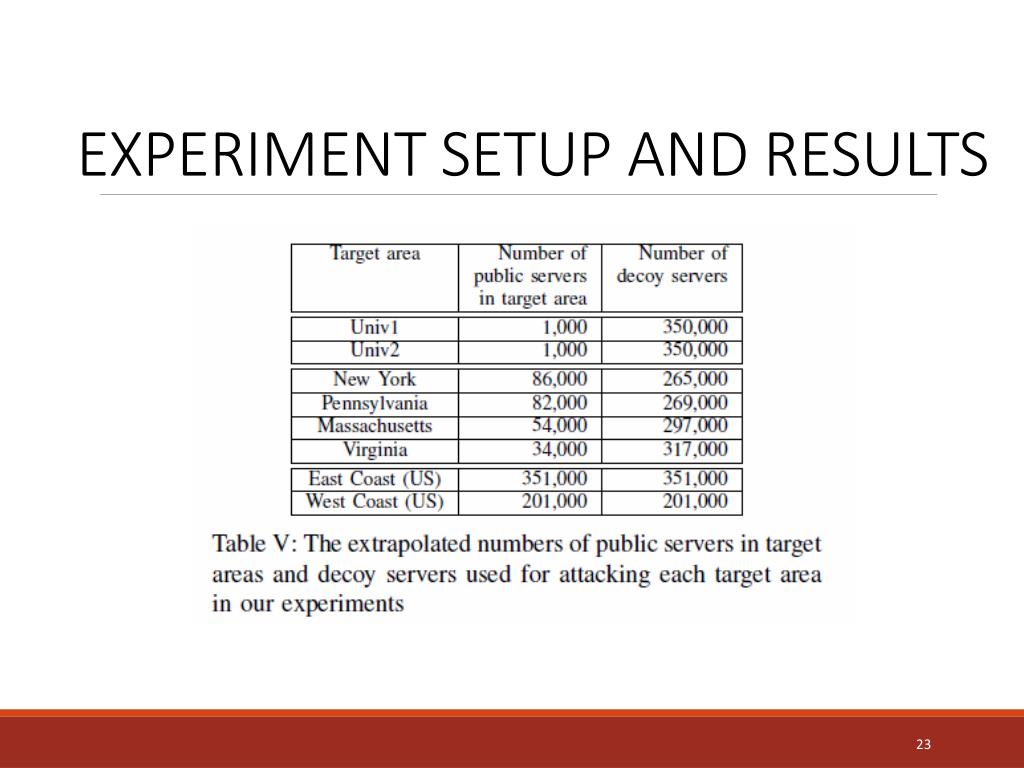

  23. EXPERIMENTSETUPANDRESULTS

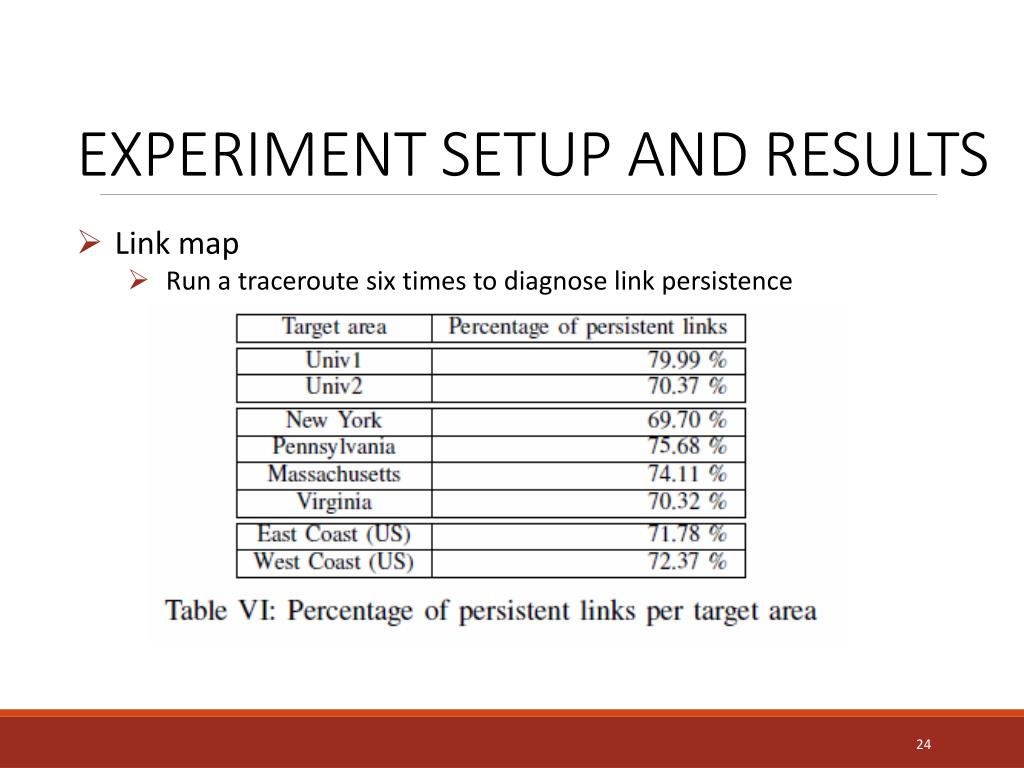

  24. EXPERIMENTSETUPANDRESULTS • Link map • Run a traceroute six times to diagnose link persistence

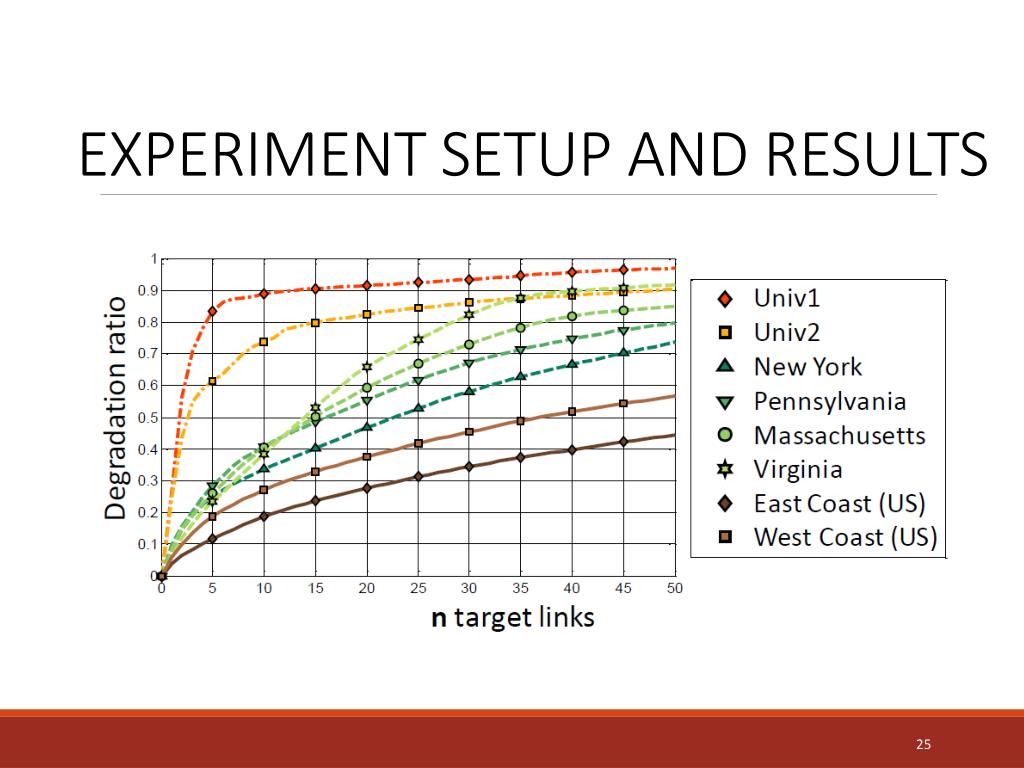

  25. EXPERIMENTSETUPANDRESULTS

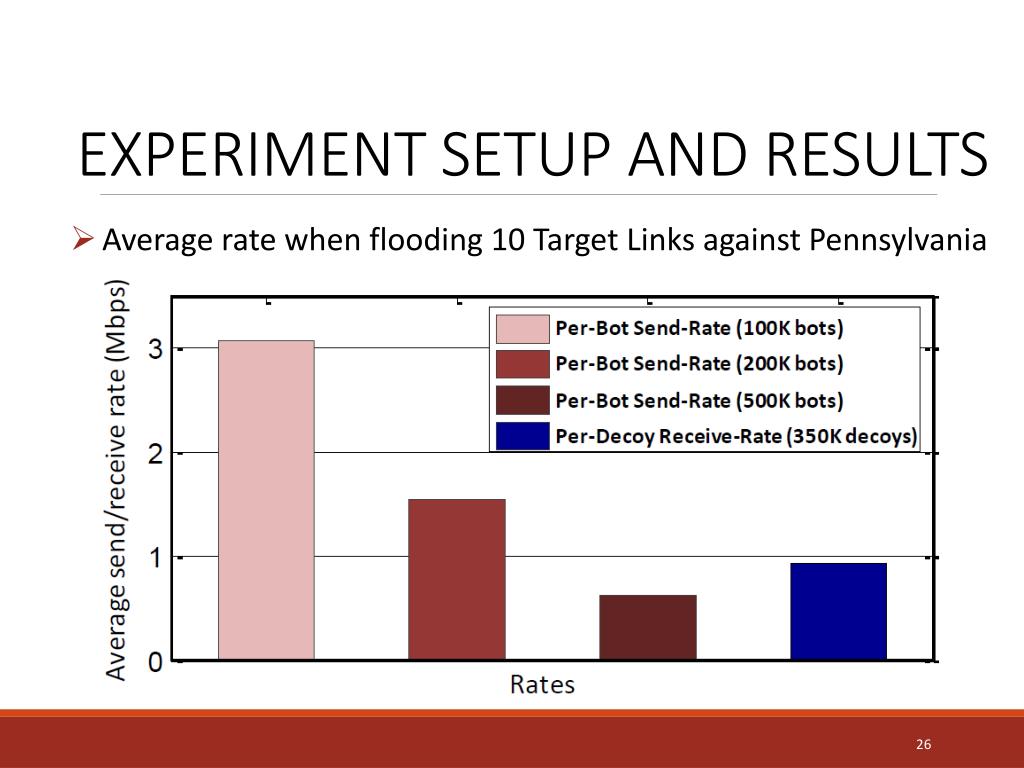

  26. EXPERIMENTSETUPANDRESULTS • Average rate when flooding 10 Target Links against Pennsylvania

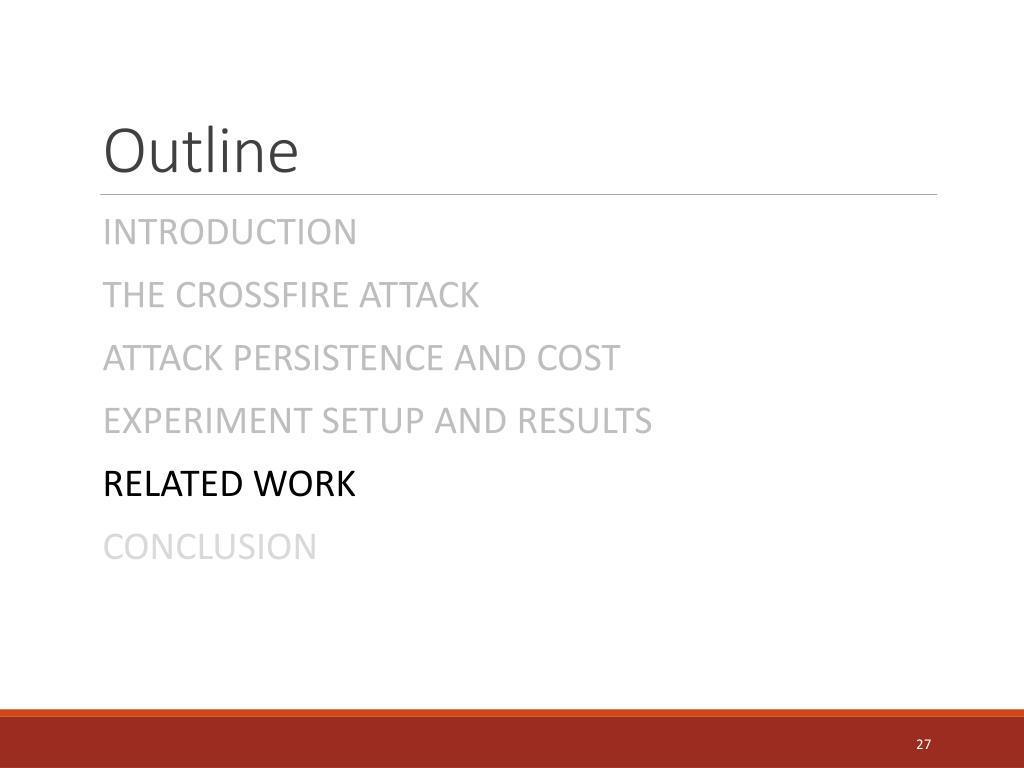

  27. Outline • INTRODUCTION • THE CROSSFIREATTACK • ATTACKPERSISTENCEANDCOST • EXPERIMENTSETUPANDRESULTS • RELATEDWORK • CONCLUSION

  28. The Coremelt Attack

  29. “Spamhaus” Attack

  30. RELATEDWORK

  31. Outline • INTRODUCTION • THE CROSSFIREATTACK • ATTACKPERSISTENCEANDCOST • EXPERIMENTSETUPANDRESULTS • CONCLUSION

  32. CONCLUSION • Attack Characteristics • Undetectability at the Target Area. • Indistinguishability of Flows in Routers • Persistence • Flexibility • New DDoS Attack: The Crossfire Attack • Scalable & Persistent • Internet-scale experiment • Feasibility of the attack • High impact with low cost

  33. Q&A
