  1. Dialogue Structure and Pronoun Resolution Joel Tetreault and James Allen University of Rochester Department of Computer Science DAARC September 23, 2004

  2. WELCOME TO DAARC!!!

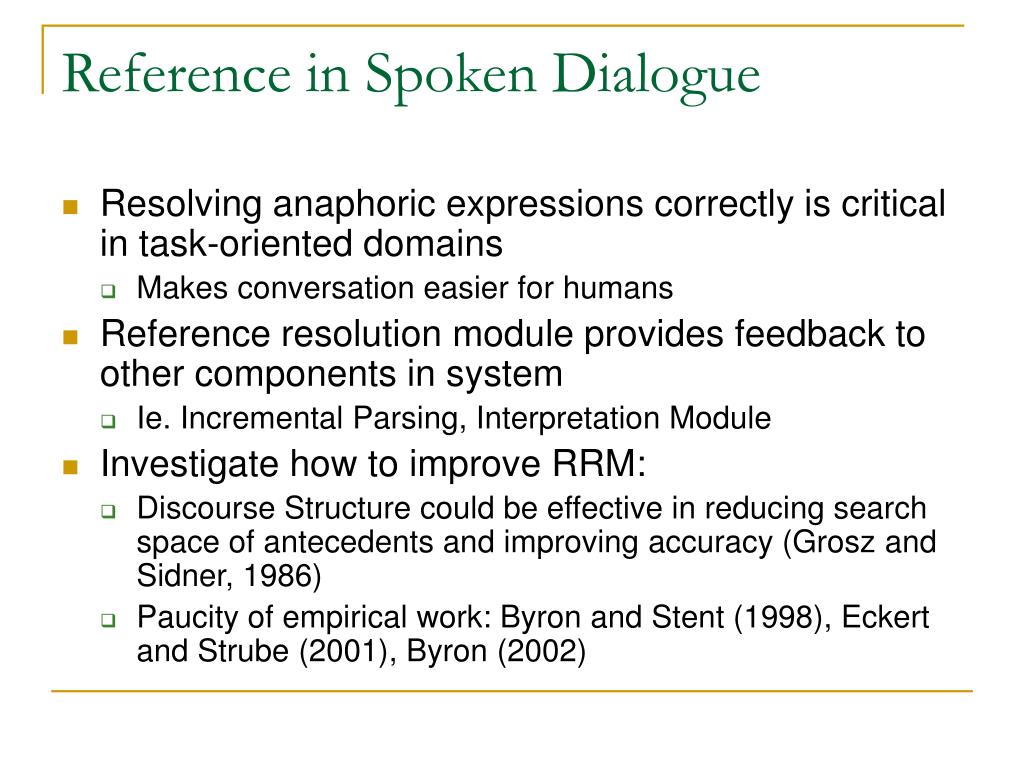

  3. Reference in Spoken Dialogue • Resolving anaphoric expressions correctly is critical in task-oriented domains • Makes conversation easier for humans • Reference resolution module provides feedback to other components in system • Ie. Incremental Parsing, Interpretation Module • Investigate how to improve RRM: • Discourse Structure could be effective in reducing search space of antecedents and improving accuracy (Grosz and Sidner, 1986) • Paucity of empirical work: Byron and Stent (1998), Eckert and Strube (2001), Byron (2002)

  4. Goal • To evaluate whether shallow approaches to dialogue structure can improve a reference resolution algorithm (LRC used as baseline model to augment) • Investigated two models: • Eckert &Strube (manual and automatic versions) • “Literal QUD” model (manual)

  5. Outline • Background • Dialogue Act synchronization (Eckert and Strube model) • QUD (Craige Roberts) • Monroe Corpus • Algorithm • Results • 3rd person pronoun evaluation • Dialogue Structure • Summary

  6. Past approaches in structure and reference • Veins: the nuclei of RST trees are the most salient discourse units, the entities in these units are this more salient than others • Tetreault (2003): Penn Treebank subset annotated with RST. Used G&S approximations to try to improve on LRC baseline. • Result: performed the same as baseline • Veins: decreased performance slightly • Problem: fine-grained approaches (RST) are difficult to annotate reliably and do in real-time. • Perhaps shallow approaches can work?

  7. literal QUD • Questions Under Discussion (Craige Roberts, Jonathan Ginzburg) – “what are we talking about?”: topics create discourse segments • Literally: questions or modals can be viewed as creating a discourse segment • Result – questions provide a shallow discourse structuring, and that maybe enough to improve performance, especially in a task-oriented domain • Entities in QUD main segment can be viewed as the topic • Segment closed when question is answered (use ack sequences, change in entities used) • only entities from answer and entities in question are accessible • Can be used in TRIPS to reduce search space of entities – set context size

  8. QUD Annotation Scheme • Annotate: • Start utterance • End utterance • Type (aside, repeated question, unanswered, open-ended, clarification) • Kappa (compared with reconciled data):

  9. Example - QUD utt06 U: Where is it? utt07 U: Just a second utt08 U: I can't find the Rochester airport utt09 S: It's -------------------------------------------------------- utt10 U: I think I have a disability with maps utt11 U: Have I ever told you that before utt12 S: It's located on brooks avenue utt13 U: Oh thank you utt14 S: Do you see it? utt15 U: Yes (QUD-entry :start utt06 :end utt13 :type clarification) (QUD-entry :start utt10 :end utt11 :type aside)

  10. Example - QUD (utt10-11 processed) utt06 U: Where is it? utt07 U: Just a second utt08 U: I can't find the Rochester airport utt09 S: It's [utt10,11 removed] -------------------------------------------------------- utt12 S: It's located on brooks avenue utt13 U: Oh thank you utt14 S: Do you see it? utt15 U: Yes (QUD-entry :start utt06 :end utt13 :type clarification) (QUD-entry :start utt10 :end utt11 :type aside)

  11. Example - QUD (s13 processed) [utt06-13 collapsed: {the Rochester airport, brooks avenue}] -------------------------------------------------------- utt14 S: Do you see it? utt15 U: Yes (QUD-entry :start utt06 :end utt13 :type clarification)

  12. QUD Issues • Issue 1: easy to detect Q’s (use Speech-Act information), but how do you know Q is answered? • Cue words, multiple acknowledgements, changes in entities discussed provide strong clues that question is finishing, but general questions such as “how are we going to do this?” can be ambiguous • Issue 2: what is more salient to a QUD pronoun – the QUD topic or a more recent entity?

  13. Dialogue Act Segmentation • E&S: model to resolve all types of pronouns (3rd person and abstract) in spoken dialogue • Intuition: grounding is very important in spoken dialogue • Utterances that are not acknowledged by the listener may not be in common ground and thus not accessible to pronominal reference

  14. Dialogue Act Segmentation • Each utterance marked as • (I): contains content (initiation), question • (A): acknowledgment • (C): combination of the above • (N): none of the above • Basic algorithm: utterances not ack’d or not in a string of I’s are removed from the discourse before next sentence is processed • Evaluation showed improvement for pronouns referring to abstract entities, and strong annotator reliability • Pronoun performance? Unclear, no comparison of measure without using DA model

  15. Example – DA model (I) (N) (I) (N) (I) (I) (I) (A) (I) (A) utt06 U: Where is it? utt07 U: Just a second utt08 U: I can't find the Rochester airport utt09 S: It's utt10 U: I think I have a disability with maps (removed) utt11 U: Have I ever told you that before utt12 S: It's located on brooks avenue utt13 U: Oh thank you utt14 S: Do you see it? utt15 U: Yes

  16. Parsing Monroe Domain • Domain: Monroe Corpus of 20 transcriptions (Stent, 2001) of human subjects collaborating on Emergency Rescue 911 tasks • Each dialogue was at least 10 minutes long, and most were over 300 utterances long • Work presented here focuses on 5 of the dialogues (1756 utterances) (278 3rd person pronouns) • Goals: develop a corpus of sentences parsed with rich syntactic, semantic, discourse information to • Able to parse 5 dialogue sub-corpus with 84% accuracy • More details see ACL Discourse Annotation ‘04

  17. TRIPS Parser • Broad-coverage, deep parser • Uses bottom-up algorithm with CFG and domain independent ontology combined with a domain model • Flat, unscoped LF with events and labeled semantic roles based on FrameNet • Semantic information for noun phrases based on EuroWordNet

  18. Parser information for Reference • Rich parser output is helpful for discourse annotation and reference resolution: • Referring expressions identified (pronoun, NP, impros) • Verb roles and temporal information (tense, aspect) identified • Noun phrases have semantic information associated with them • Speech act information (question, acknowledgment) • Discourse markers (so, but) • Semi-automatic annotation increases reliability

  19. Semantics Example: “an ambulance” • (TERM :VAR V213818 :LF (A V213818 (:* LF::LAND-VEHICLE W::AMBULANCE) :INPUT (AN AMBULANCE)) :SEM ($ F::PHYS-OBJ (SPATIAL-ABSTRACTION SPATIAL-POINT) (GROUP -) (MOBILITY LAND-MOVABLE) (FORM ENCLOSURE) (ORIGIN ARTIFACT) (OBJECT-FUNCTION VEHICLE) (INTENTIONAL -) (INFORMATION -) (CONTAINER (OR + -)) (TRAJECTORY -)))

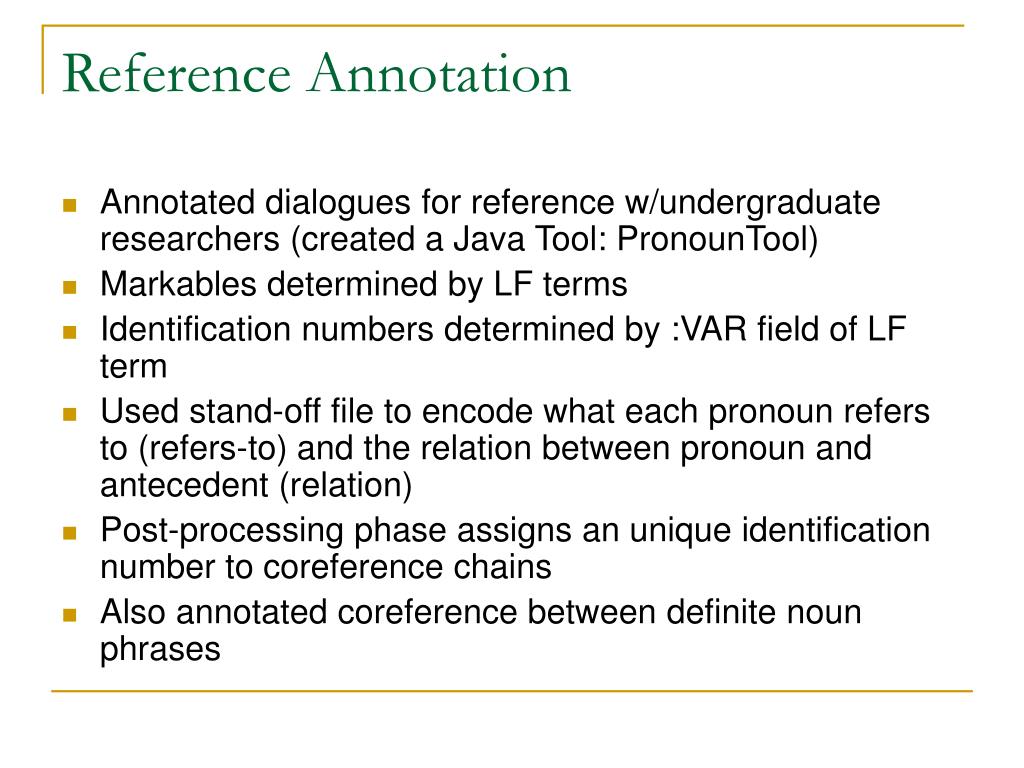

  20. Reference Annotation • Annotated dialogues for reference w/undergraduate researchers (created a Java Tool: PronounTool) • Markables determined by LF terms • Identification numbers determined by :VAR field of LF term • Used stand-off file to encode what each pronoun refers to (refers-to) and the relation between pronoun and antecedent (relation) • Post-processing phase assigns an unique identification number to coreference chains • Also annotated coreference between definite noun phrases

  21. Reference Annotation • Used slightly modified MATE scheme: pronouns divided into the following types: • IDENTITY (Coreference) (278) • Includes set constructions (6) • FUNCTIONAL (20) • PROPOSITON/D.DEXEIS (41) • ACTION/EVENT (22) • INDEXICAL (417) • EXPLETIVE (97) • DIFFICULT (5)

  22. LRC Algorithm • LRC: modified centering algorithm (Tetreault ’01) that does not use Cb or transitions, but keeps a Cf-list (history) for each utterance • While processing utterance’s entities (left to right) do: Push entity onto Cf-list-new, for a pronoun p, attempt to resolve: • Search through Cf-list-new (l-to-r) taking the first candidate that meets gender, agreement, and binding and semantic feature constraints. • If none found, search past utterance’s Cf-lists starting from previous utterance to beginning of discourse • When p is resolved, push pronoun with semantic features from antecedent on to Cf-list-new • More details see SemDial ‘04

  23. LRC Algorithm with Structure Info • Augmented algorithm with extensions to handle QUD and E&S input • For QUD, at the start and end of processing an utterance, QUD’s are started (pushed on stack) or ended (entities are collapsed), so Cf-list history changes • For E&S, each utterance is assigned a DA code and then removed or kept depending on the next utterance (if it is an acknowledgement, or a series of I’s)

  24. Results

  25. Error Analysis • Though QUD and +sem baseline performed the same (89 errors), they each got 3 pronouns right the other did not • Baseline: • 3 collapsing nodes removes correct antecedent • QUD: • 2 right associated with blocking off aside • 1 associated with collapsing (intervening nodes blocked) • 15 pronouns, both got wrong, but made different predictions • Remaining 71, both made same error

  26. Issues • Structuring methods are probably more trouble than they are worth with the corpora available right now • Also only affect a few pronouns • Segment ends are least reliable • What constitutes an end? • 3 errors show either boundaries are marked incorrectly if pronouns are accessing elements in a “closed” DS • Or perhaps collapsing routine is too harsh • Small corpus size • Hard to draw definite conclusions given only 3 criss-crossed errors • need more data for statistical evaluations

  27. Issues • E&S Model has advantage over QUD of being easiest to automate, but fares worse since it takes into account a small window of utterances (extremely shallow) • QUD model can be semi-automated (detecting question starts is easy) but detecting ends and type are harder • QUD could definitely be improved by taking into account plan initiations and suggestions, instead of limiting to questions only, but tradeoff is reliability
