Vertical-Autoclave-LBN-VA152

Vertical Autoclave LBN-VA152 is a top loading vertical autoclave that offers high quality, repeatable performance, and accountability for a wide range of applications. It has an easy-to-use control panel and a stainless steel chamber. It has a working capacity of 50 liters and operates in the 135/139u00b0C temperature range. The LCD display, which is both long-lasting and high-resolution, provides an easy-to-use interface with real-time display of set and actual temperatures.

Brittany8
Download Presentation

Vertical-Autoclave-LBN-VA152

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

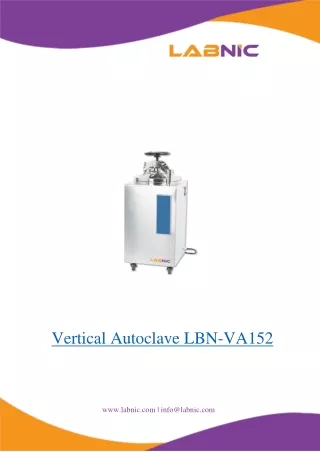

  1. Vertical Autoclave LBN-VA152 www.labnic.com | info@labnic.com

  2. Overview Vertical Autoclave LBN-VA152is a top loading vertical autoclave that offers high quality, repeatable performance, and accountability for a wide range of applications. It has an easy-to-use control panel and a stainless steel chamber. It has a working capacity of 50 liters and operates in the 135/139 C temperature range. The LCDdisplay, which is both long-lasting and high-resolution, provides an easy-to-use interface with real-time display of set and actual temperatures. Specifications : Volume 50 liters Maximum Working / Design Temperature 135 / 139 C Maximum Working / Design Pressure 0.22 / 0.25 MPa Timer Range 4 120 min Basket Dimension x360 230 mm Number of Baskets 2 Power 3.2 KW Power Supply 220V–10%, 50 Hz Internal Dimension 400 630 mm Housing Dimension (W D H) 485 485 1120 mm Packing Size 610 610 1290 mm Net Weight 68 Kg Gross Weight 82 Kg

  3. Features : Made of SUS304 stainless steel material Hand-wheel type quick open door Self-expanding type sealing ring Exhaust cold air automatically Microcomputer intelligent control Self-exhaust during over pressure Pressure safety interlock Over temperature protection Alarm indication in case of sterilization ends or fault indication Equipped with G1/2A internal thread samples test hole Applications : It is highly used in research and development centers, educational institutes, laboratories and different quality assurance facilities for material tests, culture media preparation and sterilization of various materials. Labnic Scientific USA

  4. Email: info@labnic.com | Website: www.labnic.com
