  1. ThinkCentre M90/M90p Top Options Turning Desktops into Solutions Options and Accessories September 2010

  2. ThinkCentre M90/M90p USFF Top Options

  3. ThinkCentre M90/M90p SFF & Tower Top Options

  4. Lenovo ThinkVision Monitors • Notes: ** Indicates U.S. part number for ThinkVision Soundbar • (1) Under ENERGY STAR 5.0 test condition • (2) EPEAT registrations vary by location, go to www.epeat.net for registration by country.

  5. ThinkCentre Ultra Small Under Desk Mount • Save Space by mounting the USFF under the desk • Place it within easy reach • Provides easy access to the media devices and USFF system control buttons • Constructed using high-grade steel • Mounts with four screws Eco USFF only ThinkCentre Ultra Small Under Desk Mount (40Y8625) – Eco USFF only

  6. Vertical PC and Monitor Stand II • Compact, minimal footprint PC and monitor solution for space constrained environments • User comfort features: • Height Adjustment of 125 mm (4.9-inches) • Tilt backwards 20 degrees or forward 5 degrees • Swivel Base right or left 180 degrees • Accommodates 17-inch to 22-inch monitors • Cable management neatly conceals all connections • Security lock-slot • Compatible with selected USFF’s systems Eco USFF only Vertical PC and Monitor Stand II (41R4474) – M90 Eco USFF only

  7. Lenovo 512MB GeForce 310 Graphics Adapters • NVIDIA GeForce 310 512MB Dual DVI / Dual VGA Adapter (57Y4167) • PCI Express 2.0 x16 adapter • Includes both Full-height and Low-profile brackets • Includes a Dual DVI-I Cable and a Dual VGA Cable • Attach two DVI digital or two VGA analog monitors • NVIDIA GeForce 310 512MB DisplayPort / VGA Adapter (57Y4397) • PCI Express 2.0 x16 adapter • Includes both Full-height and Low-profile brackets • Attach a VGA analog monitor and a DisplayPort Digital Monitor ** Installing a graphics card disables the M90, M90p DisplayPort and VGA system monitor ports www.lenovo.com/support/graphiccards Lenovo NVIDIA GeForce 310 512MB Dual DVI / Dual VGA Adapter (57Y4167) Lenovo NVIDIA GeForce 310 512MB DisplayPort / VGA Adapter (57Y4397)

  8. Lenovo USB-to-DVI Monitor Adapter • Add another monitor by plugging into a USB port: • Maximum resolutions (@32-bit color): • 16:10 Wide – 1920 x 1200 • 16:9 Wide – 2048 x 1152 (with 1920 x 1080 native HDTV support) • Flexibility to add additional monitors to a system • Doubling or tripling your visual workspace increases productivity while lowering total cost of ownership • One Monitor Adapter is needed for each monitor • DVI digital video output for sharpness and clarity • DVI-to-VGA adapter included • Supports HD video playback of non-encrypted content • All monitors are independent: • Extended “stretch” desktop and mirror “clone” modes • Landscape, portrait viewing: 90°, 180°, 270° image rotation • Does not require an external power adapter • Windows XP, Vista 32/64bit, 7 support Note: High-bandwidth Digital Content Protection (HDCP) is not supported Lenovo USB-to-DVI Monitor Adapter (45K5296)

  9. Lenovo Memory Options • 1GB / 2GB DDR3 SDRAM SODIMM Memory for USFF • Lowest-cost method to boost system performance • Enhance multi-tasking usability • Extend system useful life • Ensure systems compatibility • 25-Pack Memory: • Reduced packaging: cardboard, plastic, publications • Lower, per unit, module cost 25 – Pack www.lenovo.com/support/desktopmemorycompatibility 1GB PC3-8500 DRR3-1066 SODIMM Memory (55Y3706) 2GB PC3-8500 DRR3-1066 SODIMM Memory (55Y3707) 1GB PC3-8500 DRR3-1066 SODIMM Memory – 25 pack (57Y4385) 2GB PC3-8500 DRR3-1066 SODIMM Memory – 25 pack (57Y4386) 1GB PC3-10600 DDR3-1333 SODIMM Memory (55Y3709) 2GB PC3-10600 DDR3-1333 SODIMM Memory (55Y3710) 1GB PC3-10600 DDR3-1333 SODIMM Memory – 25 pack (57Y4415) 2GB PC3-10600 DDR3-1333 SODIMM Memory – 25 pack (57Y4416) ThinkCentre M90/M90p Eco USFF has two SODIMM slots

  10. Lenovo Memory Options • 1GB / 2GB DDR3 SDRAM UDIMM Memory for SFF & Tower • Lowest-cost method to boost system performance • Enhance multi-tasking usability • Extend system useful life • Ensure systems compatibility • 25-Pack Memory: • Reduced packaging: cardboard, plastic, publications • Lower, per unit, module cost 25 – Pack www.lenovo.com/support/desktopmemorycompatibility 1GB PC3-8500 DRR3-1066 UDIMM Memory (45J5434) 2GB PC3-8500 DRR3-1066 UDIMM Memory (45J5435) 1GB PC3-8500 DRR3-1066 UDIMM Memory – 25 pack (57Y4421) 2GB PC3-8500 DRR3-1066 UDIMM Memory – 25 pack (57Y4422) 1GB PC3-10600 DDR3-1333 UDIMM Memory (57Y4389) 2GB PC3-10600 DDR3-1333 UDIMM Memory (57Y4390) 1GB PC3-10600 DDR3-1333 UDIMM Memory – 25 pack (57Y4419) 2GB PC3-10600 DDR3-1333 UDIMM Memory – 25 pack (57Y4420) ThinkCentre M90/M90p SFF & Tower have four DIMM slots

  11. ThinkVision Soundbar • ThinkVision Soundbar • Compatible with: L2440p Wide, L2440x Wide, L2251x Wide, L2251p Wide, L2250p Wide, L1951p Wide, L1900p, L1711p, L215p Wide, L215 Wide, D185 Wide • Dual Speaker support with 3+3 total watts of output • Integrated headphone, microphone jacks • Integrated cable lock slot • External AC power adapter (varies by country, region) • ThinkVision USB Soundbar • Compatible with: L151, L151p, L171, L171p, L172, L174, L1700p, L190x, L191, L192p, L193p, L194 Wide, L197 Wide, L1900, L1940 Wide, L1940p Wide, L201p, L220x Wide, L200p Wide, L2240p Wide • Dual speakers provides full range business audio sound • Two integrated headphone jacks for private and dual listening • USB delivered audio and power; No external power adapters or audio cords ThinkVision Soundbar (45K1263) ThinkVision USB Soundbar (40Y7616)

  12. ThinkCentre Extend Arm • Helps free up valuable desk space and position the display for greater comfort • Sleek design allows you to extend, retract, tilt and rotate your LCD to an ideal viewing angle and position • Easy to install and use on the desk • Attaches to (75 x 75 and 100 x 100 mm) VESA complaint displays • Supports : • ThinkVision Monitors up to 24” • ThinkCentre A70z All-in-One System • ThinkCentre M90z All-in-One System ThinkCentre Extend Arm (57Y4352)

  13. Lenovo Ultraslim Wireless Keyboard & Mouse • Mouse & Keyboard Features • 2.4GHz wireless technology • Soft touch finish for all day comfort • Easy to setup and use; no software required • Plug & play nano size receiver stores neatly; out of the way • Battery status indicators • Keyboard Features • Thin profile keys, stylish black finish • One touch controls to quickly play, adjust or mute audio and video files • Programmable F-keys to instantly open favorite applications • Spill resistant design • Mouse Features • Ambidextrous, 3 button design for both right and left-handed comfort • Scroll wheel to easily navigating through documents and web pages • High definition 1000dpi optical sensor for precise tracking • Mini “nano” size receiver stores neatly inside the mouse for travel Lenovo Ultraslim Wireless Keyboard & Mouse – US English (57Y4700)

  14. Lenovo Fingerprint USB Keyboard • Compatible with Embedded Security Subsystem and ThinkVantage Client Security Software for one of the most secure log-in processes available: • Password Manager replaces multiple passwords with one easy-to-remember password or fingerprint, thereby reducing password reset calls to the help desk • Supports Lotus Notes fingerprint reader authentication • “On-the-fly" file and folder encryption saves you time by automatically encrypting files and helping to protect data from unauthorized access • ThinkVantage button guides you to a host of information and tools to help you set up, understand, maintain, and enhance your ThinkCentre desktop • Replace Windows passwords with fast, secure access using your fingerprint • Integrated fingerprint swipe sensor puts passwords at the tip of your fingers • Software configurable for simple fingerprint only log-in or, more secure authentication Lenovo Fingerprint USB Keyboard (73P4730)

  15. Lenovo USB Smartcard Keyboard • Prevent unauthorized access to computers and networks • Secures online transactions using digital signatures and certificates • Works with all smart cards that comply with ISO 7816-1, 2, 3, 4 memory and microprocessor smart cards (T=0, T=1) • USB attach, 104-key full-size layout, including Windows key • Includes highlighted Windows shortcuts to help maximize productivity • Supports Windows XP, Vista 32-bit and Vista 64-bit • Three levels of keyboard tilt Lenovo USB Smartcard Keyboard (51J0155)

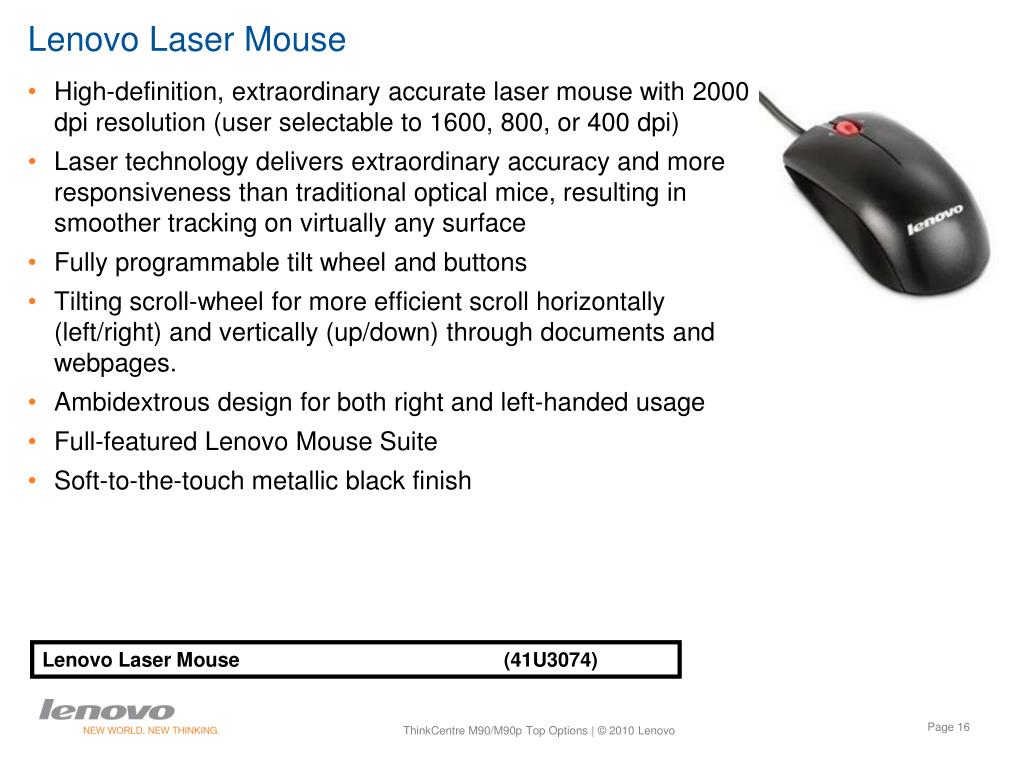

  16. Lenovo Laser Mouse • High-definition, extraordinary accurate laser mouse with 2000 dpi resolution (user selectable to 1600, 800, or 400 dpi) • Laser technology delivers extraordinary accuracy and more responsiveness than traditional optical mice, resulting in smoother tracking on virtually any surface • Fully programmable tilt wheel and buttons • Tilting scroll-wheel for more efficient scroll horizontally (left/right) and vertically (up/down) through documents and webpages. • Ambidextrous design for both right and left-handed usage • Full-featured Lenovo Mouse Suite • Soft-to-the-touch metallic black finish Lenovo Laser Mouse (41U3074)

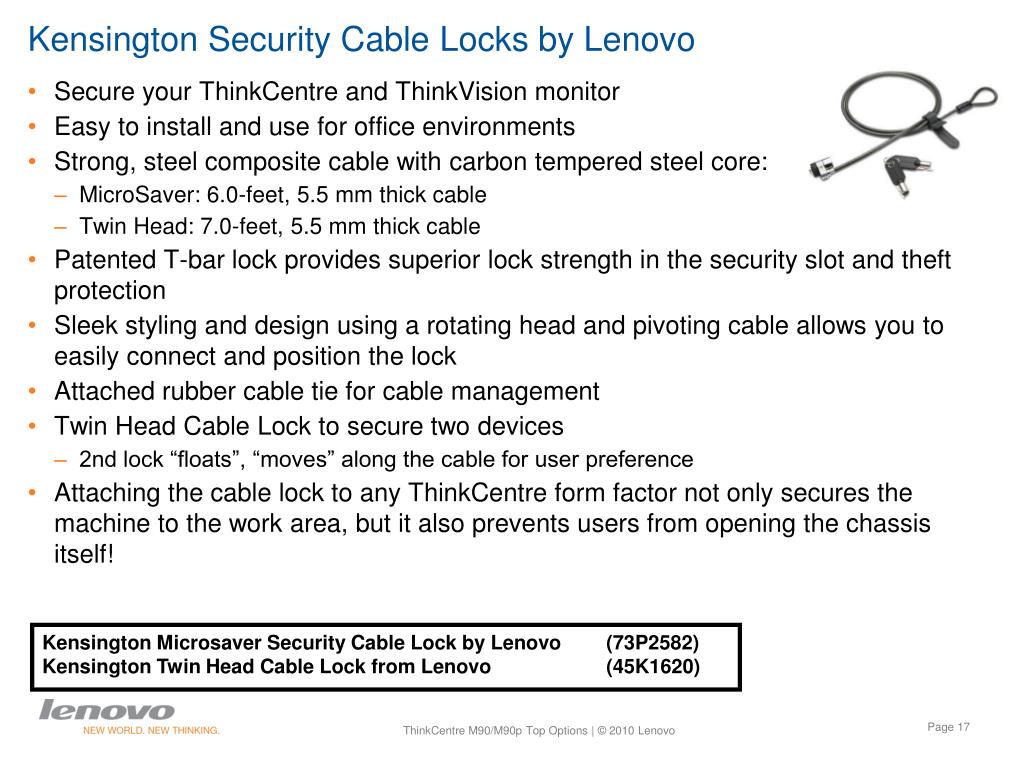

  17. Kensington Security Cable Locks by Lenovo • Secure your ThinkCentre and ThinkVision monitor • Easy to install and use for office environments • Strong, steel composite cable with carbon tempered steel core: • MicroSaver: 6.0-feet, 5.5 mm thick cable • Twin Head: 7.0-feet, 5.5 mm thick cable • Patented T-bar lock provides superior lock strength in the security slot and theft protection • Sleek styling and design using a rotating head and pivoting cable allows you to easily connect and position the lock • Attached rubber cable tie for cable management • Twin Head Cable Lock to secure two devices • 2nd lock “floats”, “moves” along the cable for user preference • Attaching the cable lock to any ThinkCentre form factor not only secures the machine to the work area, but it also prevents users from opening the chassis itself! Kensington Microsaver Security Cable Lock by Lenovo (73P2582) Kensington Twin Head Cable Lock from Lenovo (45K1620)

  18. DisplayPort Monitor Cables • DisplayPort to Single-Link DVI-D Monitor Cable (45J7915) • Attach a DVI digital monitor to a DisplayPort • DisplayPort to VGA Monitor Cable (57Y4393) • Attach a VGA analog monitor to DisplayPort • DisplayPort to Single-Link DVI-D Monitor Cable Notes: • Does not support attachment of a DVI-to-VGA monitor adapter. DisplayPort to Single-Link DVI-D Monitor Cable (45J7915) DisplayPort to VGA Monitor Cable (57Y4393)

  19. Multiple Monitor Configurations * Supports attachment of DisplayPort monitor cables (45J7915 or 57Y4393) with 1920 x 1200 maximum resolution. ** Installing a graphics card disables the M90/M90p DisplayPort and VGA system monitor ports.
