Manual lifting rotary evaporator

Manual lifting rotary evaporator is a user friendly high-quality manual rotary evaporator <br>to meet the essential needs in classical laboratory. It has an ambidextrous manual lift <br>and an adjustable immersion angle. The rotation speed ranges from 0-150 rpm. User control <br>of the distillation process can easily be optimized through the digital display<br><br>

Eleanor96
Download Presentation

Manual lifting rotary evaporator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

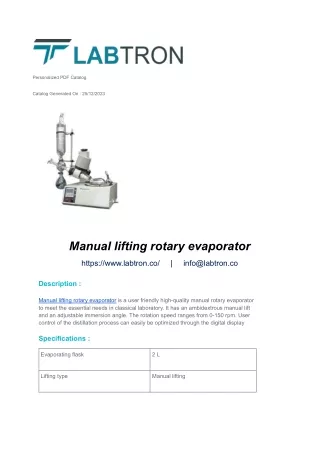

  1. Personalized PDF Catalog Catalog Generated On : 25/12/2023 Manual lifting rotary evaporator https://www.labtron.co/ | info@labtron.co Description : Manual lifting rotary evaporator is a user friendly high-quality manual rotary evaporator to meet the essential needs in classical laboratory. It has an ambidextrous manual lift and an adjustable immersion angle. The rotation speed ranges from 0-150 rpm. User control of the distillation process can easily be optimized through the digital display Specifications : Evaporating flask 2 L Lifting type Manual lifting

  2. Optional evaporating flask 0.25 L , 1 L Condenser type Vertical condenser + top cold trap Receiving Flask 1 L Max evaporating speed ( H2O ) 1.2 L / hr. Condensing surface 0.27 m² Rotation Speed 0 ~ 150 rpm Reachable vacuum rate < 133 Pa Bath power 1.1 kW Heating power 1000 W Rotation power 25 W Static temp control range and wave RT – 99 °C ± 2 °C Bath size capacity 5 L Material SUS 304 Certification ISO and CE Power 220 V / 60 Hz Dimension 690 x 380 x 980 mm Weight 25 kg

  3. Features : Digital display for visualization of rotation speed and heating temperature Manual lift for fast height adjustment Process samples from 50 ml to 1 L Rotation speed 0 ~ 150 rpm Flask size range : 0.25 – 2 L Ergonomic user friendly design Applications : Used for flavor extraction in food industry, solvent removal in separation and recycling chemical / educational / fuel / environmental industry , to determine sample concentration , HPLC and natural product sample preparation , drying down powders (using test tube adapter) and trapping hazardous waste liquid

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
