The Generation of Ultrashort Laser Pulses

1. The importance of bandwidth More than just a light bulb Laser modes and mode-locking Making shorter and shorter pulses Pulse-pumping Q-switching and distributed-feedback lasers Passive mode-locking and the saturable absorber Kerr-lensing and Ti:Sapphire Active mode-locking Other mode-locking techniques Limiting factors Commercial lasers The Generation of Ultrashort Laser Pulses

2. 10ps Nd:glass Nd:YLF Nd:YAG Diode S-P Dye Dye 1ps CW Dye Color Center SHORTEST PULSE DURATION 100fs Cr:LiS(C)AF CP M Dye Er:fiber Cr:YAG Nd:fiber Cr:forsterite 10fs w/Compression Ti:sapphire 1965 1970 1975 1980 1985 1990 1995 2000 2005 YEAR But first: the progress has been amazing! The shortest pulse vs. year (for different media)

3. Continuous vs. ultrashort pulses of light • A constant and a delta-function are a Fourier-Transform pair. Irradiance vs. time Spectrum Continuous beam: Ultrashort pulse: time frequency time frequency

4. Long vs. short pulses of light • The uncertainty principle says that the product of the temporal and spectral pulse widths is greater than ~1. Irradiance vs. time Spectrum Long pulse time frequency Short pulse time frequency

5. For many years, dyes have been the broadband media that have generated ultrashort laser pulses.

6. Laser power Ultrafast solid-state laser media have recently replaced dyes in most labs. • Solid-state laser media have broad bandwidths and are convenient.

7. But a light bulb is also broadband.What exactly is required to make an ultrashort pulse?Answer: A Mode-locked LaserOkay, what’s a laser, what are modes, and what does it mean to lock them? Light bulbs, lasers, and ultrashort pulses

8. Unexcited molecule Excited molecule Absorption Spontaneous Emission Stimulated Emission Before After

9. Stimulated emission leads to a chain reaction and laser emission. If a medium has many excited molecules, one photon can become many. Excited medium This is the essence of the laser. The factor by which an input beam is amplified by a medium is called the gain and is represented by G.

10. I0 I1 I3 I2 Laser medium with gain, G R = 100% R < 100% A laser will lase if the beam increases in intensity during a round trip: that is, if The laser A laser is a medium that stores energy, surrounded by two mirrors. A partially reflecting output mirror lets some light out. Usually, additional losses in intensity occur, such as absorption, scat-tering, and reflections. In general, the laser will lase if, in a round trip: Gain > Loss This called achieving Threshold.

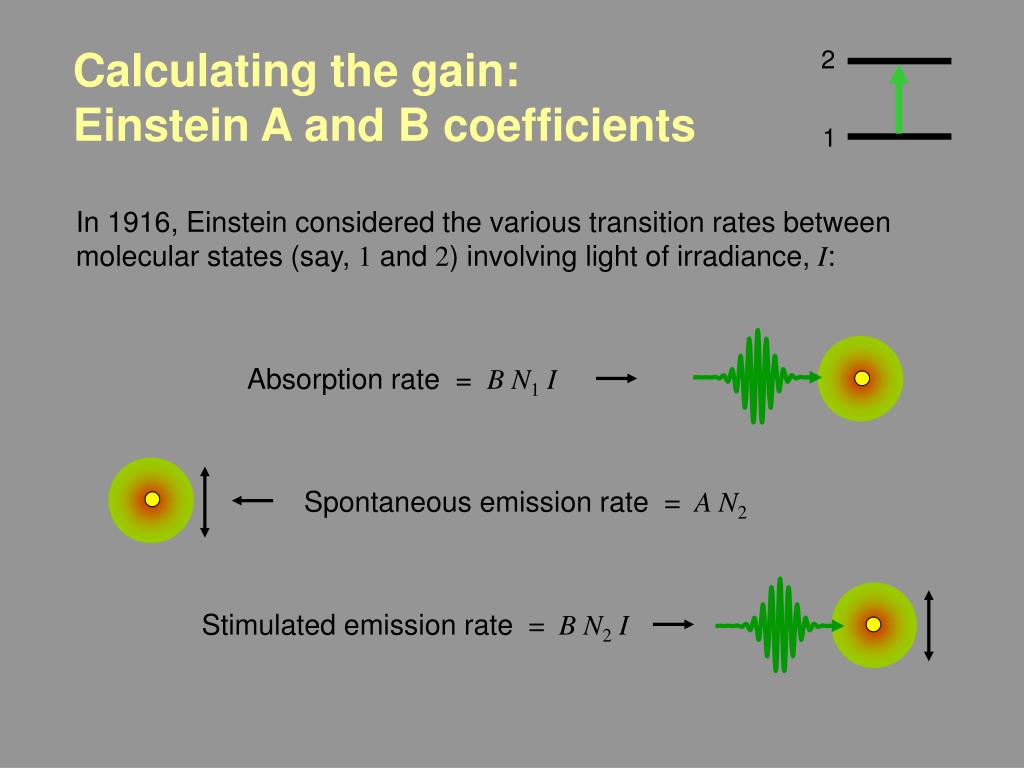

11. 2 1 Calculating the gain:Einstein A and B coefficients • In 1916, Einstein considered the various transition rates between molecular states (say, 1 and 2) involving light of irradiance, I: • Absorption rate = B N1 I • Spontaneous emission rate = A N2 • Stimulated emission rate = B N2 I

12. Laser gain • Neglecting spontaneous emission: • The solution is: • There can be exponential gain or loss in irradiance. Normally, N2 < N1, and there is loss (absorption). But if N2 > N1, there’s gain, and we define the gain, G: [Stimulated emission minus absorption] Proportionality constant is the absorption/gain cross-section, s If N2 > N1: If N2 < N1:

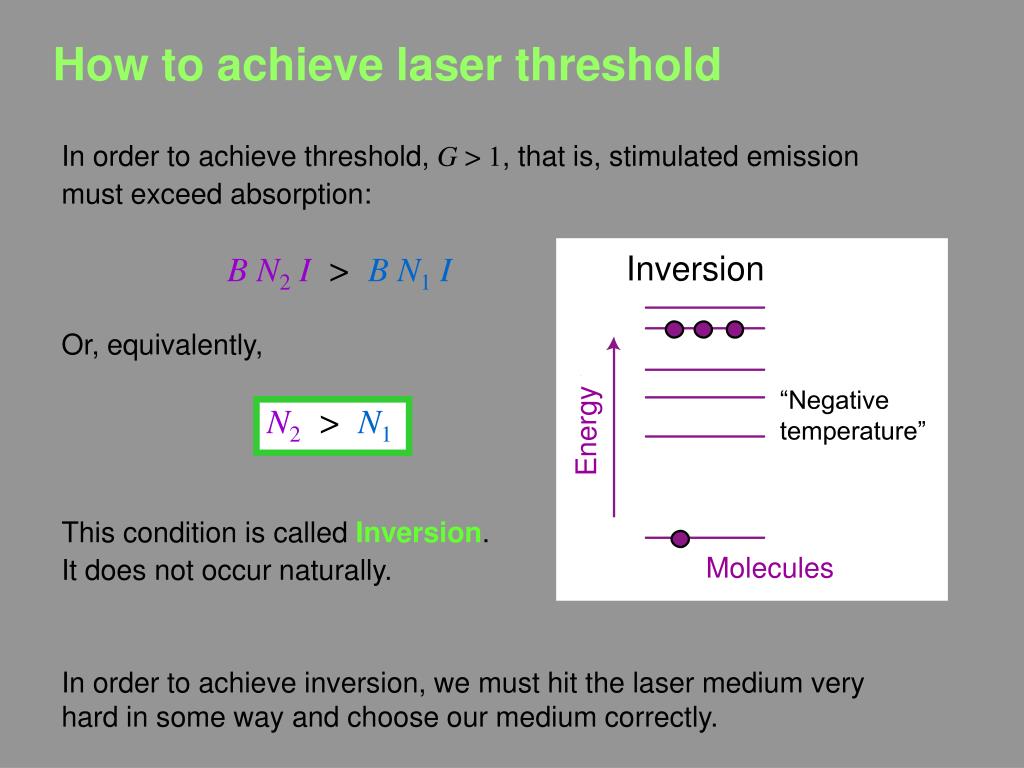

13. Inversion “Negative temperature” Energy Molecules How to achieve laser threshold • In order to achieve threshold, G > 1, that is, stimulated emission • must exceed absorption: • B N2 I > B N1 I • Or, equivalently, • This condition is called Inversion. • It does not occur naturally. • In order to achieve inversion, we must hit the laser medium very hard in some way and choose our medium correctly. N2 > N1

14. 2 N2 1 N1 Why inversion is impossible in a two-level system Write rate equations for the densities of the two states. Stimulated emission Spontaneous emission Absorption If the total number of molecules is N:

15. 2 N2 1 N1 Why inversion is impossible in a two-level system (cont’d) In steady-state: where: Isat is the saturation intensity. DN is always positive, no matter how high I is! It’s impossible to achieve an inversion in a two-level system!

16. 3 Fast decay 2 Pump Transition Laser Transition 1 Why inversion is possible in a three-level system Assume we pump to a state 3 that rapidly decays to level 2. Spontaneous emission The total number of molecules is N: Level 3 decays fast and so is zero. Absorption

17. 3 Fast decay 2 Pump Transition Laser Transition 1 Why inversion is possible in a three-level system (cont’d) In steady-state: where: Isat is the saturation intensity. Now if I > Isat, DN is negative!

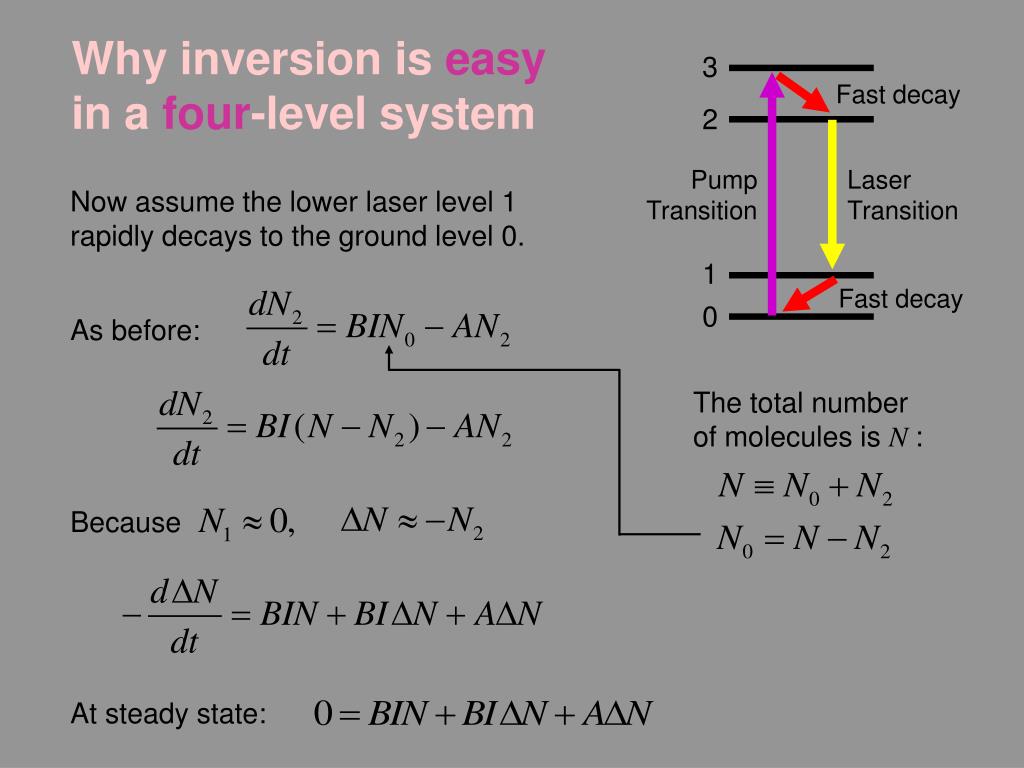

18. 3 Fast decay 2 Pump Transition Laser Transition 1 Fast decay 0 Why inversion is easy in a four-level system Now assume the lower laser level 1 rapidly decays to the ground level 0. As before: The total number of molecules is N : Because At steady state:

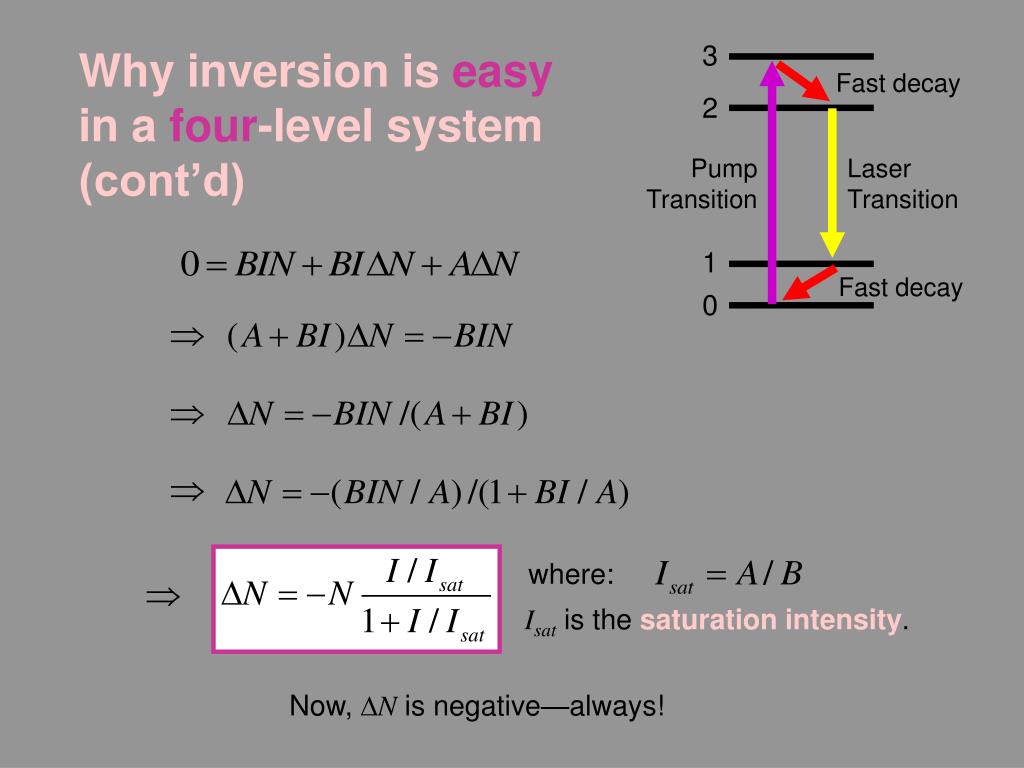

19. 3 Fast decay 2 Pump Transition Laser Transition 1 Fast decay 0 Why inversion is easy in a four-level system (cont’d) where: Isat is the saturation intensity. Now, DN is negative—always!

20. 3 Fast decay 2 Pump Transition Laser Transition 1 Fast decay 0 What about the saturation intensity? A is the excited-state relaxation rate: 1/t B is the absorption cross-section, s, divided by the energy per photon, ħw: s / ħw ħw ~10-19 J for visible/near IR light Both s and t depend on the molecule, the frequency, and the various states involved. t ~10-12 to 10-8 s for molecules s ~10-20 to 10-16 cm2 for molecules (on resonance) 105 to 1013 W/cm2 The saturation intensity plays a key role in laser theory.

21. Four-level system Three-level system Three-level system Molecules accumulate in this level. Molecules accumulate in this level. Fast decay Fast decay Fast decay Pump Transition Laser Transition Pump Transition Laser Transition Laser Transition Laser Transition Pump Transition Pump Transition Fast decay Level empties fast! If you hit it hard, you get lasing. If you hit it hard, you get lasing. Lasing is easy! Two-, three-, and four-level systems It took laser physicists a while to realize that four-level systems are best. Two-level system At best, you get equal populations. No lasing.

22. A dye’s energy levels • Dyes are big molecules, and they have complex energy level structure. S2: 2nd excited electronic state Lowest vibrational and rotational level of this electronic “manifold” Energy S1: 1st excited electronic state Excited vibrational and rotational level Pump Transition Laser Transition Dyes can lase into any (or all!) of the vibrational/rotational levels of the S0 state, and so can lase very broadband. S0: Ground electronic state

23. Lasers modes: The Shah function The Shah function, III(t), is an infinitely long train of equally spaced delta-functions. t The symbol III is pronounced shah after the Cyrillic character III, which is said to have been modeled on the Hebrew letter (shin) which, in turn, may derive from the Egyptian a hieroglyph depicting papyrus plants along the Nile.

24. t F{III(t)} The Fourier transform of the Shah function III(t) If w= 2np, where n is an integer, every term is exp(-2mnpi) = 1, and the sum diverges; otherwise, cancellation occurs. So:

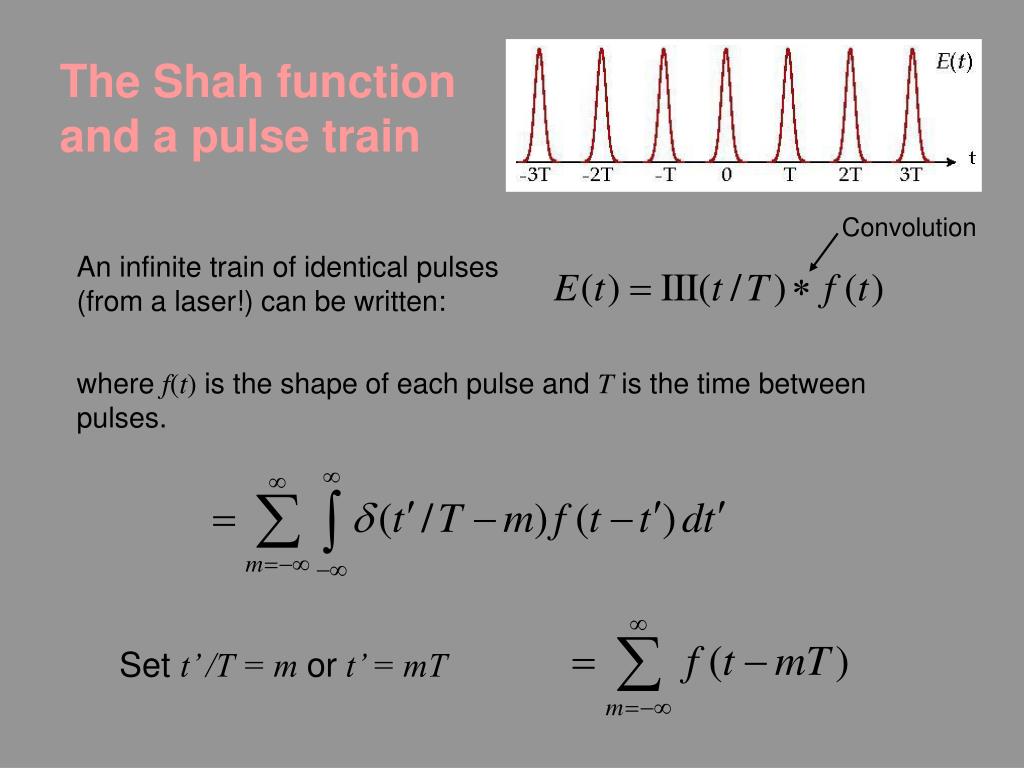

25. The Shah function and a pulse train Convolution An infinite train of identical pulses (from a laser!) can be written: where f(t) is the shape of each pulse and T is the time between pulses. Set t’ /T = m or t’ = mT

26. The Fourier transform of an infinite train of pulses • An infinite train of identical pulses can be written: • E(t) = III(t/T) * f(t) • where f(t) represents a single pulse and T is the time between pulses. The Convolution Theorem states that the Fourier Transform of a convolution is the product of the Fourier Transforms. So: A train of pulses results from a single pulse bouncing back and forth inside a laser cavity of round-trip time T. The spacing between frequencies—called laser modes—is then dw = 2p/T or dn = 1/T.

27. Mode-locked vs. non-mode-locked light Mode-locked pulse train: A train of short pulses Non-mode-locked pulse train: Random phase for each mode A mess…

28. Generating short pulses = mode-locking • Locking the phases of the laser modes yields an ultrashort pulse.

29. Locked modes Intensities

30. Numerical simulation of mode-locking Ultrafast lasers often have thousands of modes.

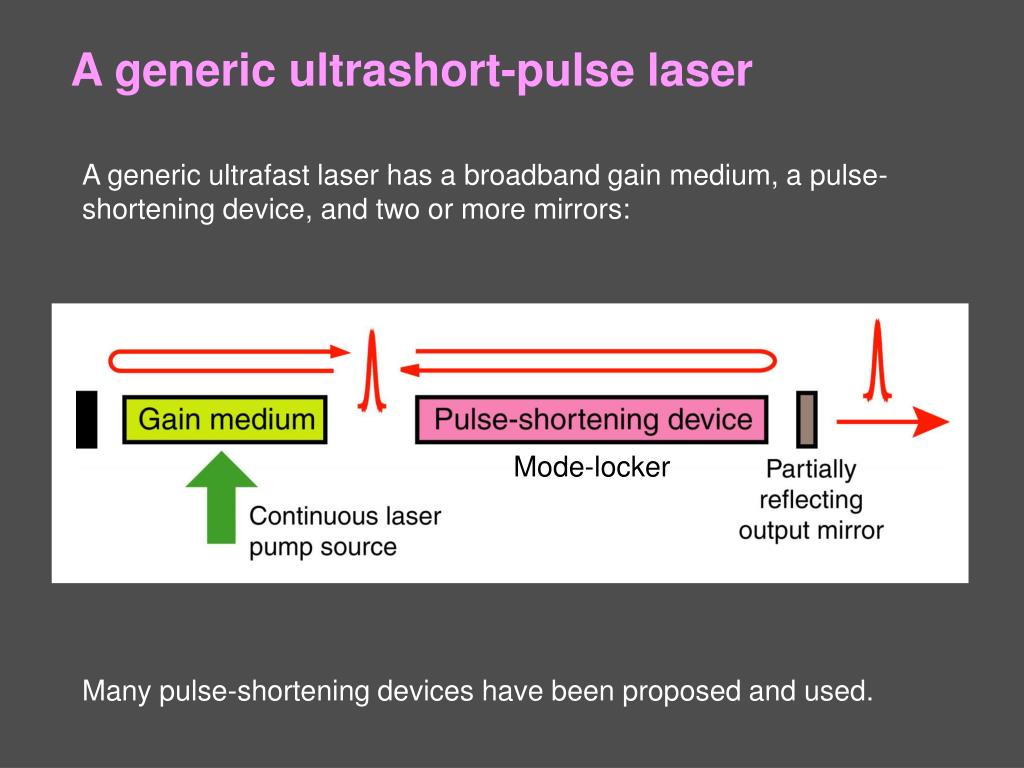

31. A generic ultrashort-pulse laser • A generic ultrafast laser has a broadband gain medium, a pulse-shortening device, and two or more mirrors: Mode-locker Many pulse-shortening devices have been proposed and used.

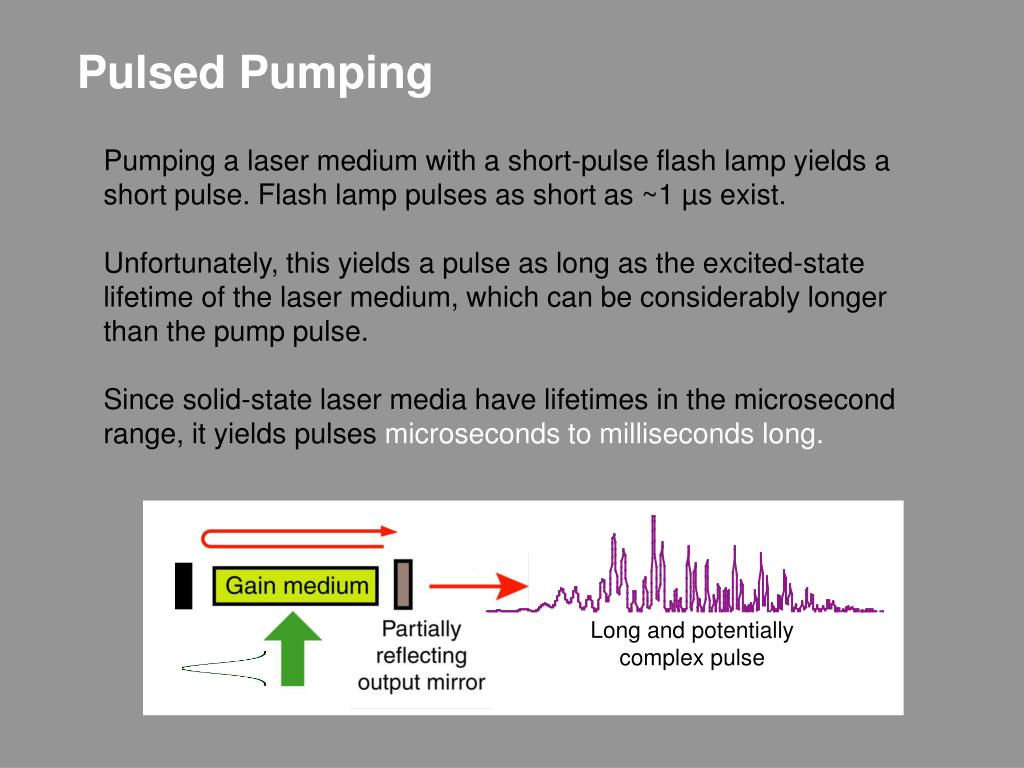

32. Long and potentially complex pulse Pulsed Pumping Pumping a laser medium with a short-pulse flash lamp yields a short pulse. Flash lamp pulses as short as ~1 µs exist. Unfortunately, this yields a pulse as long as the excited-state lifetime of the laser medium, which can be considerably longer than the pump pulse. Since solid-state laser media have lifetimes in the microsecond range, it yields pulses microseconds to milliseconds long.

33. Output intensity 100% Cavity Gain Cavity Loss 0% Time Q-switching • Q-switching involves: • Preventing the laser from lasing until the flash lamp is finished flashing, and • Abruptly allowing the laser to lase. The pulse length is limited by how fast we can switch and the round-trip time of the laser and yields pulses 10 - 100 ns long.

34. Q-Switching How do we Q-switch a laser? Q-switching involves preventing lasing until we’re ready. A Pockels’ cell switches (in a few nanoseconds) from a quarter-wave plate to nothing. After switching Before switching 0°Polarizer Mirror 0°Polarizer Mirror Pockels’ cell as an isotropic medium Pockels’ cell as wave plate w/ axes at ±45° Light becomes circular on the first pass and then horizontal on the next and is then rejected by the polarizer. Light is unaffected by the Pockels’ cell and hence is passed by the polarizer.

35. Passive mode-locking: the saturable absorber • Like a sponge, an absorbing medium can only absorb so much. High-intensity spikes burn through; low-intensity light is absorbed. For a two-level system

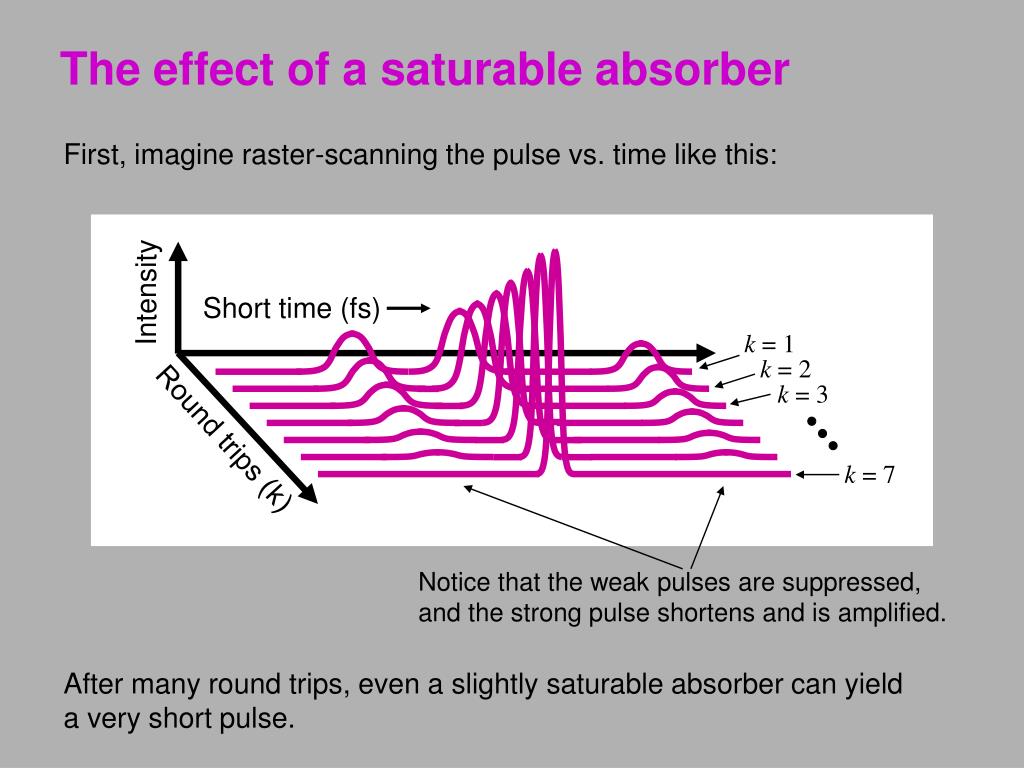

36. k = 3 Short time (fs) k = 1 k = 2 k = 7 The effect of a saturable absorber First, imagine raster-scanning the pulse vs. time like this: Intensity Round trips (k) Notice that the weak pulses are suppressed, and the strong pulse shortens and is amplified. After many round trips, even a slightly saturable absorber can yield a very short pulse.

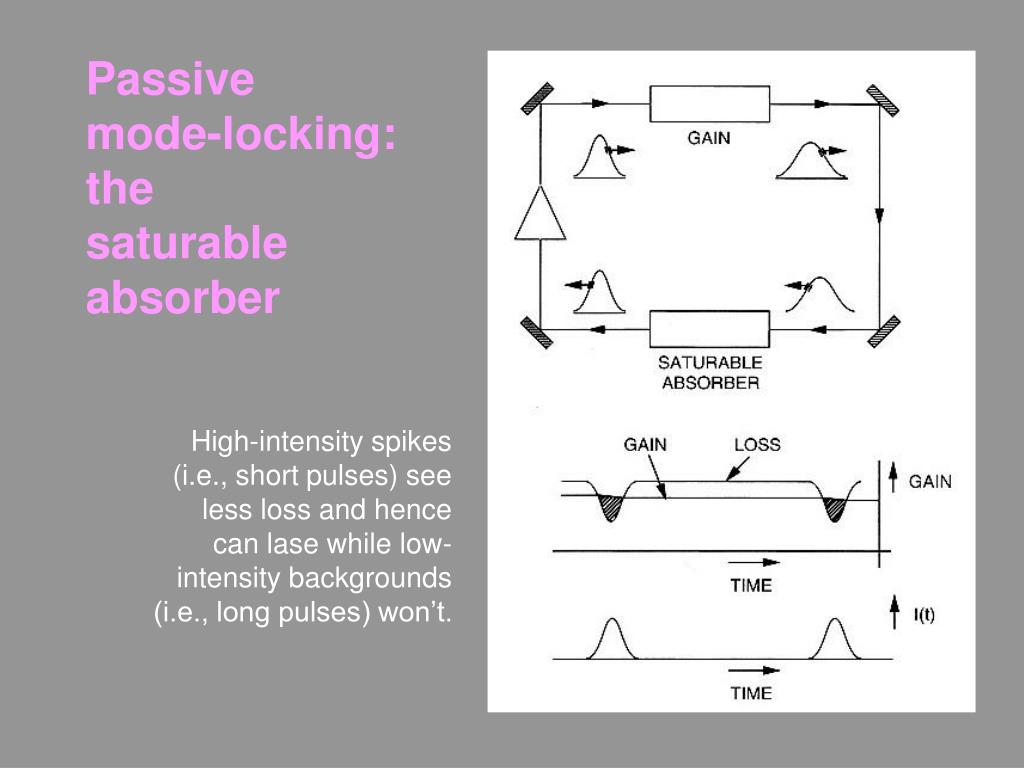

37. Passive mode-locking: the saturable absorber • High-intensity spikes (i.e., short pulses) see less loss and hence can lase while low-intensity backgrounds (i.e., long pulses) won’t.

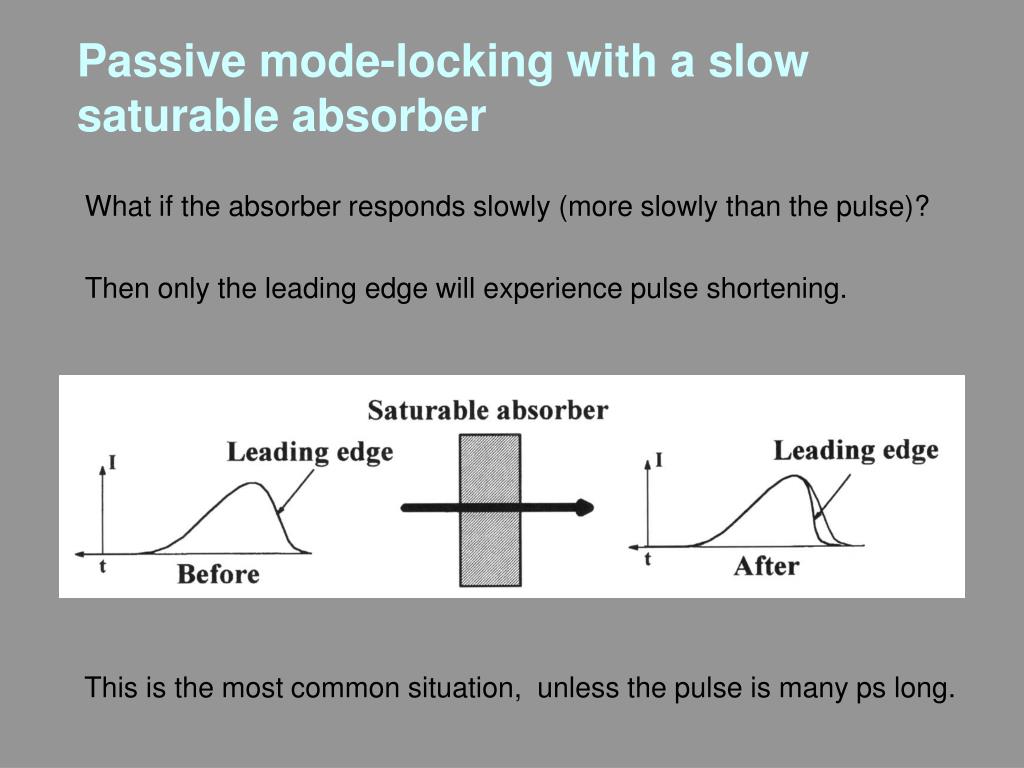

38. Passive mode-locking with a slow saturable absorber • What if the absorber responds slowly (more slowly than the pulse)? • Then only the leading edge will experience pulse shortening. This is the most common situation, unless the pulse is many ps long.

39. Gain saturation shortens the pulse trailing edge. • The intense spike uses up the laser gain-medium energy, reducing the gain available for the trailing edge of the pulse (and for later pulses).

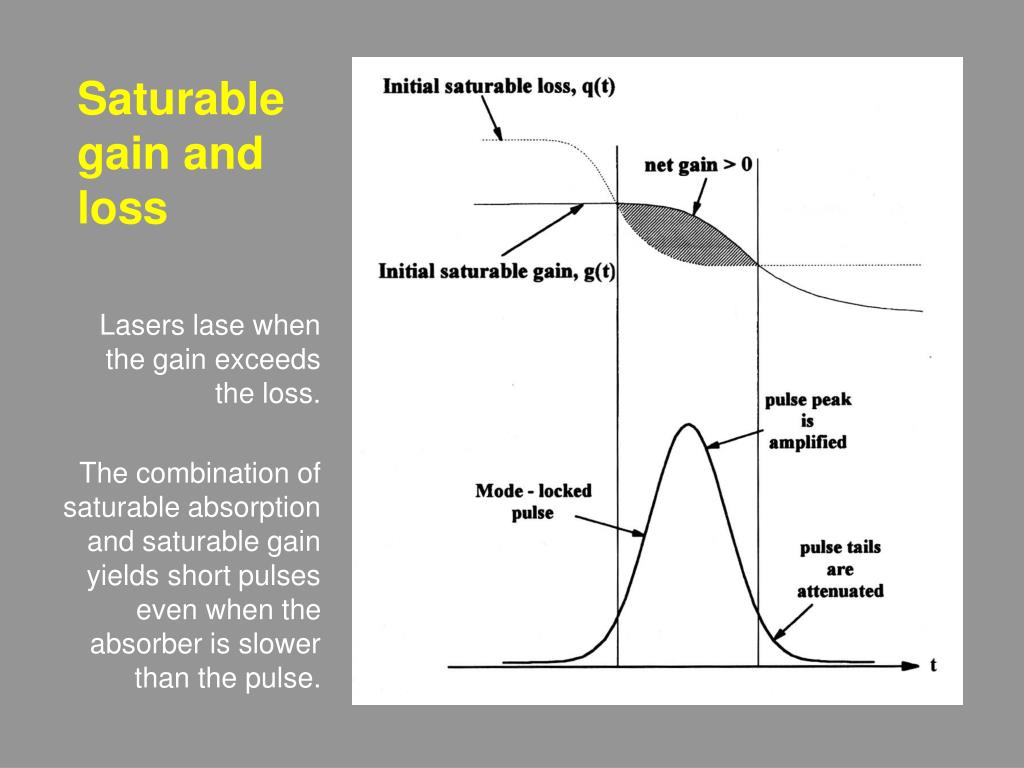

40. Saturable gain and loss Lasers lase when the gain exceeds the loss. The combination of saturable absorption and saturable gain yields short pulses even when the absorber is slower than the pulse.

41. Pump beam Saturable absorber Gain medium The Passively Mode-locked Dye Laser Passively mode-locked dye lasers yield pulses as short as a few hundred fs. They’re limited by our ability to saturate the absorber.

42. Some common dyes and their corresponding saturable absorbers

43. Two pulses colliding Intensity Single pulse Longitudinal position, z Colliding pulses have a higher peak intensity. And higher intensity in the saturable absorber is what CPM lasers require.

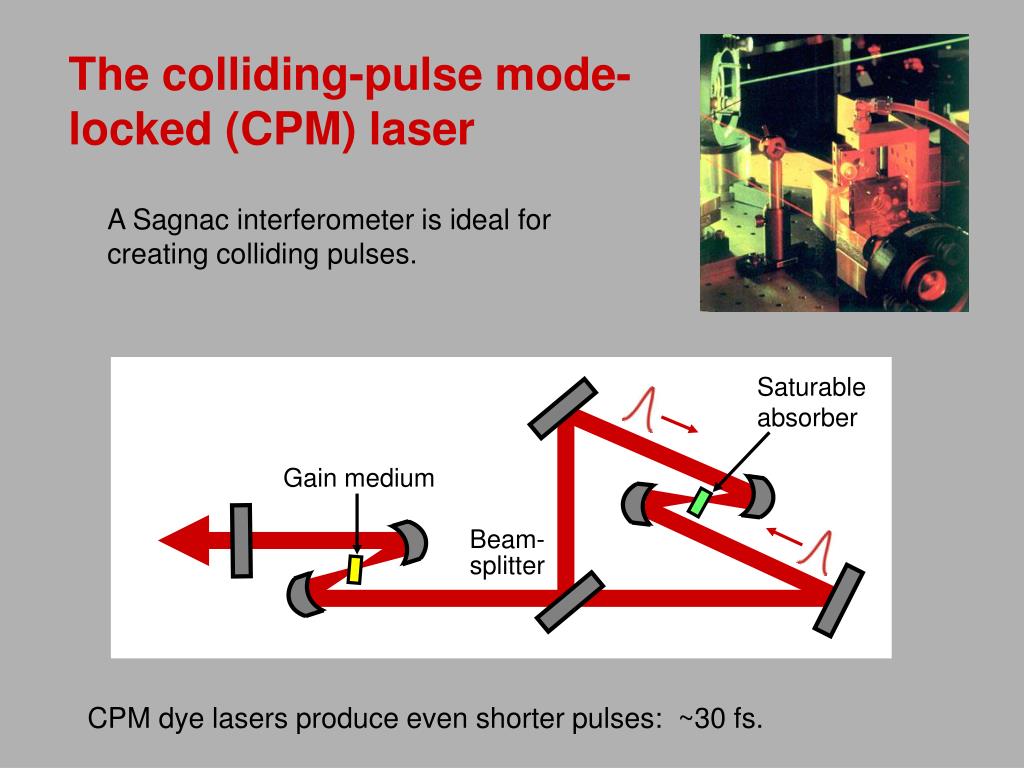

44. Saturable absorber Gain medium Beam- splitter The colliding-pulse mode-locked (CPM) laser A Sagnac interferometer is ideal for creating colliding pulses. CPM dye lasers produce even shorter pulses: ~30 fs.

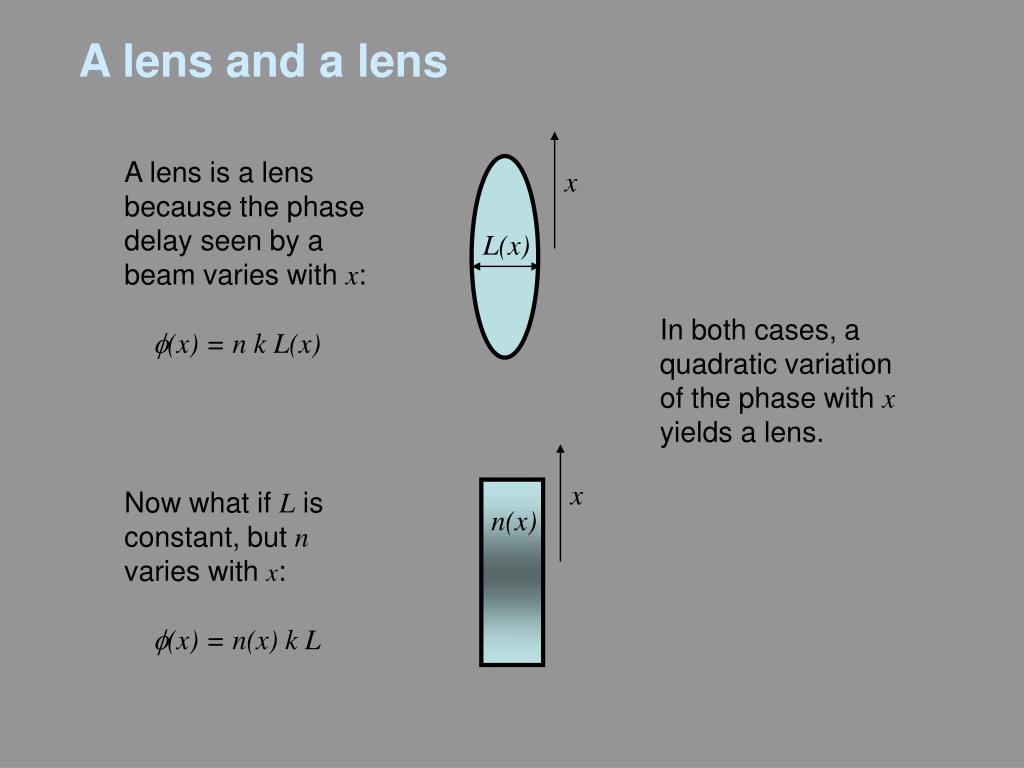

45. x x A lens and a lens A lens is a lens because the phase delay seen by a beam varies with x: f(x) = n k L(x) L(x) In both cases, a quadratic variation of the phase with x yields a lens. Now what if L is constant, but n varies with x: f(x) = n(x) k L n(x)

46. Kerr-lens mode-locking • A medium’s refractive index depends on the intensity. • n(I) = n0 + n2I • If the pulse is more intense in the center, it induces a lens. • Placing an aperture at the focus favors a short pulse. Losses are too high for a low-intensity cw mode to lase, but not for high-intensity fs pulse. Kerr-lensing is the mode-locking mechanism of the Ti:Sapphire laser.

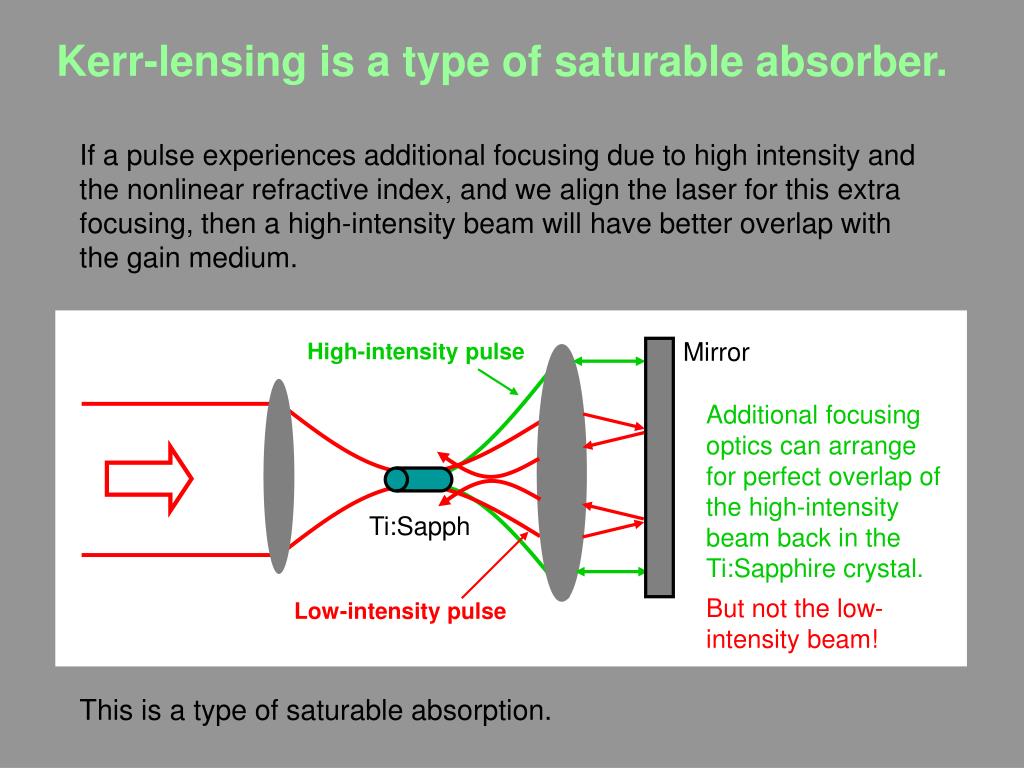

47. Mirror Additional focusing optics can arrange for perfect overlap of the high-intensity beam back in the Ti:Sapphire crystal. But not the low-intensity beam! Kerr-lensing is a type of saturable absorber. If a pulse experiences additional focusing due to high intensity and the nonlinear refractive index, and we align the laser for this extra focusing, then a high-intensity beam will have better overlap with the gain medium. High-intensity pulse Ti:Sapph Low-intensity pulse This is a type of saturable absorption.

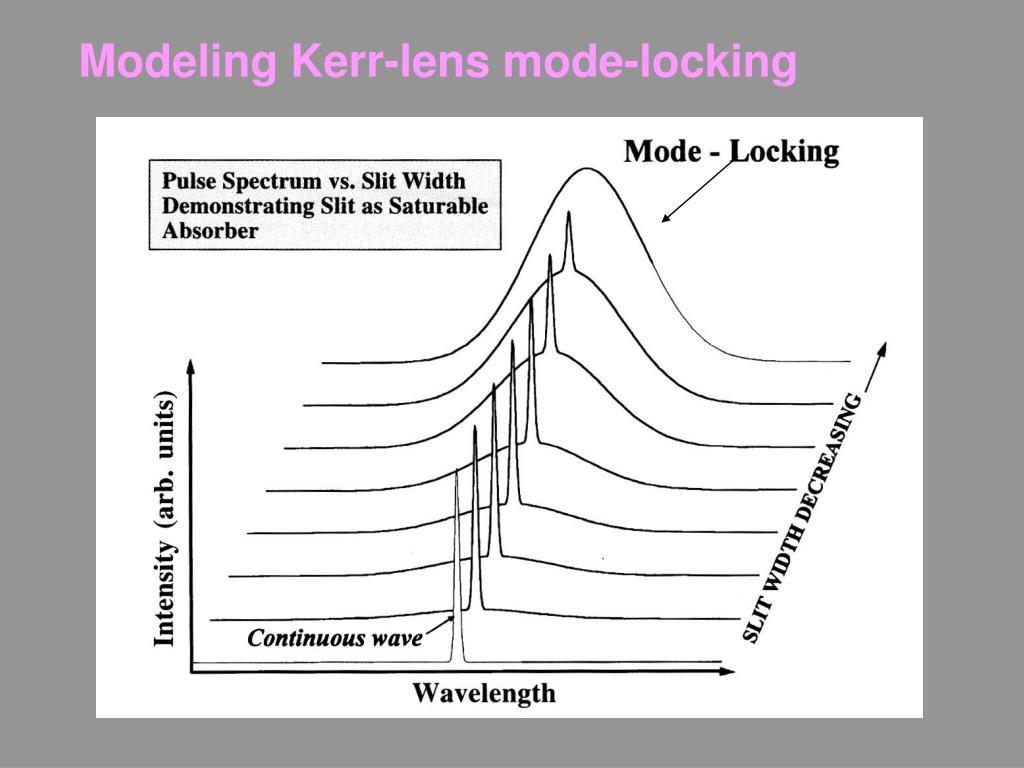

48. Modeling Kerr-lens mode-locking

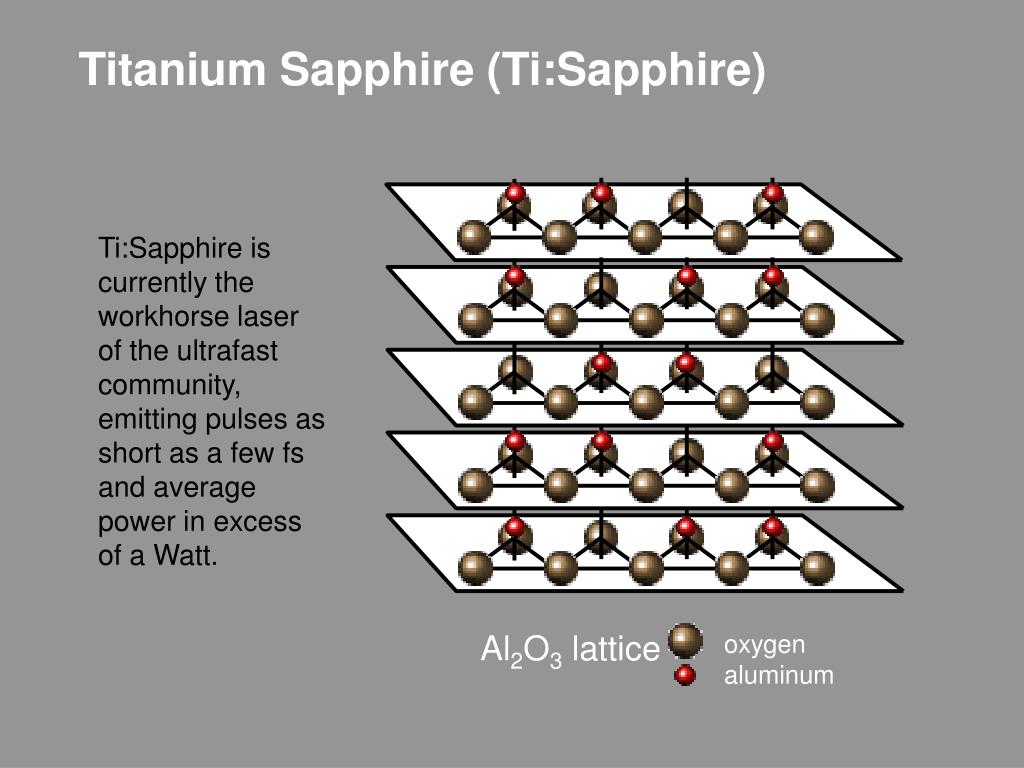

49. Al2O3 lattice oxygen aluminum Titanium Sapphire (Ti:Sapphire) Ti:Sapphire is currently the workhorse laser of the ultrafast community, emitting pulses as short as a few fs and average power in excess of a Watt.
