  1. Osteomyelitis in Children Dr. Robert Deane Janeway

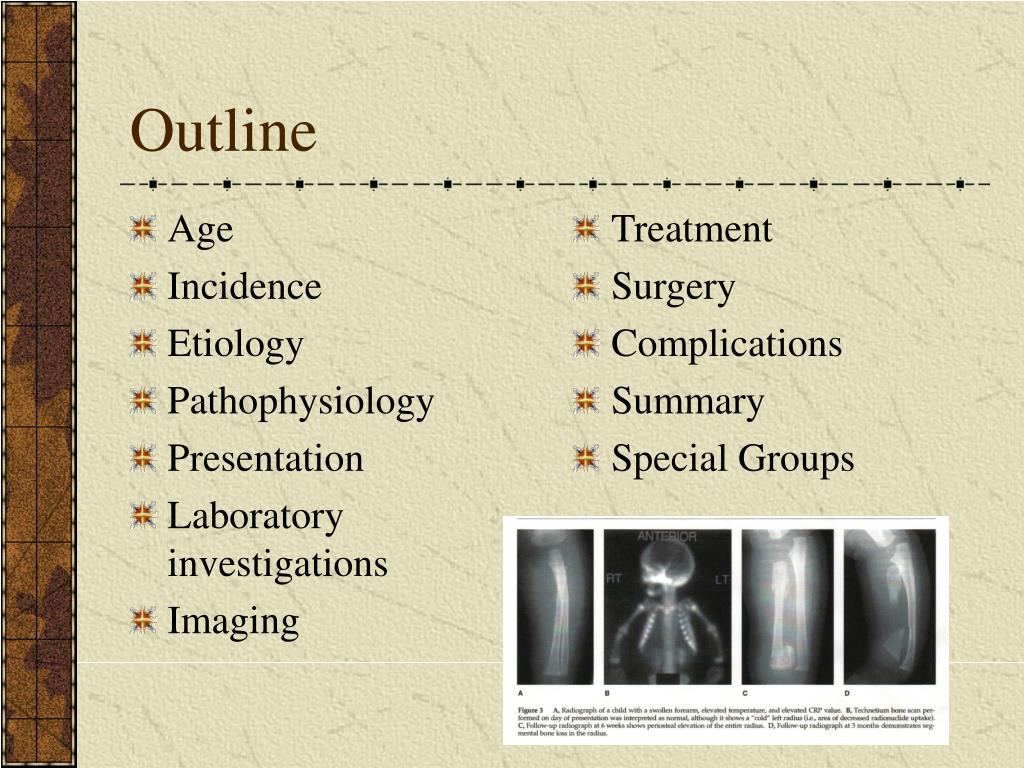

  2. Age Incidence Etiology Pathophysiology Presentation Laboratory investigations Imaging Treatment Surgery Complications Summary Special Groups Outline

  3. Age / Incidence / Etiology • 1/1000 – 1/ 20 000 • Male > Female • Pre antibiotic era ……20-50% mortality

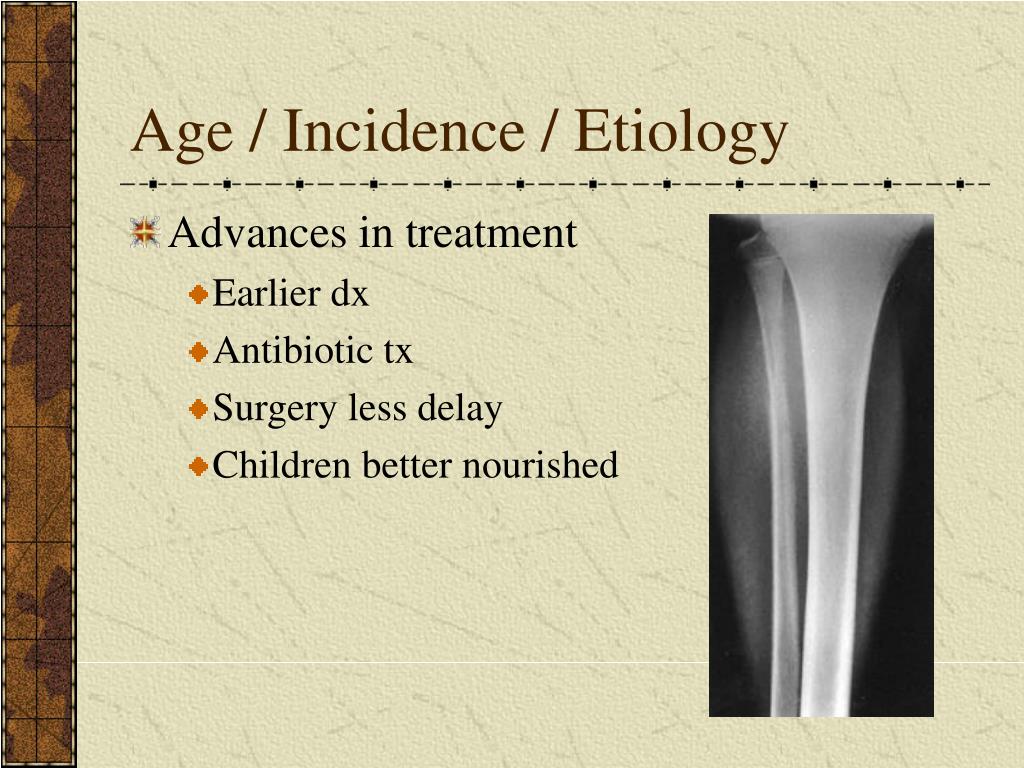

  4. Age / Incidence / Etiology • Advances in treatment • Earlier dx • Antibiotic tx • Surgery less delay • Children better nourished

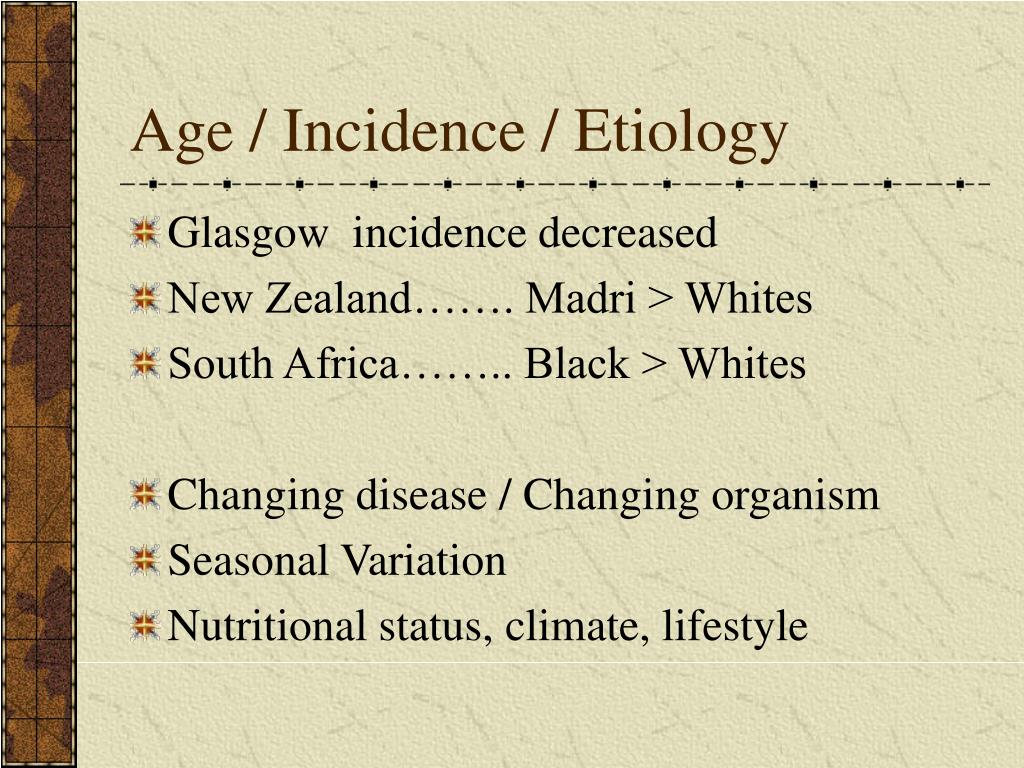

  5. Age / Incidence / Etiology • Glasgow incidence decreased • New Zealand……. Madri > Whites • South Africa…….. Black > Whites • Changing disease / Changing organism • Seasonal Variation • Nutritional status, climate, lifestyle

  6. Age / Incidence / Etiology • H Flu • Big cause 1970’s • 1-4 yrs • Now decreased due to vaccinations • Kingella Kingae • OM in older kids • Septic Arthritis 1-3 yrs • Neonates separate group

  7. Pathophysiology • Poorly defined • Direct inoculation • Hematogenous spread • Local invasion

  8. Pathophysiology • Infection • Starts in Metaphysis • Arteriole Loop / Venous Lakes • Spread via Volkman’s canal / Haversian system • Endothelium Leaks

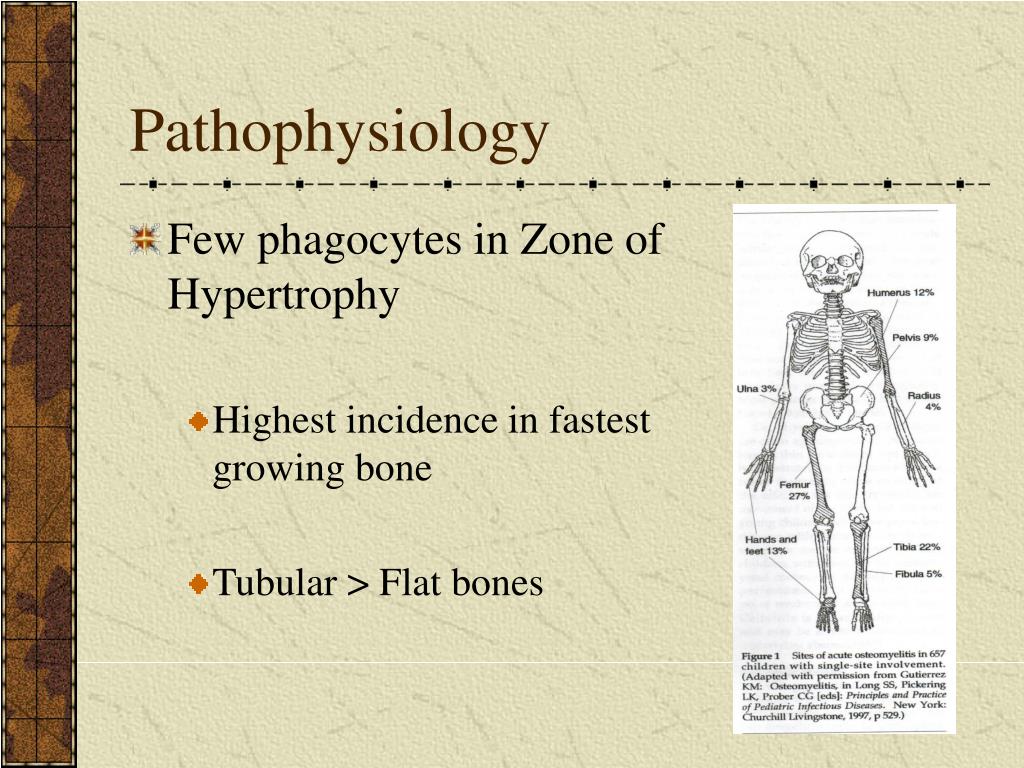

  9. Pathophysiology • Few phagocytes in Zone of Hypertrophy • Highest incidence in fastest growing bone • Tubular > Flat bones

  10. Pathophysiology • Gaps in endothelium metaphyseal vessel  • Bacteria pass  • Adhere to Type 1 collagen  • Increase pressure in bone/ decrease blood flow  • Bone infarction / Dead Bone (sequestrum)

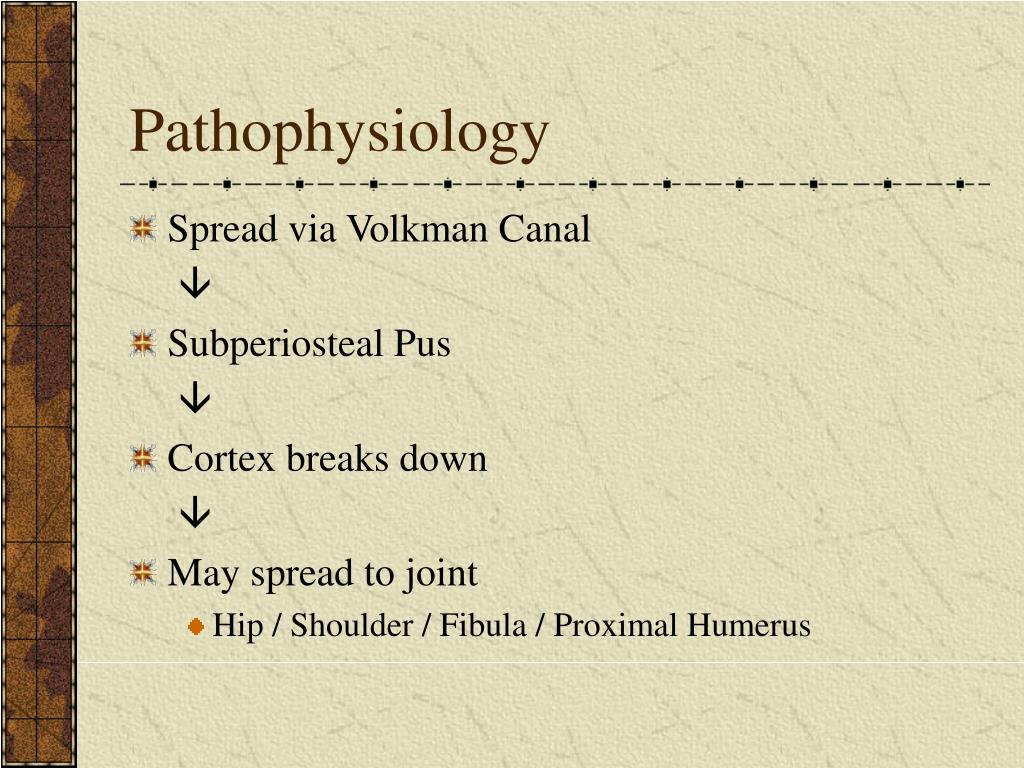

  11. Pathophysiology • Spread via Volkman Canal  • Subperiosteal Pus  • Cortex breaks down  • May spread to joint • Hip / Shoulder / Fibula / Proximal Humerus

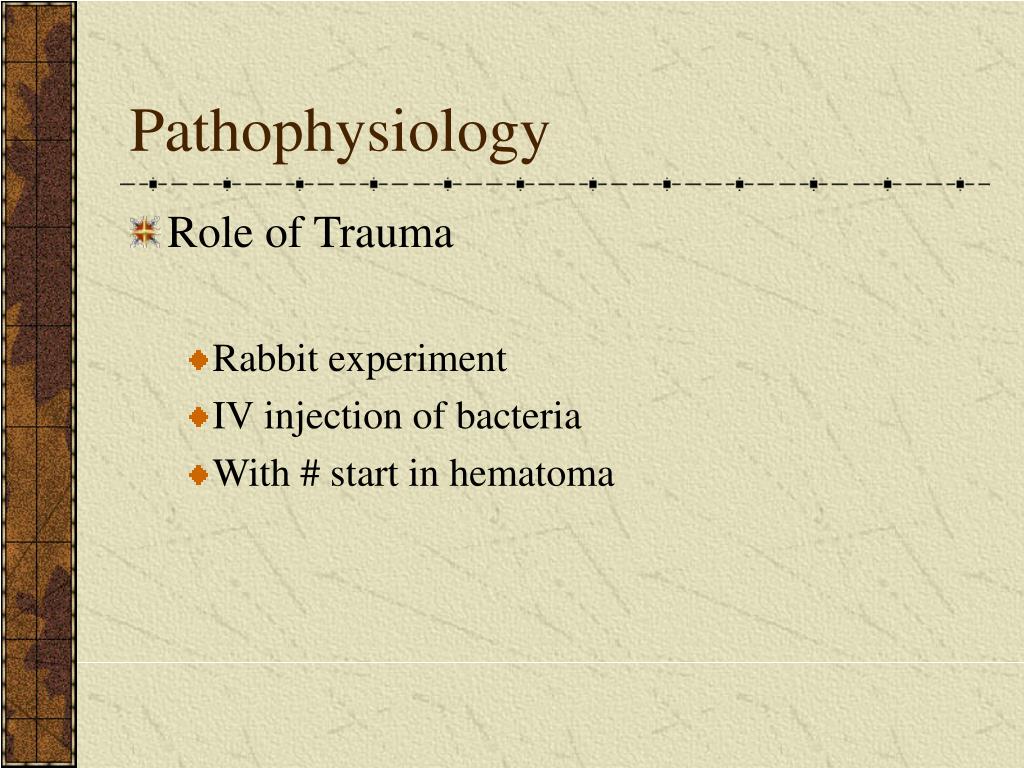

  12. Pathophysiology • Role of Trauma • Rabbit experiment • IV injection of bacteria • With # start in hematoma

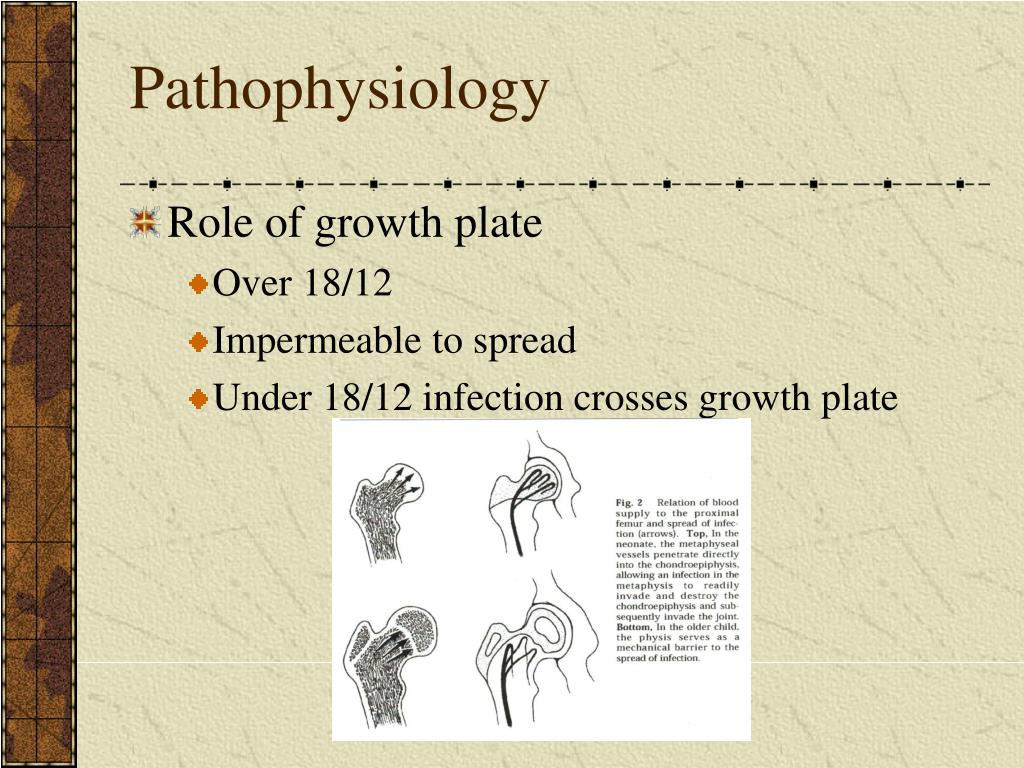

  13. Pathophysiology • Role of growth plate • Over 18/12 • Impermeable to spread • Under 18/12 infection crosses growth plate

  14. Pathophysiology

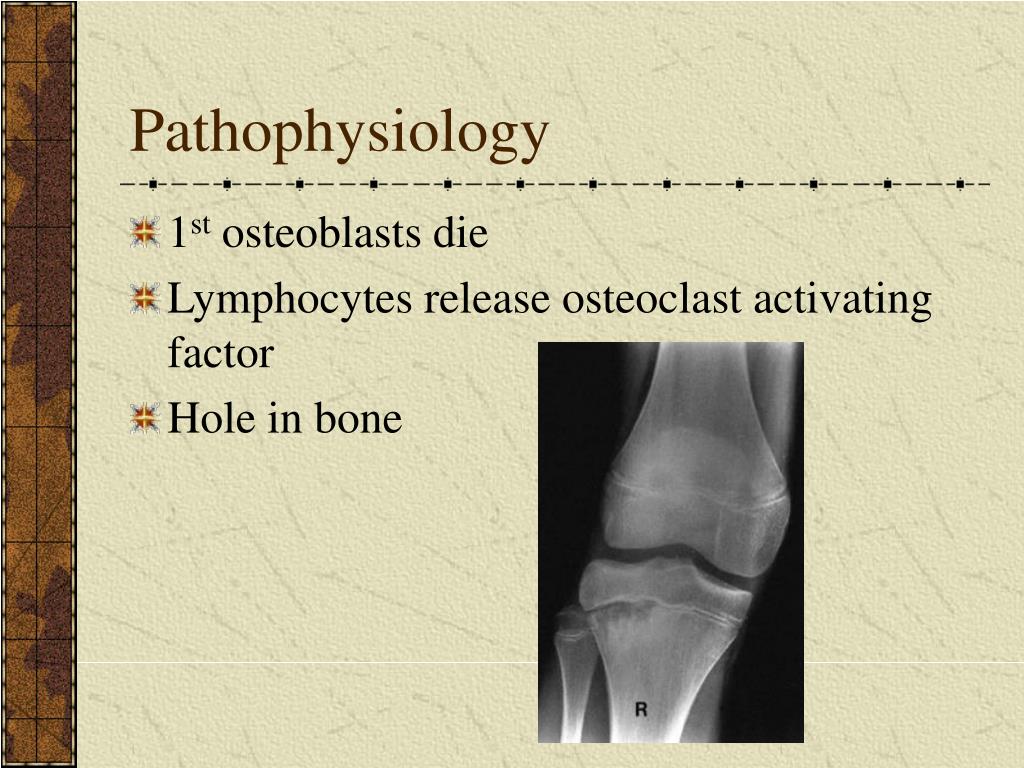

  15. Pathophysiology • 1st osteoblasts die • Lymphocytes release osteoclast activating factor • Hole in bone

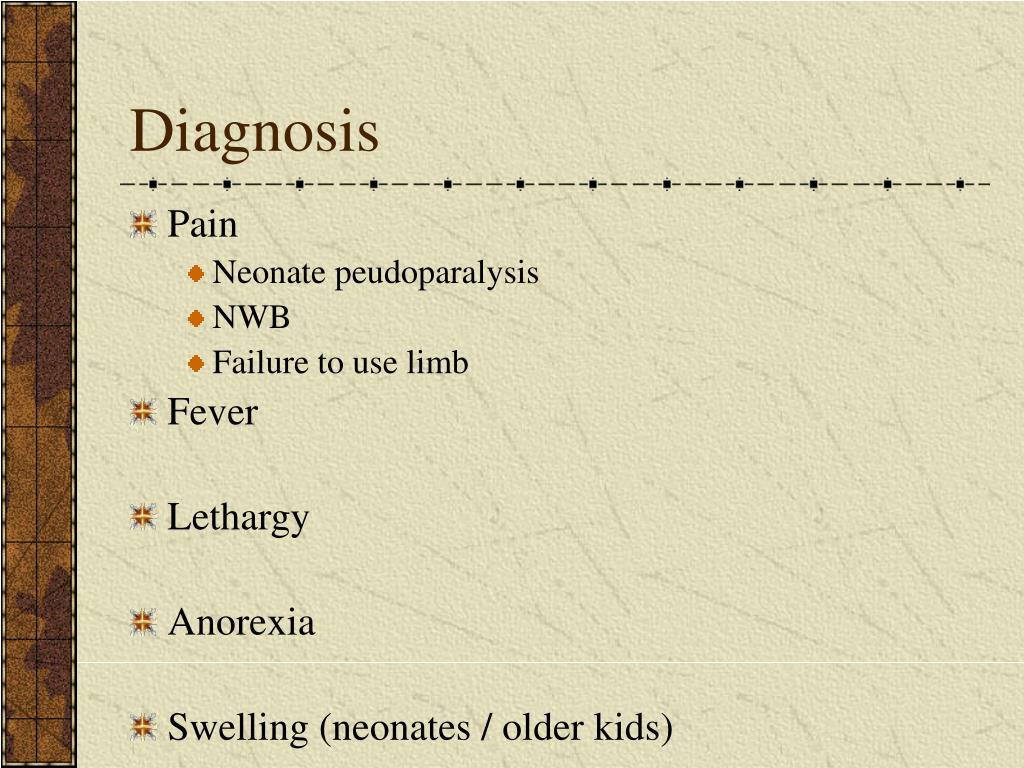

  16. Diagnosis • Pain • Neonate peudoparalysis • NWB • Failure to use limb • Fever • Lethargy • Anorexia • Swelling (neonates / older kids)

  17. Pathophysiology • Bloodwork • CBC Diff • ESR • CRP • Blood Culture

  18. Pathophysiology • WBC increased 30-40% • Left Shift 65% • ESR increased 91%……….24-36hrs • CRP increased 97%…………4-6hrs

  19. Pathophysiology • CRP • More rapid than ESR • 2-4 hrs …..peak 72hrs • 10-30x normal • Systemic ds (trauma, tumor)

  20. Pathophysiology • Blood Culture • + 30-60% • Decreased with antibiotic • Multiple cultures no significant increase in yield • 48 hours to get most organisms

  21. Diagnosis • Pus aspiration • 70% bone + cultures • Septic arthritis • Gram stain • Lymphocyte count • % polymorphs • > 80 000 = Septic arthritis • > 50 000 in some series • 80 000 also in JRA

  22. Diagnosis • Do blood and joint cultures • One or other not always +ve in same pt • Gram stain +ve 1/3 bone and joint aspirations • Future looking for bacteria DNA / RNA

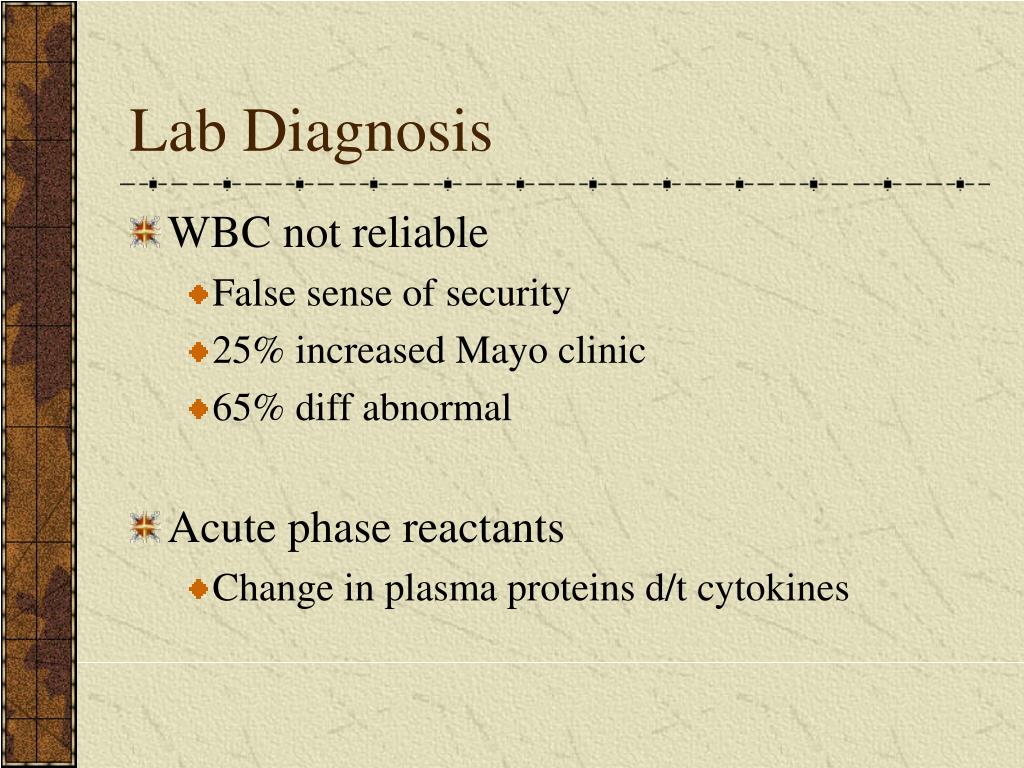

  23. Lab Diagnosis • WBC not reliable • False sense of security • 25% increased Mayo clinic • 65% diff abnormal • Acute phase reactants • Change in plasma proteins d/t cytokines

  24. Diagnosis • ESR • Nonspecific acute phase reactant • Depends on fibrinogen concentration • Increased 48-72 hrs • Increased in 90% of cases • Not affected by antibiotic tx • CRP • Increased in 98% of cases

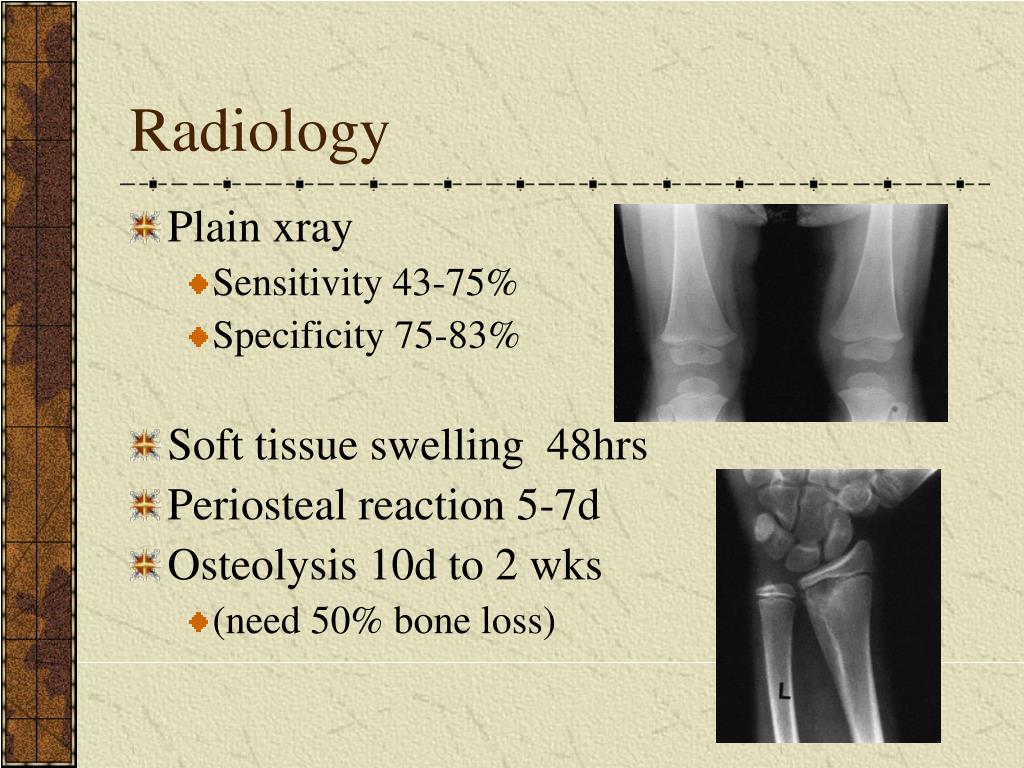

  25. Radiology • Plain xray • Sensitivity 43-75% • Specificity 75-83% • Soft tissue swelling 48hrs • Periosteal reaction 5-7d • Osteolysis 10d to 2 wks • (need 50% bone loss)

  26. Radiology • Tc99 • 24-48hrs +ve • Bone aspiration DOES NOT give false +ve • Decreased uptake in early phase d/t increased pressure • “cold” scan up to 100% PPV

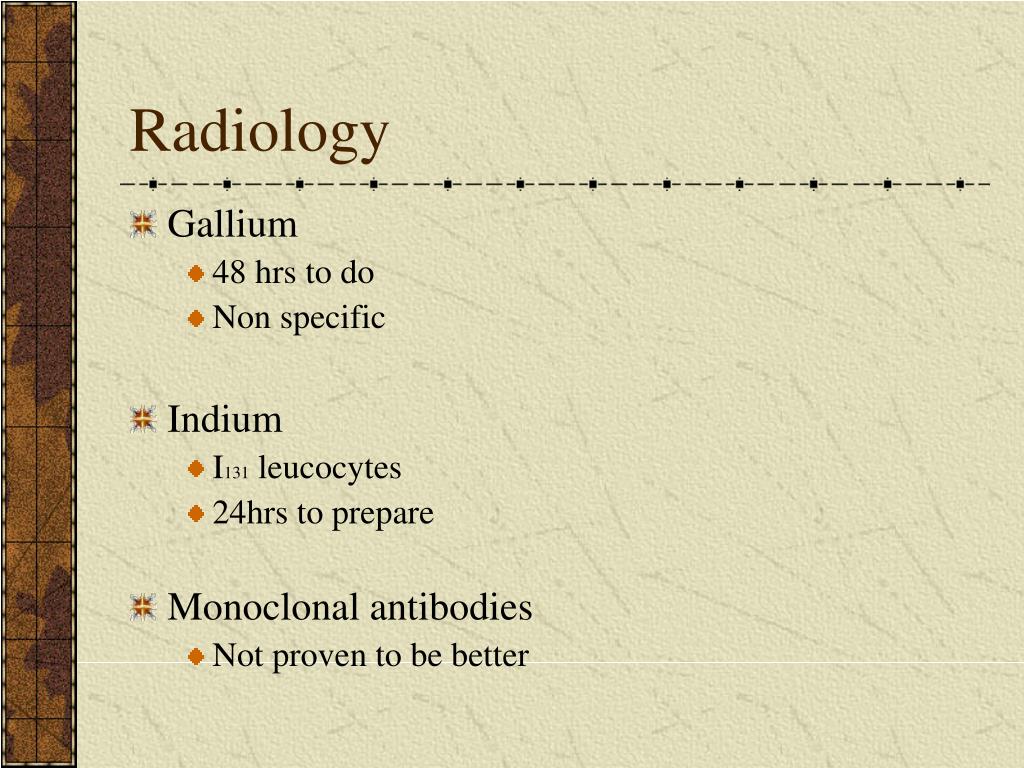

  27. Radiology • Gallium • 48 hrs to do • Non specific • Indium • I131 leucocytes • 24hrs to prepare • Monoclonal antibodies • Not proven to be better

  28. Radiology • MRI • Sensitivity 83-100% • Specificity 75-100% • PPV = Tc99 • Marrow and soft tissue swelling • Good in spine and pelvis

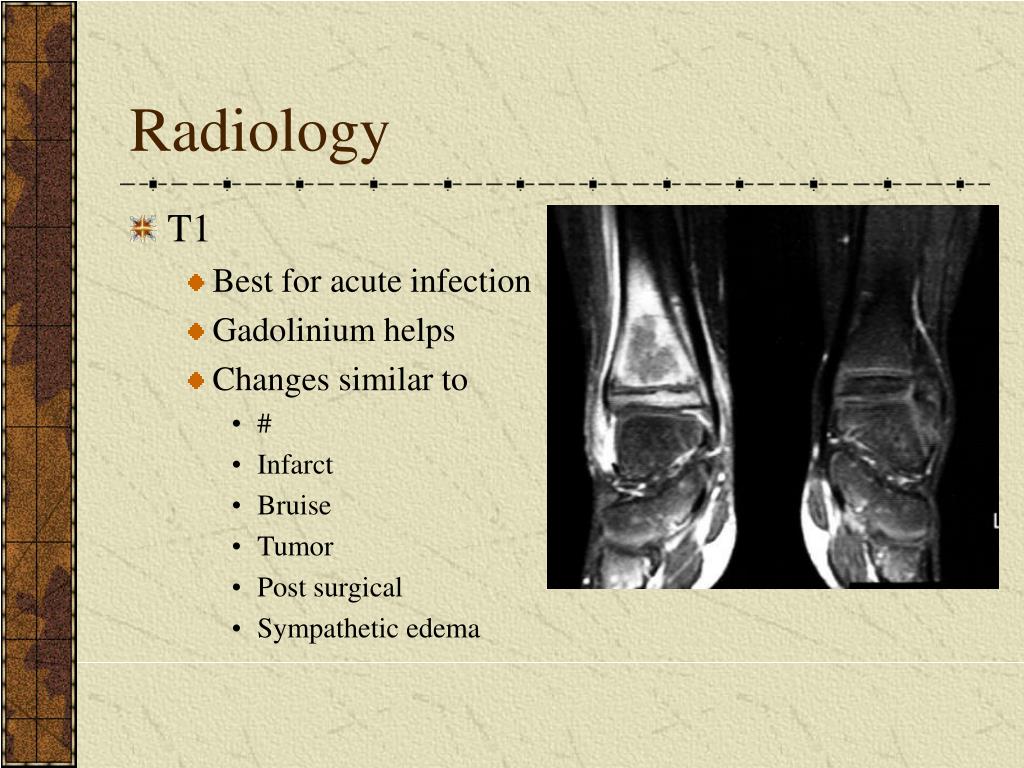

  29. Radiology • T1 • Best for acute infection • Gadolinium helps • Changes similar to • # • Infarct • Bruise • Tumor • Post surgical • Sympathetic edema

  30. Radiology • CT • Gas • sequestrum

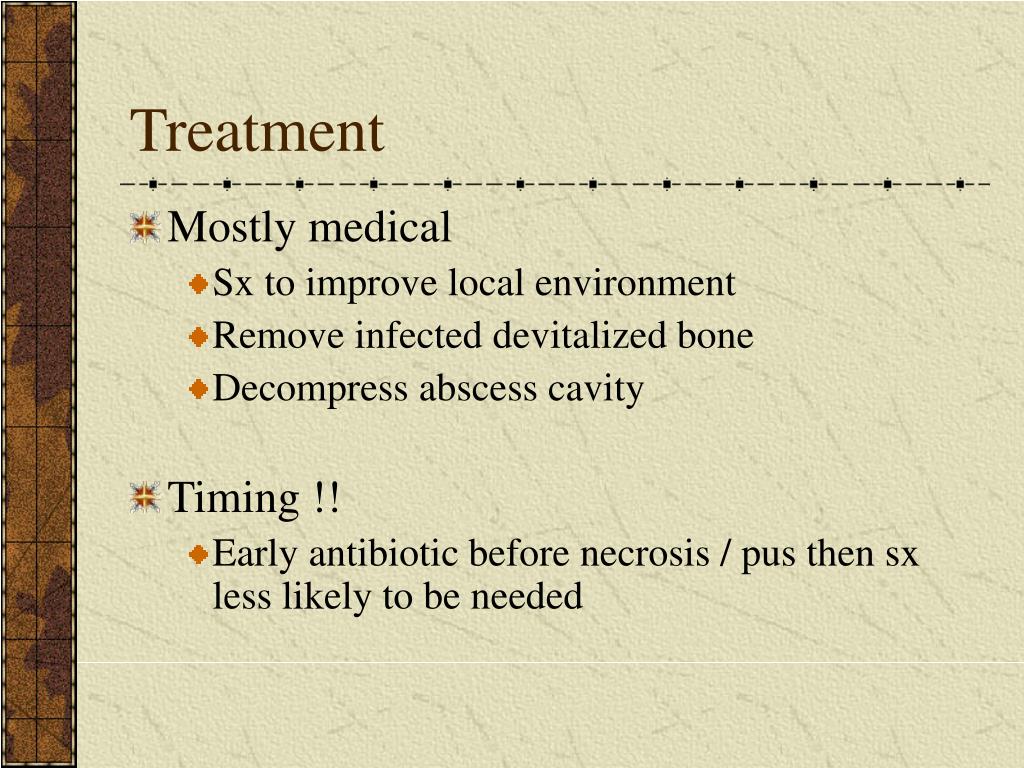

  31. Treatment • Mostly medical • Sx to improve local environment • Remove infected devitalized bone • Decompress abscess cavity • Timing !! • Early antibiotic before necrosis / pus then sx less likely to be needed

  32. Treatment • Antibiotic treatment • Parenteral / oral combinations • Often empirical • Serum level more important than route • Follow WBC / ESR/ CRP • Organism / sensitivity

  33. Treatment • Treatment Failure • High doses • Poor oral absorption / compliance • Inadequate monitoring of serum levels • Delay in Sx

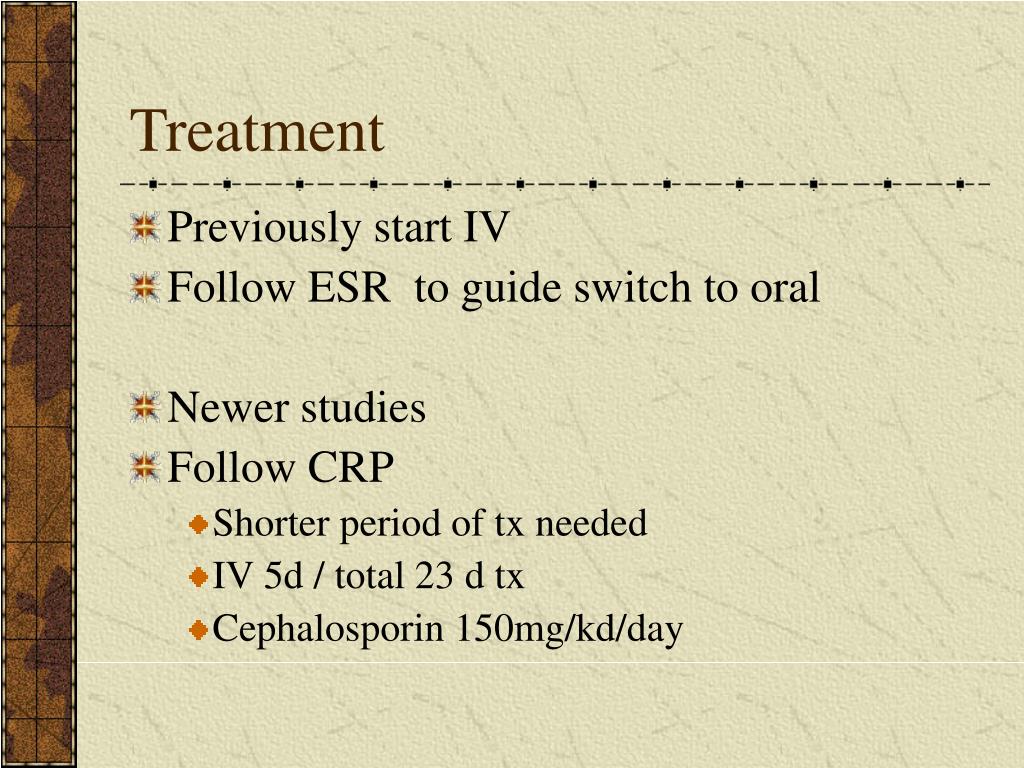

  34. Treatment • Previously start IV • Follow ESR to guide switch to oral • Newer studies • Follow CRP • Shorter period of tx needed • IV 5d / total 23 d tx • Cephalosporin 150mg/kd/day

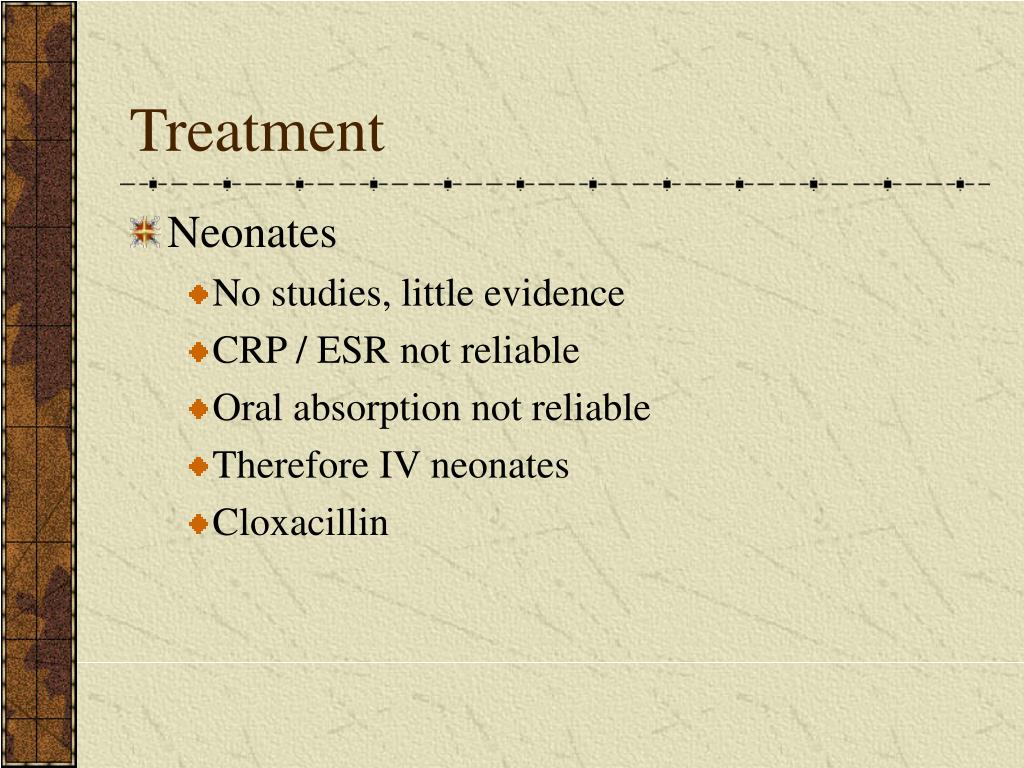

  35. Treatment • Neonates • No studies, little evidence • CRP / ESR not reliable • Oral absorption not reliable • Therefore IV neonates • Cloxacillin

  36. Treatment • Longer treatment required • Pelvis • Vertebrae • Diskitis • Calcaneus

  37. Treatment • Surgical intervention • Controversial indications • Hole in bone not always Sx • If purulent aspirate Sx necessary • Sx less frequent with newer antibiotic • 22-83% earlier studies • 8-43% recent studies

  38. Treatment • Surgery Indicated • Subperiosteal Abscess • Soft Tissue abscess • Bone Abscess • Failure of clinical response to antibiotic • Associated septic arthritis

  39. Complications • Infection Complications • Recurrence • Chronic osteo • Pathologic fracture • Growth plate injury • Antibiotic Complications • Diarrhea • N+V • Rash • Thrombocytopenia • Neutropenia
