Desktop Trace Detector

Desktop Trace Detector enhanced with Ion Mobility Spectrometry (IMS) technology which detects explosives and drugs in airport security. It stimulate temperature <br>range up to 20u2103 to 55u2103 to ensure the precision and consistency of the analysis. Improved migration tube makes high-resolution detection possible for precise <br>material identification. Our Detector upgraded with renewable gas purification system that offer convenient detection

Kimber4
Download Presentation

Desktop Trace Detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

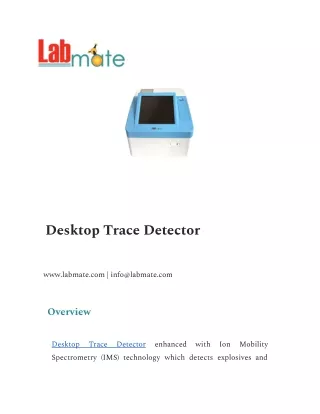

  1. Desktop Trace Detector www.labmate.com | info@labmate.com Overview Desktop Spectrometry (IMS) technology which detects explosives and Trace Detector enhanced with Ion Mobility

  2. drugs in airport security. It stimulate temperature range up to 20℃ to 55℃ to ensure the precision and consistency of the analysis. detection possible for precise material identification. Our Detector upgraded with renewable gas purification system that offer convenient detection Improved migration tube makes high-resolution Specifications : Drug/ Drugs, cocaine, opiates (Heroin and morphine), Narcotic cannabis (Marijuana and Hashish), Identificat methamphetamine, etc. ion Sensitivity 100 nanogram TNT Limit Operating -20℃ to 55℃ Temperat ure

  3. Alarm Audio and visual alert False ≤ 1% Alarm Rate Analysis < 8 seconds Time Warm-Up Within 15 minutes Time Built-In Clear the system within 10 seconds Clearing System Database Can add new type explosive Display 10 inch TFT color touchscreen

  4. Rechargea 2 to 4 hours ble Battery Power < 150 W Consumpt ion Power AC 187 to 240 V 50/60 Hz Supply Dimensio 400 × 380 × 180 mm n (L×W×H) Weight 15 Kg Features : - Detection of explosives in nanogram quantities and sulfur in pictogram proportions - Results in a maximum of 10 seconds, enabling screening and decision-making

  5. - Incorporates an auto-clearing mode to reduce pollutant inflow - Equipped with an audible and visual safety alert system - Promotes sustainability and cost-effectiveness with a reusable dipstick for sample collection - Features with built-in printer for instantaneous result documentation - Ensuring a detailed record of results with a large storage capacity to prevent data loss - Outfitted with a USB port for connecting to external devices and data transfer - Easy to use and portable due to its lightweight and ergonomic design Applications : Desktop Trace Detector has a crucial application in various educational departments, intended to find and examine traces of drugs, and explosives on surfaces. and research laboratories, and investigation Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
